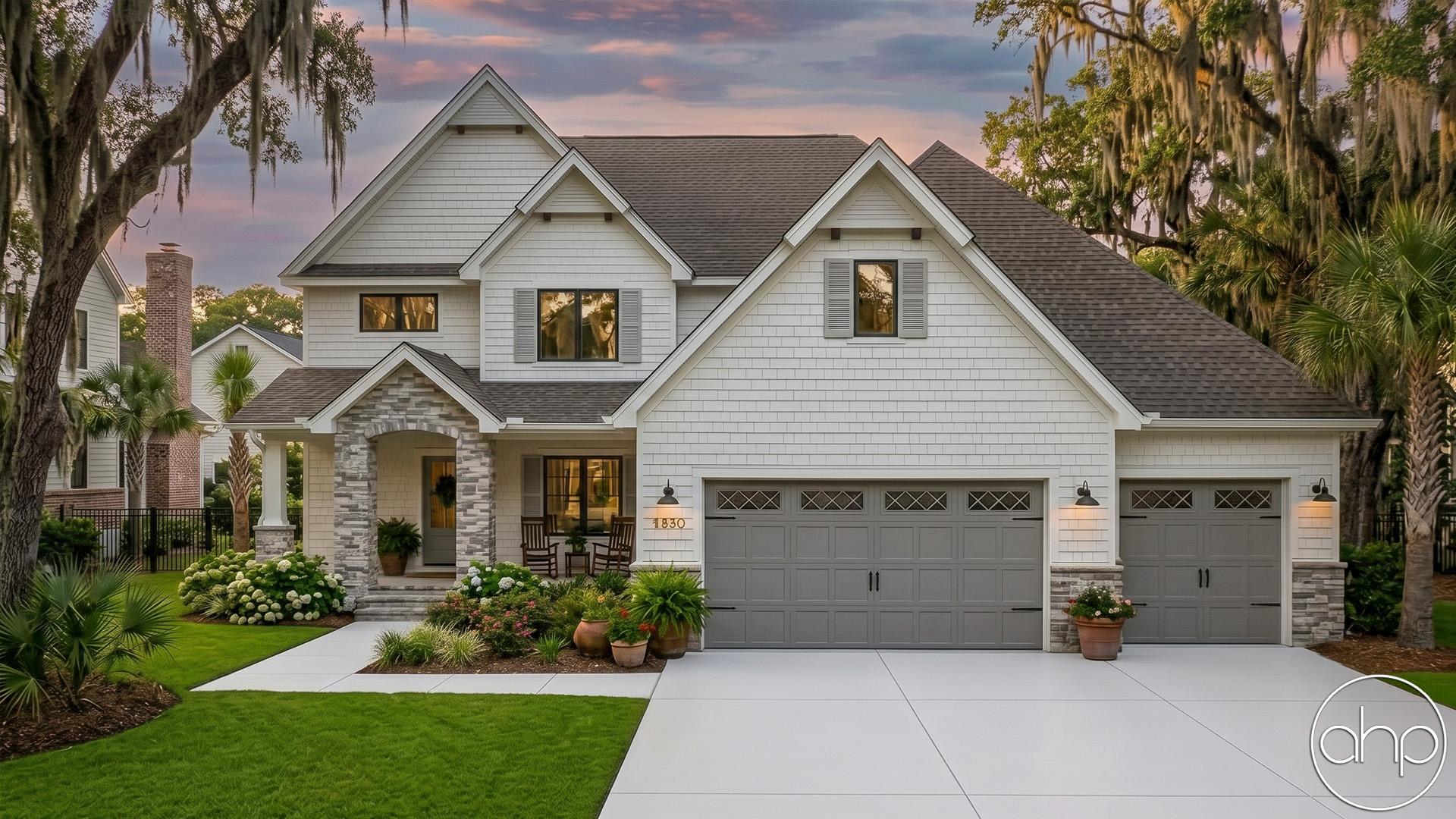

29369 | Hartmann


2 Story

2664 Sq. Ft.

4 Beds

4 Baths

3 Car
Did you know you can make alterations to this plan?

Floor Plans

Hartmann Floor PlanHartmann Floor Plan

Plan Description

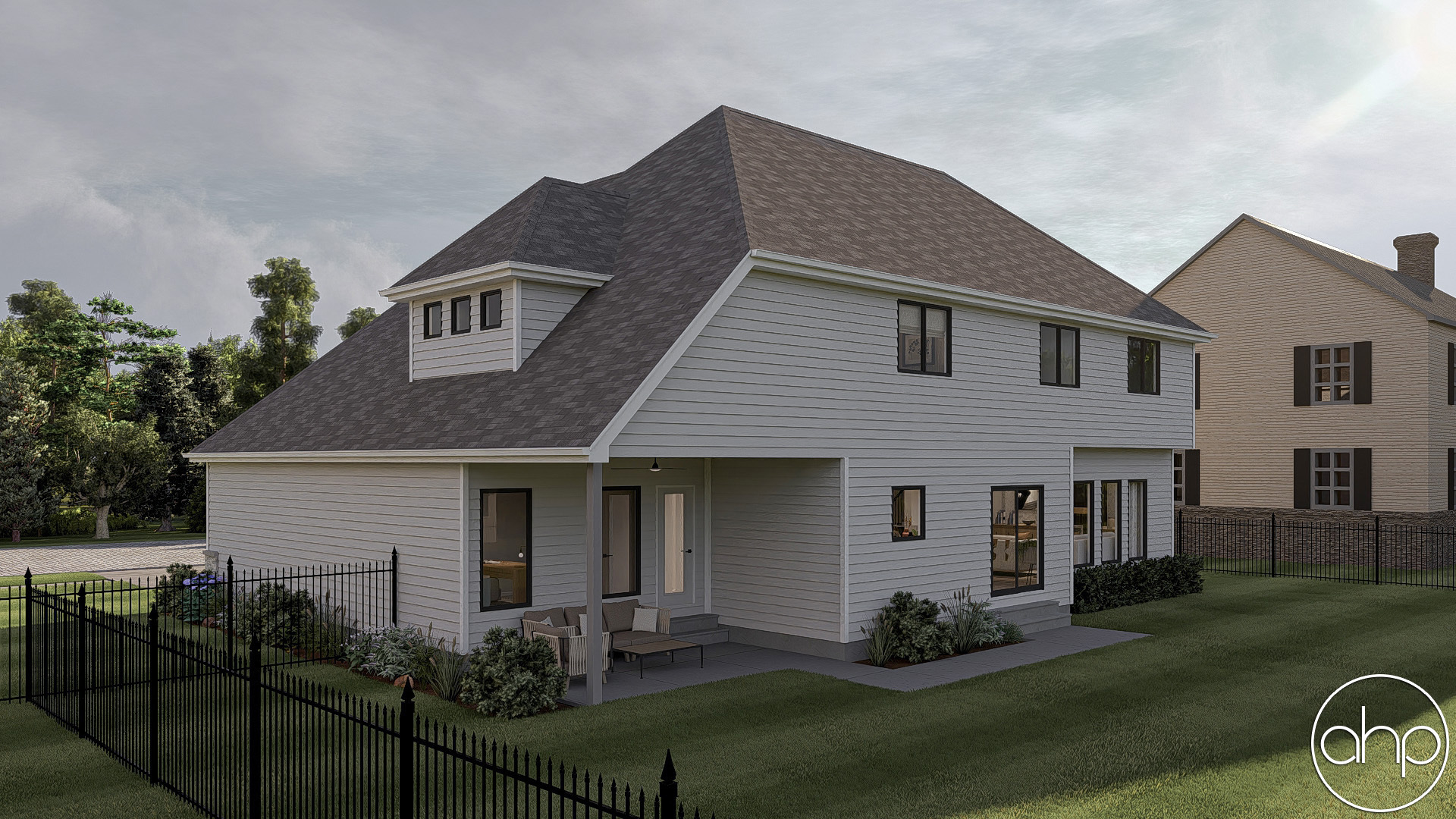

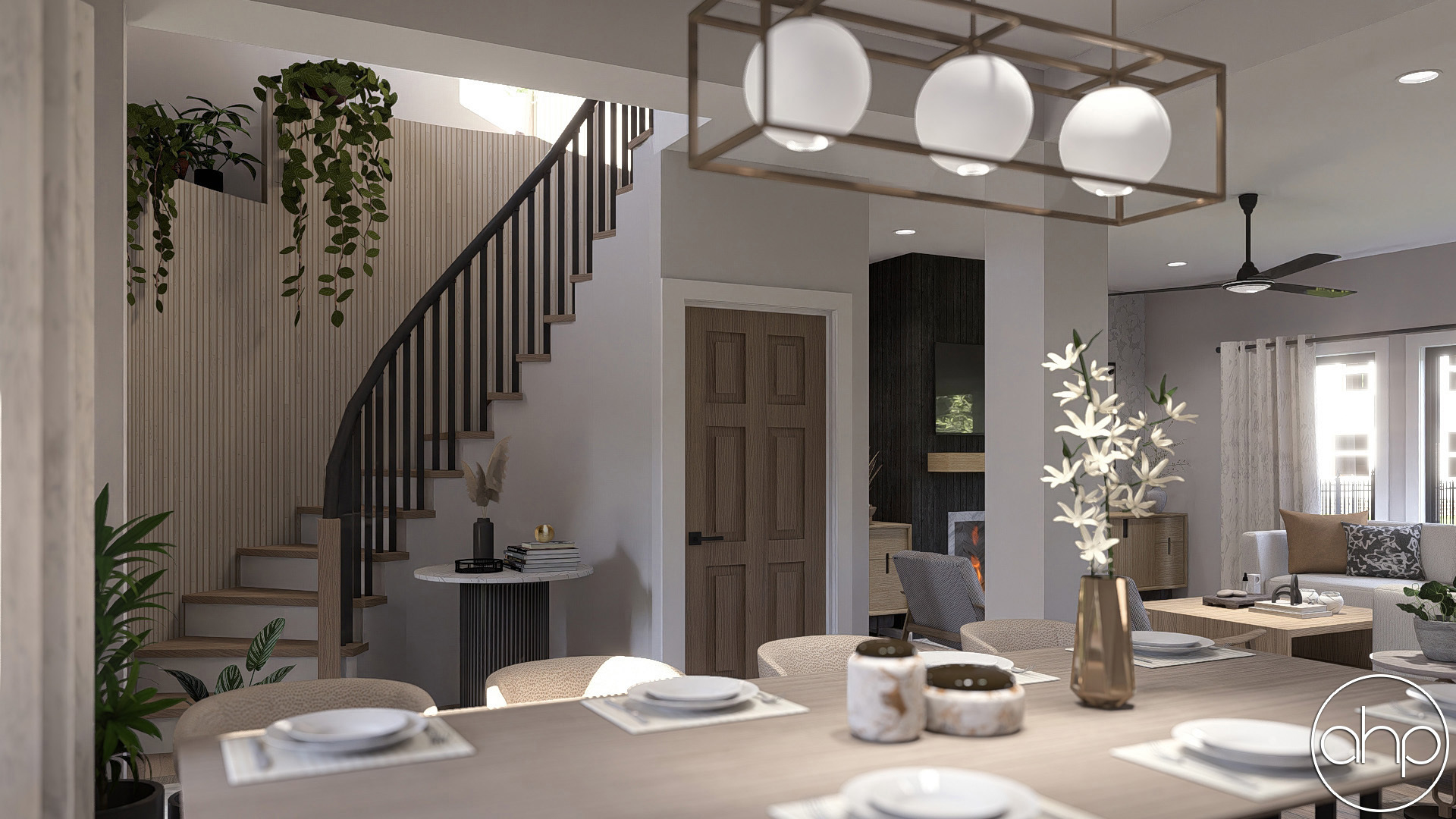

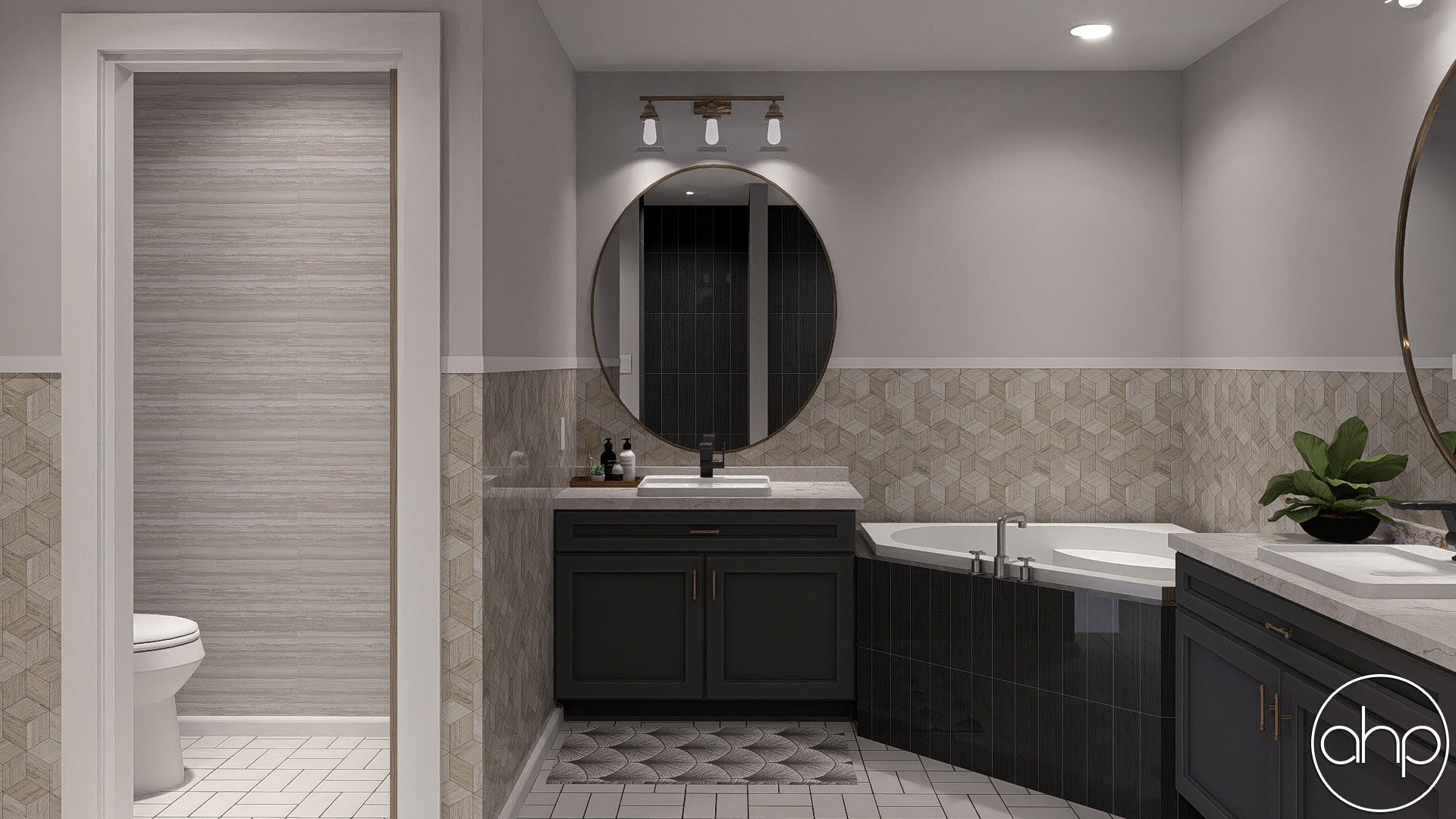

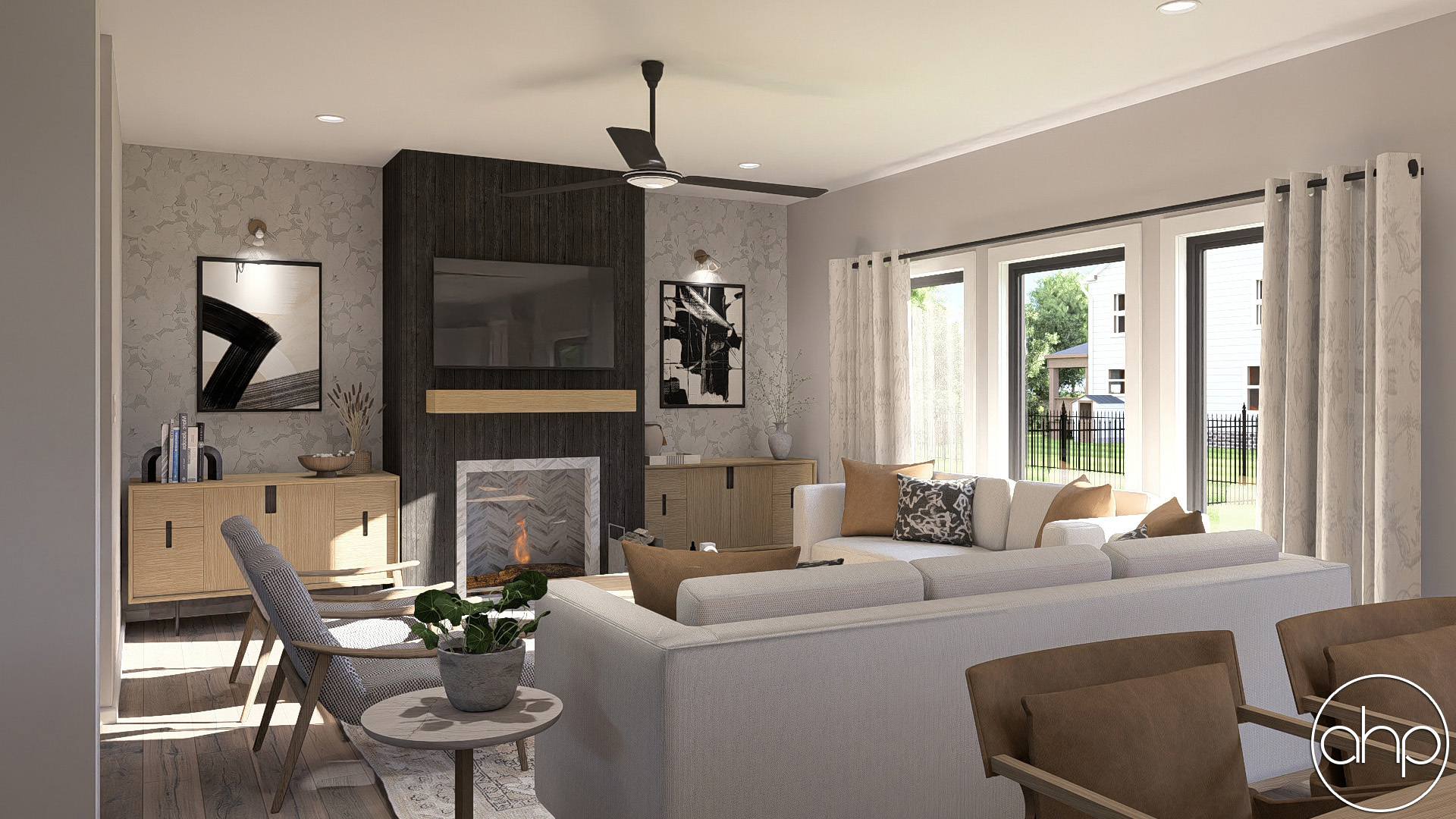

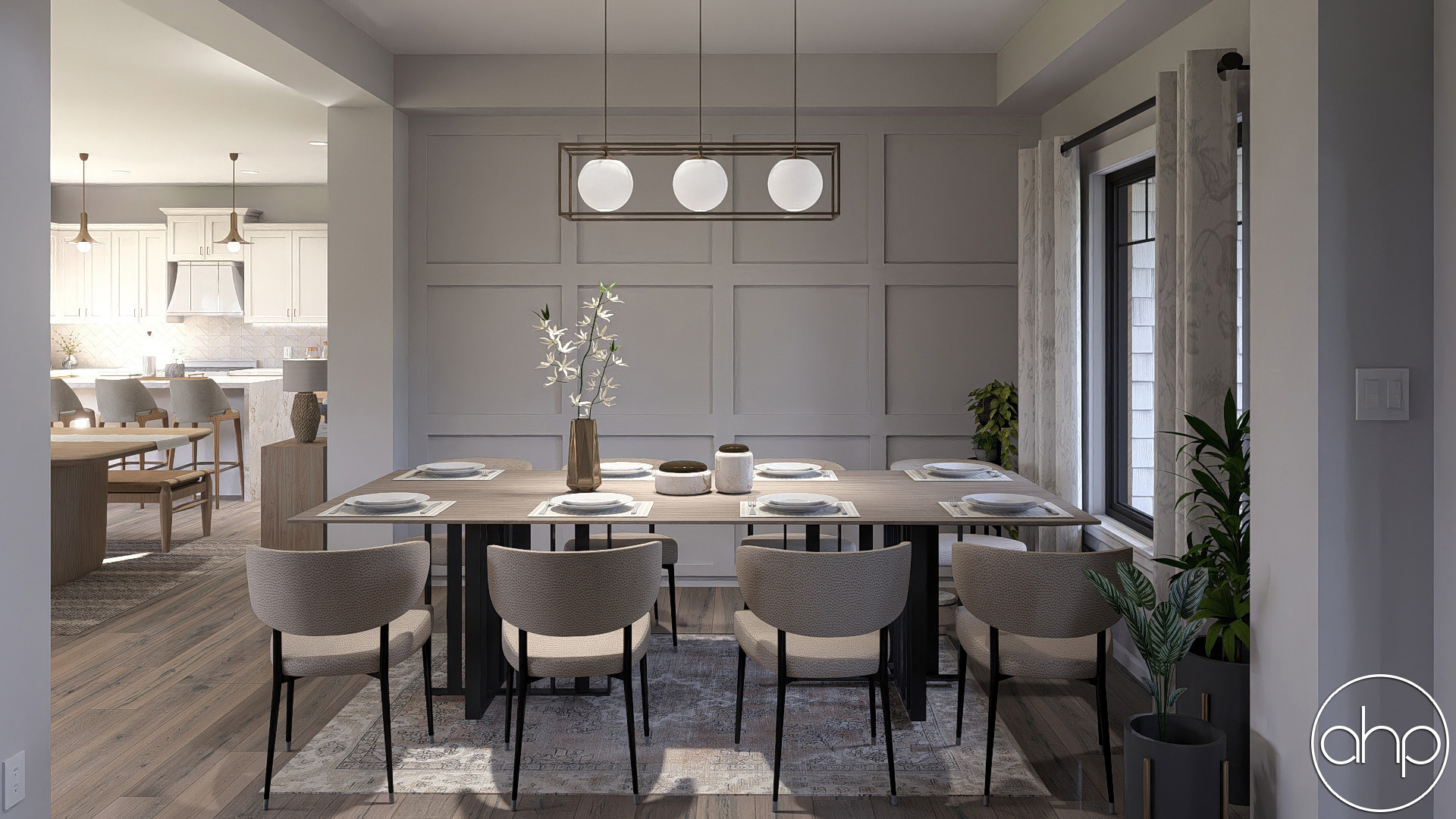

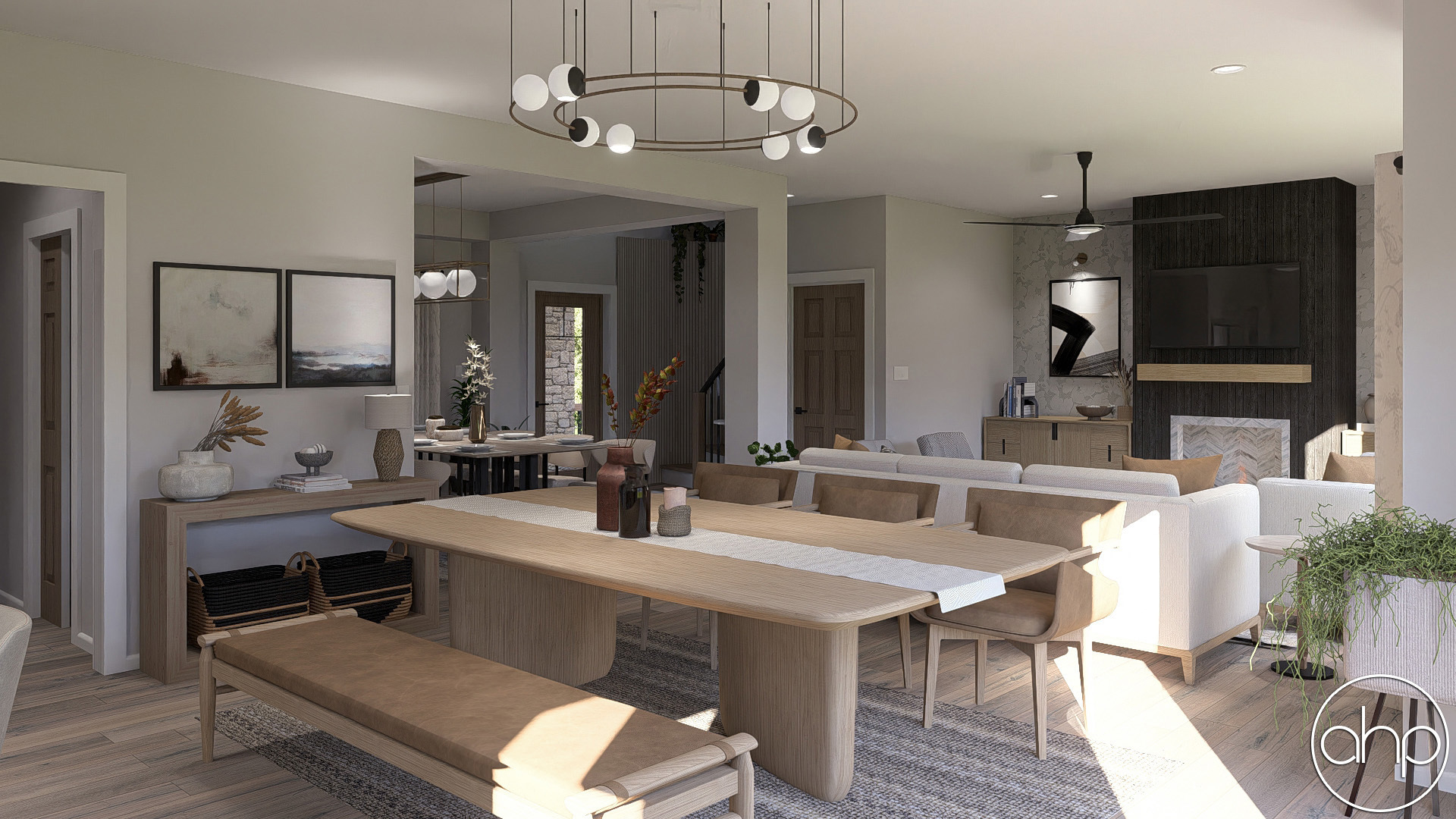

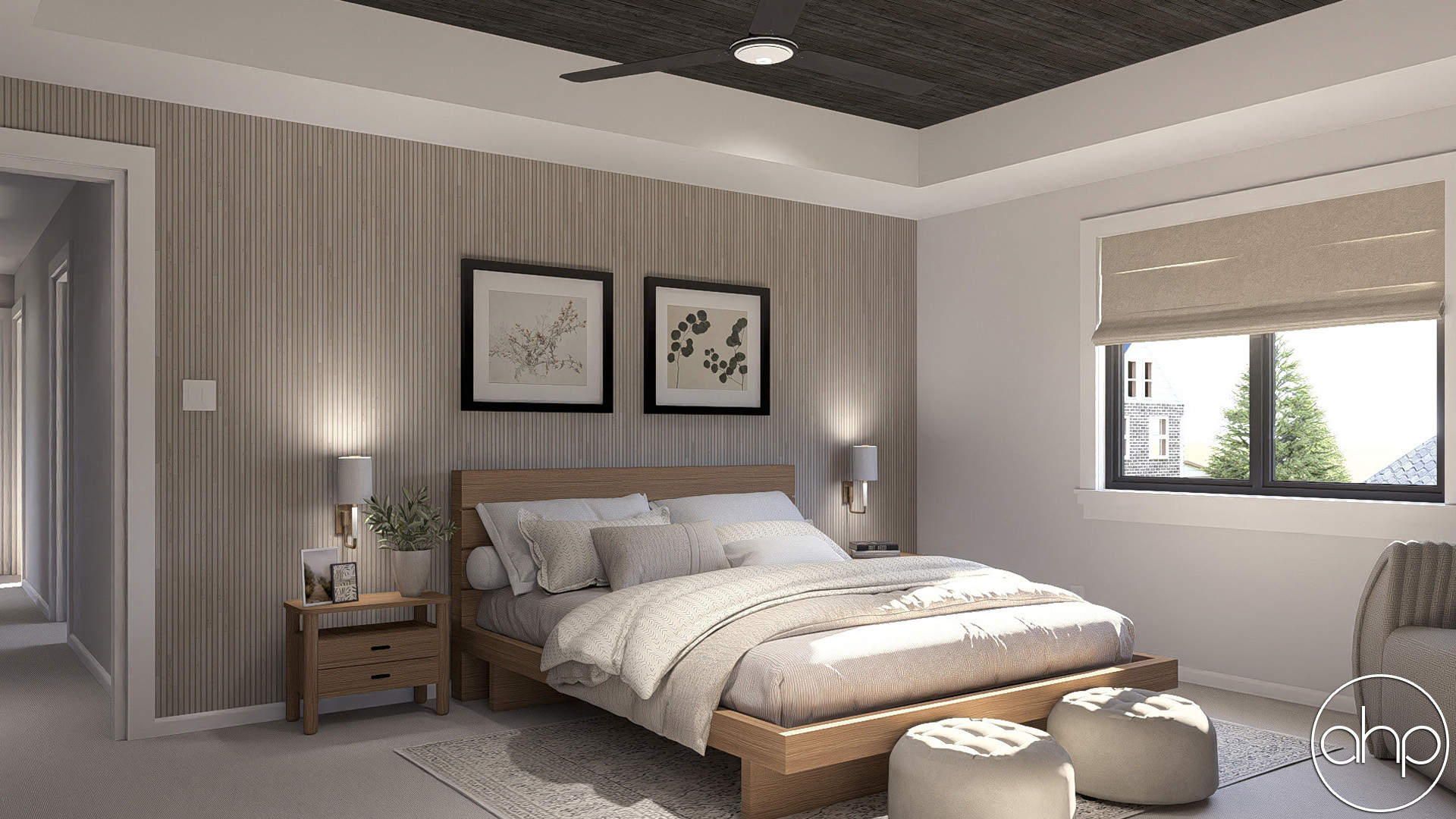

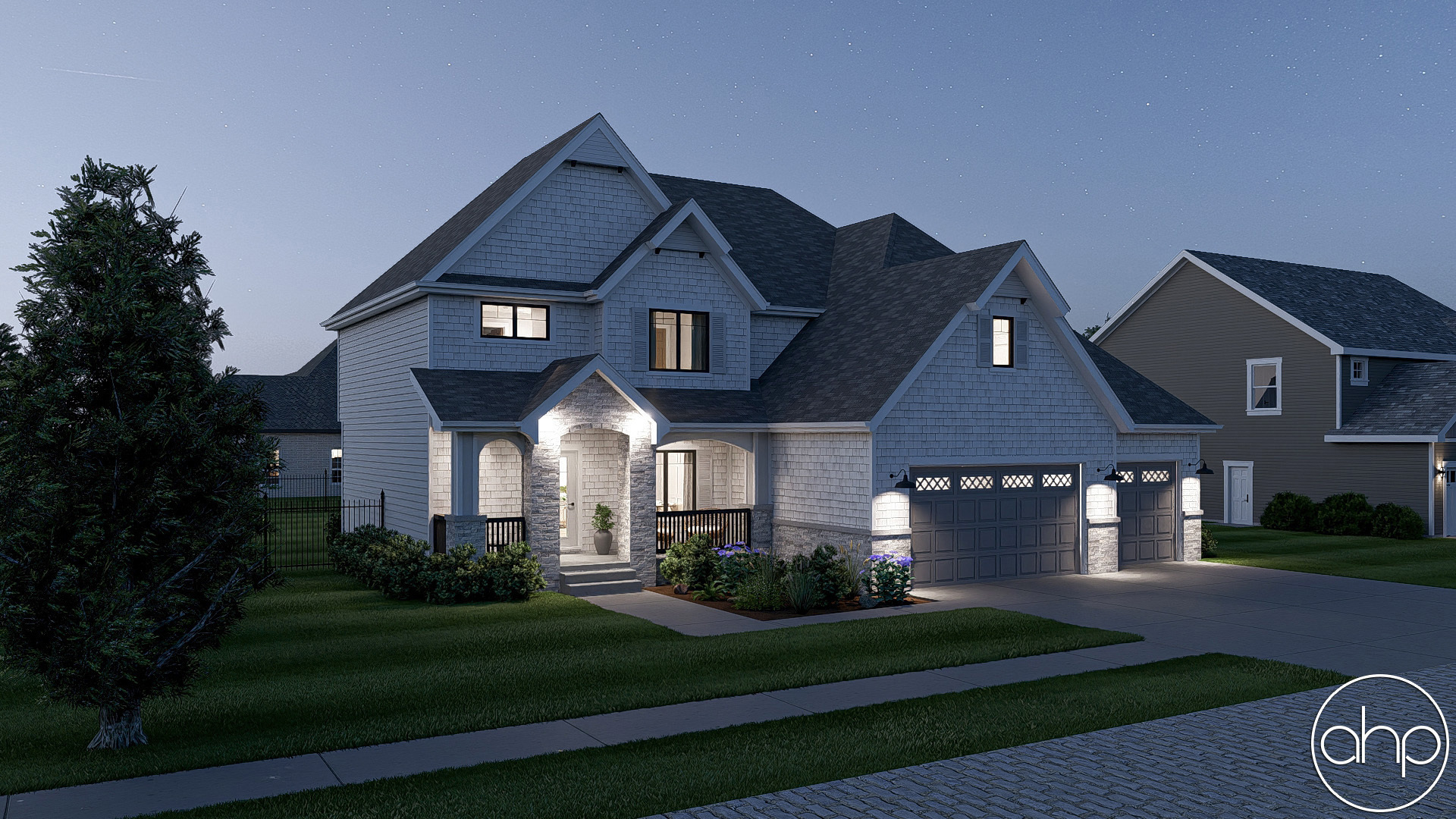

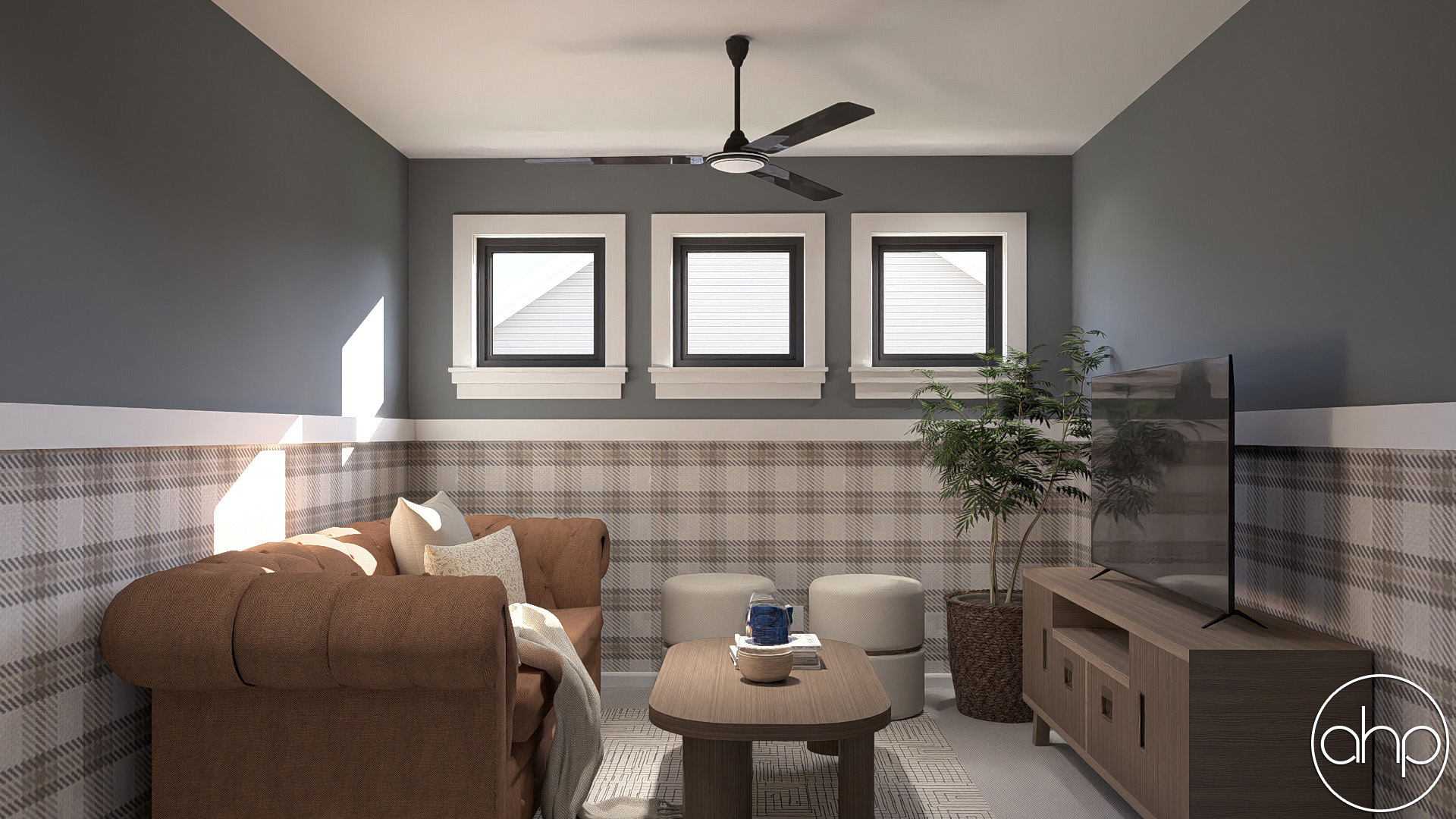

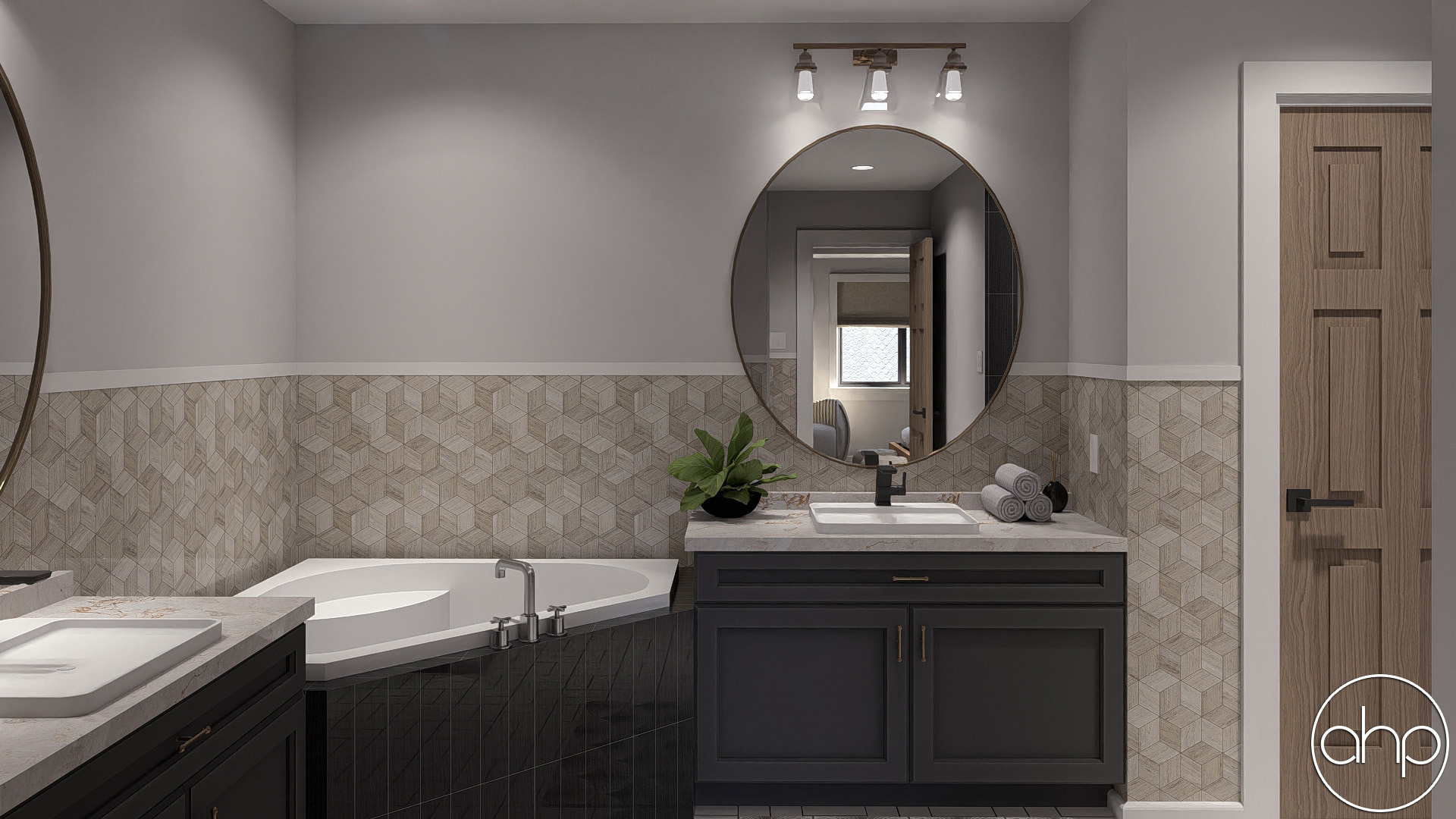

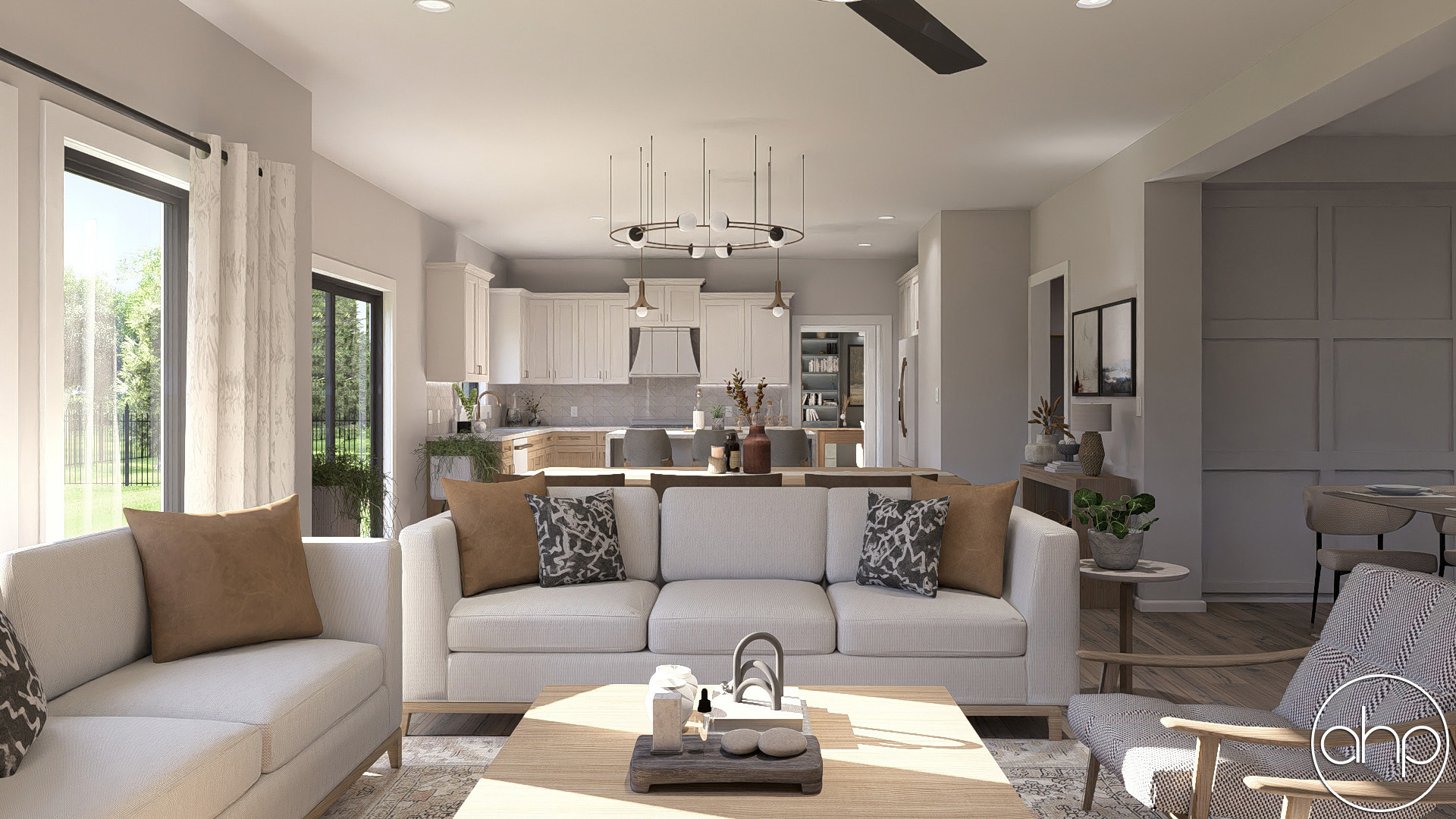

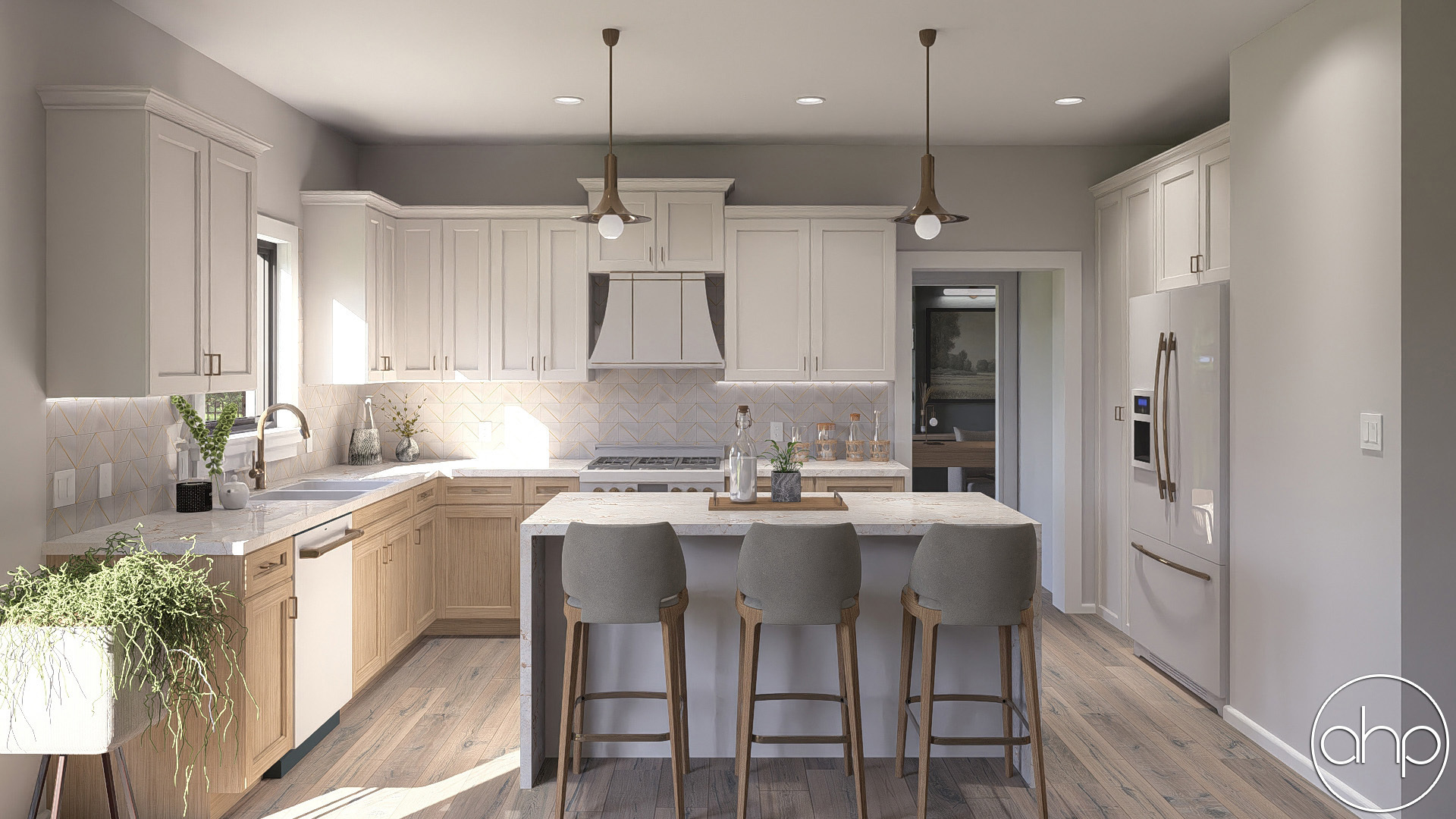

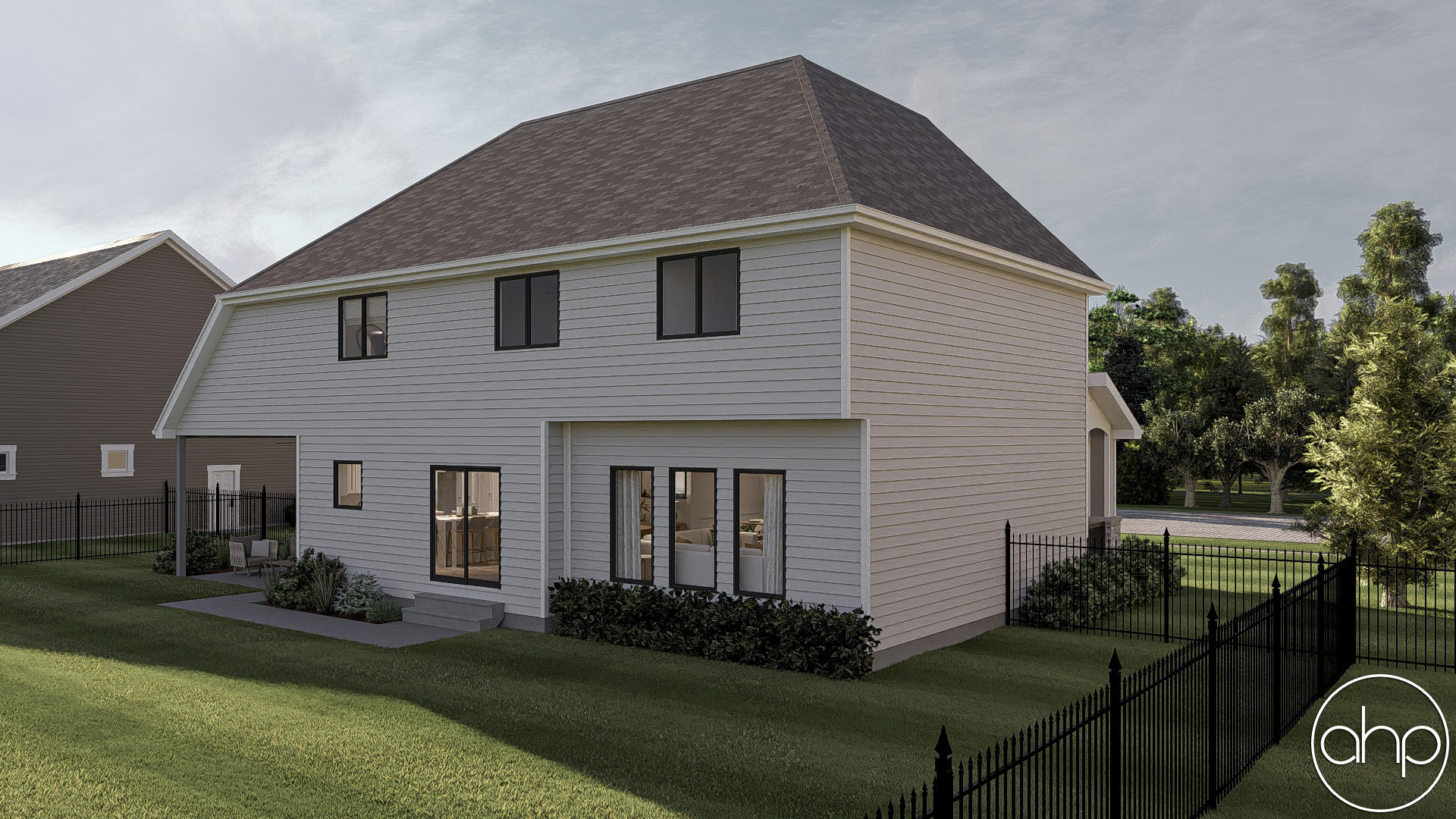

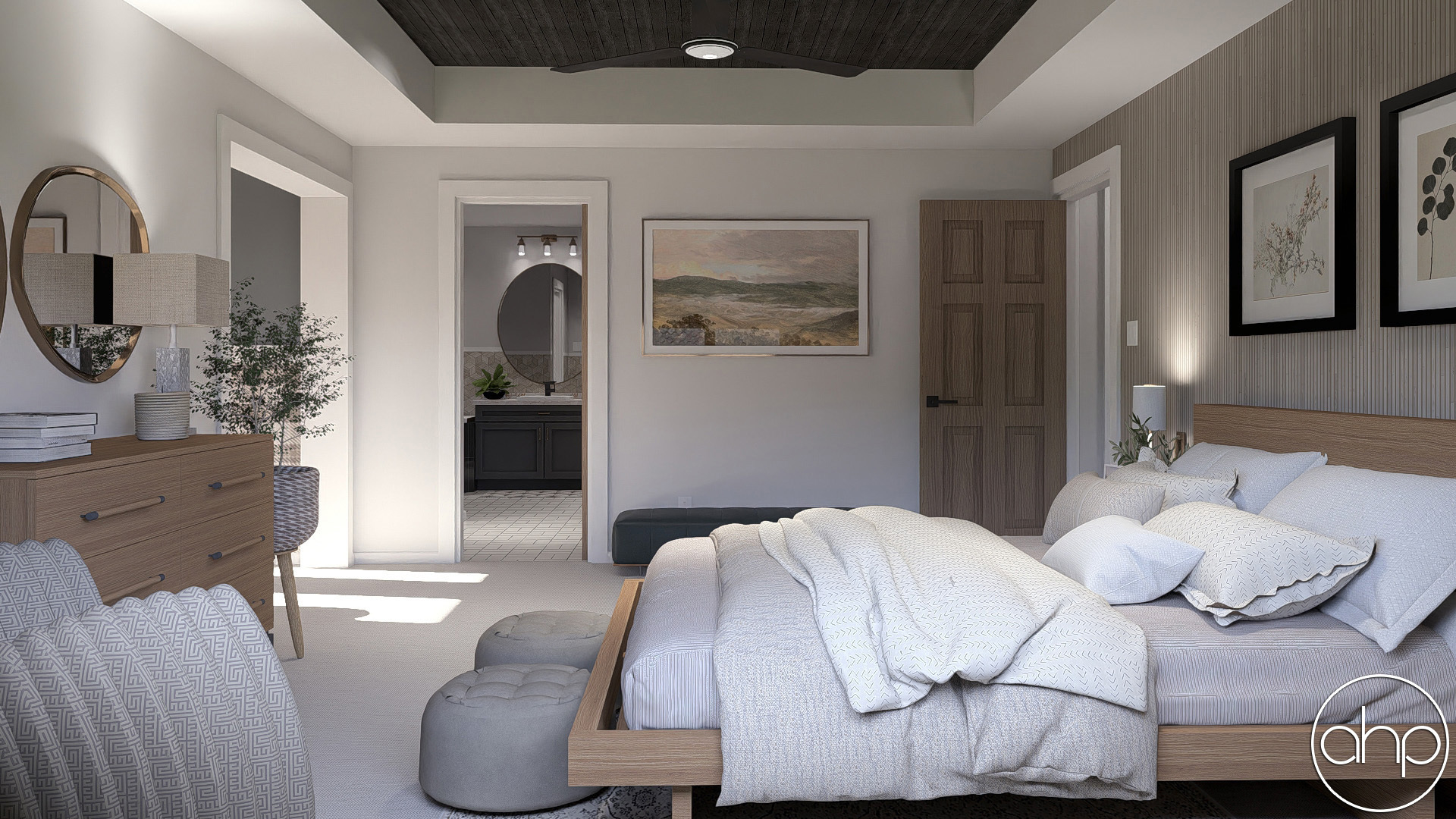

This 2 story house plan is adorned with features that are more commonly found in much larger designs. Just inside, guests are greeted by a soaring two-story-high entry, curved staircase and an elegant, open dining area, defined by columns and ceiling details. An expansive great room lies open to the breakfast area and kitchen, complete with island, walk-in pantry and ample counter space. A privately situated office area is located just inside from a rear covered patio.On the second level, a surprising array of amenities continue to be found. The master suite, for example, features a generously sized sitting area with plenty of natural light for reading or crafting. The adjacent bath area includes his and her vanities separated by a corner soaking tub. The bath also includes a walk-in shower, compartmented toilet and a deep, walk-in closet with window.Bedroom 2 features a sloped ceiling and private bath. Bedrooms 3 and 4 share a Jack-in-Jill bath with dual vanities and compartmented toilet and tub. A centrally located laundry is easily accessed by all bedrooms. The upstairs landing offers views to the main-floor entry below. An added feature about this house plan to note: This design includes a storm shelter beneath the front porch.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at Ahp.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Full Specifications

Rooms

Bedrooms 4
Bathrooms 4
Car Bays 3

Area

Main 1231 Sq. Ft.
Second 1433 Sq. Ft.
Total Finished 2664 Sq. Ft.
Garage Area 803 Sq. Ft.

Dimensions

Width 57'
Depth 47'
Ridge Height 32'

Construction

Foundation Type Basement
Exterior Walls 2x4
Basement Wall Height 9'
Main Wall Height 9'
Second Wall Height 8'

Plan Features


What is included in a set of plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

29369 | Hartmann

$1000
Do you need to get this plan bid out before you buy it? Purchase a bid set for only $250 .
