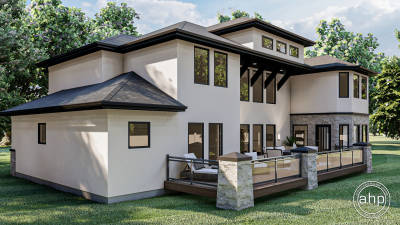

Bartolini Rendering Bartolini Rendering Bartolini Rendering Bartolini Rendering Bartolini Rendering Bartolini Rendering Bartolini Rendering
Want to make changes to this plan?

1.5 Story Mediterranean House Plan

Bartolini - 29071

Sq Ft
86' 0"
66' 0"

Floor Plan Images

Main Level

1.5 Story Mediterranean House Plan | Bartolini

Second Level

1.5 Story Mediterranean House Plan | Bartolini

Plan Description

Classic Mediterranean detailing could easily place this beautiful 1-1/2 story house plan in the rolling hills of Tuscany.  A sense of grandeur captivates guests within a 2-story-high entry hall that offers views through arched openings into an equally lofty great room.  The great room is warmed by a fireplace, flanked by built-in entertainment centers, and brightened by a trio of windows that look out onto a sprawling rear deck.  The breakfast area, which along with the kitchen, is open to the great room and is flooded with natural light.  It offers access to the rear deck for airy dining options.  The kitchen features ample counter space, an island workspace/breakfast bar, and a walk-in pantry.

Just steps away from the kitchen lies a utility area that includes a powder bath and laundry room.  This area conveniently acts as a buffer between the living areas of the home and the 4-car garage, which has extra space for storage or a workshop.

On the opposite side of the home, the secluded master suite lies only steps away from a stately den.  The bedroom accesses the rear deck and enjoys sunny views to the rear.  Double doors open to a pampering bath area that includes an elegant oval soaking tub, walk-in shower, compartmented toilet, and sizeable walk-in closet with a dressing bench.

Upstairs, each of the four secondary bedrooms has a walk-in closet.   Bedrooms 2 and 3 share a Jack-n-Jill bath, as do bedrooms 4 and 5.  A loft area offers views to the great room and entry hall below.  Just off the loft, a large storage area is brightened by two windows to the front.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 5
Bathrooms 4
Garage Bays 4
Square Footage
Main Level 2126 Sq. Ft.
Second Level 1623 Sq. Ft.
Garage 1433 Sq. Ft.
Total Finished Area 3749 Sq. Ft.
Exterior Dimensions
Width 86' 0"
Depth 66' 0"
Ridge Height
Calculated from main floor line
28' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
Foundation Wall Height
Main Wall Height
Second Wall Height

Customer Build Photo Albums

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
