Want to make changes to this plan?

Modern Farmhouse Style Ranch Plan

Hayward - 29890

Sq Ft
37' 0"
49' 0"

Plan Video

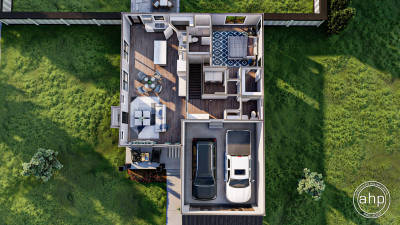

Floor Plan Images

Main Level


Optional Finished Basement


Plan Description

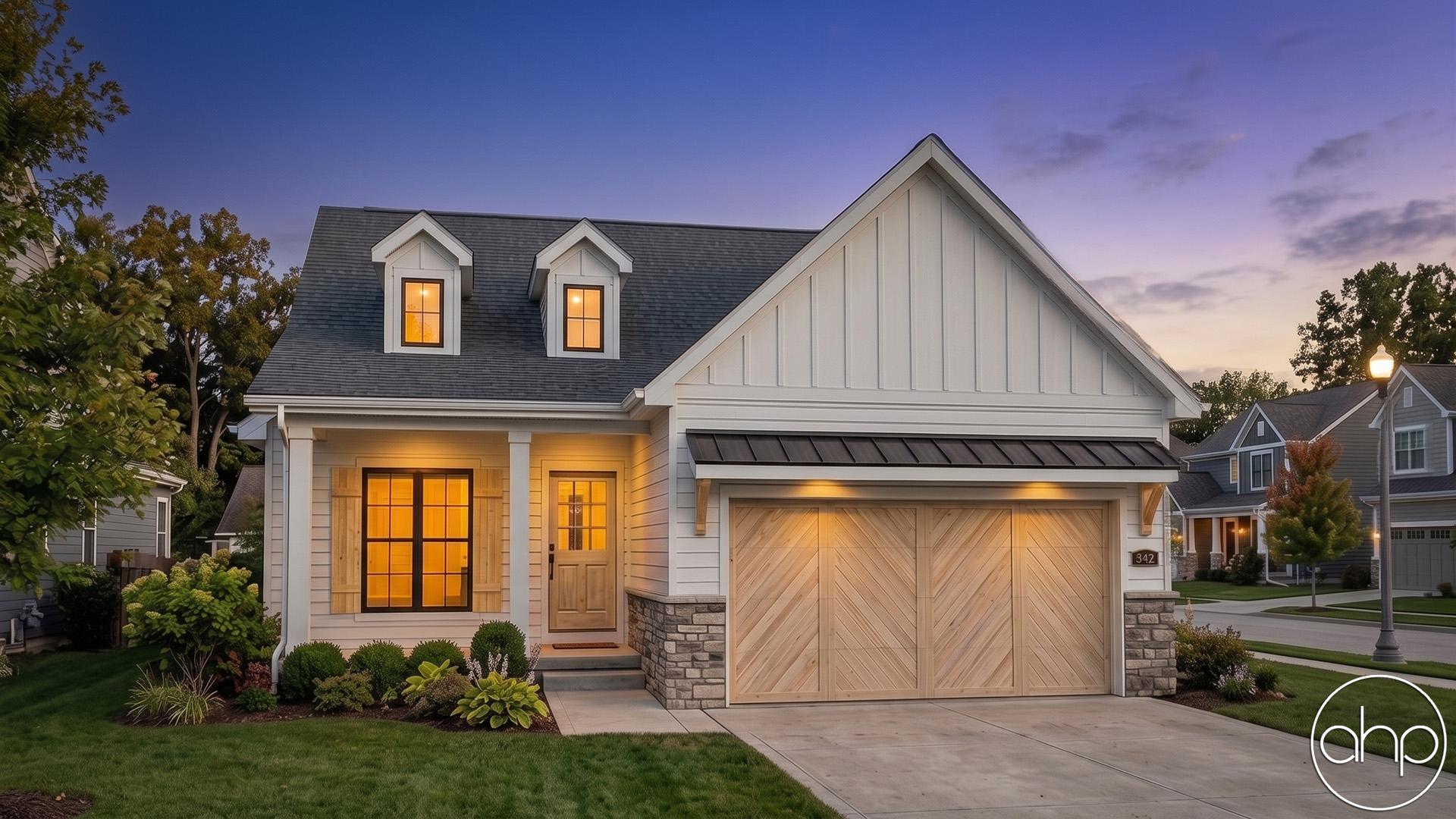

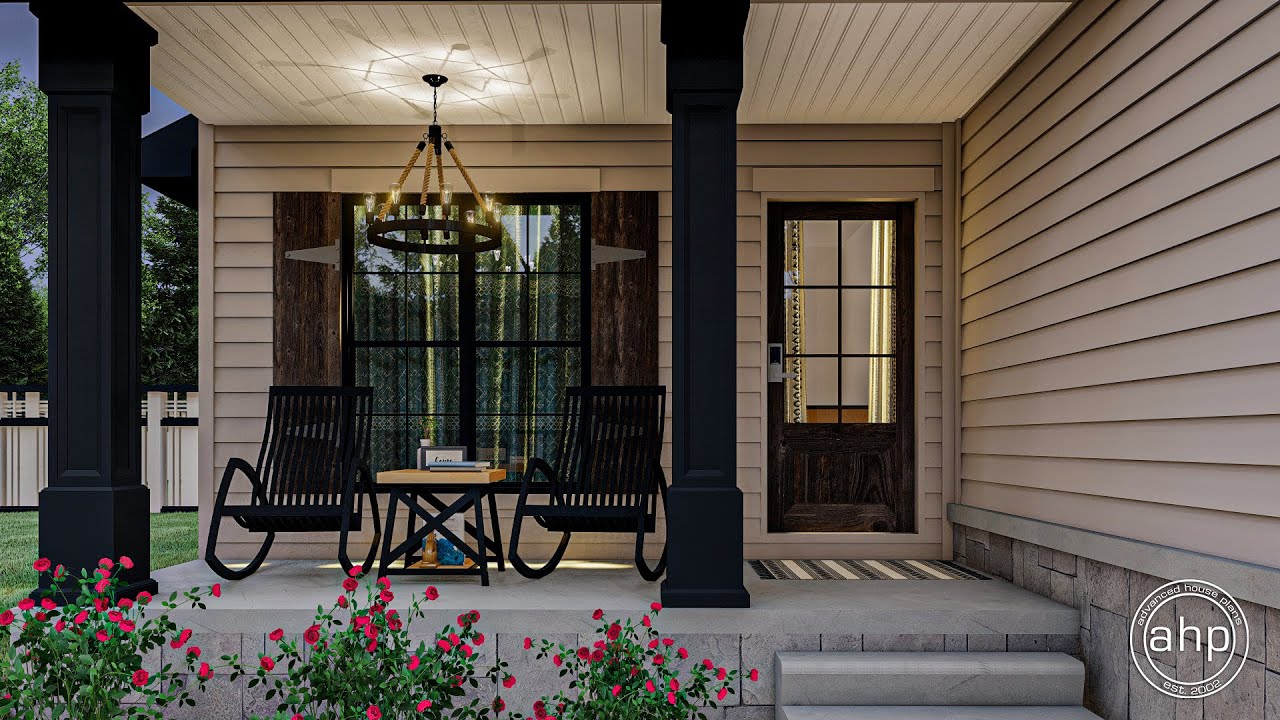

The Hayward plan is a beautiful yet simple Modern Farmhouse style Ranch plan.  The exterior of the house features highlights of board and batten siding, wood garage doors and black contrasting soffit and fascia. A pair of dormers are situated over the front covered porch.

Just inside the house, the living room, dining room and kitchen flow seamlessly in an open concept layout. The living room is warmed by a fireplace and allows in plenty of natural light through an abundance of windows. The dining room features an amazing built-in coffee bar. The kitchen feels large for such a small house. The kitchen features a large island with a snack bar and a large walk-in pantry.

The master bedroom lies under a trayed ceiling and features a bathroom with his/her vanities and a walk-in shower.

An optional finished basement adds an additional 815 sq ft and features an additional family room with a wet bar and 2 additional bedrooms.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 1
Bathrooms 2
Garage Bays 2
Square Footage
Main Level 1030 Sq. Ft.
Covered Area 90 Sq. Ft.
Garage 445 Sq. Ft.
Total Finished Area 1030 Sq. Ft.
Exterior Dimensions
Width 37 ' 0"
Depth 49 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
8/12 Primary 4/12 Secondary
Foundation Wall Height
Main Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
