29275 | Harrison

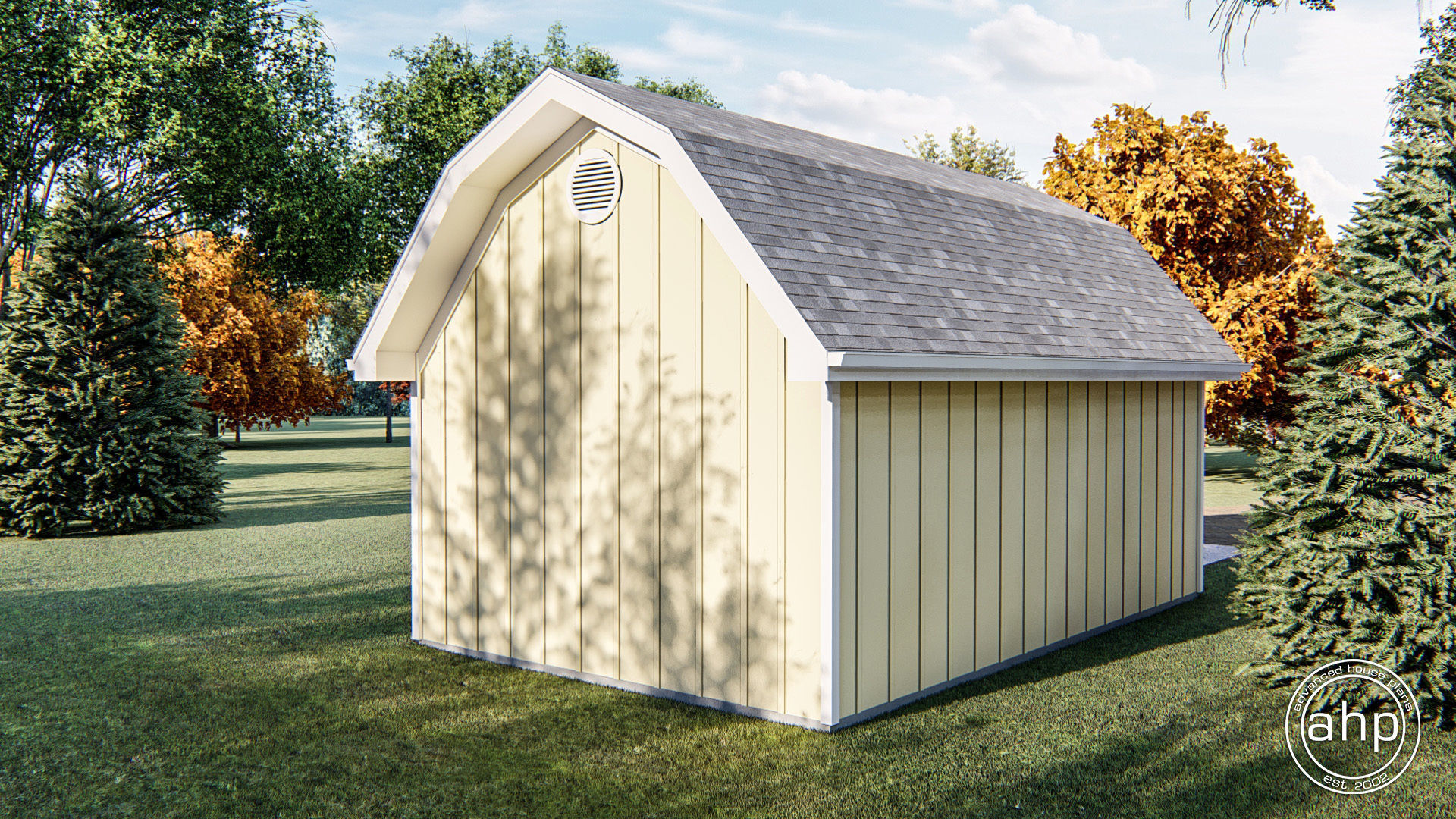

Reverse

Harrison Rendering Harrison Rendering Harrison Rendering
NOTE: ACTUAL CUSTOMER BUILD PHOTOS MAY NOT MATCH THE PLAN EXACTLY.
Want to make changes to this plan?

Affordable Narrow Traditional 1 Car Garage with Gambrel Roof

Harrison - 29275

0
Sq Ft
0
Beds
0
Baths
1
Bays
14' 0"
Wide
22' 0"
Deep

Floor Plan Images

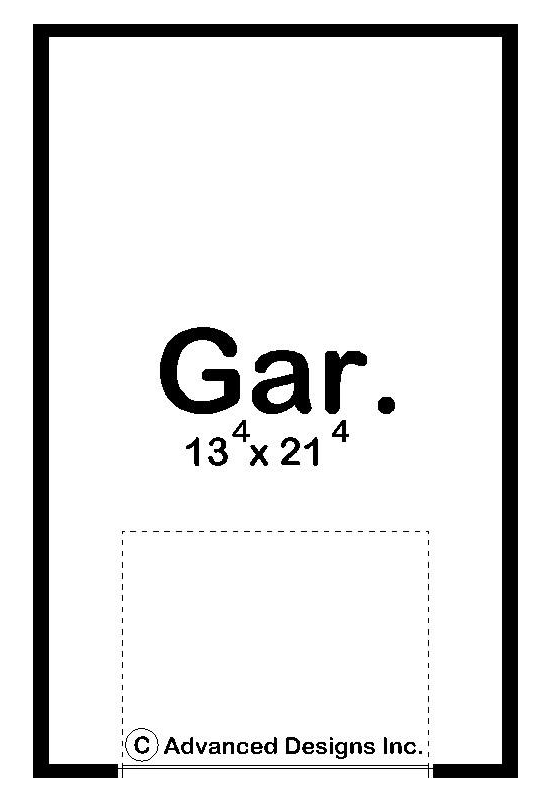

Main Level

Traditional Garage Plan | Harrison

Plan Description

This is a single story traditional garage built on slab foundation. The garage features a gambrel roof which will compliment most farmhouse acreages.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Garage Bays 1
Square Footage
Garage 308 Sq. Ft.
Exterior Dimensions
Width 14' 0"
Depth 22' 0"
Ridge Height
Calculated from main floor line
15' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Slab
Exterior Wall Construction
2x4
Roof Pitches
14/12 Primary, 6/12 Secondary
Main Wall Height
8'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at sales@advancedhouseplans.com
Buy this plan for only
$400

If you find this plan cheaper on any other site, we will match the price guaranteed.
