29799 | Pasadena Flats

Estimated Cost to Build
$88,000 to $106,000
View Cost Assumptions
Powered by:

2 Story

3378 Sq. Ft.

3 Beds

3 Baths

2 Car
Get this plan today for only
Click here to view options.
Did you know you can make alterations to this plan?

Floor Plans

Pasadena Flats Floor PlanPasadena Flats Floor Plan

Plan Description

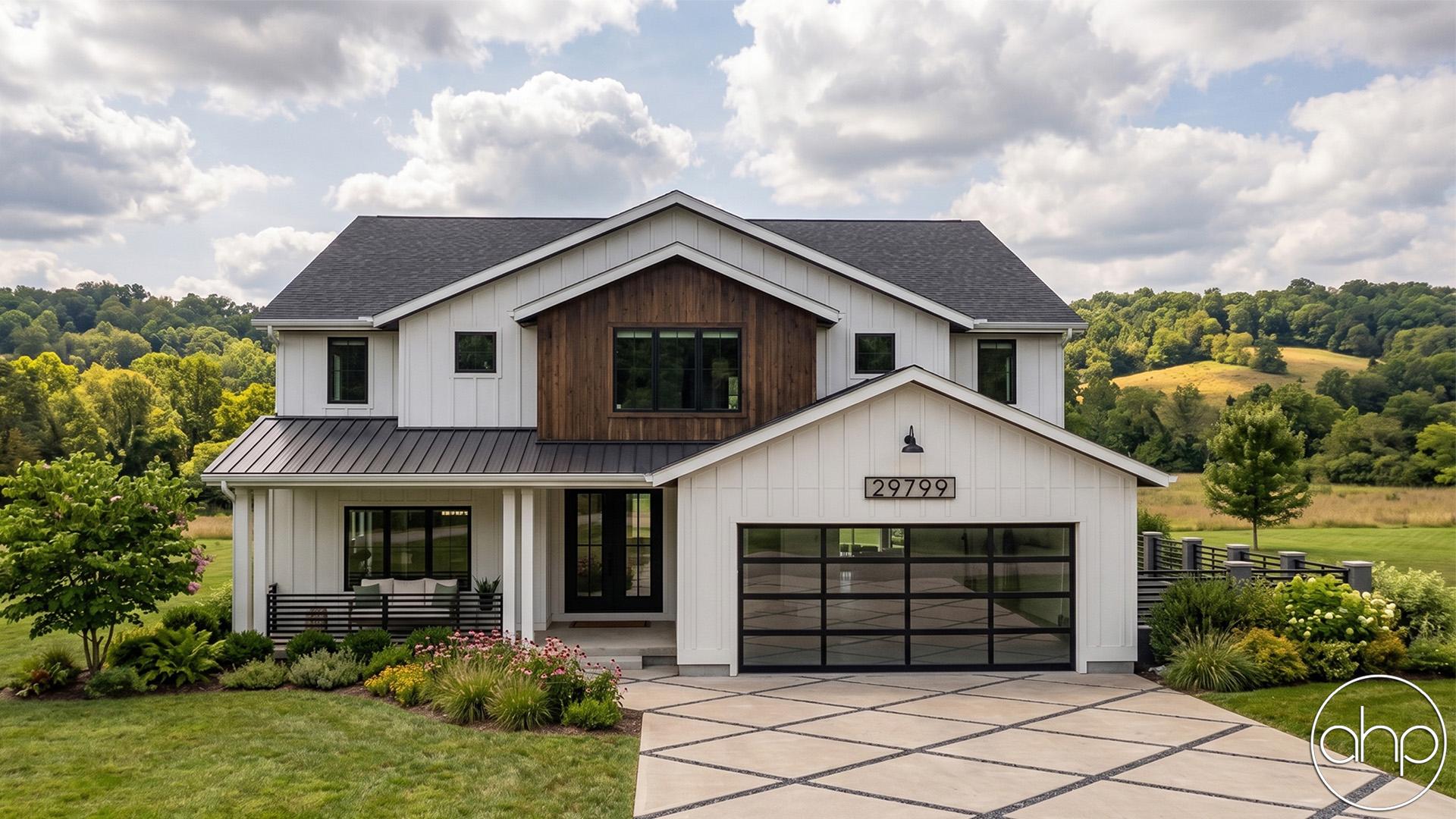

Our Pasadena Flats plan blends the classic farmhouse style with modern elements to create excellent curb appeal. The exterior blends natural wood elements with the classic board and batten siding and a lot of glass to finish off the unique look.

You will be blown away when you step into the house as you stand in an excellent entryway under the exposed wood beams. Just off the entryway, you'll find the living room and dining room. The living room is warmed by a fireplace and also lies under exposed wood beams. Towards the rear of the main floor, you will be amazed by the kitchen and great room that feel massive with its soaring 2 story ceilings. The great room is warmed by a fireplace that is flanked by built-in bookshelves. The kitchen includes a large kitchen island and a walk-in pantry. Also on the main floor, is an amazing wine room.

The bedrooms all reside on the second floor. The master suite includes his/her vanities, a soaking tub, and a large walk-in closet. Bedrooms 2 and 3 share a jack and jill bath and each has its own walk-in closet.

Back on the main floor, the oversized 2 car garage includes a large storage area with an overhead door that leads to the rear covered patio. The garage accesses the home through a convenient mudroom that includes a bench and lockers as well as a coat closet.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at Ahp.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Full Specifications


Bedrooms 3
Bathrooms 3
Car Bays 2


Main 1781 Sq. Ft.
Second 1597 Sq. Ft.
Total Finished 3378 Sq. Ft.
Garage Area 815 Sq. Ft.


Width 50'
Depth 70'


Foundation Type Basement
Exterior Walls 2x4
Roof Pitch 5/12 Primary, 4/12 Secondary
Basement Wall Height 9'
Main Wall Height 9'
Second Wall Height 8'

Plan Features

What is included in a set of plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

29799 | Pasadena Flats

Do you need to get this plan bid out before you buy it? Purchase a bid set for only $250 .
