1.5 Story Mediterranean Style House Plan w/ 4 Car Garage

West Palms - 30135

Sq Ft
68' 0"
89' 0"

Plan Video

Floor Plan Images

Main Level

West Palms

Second Level

West Palms

Plan Description

The West Palms plan is a stunning 1.5 Story, Mediterranean style house plan. The exterior of the home features a 4-car split garage and stucco siding. A low 4/12 pitch tile roof gives the home the distinct Mediterranean look.

Just inside the home, a large 2-story entry way is immediately adjacent to the formal living room that is warmed by a fireplace and features a cool hidden murphy door that leads to the garage.

Further inside the home, the main living area is arranged in a beautiful open layout. The kitchen is a chef's dream that features a large island with dual dishwashers and a snack bar. A large walk-in pantry features built-in shelves.

The great room features a soaring 2-story ceiling and is warmed by a fireplace that includes a built-in bookshelf. A massive sliding glass door leads outside to the rear covered patio.  The dining room also has its own sliding glass door with access to the patio.

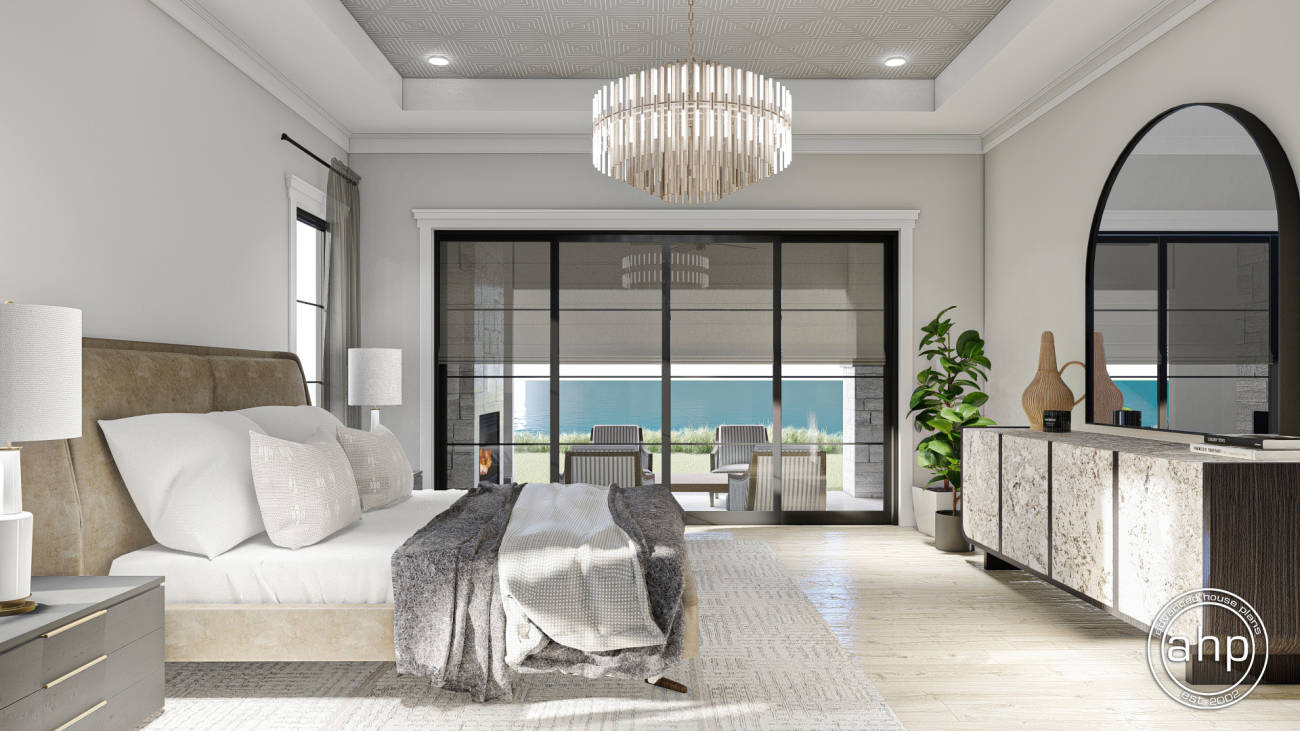

The master suite is conveniently located on the main floor. The master bathroom includes an oversized tub, his/her vanities, a walk-in shower, and a massive walk-in closet. The master bedroom lies under a decorative trayed ceiling and has its own access to the patio through a sliding glass door.

On the second floor, a loft provides the kids a perfect place to play. The loft is warmed by a fireplace with built-in shelves. You will also find 3 additional bedrooms on the second floor. Each bedroom has its own walk-in closet. Bedrooms 2 and 3 share a jack and jill bathroom.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 4
Bathrooms 5
Garage Bays 4
Square Footage
Main Level 2358 Sq. Ft.
Second Level 1034 Sq. Ft.
Covered Area 561 Sq. Ft.
Garage 1286 Sq. Ft.
Total Finished Area 3392 Sq. Ft.
Exterior Dimensions
Width 68 ' 0"
Depth 89 ' 0"
Ridge Height
Calculated from main floor line
27 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
4/12 Primary, Flat Secondary
Main Wall Height
Second Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
