1 Story Mediterranean Style House Plan

Palm Harbor - 30124

2306
Sq Ft
4
Beds
4
Baths
2
Bays
67' 0"
Wide
79' 0"
Deep

Plan Video

Floor Plan Images

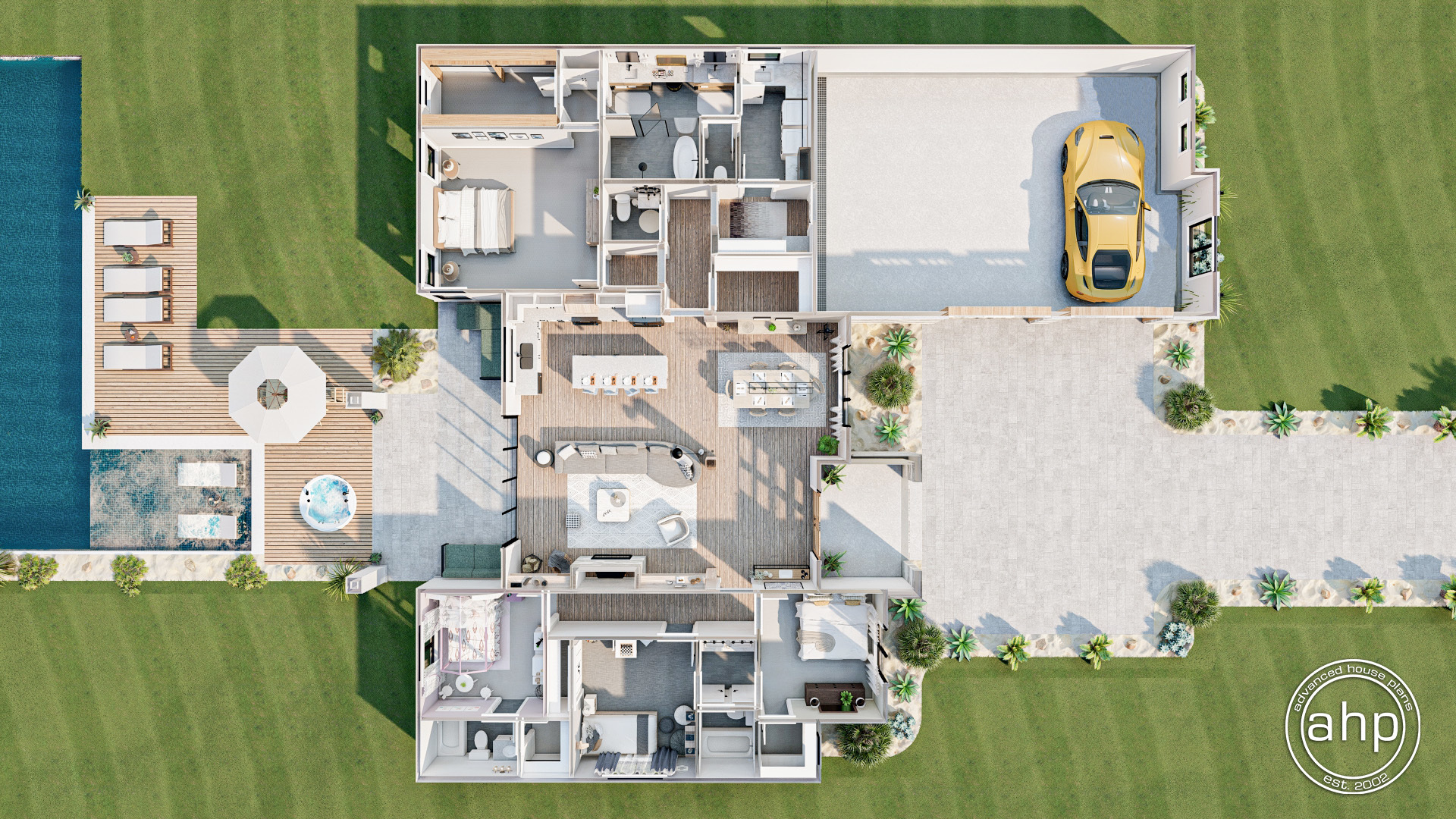

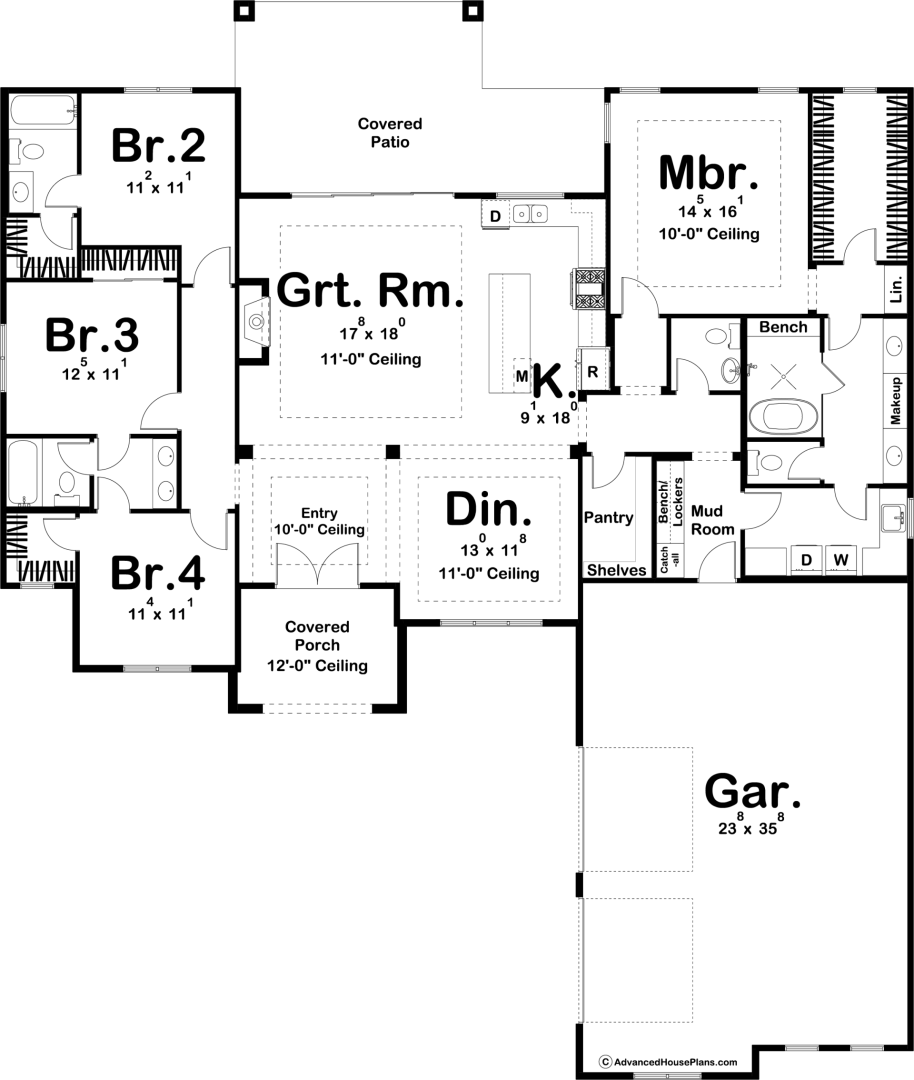

Main Level

1 Story Mediterranean Style House Plan | Palm Harbor

Plan Description

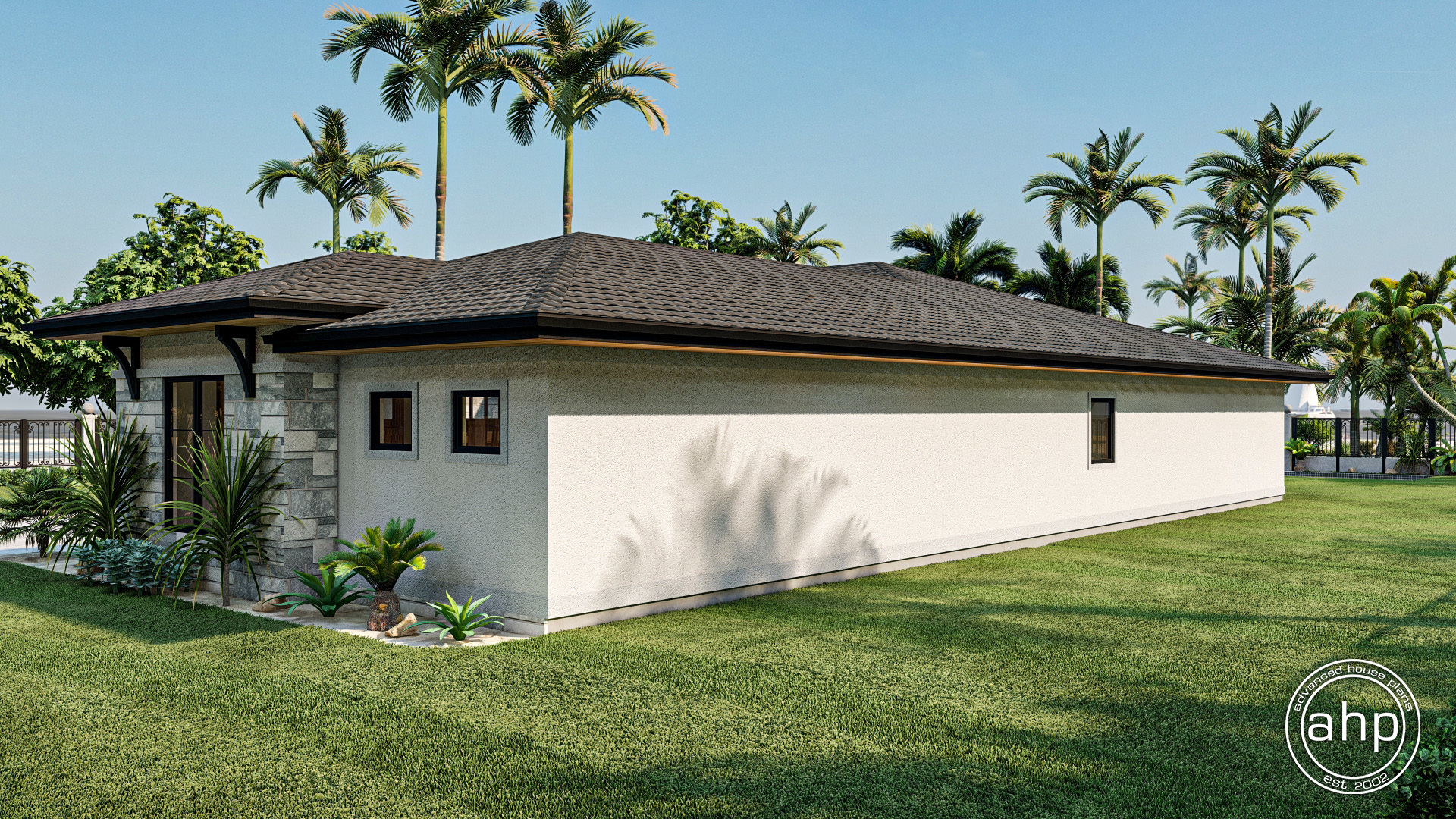

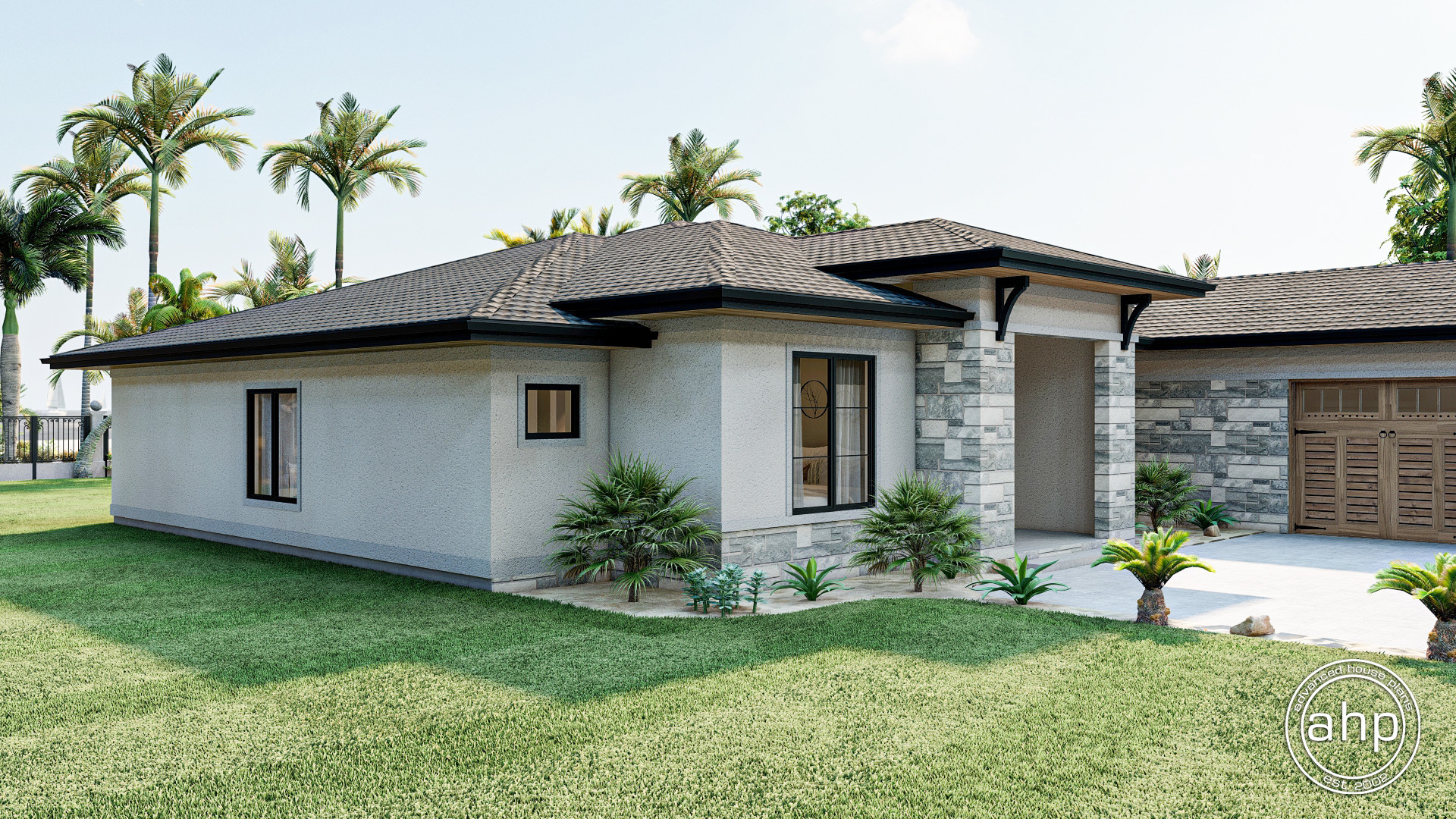

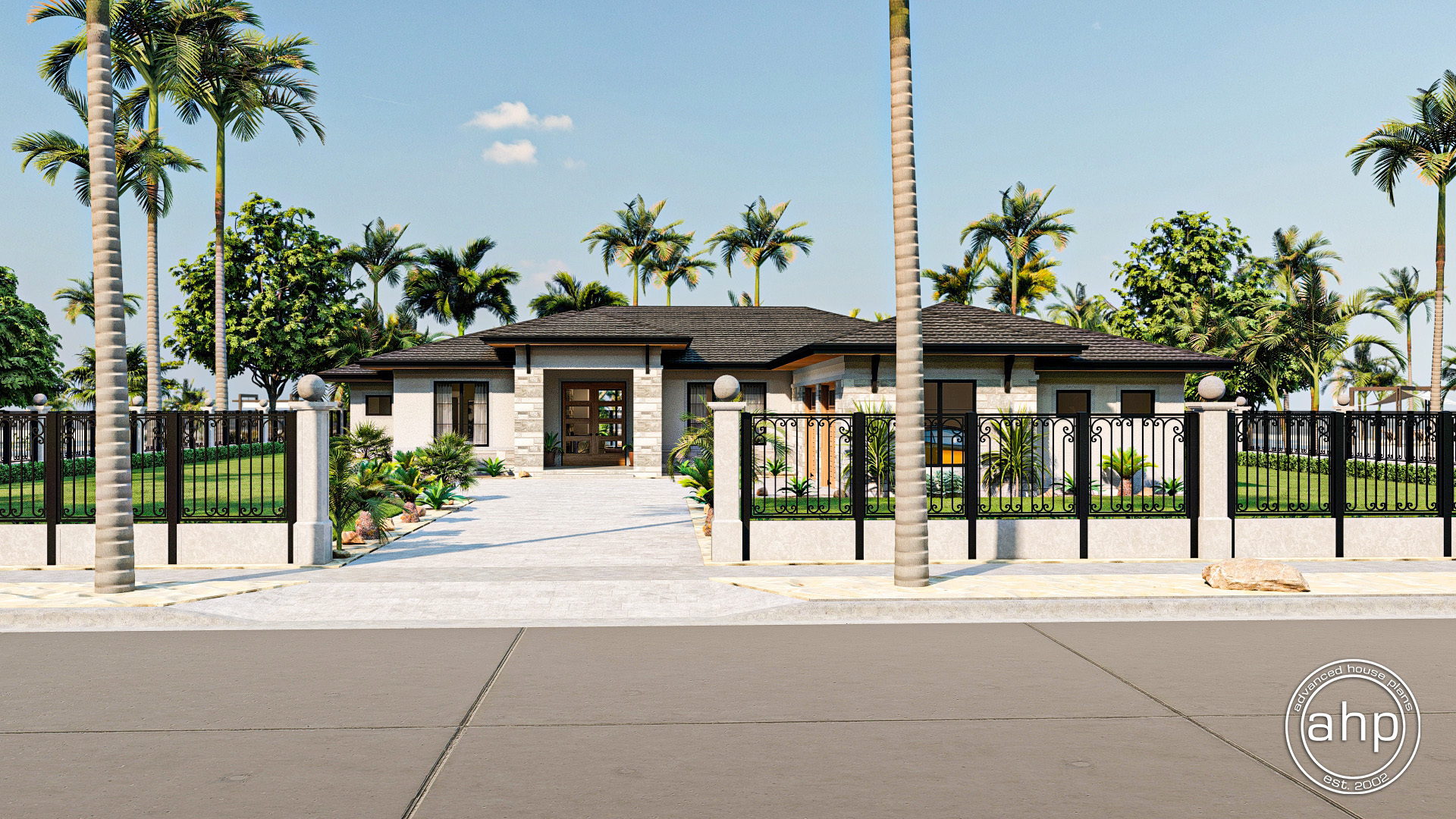

The Palm Harbor is a stunning Mediterranean style 1 story house plan. The amazing exterior showcases stone, stucco, and wood accents to give this house a very Tuscan style feel.

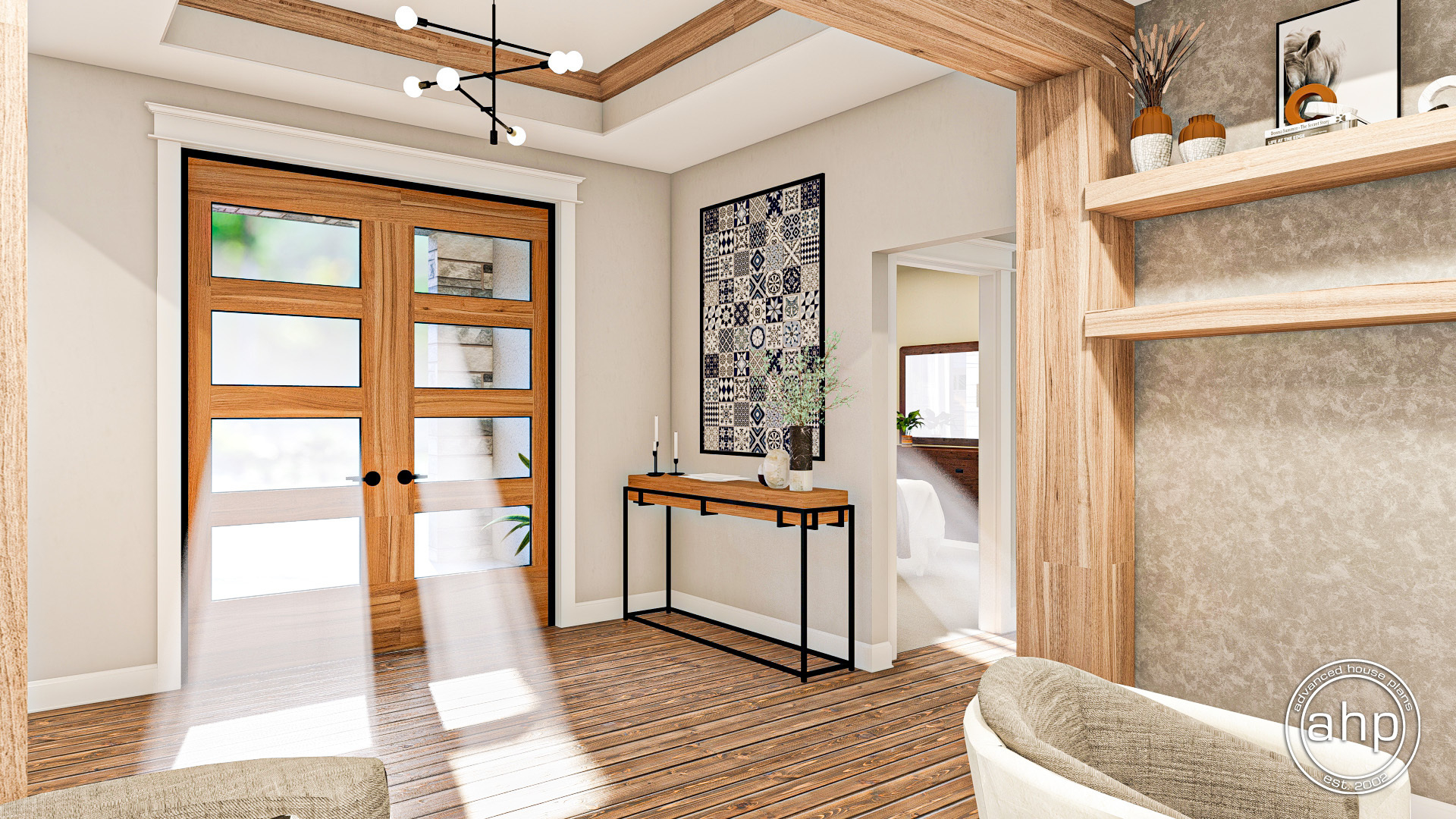

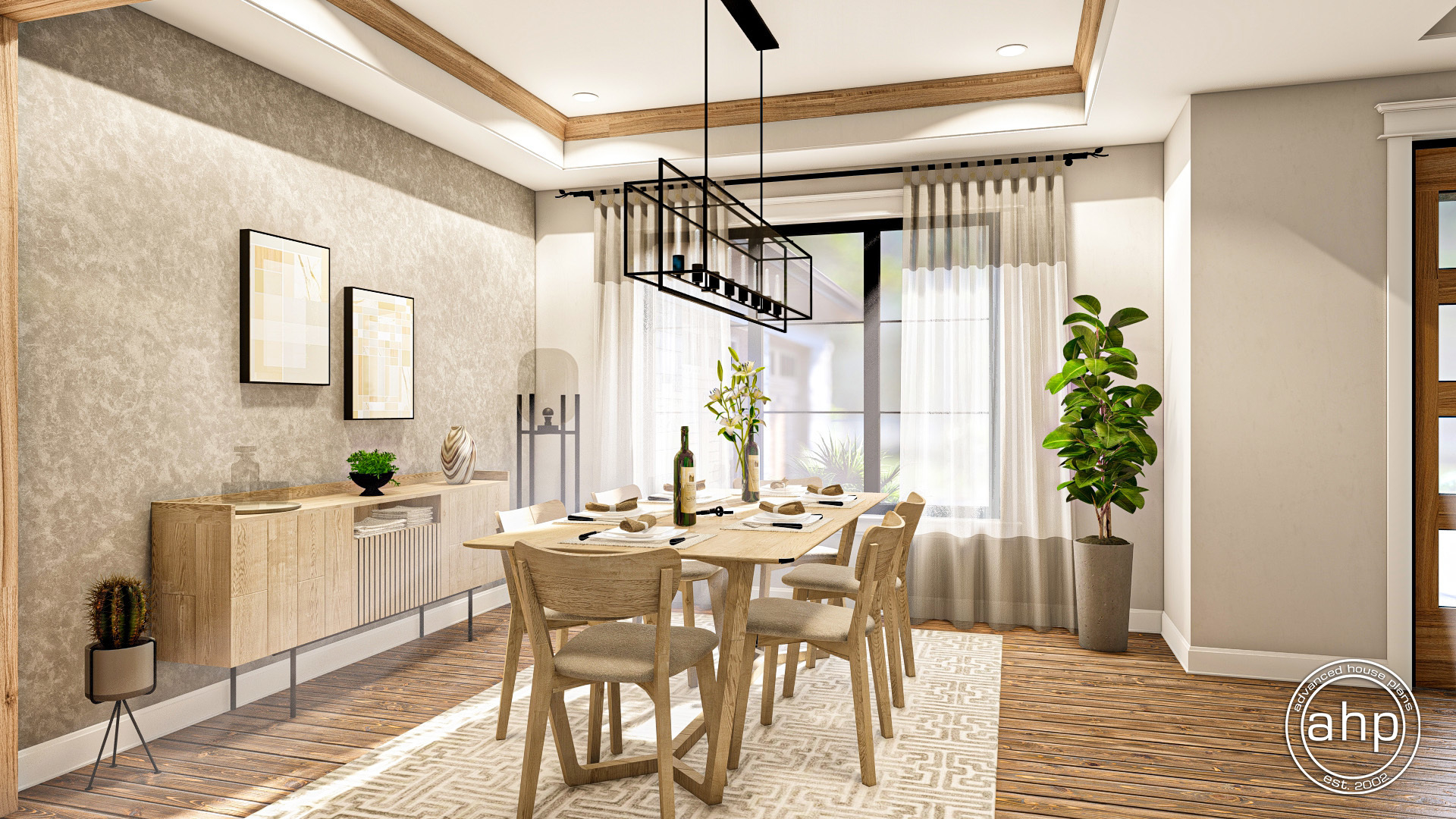

A large covered porch with a 12' ceiling leads through a set of French doors into the home. Just off the entry, you'll find an amazing formal dining room that lies under an 11' trayed ceiling.

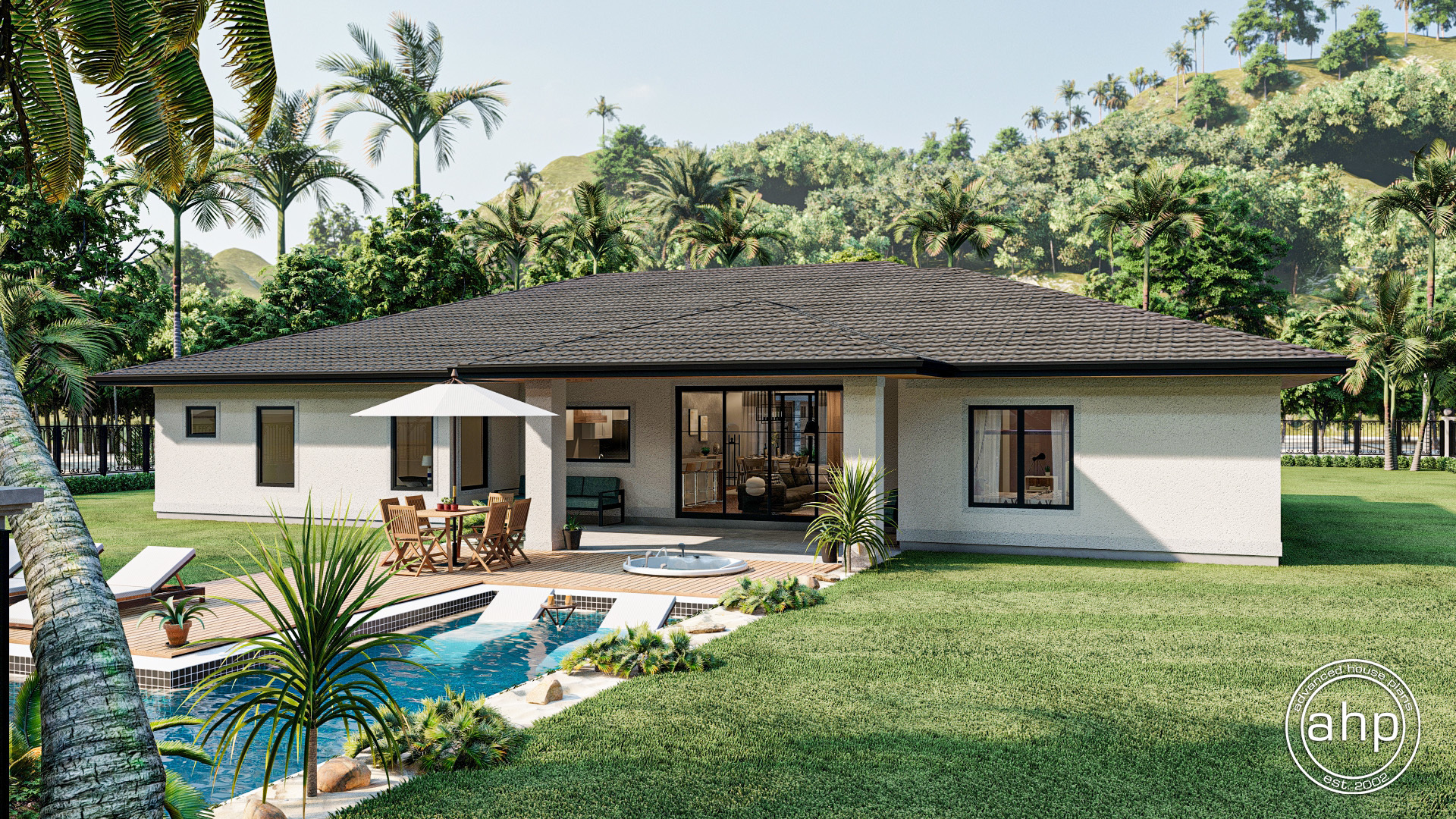

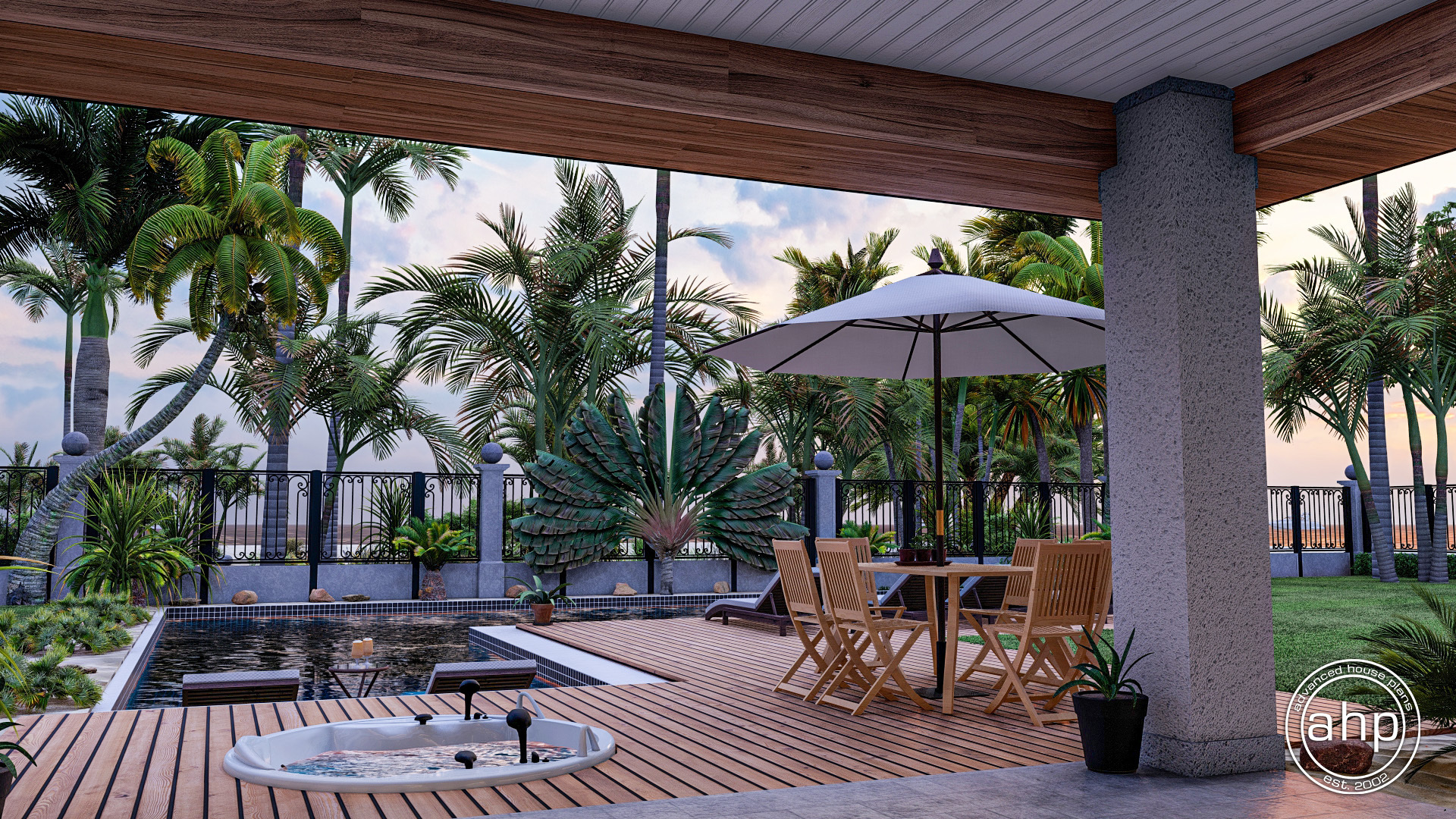

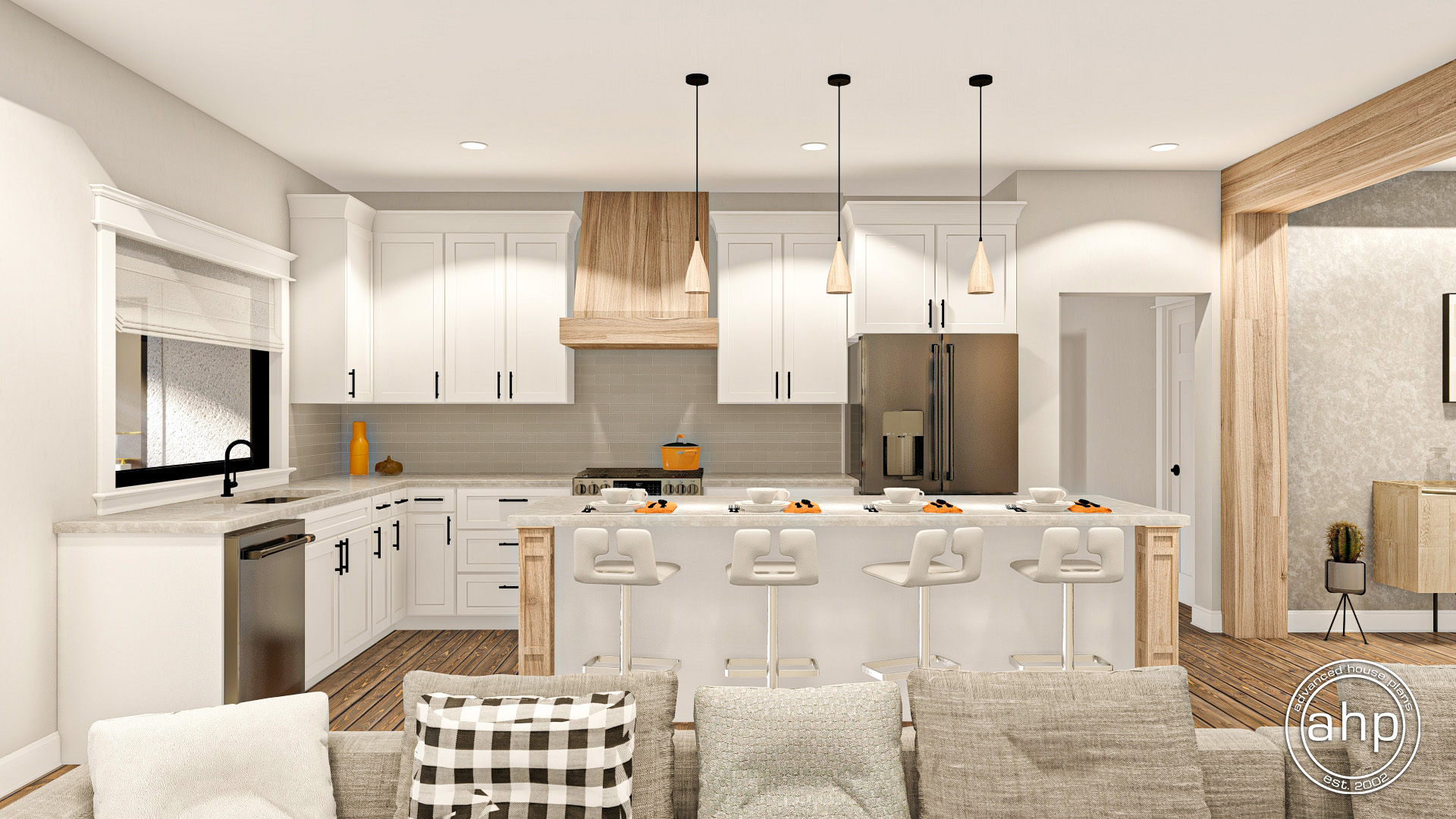

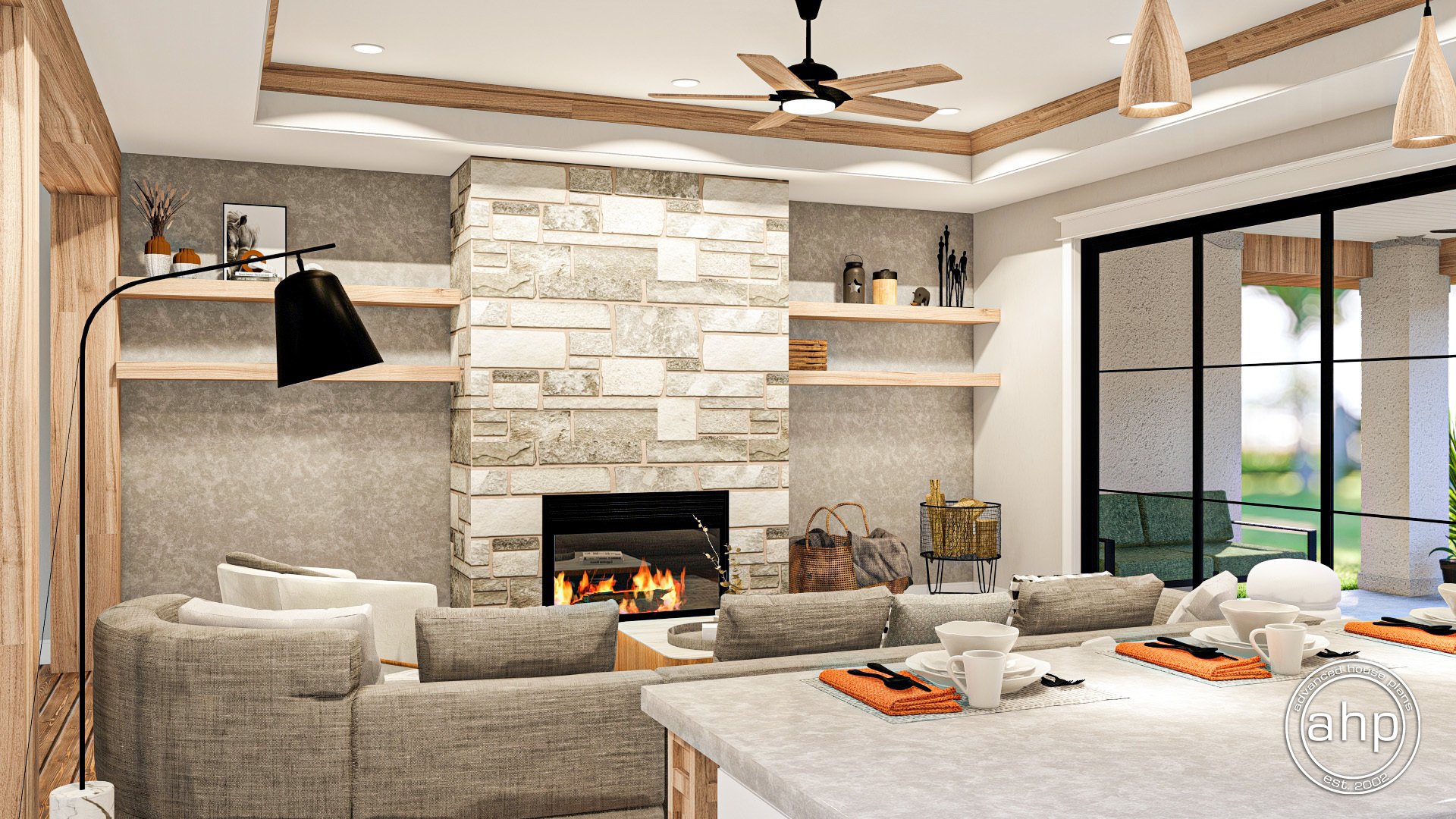

The flow of this floor plan provides a very open feel. The great room lies under its own 11' ceiling and is warmed by a fireplace. A large set of sliding doors opens up from the great room to the rear covered patio. The kitchen includes a large island with a snack bar and a walk-in pantry.

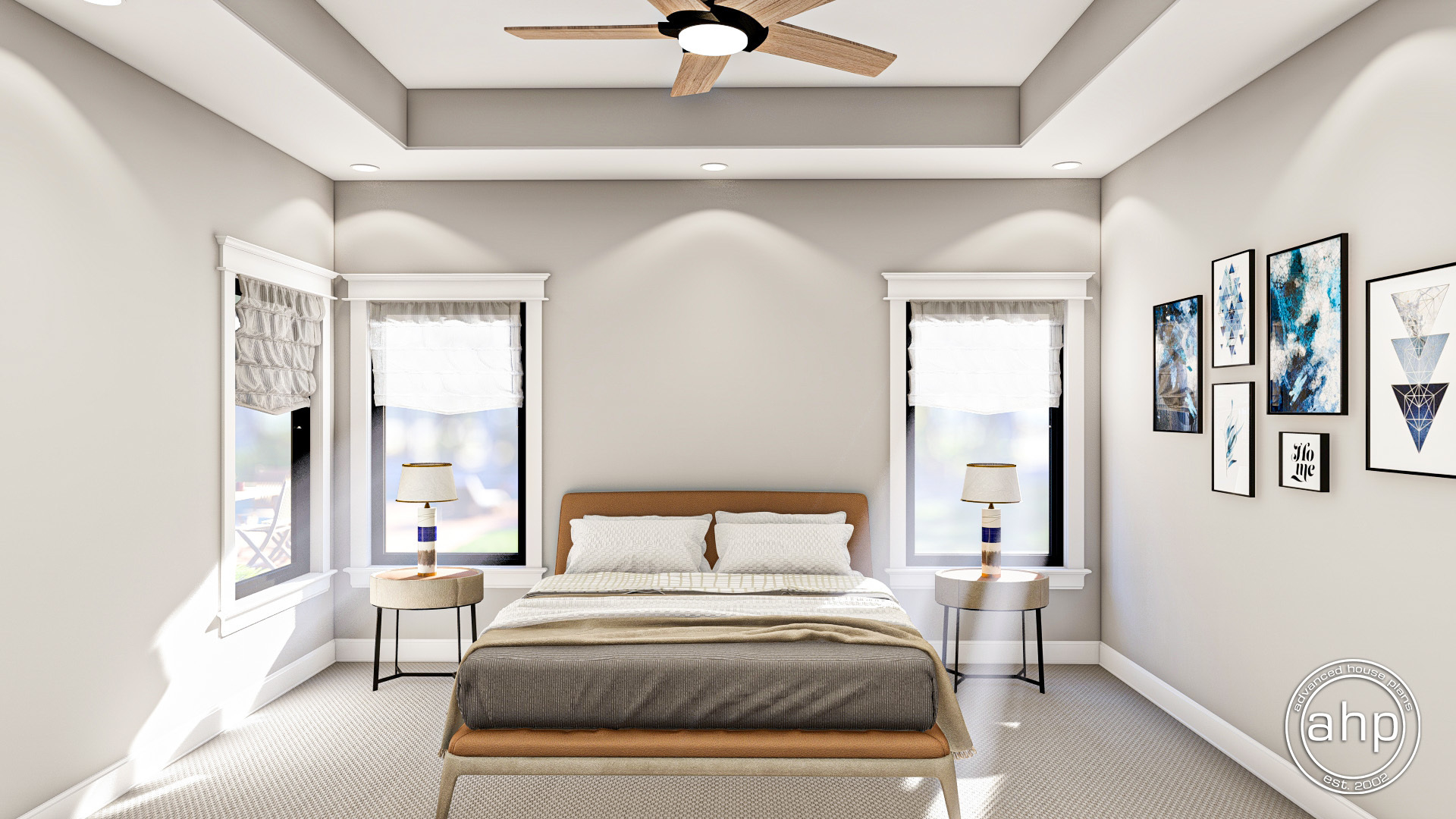

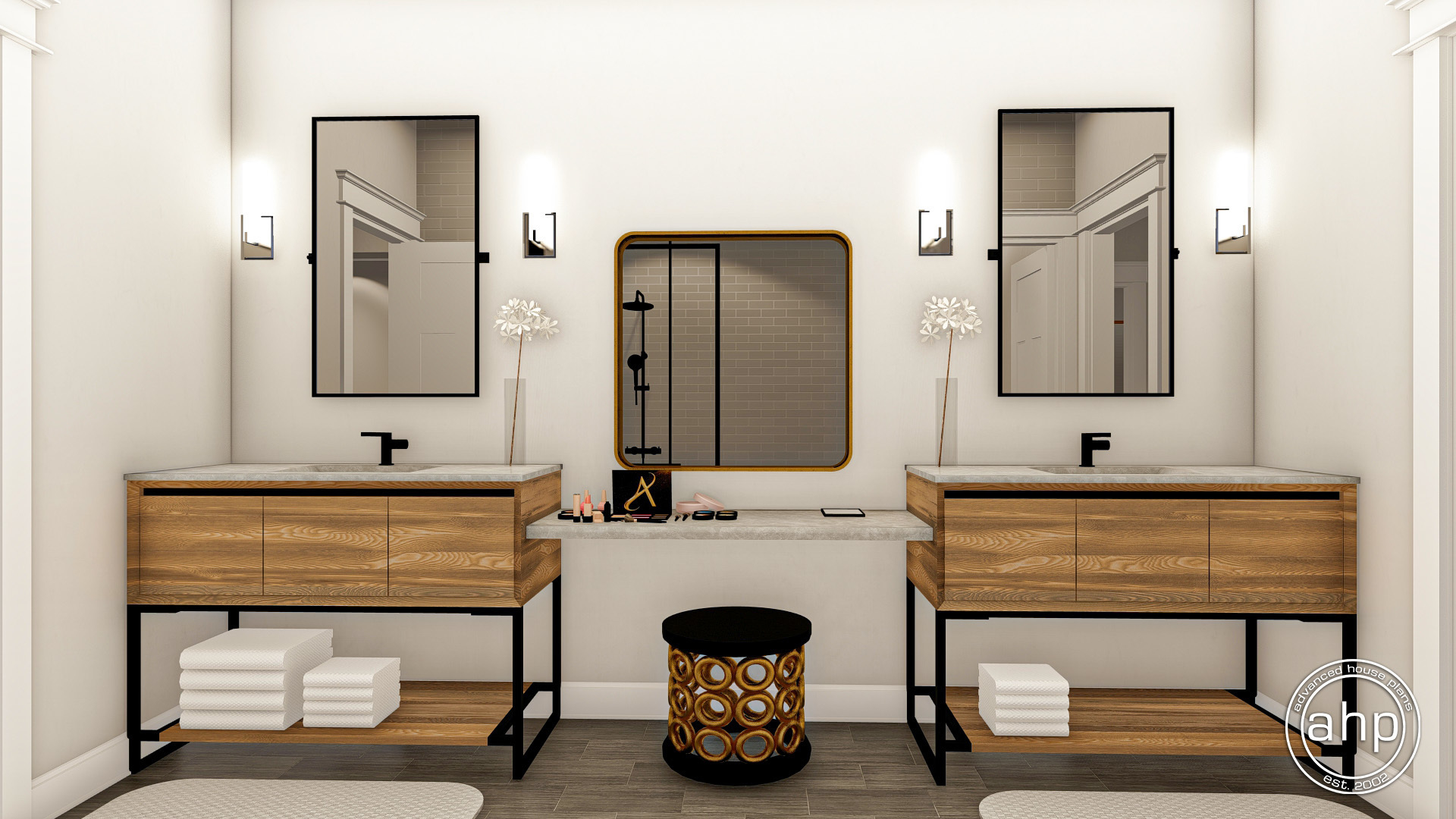

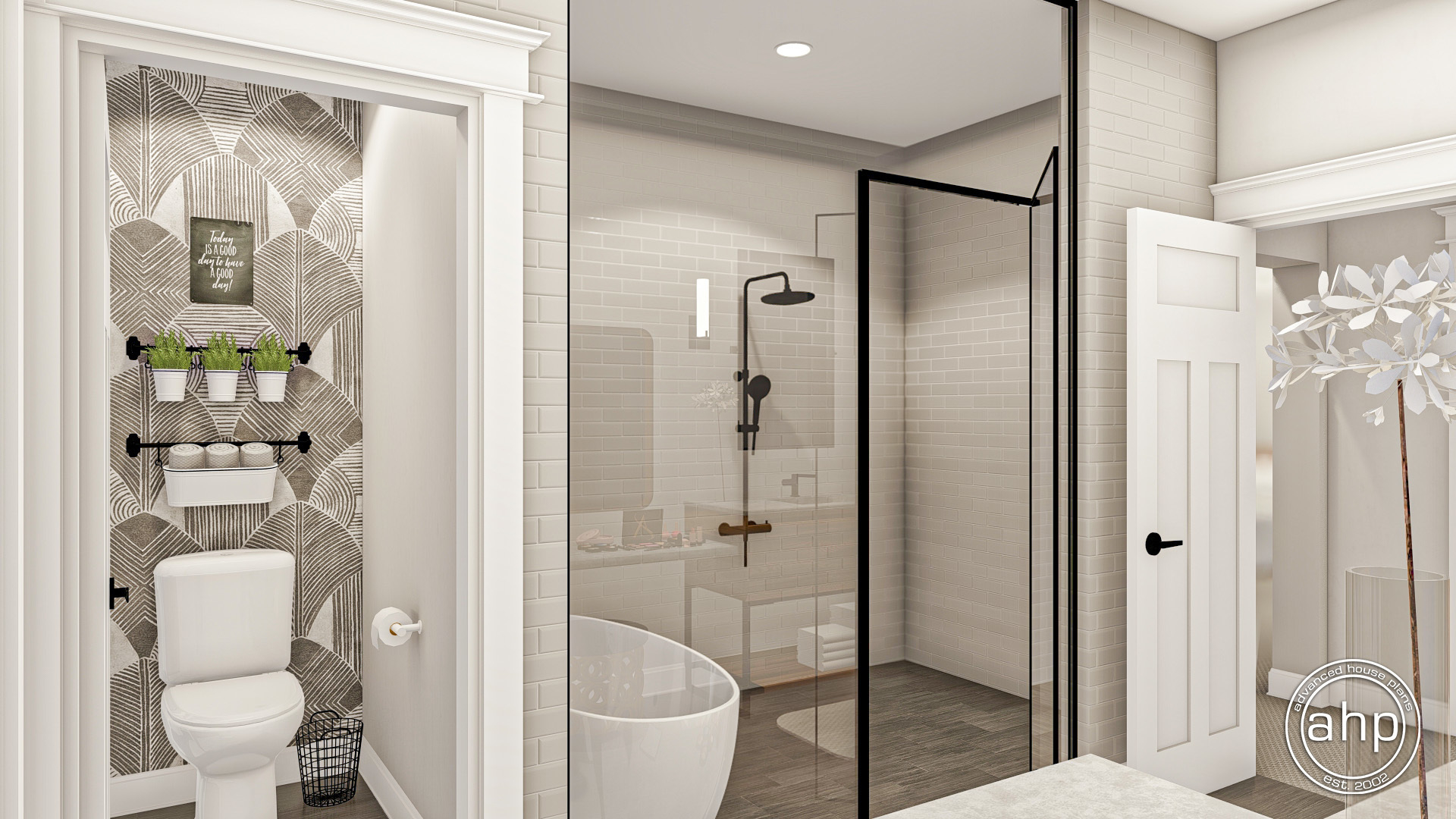

Behind the kitchen, on the right side of the home, you'll find the elegant master suite. The master bathroom includes a wet room with a soaking tub, his/her vanities, an enclosed toilet area, a large walk-in closet, and laundry room access.

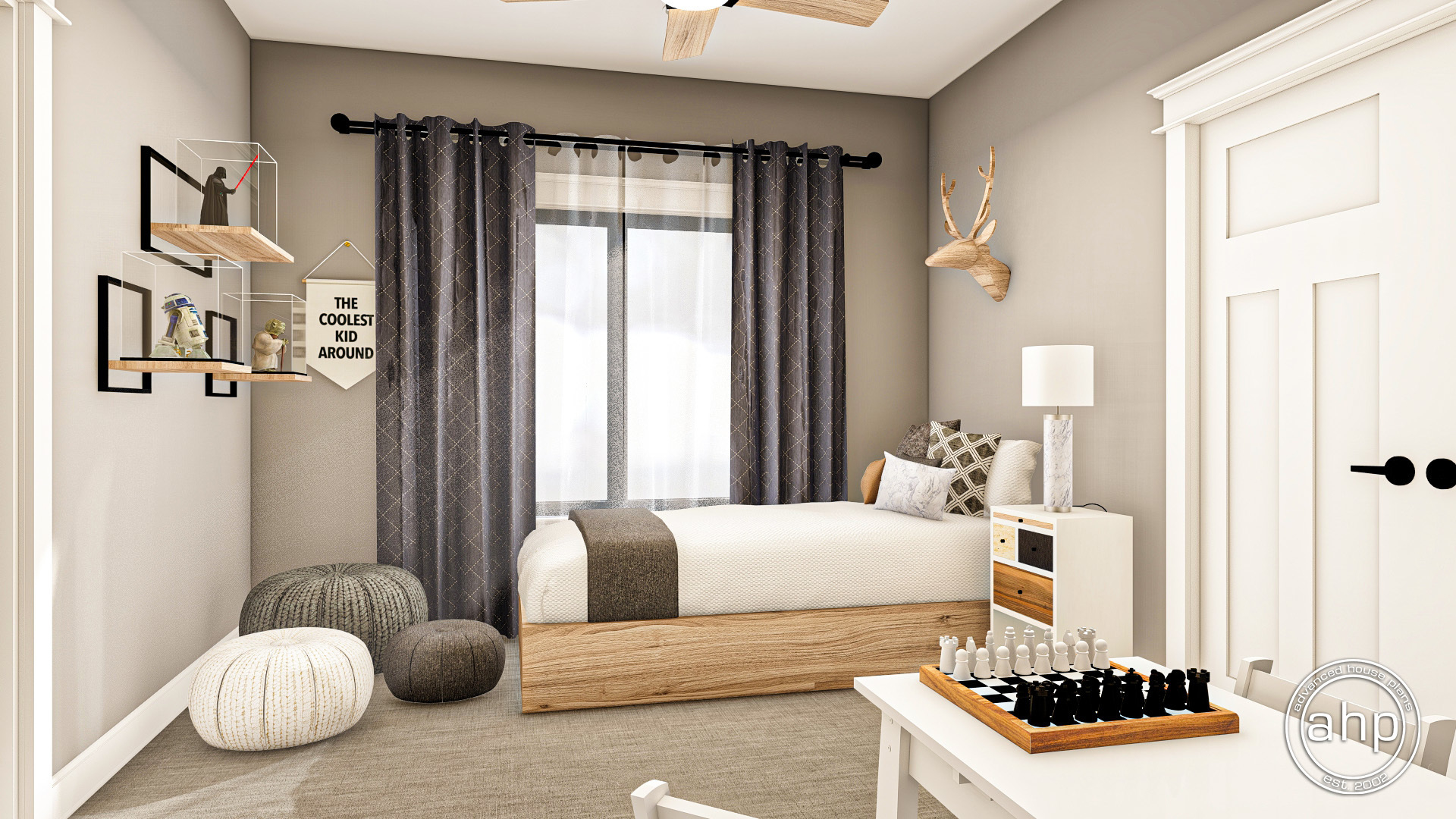

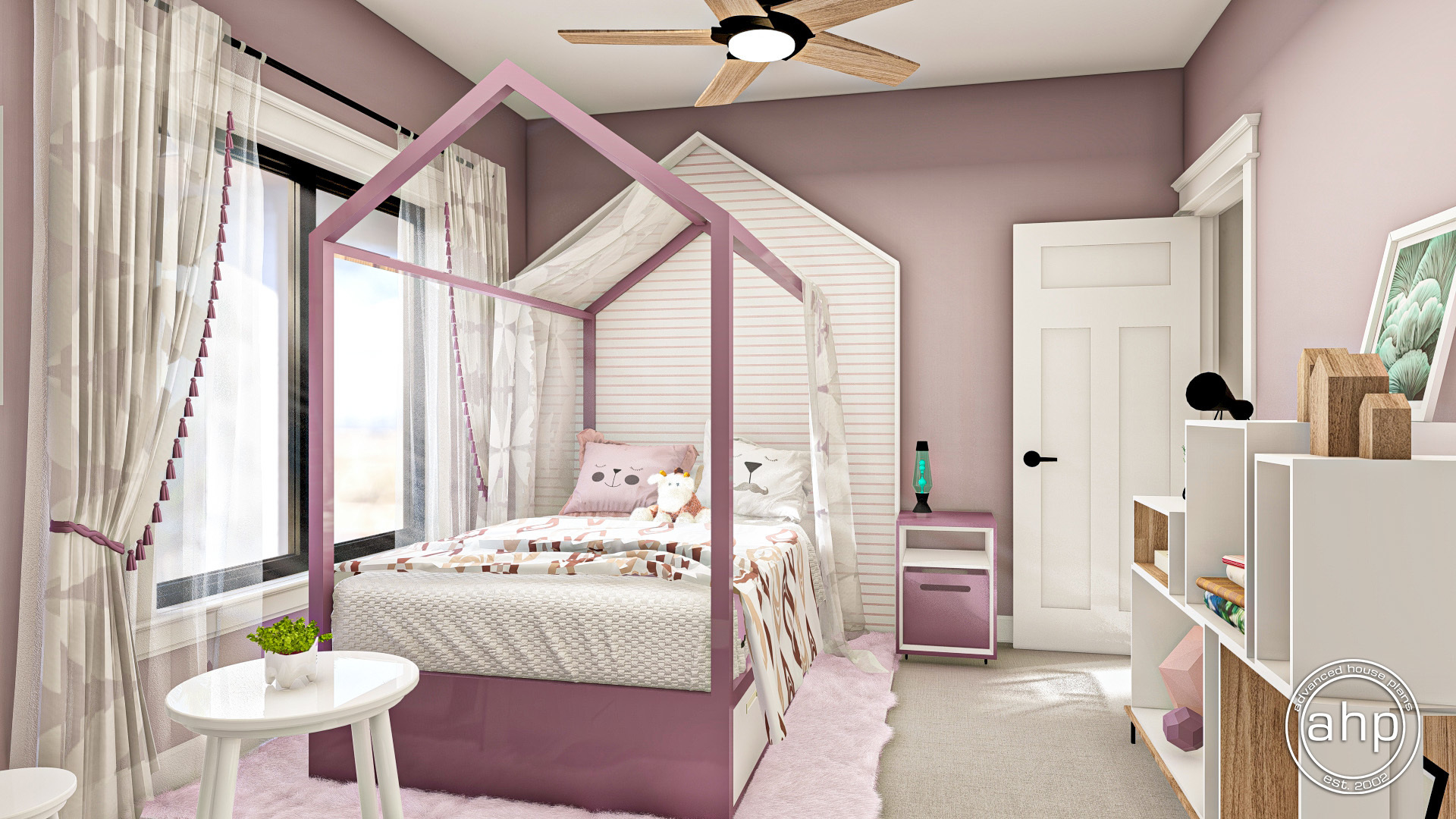

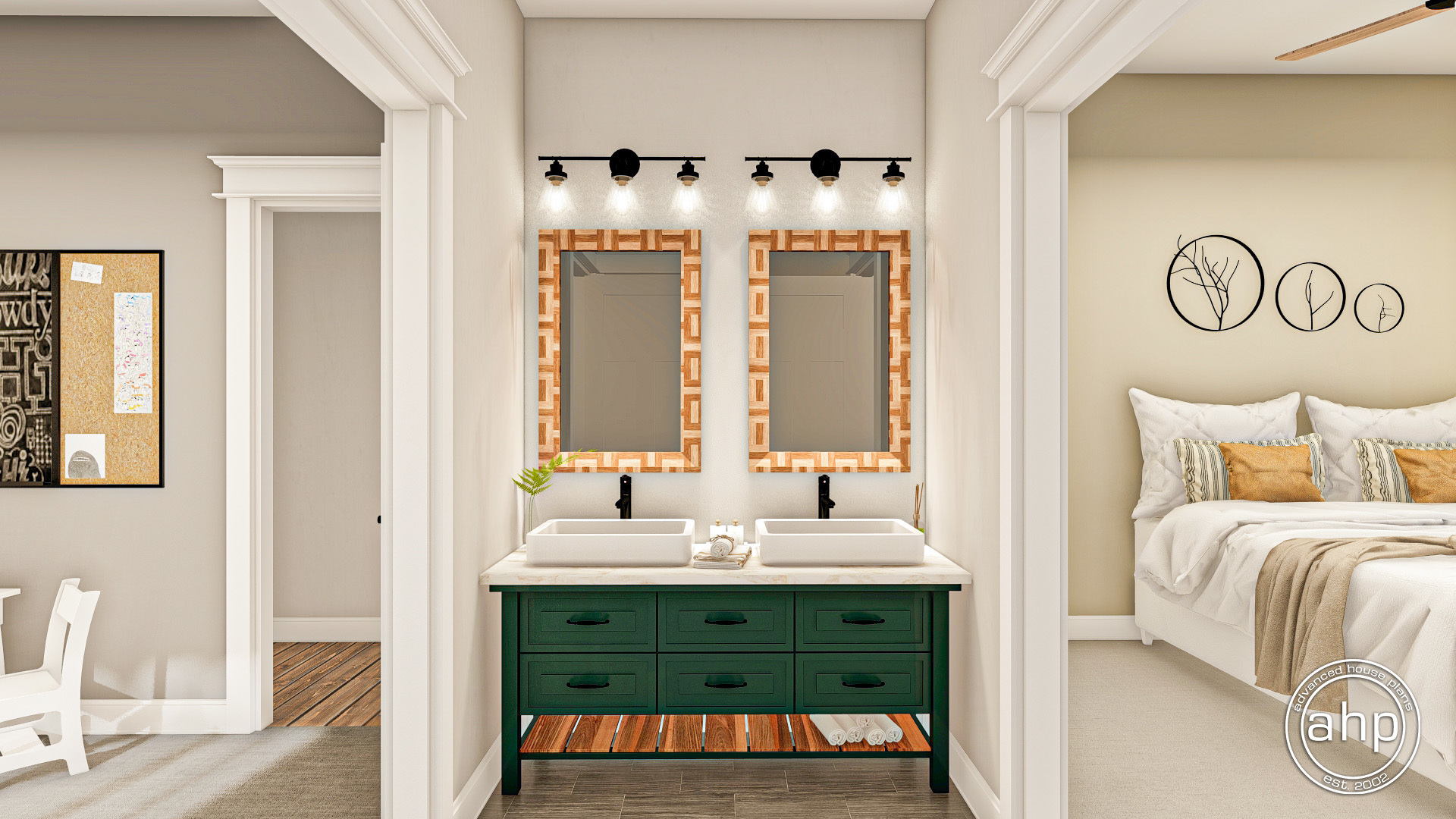

On the left side of the home, bedroom 2 has its own bathroom and bedrooms 3 and 4 share a Jack and Jill bathroom.

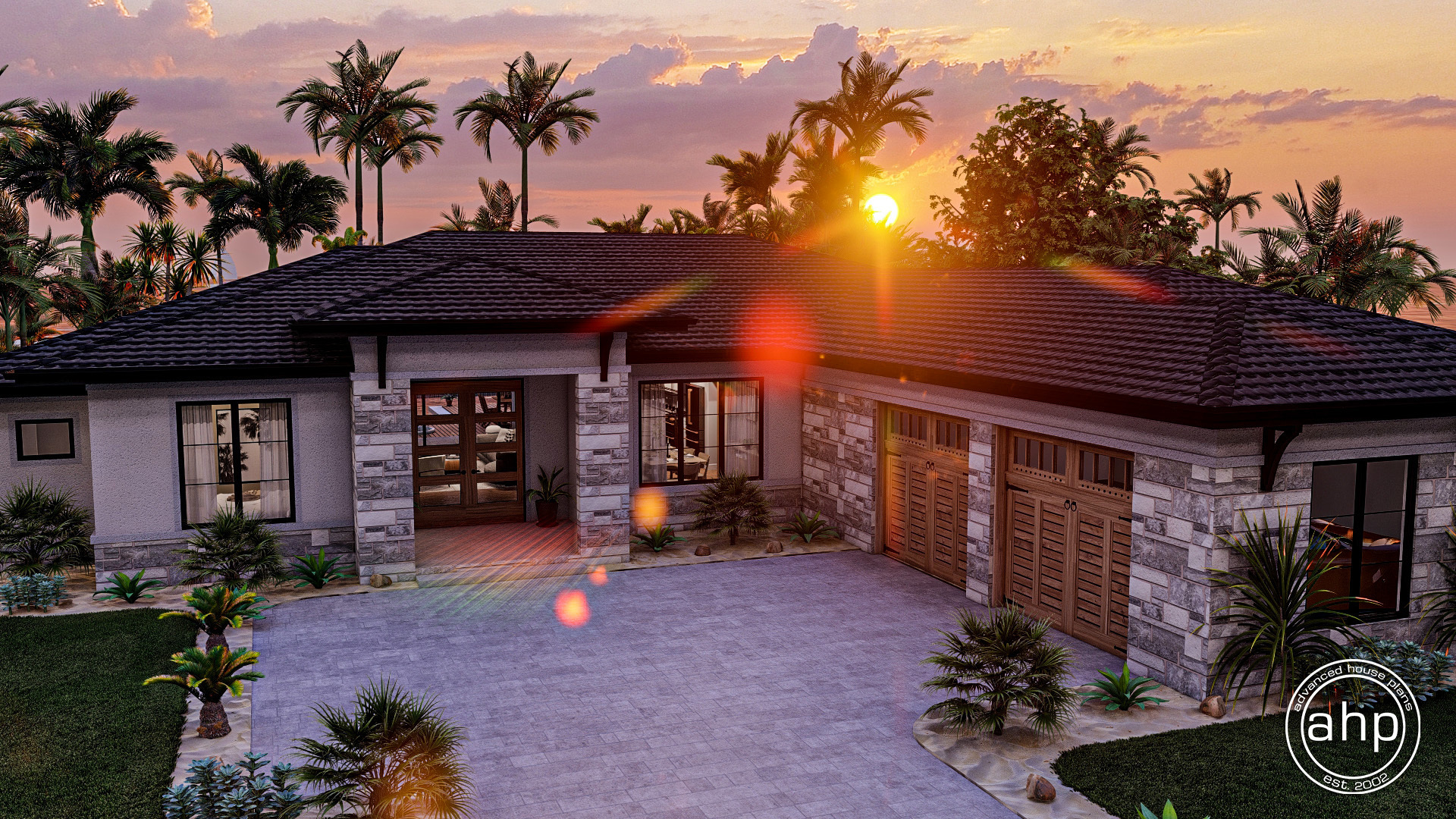

The homes beautiful oversized 2 car courtyard load garage accesses the home through a convenient mudroom that features a catch-all and a bench with lockers.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 4
Bathrooms 4
Garage Bays 2
Square Footage
Main Level 2306 Sq. Ft.
Covered Area 426 Sq. Ft.
Garage 852 Sq. Ft.
Total Finished Area 2306 Sq. Ft.
Exterior Dimensions
Width 67' 0"
Depth 79' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Slab
Exterior Wall Construction
2x4
Roof Pitches
4/12 Primary
Main Wall Height
9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at sales@advancedhouseplans.com
