1 Story Mediterranean Style House Plan

Palmdale - 30119

Sq Ft
60' 0"
96' 0"

Plan Video

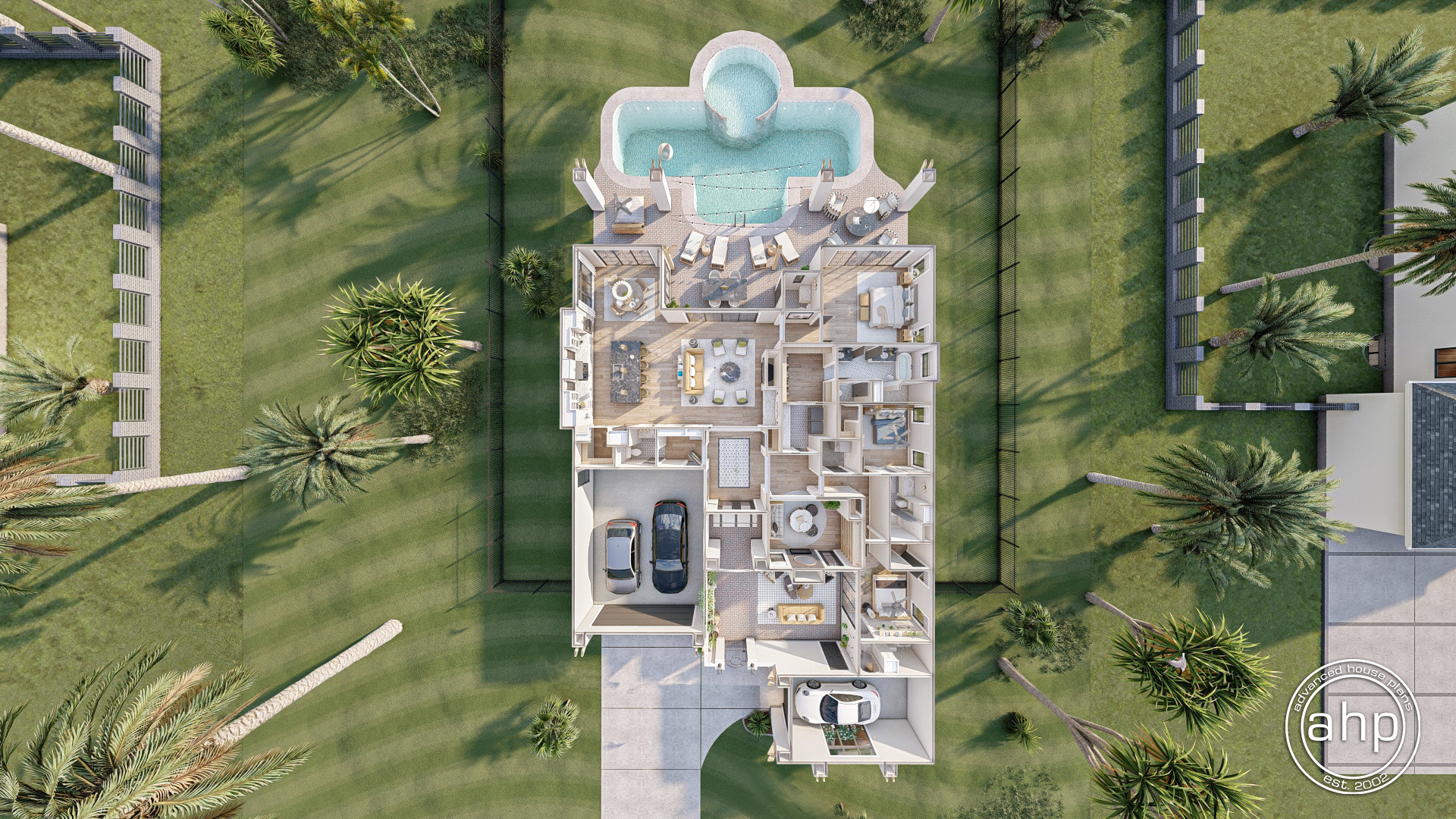

Floor Plan Images

Main Level

1 Story Mediterranean Style House Plan | Palmdale

Plan Description

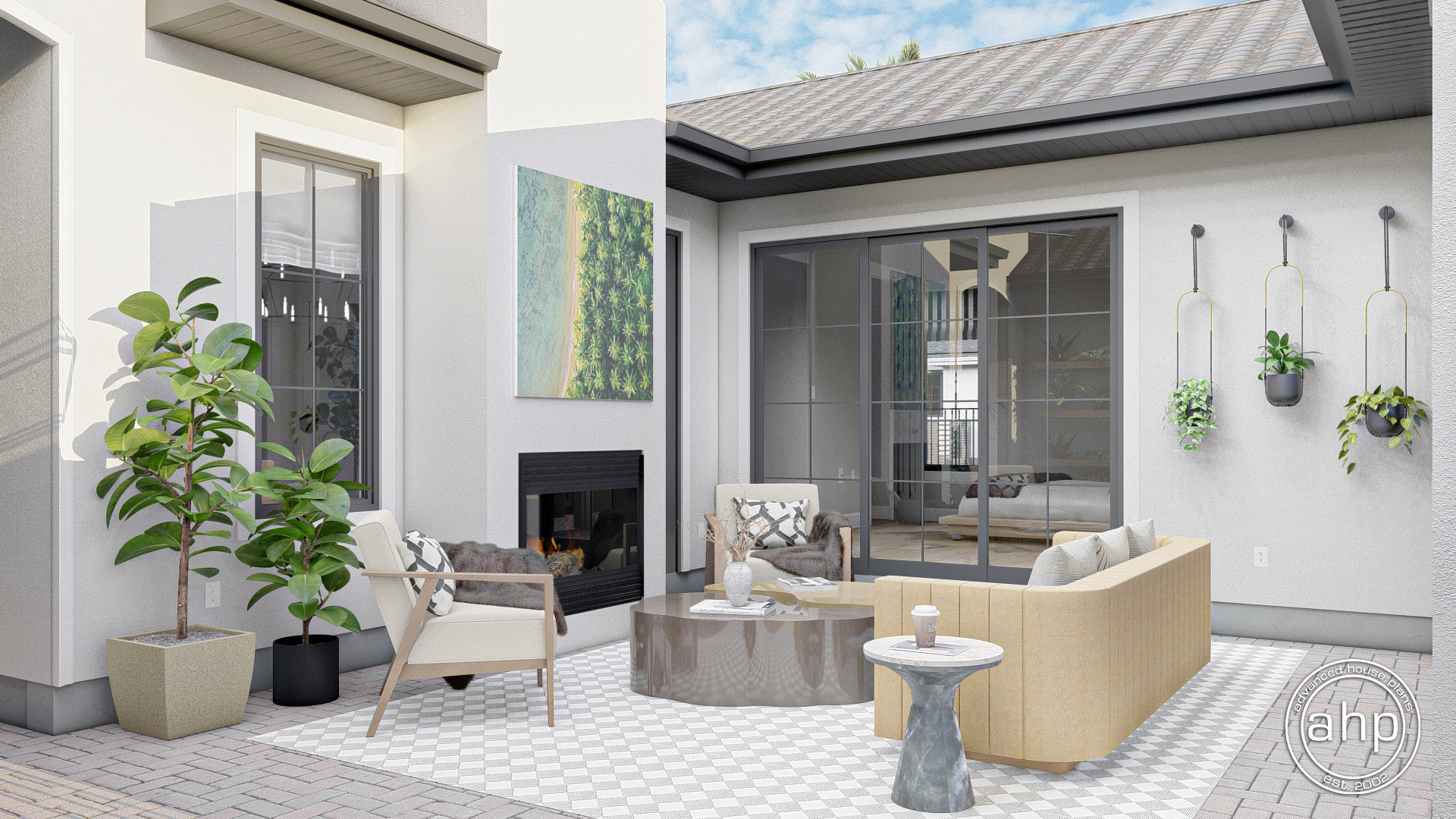

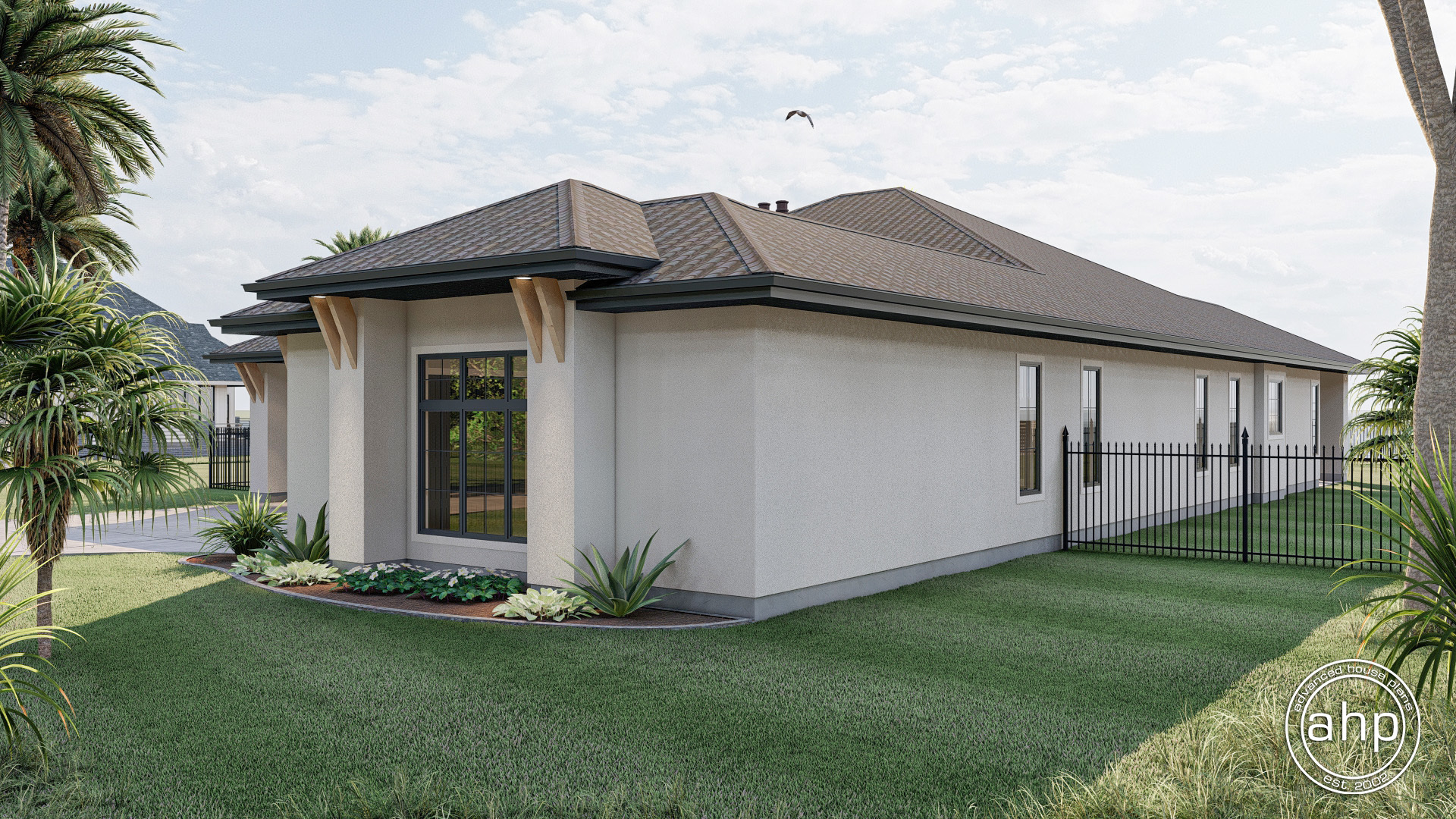

The Palmdale plan is a stunning Mediterranean style house plan. The exterior showcases stucco siding with a clay tile roof. An amazing courtyard with a fireplace greets guests as they come through the front gate.

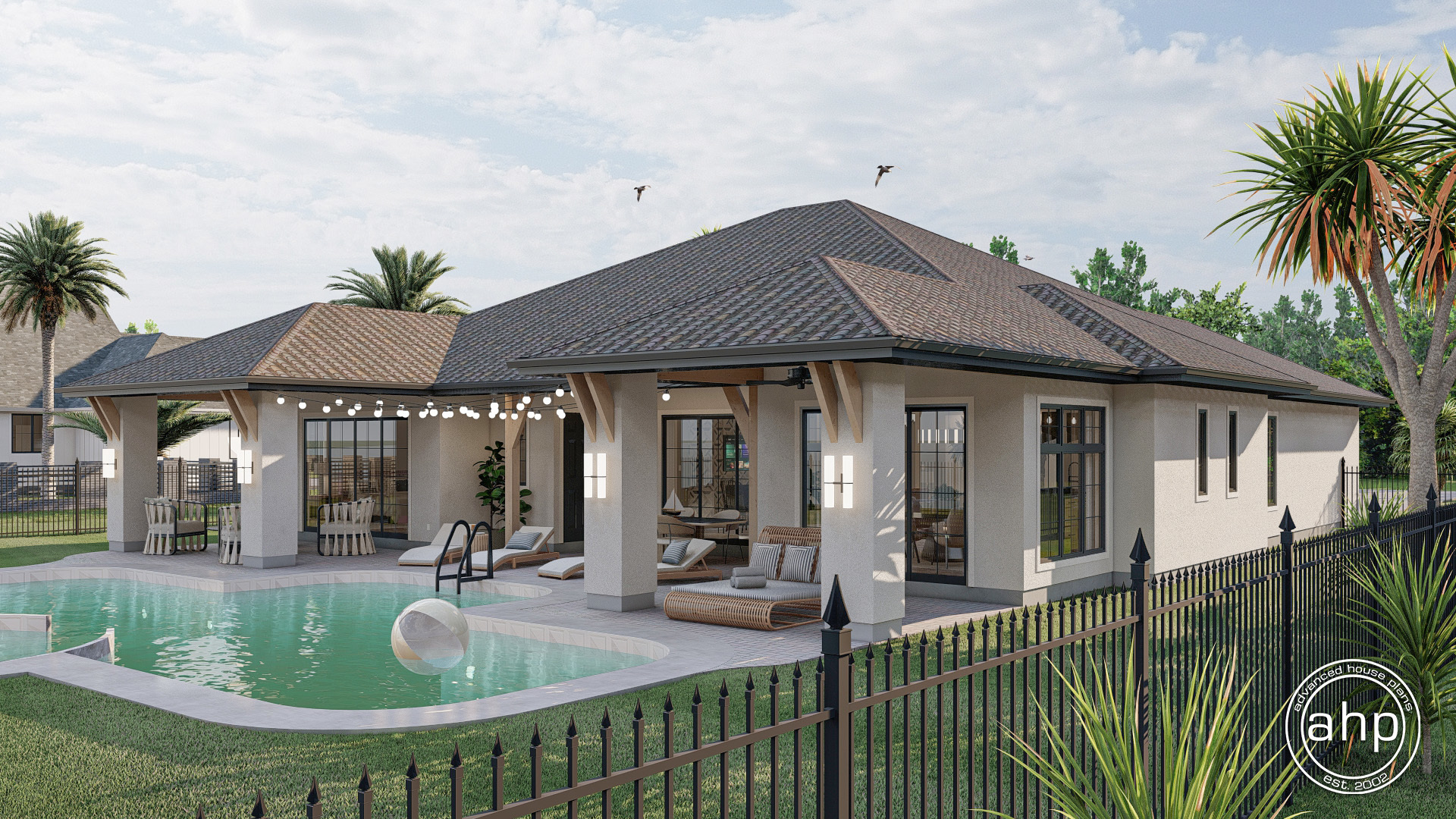

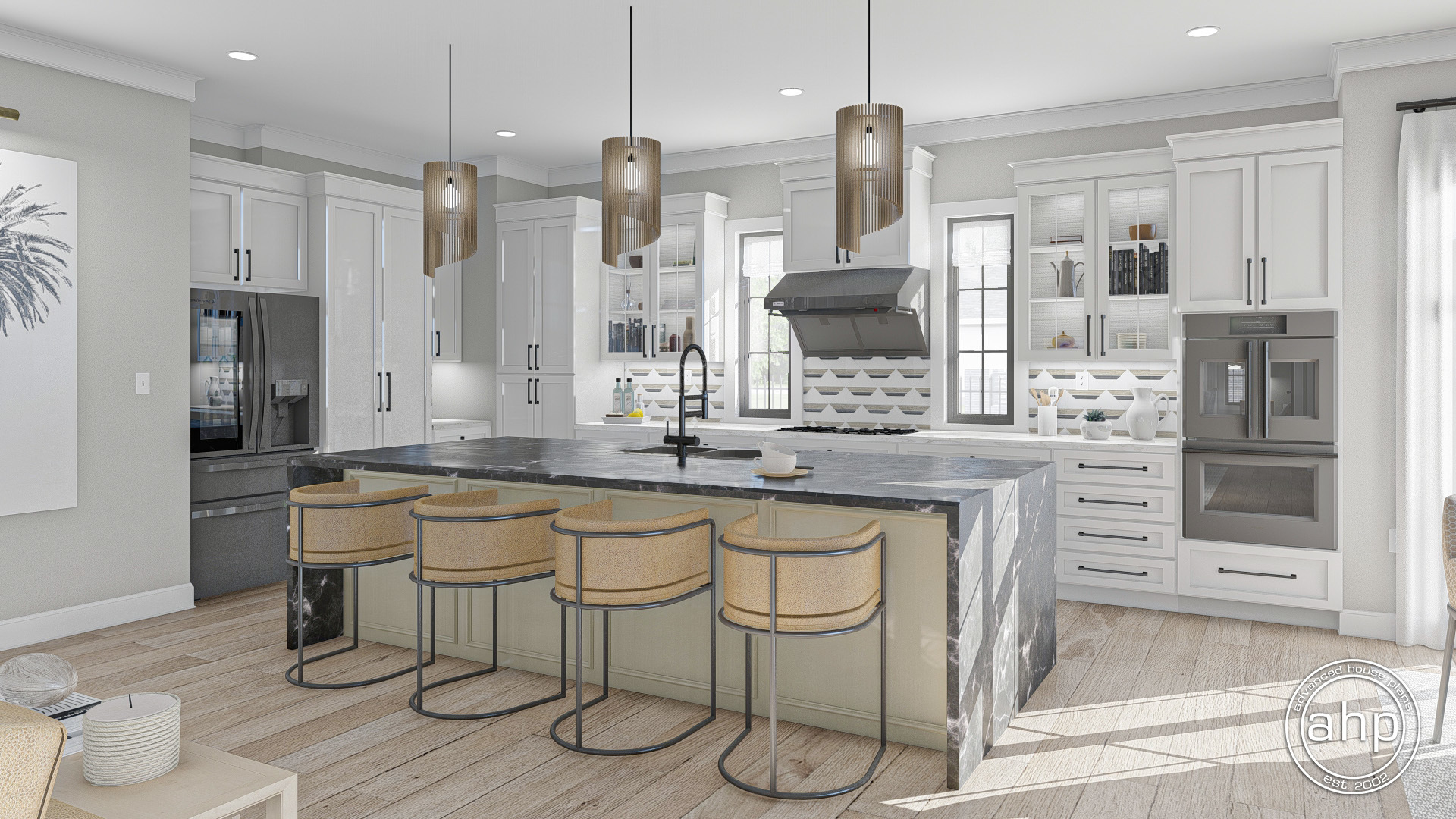

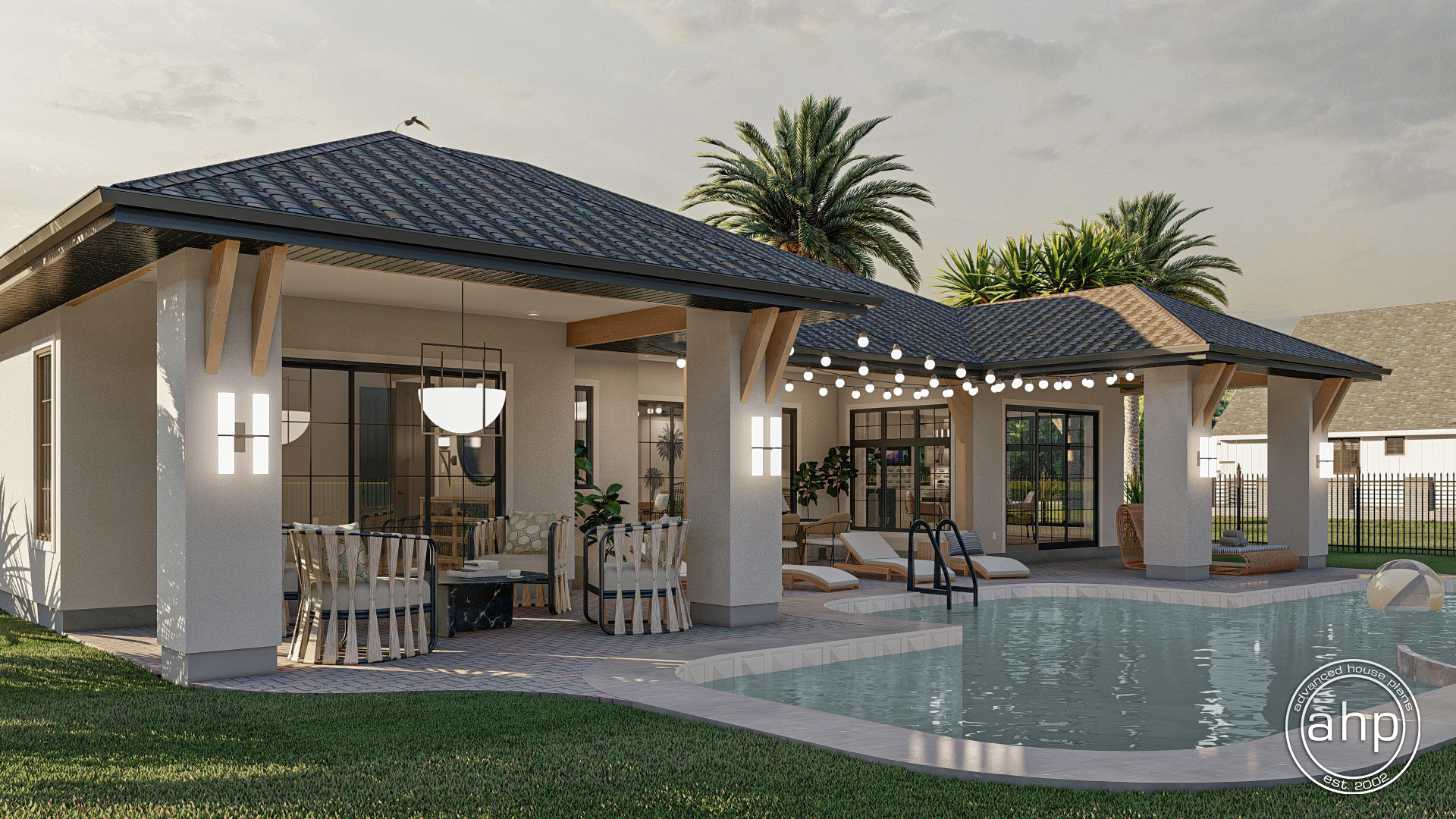

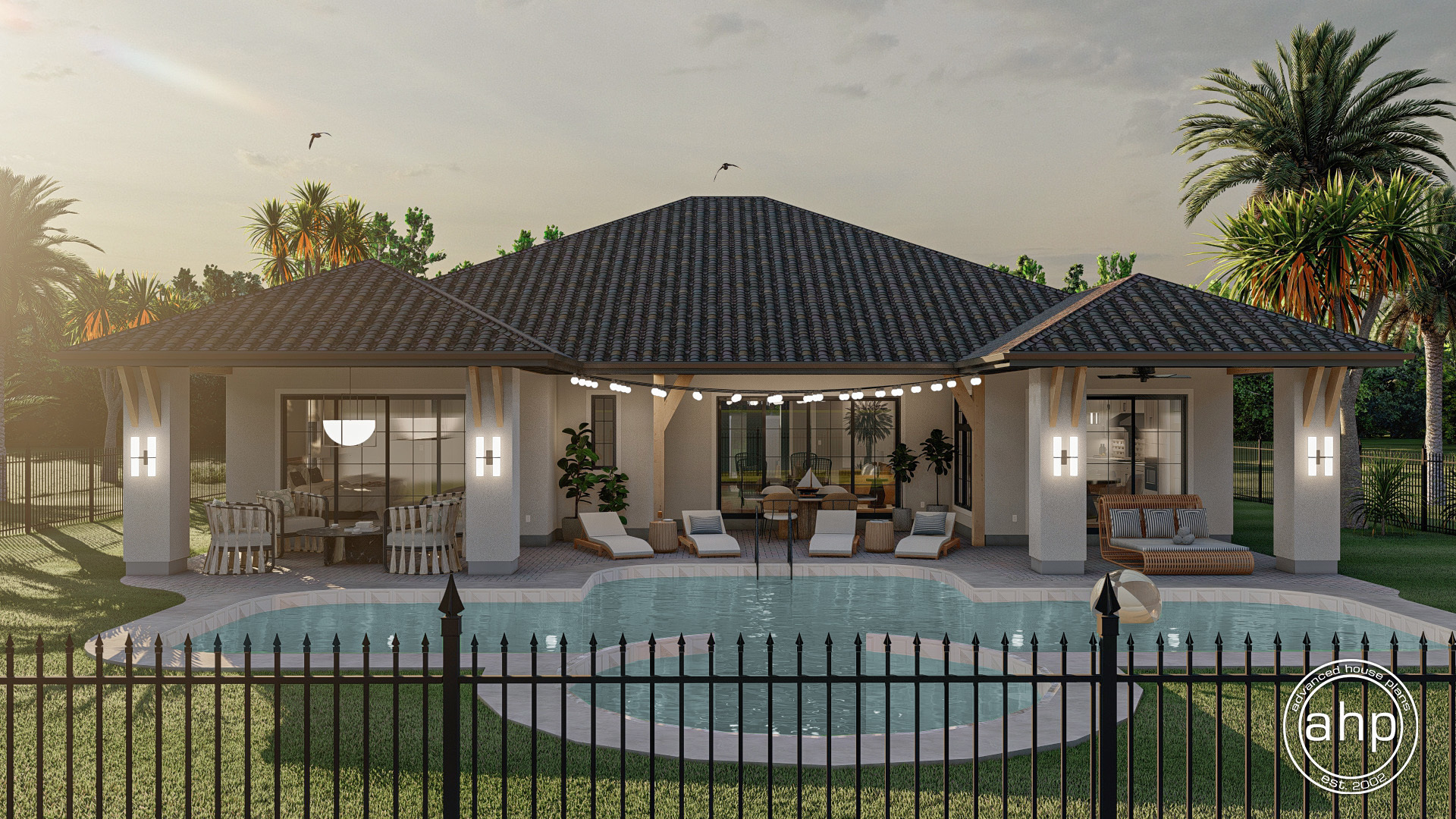

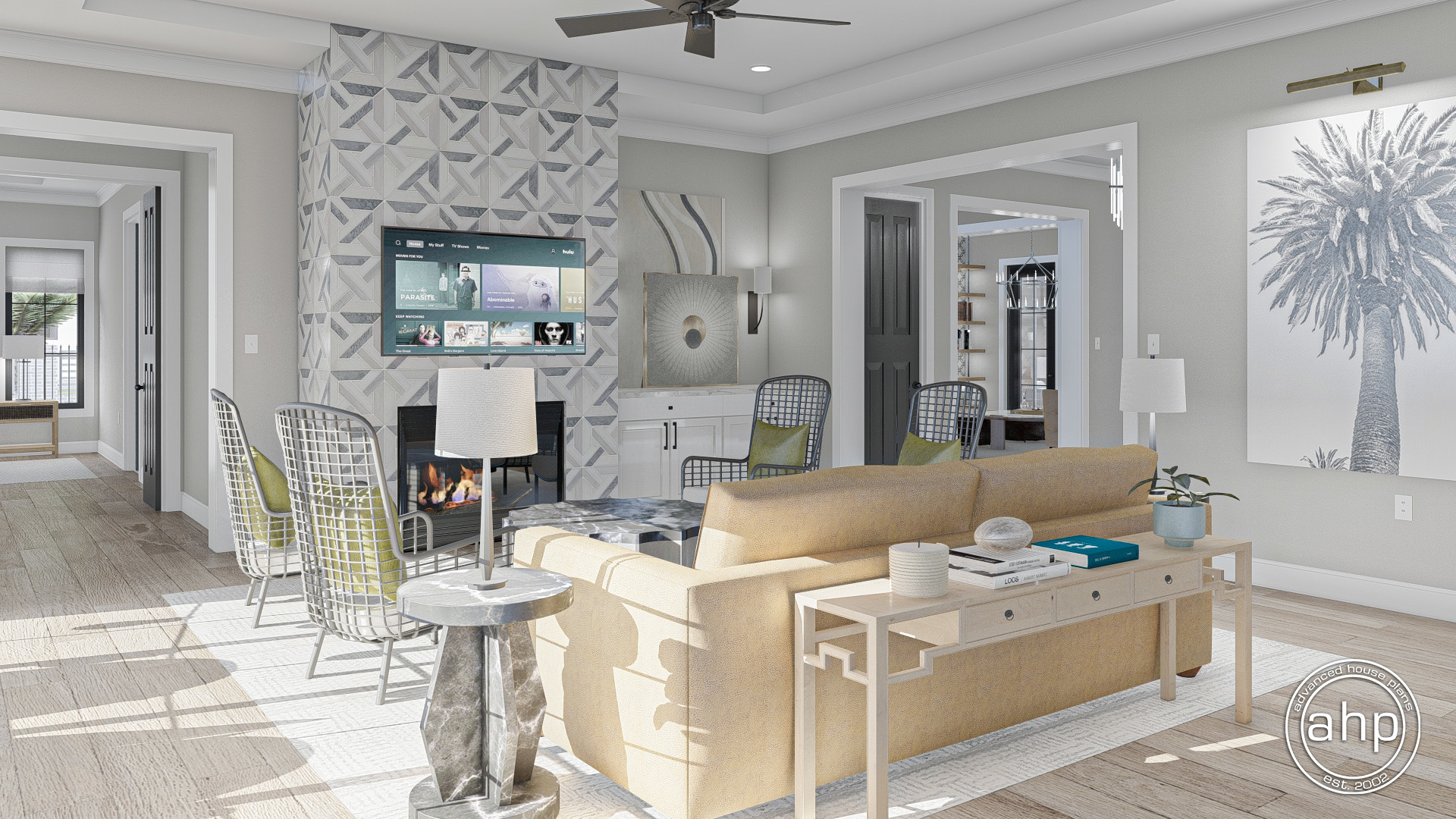

Just through the front covered stoop, you'll find yourself in the entry way that features an 11' high trayed ceiling. The 10' high ceilings throughout make this ranch plan feel more spacious. The great room in this house also lies under an 11' trayed ceiling and is warmed by a fireplace that includes built-in bookshelves. The home opens up through a large sliding door to an amazing rear covered patio.  The home's kitchen includes a large island with a snack ledge and a walk-in pantry.

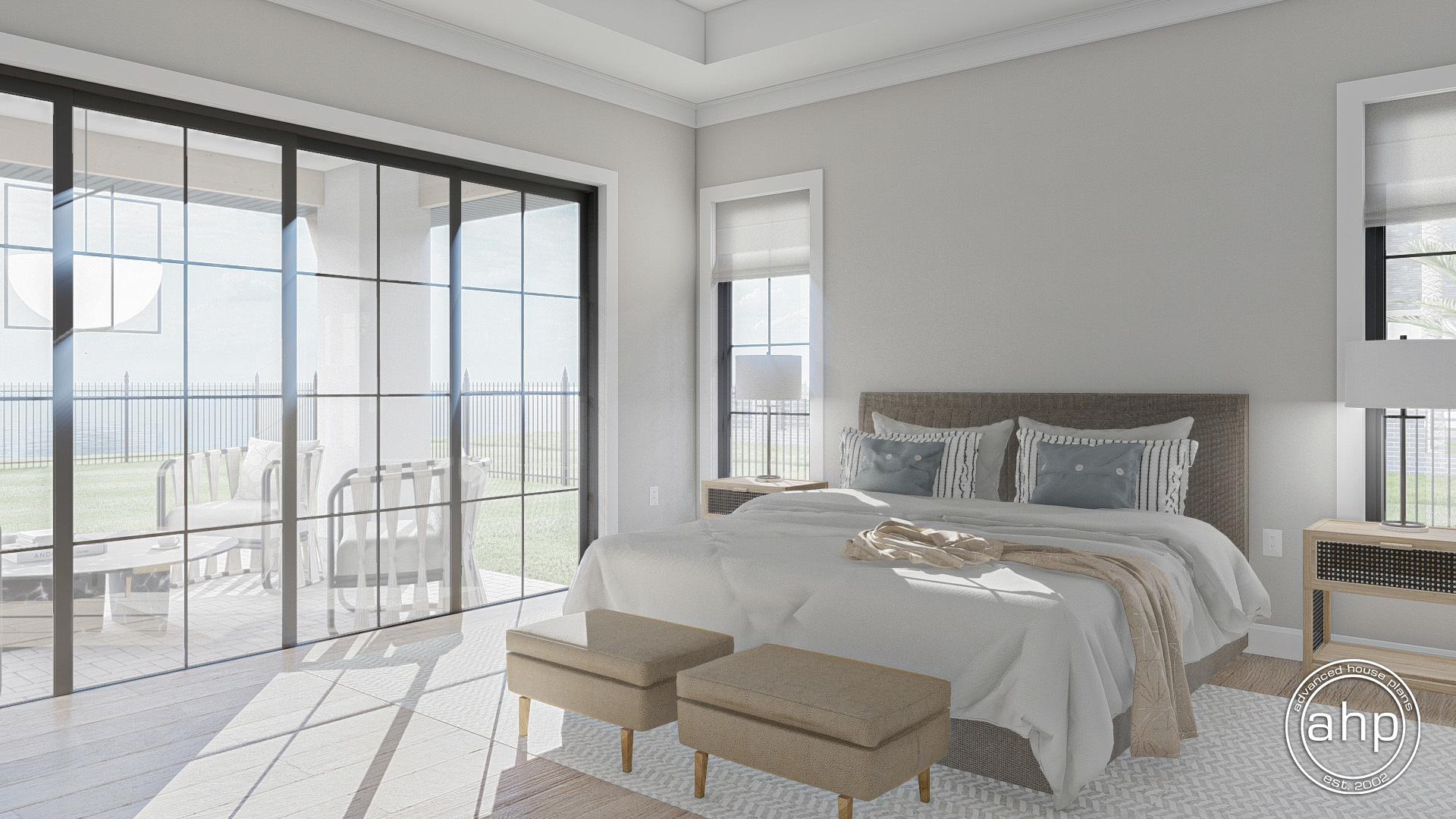

On the right side of the home, you'll find the master suite. The master bathroom includes his/her vanities, a soaking tub, a walk-in shower, and an enclosed toilet area. The bedroom itself lies under its own 11' trayed ceiling and has a sliding glass door leading to a private covered patio. The master closet has access to the laundry room through a pocket door.

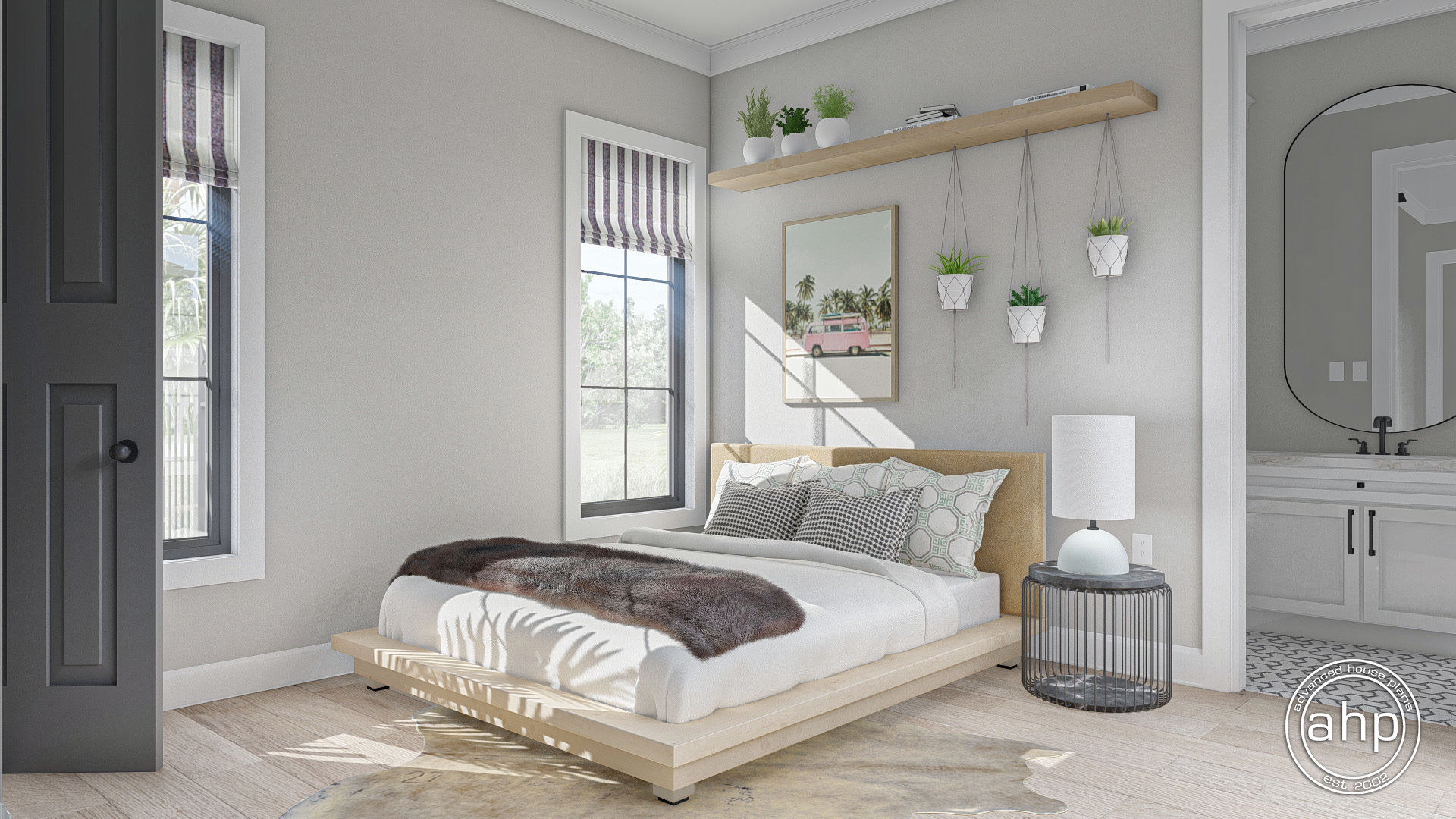

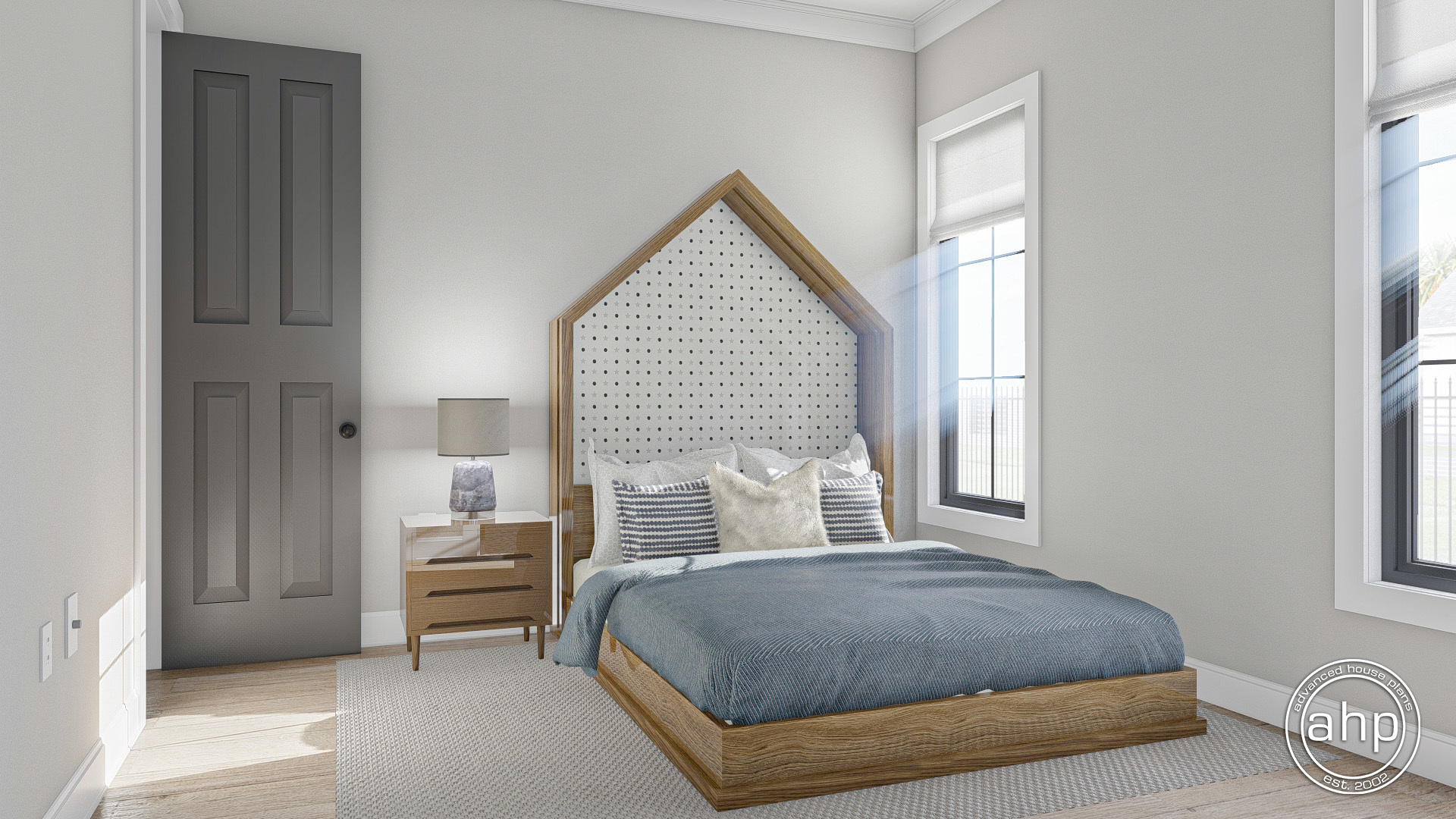

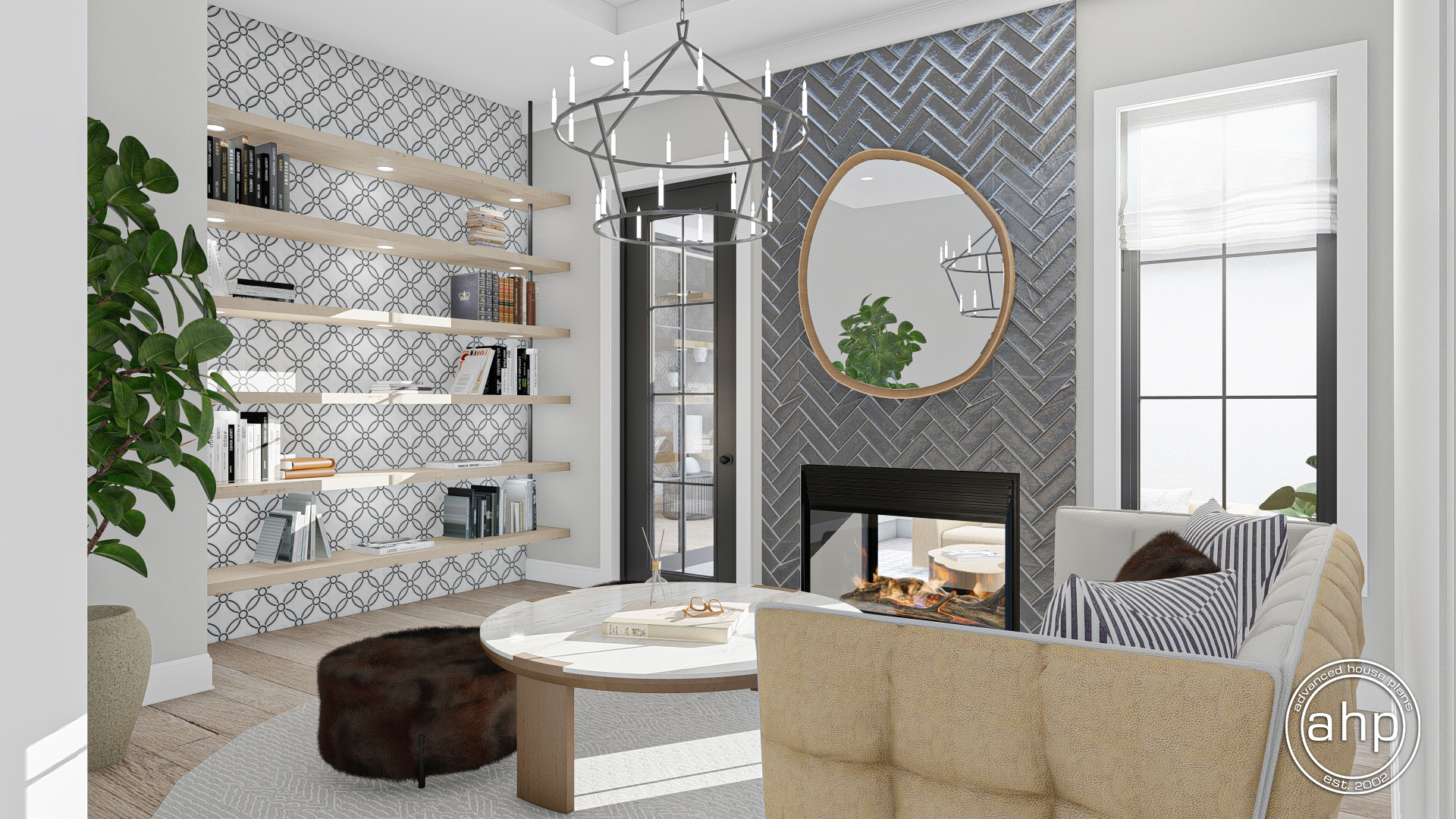

Bedrooms 2 and 3 each have access to their own bathroom and walk-in closet. A den is located towards the front of the home and includes a fireplace and a built-in bookshelf.

The home features a split 3 car garage. The single car garage enters into the courtyard while the 2 car garage enters the home through a convenient mudroom that includes a bench and locker.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 3
Bathrooms 5
Garage Bays 3
Square Footage
Main Level 2531 Sq. Ft.
Covered Area 484 Sq. Ft.
Garage 856 Sq. Ft.
Total Finished Area 2531 Sq. Ft.
Exterior Dimensions
Width 60 ' 0"
Depth 96 ' 0"
Ridge Height
Calculated from main floor line
25 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
6/12 Primary
Main Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
