29074 | Scottsdale


1.5 Story

3446 Sq. Ft.

4 Beds

4 Baths

3 Car
Did you know you can make alterations to this plan?

Floor Plans

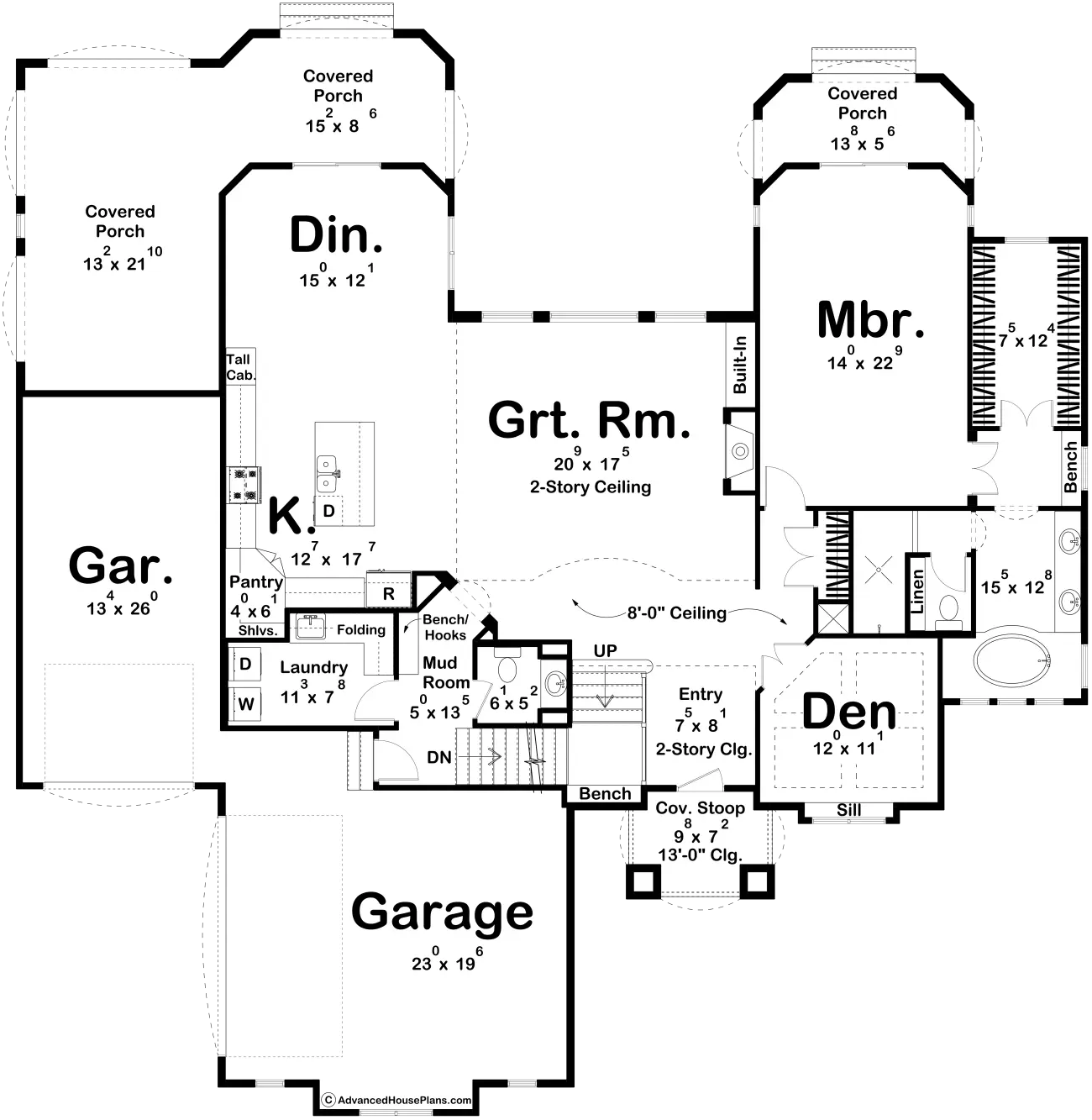

Scottsdale Floor PlanScottsdale Floor Plan

Plan Description

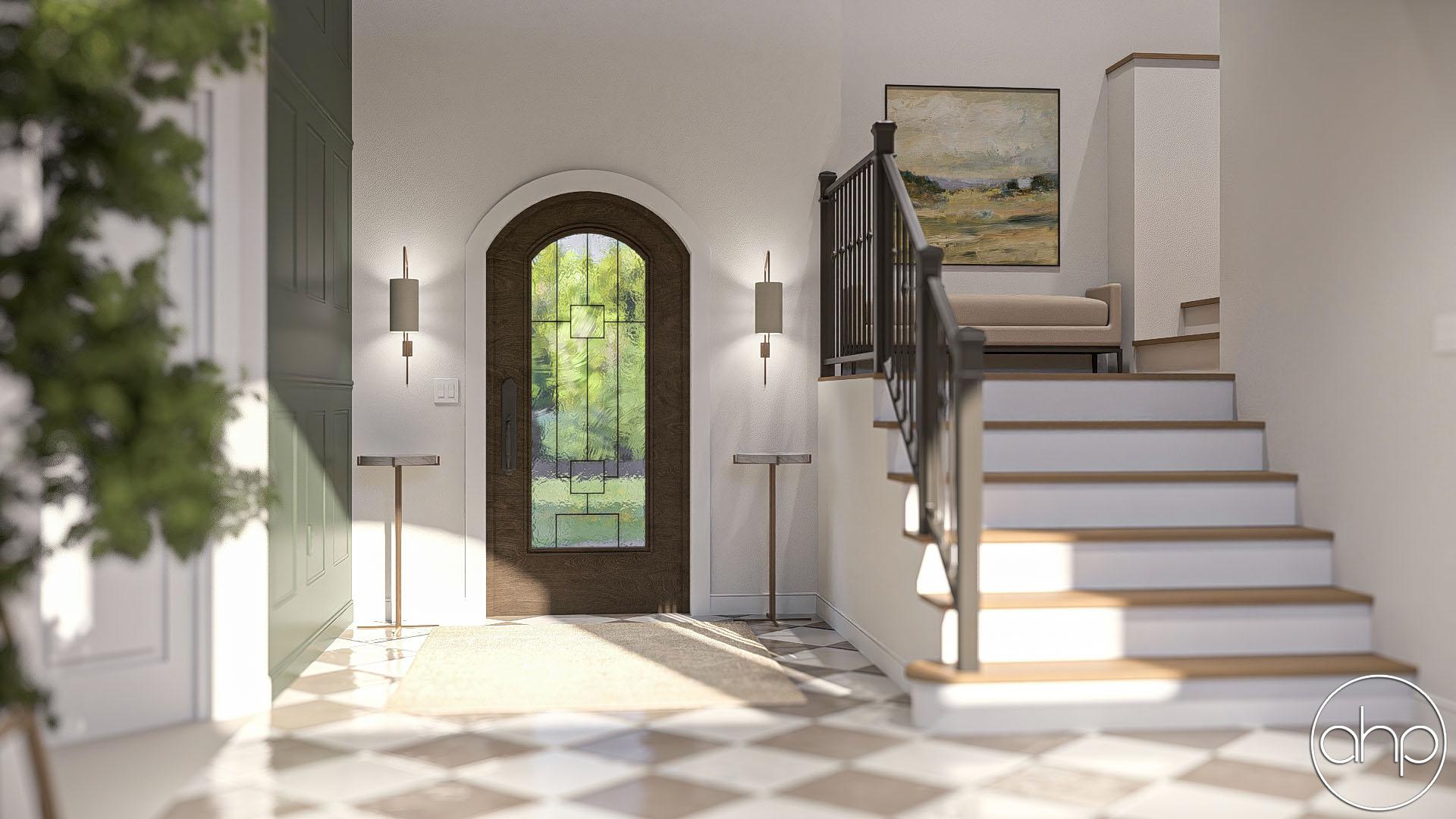

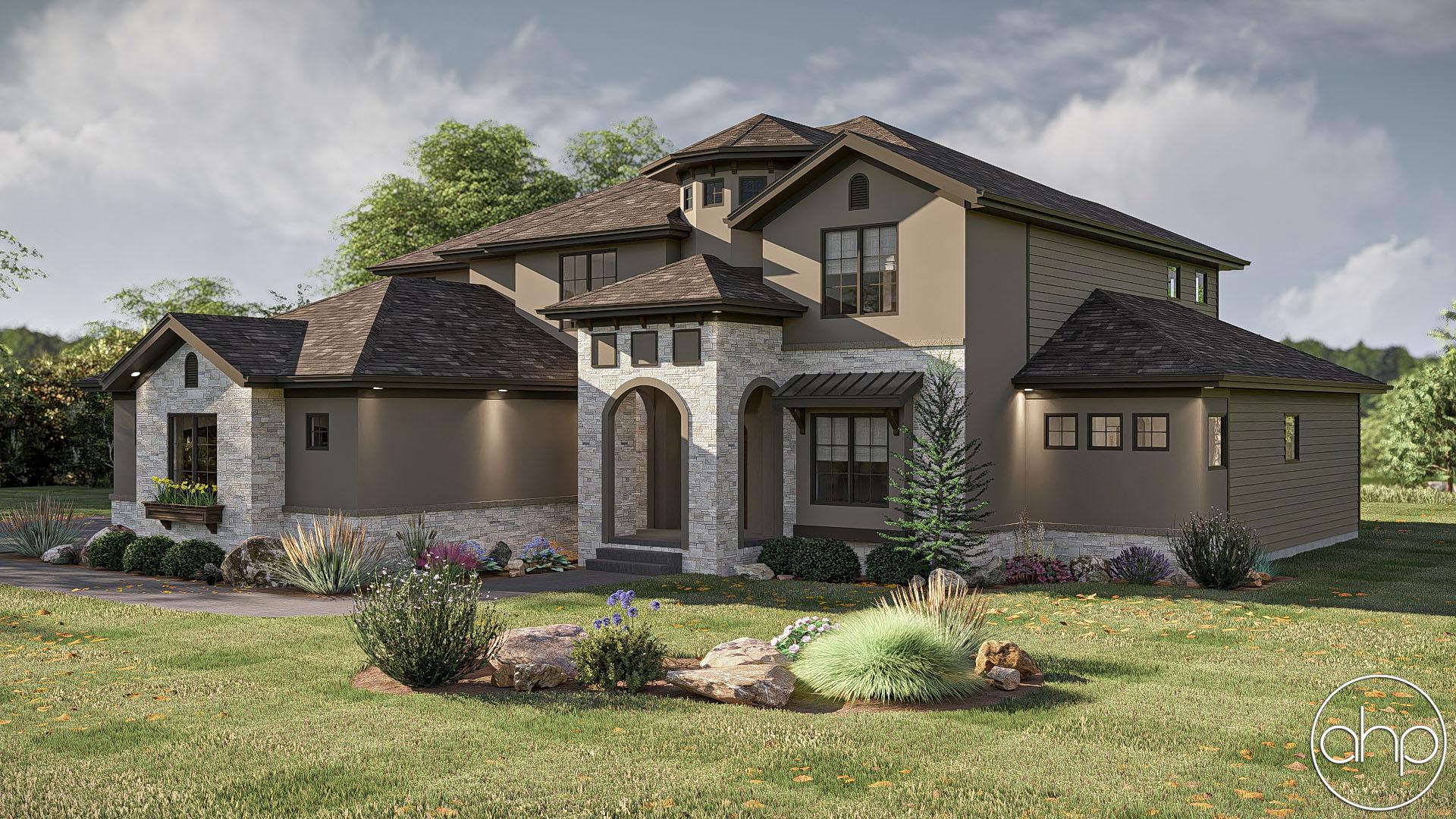

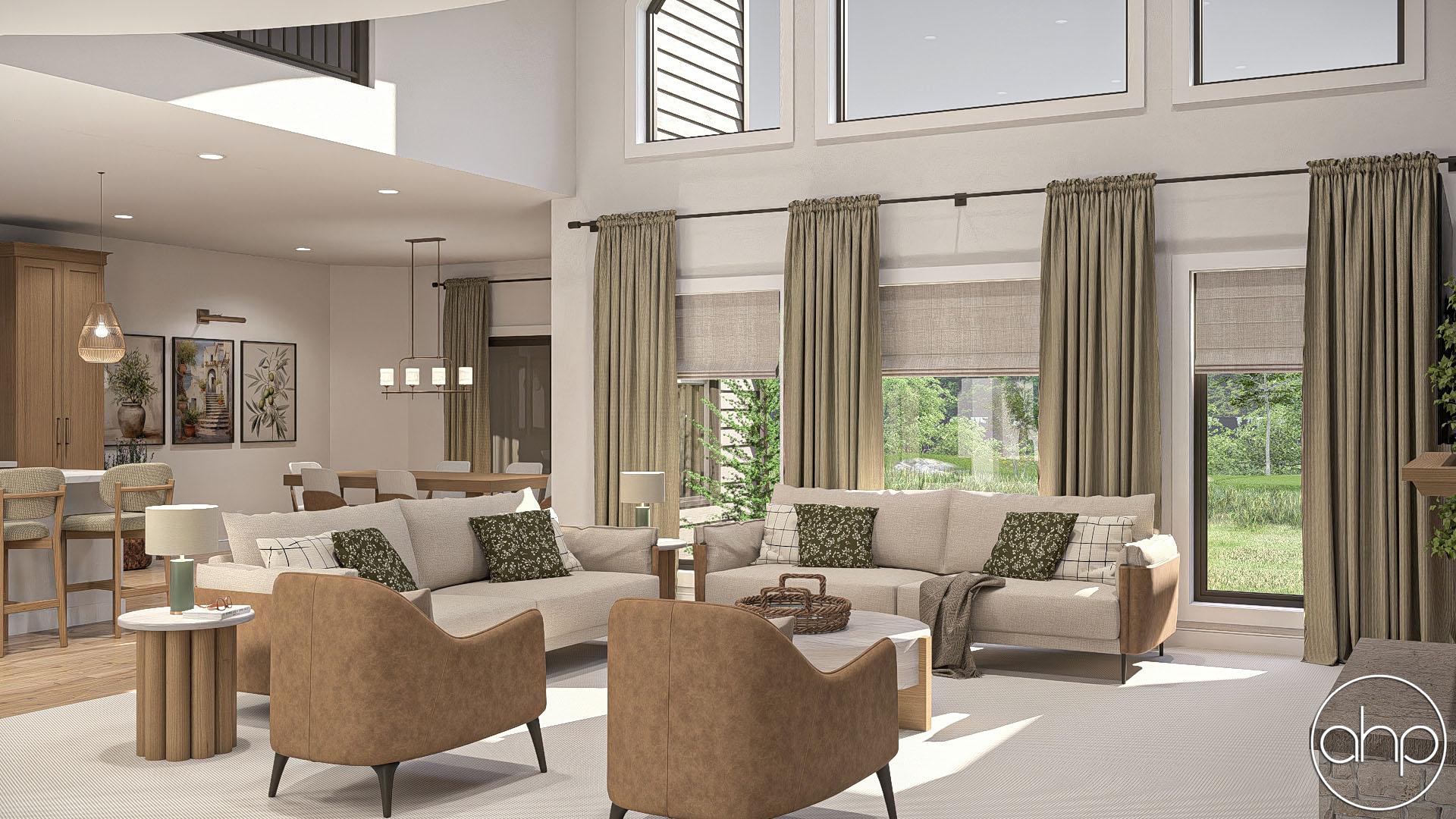

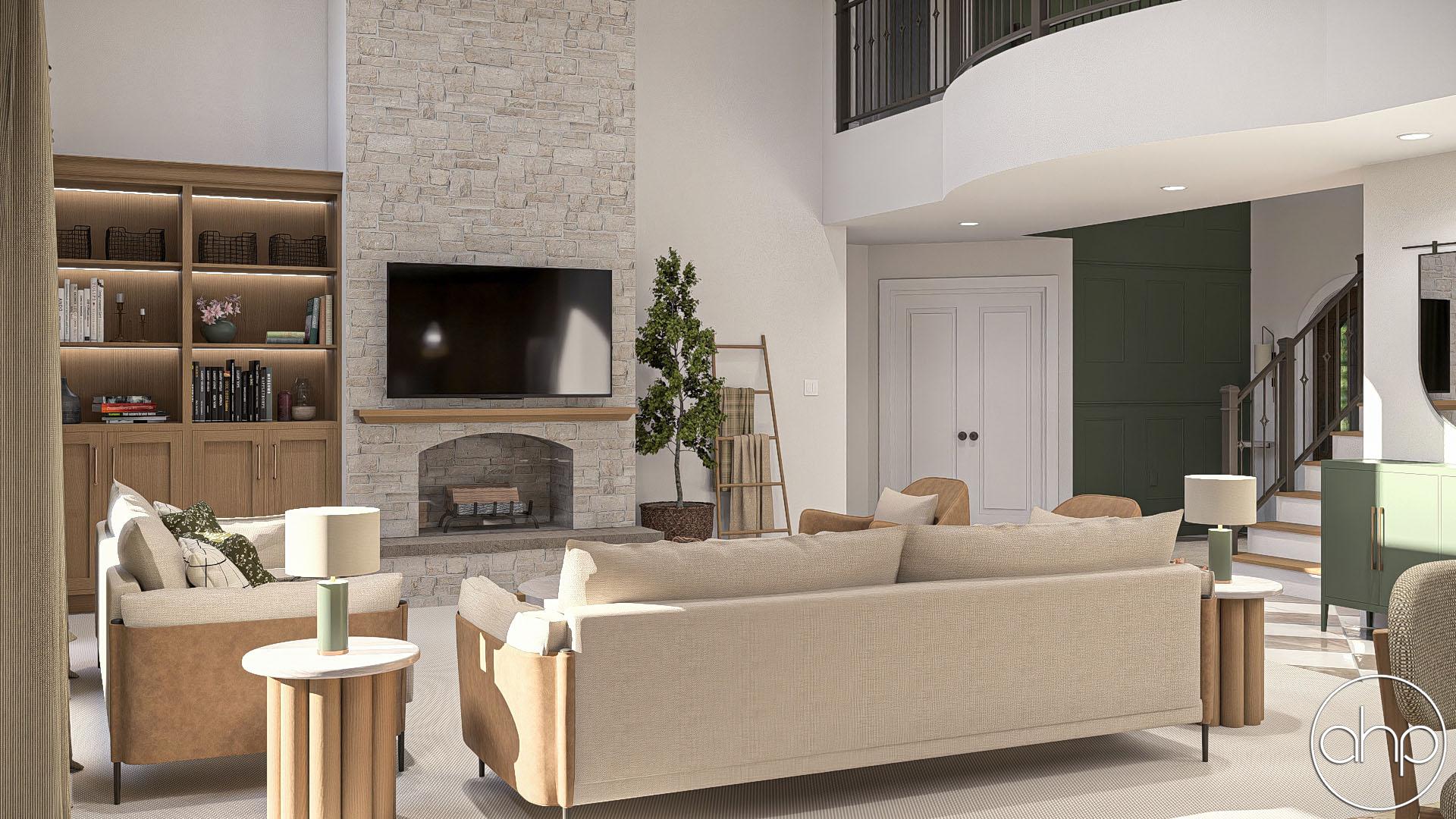

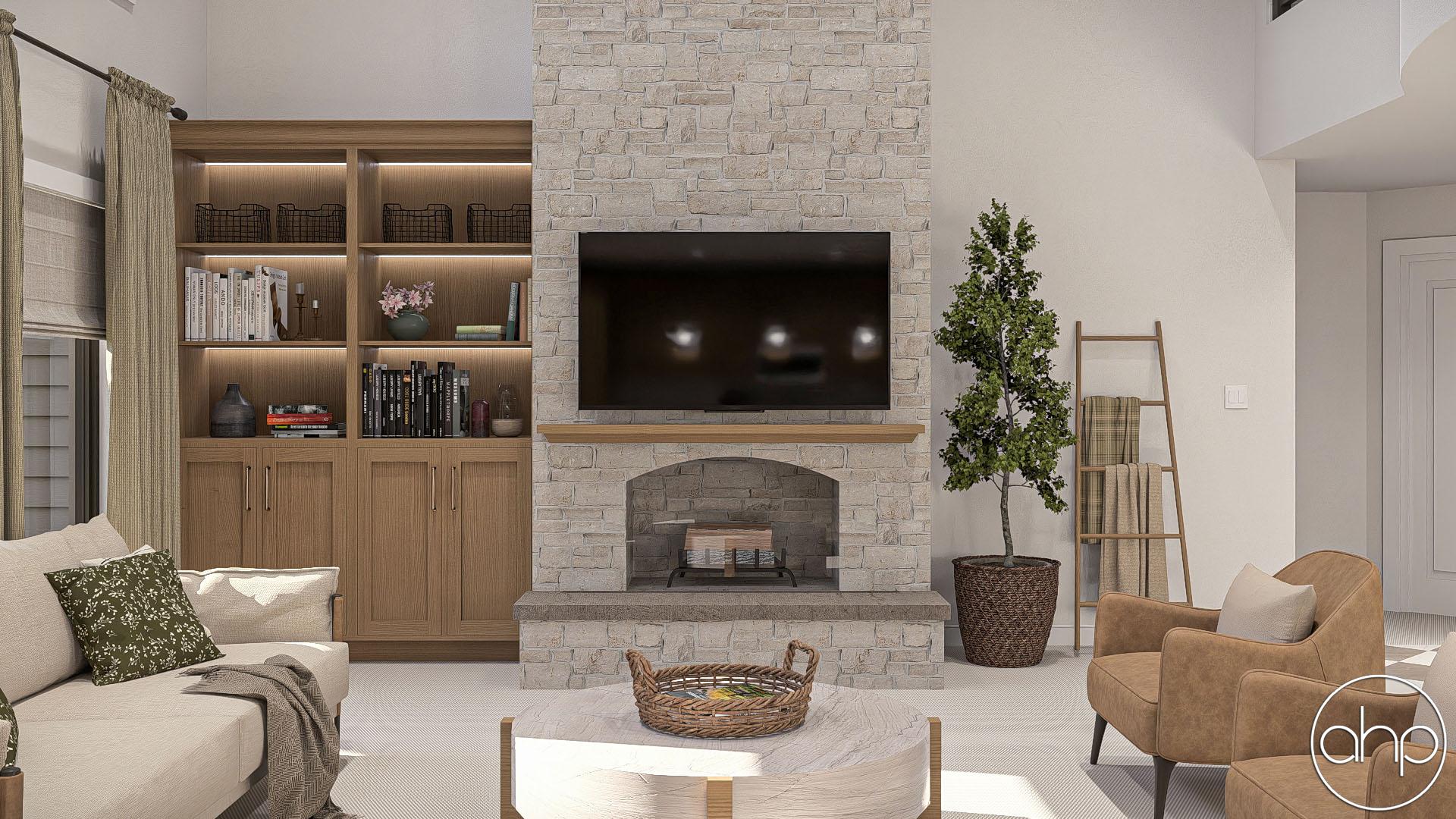

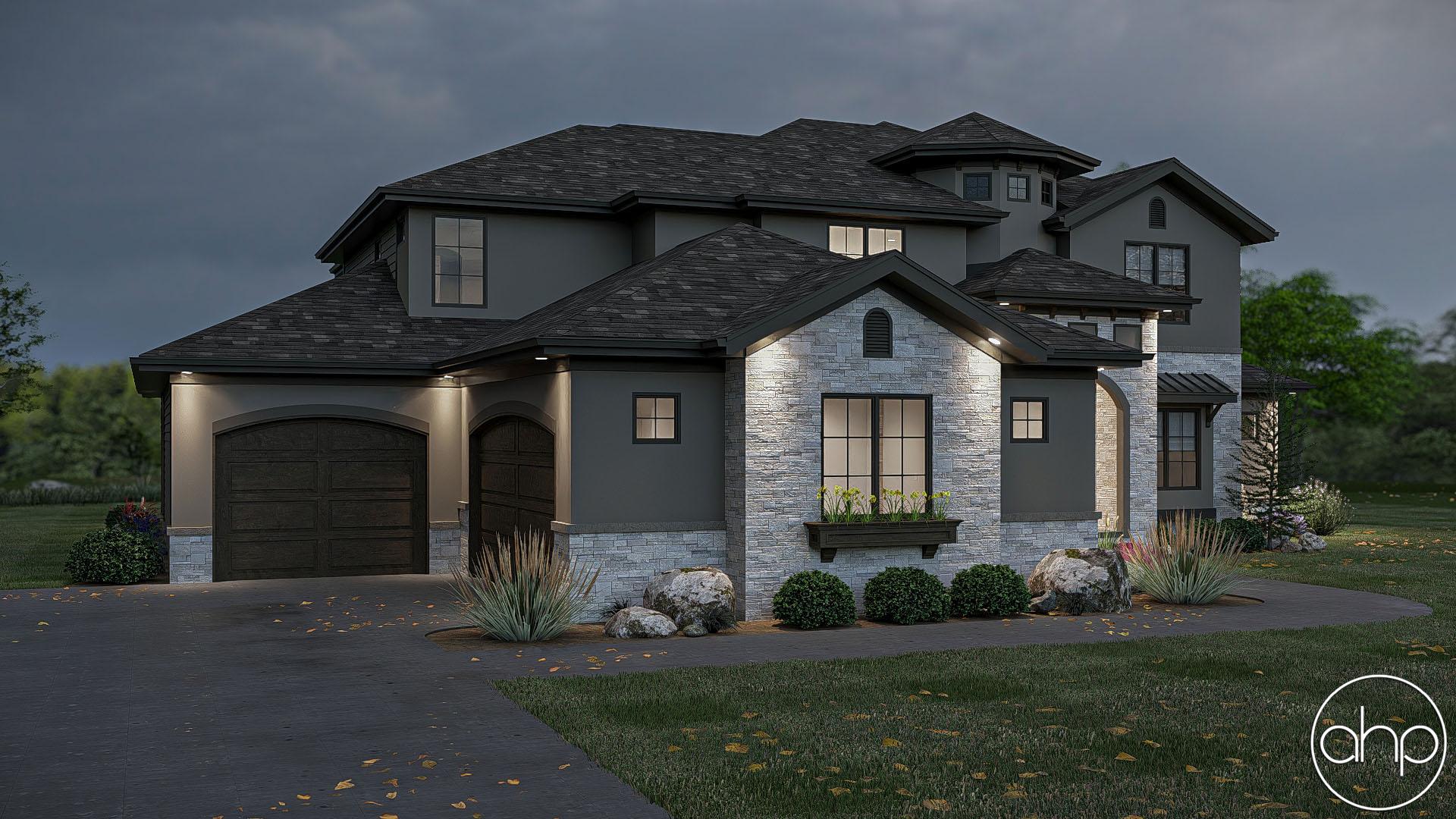

Striking design details abound in this 4-bedroom, 1.5 story, Mediterranean style house plan. Upon entering the home, guests have views into the 2 story great room, which is brightened by an array of tall windows. Beyond the great room, a pair of double doors open to the den, which enjoys views to the front of the home.

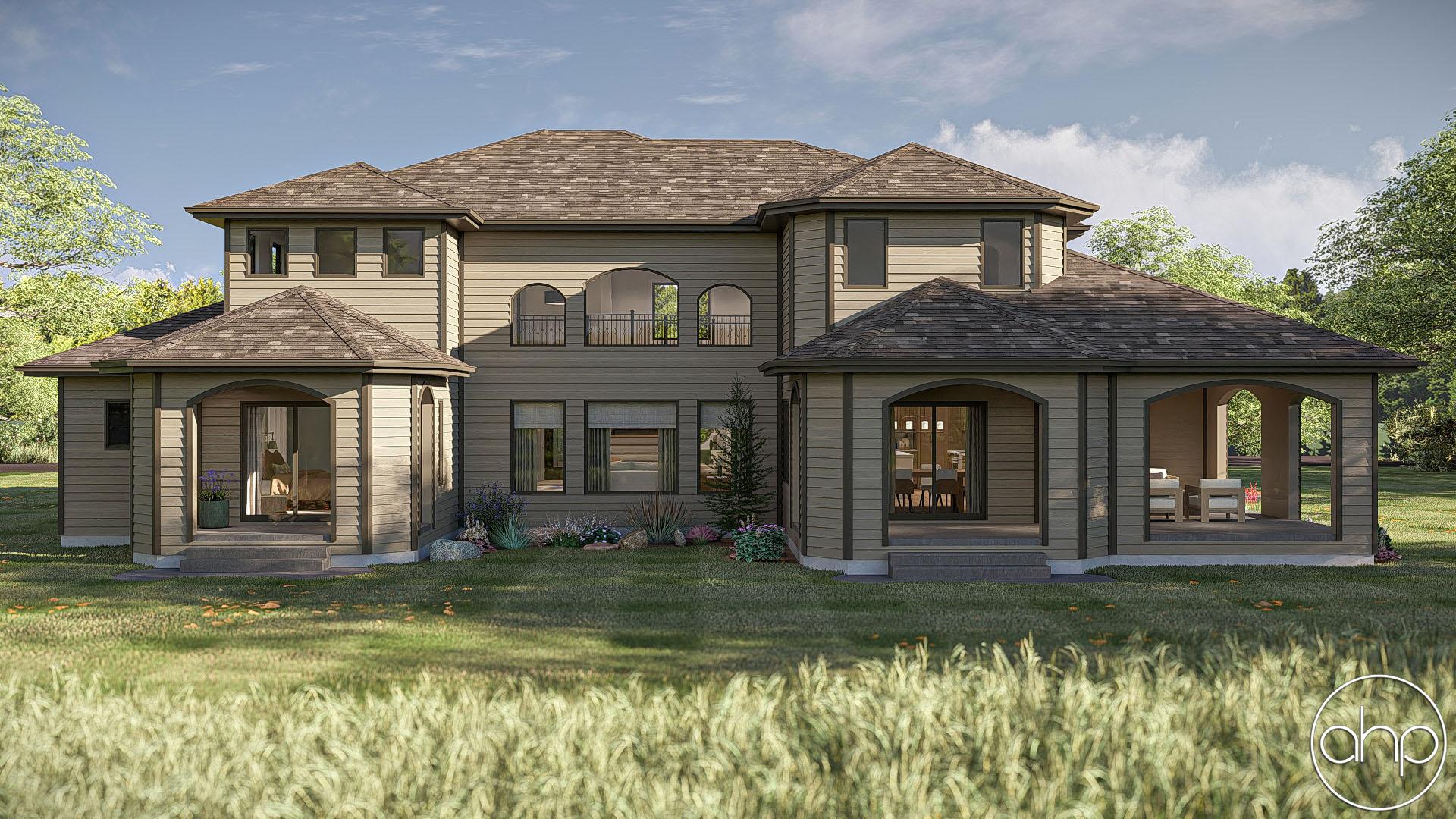

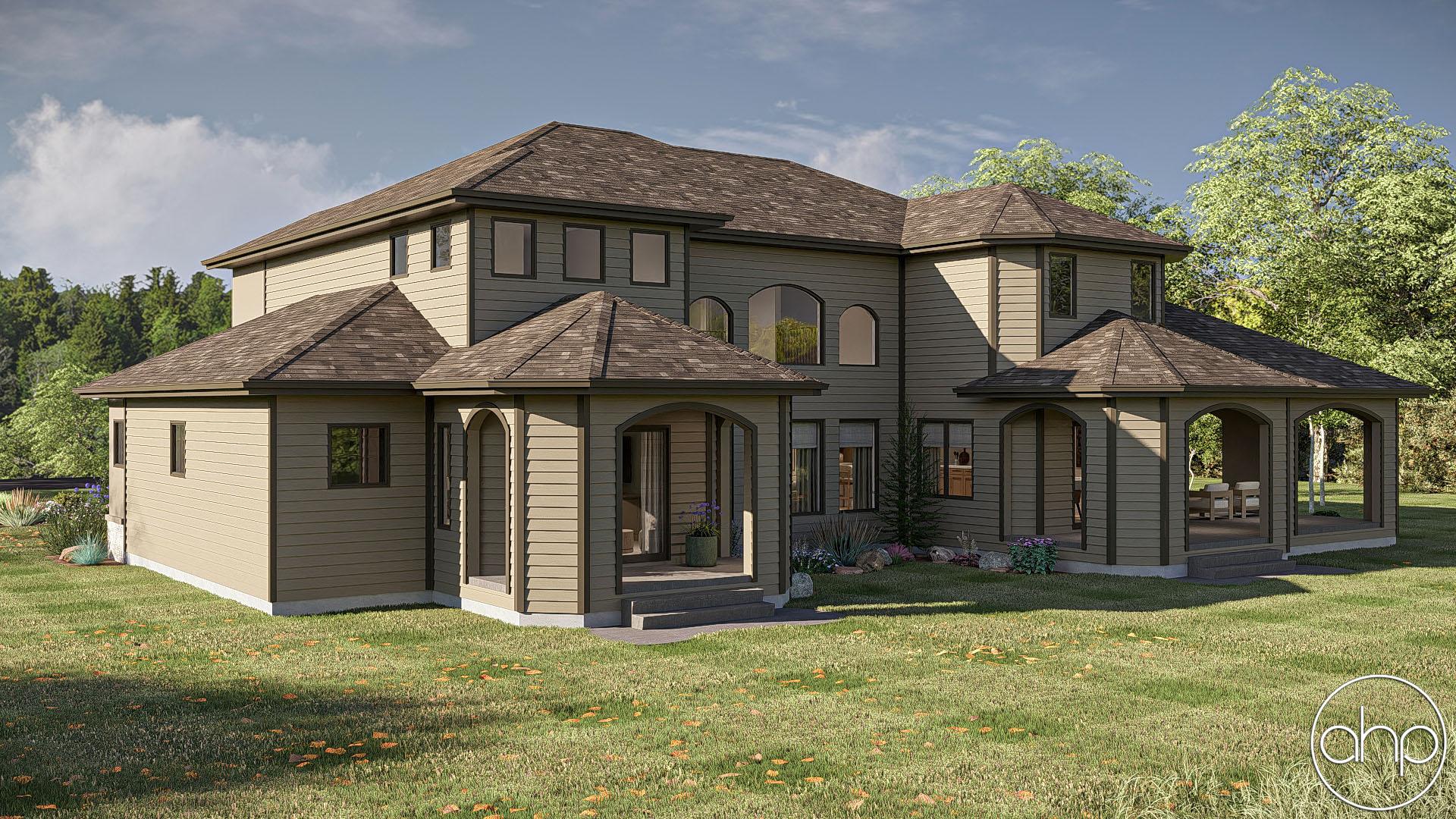

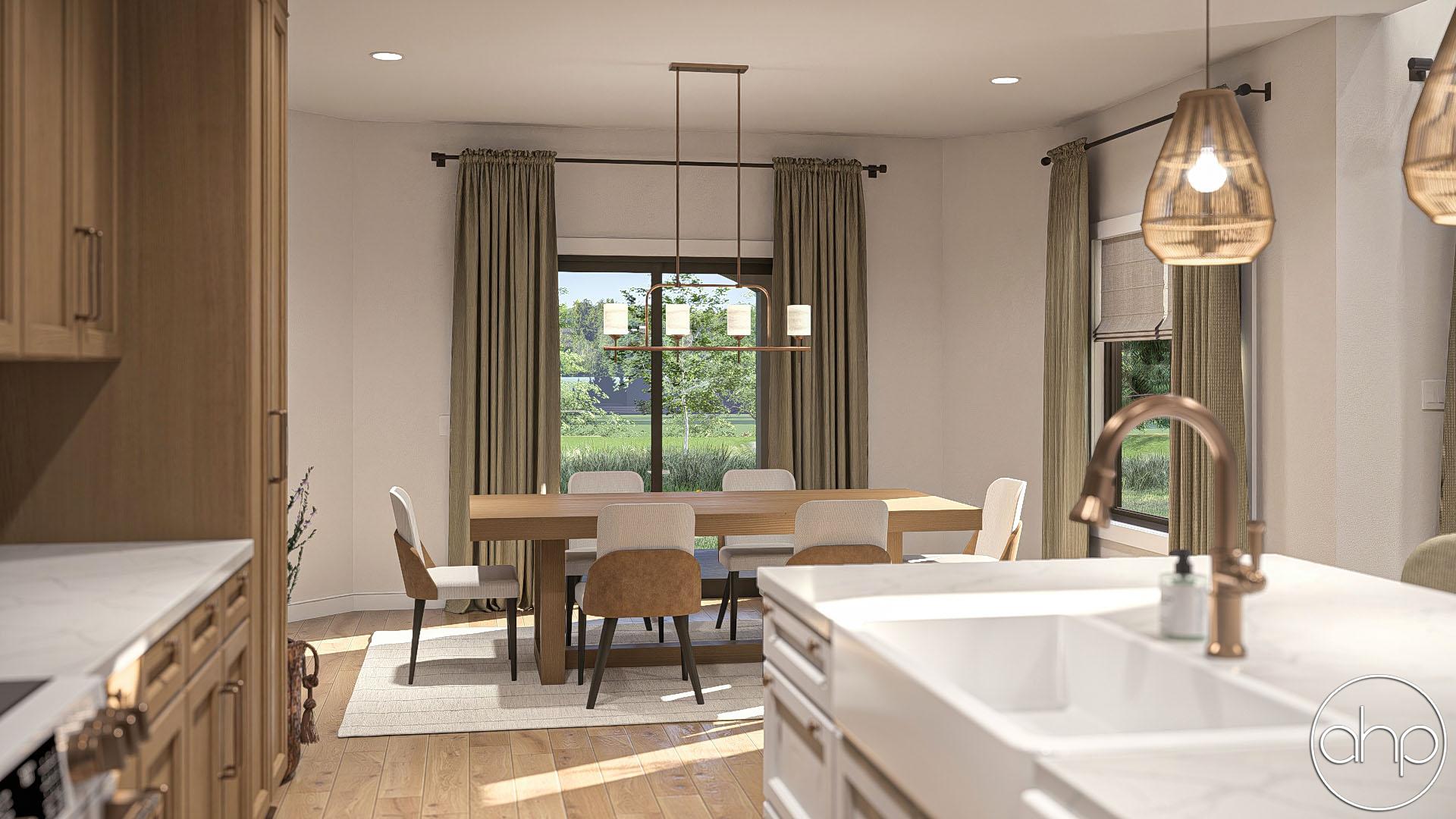

Angled away from the den, beyond the staircase, is the kitchen and breakfast area. Entertaining options are greatly expanded where the breakfast area accesses an open rear covered deck.

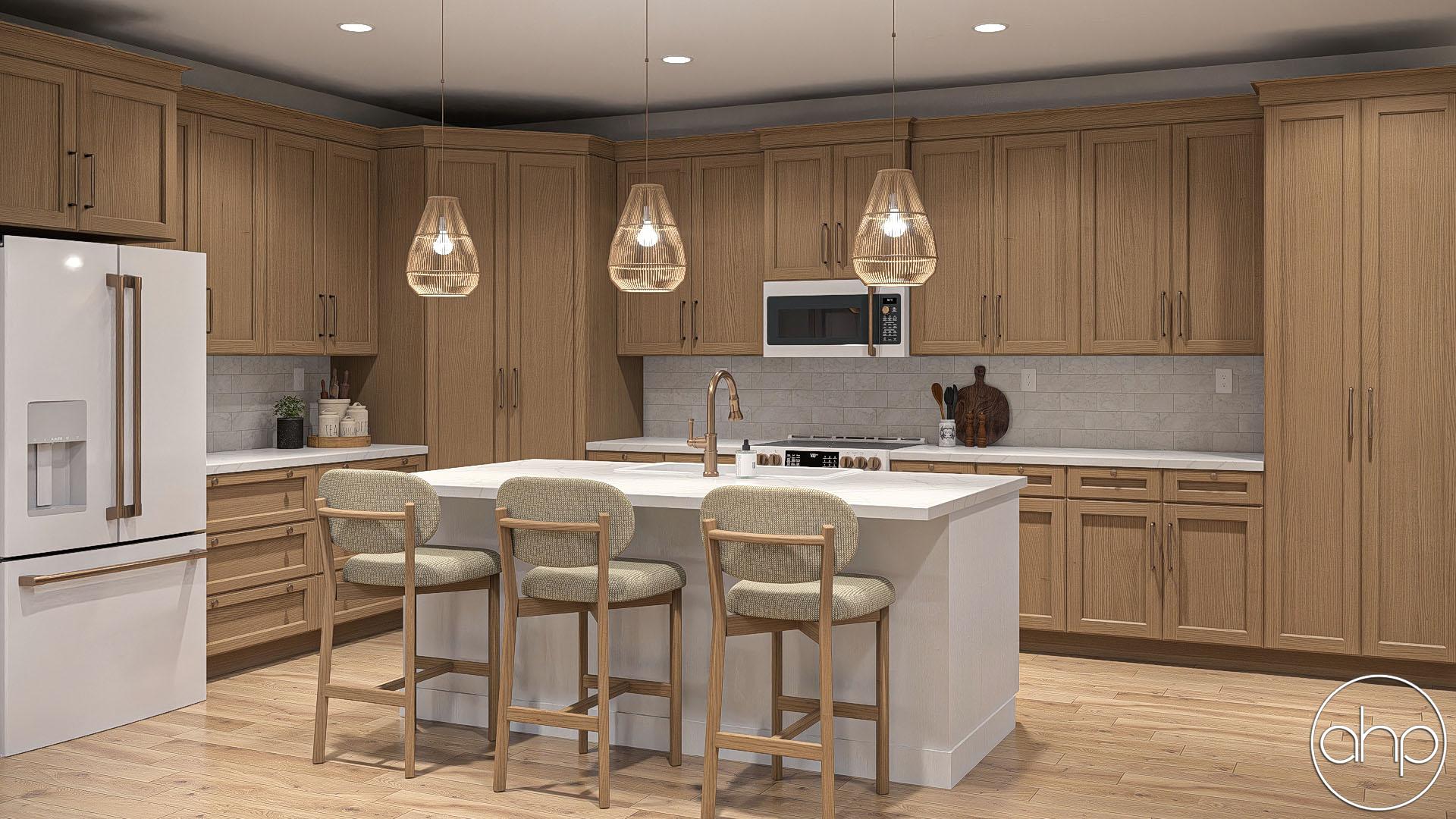

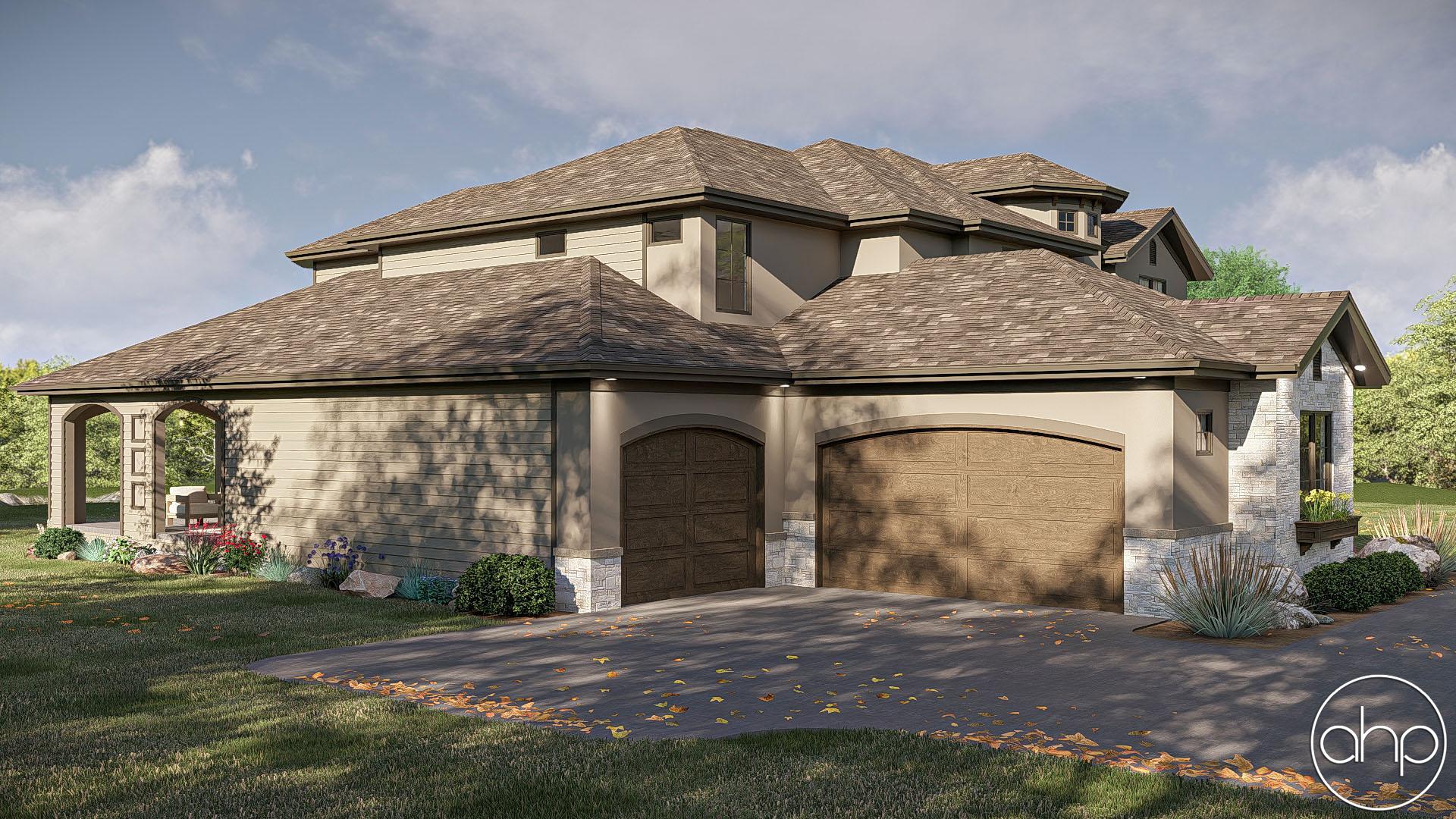

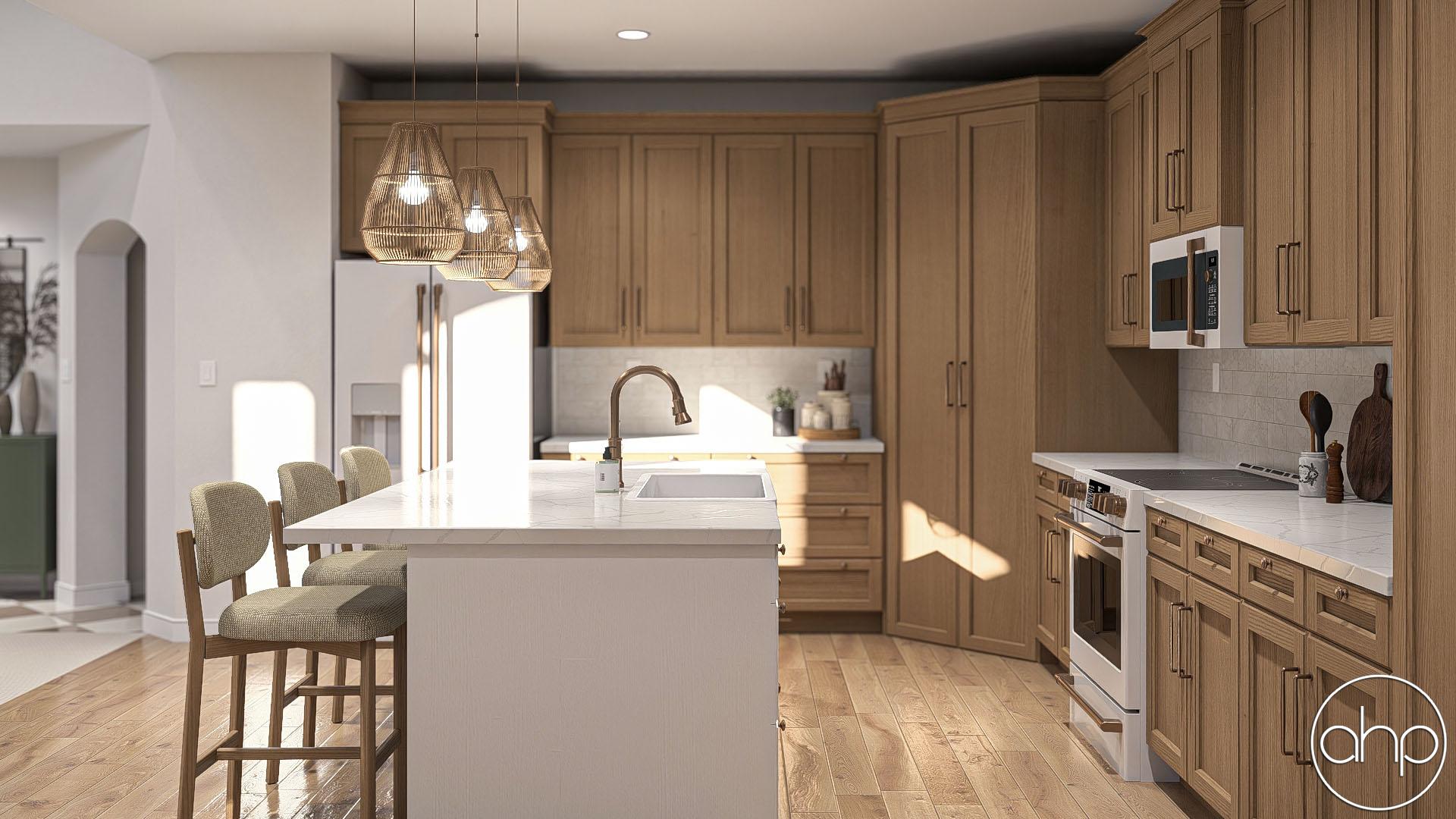

The kitchen is a cook's dream, with an abundance of counter space, large island work area, and sizeable walk-in pantry. Just off the kitchen lies a mud room with lockers and an adjoining laundry room with ample counter space and soaking sink. The mud room provides passage to and from the home's 3-car garage.

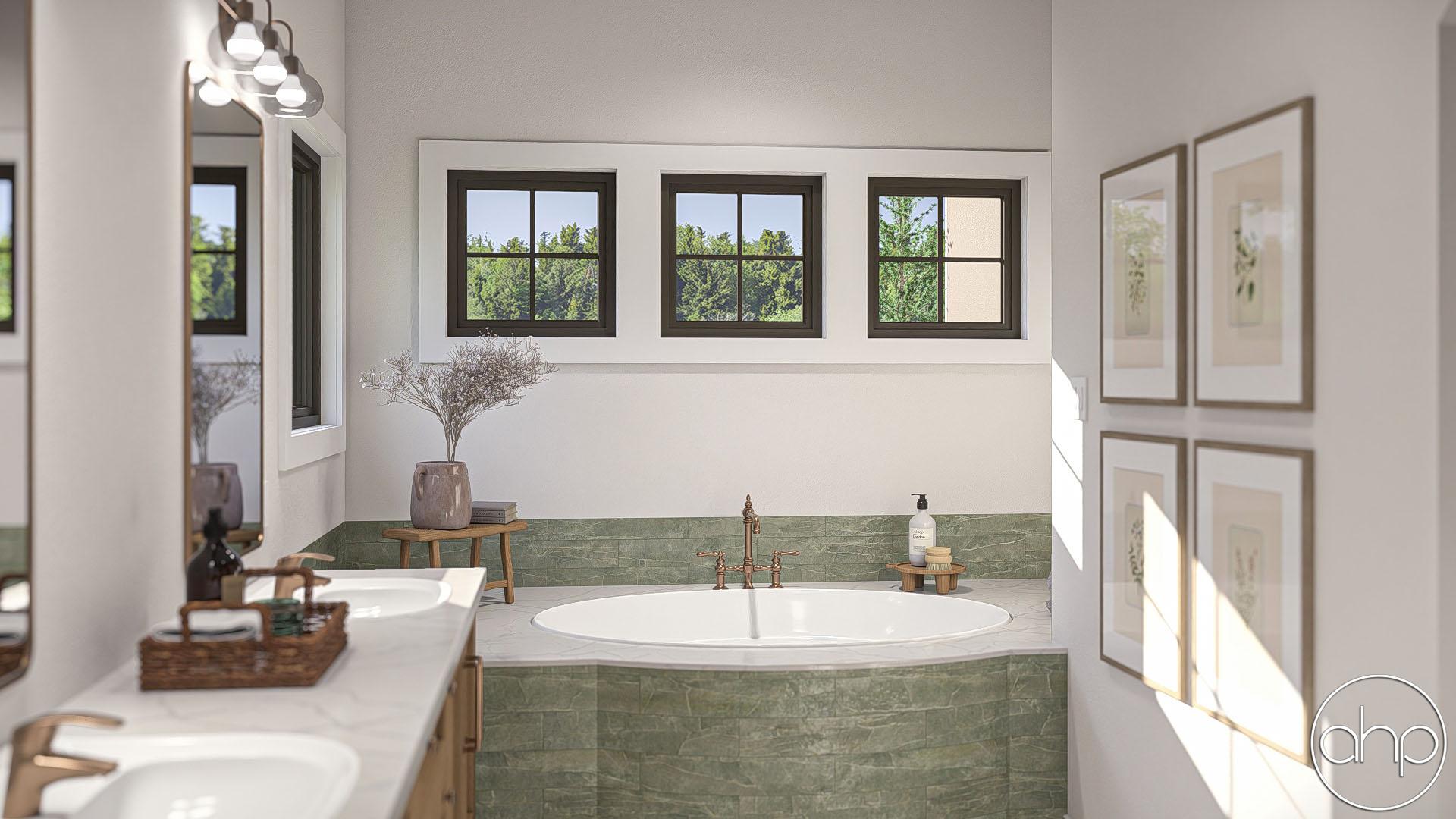

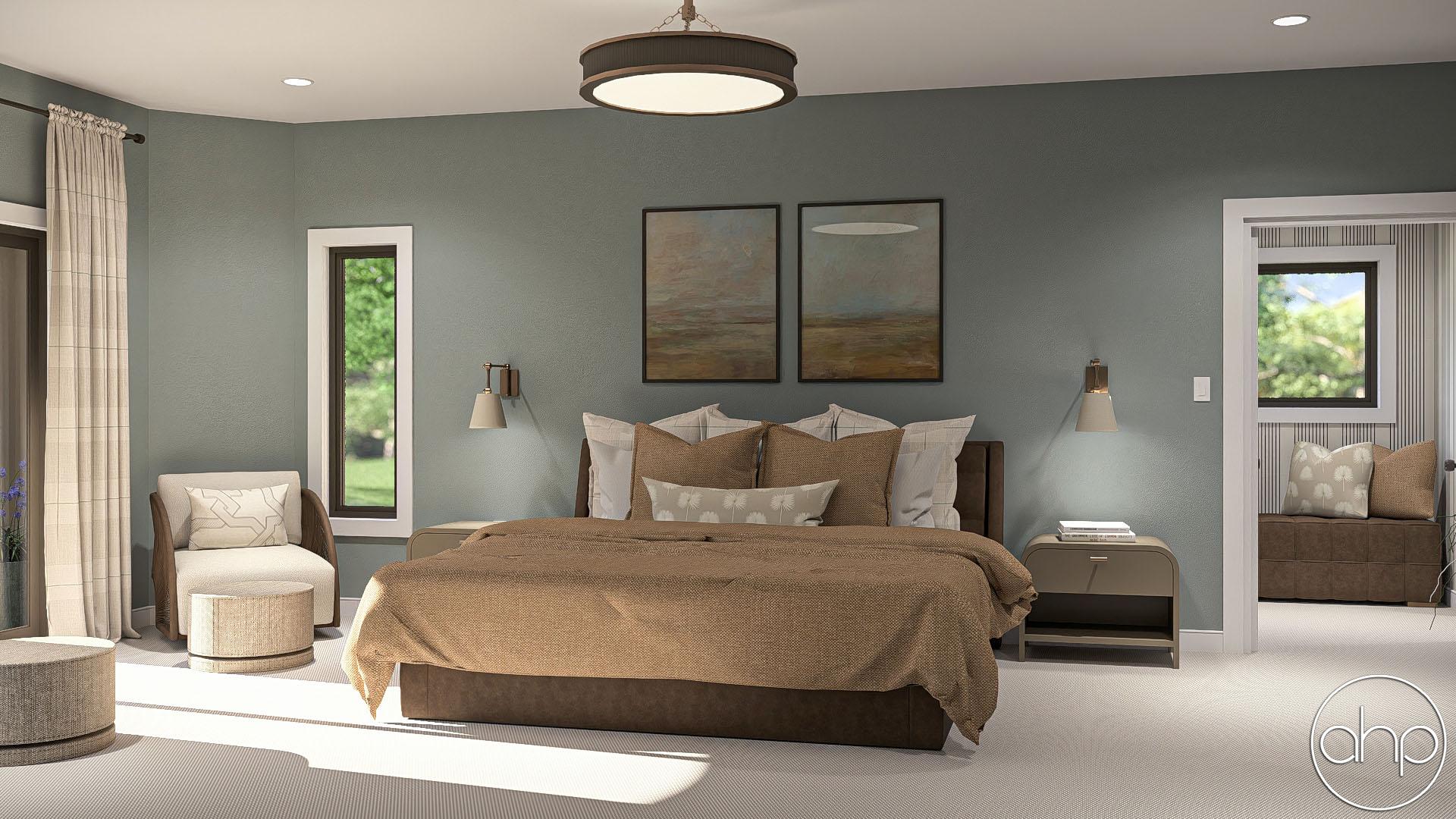

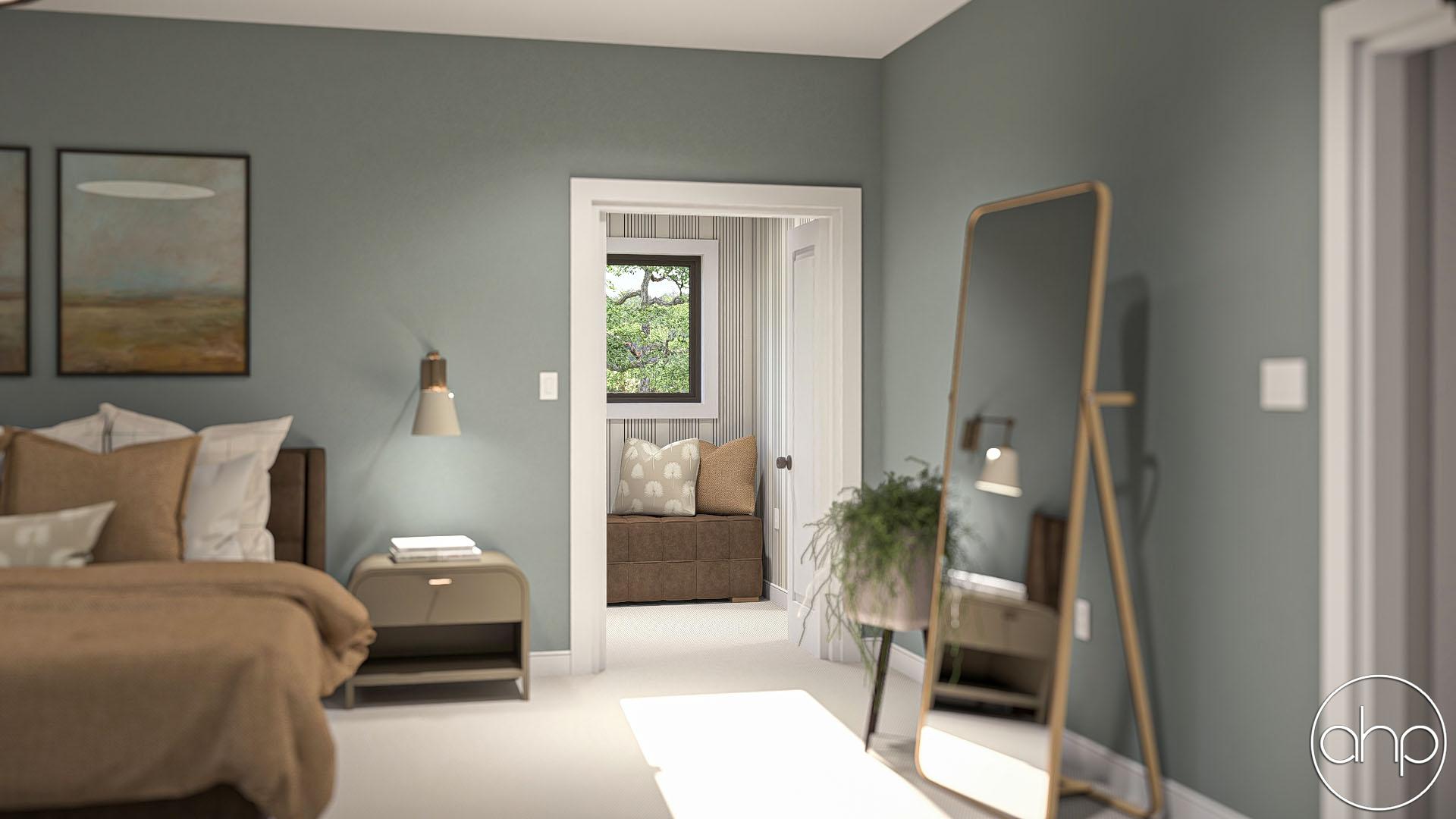

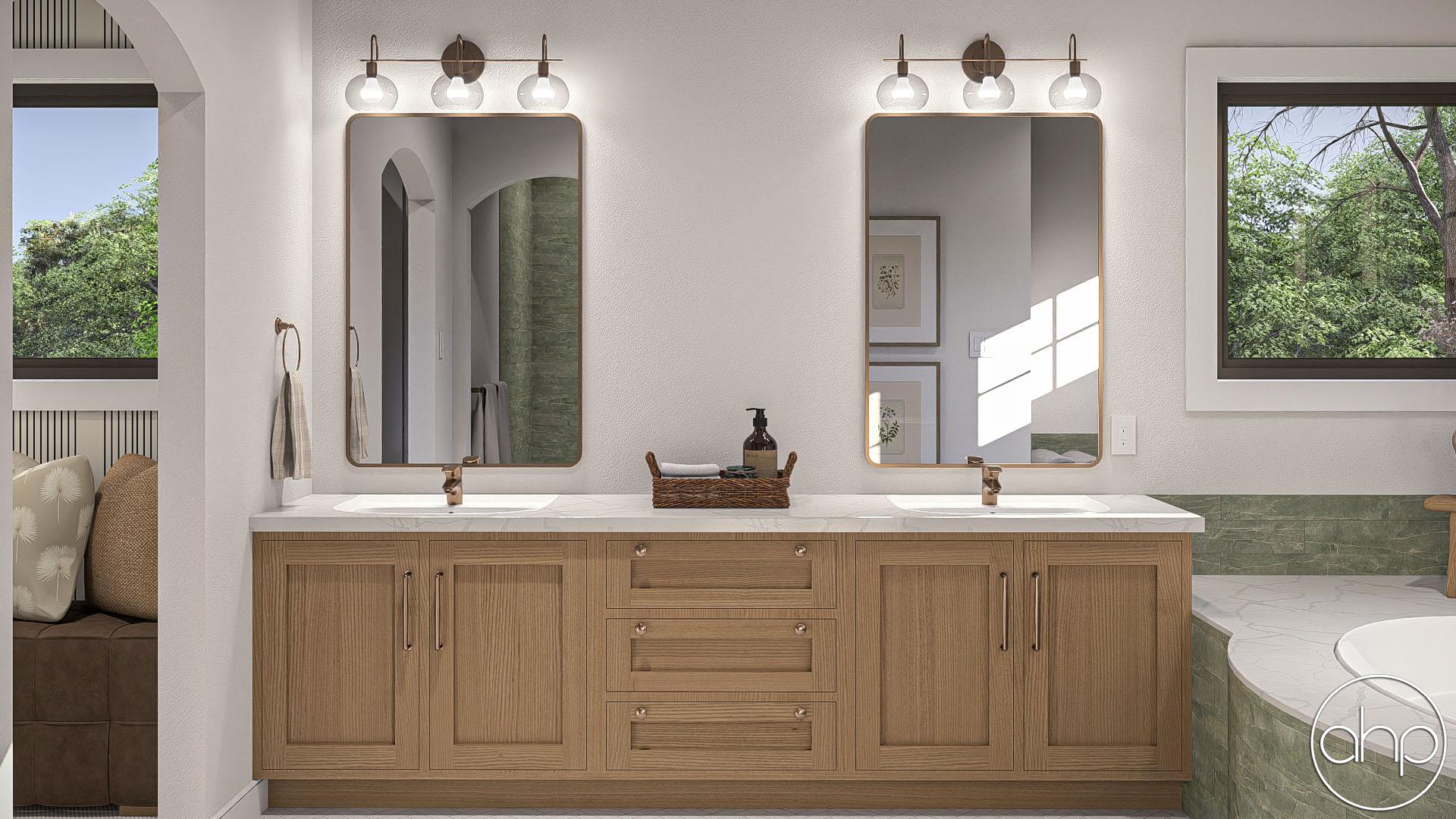

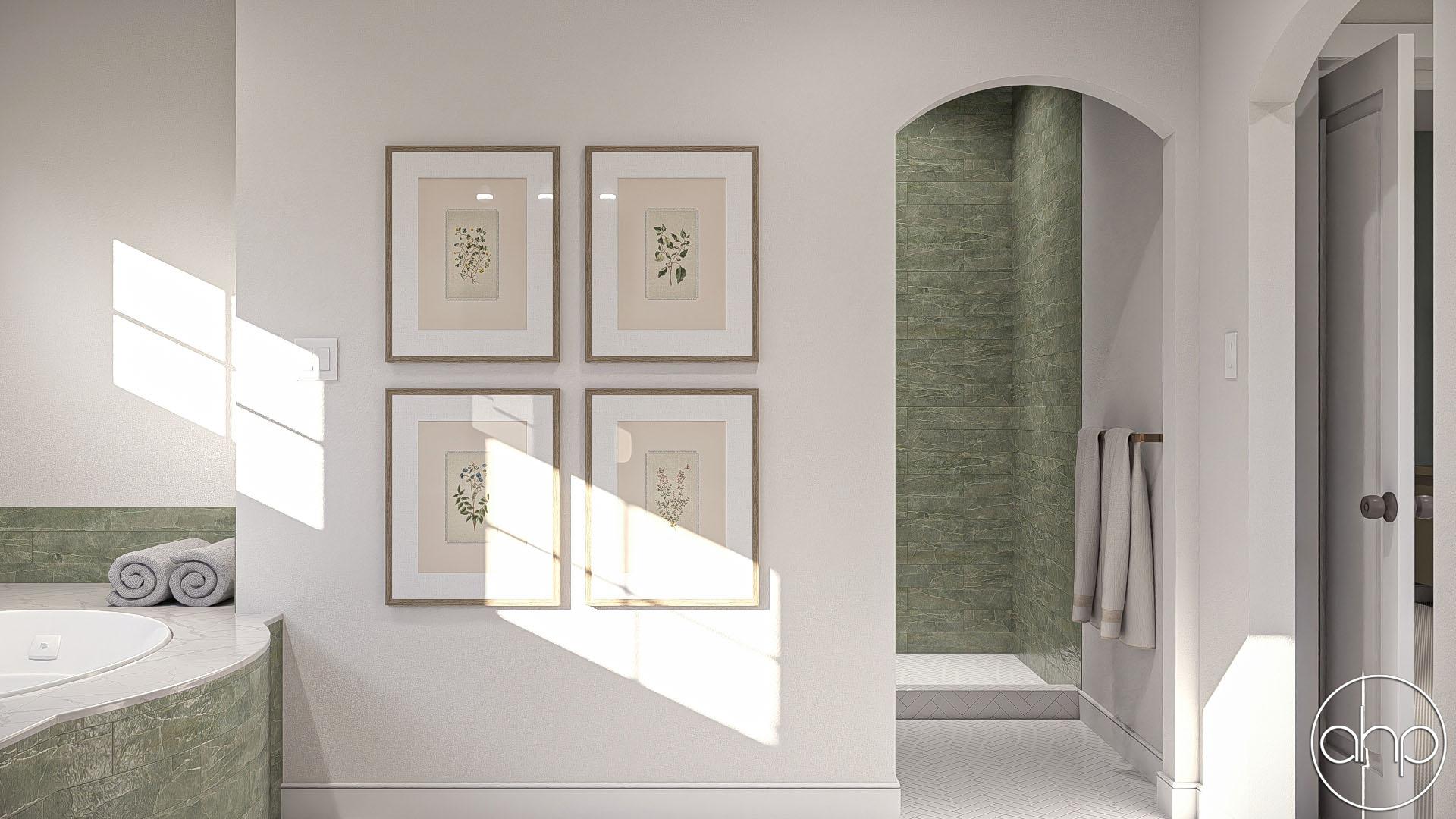

Opposite side of the home is where the master suite resides with a sitting room, private covered deck, and sprawling bath area that showcases a soaking tub, large walk-in shower and roomy walk-in closet.

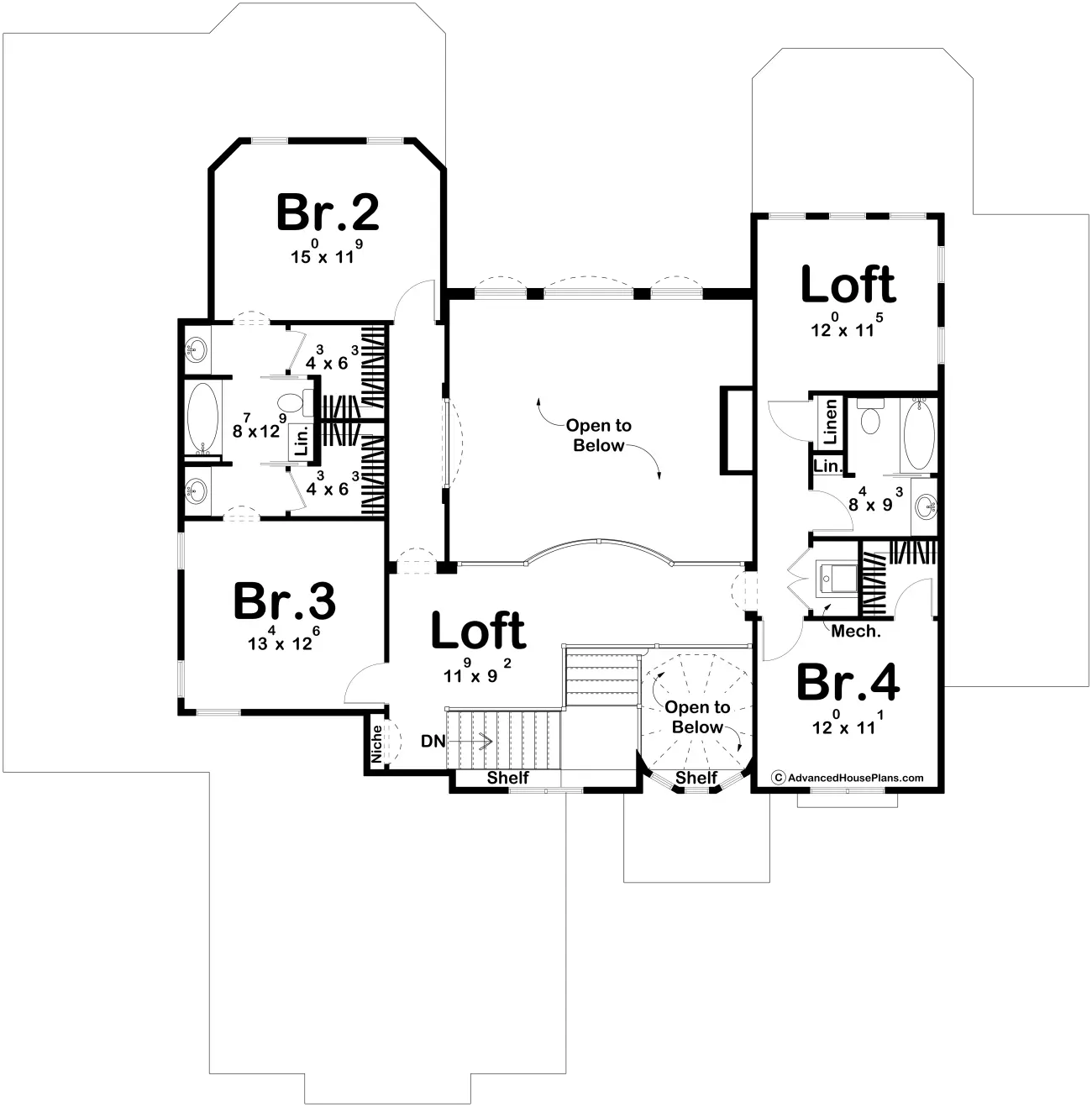

Amazing details continue to be found upstairs, Bedroom 4 has a walk-in closet and hall bath sheared with the kids loft. Bedrooms 2 and 3 each have walk-in closets and share a Jack-n-Jill bath.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at Ahp.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Full Specifications

Rooms

Bedrooms 4
Bathrooms 4
Car Bays 3

Area

Main 2123 Sq. Ft.
Second 1323 Sq. Ft.
Total Finished 3446 Sq. Ft.
Garage Area 914 Sq. Ft.

Dimensions

Width 72'
Depth 74'
Ridge Height 27'

Construction

Foundation Type Basement
Exterior Walls 2x4
Roof Pitch 6/12
Basement Wall Height 10'
Main Wall Height 9'
Second Wall Height 8'

Plan Features


What is included in a set of plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

29074 | Scottsdale

$1200
Do you need to get this plan bid out before you buy it? Purchase a bid set for only $250 .
