2 Story Modern Farmhouse Style House Plan

Waco Flats - 29798

Sq Ft
65' 0"
70' 0"

Plan Video

Floor Plan Images

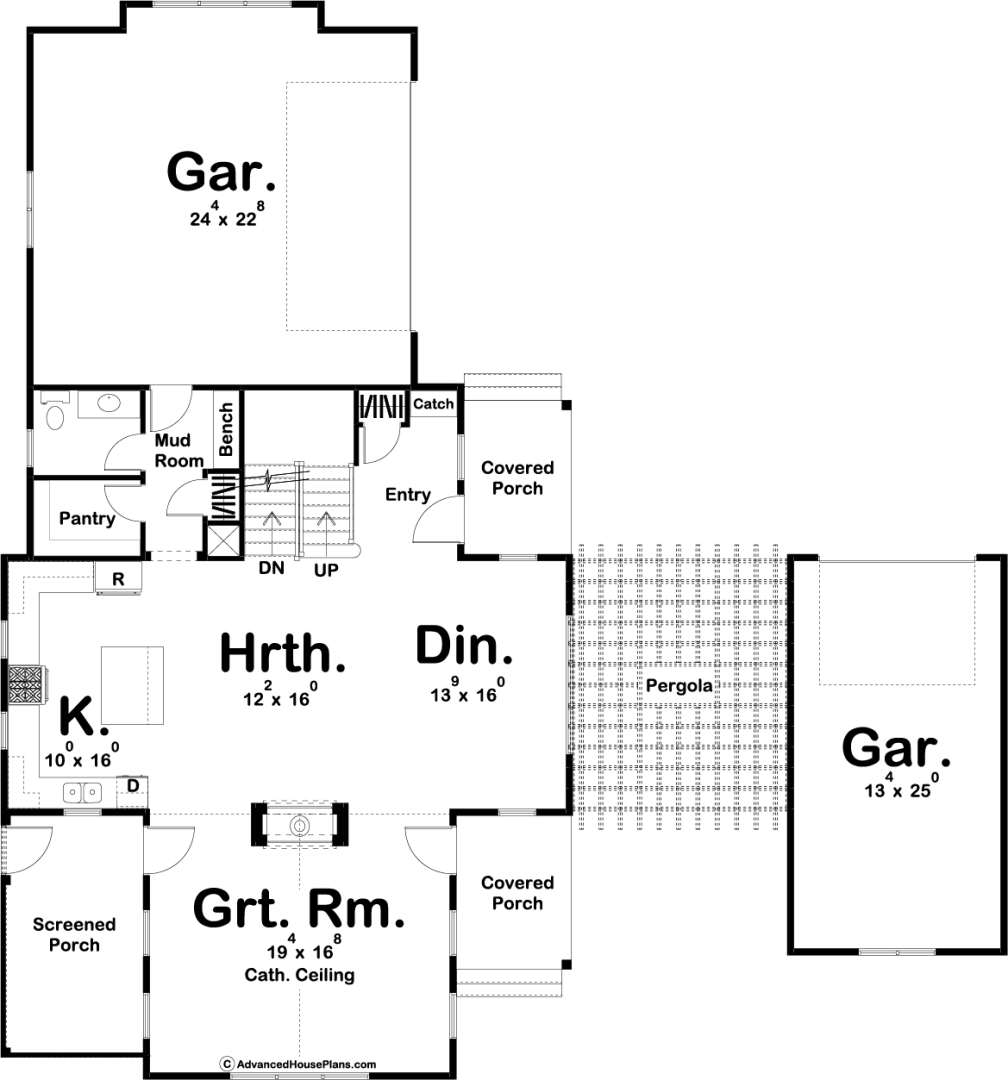

Main Level

2 Story Modern Farmhouse Style House Plan | Waco Flats

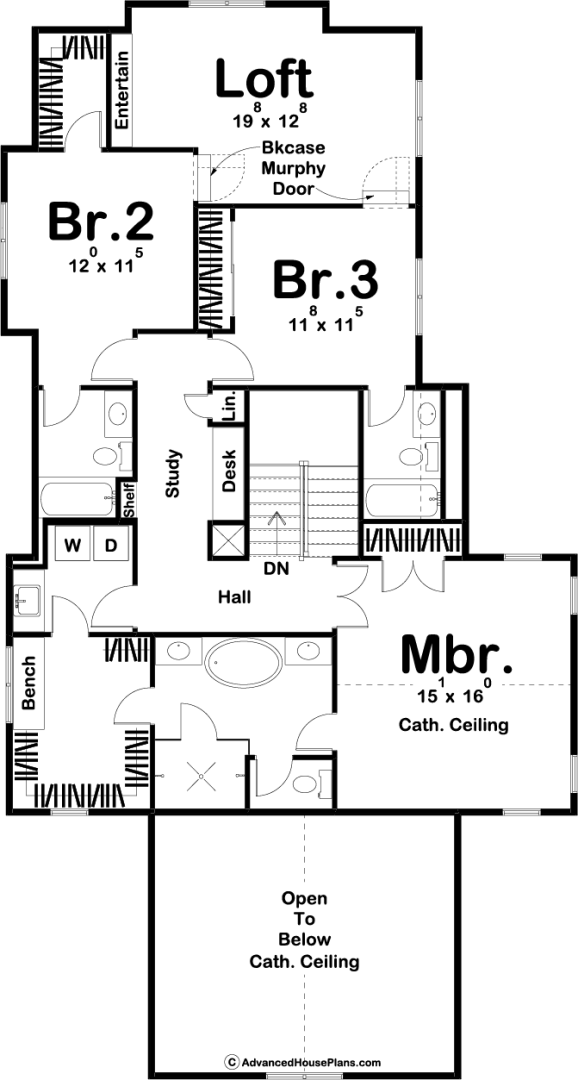

Second Level

2 Story Modern Farmhouse Style House Plan | Waco Flats

Plan Description

The Waco Flats plan brings a unique floorplan to the wonderful Modern Farmhouse style. First impressions are made by the detached 1 car garage that is accessed from the home under a beautiful pergola. Once you step into this home, you'll immediately see the wonderful layout of this floor plan. The centerpiece of the living area is a stunning double-sided fireplace that warms the great room as well as the hearth room. The great room lies under a soaring cathedral ceiling to make the already massive room seem even larger. The cozy hearth room lies between the home's dining room and kitchen. The kitchen includes an island and a walk-in pantry.

On the upper level, you will find 3 bedrooms that include some exciting secrets. The master bedroom has a cathedral ceiling and the master bath includes his/her vanities, a soaking tub, and a large walk-in closet that has access to the laundry room. On the way to the guest bedrooms, you'll find a practical study that includes a built-in desk. Bedrooms 2 and 3 are where the floor plan gets interesting. Each bedroom has access to its own bathroom but the real fun lies behind 2 bookcase murphy doors. As you walk behind the bookshelves you'll find an amazing loft with a built-in entertainment center. This room is perfect for a kid's playroom or a hidden home office.

Back on the main level, the home has a split garage. A 2 car garage is attached to the rear of the house and accesses the home through a convenient mudroom. A 1 car garage is detached and is separated from the house by a beautiful pergola that provides plenty of outdoor entertainment for your guests.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 3
Bathrooms 4
Garage Bays 3
Square Footage
Main Level 1259 Sq. Ft.
Second Level 1460 Sq. Ft.
Garage 956 Sq. Ft.
Total Finished Area 2719 Sq. Ft.
Exterior Dimensions
Width 65 ' 0"
Depth 70 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
12/12 Primary, 8/12 3/12 Secondary
Foundation Wall Height
Main Wall Height
Second Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
Buy this plan for only
We now offer financing to make your plan purchase simple!
Affirm Payments Afterpay

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time
Note: The pre-made material list is only available for the base plan, any options chosen above will not be reflected in the material list.

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.
