1.5 Story Modern Cottage Style House Plan

Hemlock Manor - 30166

3058
Sq Ft
3
Beds
3
Baths
3
Bays
85' 0"
Wide
55' 4"
Deep

Floor Plan Images

Main Level

Hemlock Manor

Second Level

Hemlock Manor

Plan Description

The Hemlock Manor is a fantastic Modern Cottage style house plan. With the master bedroom on the main level, this 1.5 story home is a showstopper. The exterior of the home features a beautiful white brick combined with traditional lap siding. The shed dormers and dark trim/shutters give the home excellent curb appeal.

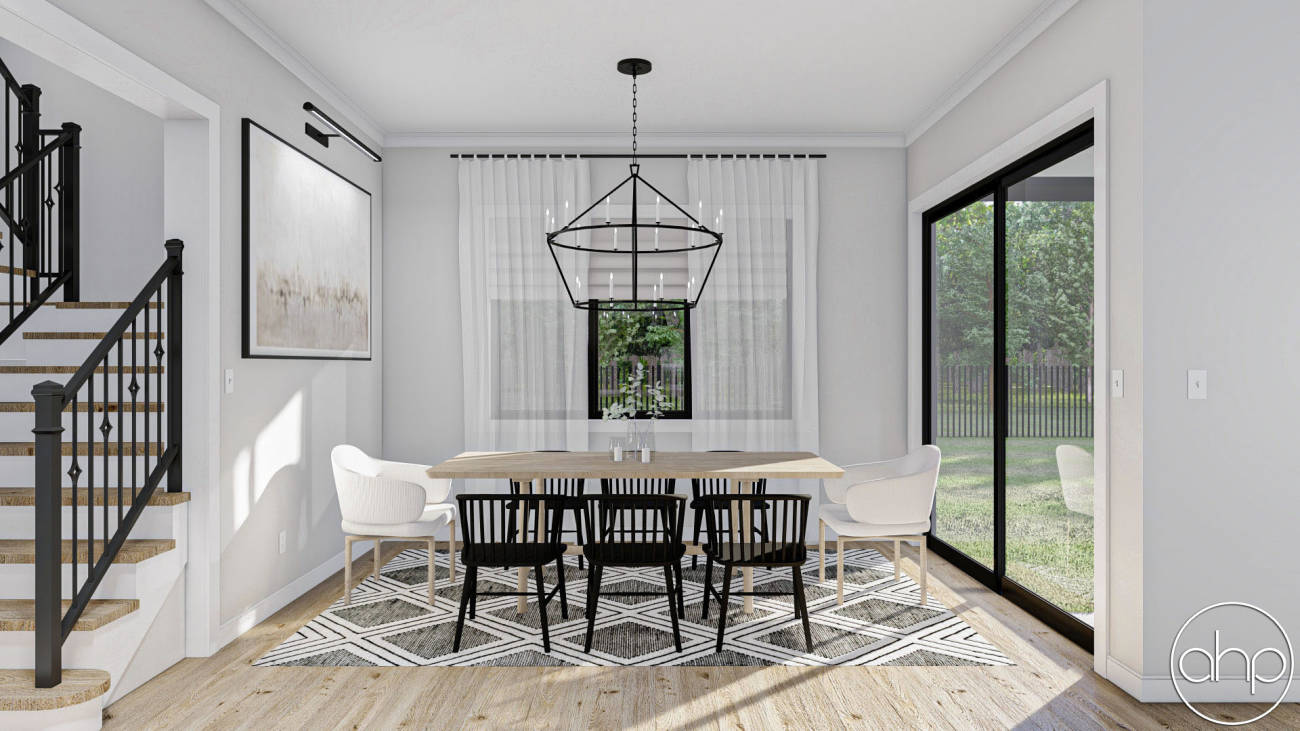

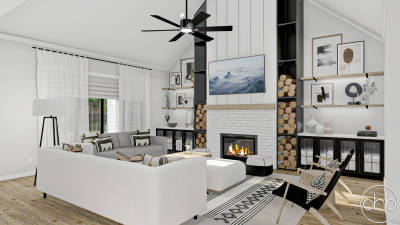

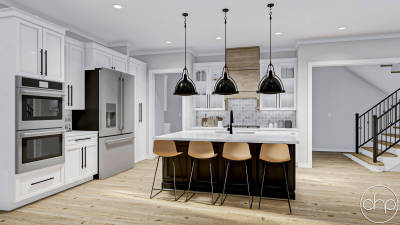

Guests enter the home through the front covered stoop. The entry way opens up to the rest of the home through a set of French doors. The great room is warmed by a fireplace with amazing built-ins flanking it. The floor plan is wide open from the great room to the kitchen and dining room. The kitchen includes a large island with a snack bar and a large walk-in pantry with built-in shelves and a broom closet. The dining room leads to the rear covered patio through a sliding glass door.

On the right side of the main floor, you'll find the stunning master suite. The master bedroom lies under a decorative trayed ceiling and has an amazing bathroom. The master bathroom includes a large soaking tub, his/her vanities, a walk-in shower, and a massive walk-in closet with an island and built-in dressers. An office can be found just outside the master suite and is close to the home's wet bar.

The second floor features 2 additional bedrooms and a loft area. Both bedrooms have their own walk-in closet and bedroom 2 has a built-in desk. The bedrooms and loft area share a conveniently located hall bathroom.

Back on the main floor, the home's split load 3 car garage enters through a convenient mudroom with a bench and lockers.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 3
Bathrooms 3
Garage Bays 3
Square Footage
Main Level 2188 Sq. Ft.
Second Level 870 Sq. Ft.
Garage 1136 Sq. Ft.
Total Finished Area 3058 Sq. Ft.
Exterior Dimensions
Width 85' 0"
Depth 55' 4"
Ridge Height
Calculated from main floor line
30' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Basement
Exterior Wall Construction
2x4
Roof Pitches
10/12 Primary, 6/12 16/12 Secondaries
Foundation Wall Height
9'
Main Wall Height
10'
Second Wall Height
8'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at sales@advancedhouseplans.com
