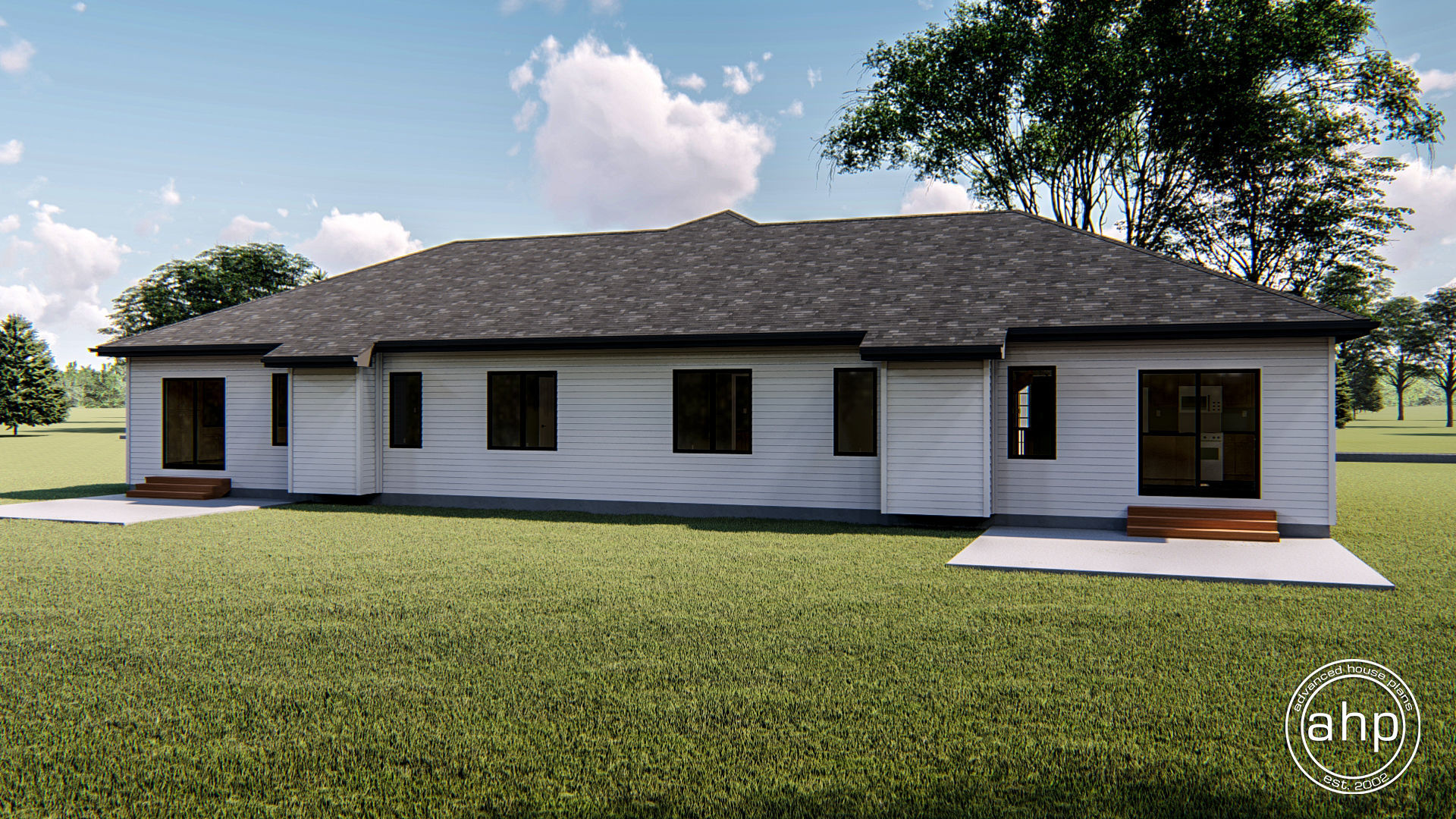

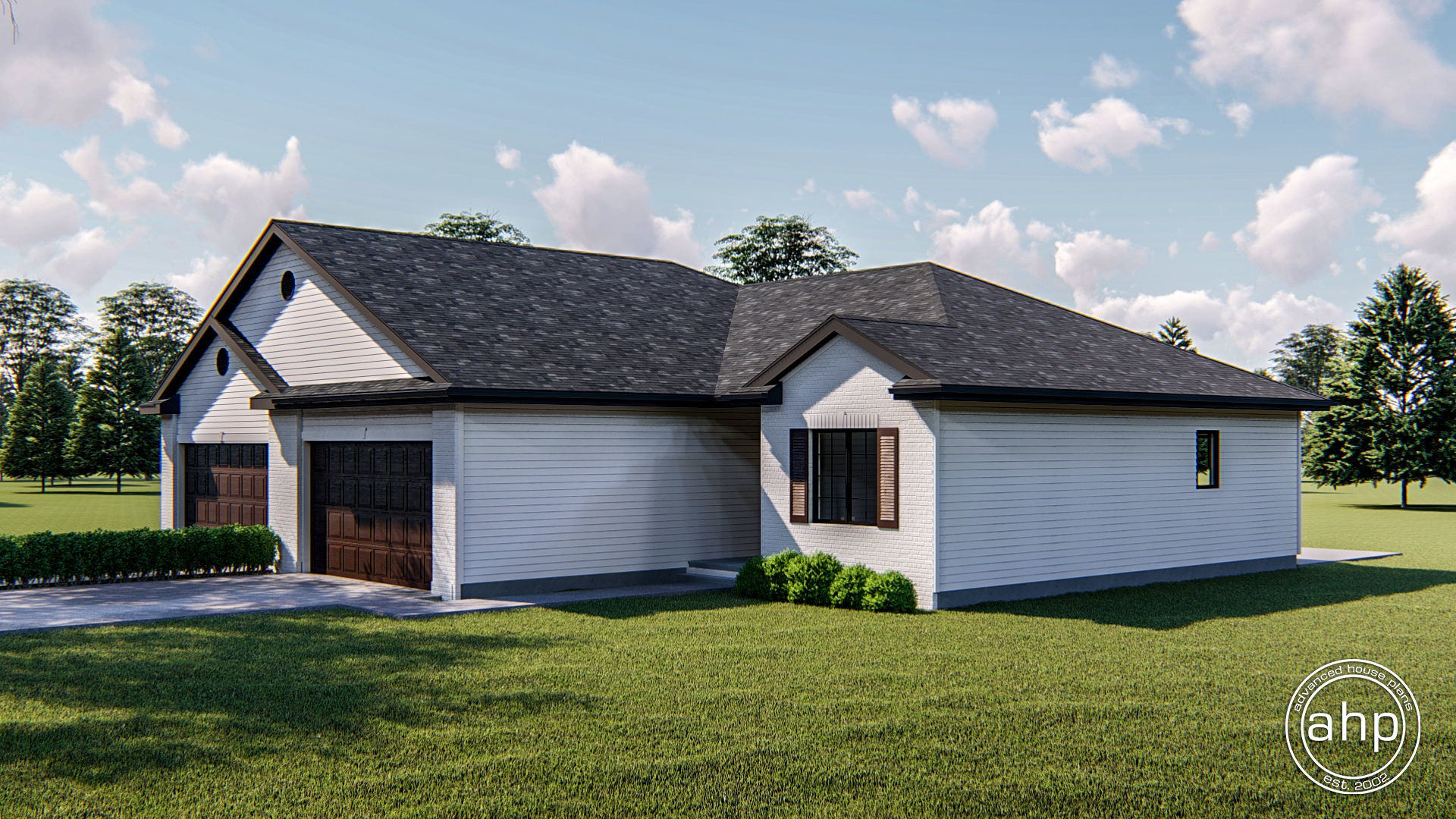

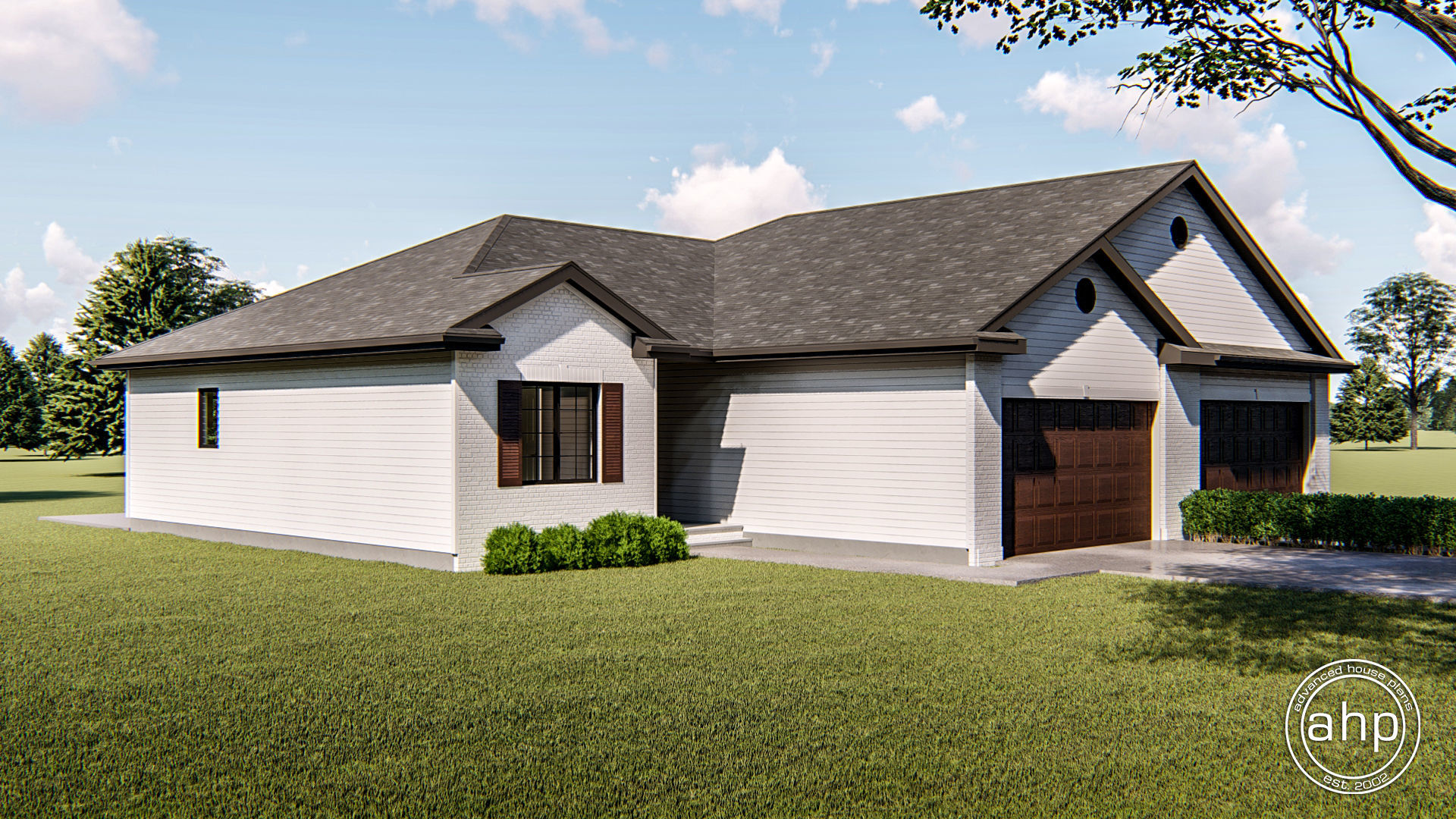

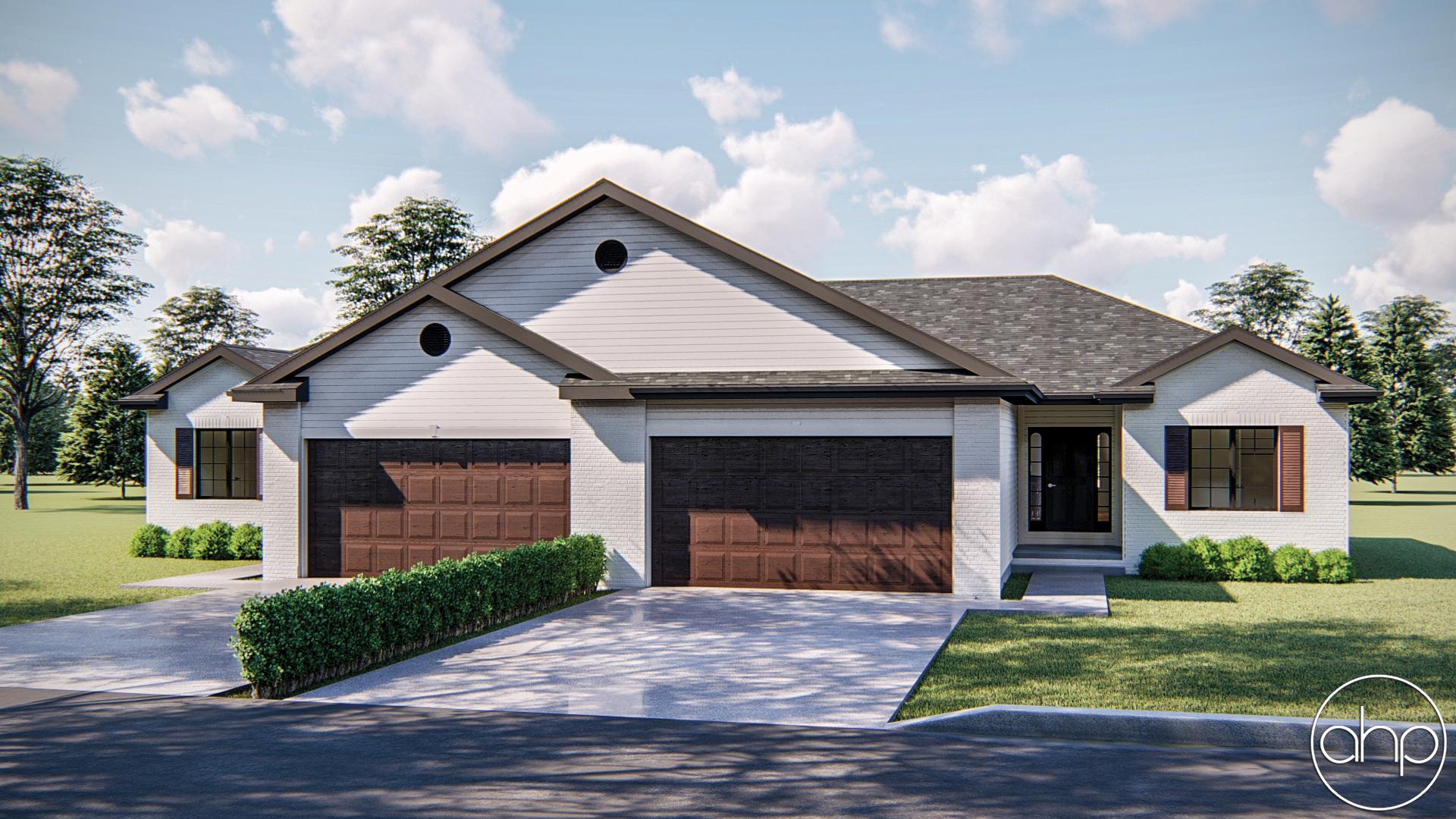

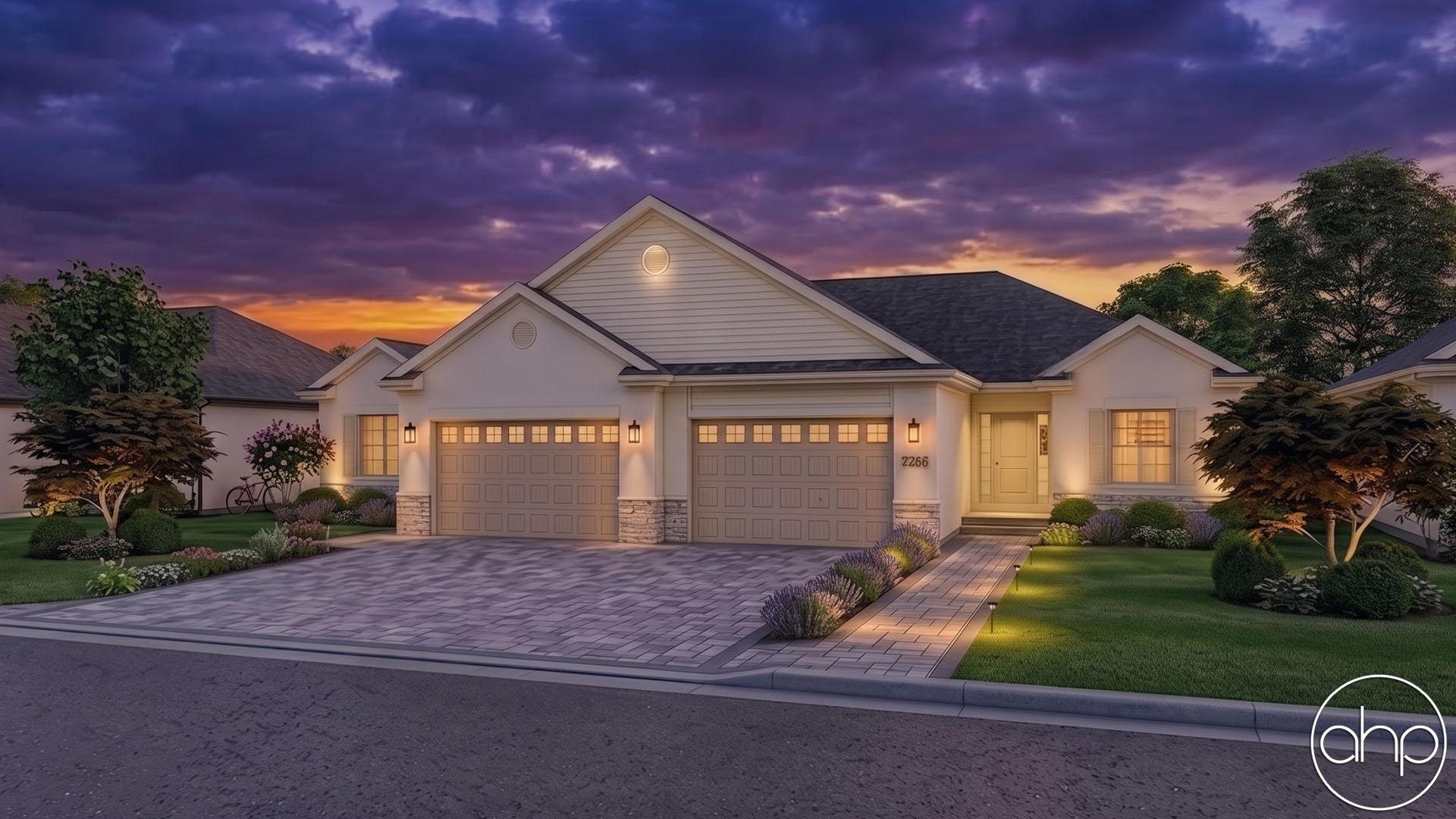

Bosworth Rendering Bosworth Rendering Bosworth Rendering Bosworth Rendering
Want to make changes to this plan?

1 Story Multi-Family Traditional House Plan

Bosworth - 29081

Sq Ft
Per Unit
Per Unit
Per Unit
Per Unit
78' 0"
51' 0"

Floor Plan Images

Main Level

1 Story Multi-Family Traditional House Plan | Bosworth

Plan Description

This compact, 2-bedroom, multi-family house plan would be an ideal choice for empty-nesters. A covered front porch invites guest inside, where, with a few steps, they're welcomed into the great room with its fireplace flanked by windows. Open to the great room, the island kitchen and breakfast area stand ready to facilitate friendly gatherings.

Bosworth's master suite, with 10-foot-high-ceiling in the bedroom, features a bath area with dual sinks, compartmented toilet and shower, and walk-in closet. Bedroom 2 has its own private bath. Situated just off the front entry, it could easily be used as a home office or hobby area.

On the other side of the master suite's walk-in closet wall, a laundry area lies just off the entry and allows access to the 2-car-garage.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 2
Per Unit
Bathrooms 2
Per Unit
Garage Bays 2
Per Unit
Square Footage
Main Level 1189 Sq. Ft.
Per Unit
Garage 454 Sq. Ft.
Per Unit
Total Finished Area 1189 Sq. Ft.
Per Unit
Exterior Dimensions
Width 78 ' 0"
Depth 51 ' 0"
Ridge Height
Calculated from main floor line
20 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
Foundation Wall Height
Main Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
Buy this plan for only
We now offer financing to make your plan purchase simple!
Affirm Payments Afterpay

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time
Note: The pre-made material list is only available for the base plan, any options chosen above will not be reflected in the material list.

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.
