29351 | Barclay

Reverse

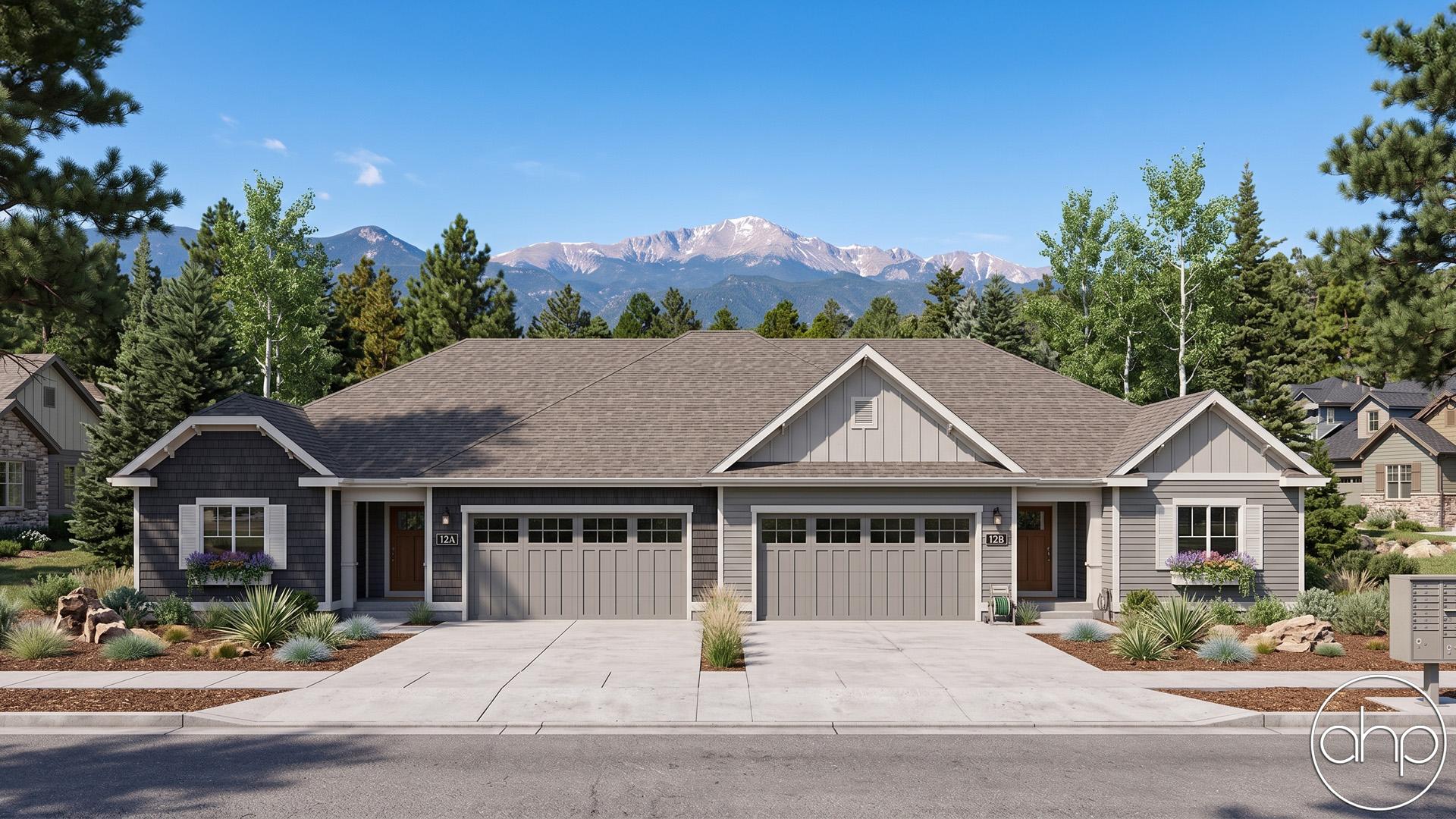

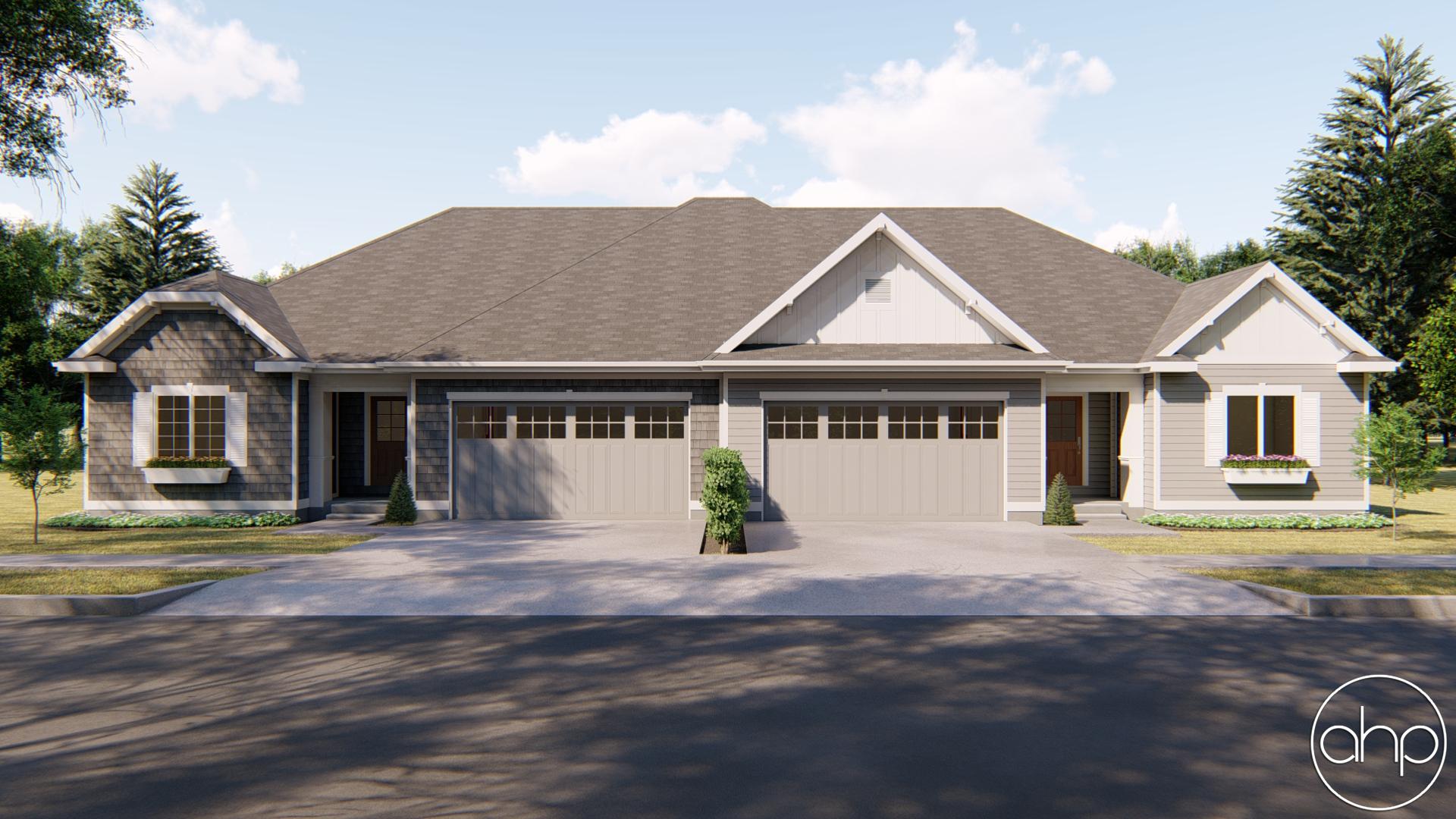

Barclay Rendering
NOTE: ACTUAL CUSTOMER BUILD PHOTOS MAY NOT MATCH THE PLAN EXACTLY.
Want to make changes to this plan?

1 Story Multi-Family Craftsman House Plan

Barclay - 29351

1438
Sq Ft
3
Beds
2
Baths
2
Bays
86' 0"
Wide
47' 0"
Deep

Floor Plan Images

Main Level

1 Story Multi-Family Craftsman House Plan | Barclay

Plan Description

Tasteful detailing, paired with a cost-effective foundation "footprint," make this compact, multi-story house plan a win-win for builders and buyers alike. A front entry hall, accessed from the covered front porch as well as the 2-car garage, leads to views into the great room with its cathedral ceiling, fireplace and sunny windows to the rear.

The dining area and kitchen share the same space beneath the cathedral ceiling to provide an open, airy feel. The kitchen comfortably serves with an island work area, counter space, and walk-in pantry.

All bedrooms reside on opposite sides of the structure for maximum privacy. The master suite features a 10-foot-high ceiling, walk-in closet and bath area with dual sinks, shower, and a compartmented bath. Bedrooms 2 and 3 share a centrally located bath. A convenient laundry area serves all bedrooms and lies just outside the master bedroom.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at Ahp.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 3
Bathrooms 2
Garage Bays 2
Square Footage
Main Level 1438 Sq. Ft.
Garage 511 Sq. Ft.
Total Finished Area 1438 Sq. Ft.
Exterior Dimensions
Width 86' 0"
Depth 47' 0"
Ridge Height
Calculated from main floor line
28' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Basement
Exterior Wall Construction
2x4
Roof Pitches
8/12 Primary, 10/12 Secondary
Foundation Wall Height
9'
Main Wall Height
9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at sales@advancedhouseplans.com
Buy this plan for only
$1700

If you find this plan cheaper on any other site, we will match the price guaranteed.

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.
