29230 | Monroe


Garage

814 Sq. Ft.

32 '

23 '

2 Car
Did you know you can make alterations to this plan?

Floor Plans

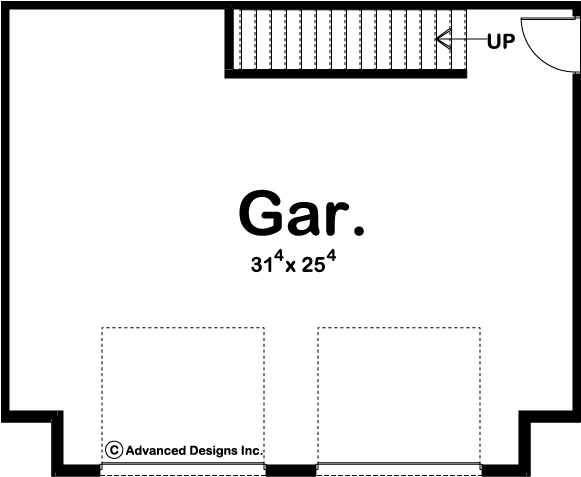

Monroe Floor PlanMonroe Floor Plan

Plan Description

This is a 2 story traditional garage plan built on slab foundation. There is a loft with cathedral ceilings on the 2nd floor.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at Ahp.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Full Specifications

Area

Second 507 Sq. Ft.
Total Finished 507 Sq. Ft.
Garage Area 814 Sq. Ft.

Dimensions

Width 32'
Depth 23'
Ridge Height 25'

Construction

Foundation Type Slab
Exterior Walls 2x4
Roof Pitch 10/12 Primary
Main Wall Height 9'

Plan Features


What is included in a set of plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

29230 | Monroe

$499
