29227 | Fillmore

Print Book Page
Price Match Guarantee
Available Options

renderingImages[0]; ?>

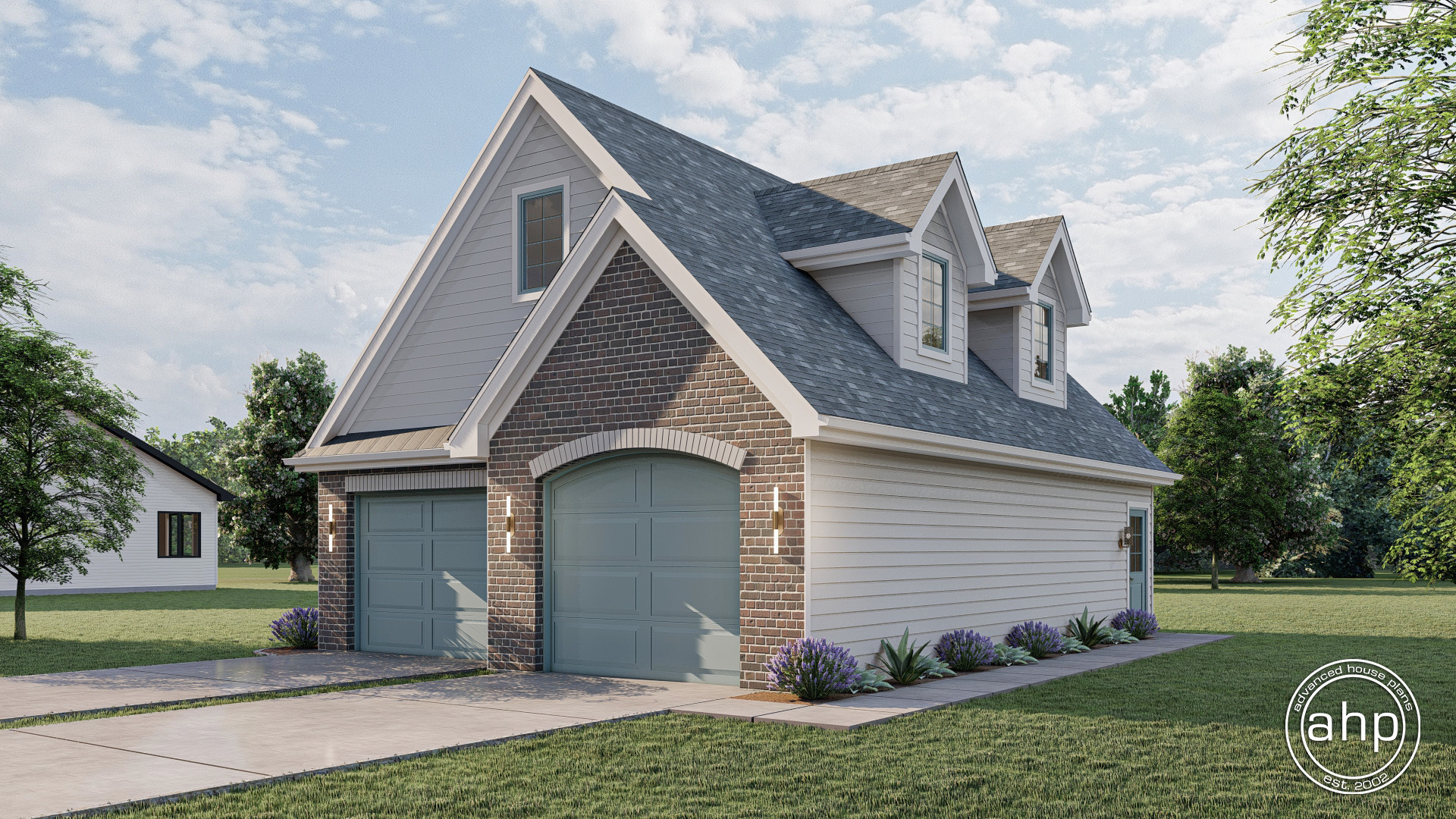

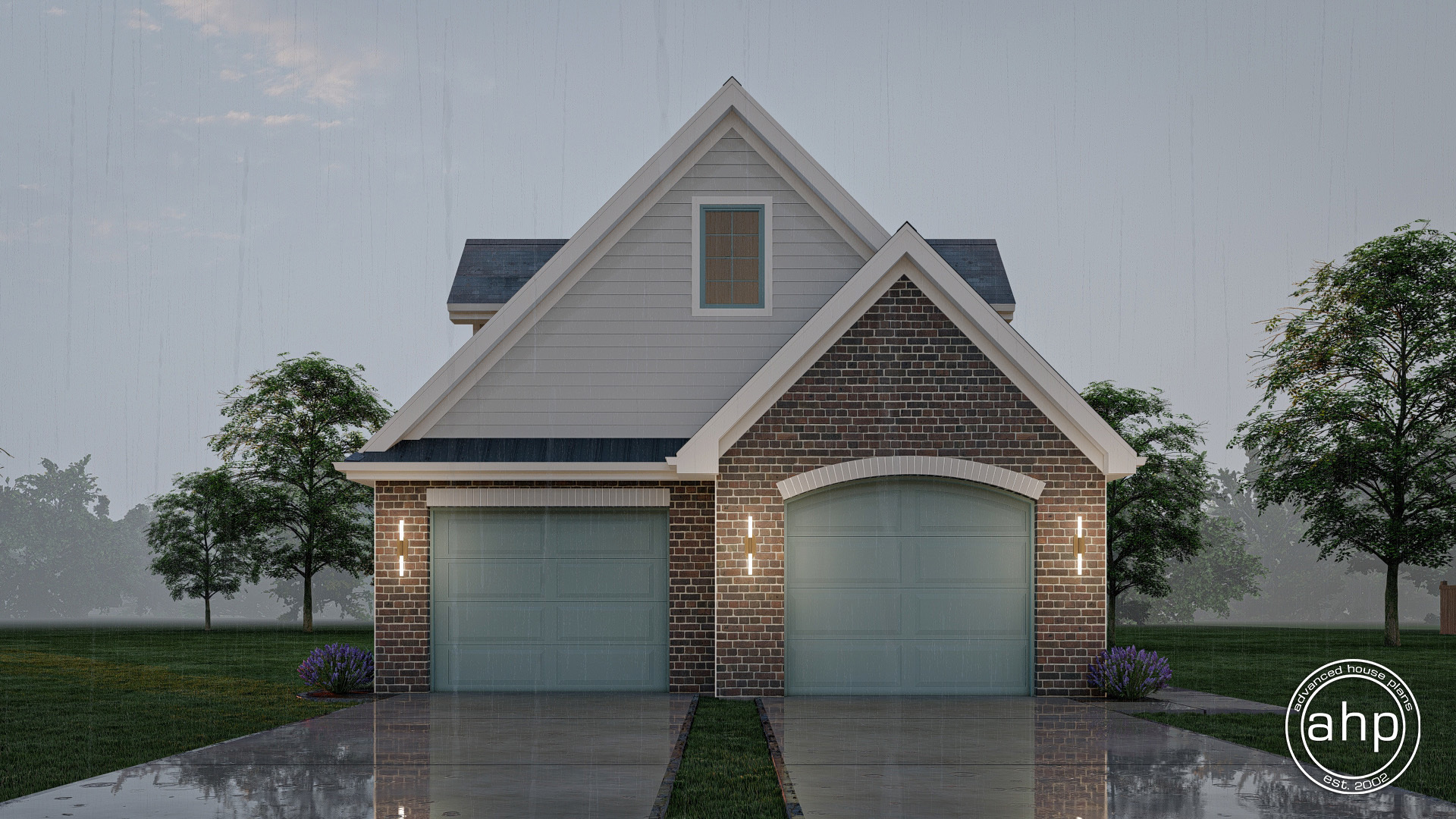

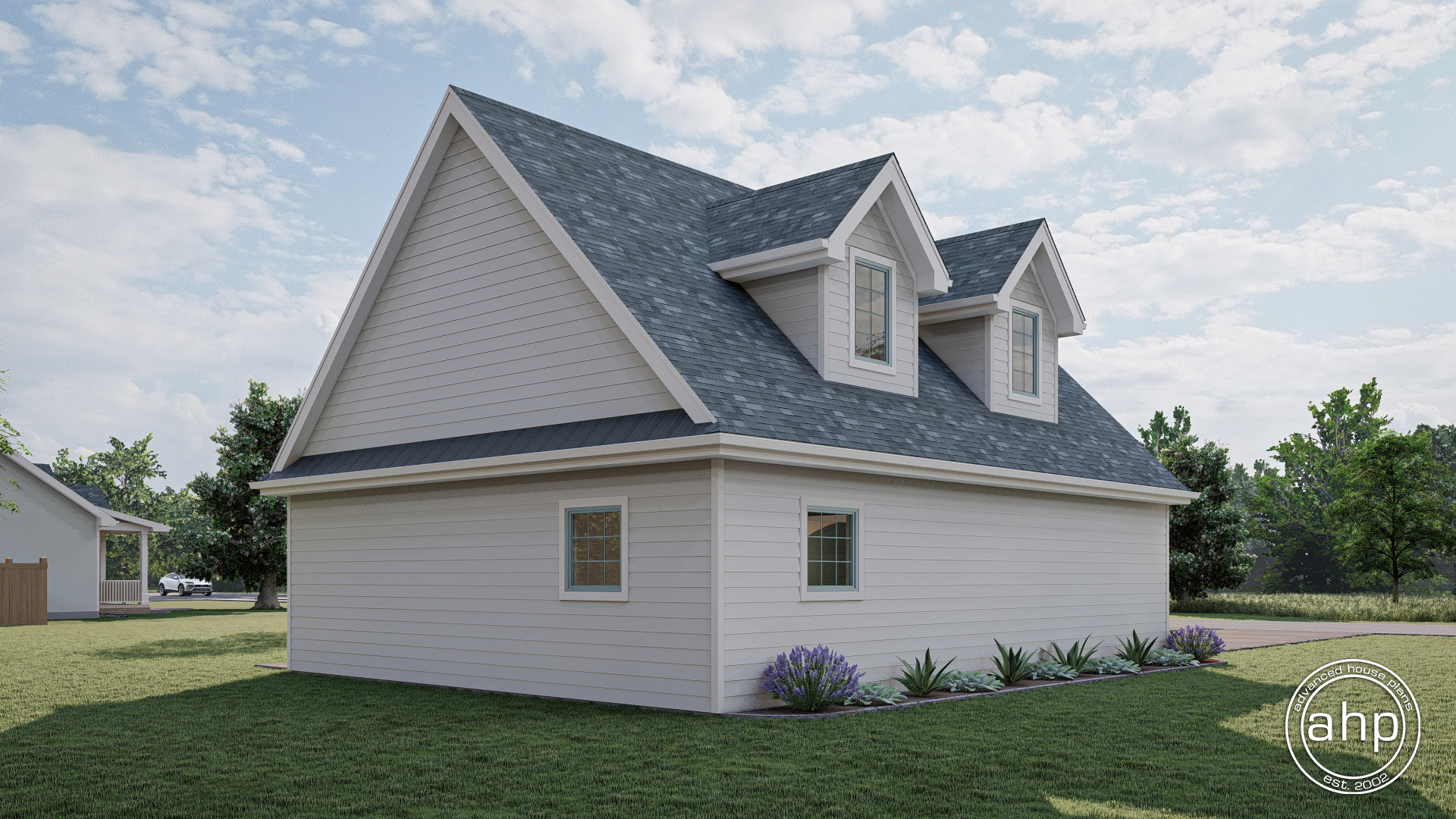

Actual Customer Build Photos May Not Match The Plan Exactly.
Did you know you can make alterations to this plan?
946 Sq ft.
0 Beds
0 Baths
2 Car
27' Wide
36' Deep
What do you think?

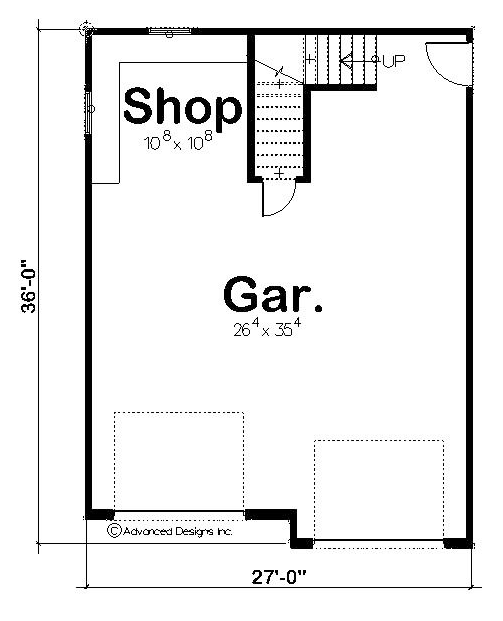

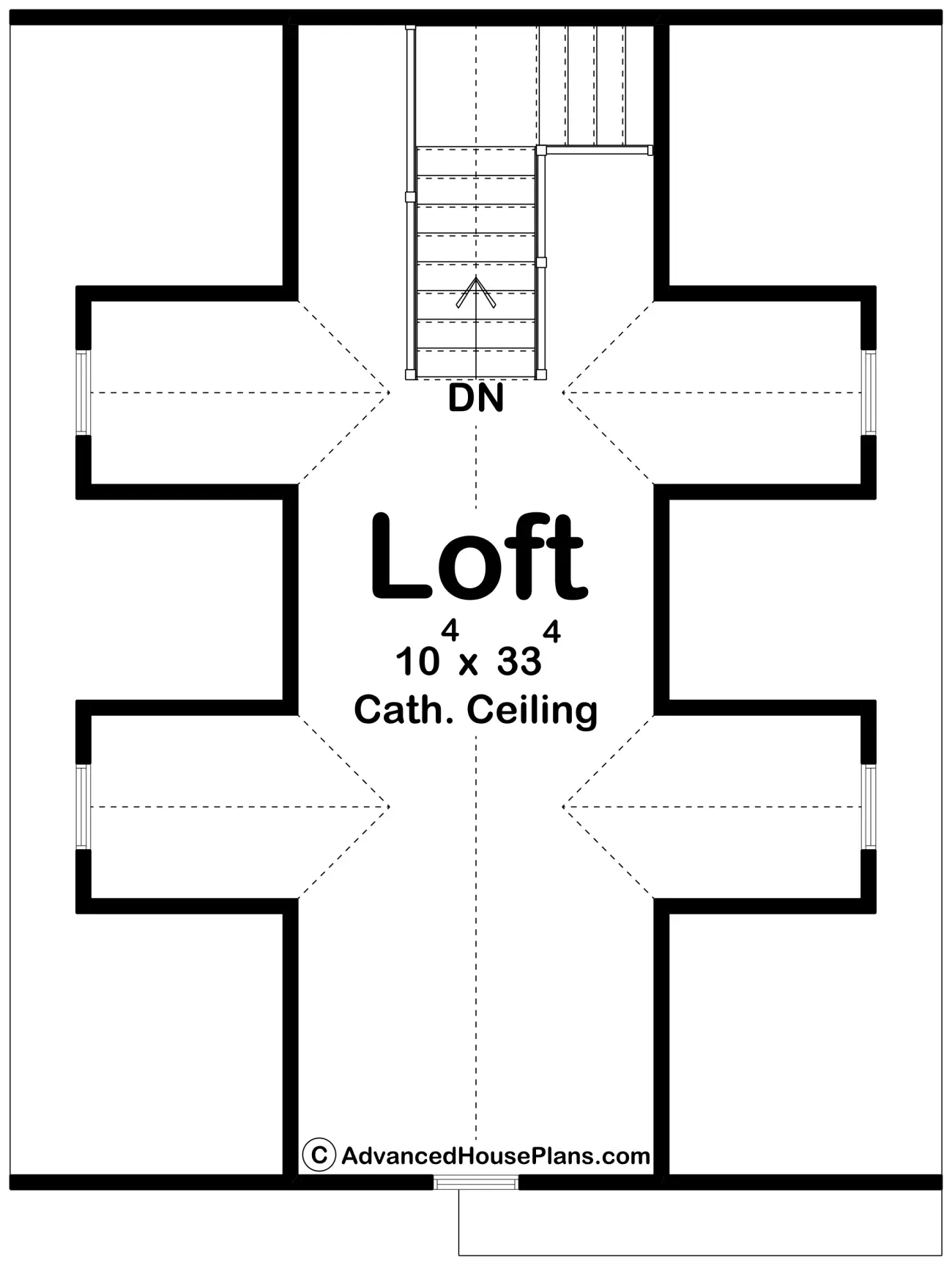

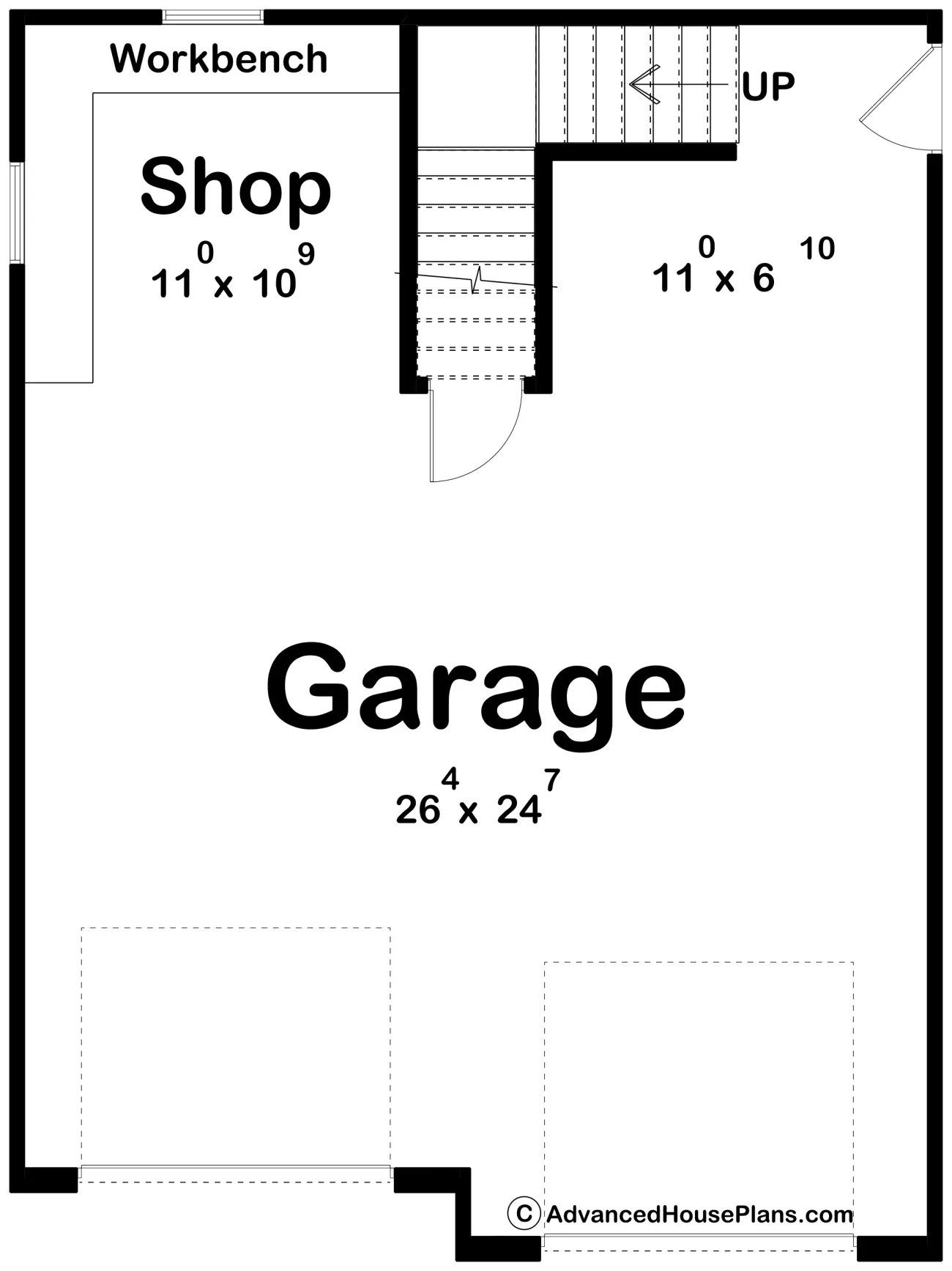

Floor Plans

Plan Description

This is a 2 story traditional garage with a built in shop in the rear and a loft on the upper level. It is built on a slab foundation.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Similar Plans


This is a 2 story traditional garage plan built on slab foundation. There is a loft with cathedral ceilings on the 2nd floor.

...read more


The Walters is a traditional style garage plan with large doors on both the front and the side. On the second floor you will find a large loft with a bathroom.

...read more


Kistler is a 2-story traditional garage built on a slab foundation. There is an attic space above the garage and a 2-story garden room in the rear. The second story walls are built at 6' and the ceiling slop ...read more

Full Plan Specs


Bedrooms 0
Bathrooms 0
Garage Bays 2

Square Footage

Second Level 562 Sq. Ft.
Garage 946 Sq. Ft.
Total Finished 562 Sq. Ft.

Exterior Dimensions

Dimensions shown are rounded up to the nearest foot.
Width 27'
Depth 36'
Ridge Height 27'
Ridge height shown from main level floor line.

Construction Specs

Foundation Type Slab
Exterior Walls 2x4
Roof Pitches 12/12 Primary
Main Wall Height 9'
Second Wall Height 7'
