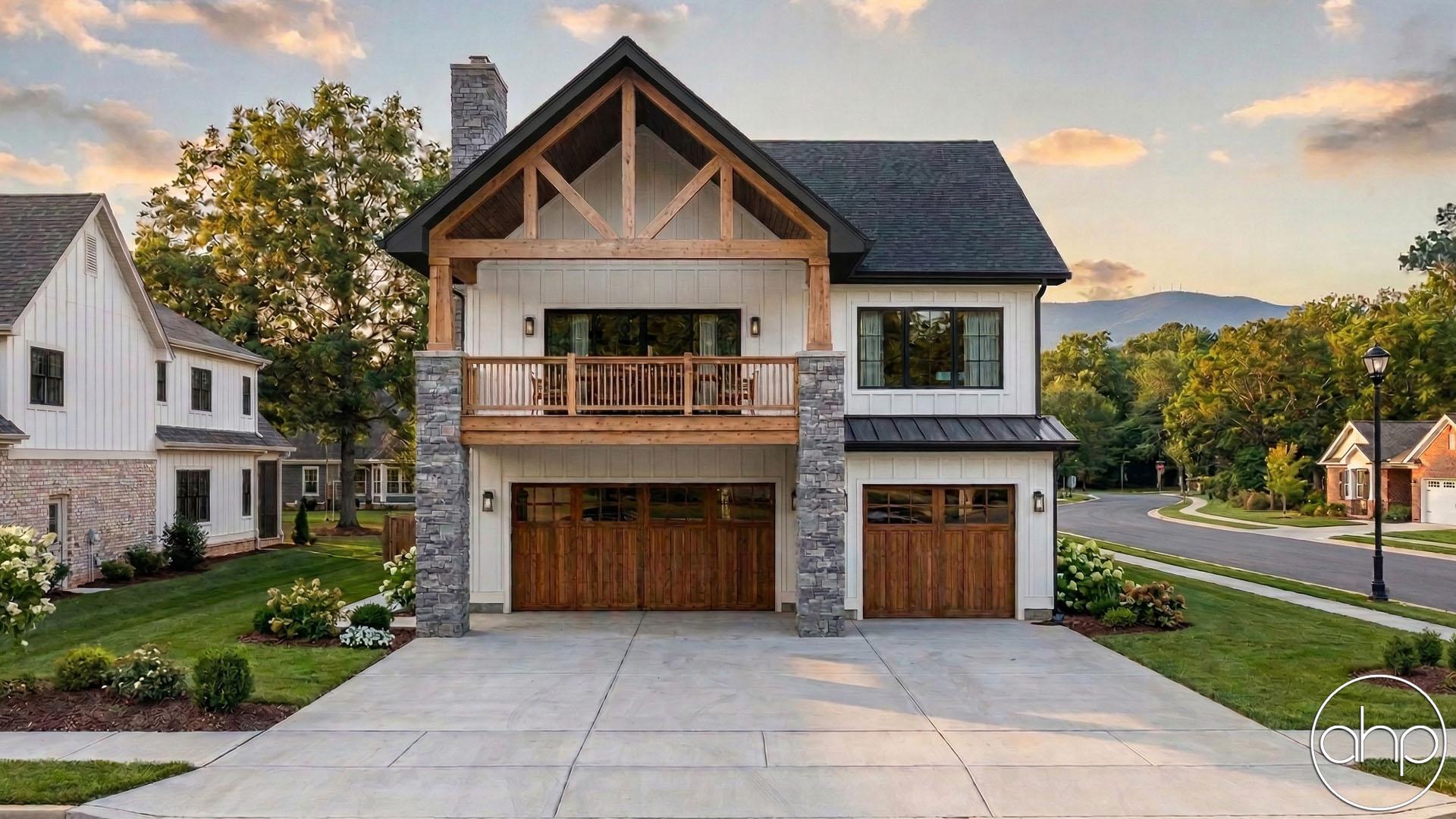

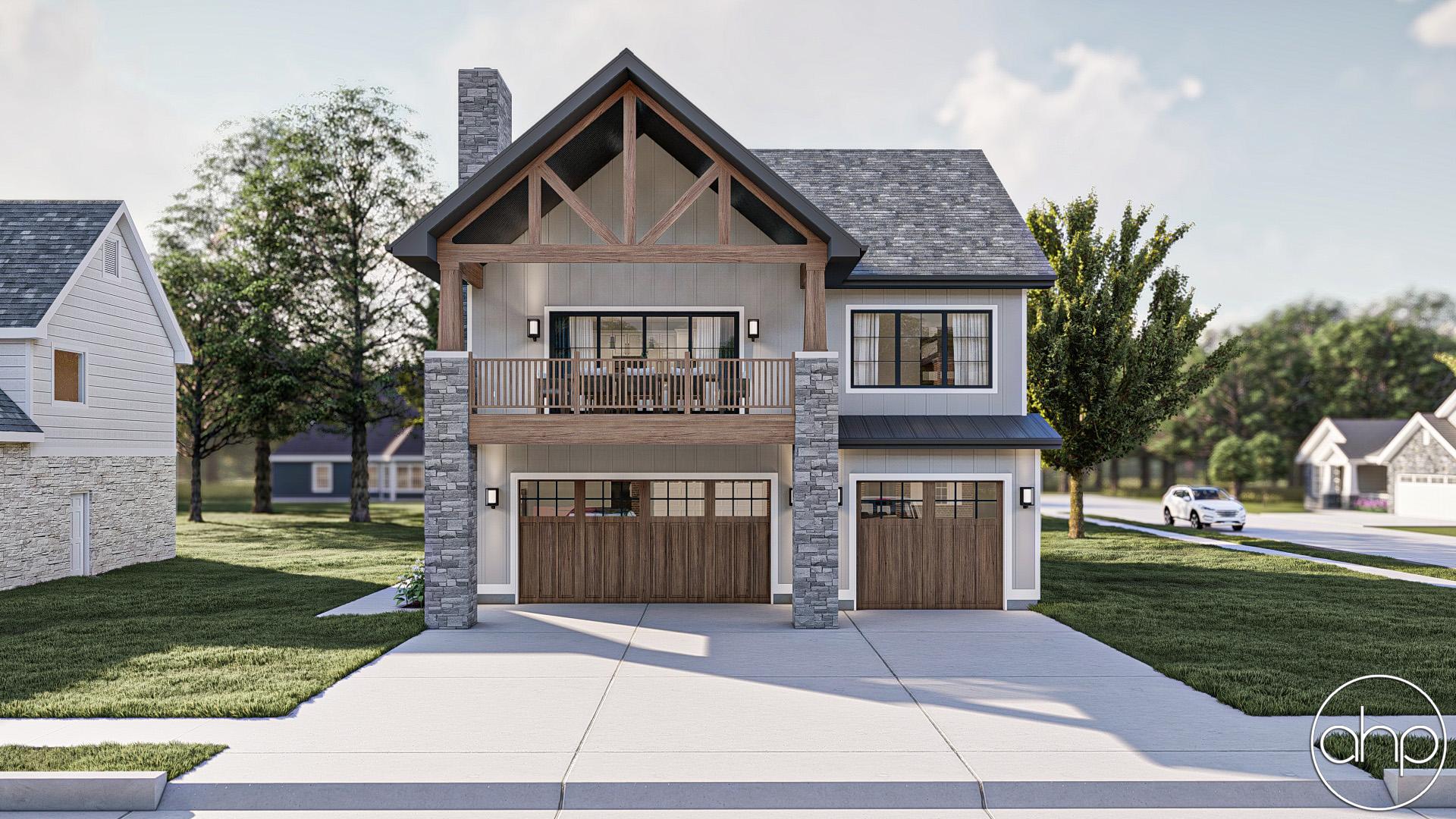

Meadow Lane Rendering Meadow Lane Rendering Meadow Lane Rendering Meadow Lane Rendering Meadow Lane Rendering Meadow Lane Rendering Meadow Lane Rendering Meadow Lane Rendering Meadow Lane Rendering Meadow Lane Rendering Meadow Lane Rendering Meadow Lane Rendering Meadow Lane Rendering Meadow Lane Rendering
Want to make changes to this plan?

Craftsman Style Carriage House Plan

Meadow Lane - 30204

Sq Ft
37' 0"
46' 4"

Floor Plan Images

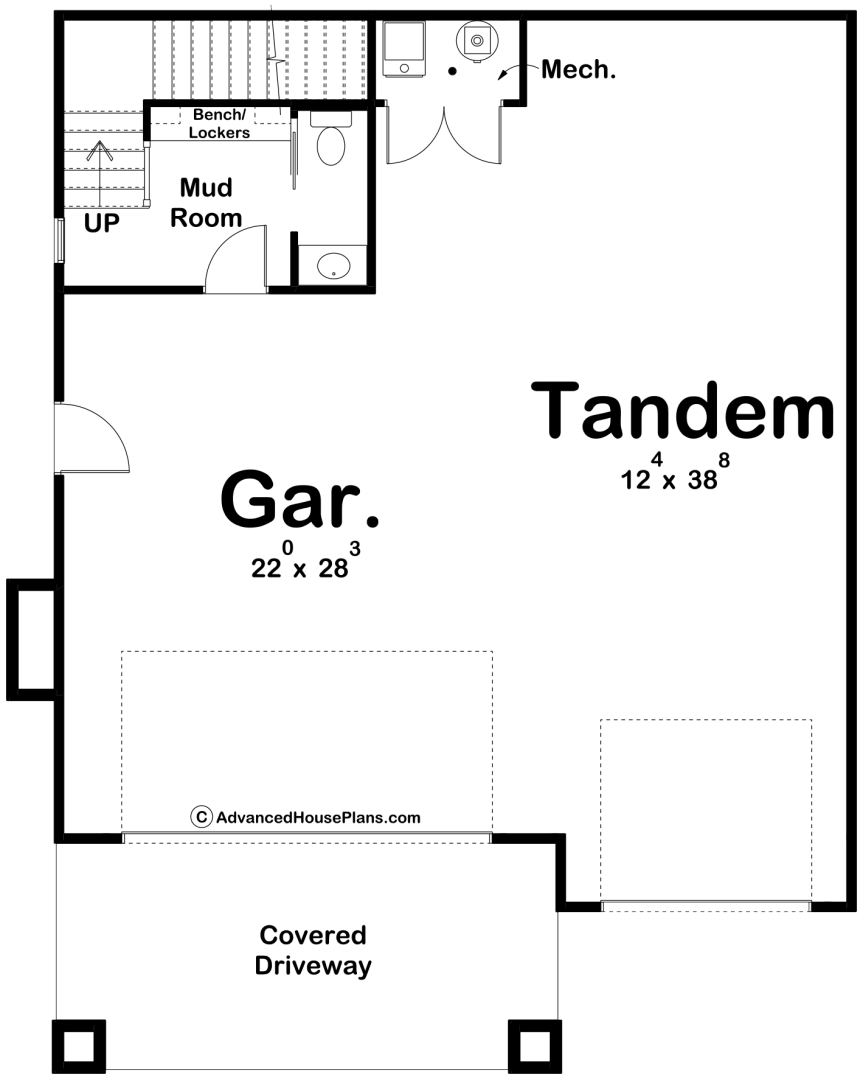

Main Level

Craftsman Style Carriage House Plan | Meadow Lane

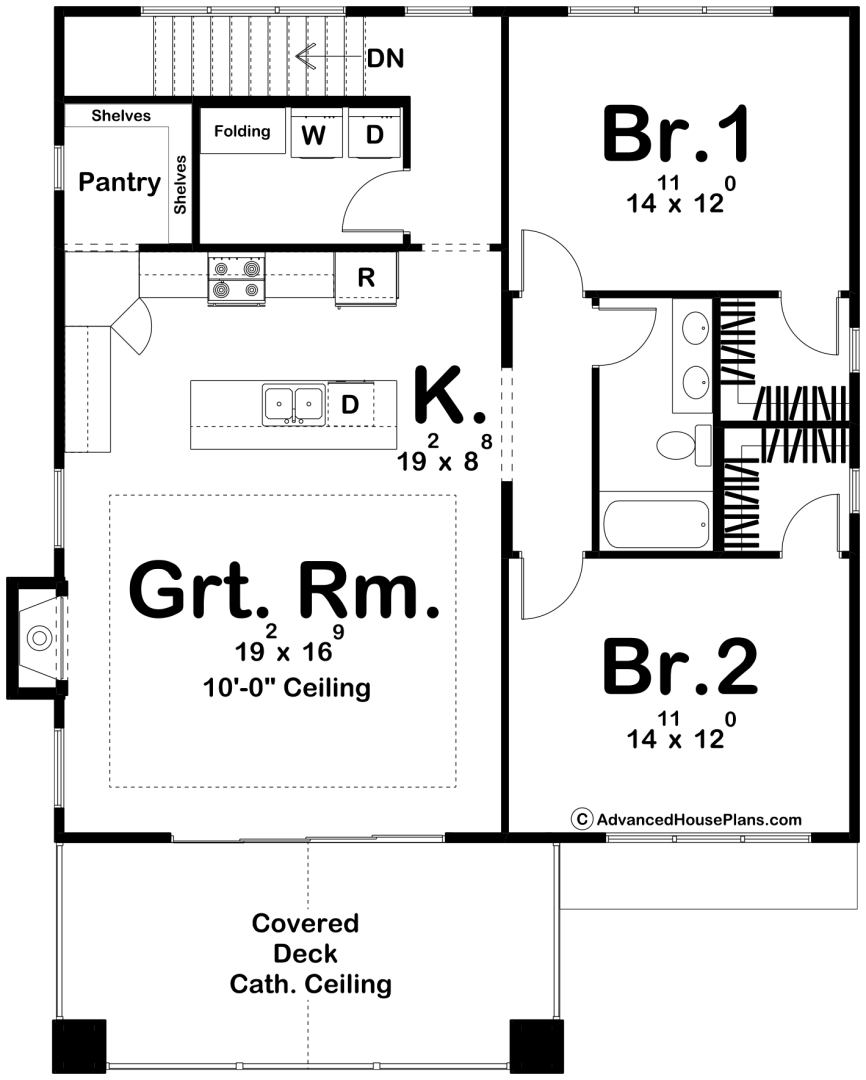

Second Level

Craftsman Style Carriage House Plan | Meadow Lane

Plan Description

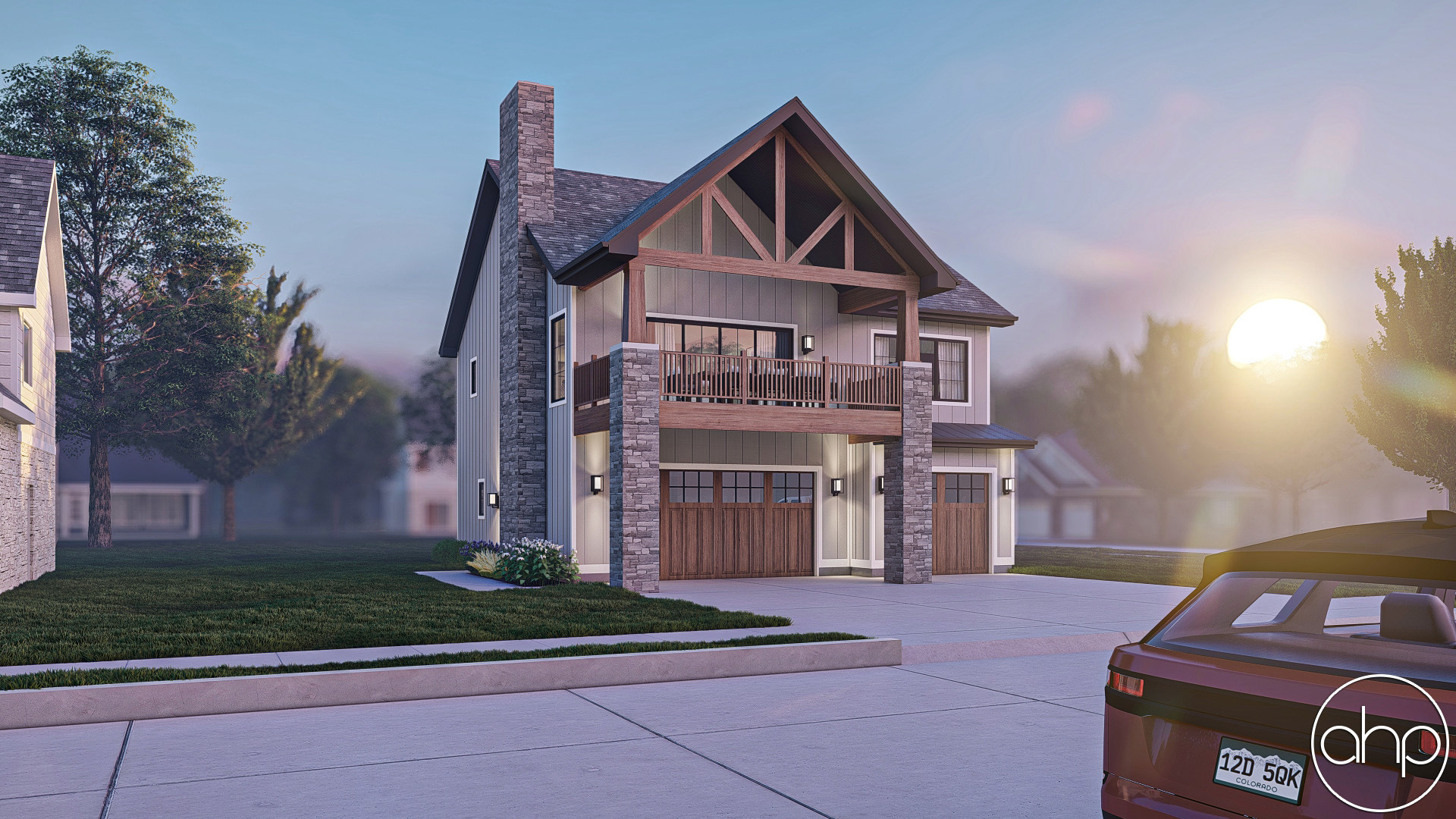

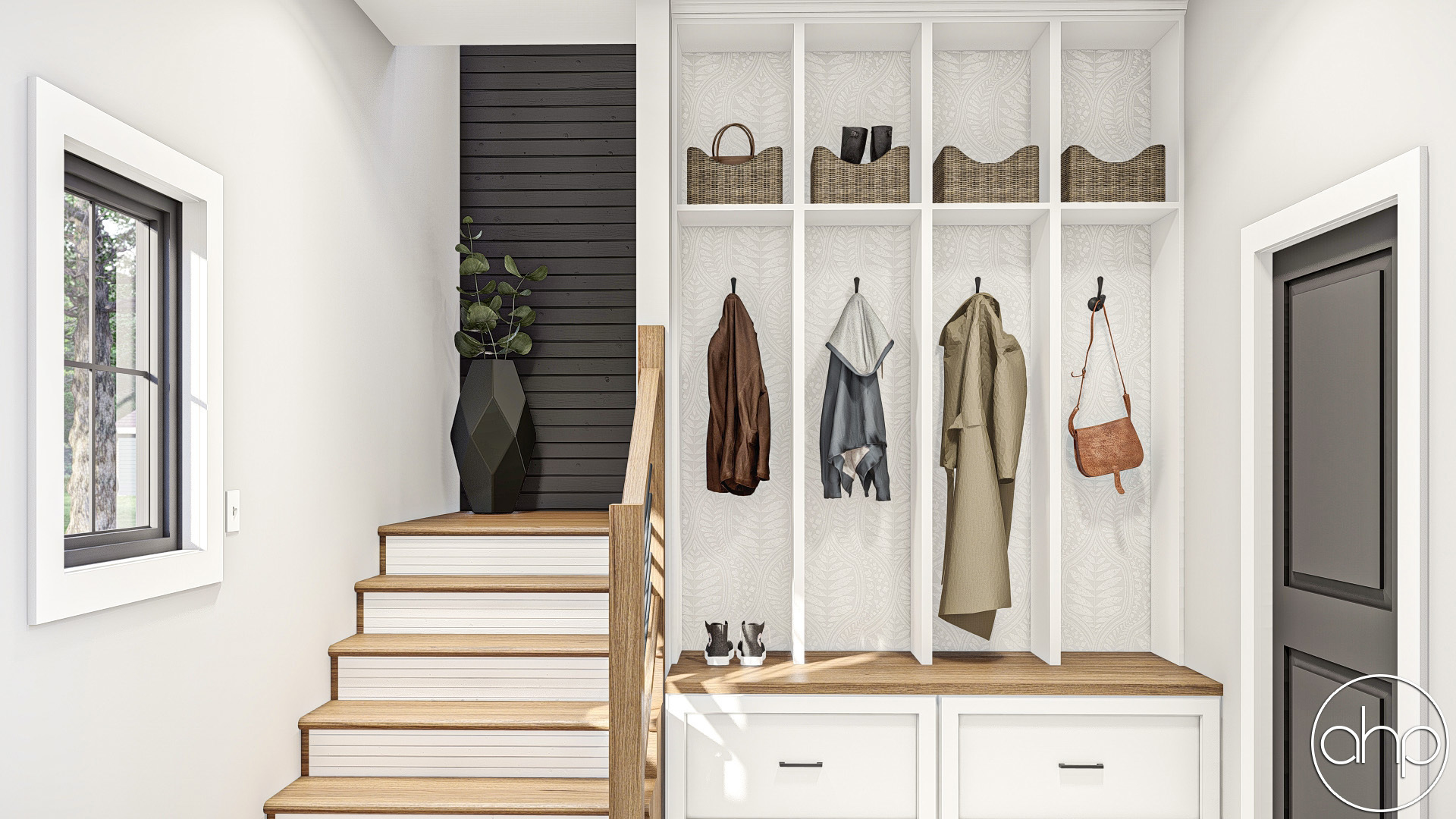

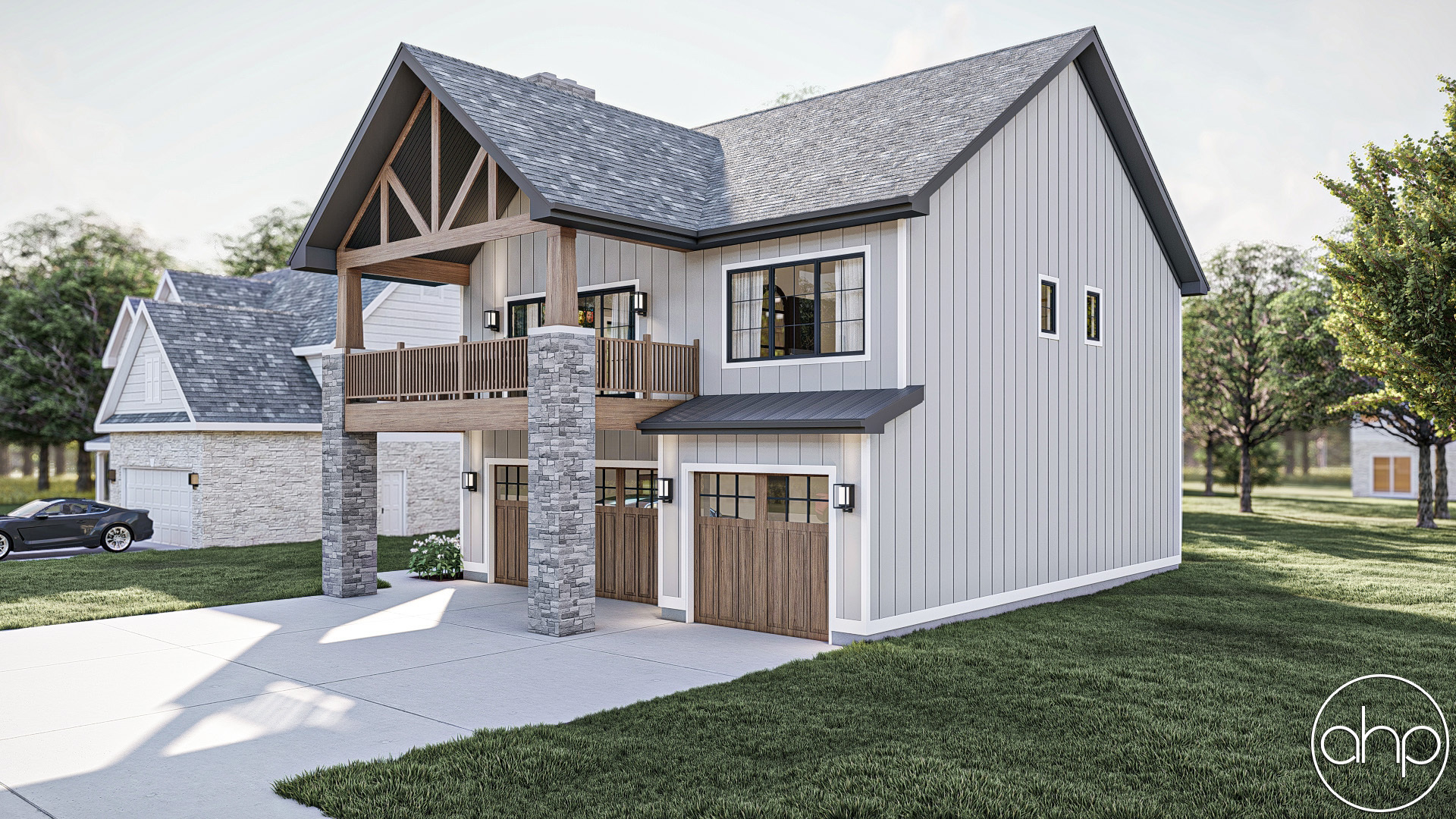

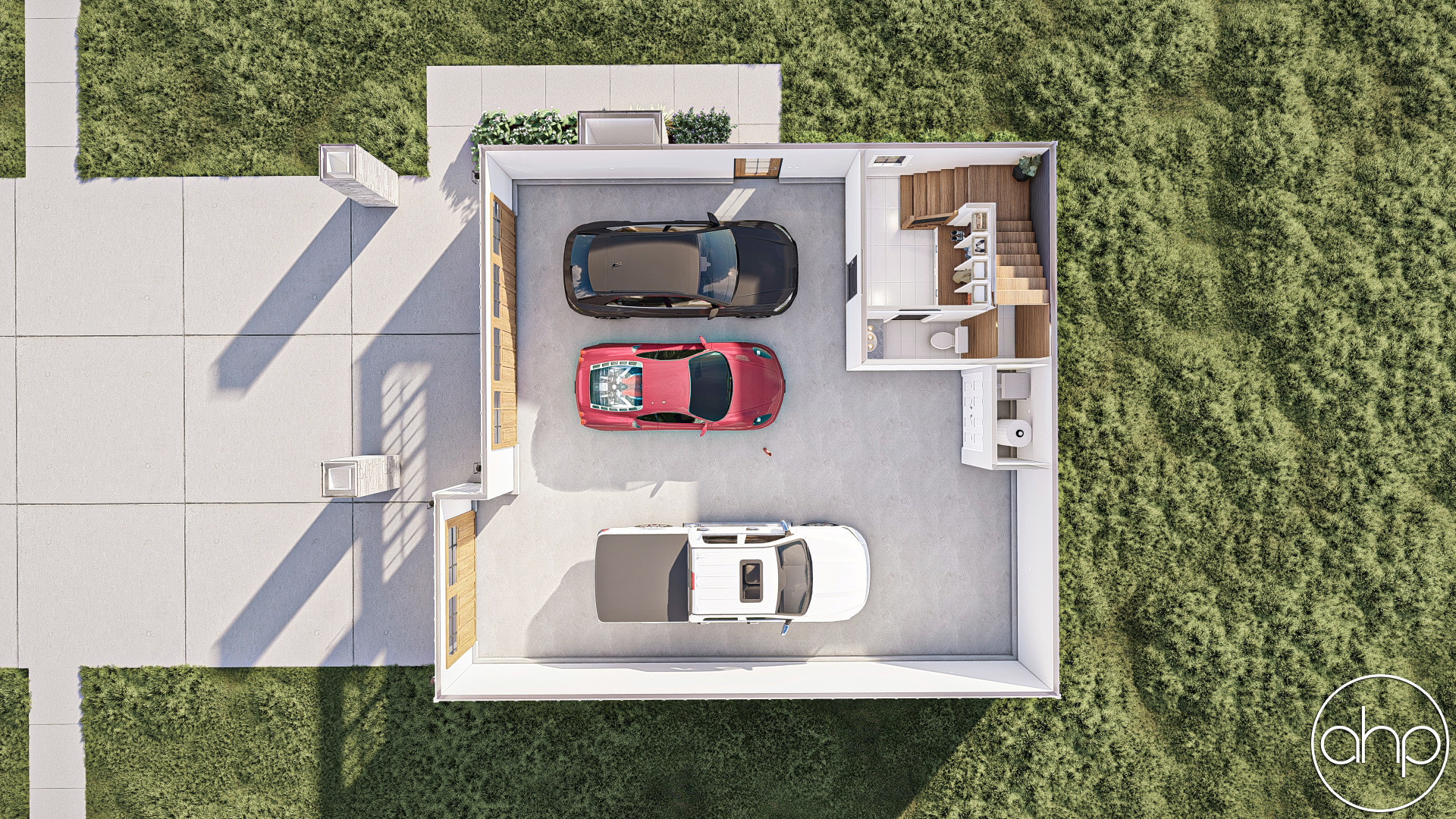

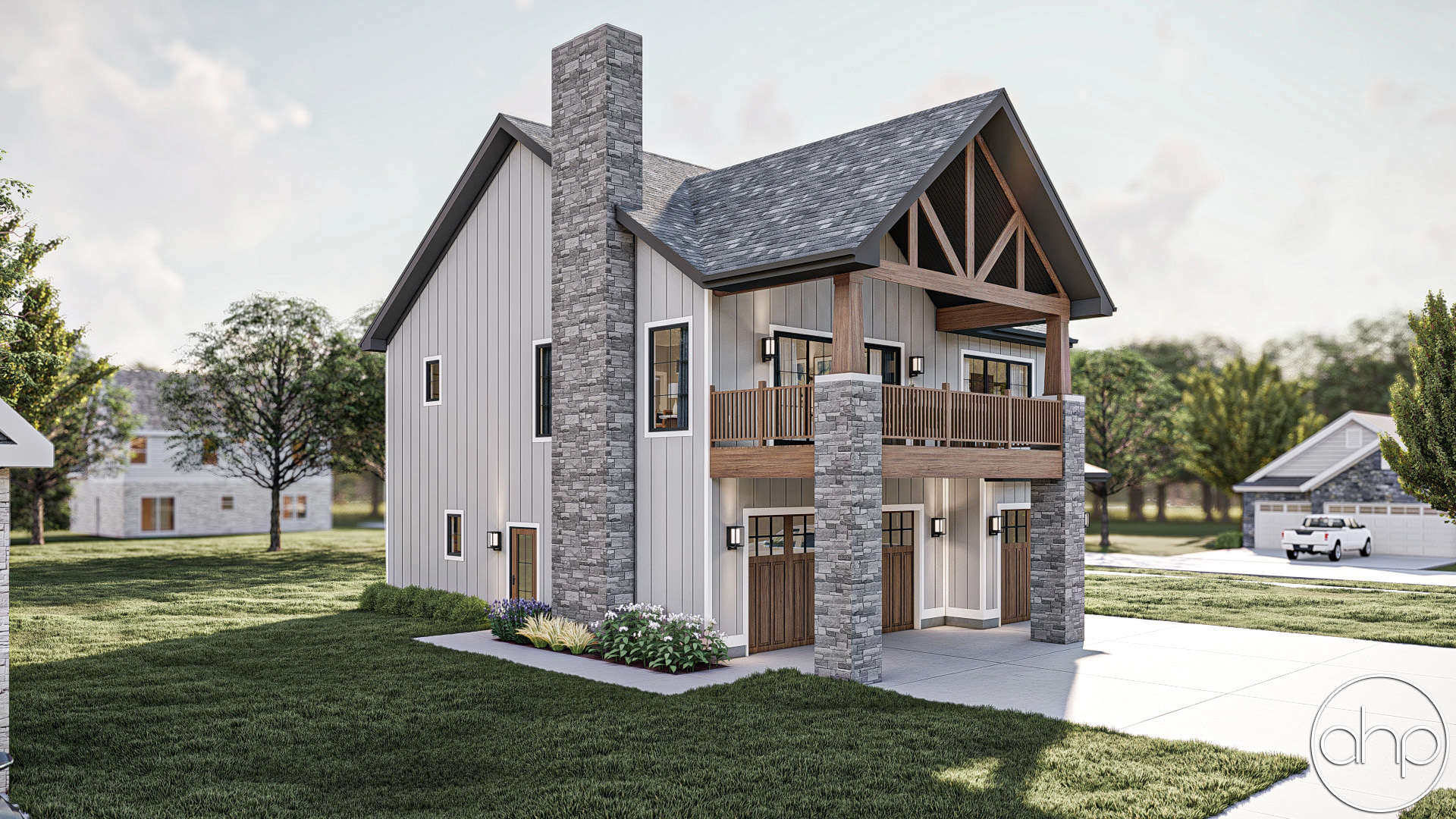

The Meadow Lane is a stunning apartment garage that features 2 bedrooms above a 3 car garage. On the main level there is a mudroom equipped with bench & lockers and a half bath. There is extra storage space in the rear of the single car stall.

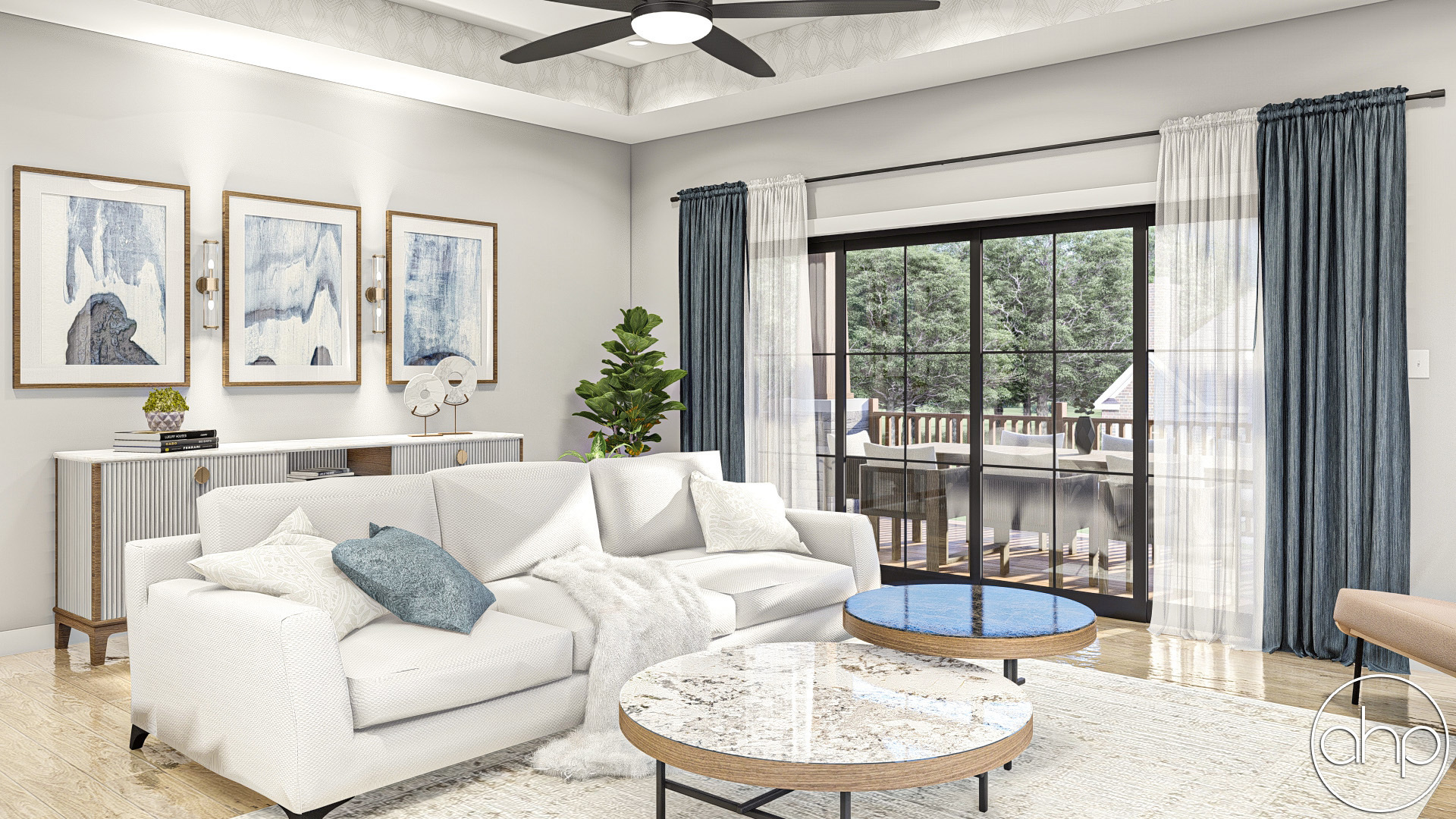

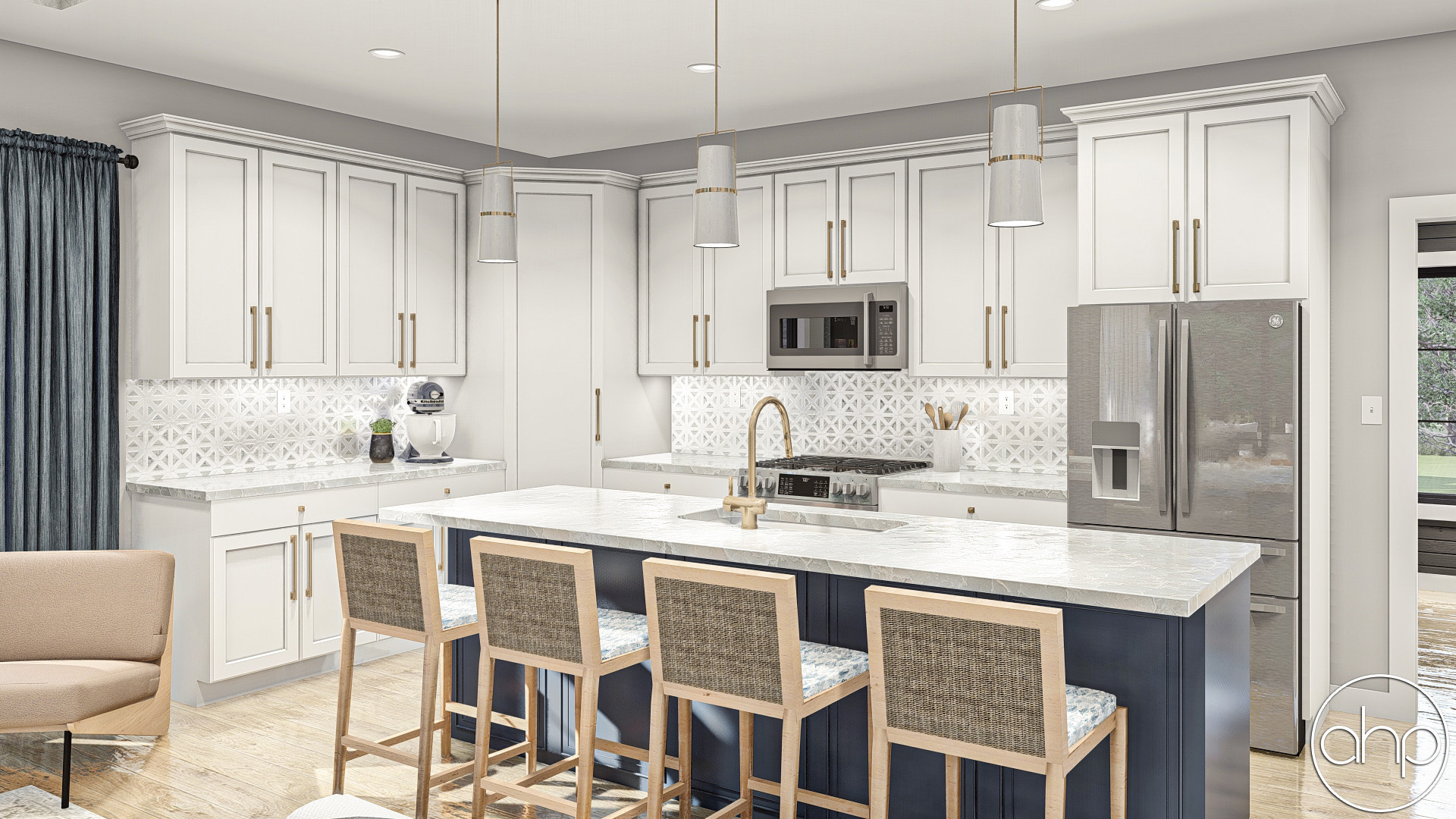

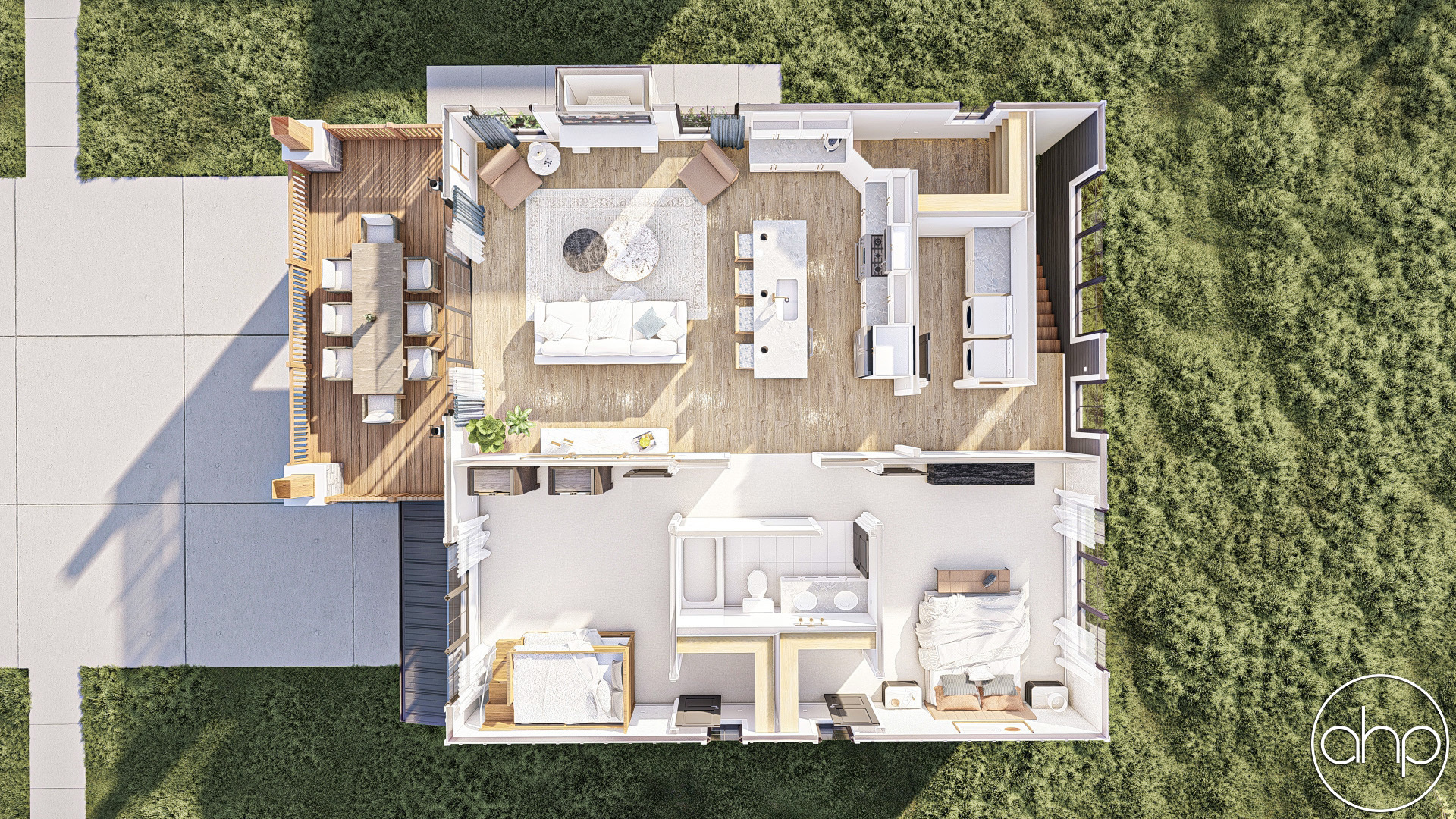

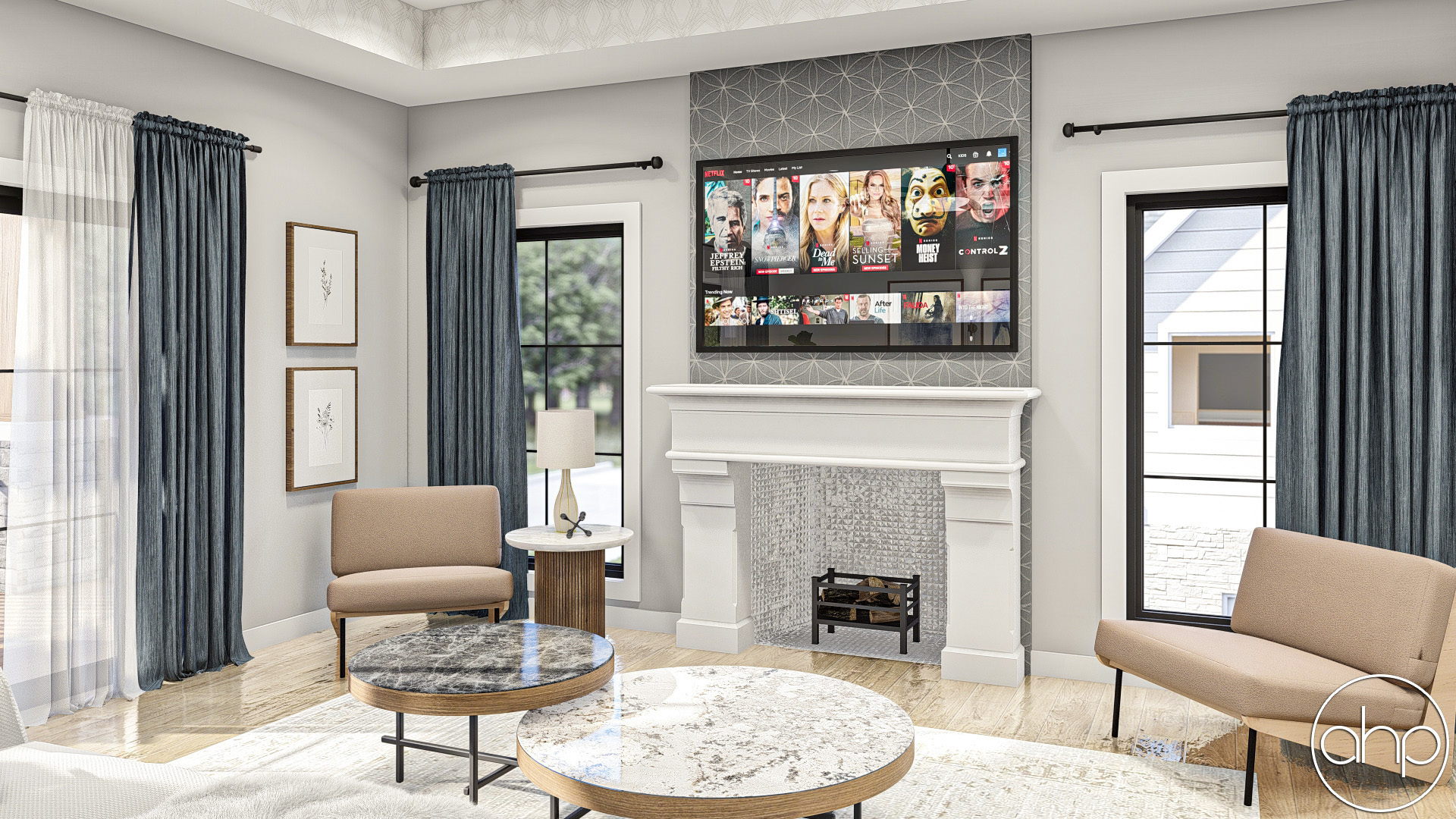

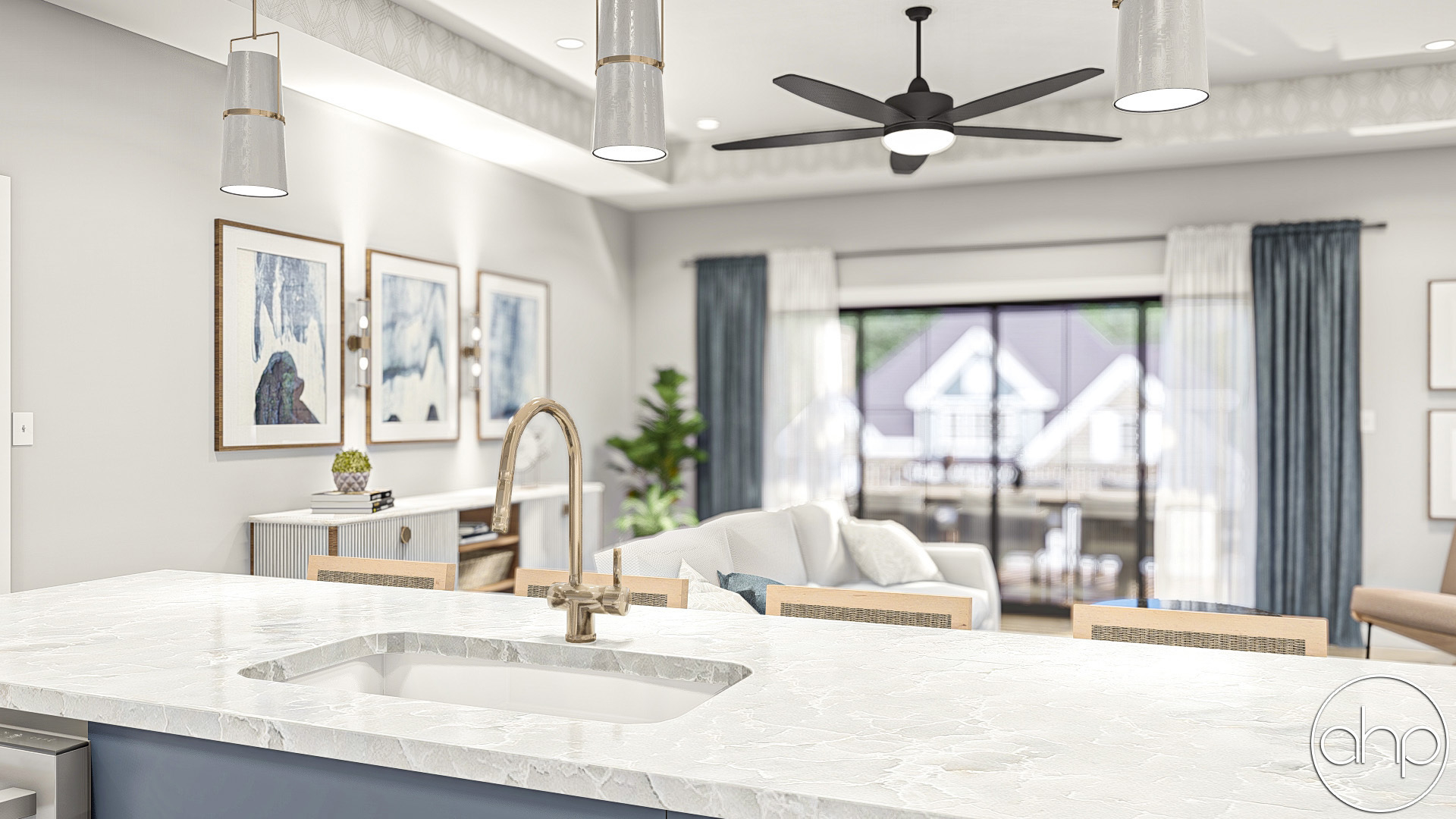

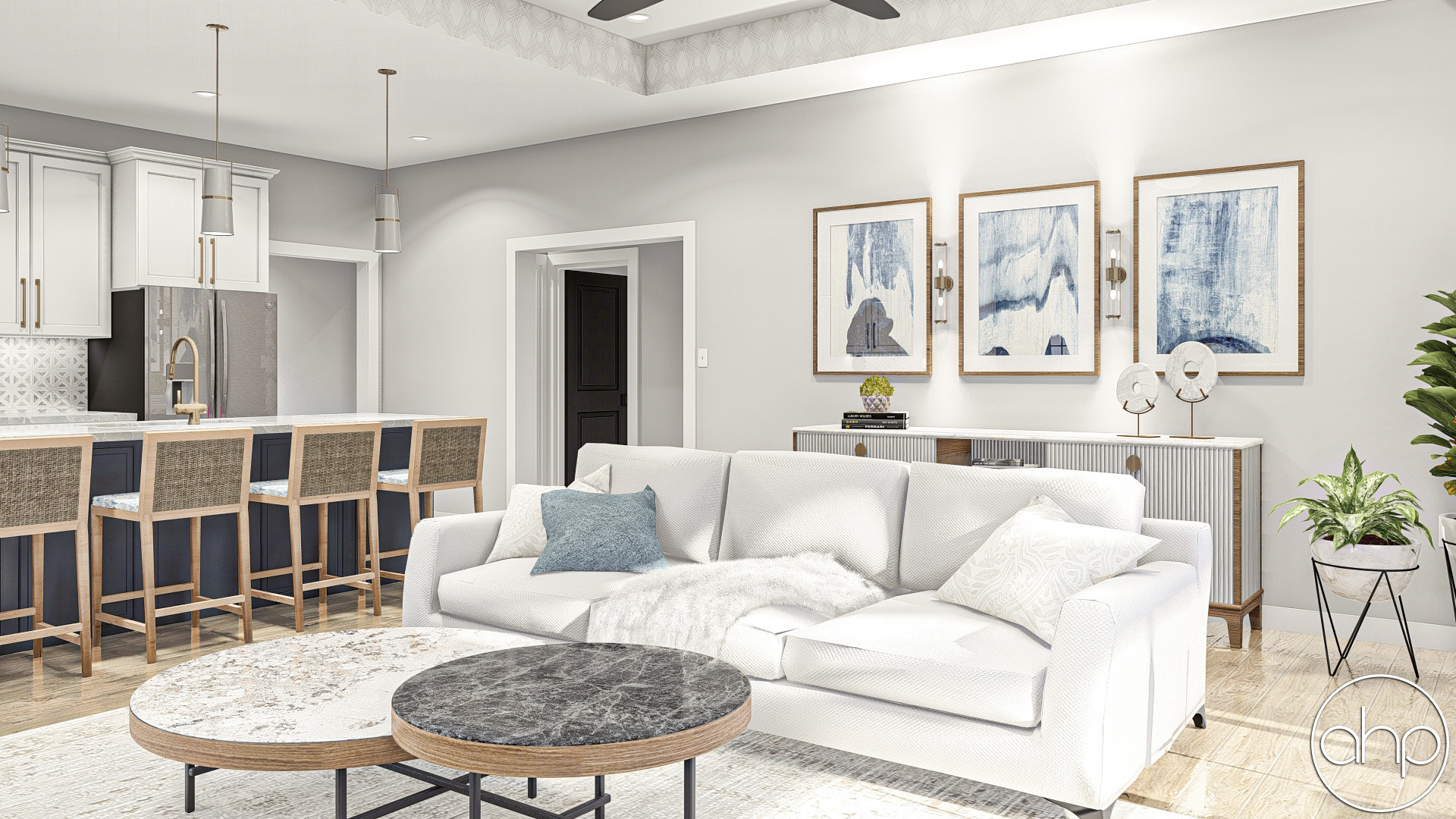

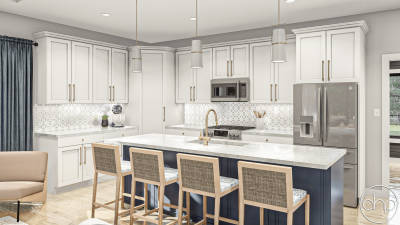

Upstairs, a well-thought out apartment includes 2 bedrooms with walk-in closets and a shared hall bath. The open concept flows from the full kitchen with a walk-in pantry to the large great room that houses a fireplace and tray ceiling. Off the great room is a large slider door that opens to a covered deck with cathedral ceiling.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 2
Bathrooms 2
Garage Bays 3
Square Footage
Main Level 169 Sq. Ft.
Second Level 1284 Sq. Ft.
Covered Area 219 Sq. Ft.
Garage 1142 Sq. Ft.
Total Finished Area 1453 Sq. Ft.
Exterior Dimensions
Width 37 ' 0"
Depth 46 ' 4"
Ridge Height
Calculated from main floor line
33 ' 2"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
Primary 10/12, Secondary 8/12, 4/12
Main Wall Height
Second Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
