NOTE: ACTUAL CUSTOMER BUILD PHOTOS MAY NOT MATCH THE PLAN EXACTLY.
Want to make changes to this plan?

Modern Style Garage Plan

Hagerty - 30229

1000
Sq Ft
0
Beds
1
Baths
6
Bays
54' 2"
Wide
108' 4"
Deep

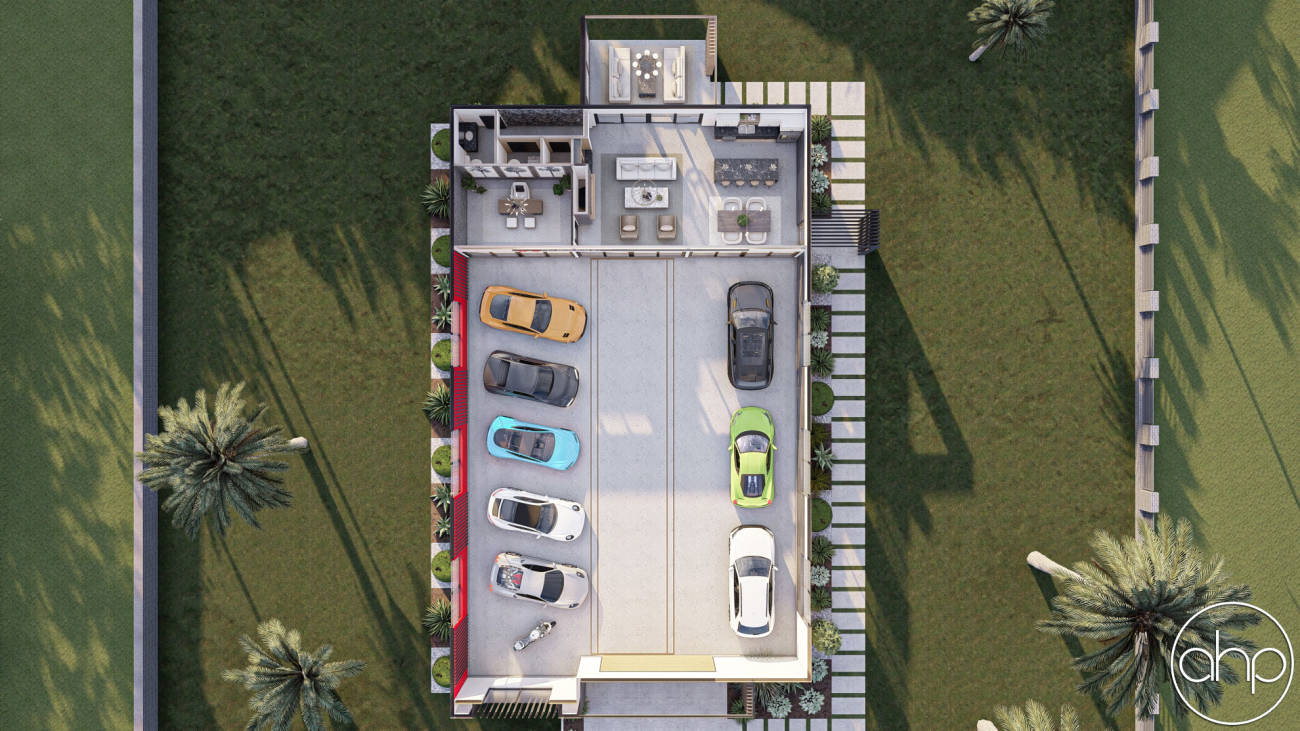

Floor Plan Images

Main Level

Hagerty

Plan Description

This stunning modern style garage plan offers a spacious 3047 sq ft of garage space, perfect for housing a collection of cars or serving as a workshop. The high 15' ceilings allow for plenty of room to maneuver and accommodate larger vehicles or equipment.

In addition to the ample garage space, this plan also includes 1000 sq ft of finished living space, perfect for use as a guest suite, home office, or recreation room. The open floor plan of the living space includes a kitchenette, an office, a bathroom, and plenty of room for comfortable furniture and activities. The sleek, modern design of this garage plan is sure to impress, making it a desirable addition to any property.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bathrooms 1
Garage Bays 6
Square Footage
Main Level 1000 Sq. Ft.
Covered Area 359 Sq. Ft.
Garage 3047 Sq. Ft.
Total Finished Area 1000 Sq. Ft.
Exterior Dimensions
Width 54' 2"
Depth 108' 4"
Ridge Height
Calculated from main floor line
19' 1"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Slab
Exterior Wall Construction
2x6
Roof Pitches
Flat
Main Wall Height
16'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
Buy this plan for only
$900

If you find this plan cheaper on any other site, we will match the price guaranteed.

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time
