29735 | Chippewa

Reverse

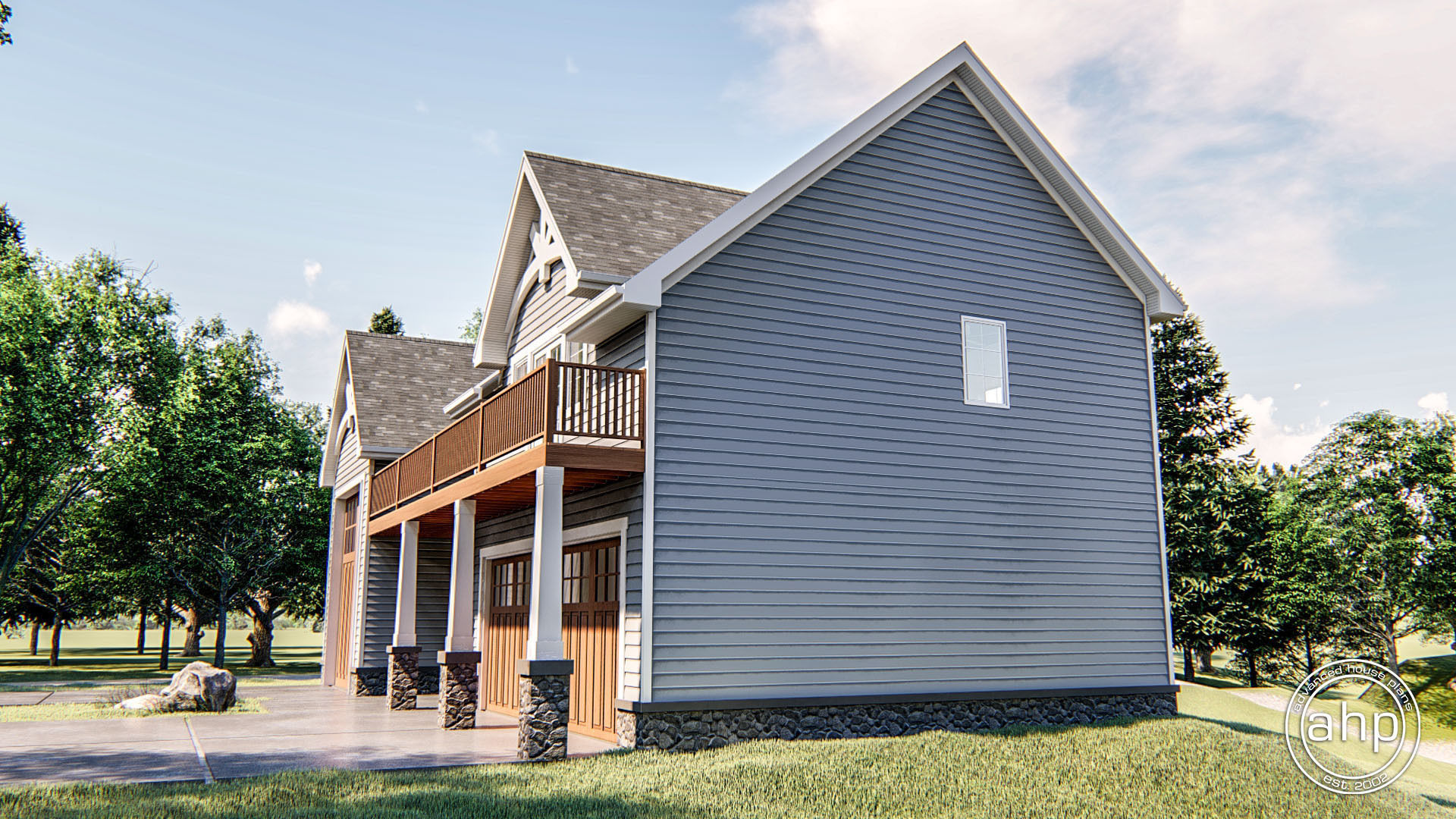

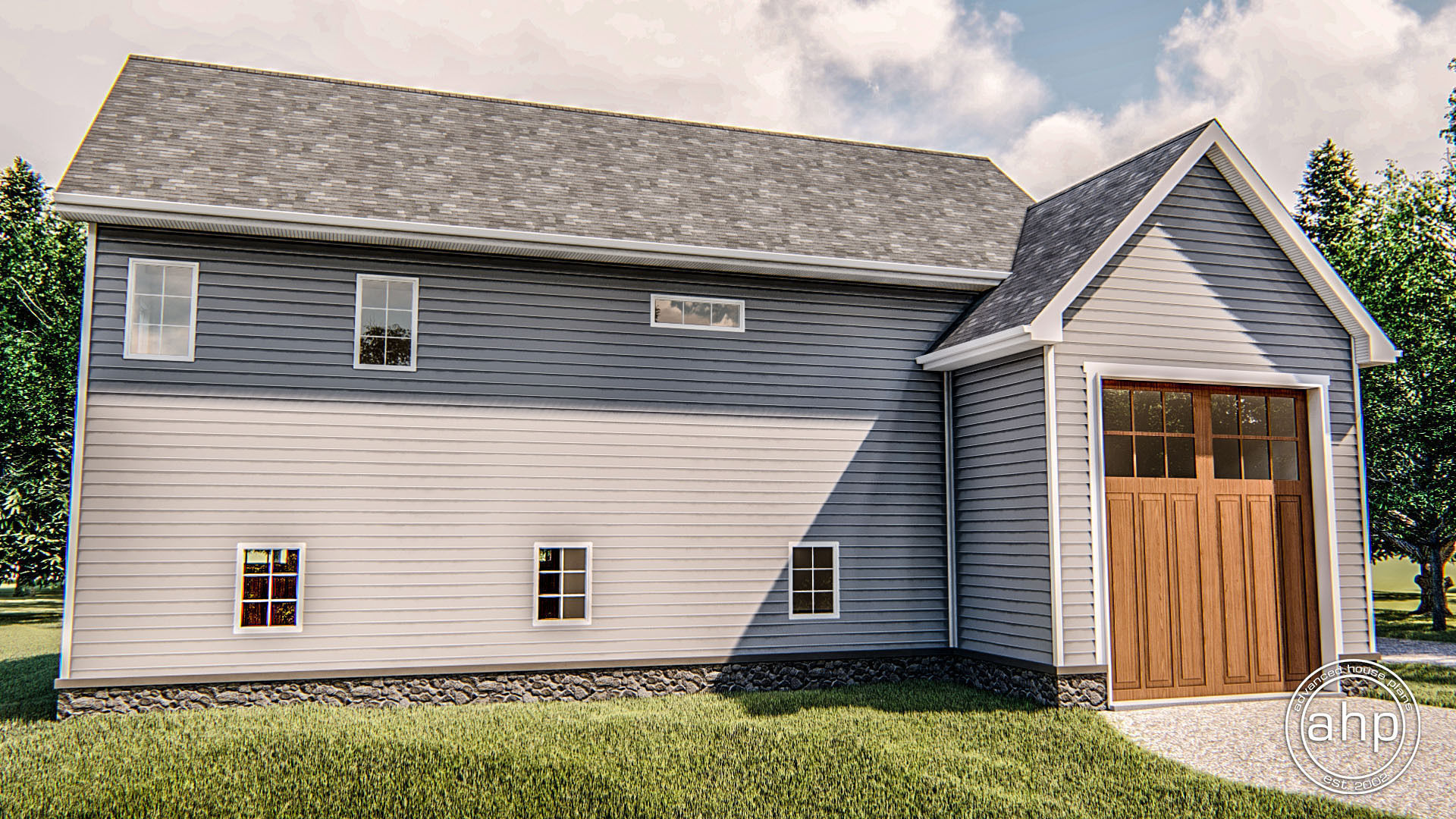

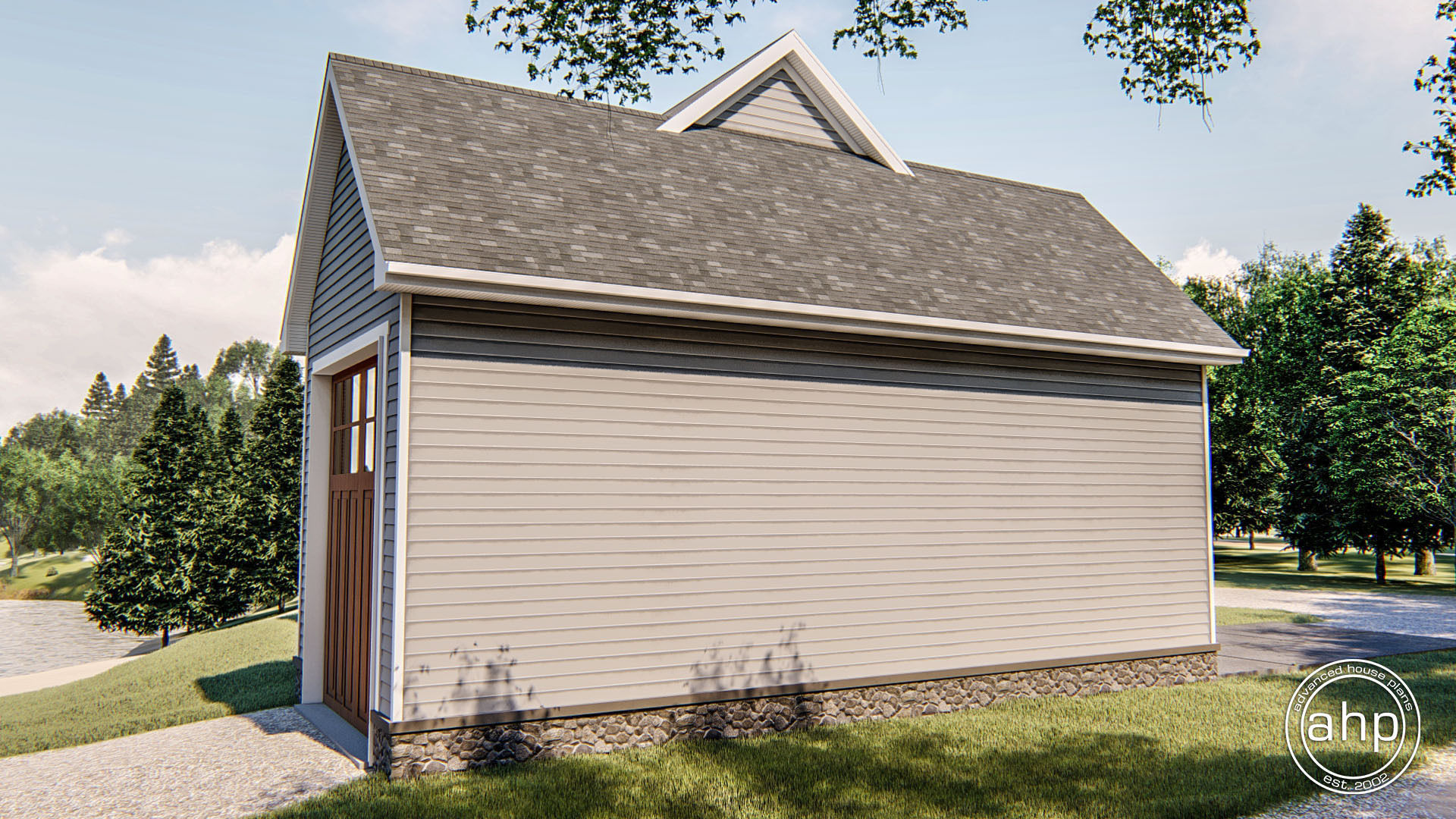

Chippewa Rendering Chippewa Rendering Chippewa Rendering Chippewa Rendering
NOTE: ACTUAL CUSTOMER BUILD PHOTOS MAY NOT MATCH THE PLAN EXACTLY.
Want to make changes to this plan?

Craftsman Style Apartment Garage

Chippewa - 29735

967
Sq Ft
1
Beds
2
Baths
3
Bays
54' 4"
Wide
38' 4"
Deep

Floor Plan Images

Main Level

Craftsman Style Apartment Garage | Chippewa

Second Level

Craftsman Style Apartment Garage | Chippewa

Plan Description

Store your RV in style with the Chippewa apartment garage plan. This great garage gives you everything you need, whether you are adding a guest space to your existing house or you want to live where you work. With a beautiful blend of wood garage doors, stone and wood beams, this excellent craftsman exterior has great curb appeal. On the main level, you'll find a great 2 car garage complete with a workshop in the back. Also on the main level, there is an excellent drive through RV garage.

The upper level of this garage includes a great apartment layout. The living area flows into the full-sized kitchen that includes an island and a walk-in pantry. The master suite has a large bathroom with his/her vanities and a walk-in closet.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 1
Bathrooms 2
Garage Bays 3
Square Footage
Main Level 156 Sq. Ft.
Second Level 811 Sq. Ft.
Garage 1441 Sq. Ft.
Total Finished Area 967 Sq. Ft.
Exterior Dimensions
Width 54 ' 4"
Depth 38 ' 4"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Slab
Exterior Wall Construction
2x4
Roof Pitches
10/12 Primary, 12/12 Secondary
Main Wall Height
10'
Second Wall Height
9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
Buy this plan for only
$1100
We now offer financing to make your plan purchase simple!
Affirm Payments Afterpay

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time
Note: The pre-made material list is only available for the base plan, any options chosen above will not be reflected in the material list.

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.
