1 Story Multi-Family Traditional House Plan | Callahan
Floor Plan Images
Plan Description

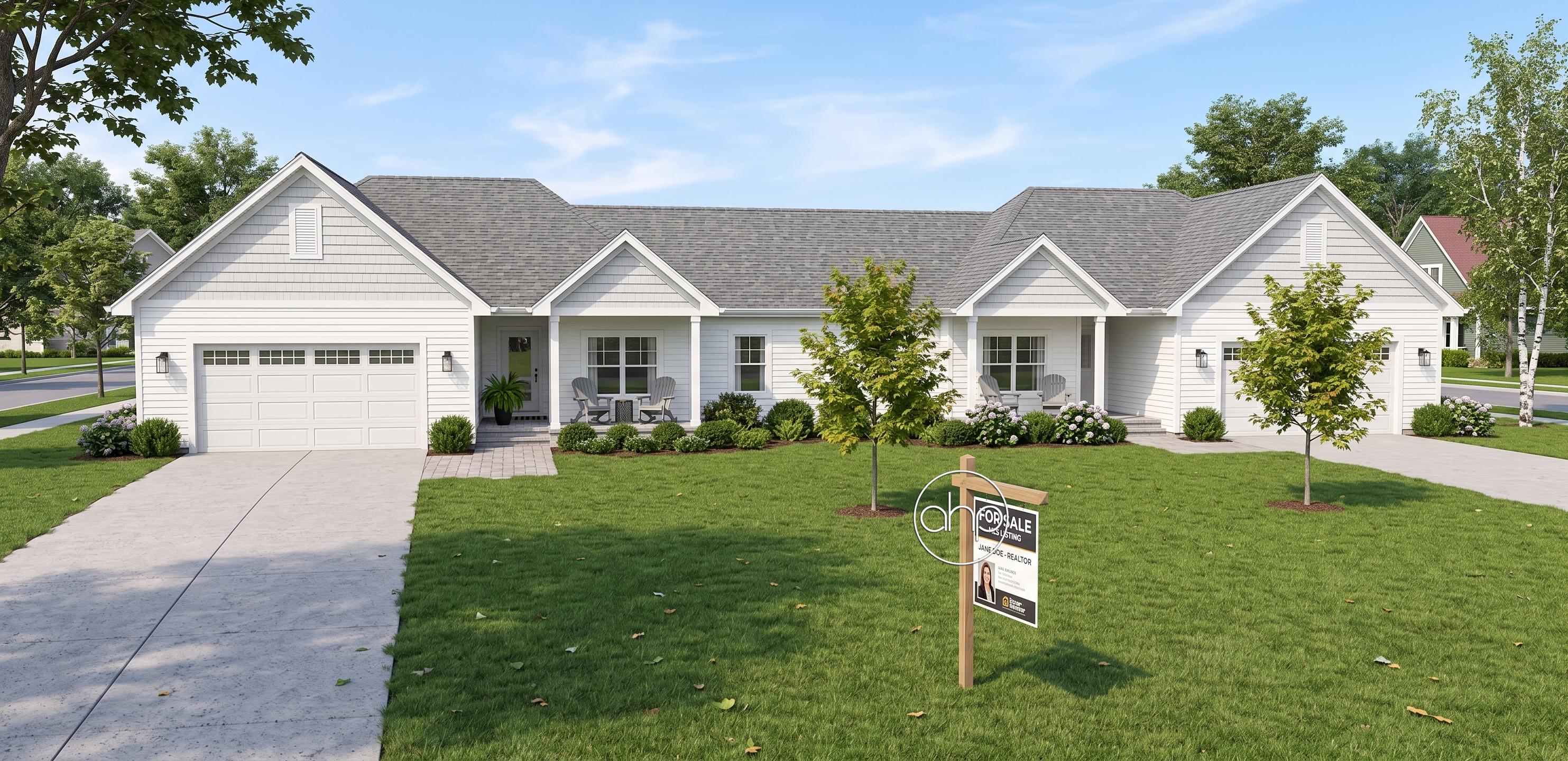

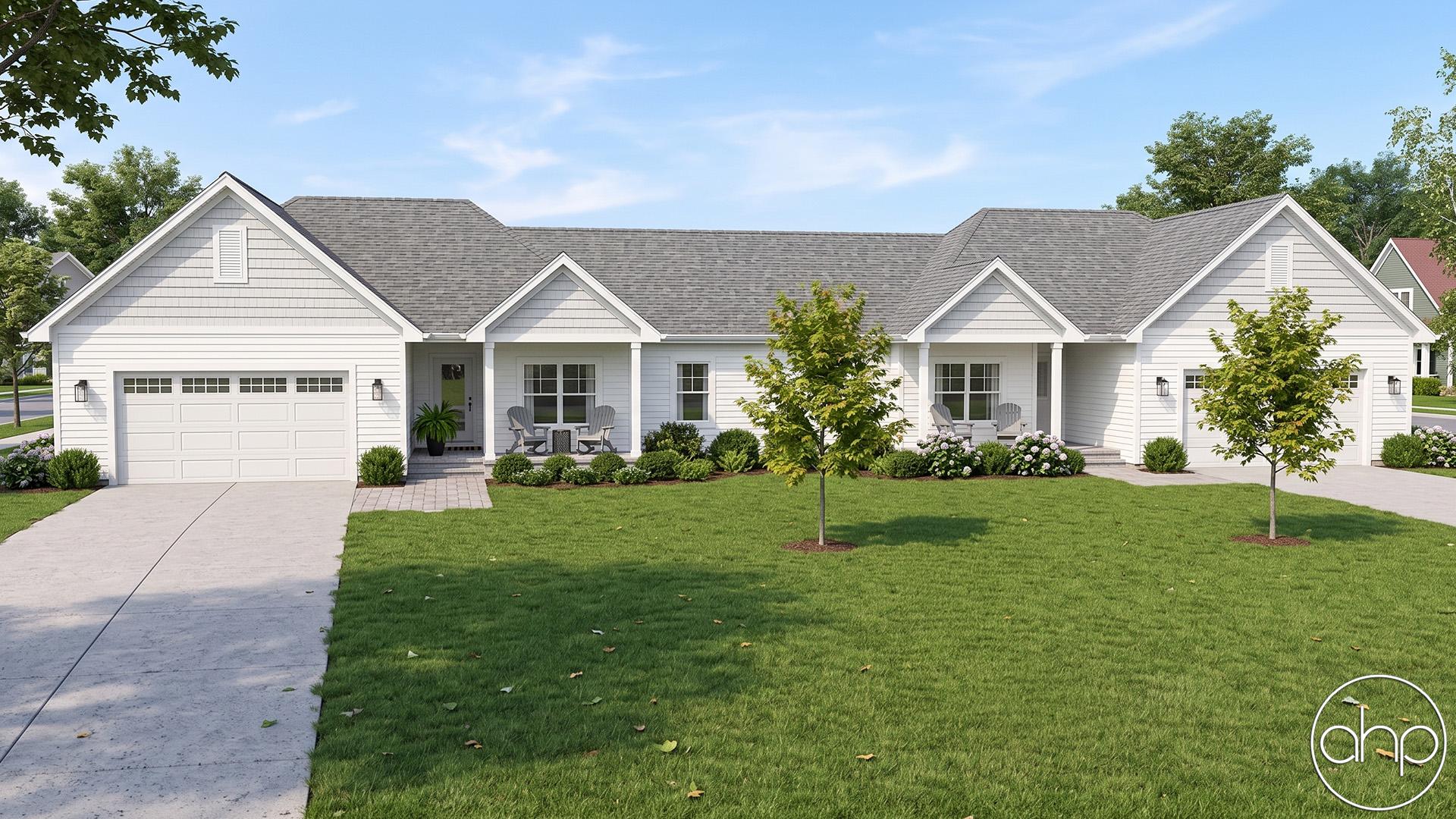

One of the most appealing aspects of this one-story, multi-family house plan, is its feeling of casual comfort, both inside and out. A deep, covered front porch offers a friendly welcome to family and friends. Inside, the entry hall opens to the great room, with its corner fireplace, built-in entertainment center and bookshelves, all beneath a 10-foot-high ceiling.
Open to the great room, is the breakfast area and kitchen, with wrapping counter space and breakfast bar. The breakfast area accesses a wide, rear covered porch for outdoor dining options.
The master suite is tucked away for privacy from the main living areas. It is brightened by plenty of natural light beneath a 10-foot-high ceiling in the bedroom, and a walk-in closet in the bath area. Secondary bedrooms 2 and 3 have views to the front and share a hall bath. A practical laundry area with bench also serves as a mud room between the great room and the 2-car-garage.
As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at Ahp.
Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 3 |
| Bathrooms | 2 |
| Garage Bays | 2 |
| Square Footage Breakdown | |
| Main Level | 1381 Sq Ft |
| Total Finished Area | 1381 Sq Ft |
| Garage | 550 Sq Ft |
| Exterior Dimensions | |
| Width | 100' 0" |
| Depth | 48' 0" |
| Ridge Height | 20' 0" |
| Default Construction Stats | |
| Default Foundation Type | Basement |
| Default Exterior Wall Construction | 2x4 |
| Roof Pitches | 6/12 Primary, 10/12 Secondary |
| Foundation Wall Height | 9' |
| Main Level Ceiling Height | 9' |
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
