1 Story Modern Cottage Plan w/ Finished Basement

Barcelona - 30173

1680
Sq Ft
3
Beds
2
Baths
2
Bays
67' 4"
Wide
49' 8"
Deep

Plan Video

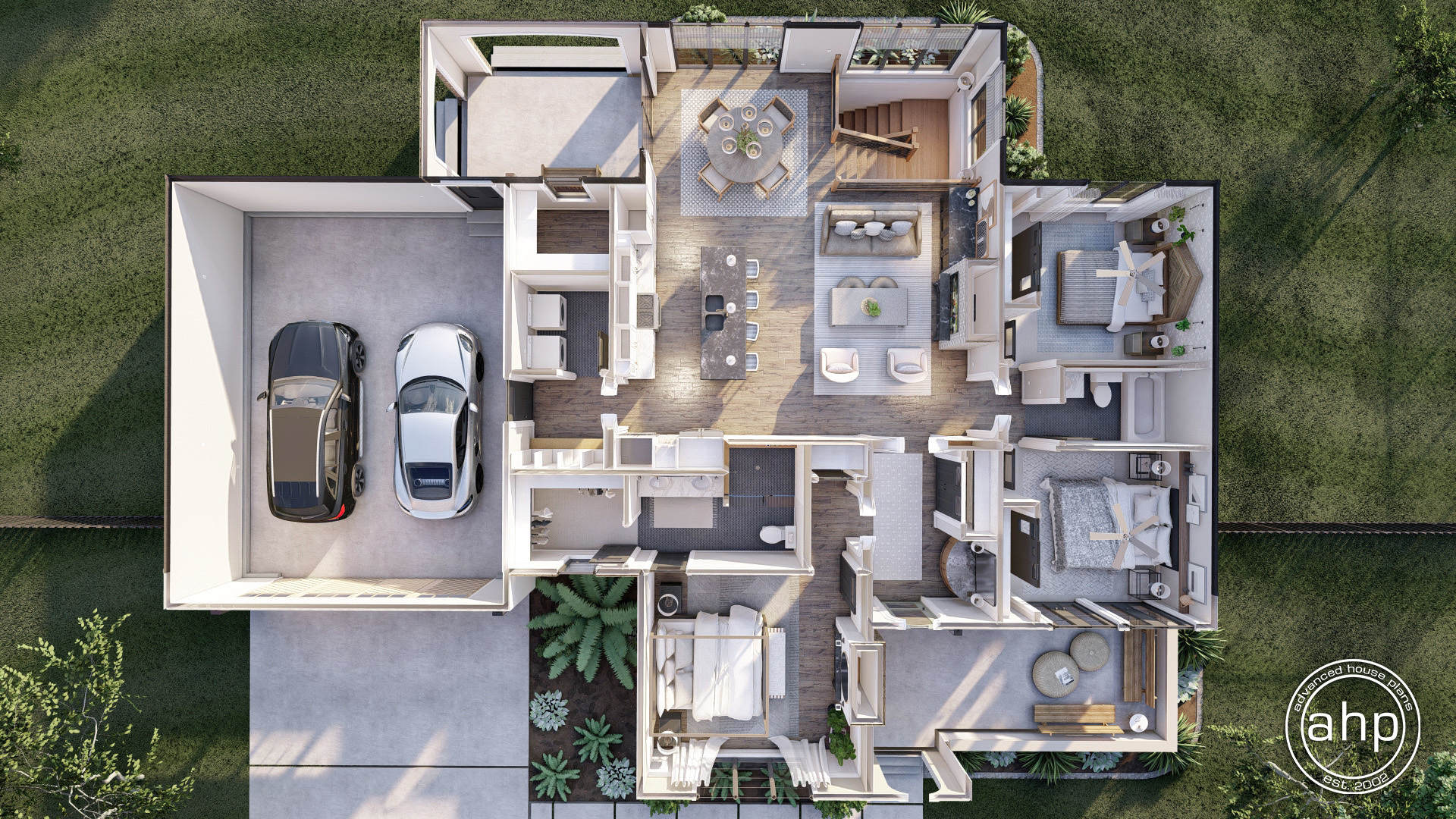

Floor Plan Images

Main Level

Barcelona

Optional Finished Basement

Barcelona

Plan Description

The Barcelona is a wonderful Modern Cottage style house plan. The exterior showcases light stucco siding paired with a metal roof and steep rooflines. A front courtyard and covered porch greet guests into the home.

The open layout of the great room, kitchen, and dining room lie under a soaring cathedral ceiling. The great room is warmed by a fireplace that has a built-in. The kitchen includes a large island with a snack bar and a huge walk-in pantry. The dining room leads to the rear covered porch through a sliding glass door.

The master bedroom also lies under its own cathedral ceiling. The master bathroom includes his/her vanities, a walk-in shower, and a walk-in closet. Two additional bedrooms can be found on the right side of the home.

The 2-car garage accesses the home through a convenient mudroom that includes a bench and lockers.

The optional finished basement adds a family room with a fireplace, a wet bar, an exercise room with a sauna, and an additional bedroom.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 3
Bathrooms 2
Garage Bays 2
Square Footage
Main Level 1680 Sq. Ft.
Covered Area 210 Sq. Ft.
Garage 600 Sq. Ft.
Total Finished Area 1680 Sq. Ft.
Exterior Dimensions
Width 67 ' 4"
Depth 49 ' 8"
Ridge Height
Calculated from main floor line
25 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Basement
Exterior Wall Construction
2x4
Roof Pitches
12/12 Primary, 4/12 6/12 14/12 Secondary
Foundation Wall Height
9'
Main Wall Height
9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
Buy this plan for only
$1300
We now offer financing to make your plan purchase simple!
Affirm Payments Afterpay

Upgrade your plan with add-ons

Note: Add-ons may result in a longer turn around time
Note: The pre-made material list is only available for the base plan, any options chosen above will not be reflected in the material list.

Did you know?

If you need to bid this plan out before purchasing it, you can purchase a bid set at a lesser cost.

Instant Cost-to-build Estimate™

See how much it will cost to build this plan. Our estimate includes everything so you'll have a good idea of how much to budget.

Powered By Advanced House Plans ©
