Modern Carriage House | Ambrose Hill
Floor Plan Images
Plan Video Tour
Plan Description

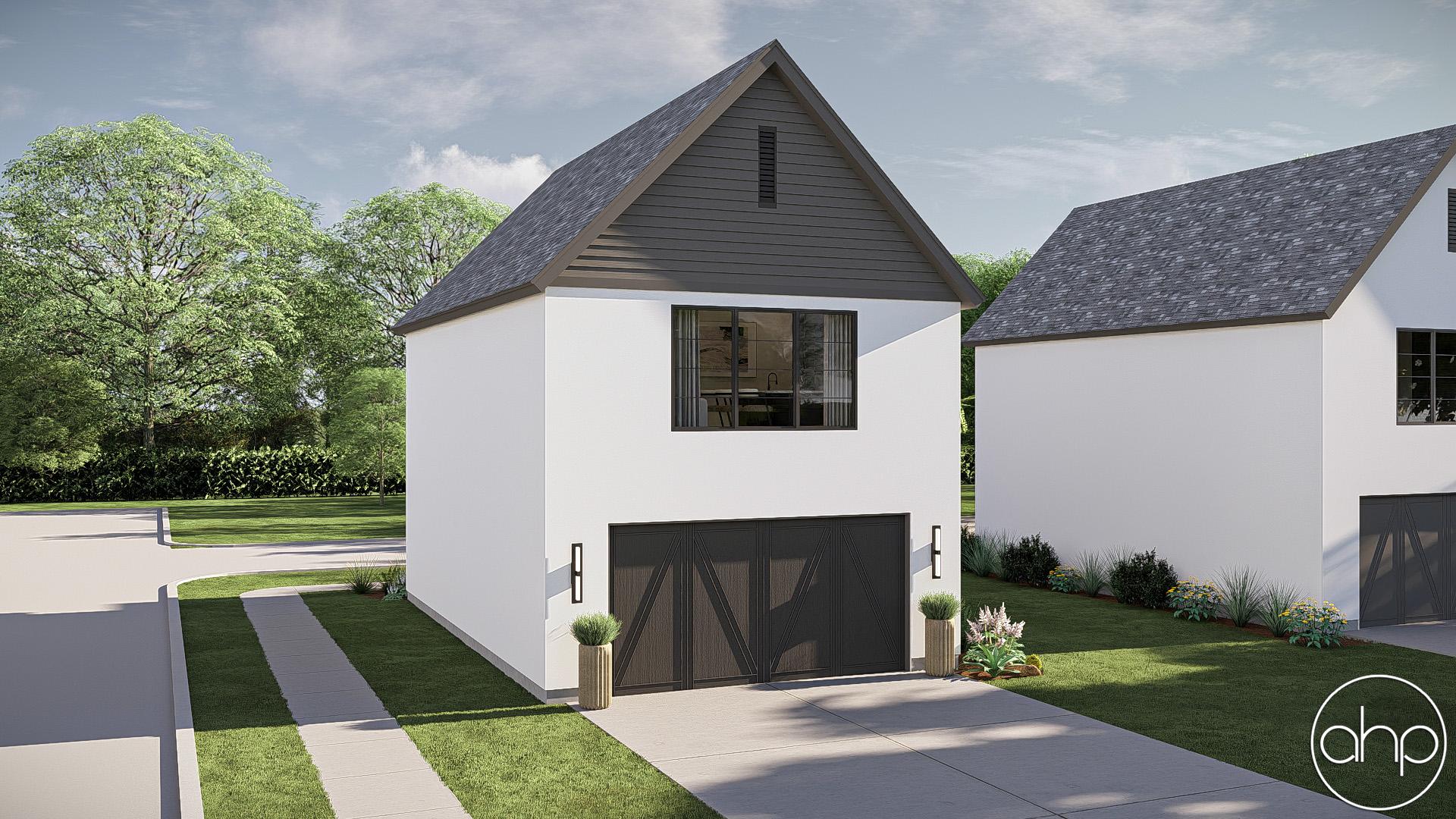

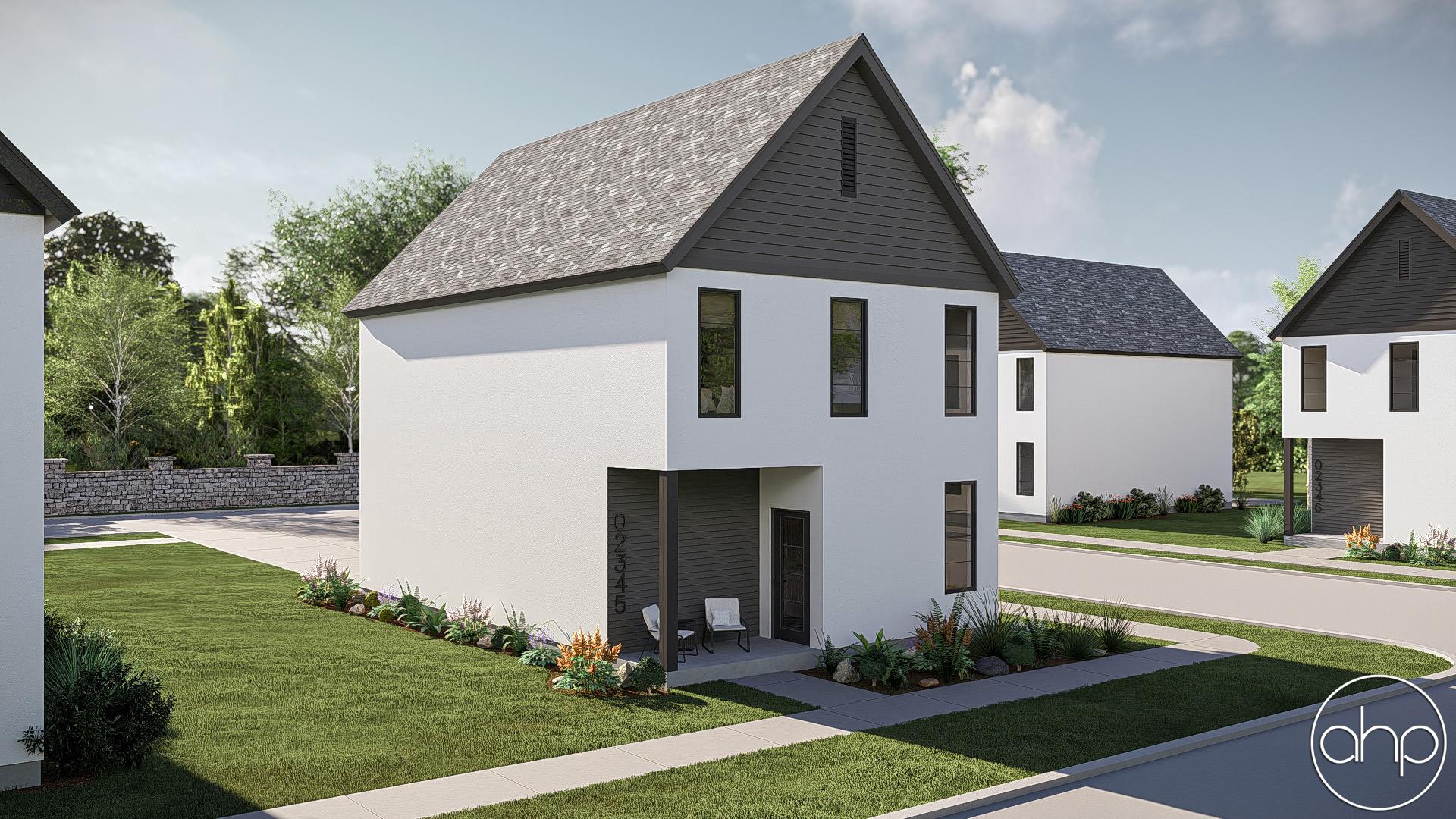

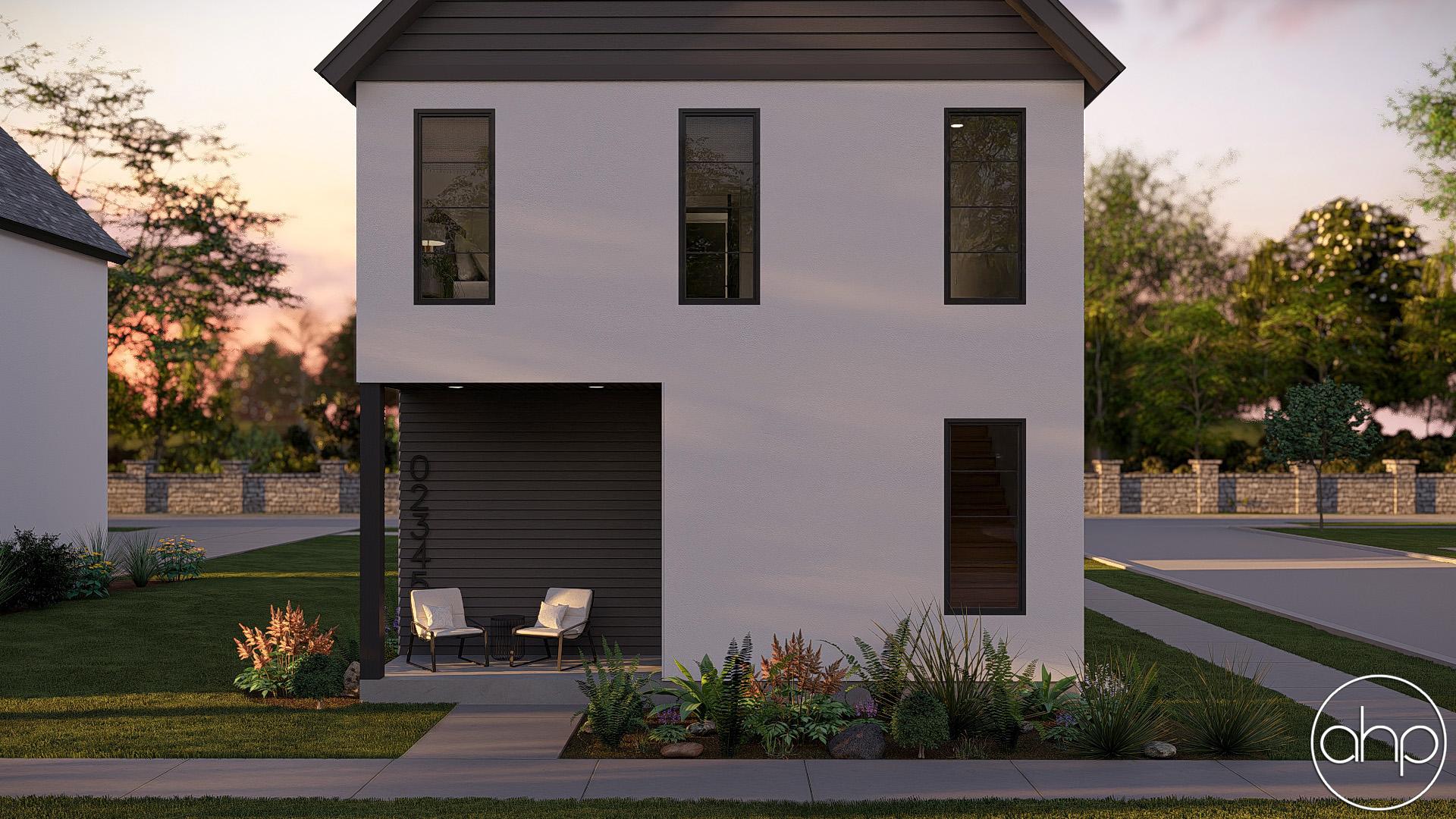

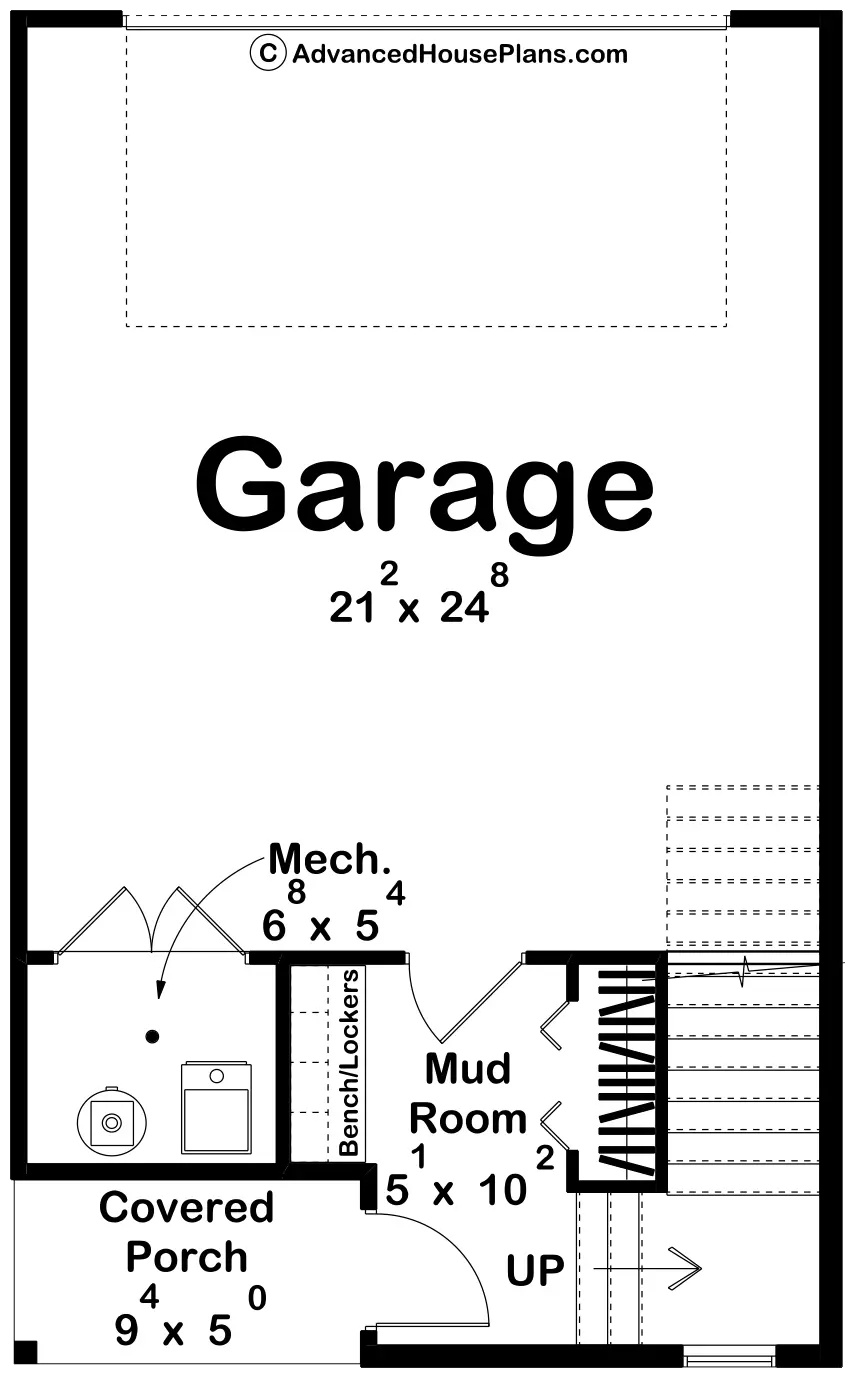

This charming two-story carriage house blends classic form with modern flair. At first glance, its crisp exterior makes a statement — a sleek combination of smooth stucco and clean lap siding brings a fresh, contemporary appeal. The rear-positioned garage keeps the footprint efficient while maintaining a sense of privacy and separation from the living areas above.

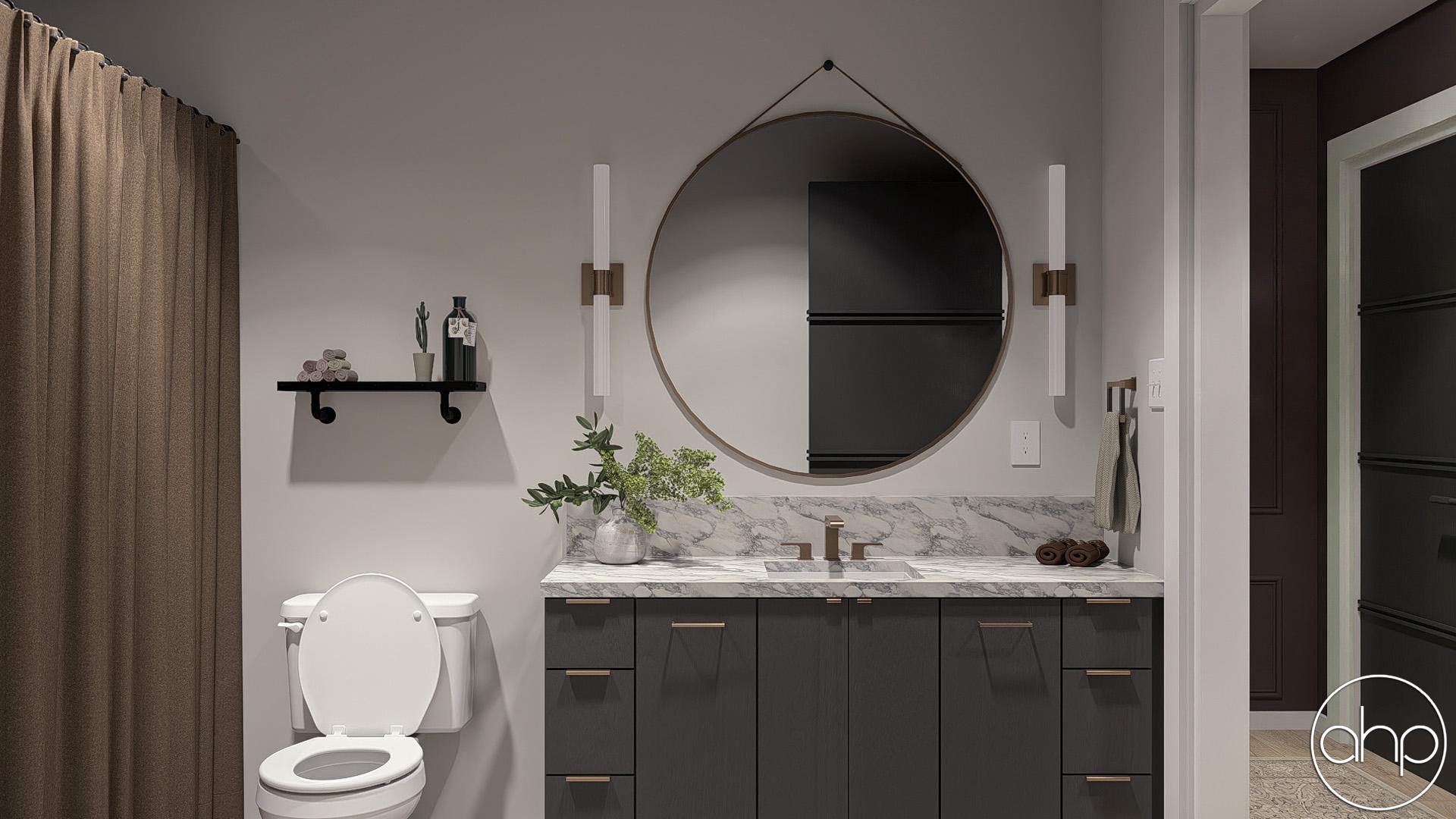

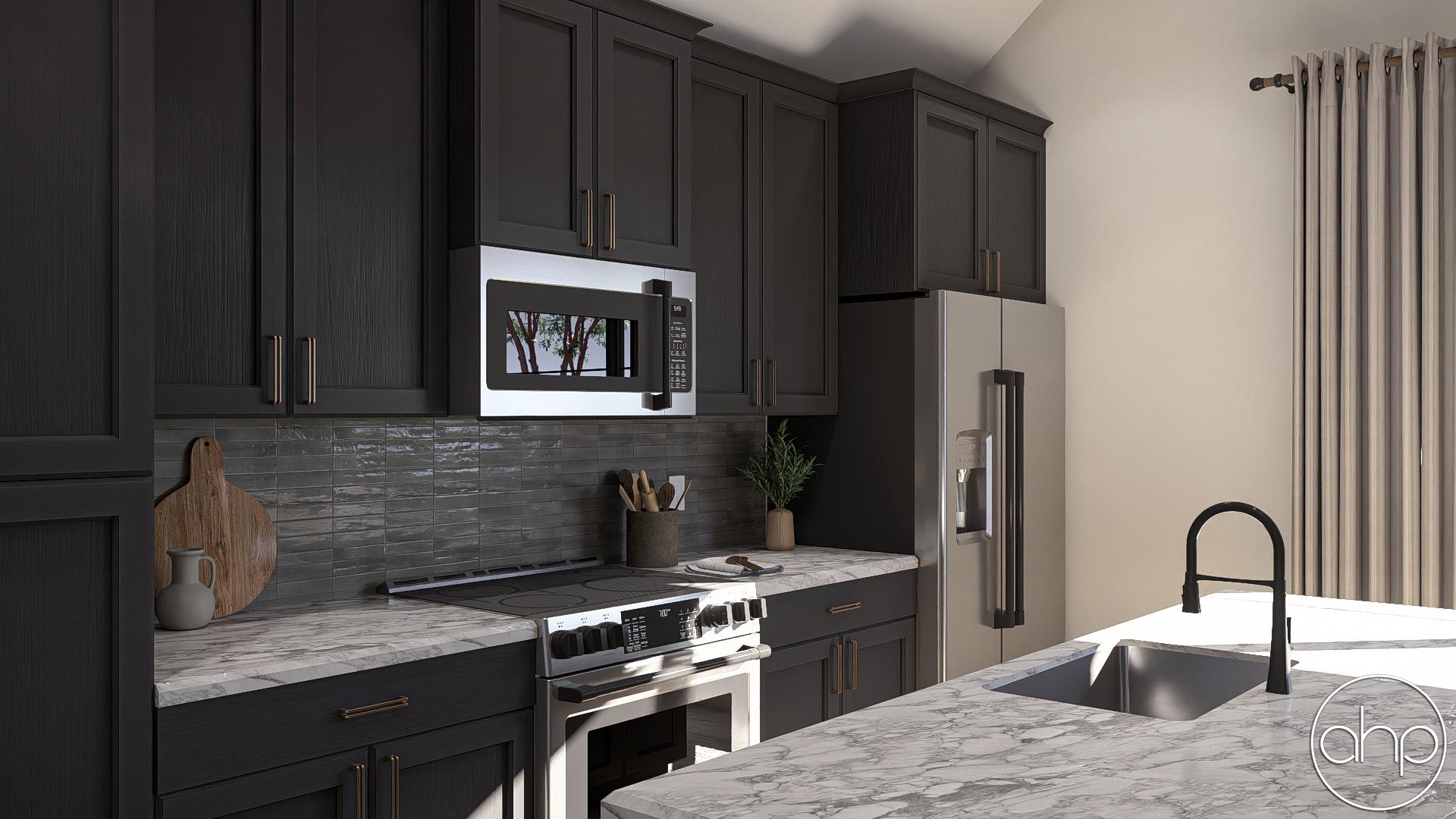

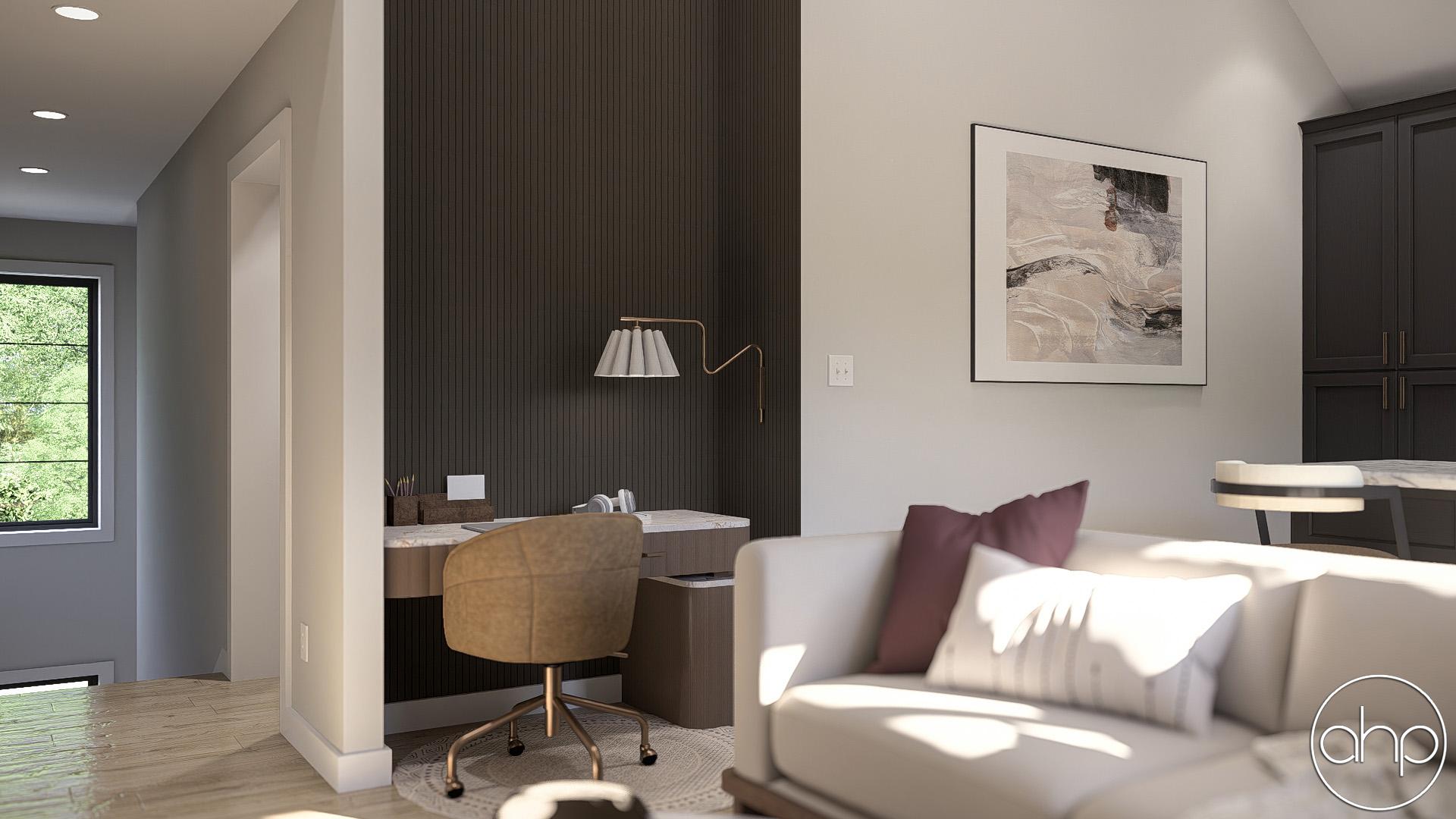

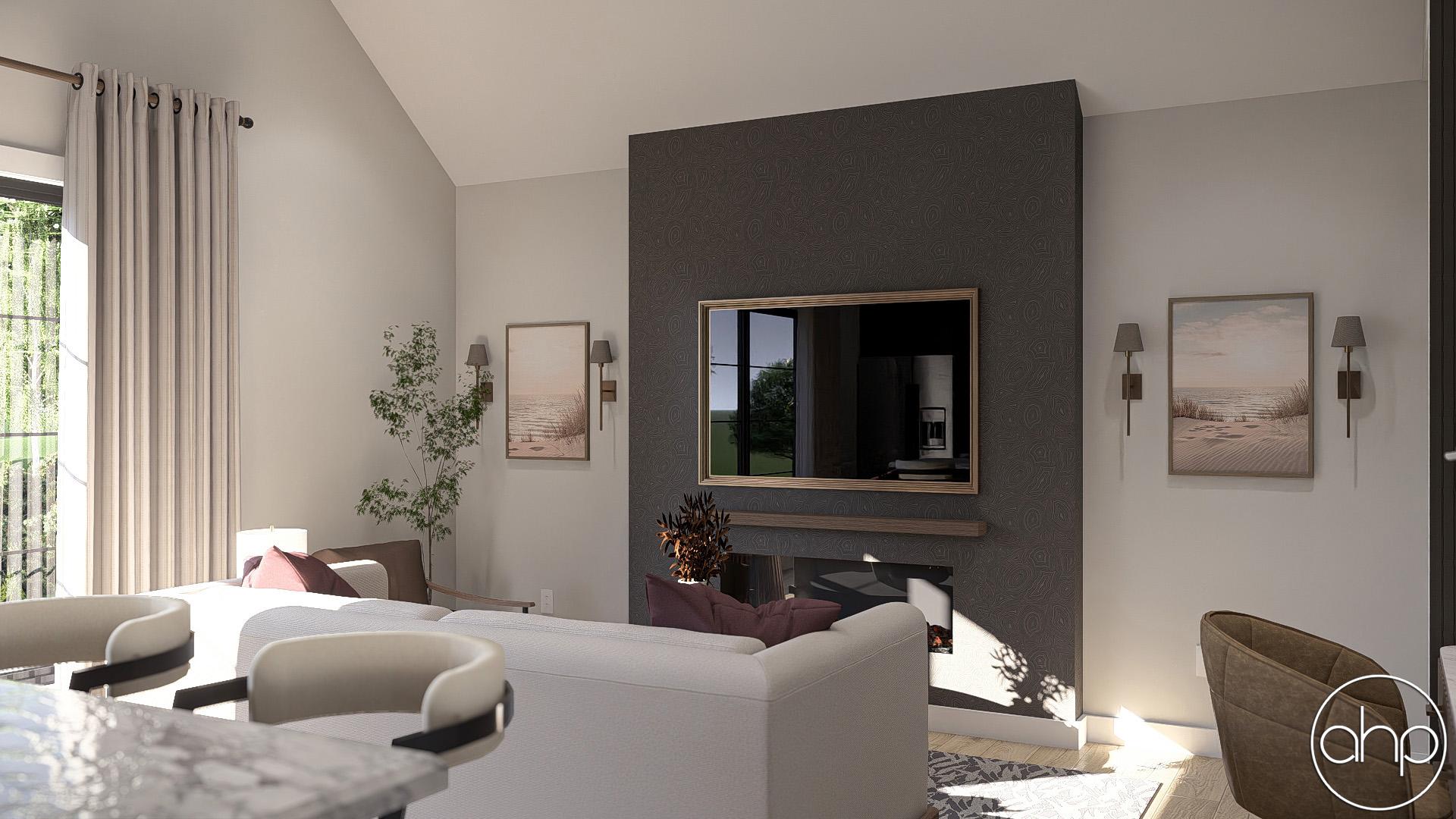

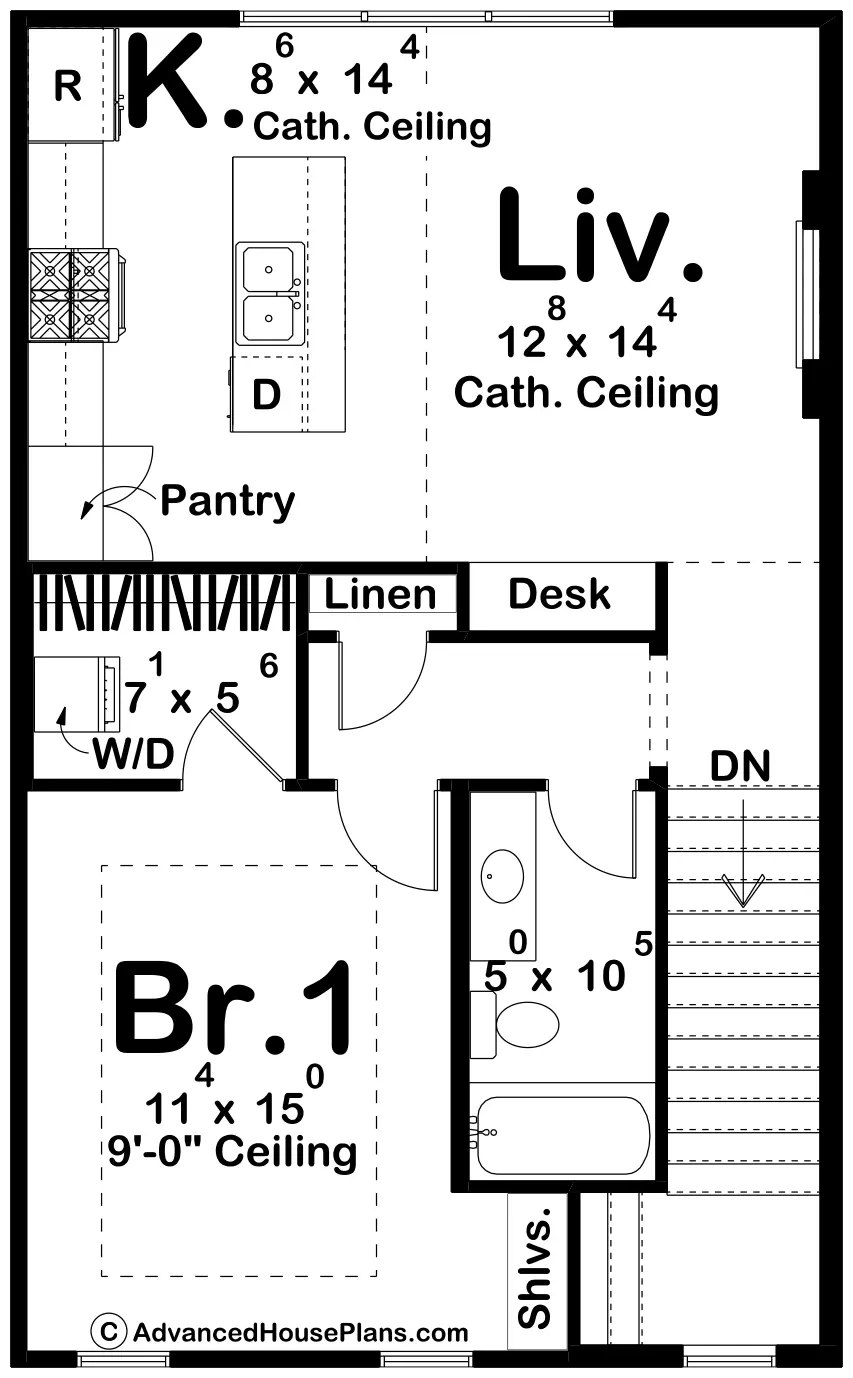

On the second level, an open living room and kitchen share the spotlight beneath a soaring cathedral ceiling, creating an airy, inviting atmosphere. A private bedroom and bathroom also are positioned on the second level, offering a comfortable retreat separate from the living space.
This compact home offers a blend of style and utility within a beautifully designed carriage house design.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 1 |
| Bathrooms | 1 |
| Garage Bays | 2 |
| Square Footage Breakdown | |
| Main Level | 174 Sq Ft |
| Second Level | 722 Sq Ft |
| Total Finished Area | 896 Sq Ft |
| Garage | 550 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 47 Sq Ft |
| Exterior Dimensions | |
| Width | 22' 0" |
| Depth | 36' 0" |
| Ridge Height | 30' 5" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x4 |
| Roof Construction Method | Trusses |
| Floor Construction Method | Floor Trusses |
| Roof Pitches | Primary 12/12 |
| Main Level Ceiling Height | 9' |
| Second Level Ceiling Height | 8' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
Upgrade Your Plan With Add-ons
Note: Add-ons may result in a longer turn-around time.
Note: The material list is for estimation purposes only.
