Barndominium Style Carriage House Plan

Pineville - 30446

Sq Ft
34' 0"
26' 0"

Plan Video

Floor Plan Images

Main Level


Second Level


Plan Description

The 2-story barndominium style carriage house offers a perfect blend of rustic charm and modern functionality. Situated atop a spacious garage on the main level, the upper floor welcomes you into a cozy living space designed for comfort and convenience.

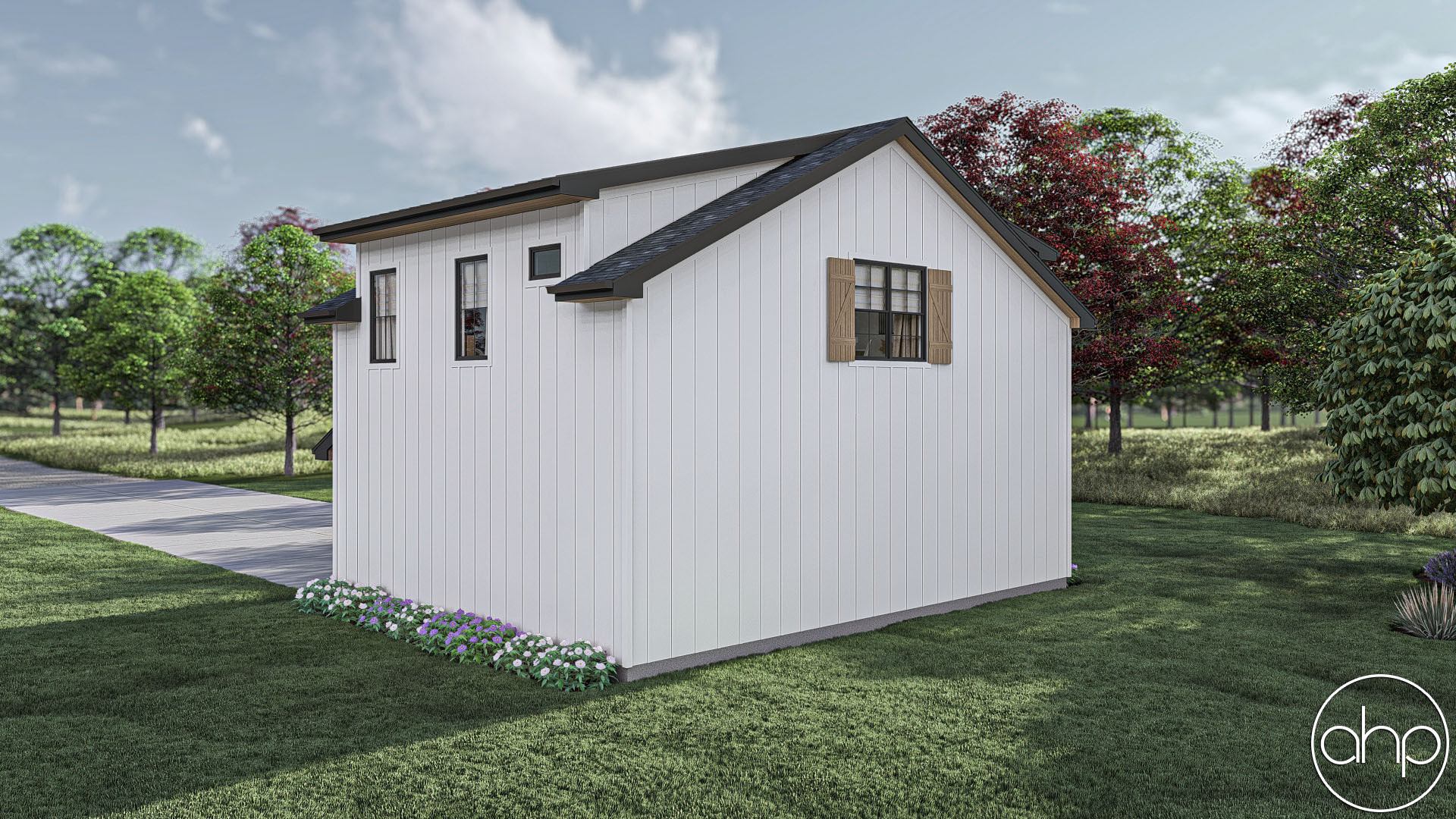

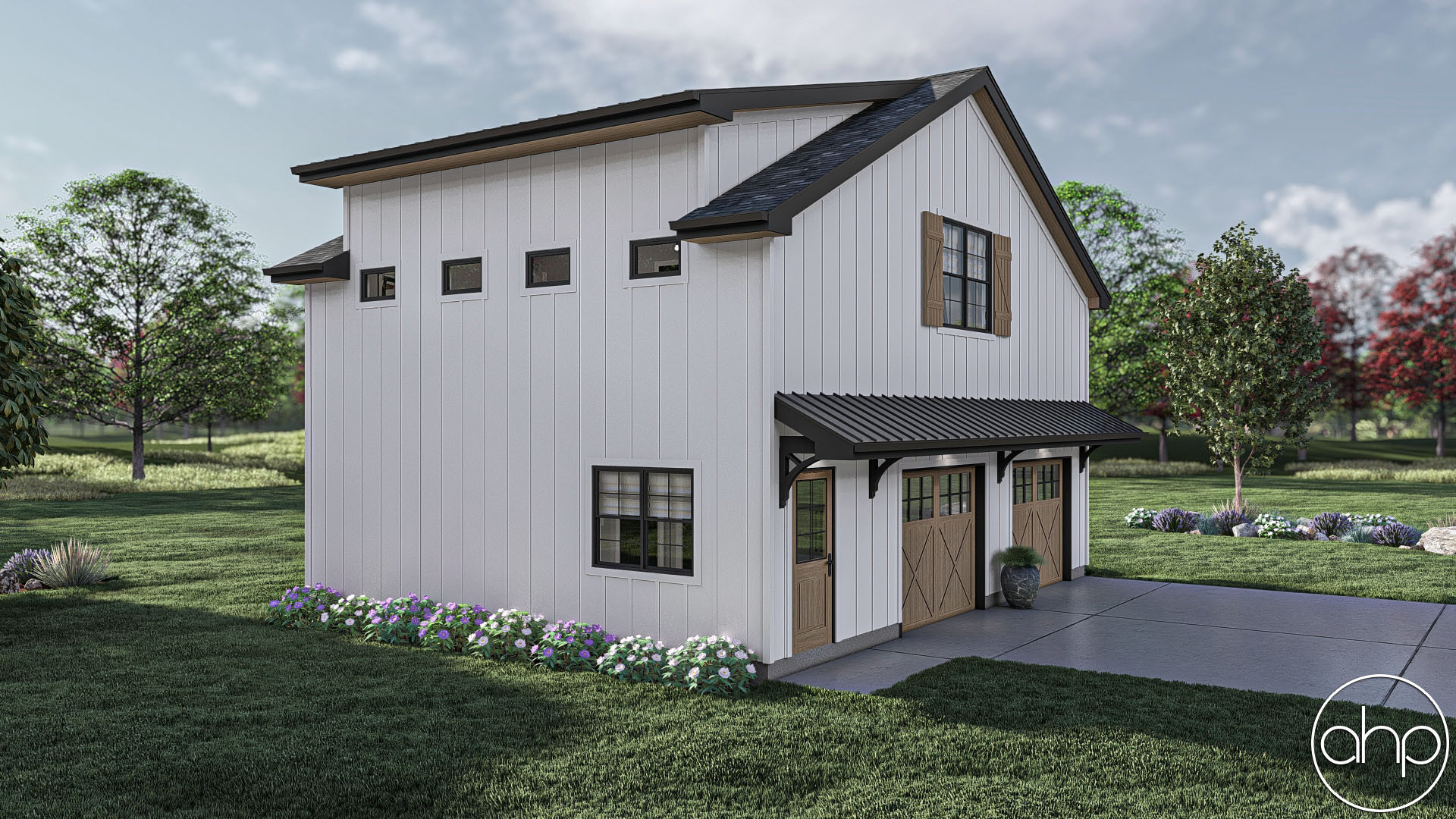

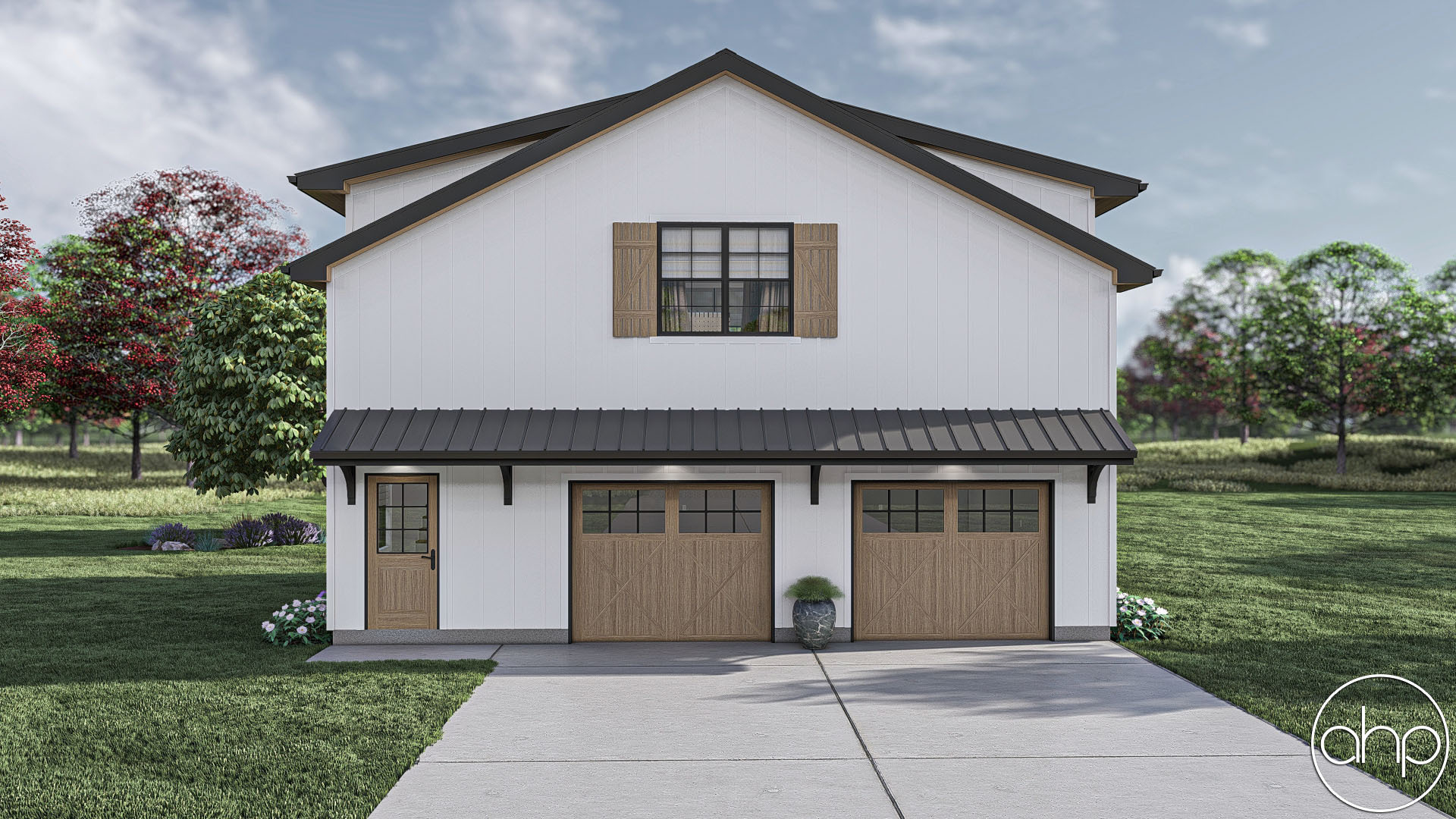

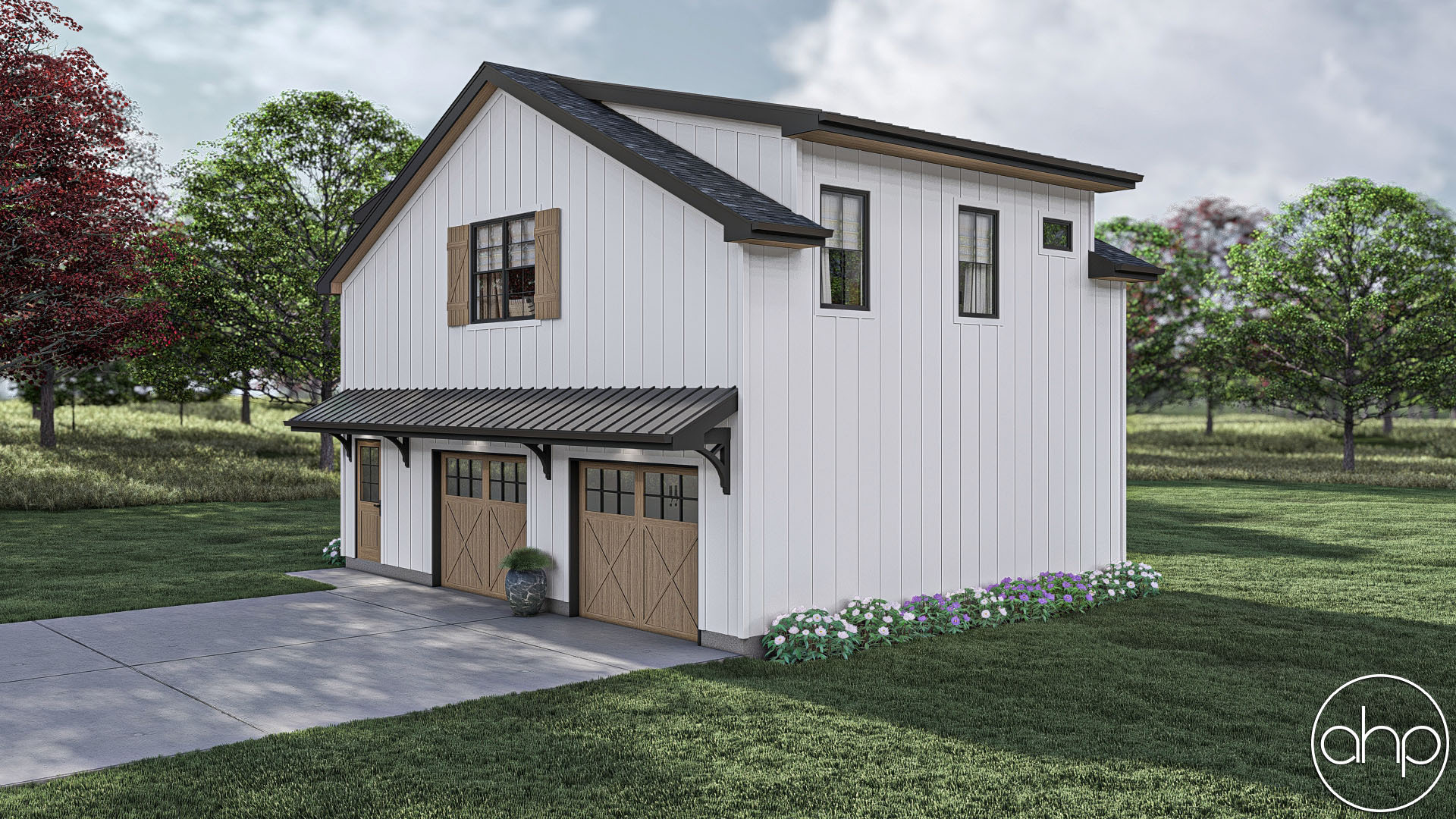

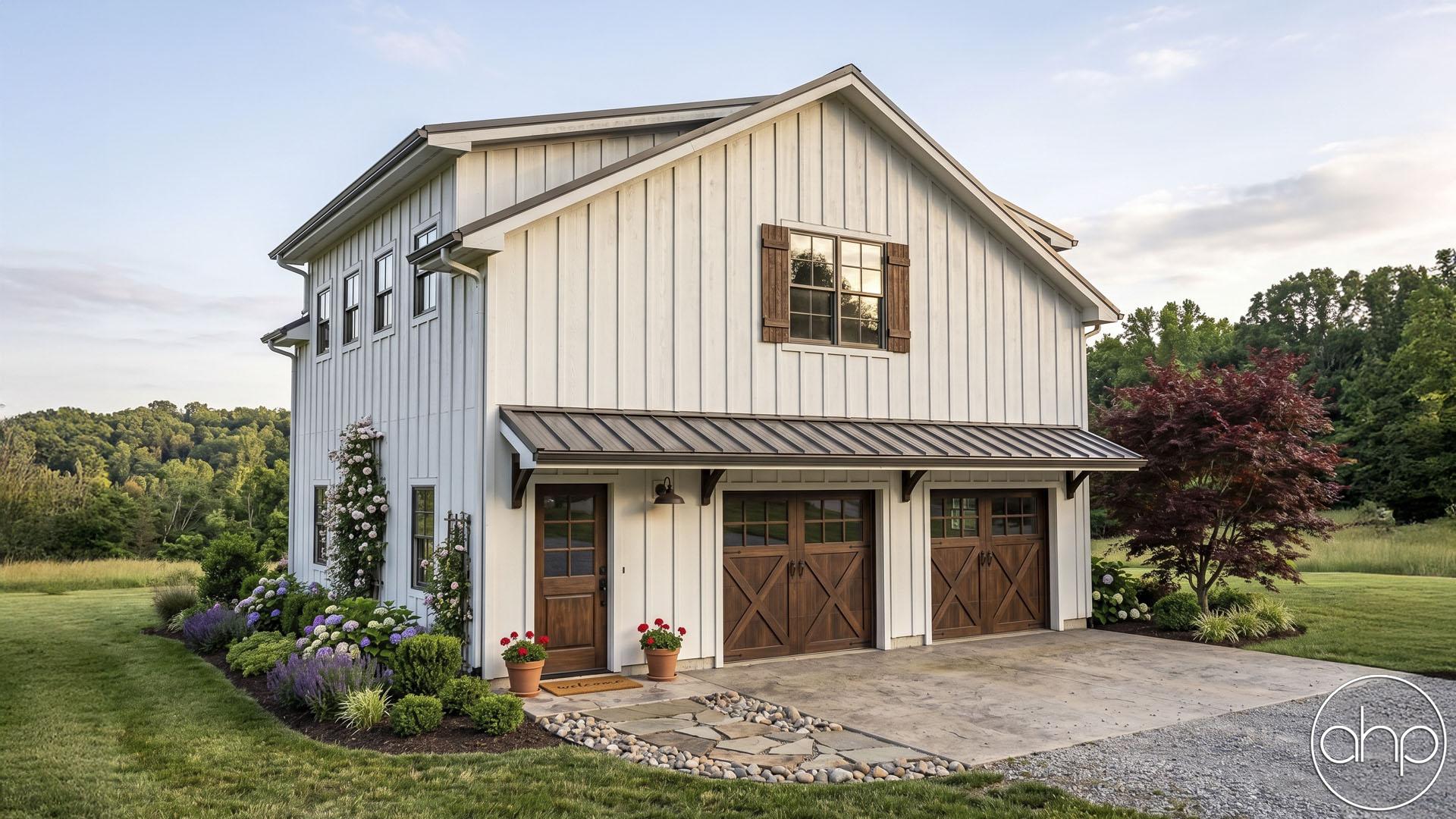

As you approach the structure, the exterior boasts a classic barn aesthetic with its board & batten siding, a shed roof and wood accents. A 2-car garage provides ample space for parking vehicles, storing tools, or indulging in hobbies.

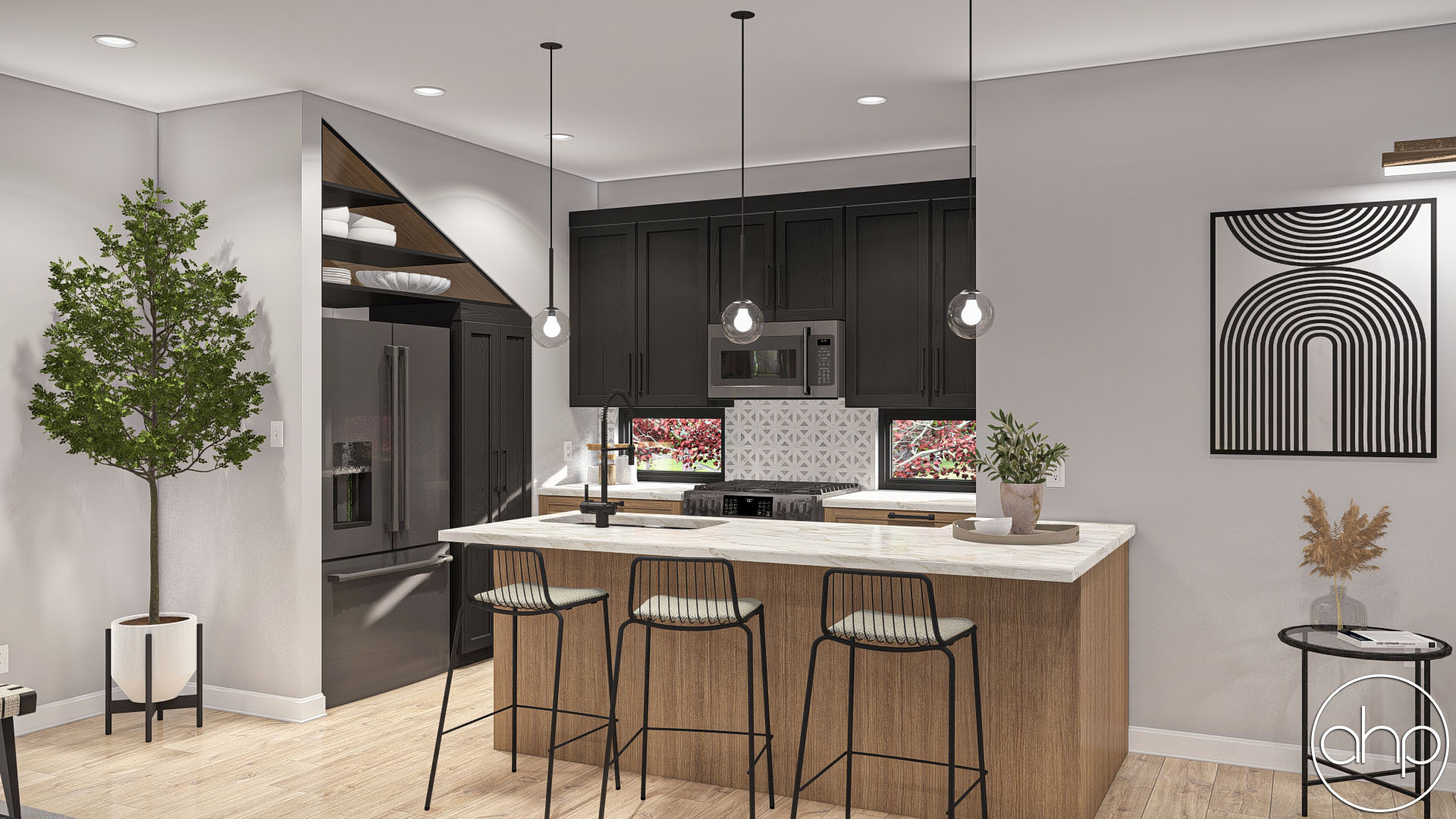

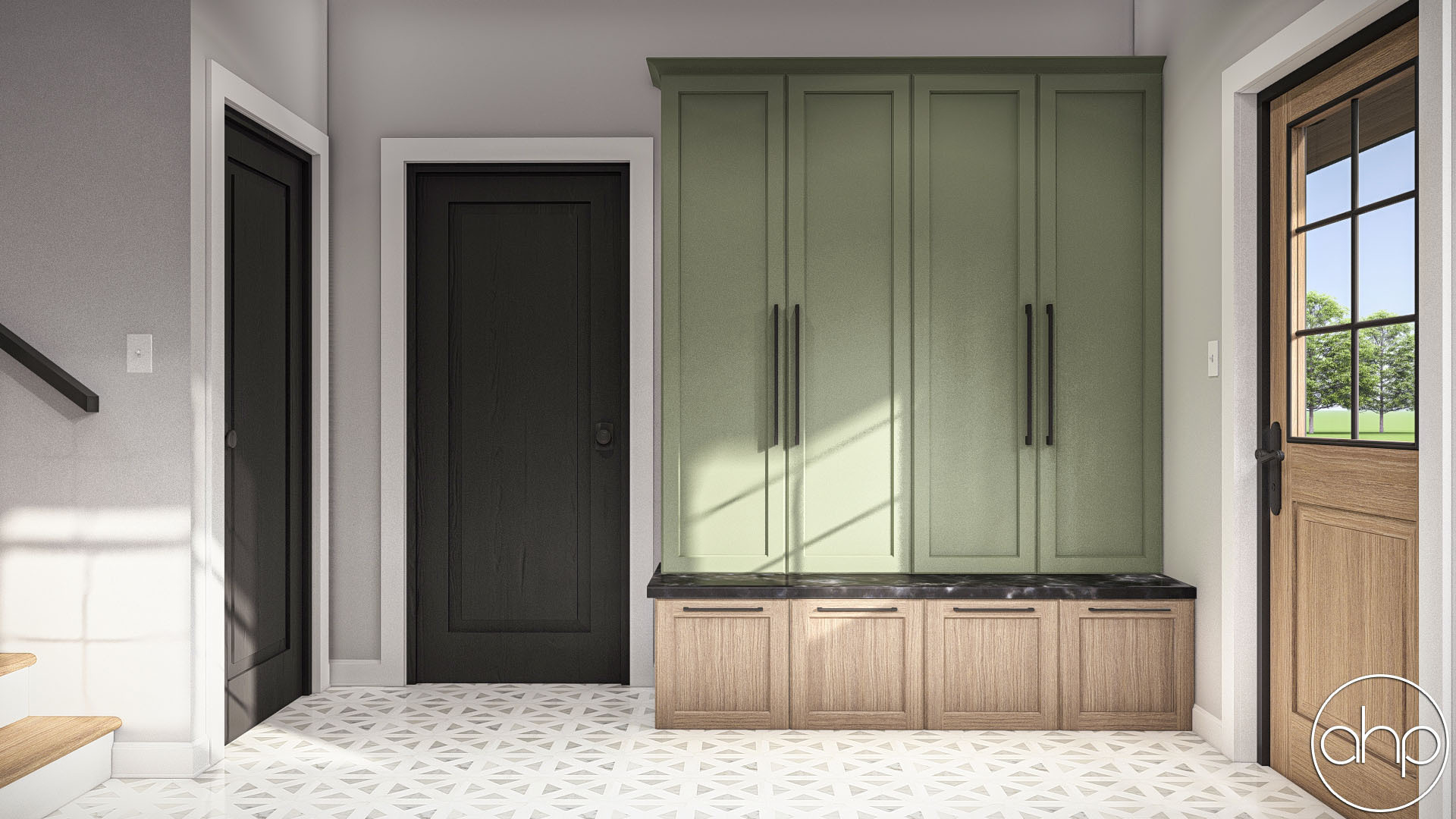

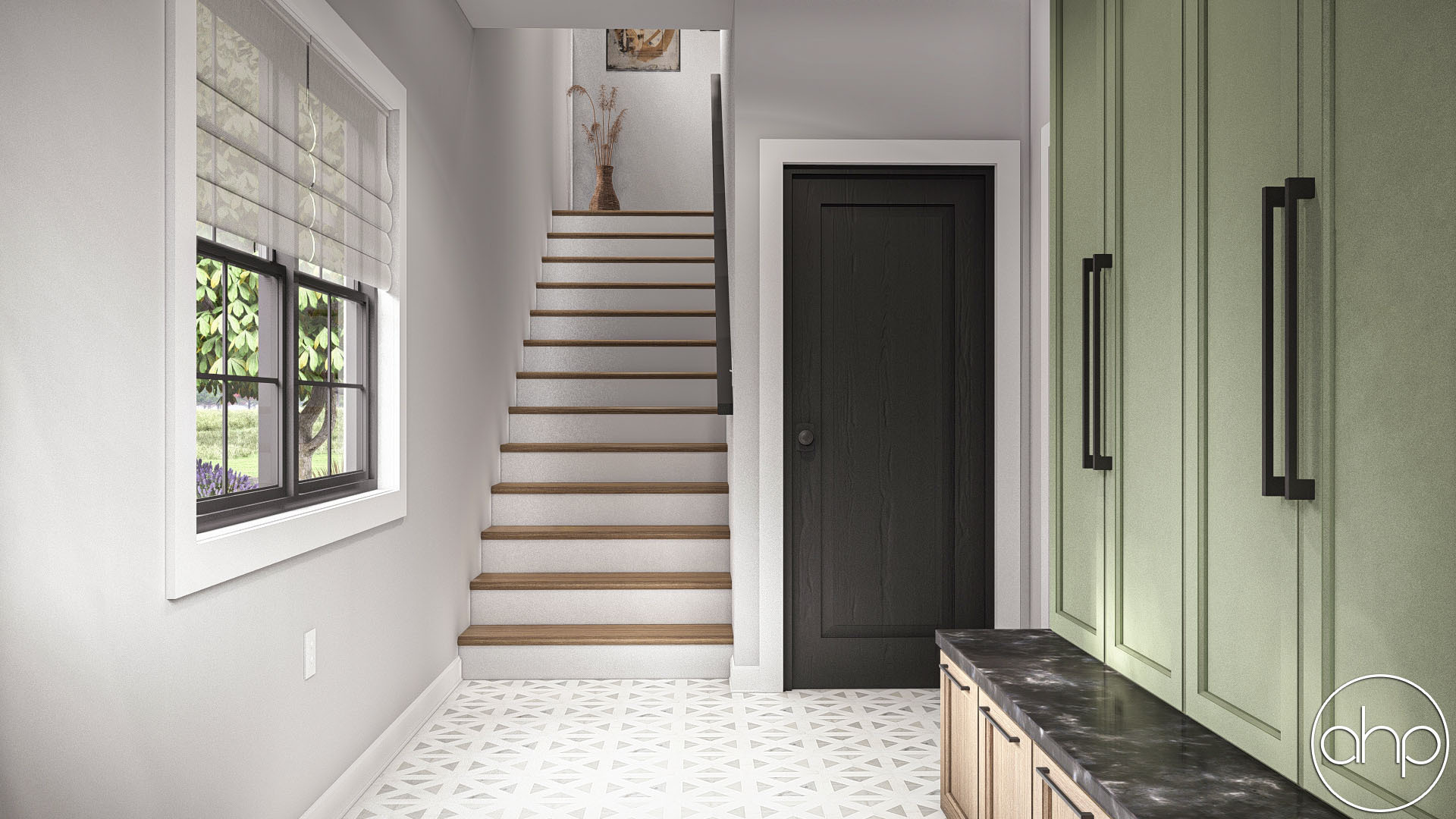

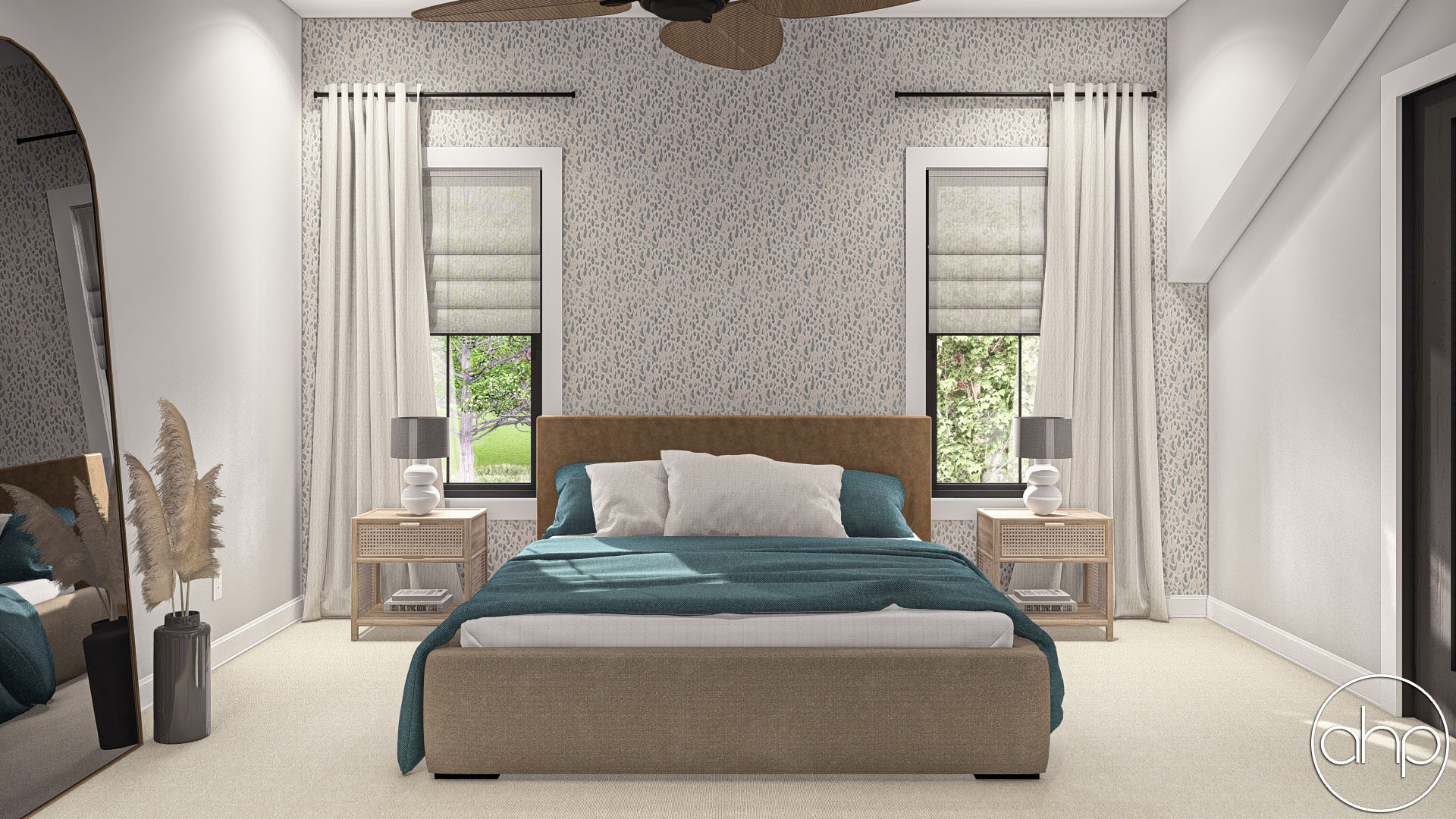

Upon entering the home, a spacious mud room accompanies you to the stairway leading up to the heart of the home on the second level. The open-concept layout seamlessly connects the kitchen, living area, dinette, and bedroom, creating a welcoming and versatile space for relaxation and entertaining.

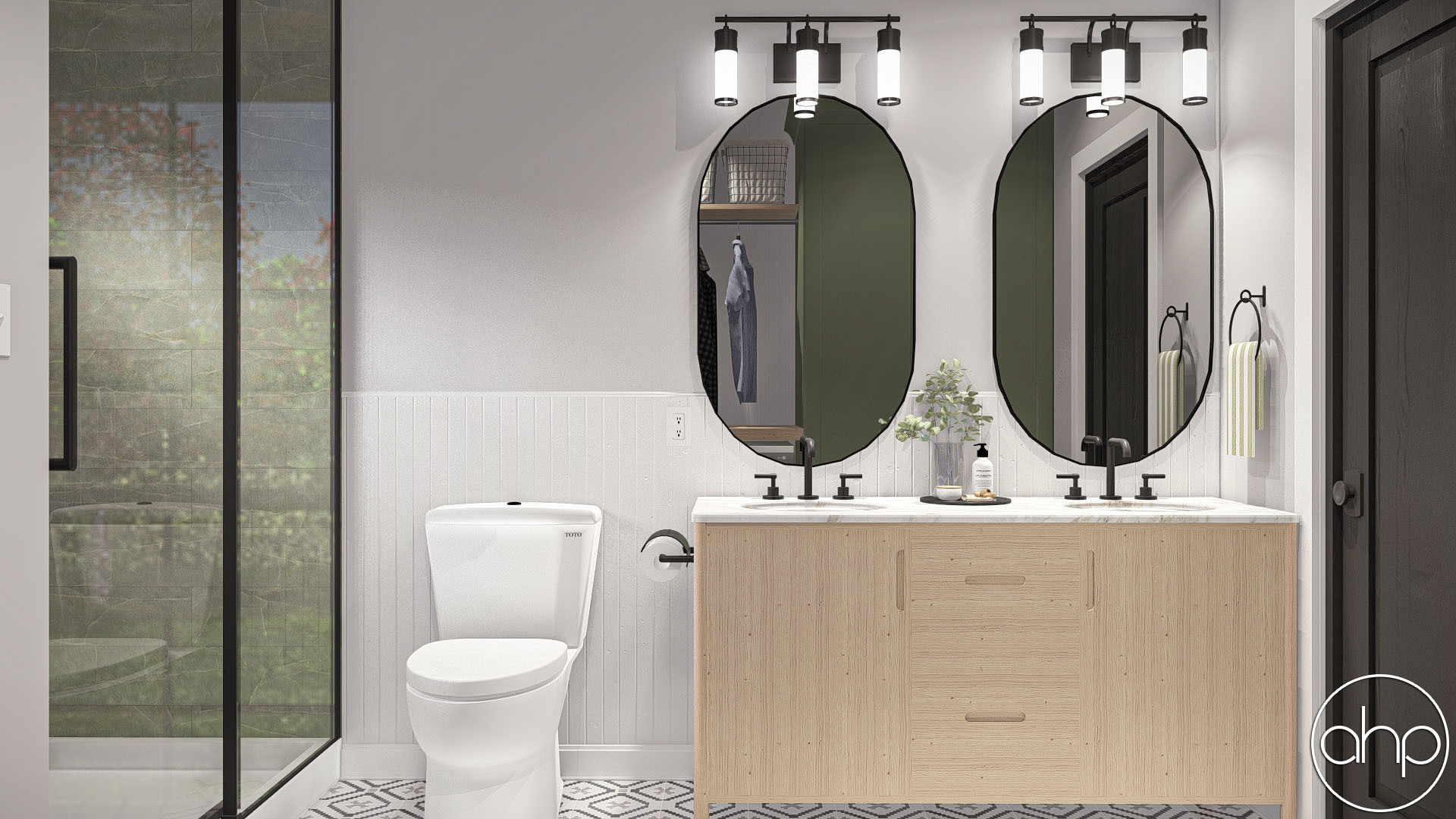

Completing the upper level, a combined laundry and bathroom area offers convenience and functionality, featuring modern fixtures and ample storage space for everyday essentials.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 1
Bathrooms 1
Garage Bays 2
Square Footage
Main Level 185 Sq. Ft.
Second Level 824 Sq. Ft.
Garage 671 Sq. Ft.
Total Finished Area 1009 Sq. Ft.
Exterior Dimensions
Width 34 ' 0"
Depth 26 ' 0"
Ridge Height
Calculated from main floor line
25 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
Primary 6/12, Secondary 3/12
Main Wall Height
Second Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
