Southern Style House Plan

Walnut Hill - 30401

Sq Ft
77' 0"
84' 4"

Plan Video

Floor Plan Images

Main Level

Walnut Hill

Plan Description

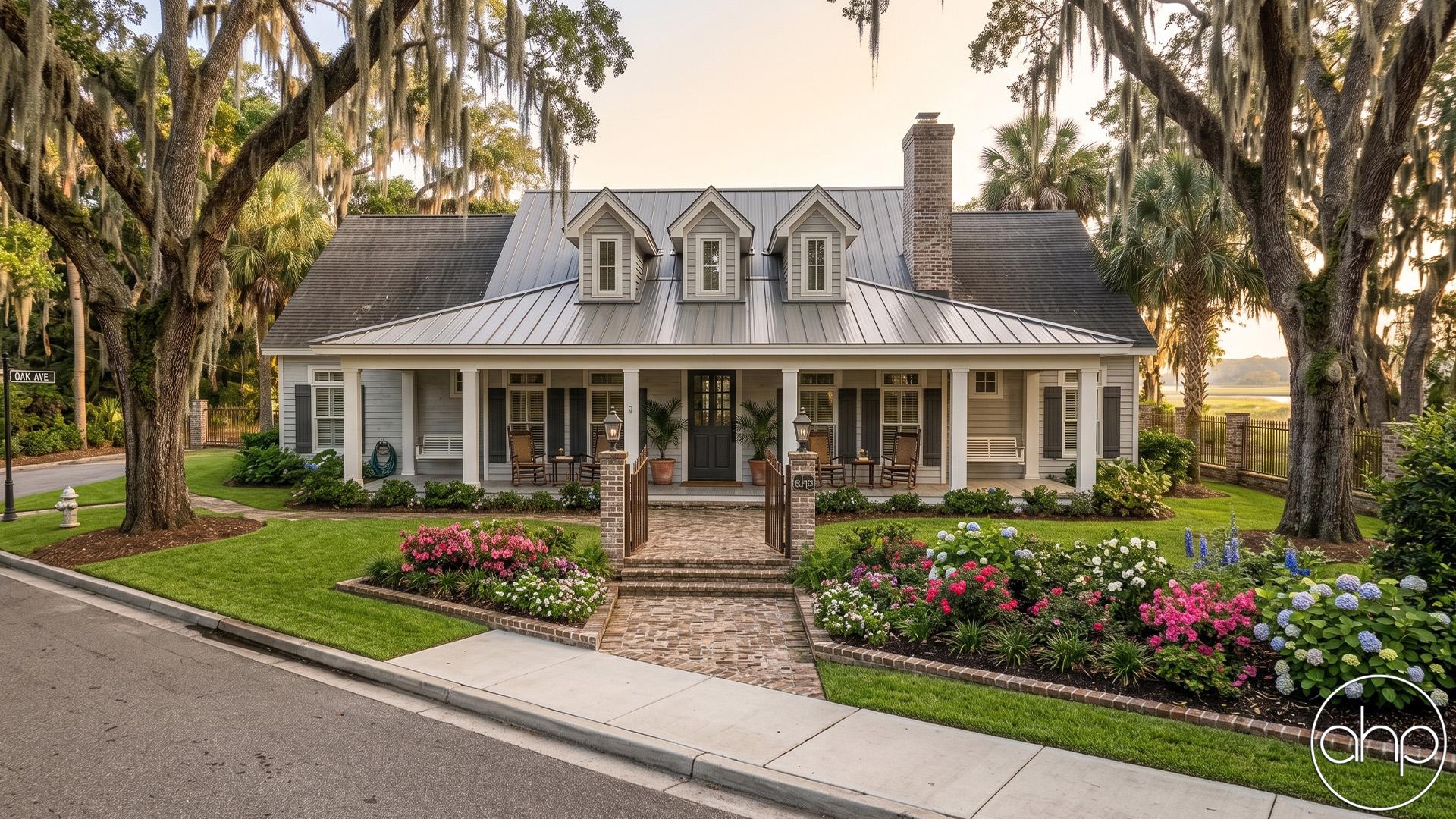

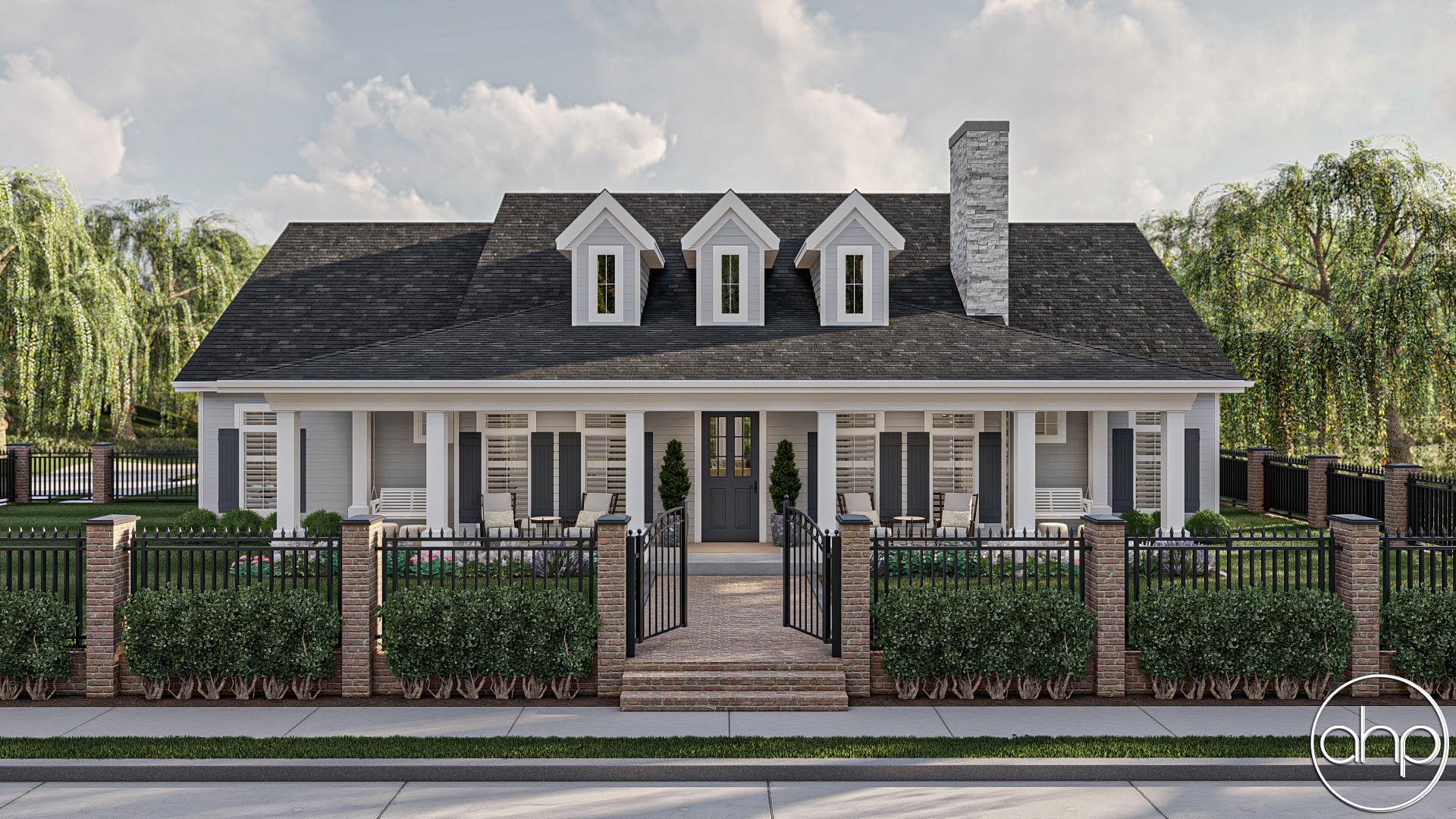

Welcome to the epitome of Southern charm and elegance, embodied in this meticulously designed Southern-style house plan. As you approach the home, your eyes are drawn to the inviting symmetrical wrap-around covered porch that graces the front facade. Three dormers rest above, giving the house a touch of timeless character and a hint of what lies within.

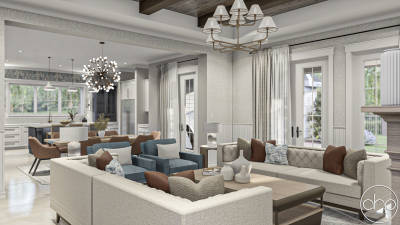

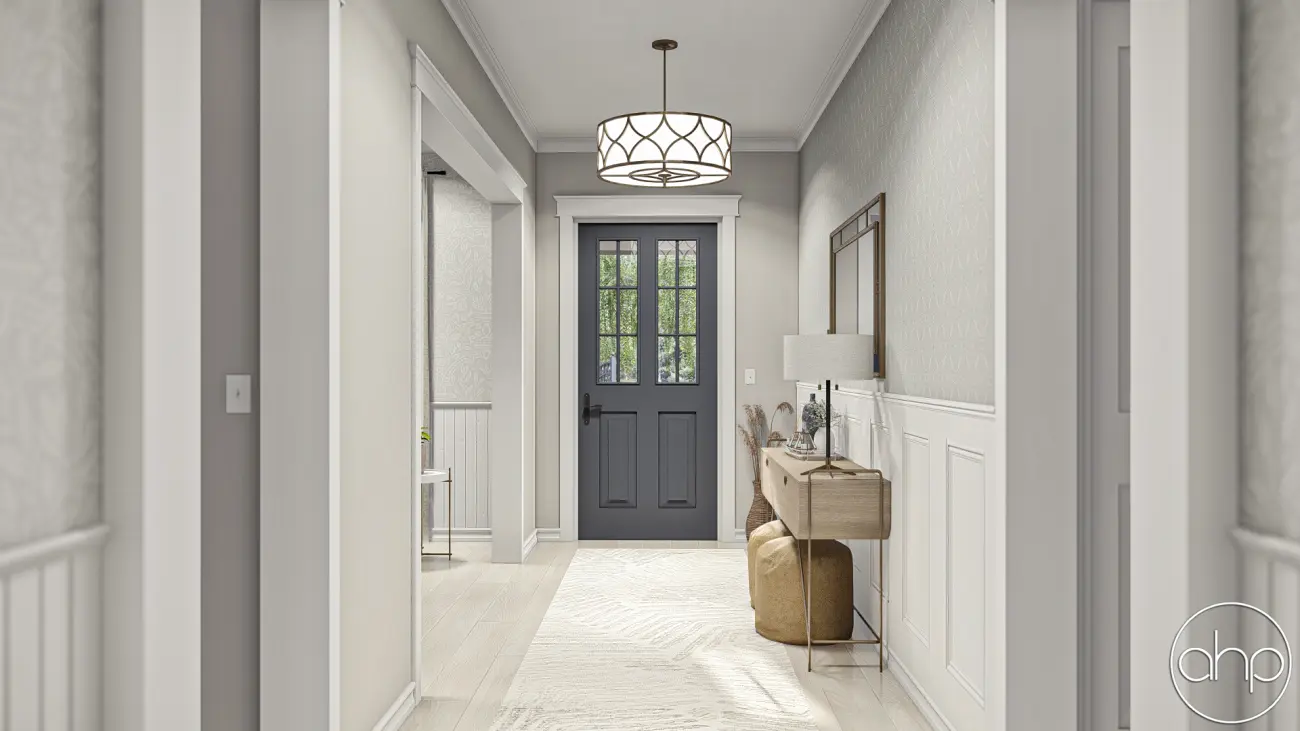

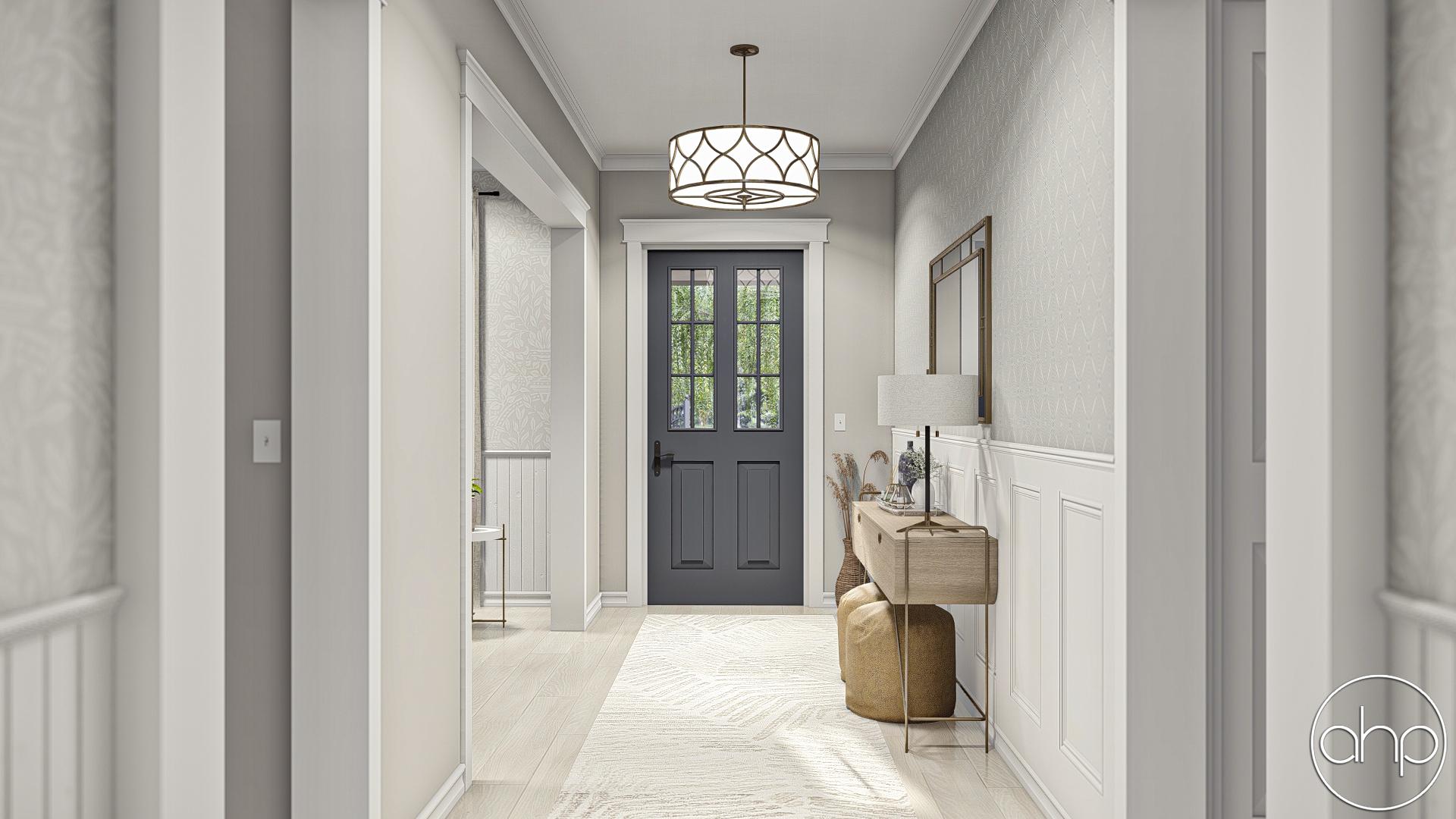

Upon crossing the threshold of the front door, you are warmly welcomed into the living room, where a fireplace beckons you to relax and unwind. Beyond the living room, an expansive great room awaits, adorned with a majestic tray ceiling and exposed beams that add rustic charm and grandeur to the space. This room is destined to become the heart of your home, a place where memories are made and cherished. Out the rear, there is access to another covered porch, perfect for relaxing and watching the sunset.

Adjacent to the great room, you'll discover the well-appointed dining area and an open-concept kitchen. The kitchen is a chef's dream, featuring a generous island that beckons gatherings, culinary creativity, and casual breakfasts. A walk-in pantry, thoughtfully situated off the mudroom, provides ample storage space for all your culinary essentials.

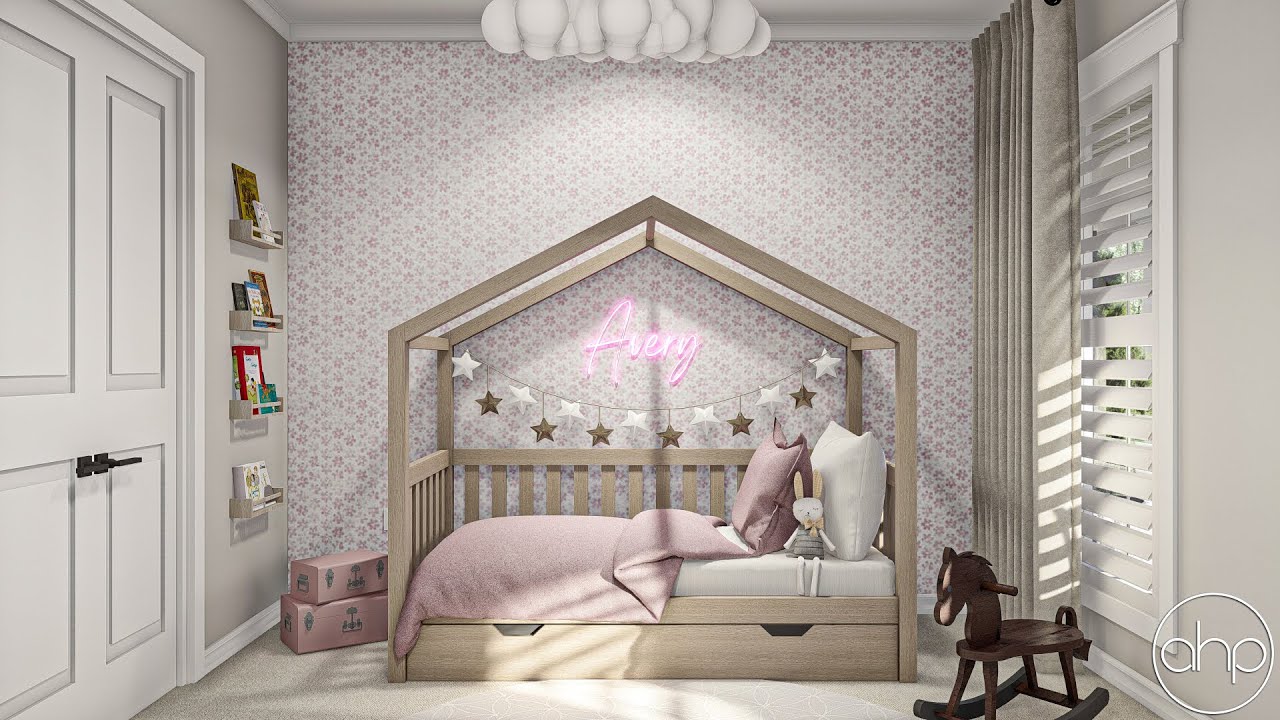

As you explore the layout, you'll find two charming guest bedrooms thoughtfully designed to share a Jack and Jill bathroom, ensuring comfort and convenience for your guests. Additionally, a powder bath is nestled in the hall, providing ease of access for both residents and visitors alike.

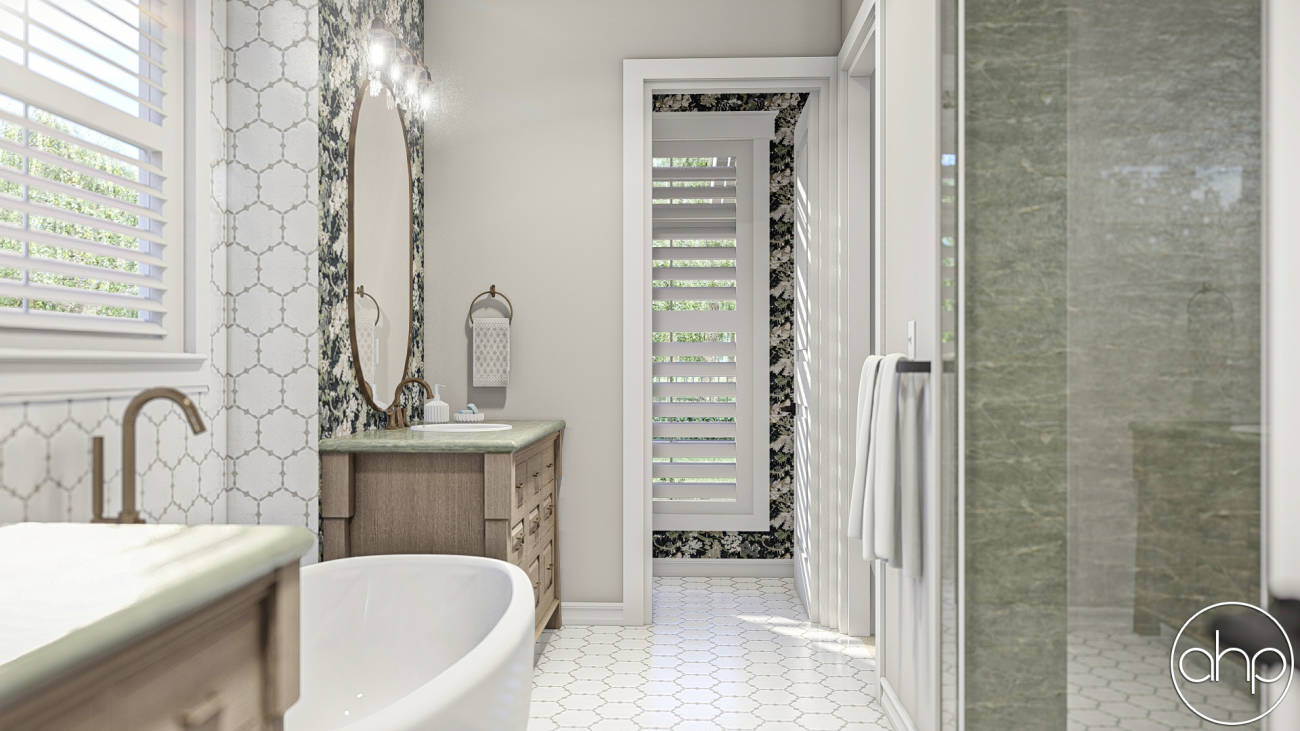

The other wing of this home is dedicated to the master suite, a sanctuary of serenity and luxury. Within this private retreat, you'll find not one, but two walk-in closets, allowing you to indulge in your fashion collection and personal style. The master bathroom is a spa-like haven, boasting a double vanity for morning routines, a soothing soaking tub for relaxation, and a spacious walk-in shower for rejuvenation. Your everyday needs are seamlessly met with a conveniently located laundry room in the hall, just steps away from the master suite.

This Southern-style house plan marries timeless architectural features with modern functionality, creating a home that exudes comfort, sophistication, and a warm Southern welcome. This residence is designed to embrace the best of Southern living and offer a haven for you and your loved ones to call home.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 3
Bathrooms 3
Garage Bays 2
Square Footage
Main Level 2689 Sq. Ft.
Covered Area 959 Sq. Ft.
Garage 589 Sq. Ft.
Total Finished Area 2689 Sq. Ft.
Exterior Dimensions
Width 77 ' 0"
Depth 84 ' 4"
Ridge Height
Calculated from main floor line
24 ' 7"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
Primary 8/12, Secondary 12/12, 10/12, 4/12
Main Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
