3 Bedroom Barndominium Style Plan with Loft and Two-story Great Room

Wakefield - 29673

Sq Ft
56' 0"
64' 0"

Floor Plan Images

Main Level

Barndominium Style Ranch Plan | Wakefield

Second Level

Barndominium Style Ranch Plan | Wakefield

Plan Description

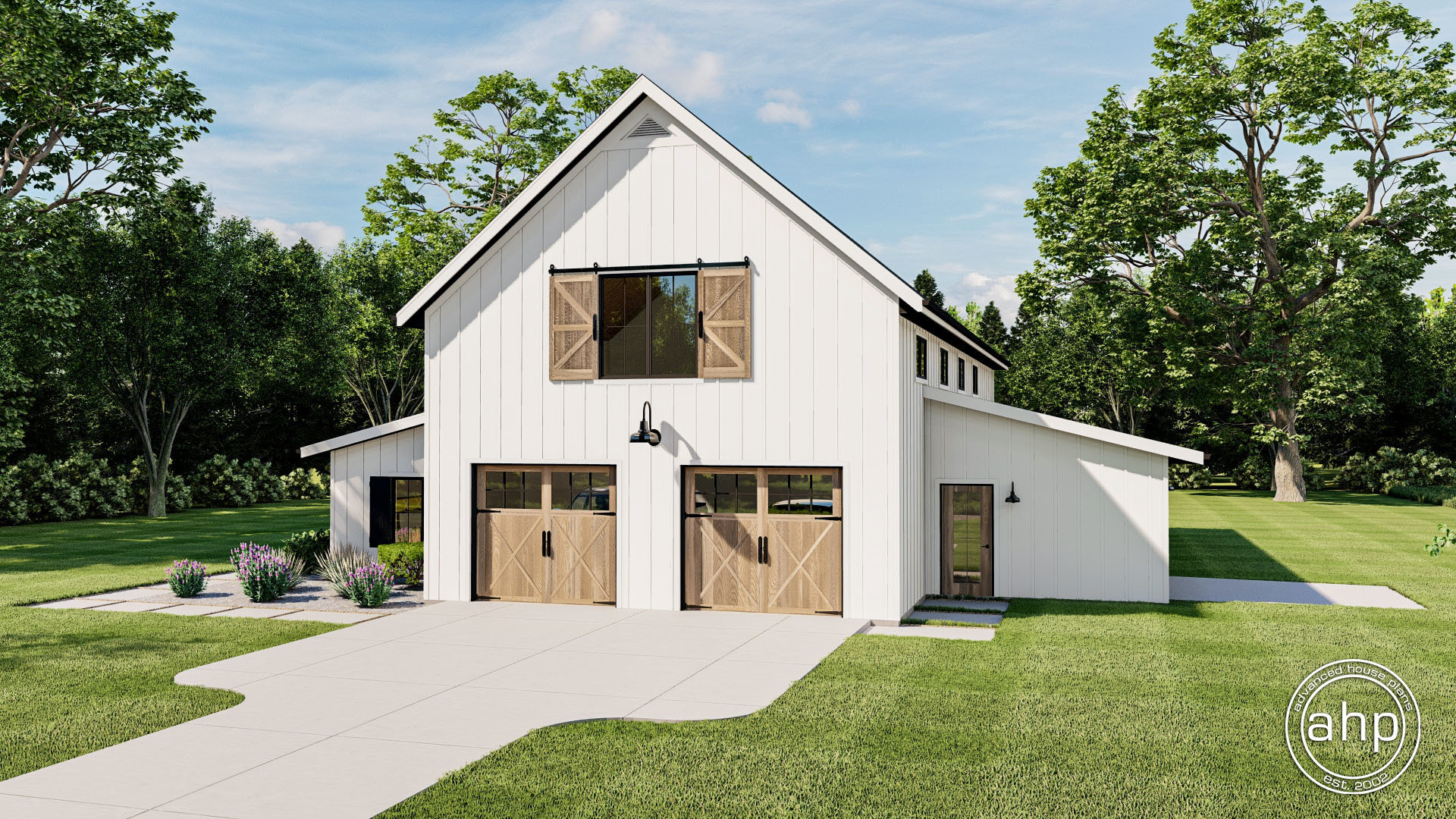

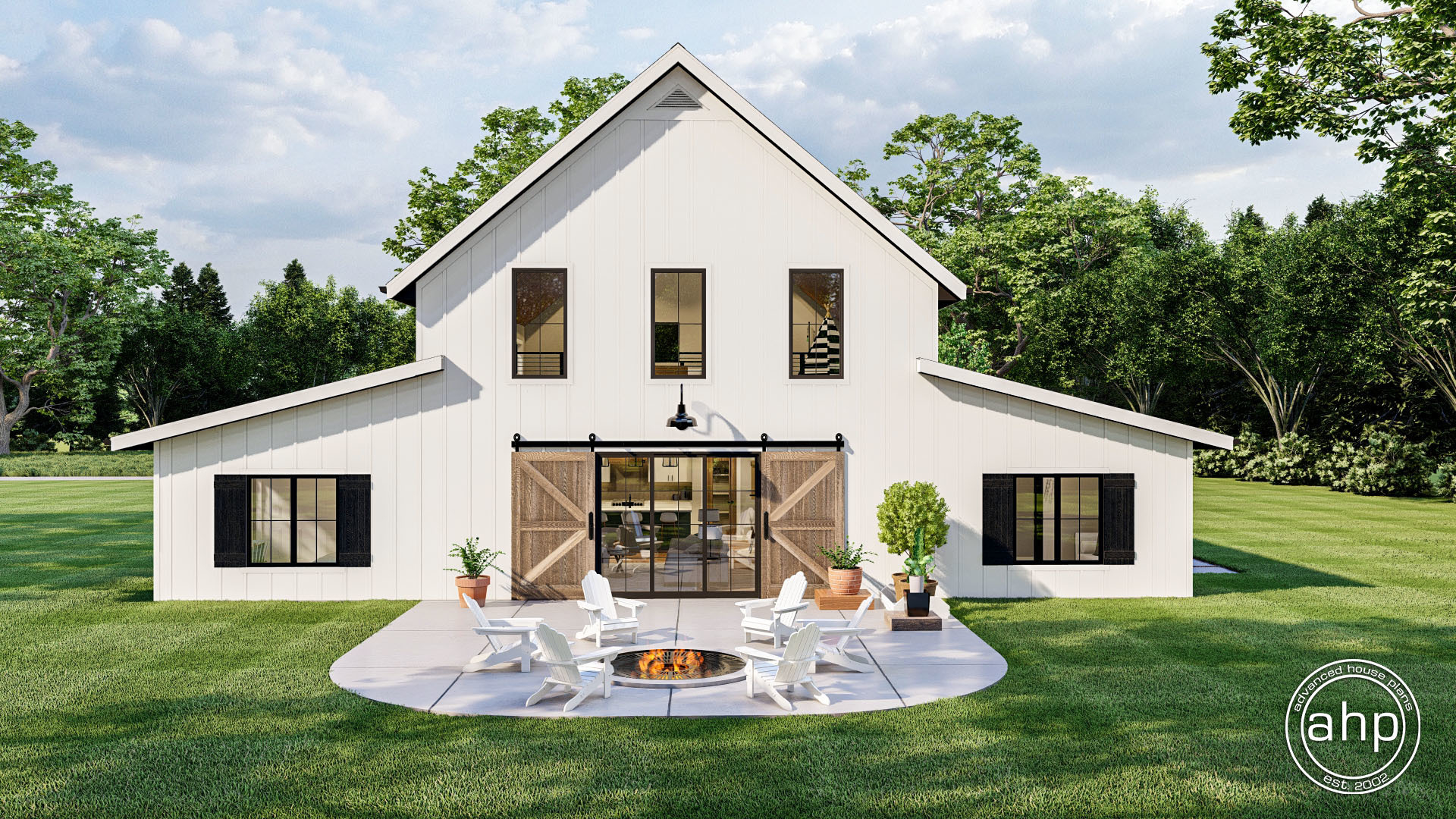

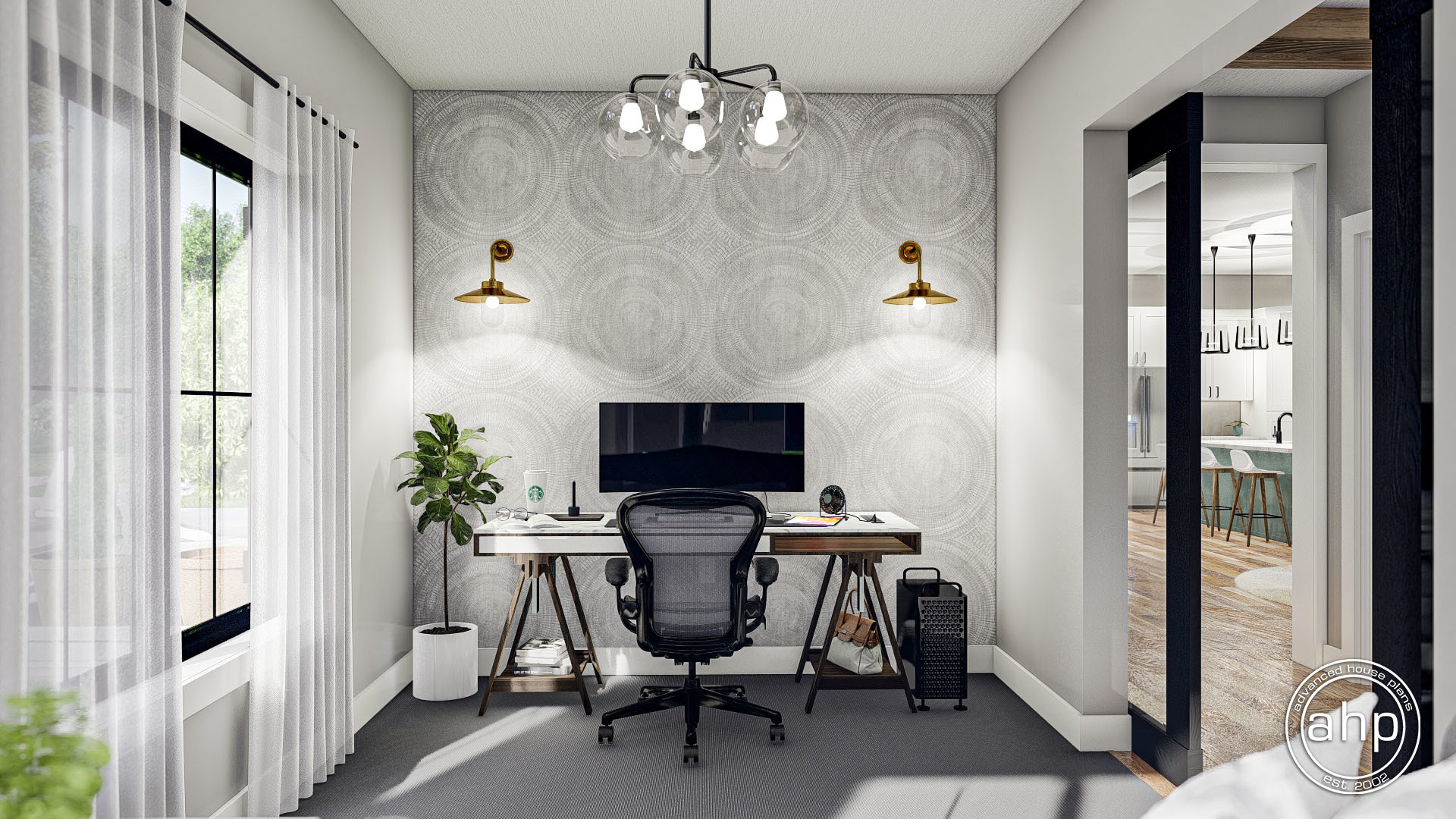

The Wakefield plan is a stunning Barndominium style house plan. The barn-like exterior showcases board and batten siding, large windows, and barn doors. Just inside the side entry of the home, you'll find a practical office that is perfect for anyone who works from home.

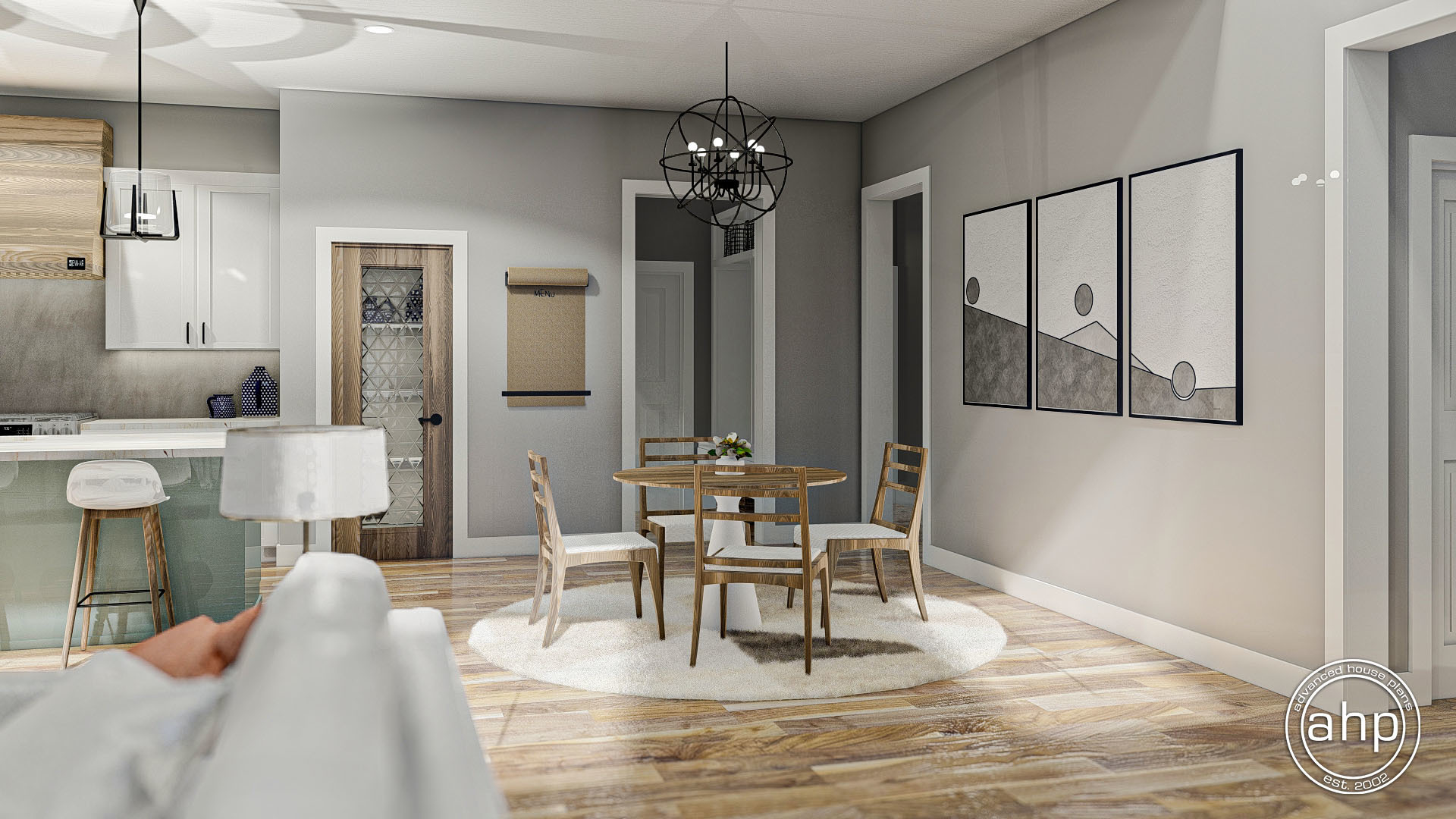

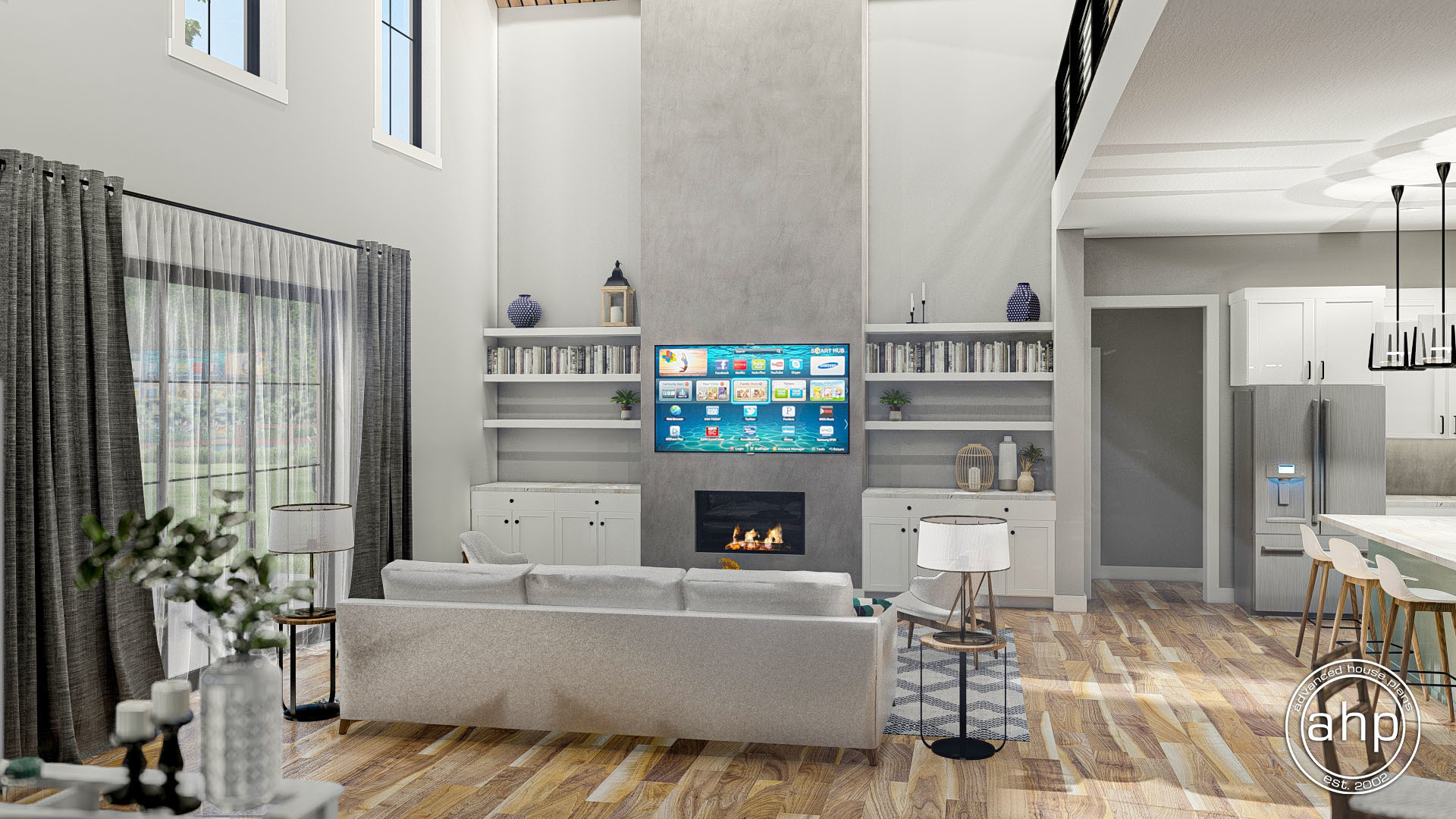

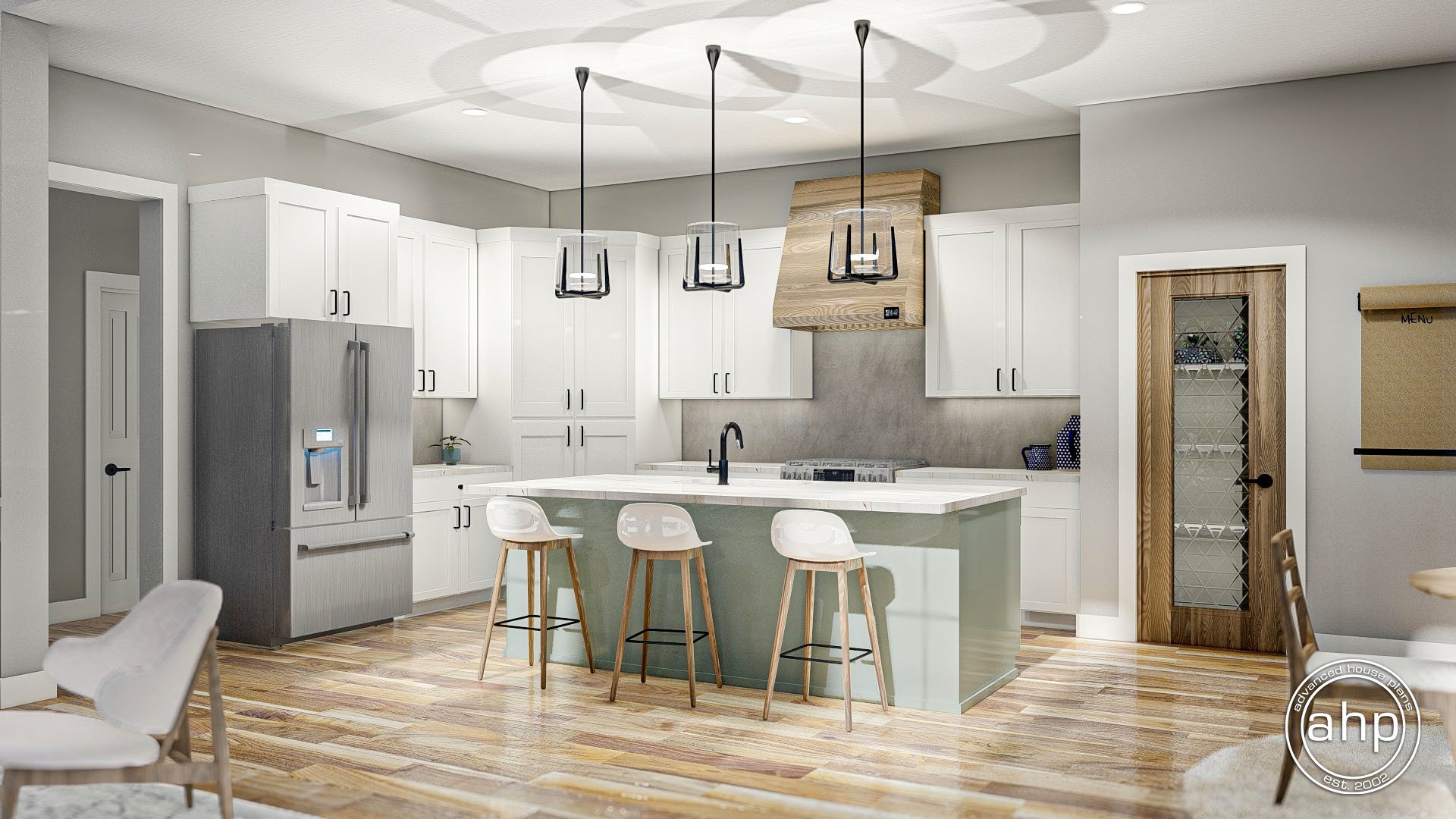

The great room, kitchen, and dining room flow seamlessly in a wide open layout. The high ceilings in the great room make the space feel massive. A fireplace warms the great room and is flanked by bult-in bookshelves. The kitchen includes a large island and a walk-in pantry.

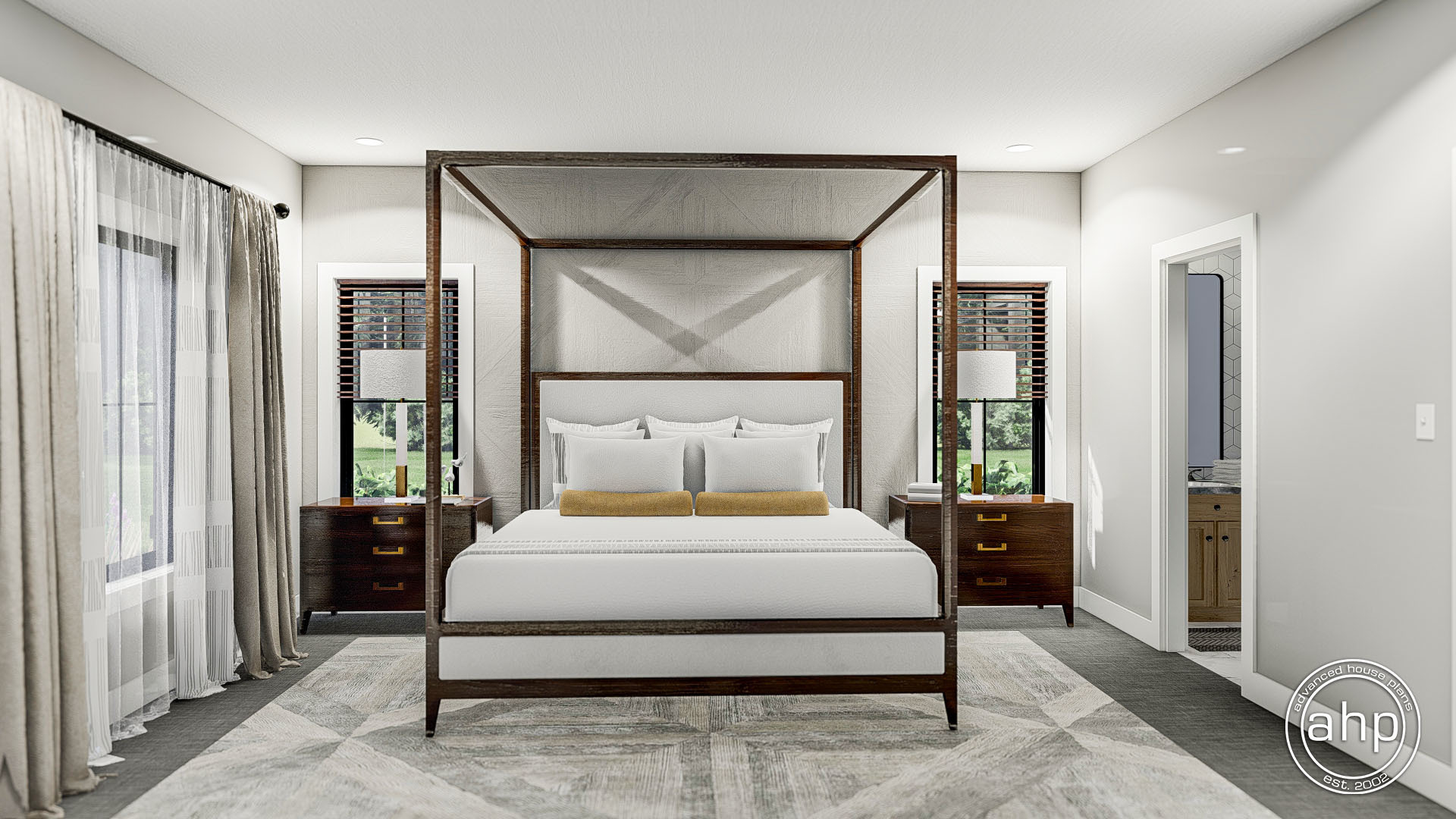

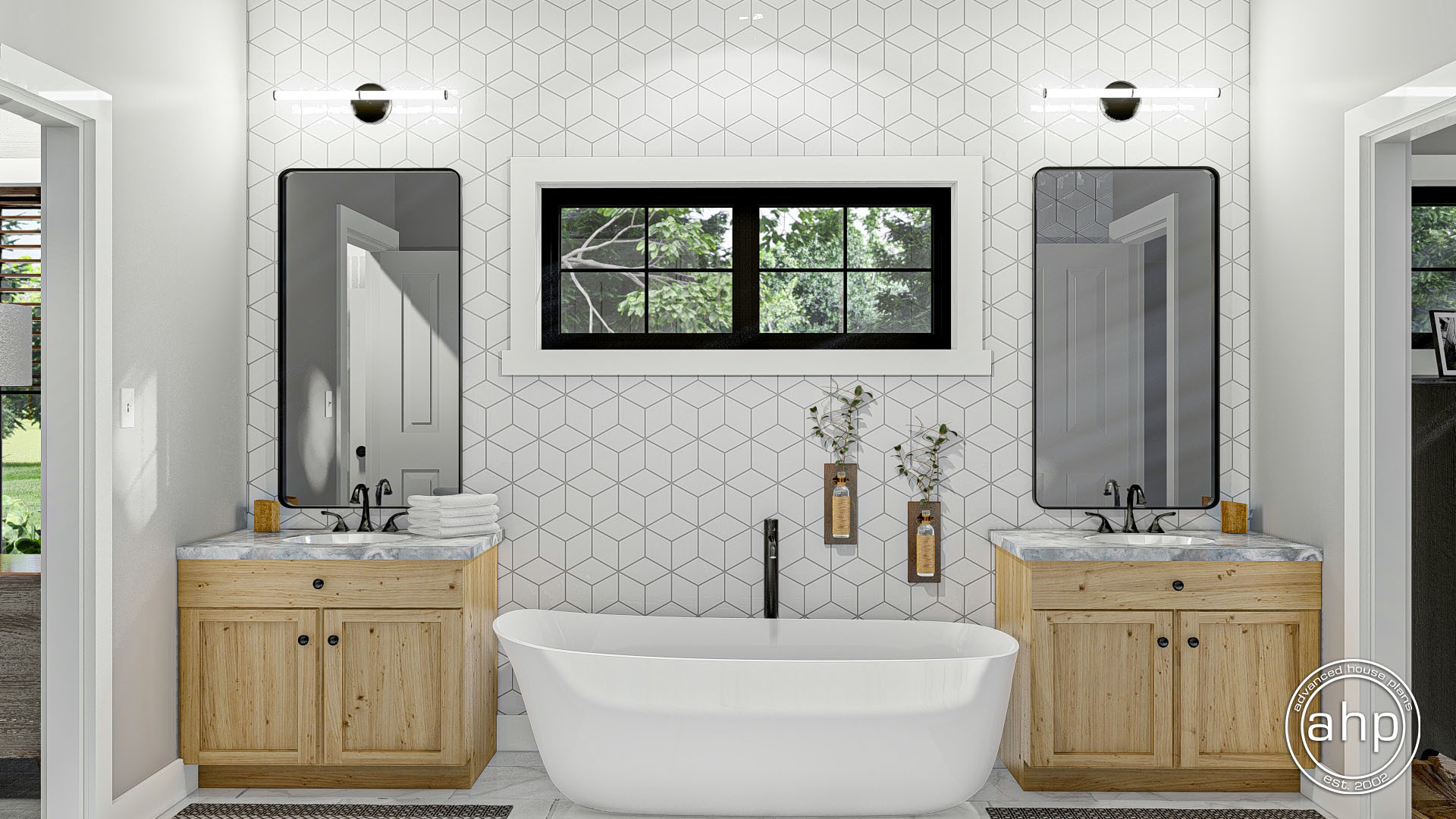

The master suite is situated on the right side of the theBarndominium home for privacy. The master bathroom includes a soaking tub, his/her vanities, an enclosed toilet, and a walk-in shower. The master closet has convenient access to the laundry room.

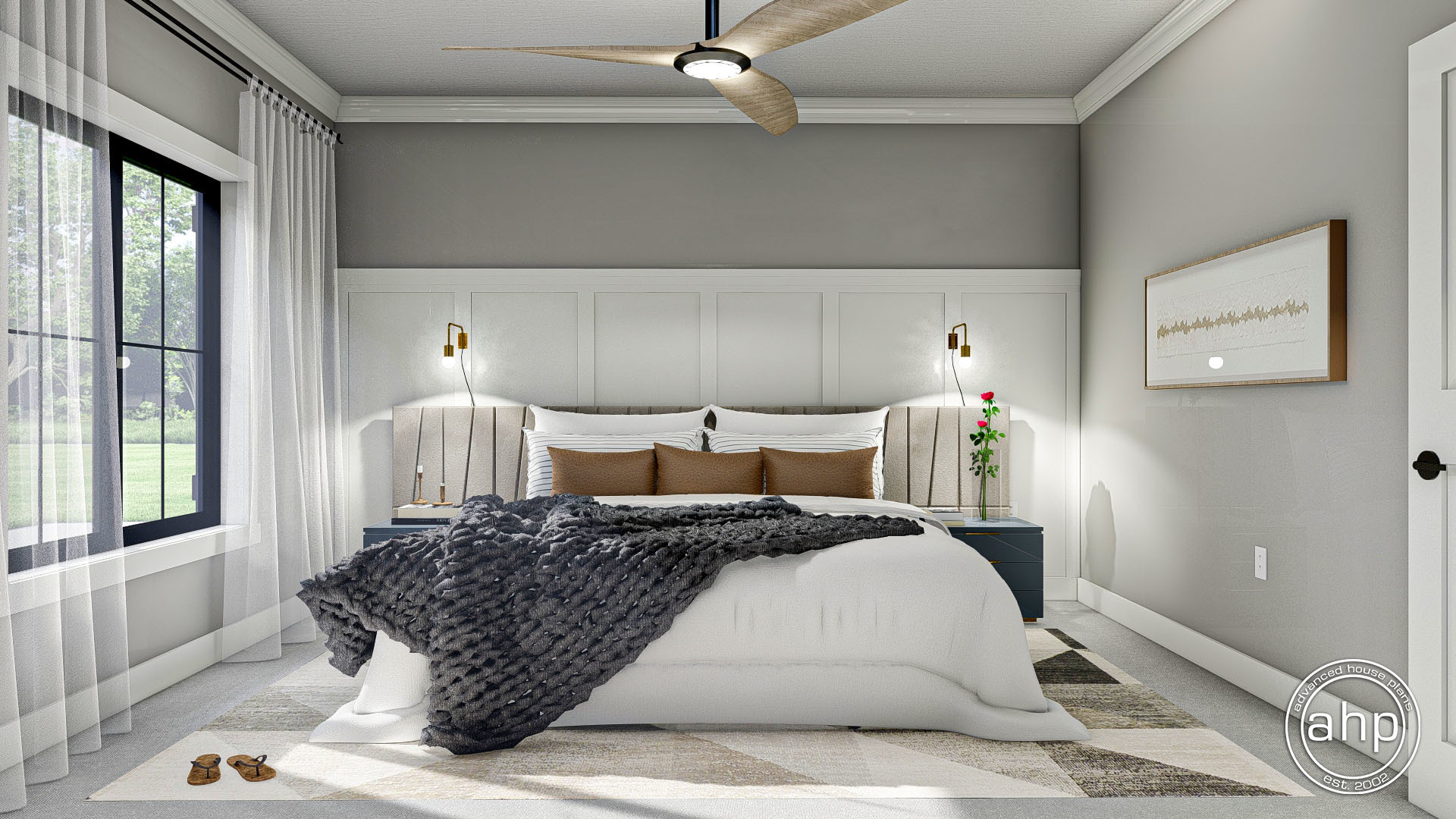

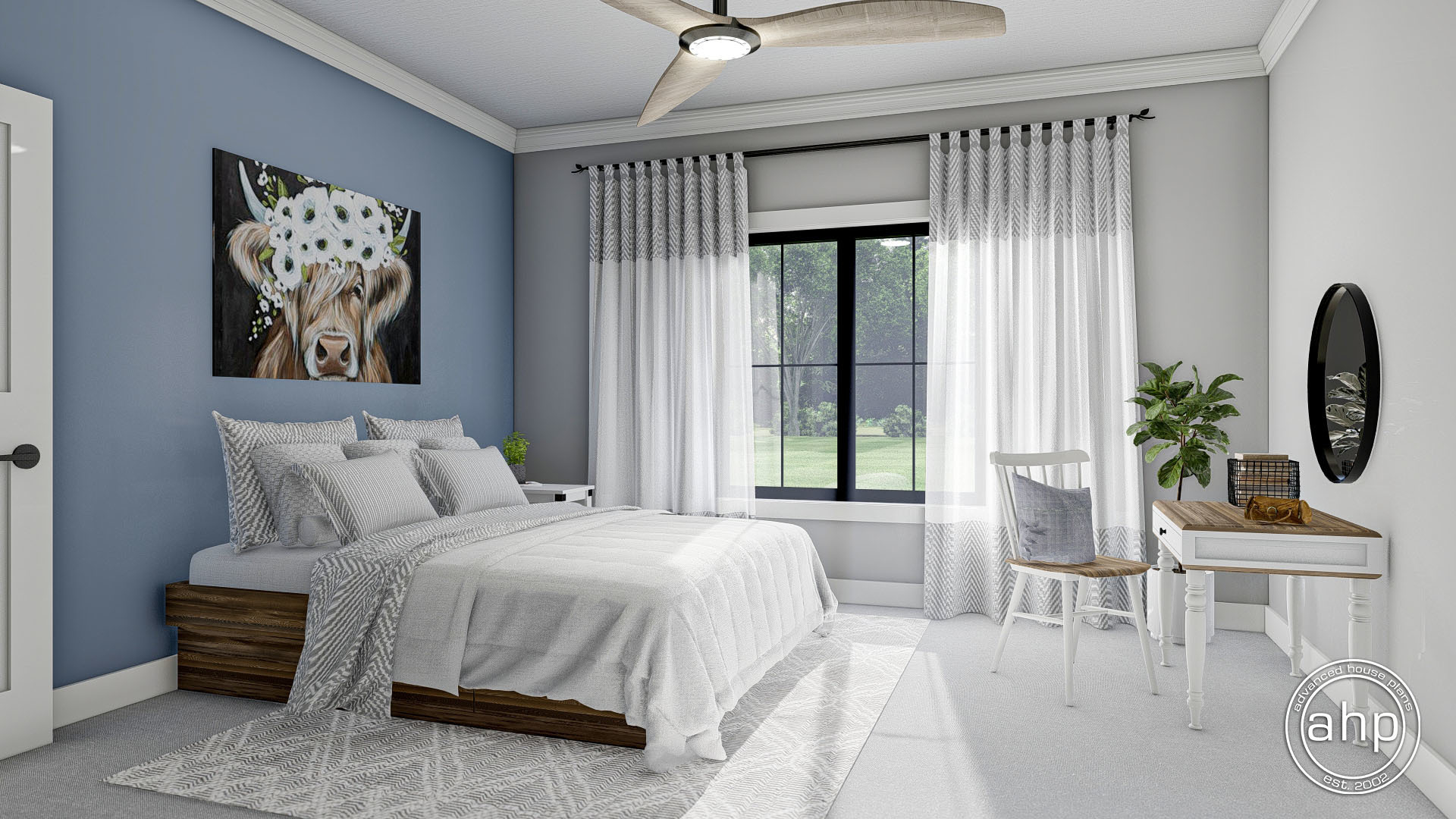

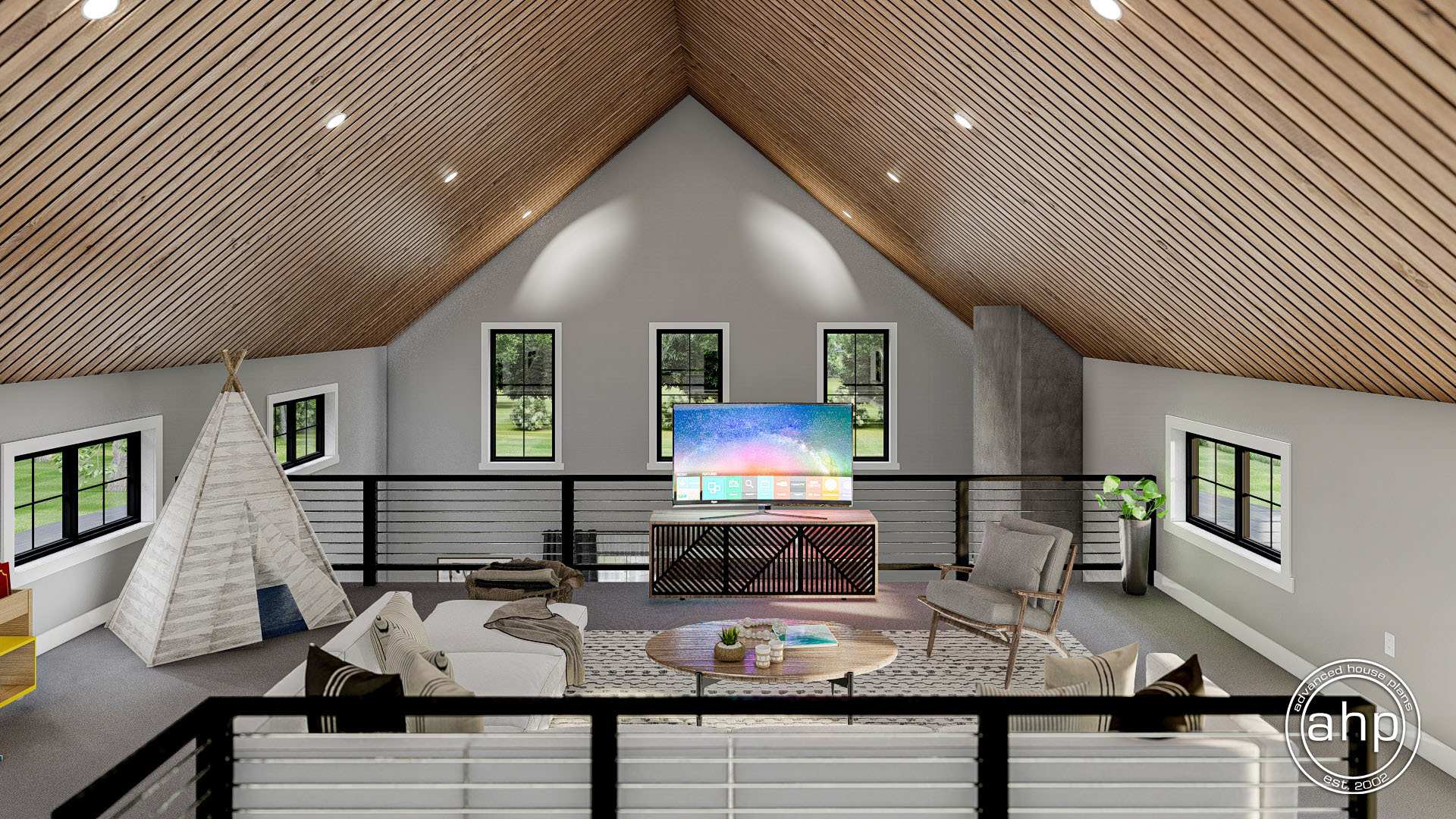

On the left side of the home, bedrooms 2 and 3 share a centrally located hall bathroom with the main living area. An amazing loft overlooks the great room.

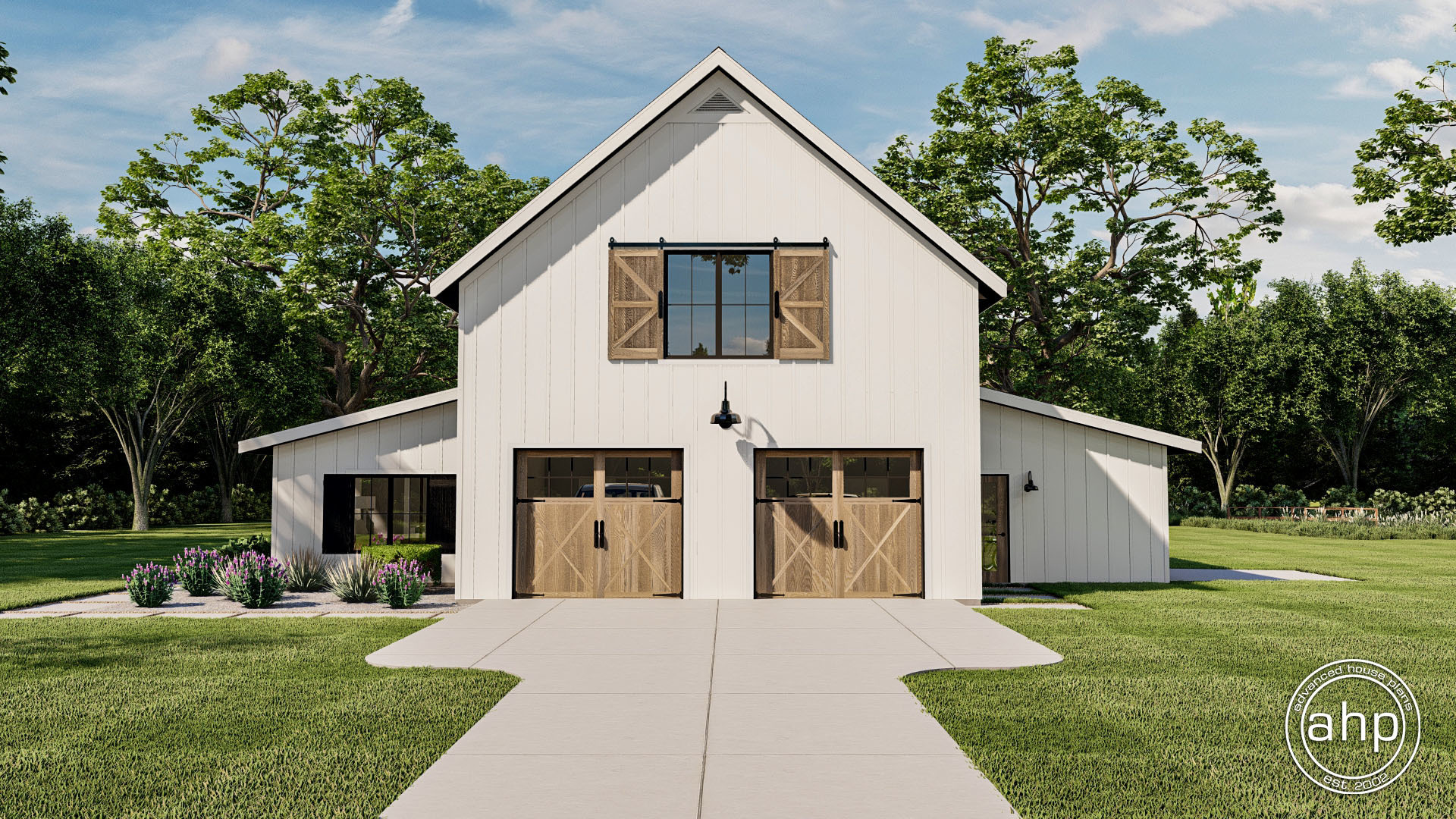

The Barndominium home's large 3-car garage has a high cathedral ceiling and accesses the home through a mud room that includes a bench and lockers.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 3
Bathrooms 2
Garage Bays 3
Square Footage
Main Level 2297 Sq. Ft.
Second Level 513 Sq. Ft.
Garage 979 Sq. Ft.
Total Finished Area 2810 Sq. Ft.
Exterior Dimensions
Width 56 ' 0"
Depth 64 ' 0"
Ridge Height
Calculated from main floor line
31 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
10/12 Primary, 3/12 Secondary

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
