Modern 2-Story Multi-Family House Plan | Sugarland
Floor Plan Images
Plan Video Tour
Plan Description

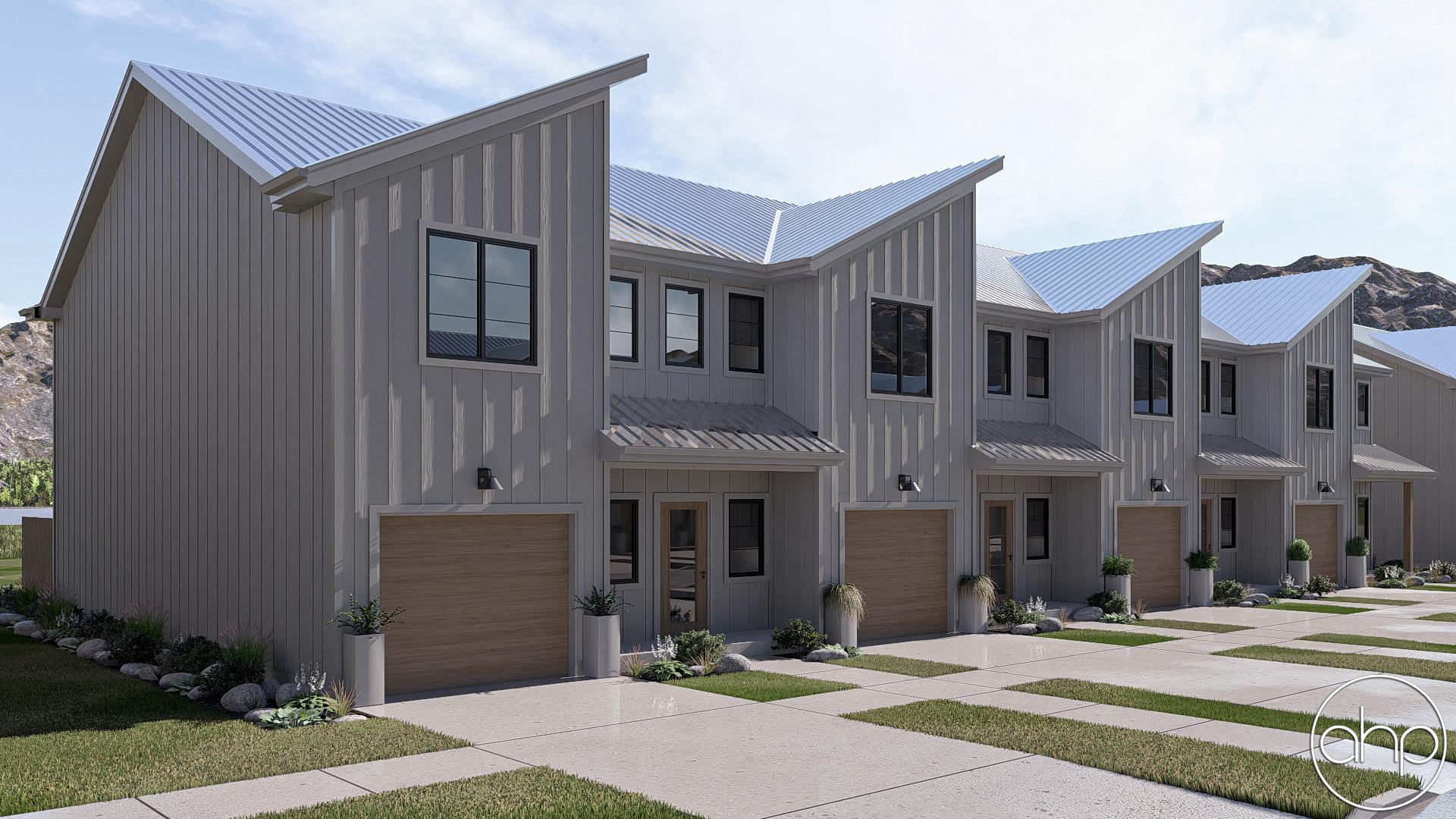

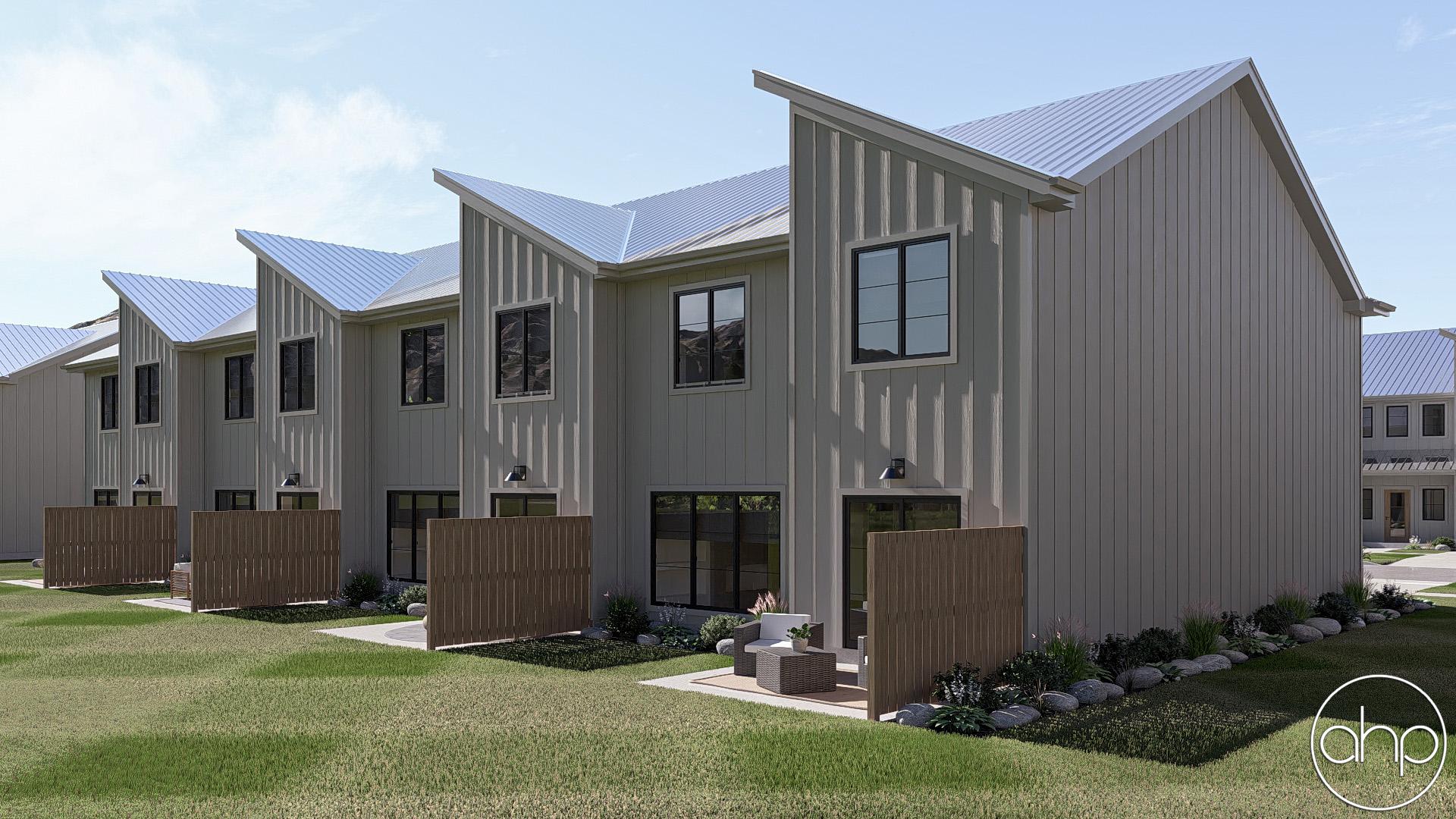

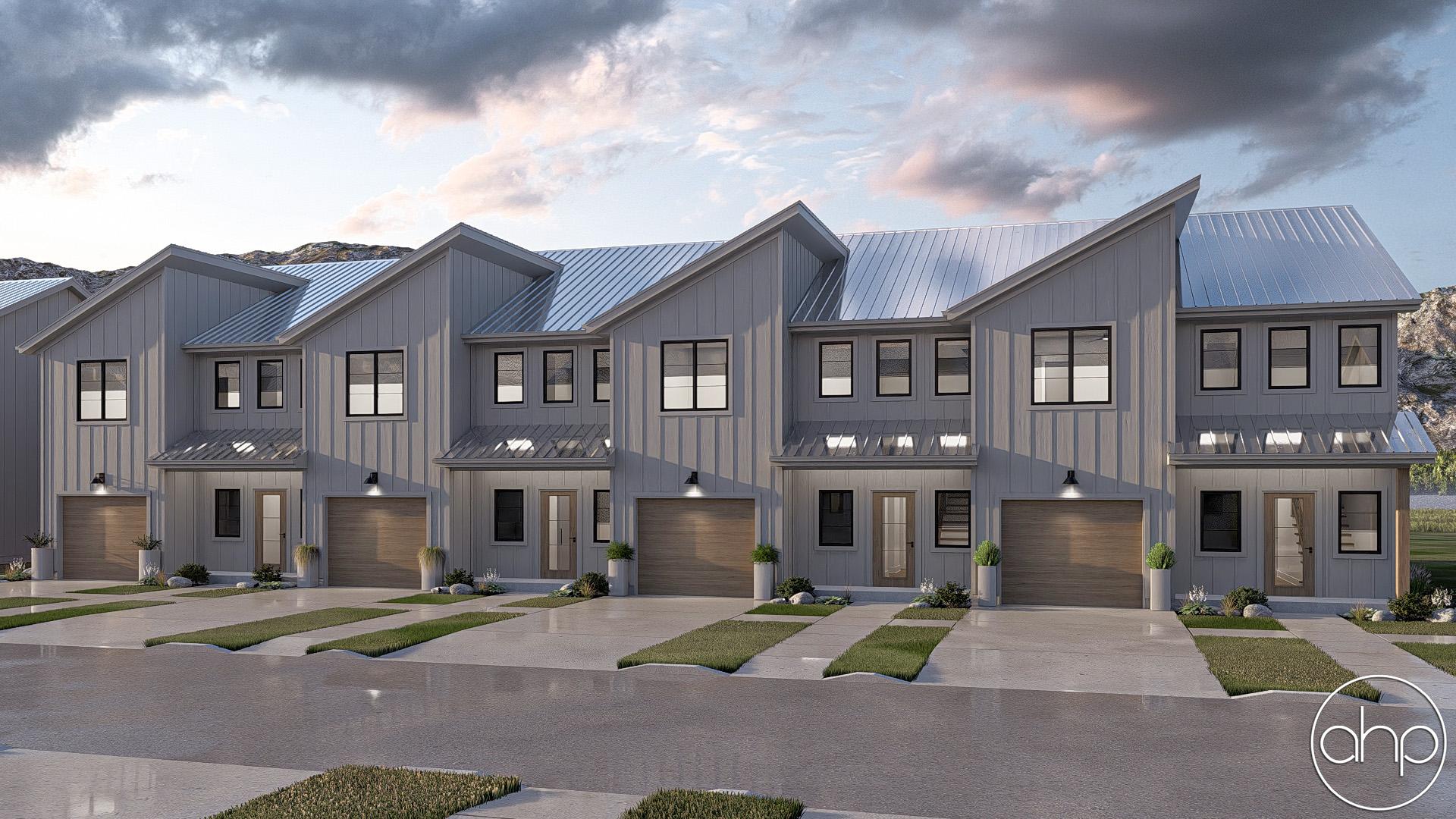

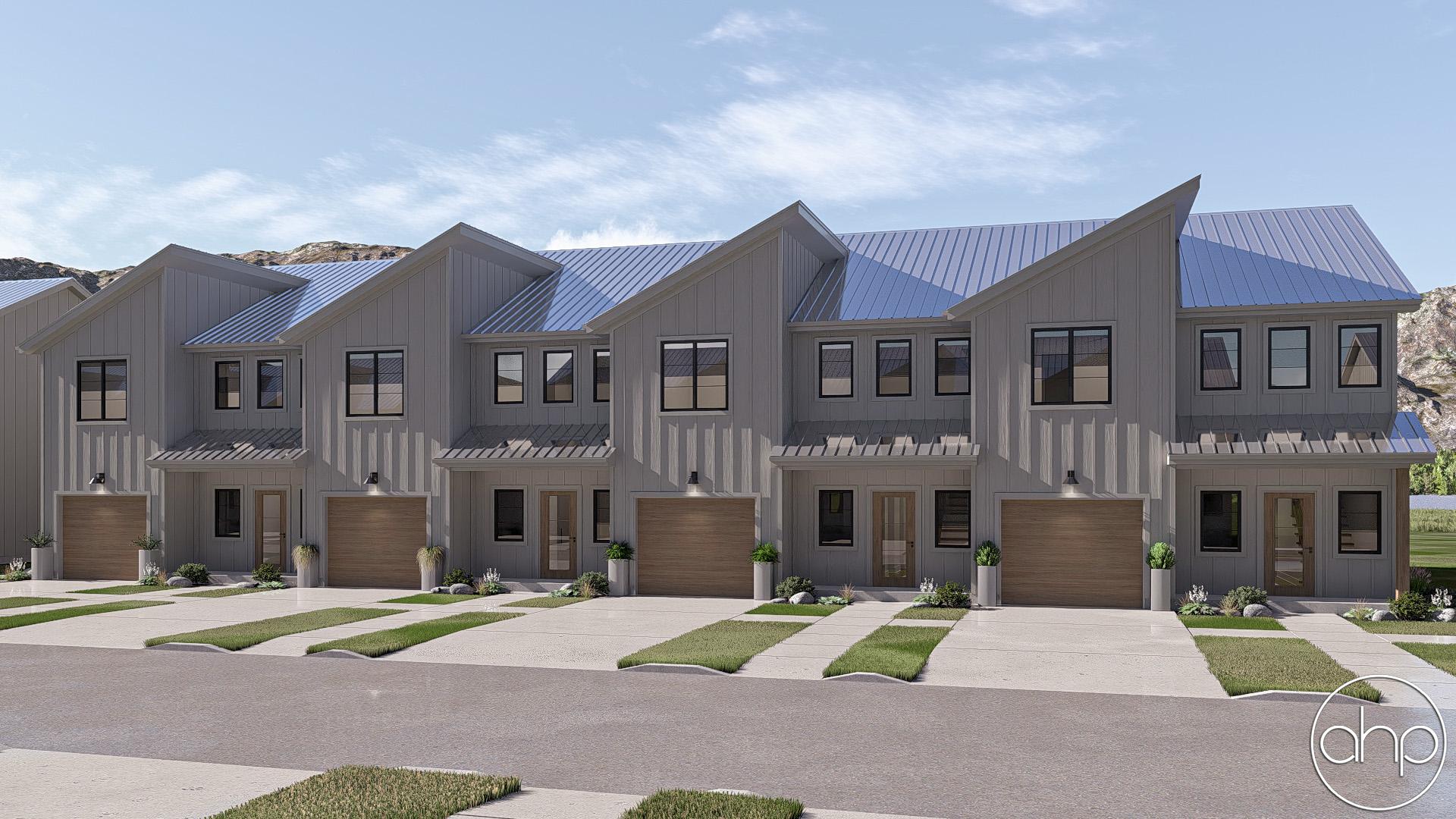

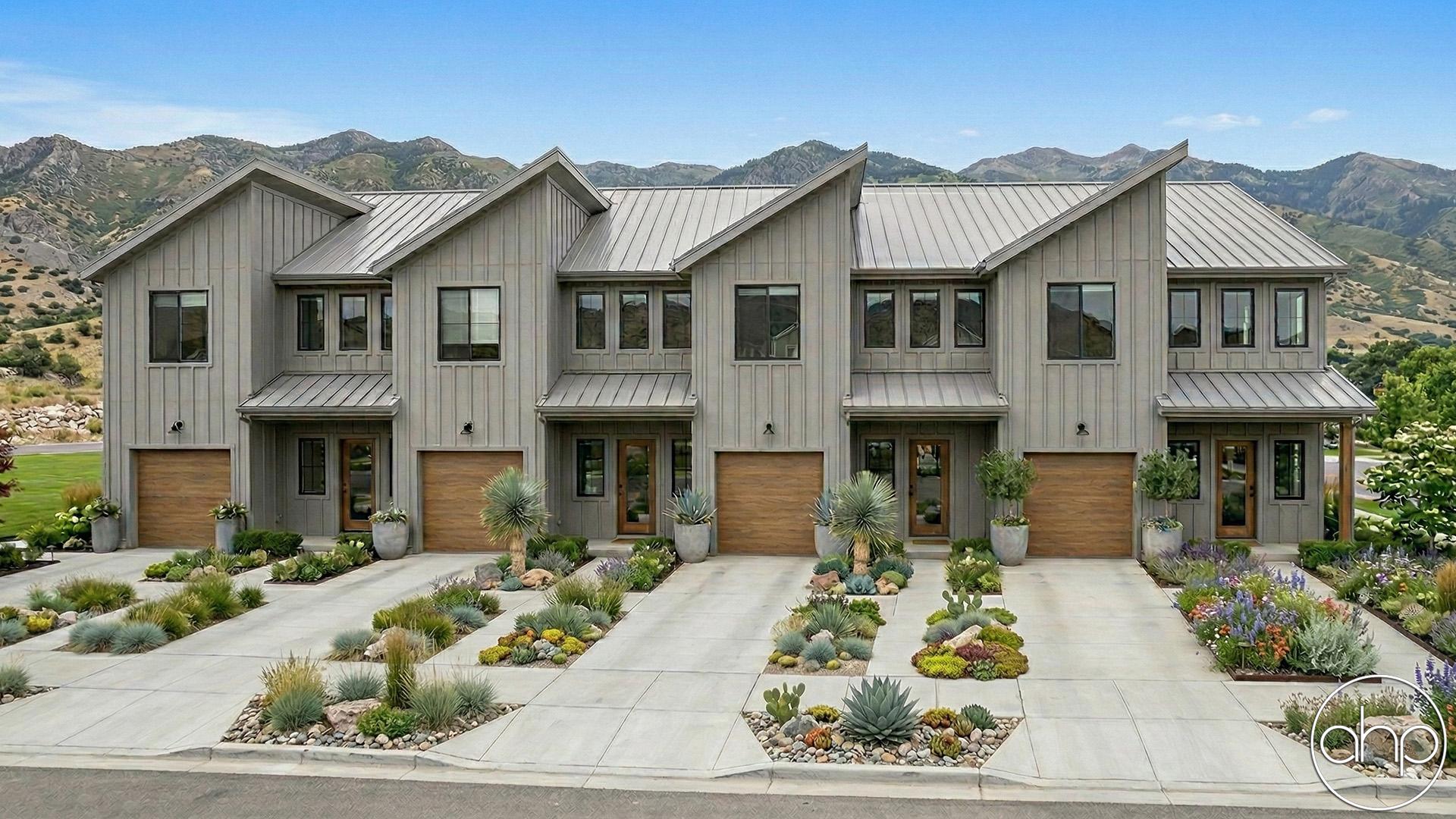

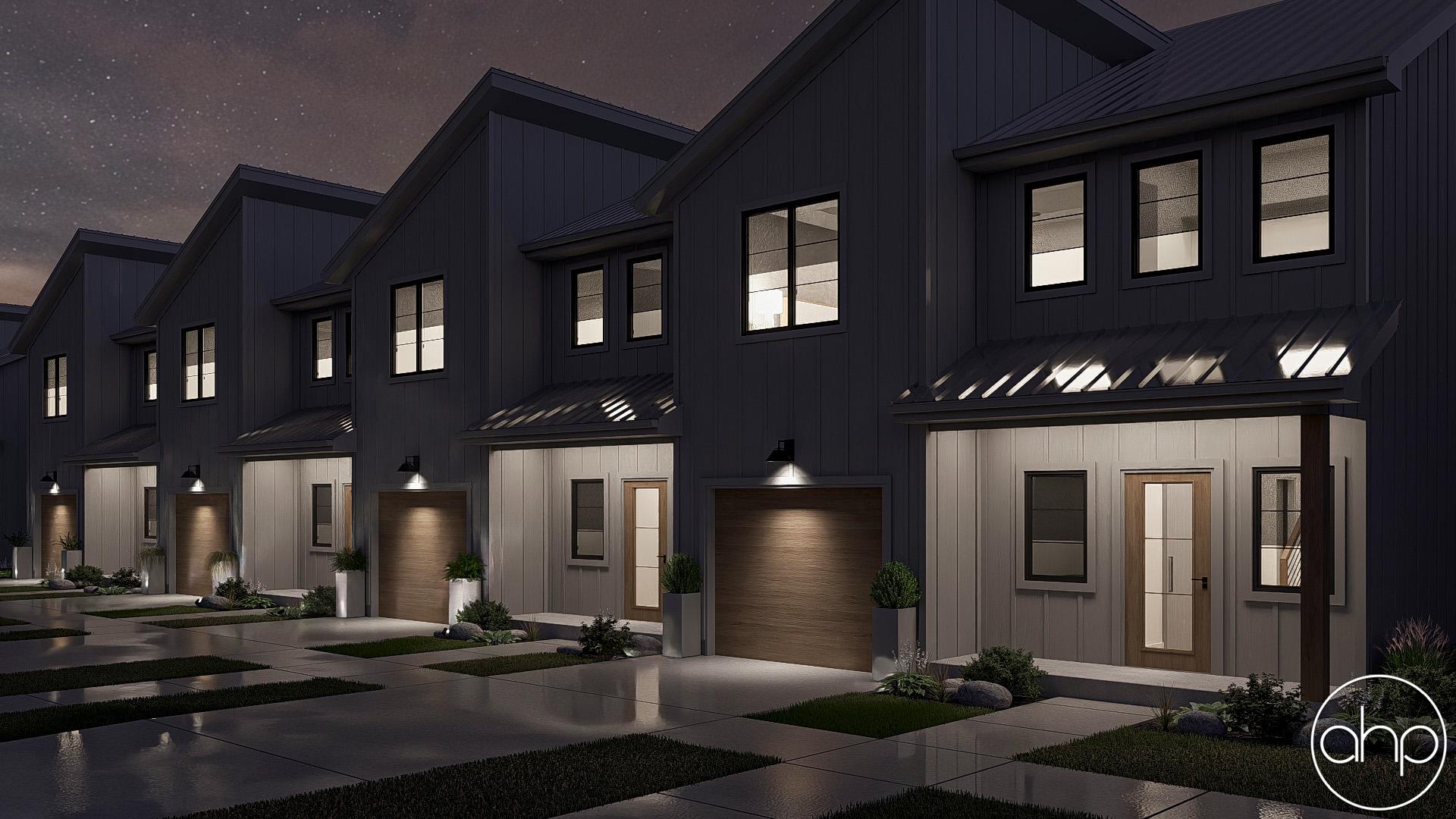

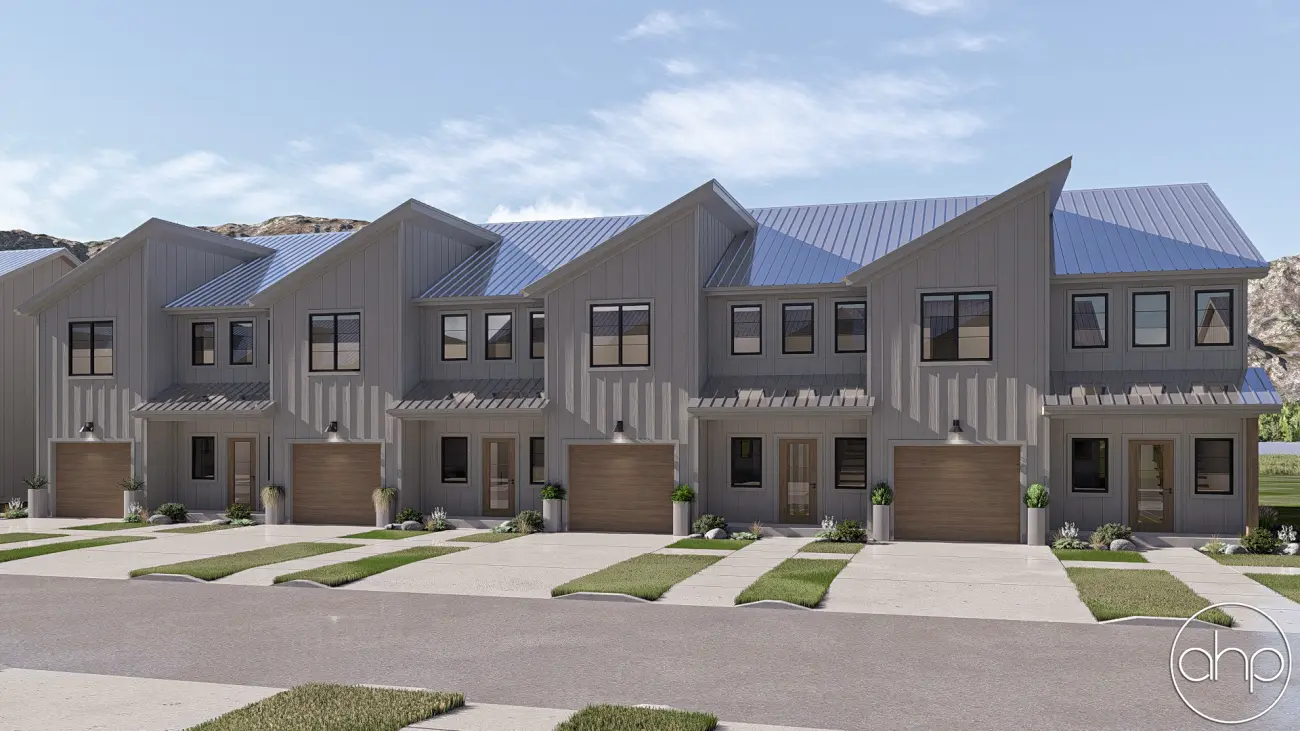

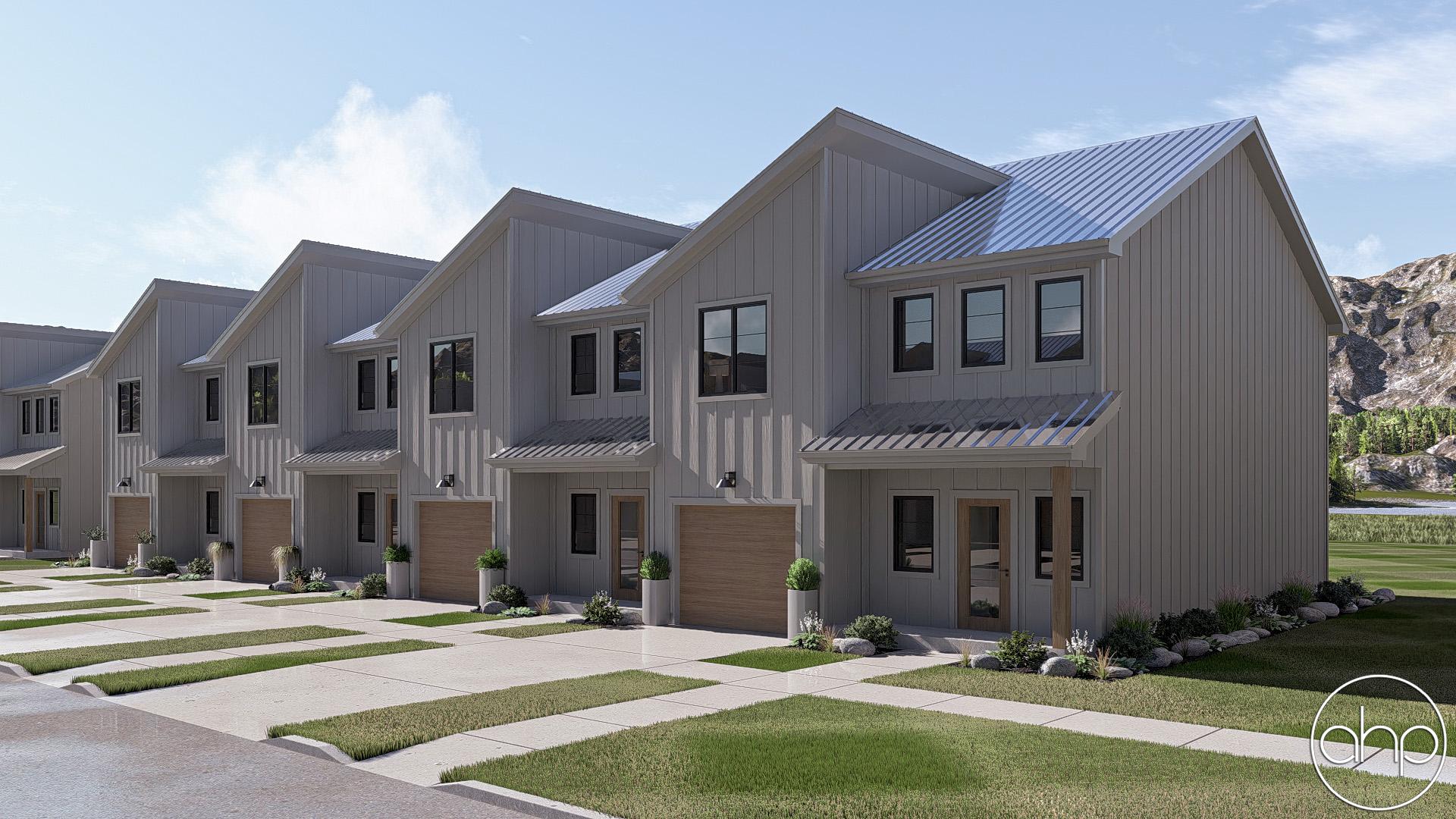

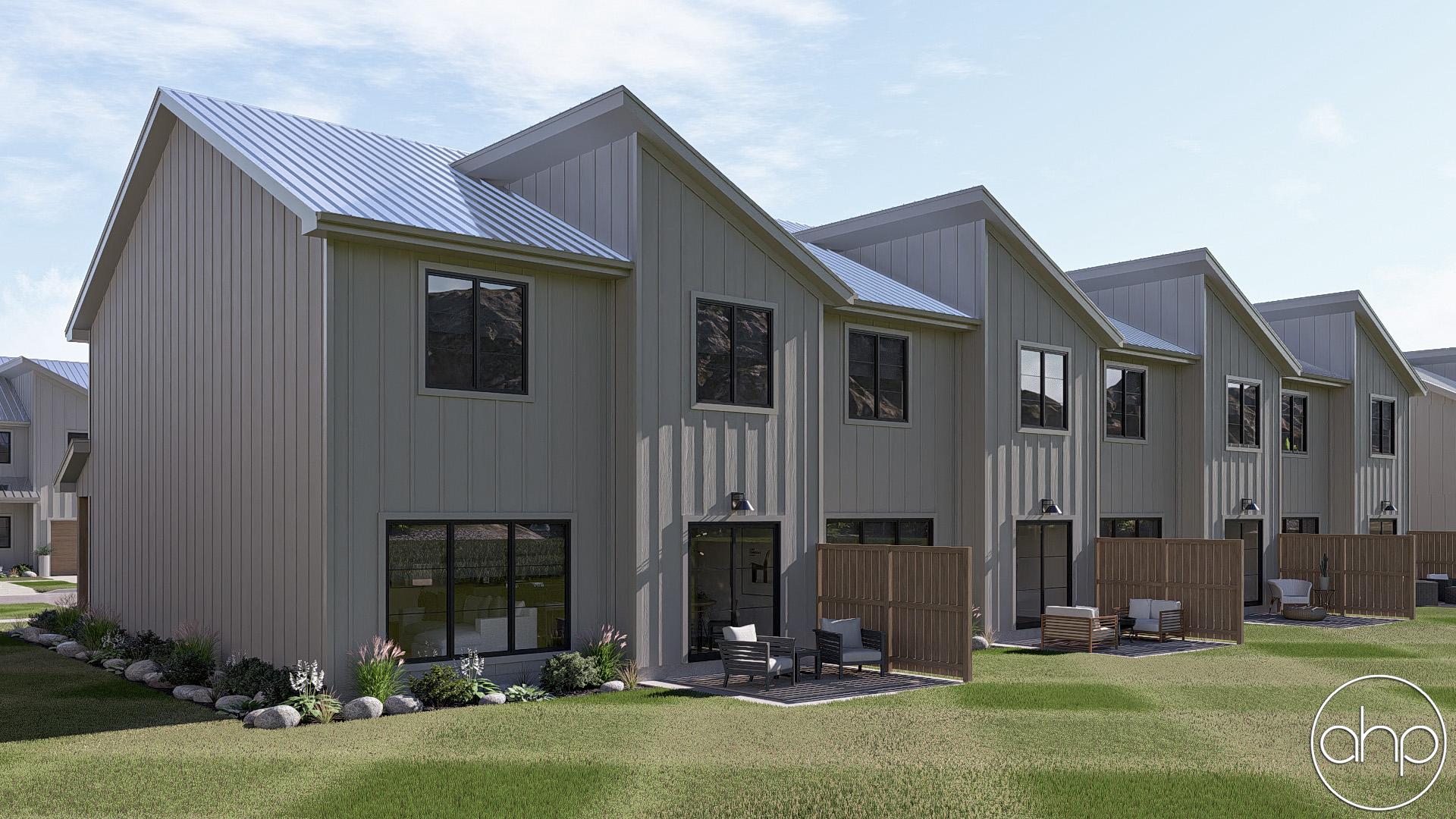

Introducing Sugarland — a stunning 2-story modern multi-family house plan that perfectly blends function and style. Its bold slanting rooflines and board & batten siding create a sleek, contemporary curb appeal.
Step in from the inviting front porch and discover thoughtfully designed spaces within each 1,701 sq. ft. unit — offering 3 spacious bedrooms, 3 bathrooms, and a 1-car garage.

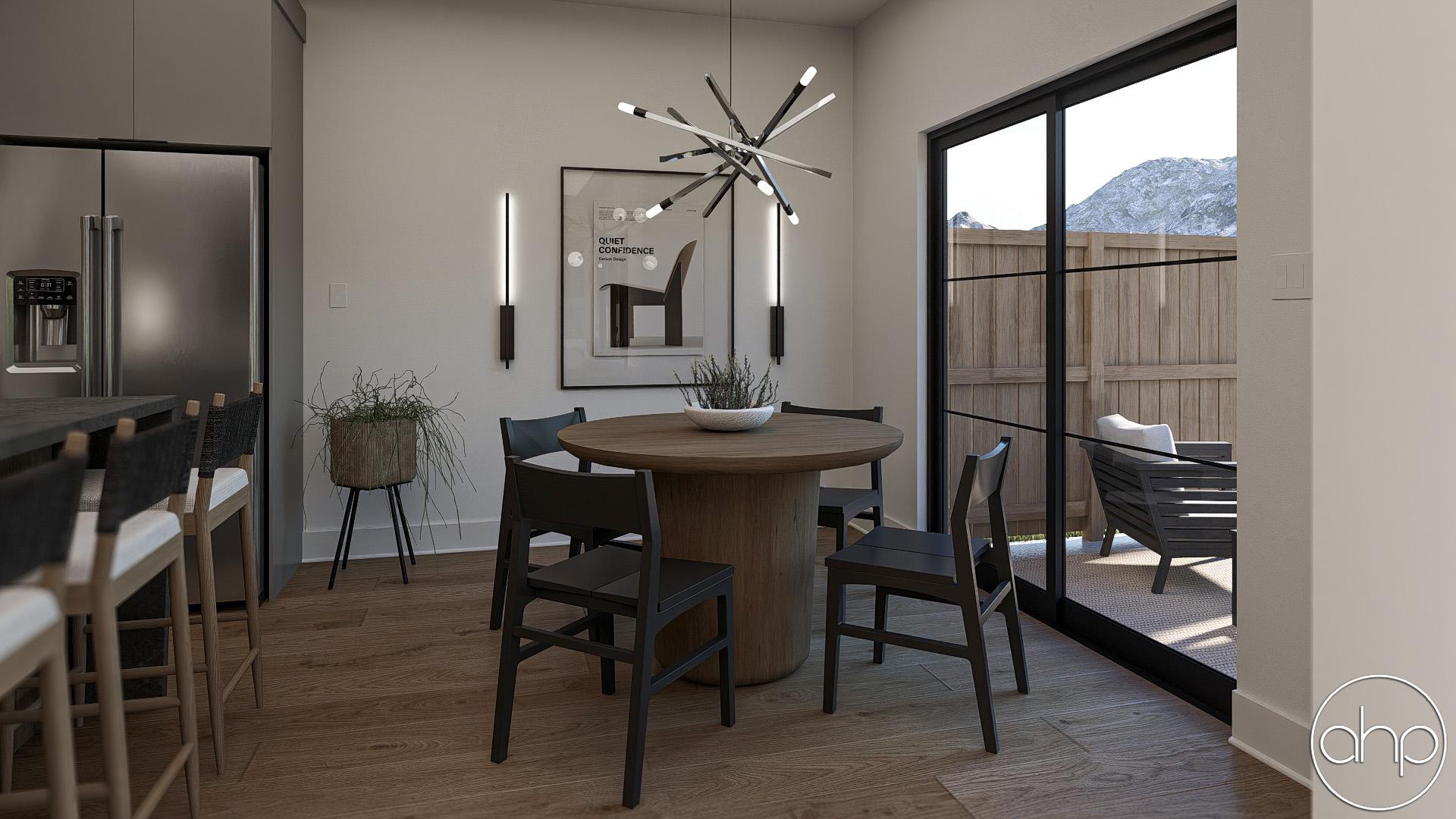

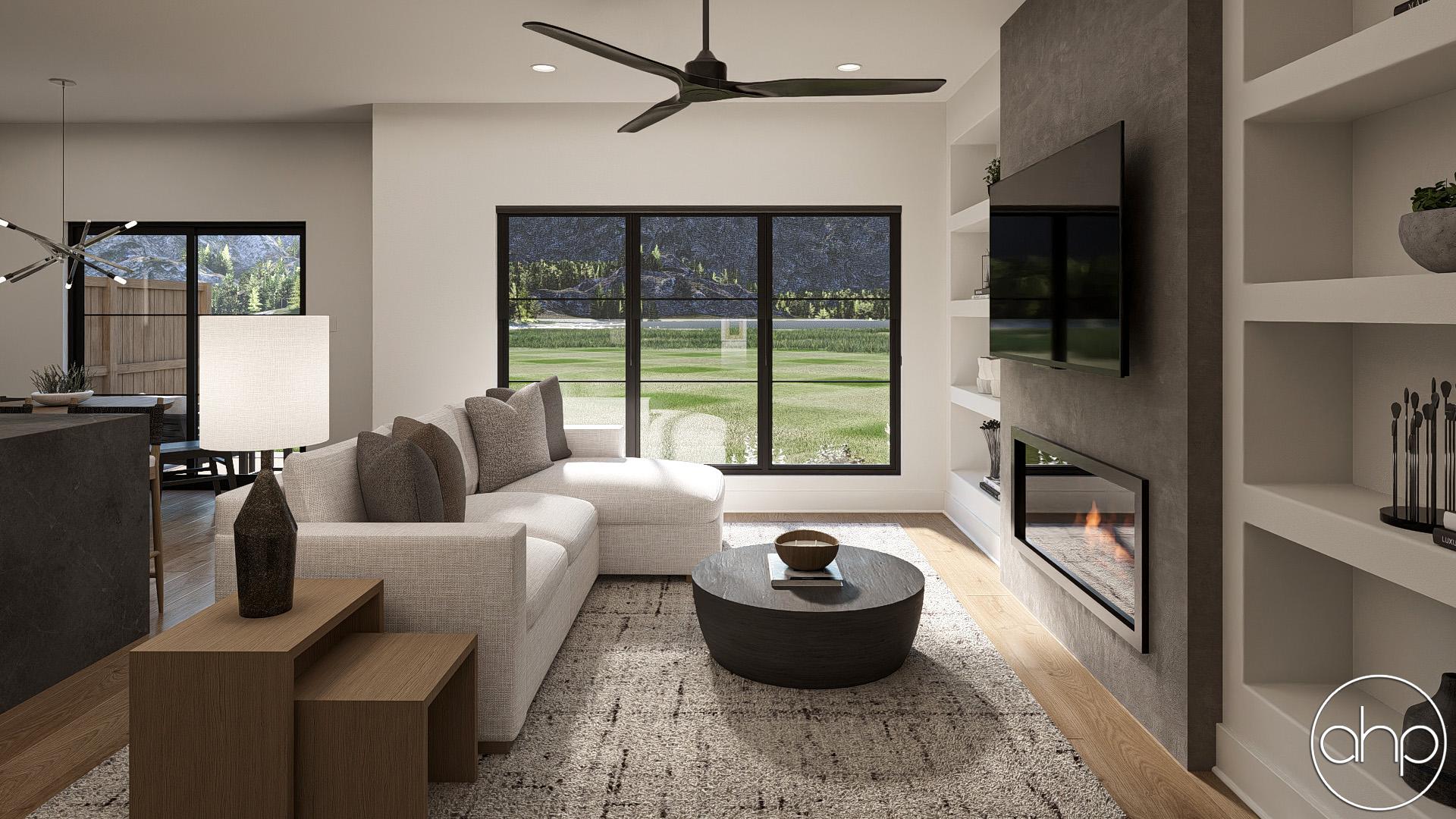

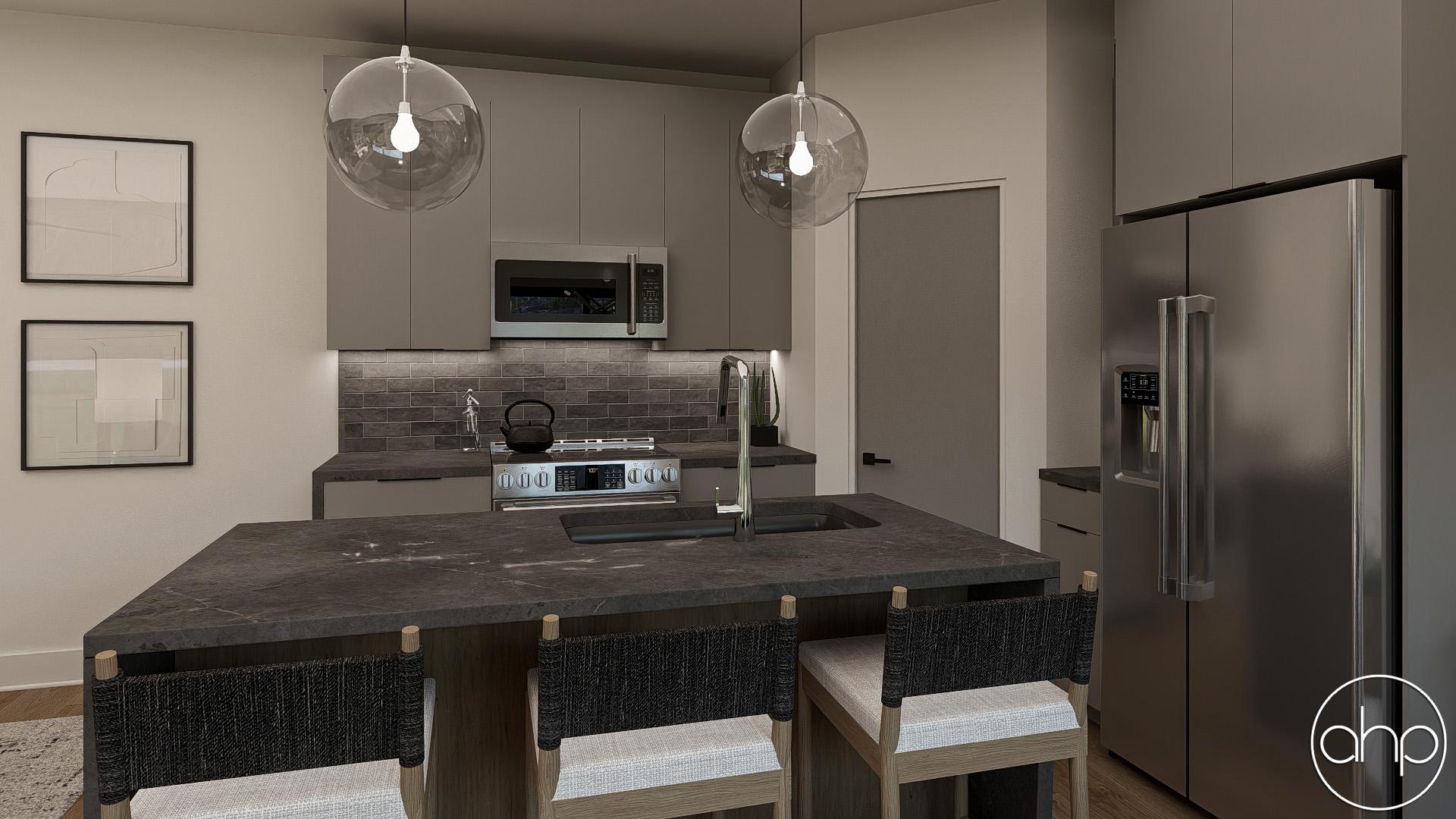

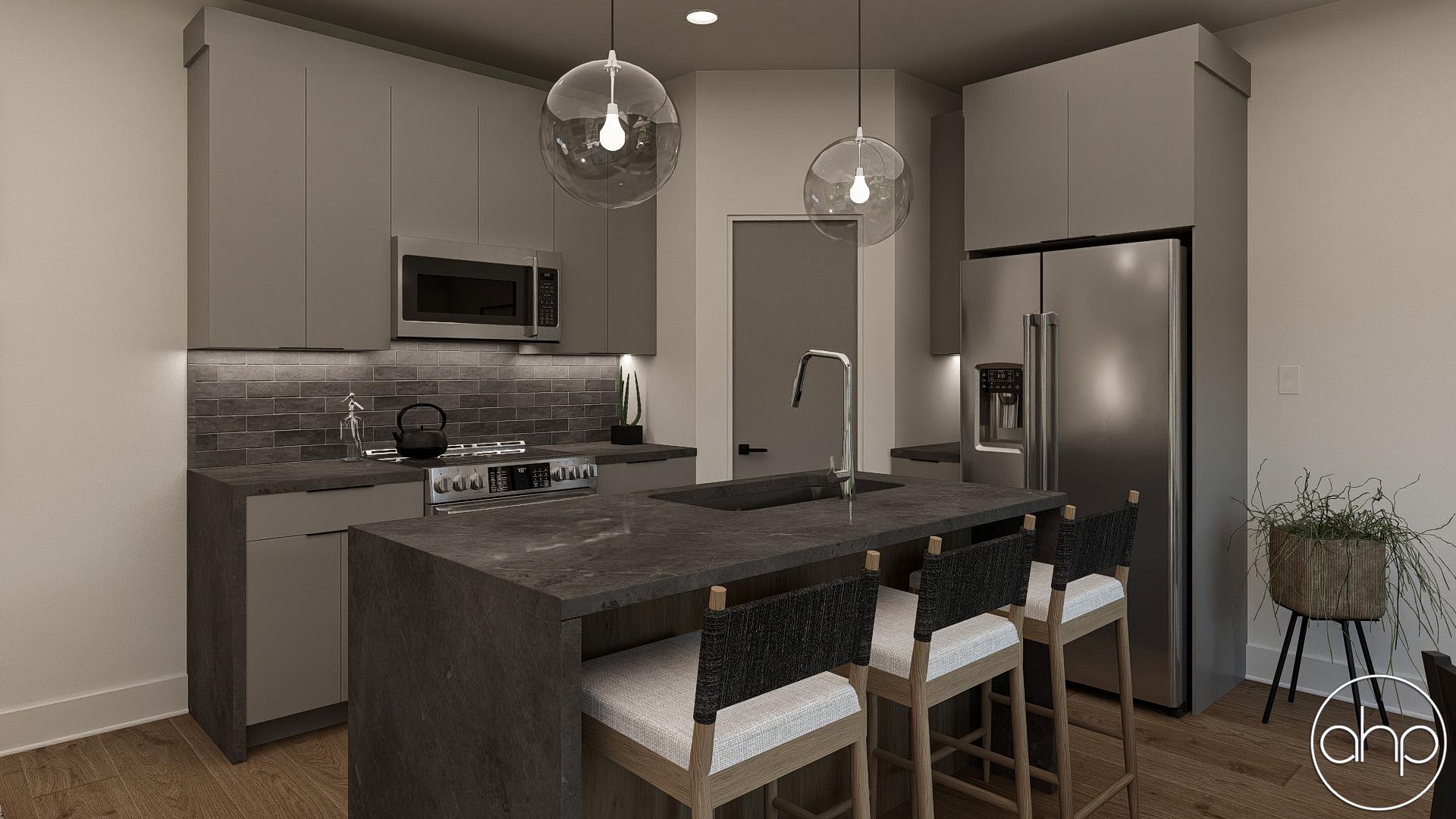

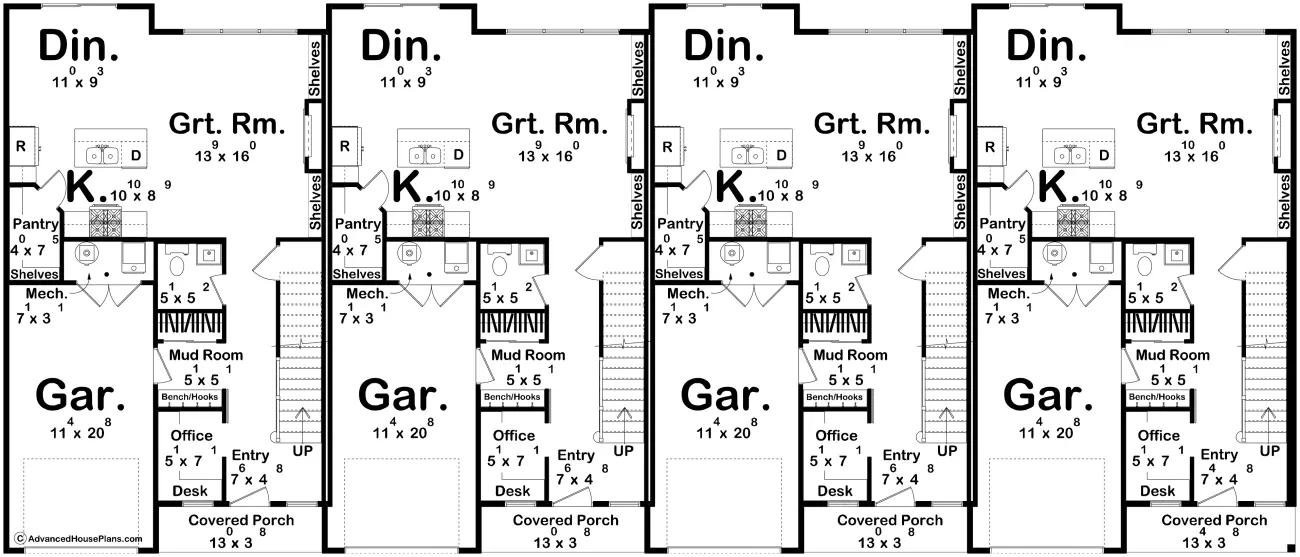

Every detail is crafted for modern living, from the pocket office off the entrance and convenient mud room to the open-concept great room, dining and kitchen complete with a handy pantry closet.
Sugarland proves that smart design and modern style make the perfect pair.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 3 |
| Bathrooms | 3 |
| Garage Bays | 1 |
| Square Footage Breakdown | |
| Main Level | 739 Sq Ft |

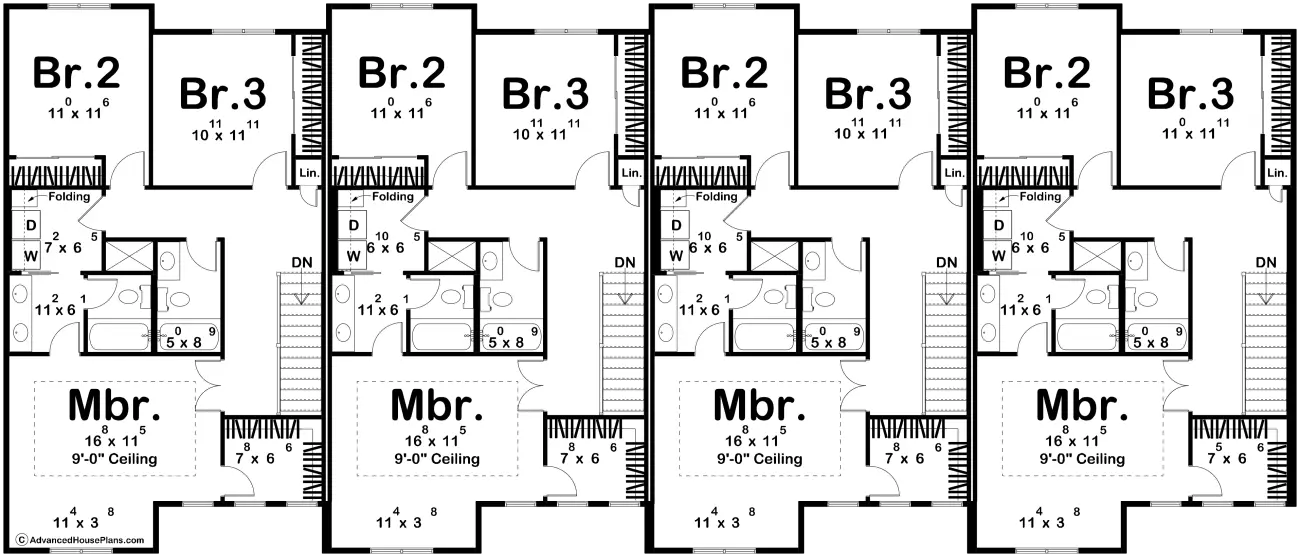

| Second Level | 962 Sq Ft |
| Total Finished Area | 1701 Sq Ft |
| Garage | 247 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 47 Sq Ft |
| Exterior Dimensions | |
| Width | 101' 4" |
| Depth | 43' 0" |
| Ridge Height | 28' 8" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x4 |
| Roof Construction Method | Trusses |
| Floor Construction Method | Floor Trusses |
| Roof Pitches | 6/12 |
| Main Level Ceiling Height | 9' |
| Second Level Ceiling Height | 8' |
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
Upgrade Your Plan With Add-ons
Note: Add-ons may result in a longer turn-around time.
Note: The material list is for estimation purposes only.
