Plan Description

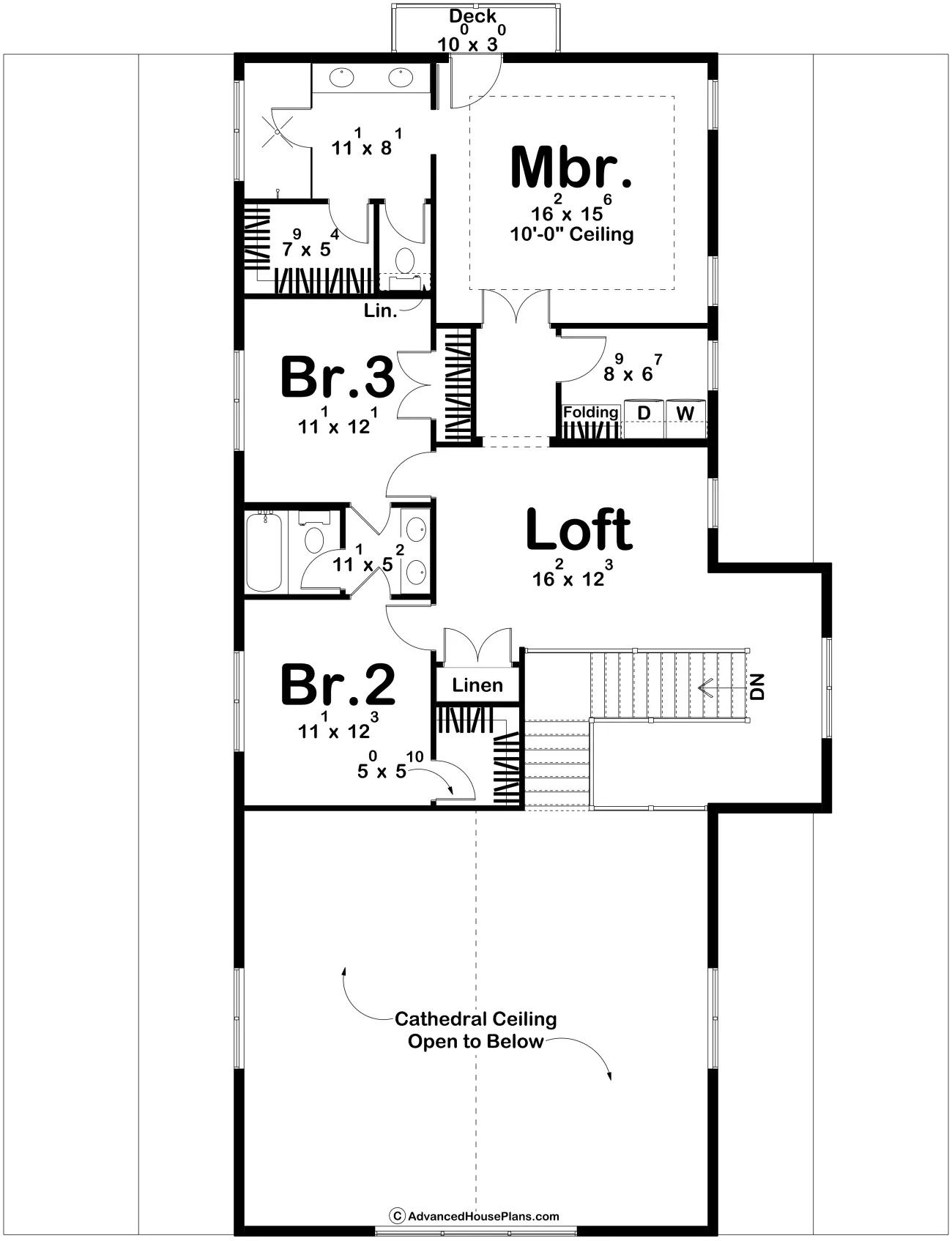

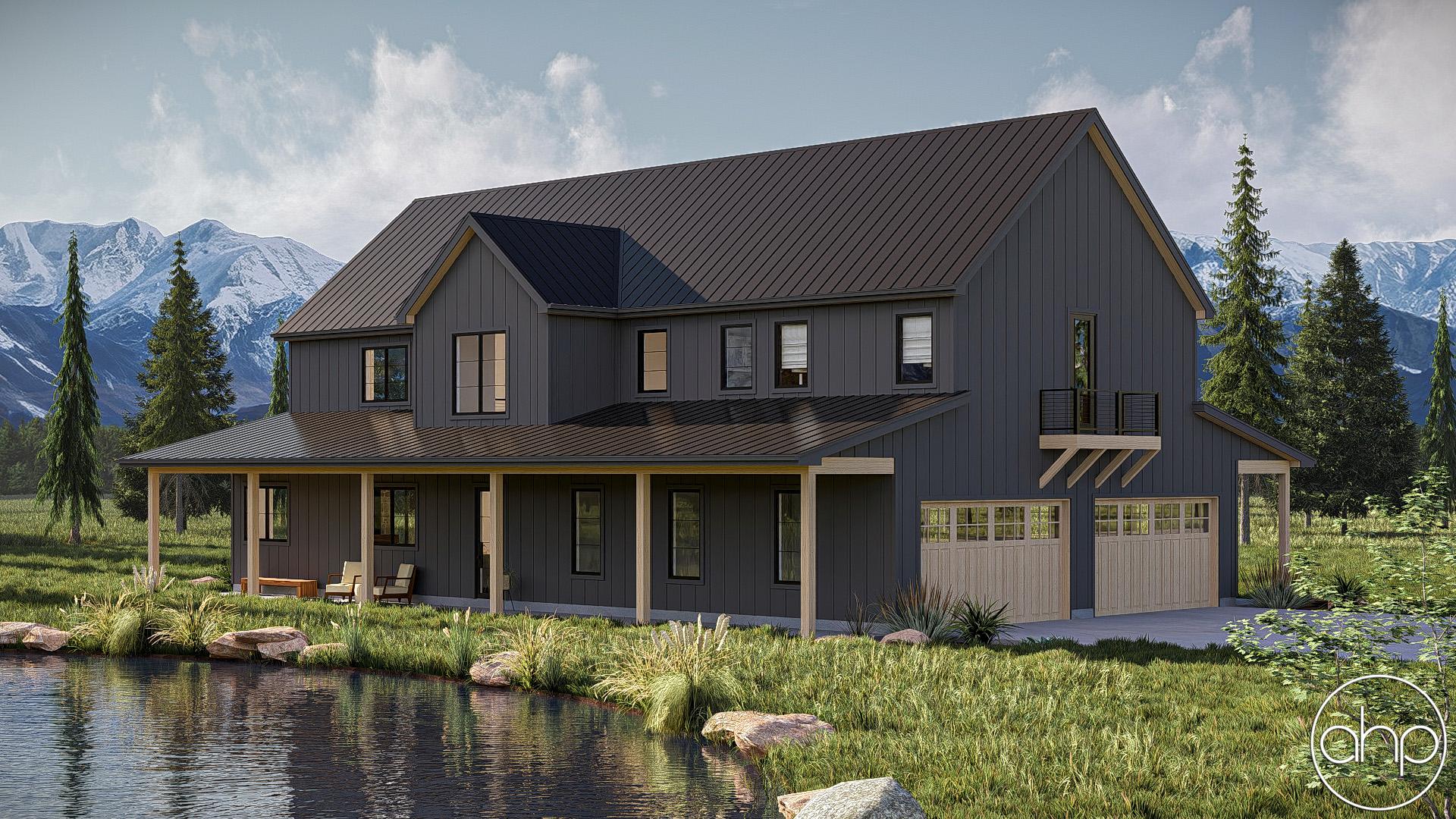

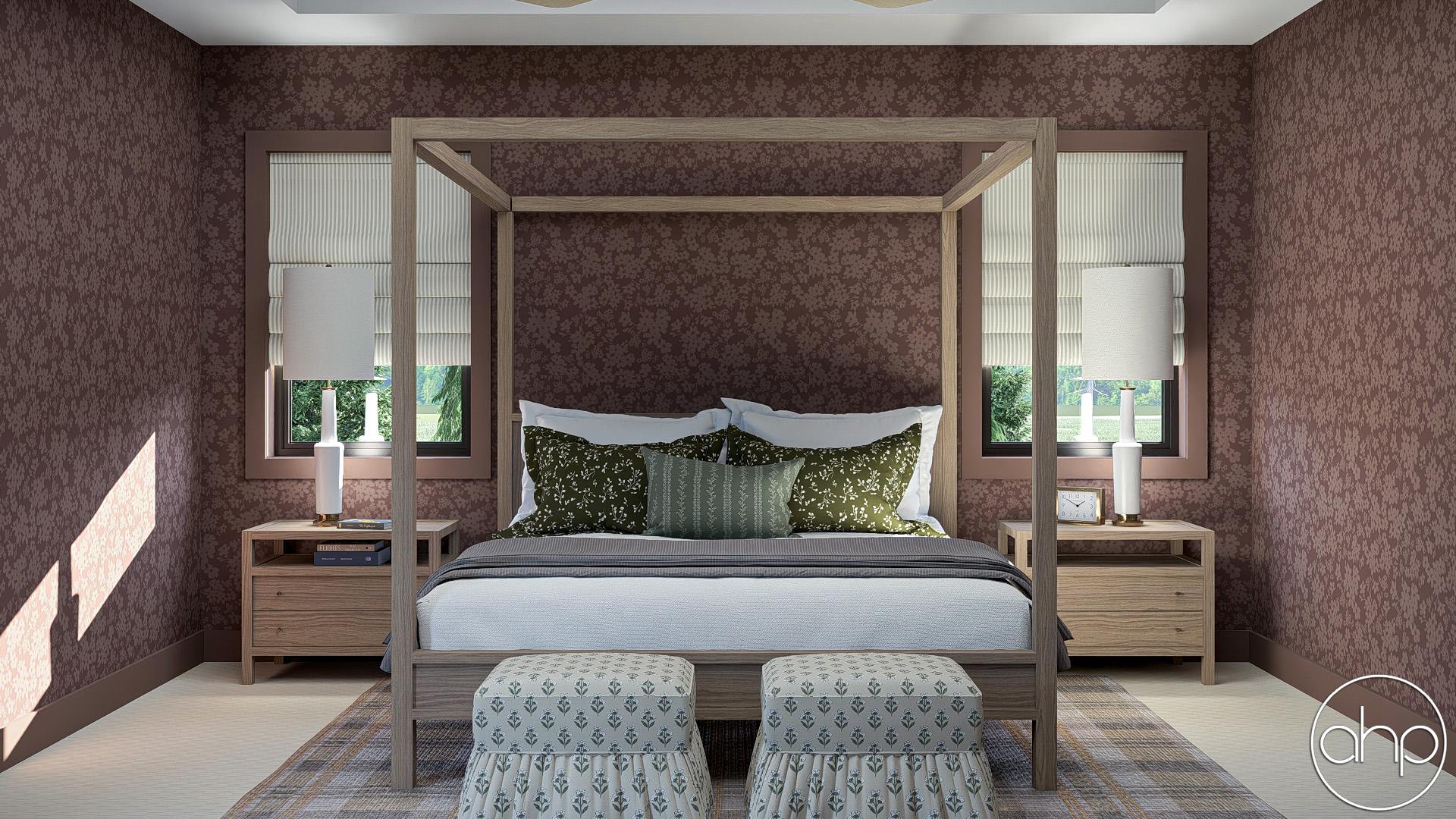

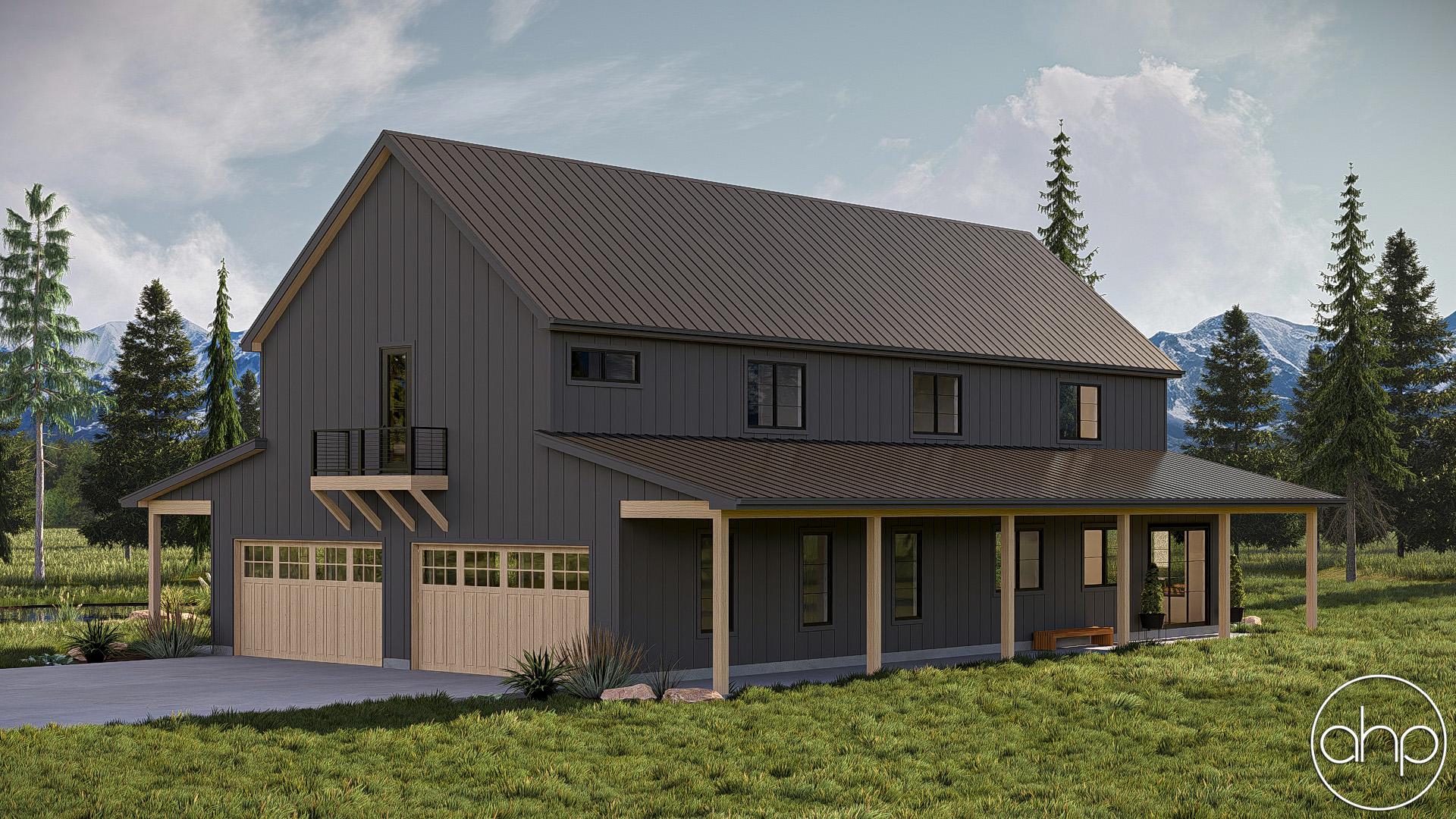

The Stonewater barndominium house plan offers a smart, stylish layout that maximizes both space and comfort. Designed with all three bedrooms located on the second floor, this plan separates living and sleeping areas, making it ideal for families or those who value a bit more privacy.

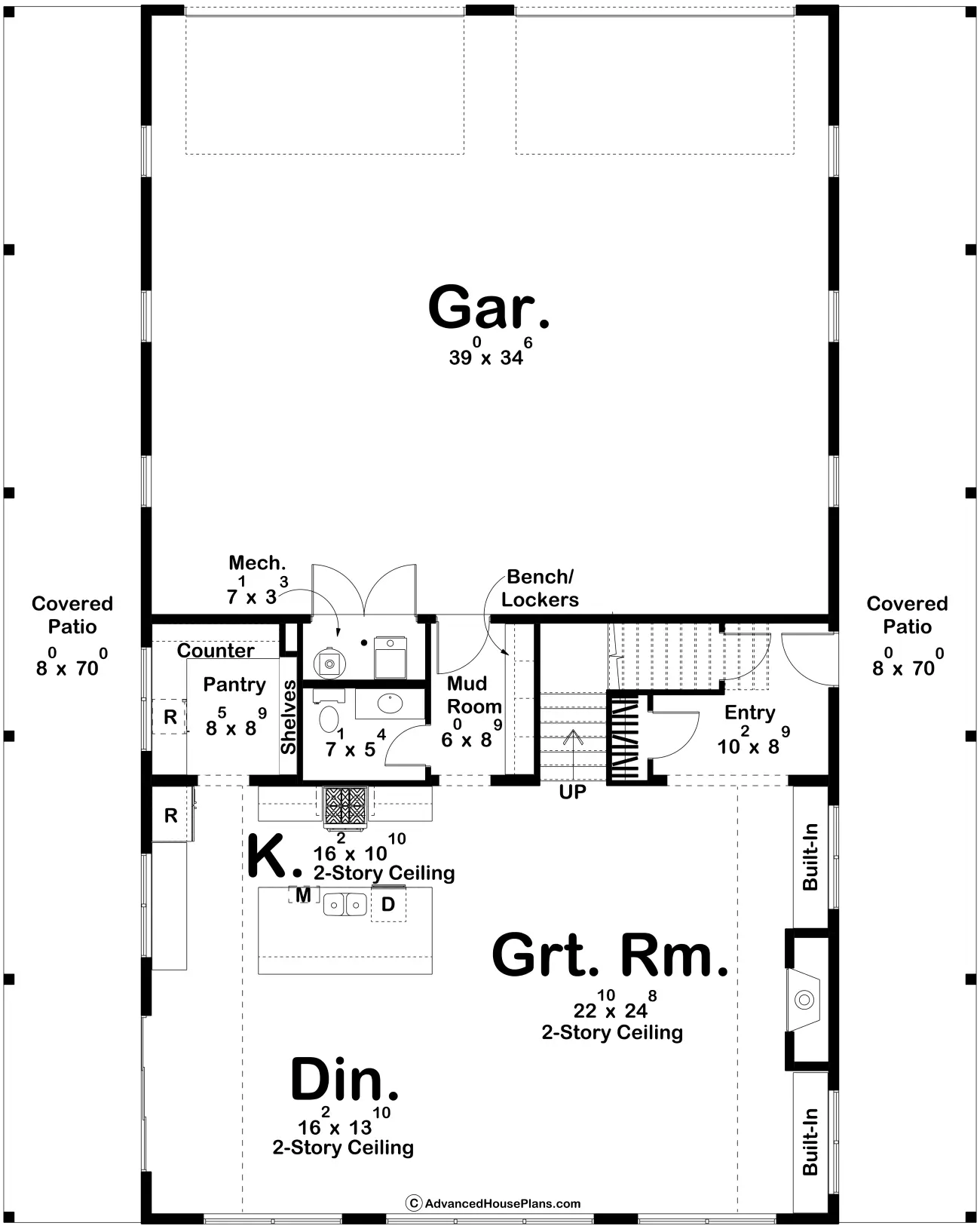

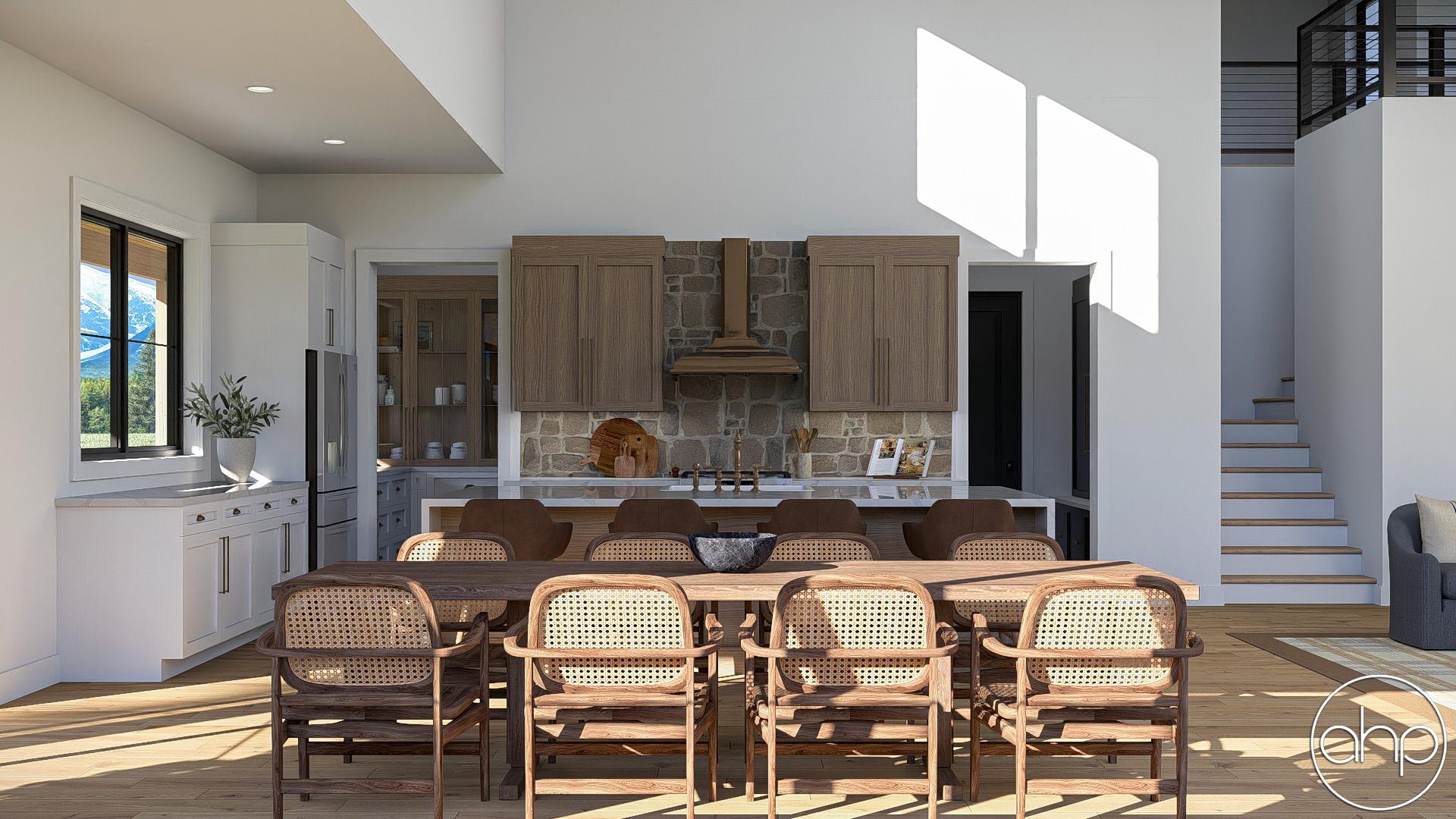

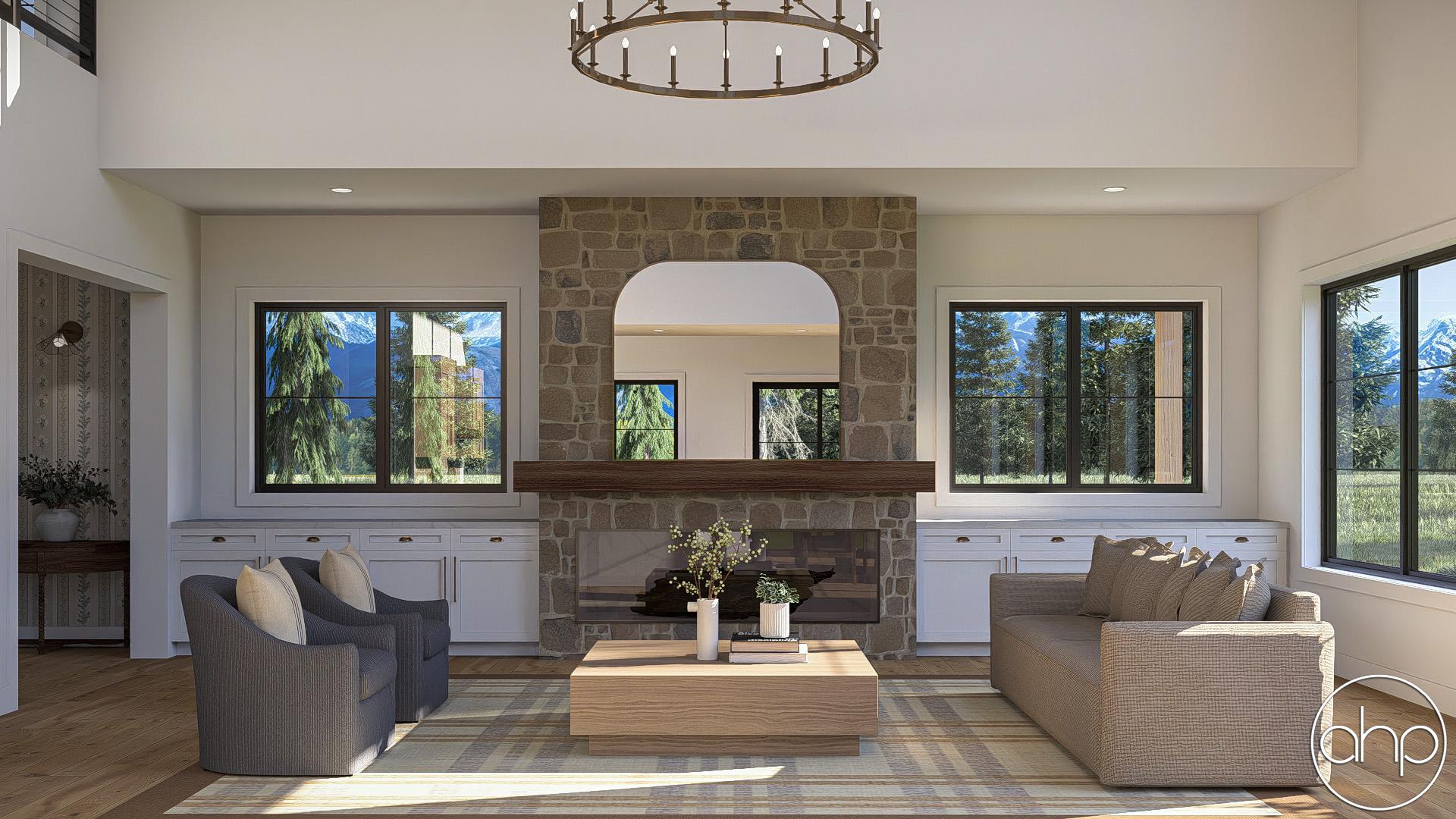

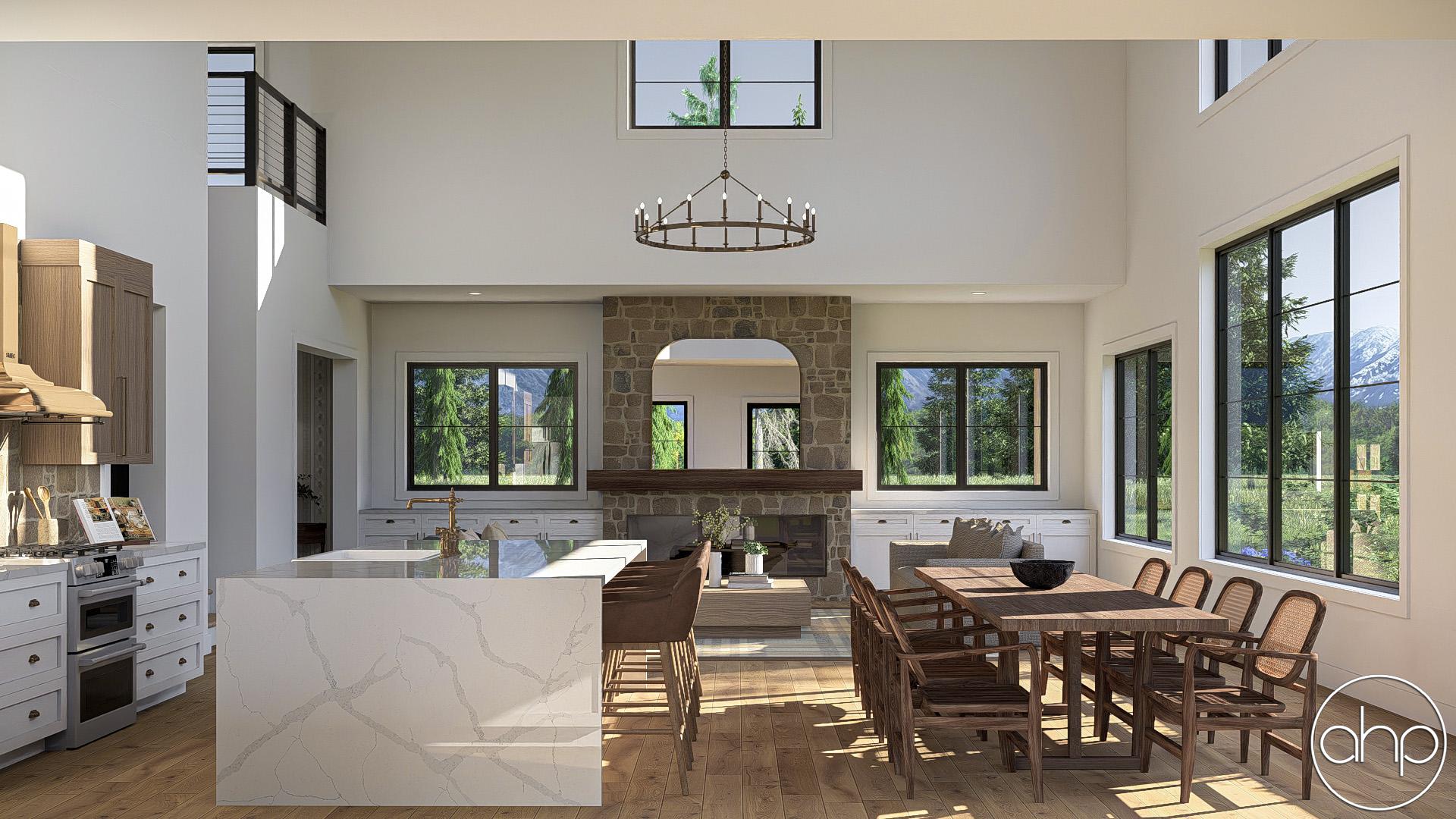

On the main level, you'll find an open-concept living, kitchen, and dining area that creates an inviting space for daily life and entertaining. The kitchen is complemented by a large walk-in pantry, perfect for keeping essentials organized and easily accessible.

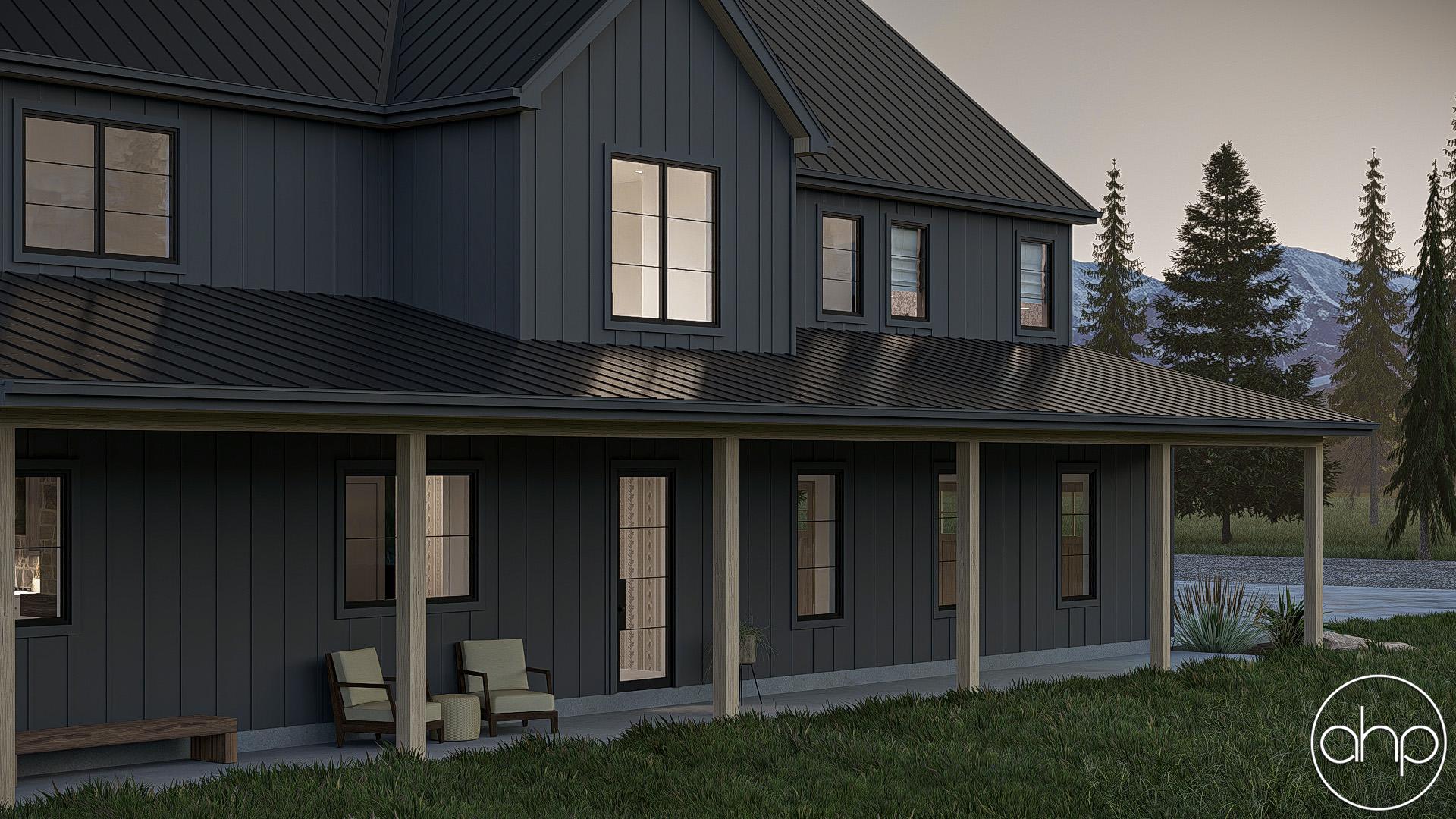

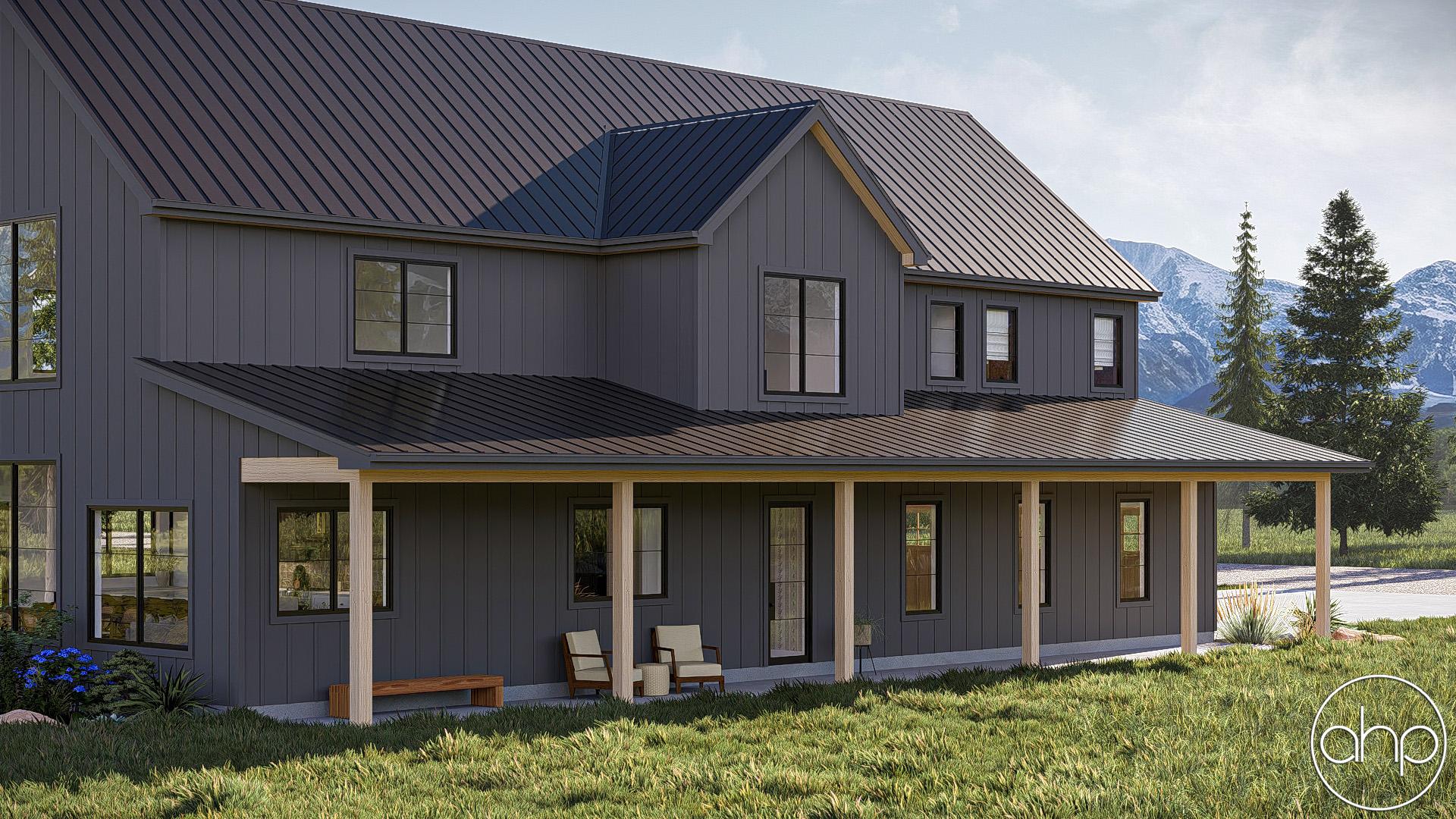

A generous covered patio extends your living space outdoors, offering the perfect spot to relax or host guests. The oversized garage adds valuable versatility, whether you need extra room for vehicles, storage, or a workshop.
With its striking barndominium style, efficient layout, and a great balance between shared and private spaces, this house plan is a standout choice for anyone looking to build a unique and functional home.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 3 |
| Bathrooms | 3 |
| Garage Bays | 4 |
| Square Footage Breakdown | |
| Main Level | 1355 Sq Ft |
| Second Level | 1304 Sq Ft |
| Total Finished Area | 2659 Sq Ft |
| Garage | 1400 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 1120 Sq Ft |
| Exterior Dimensions | |
| Width | 56' 0" |
| Depth | 70' 0" |
| Ridge Height | 33' 8" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x6 |
| Roof Pitches | Primary 10/12, Secondary 3/12 |
| Main Level Ceiling Height | 10' |
| Second Level Ceiling Height | 9' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
