Modern Style A-Frame Cabin Plan w/ 2 Story Great Room

Spearfish - 30170

Sq Ft
42' 0"
48' 0"

Plan Video

Floor Plan Images

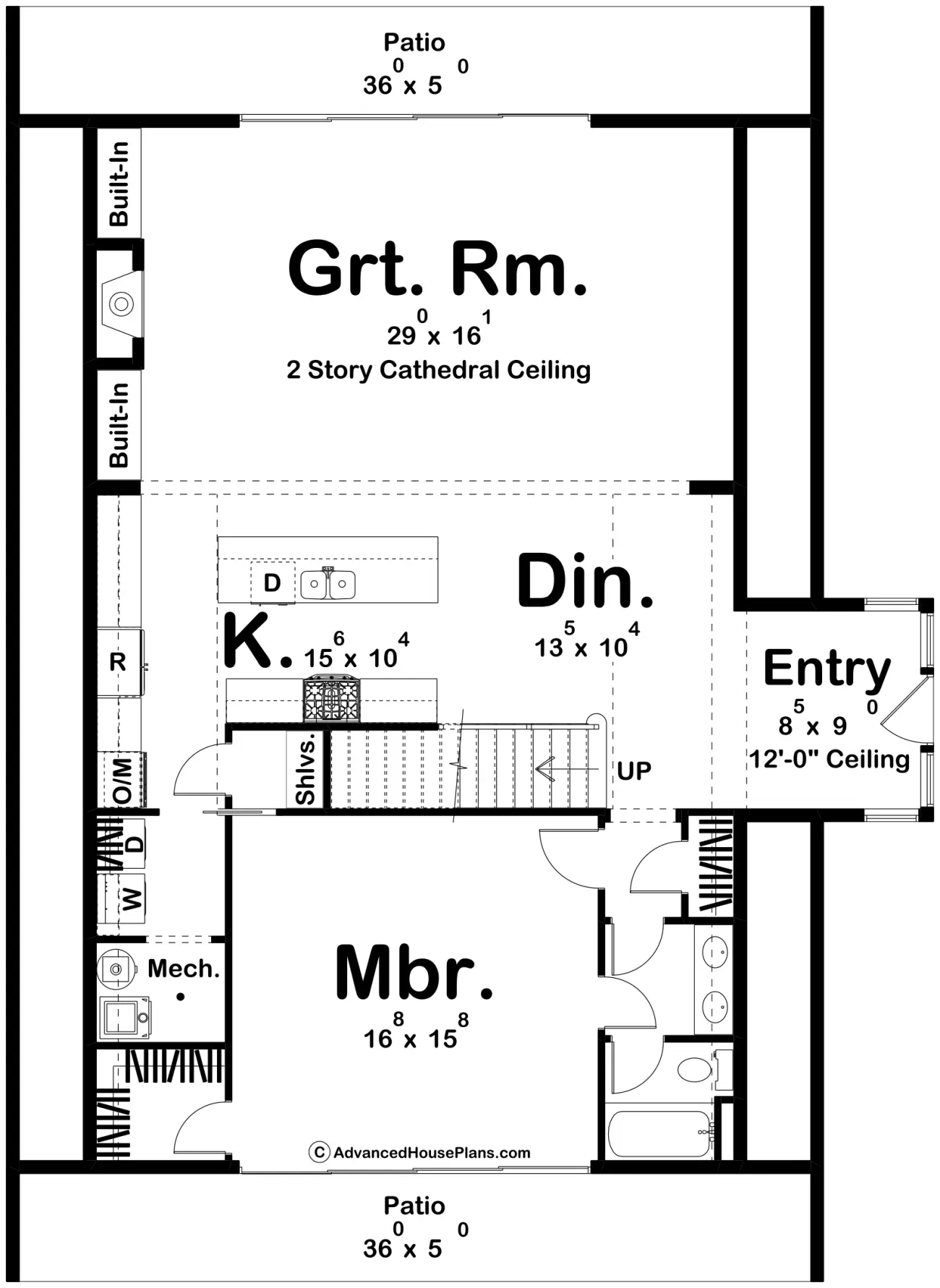

Main Level


Second Level


Plan Description

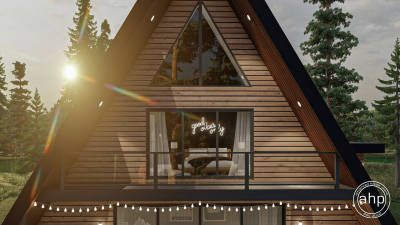

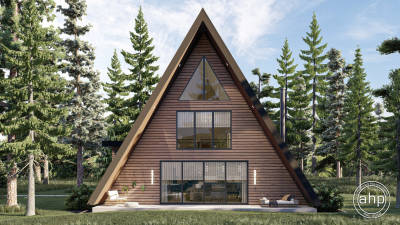

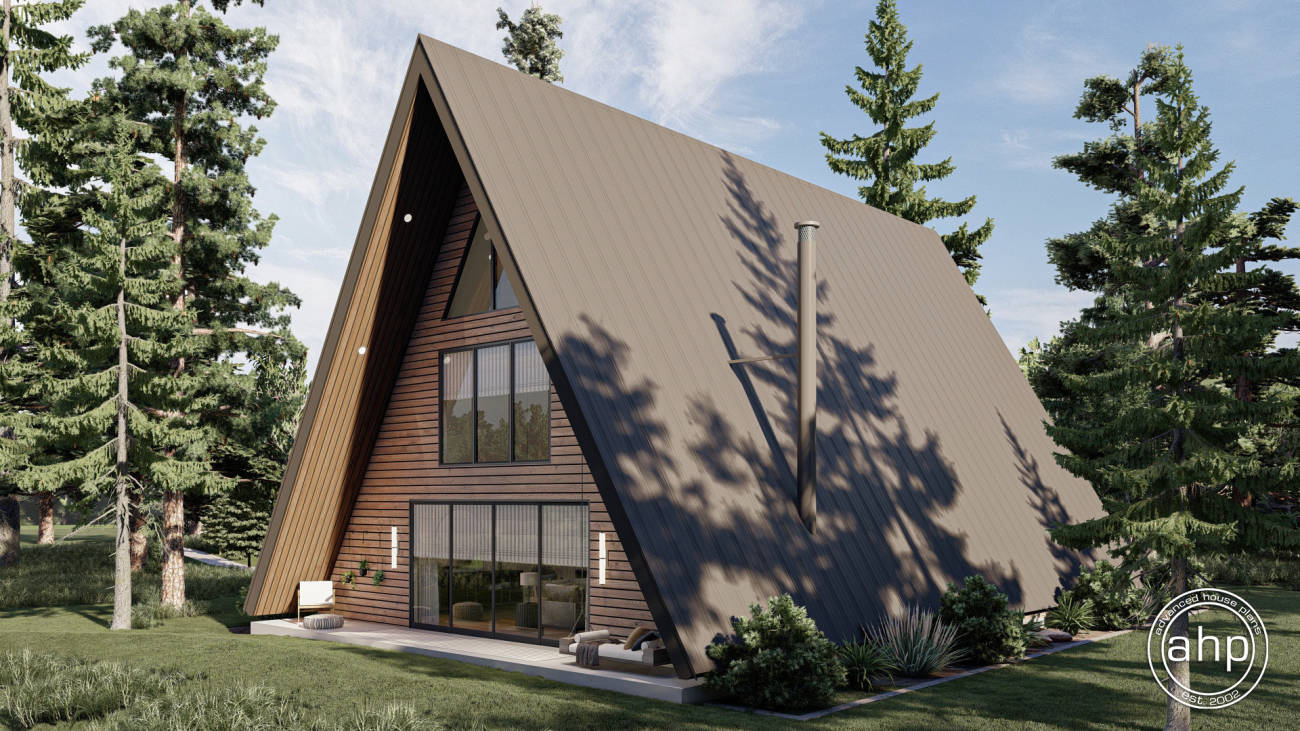

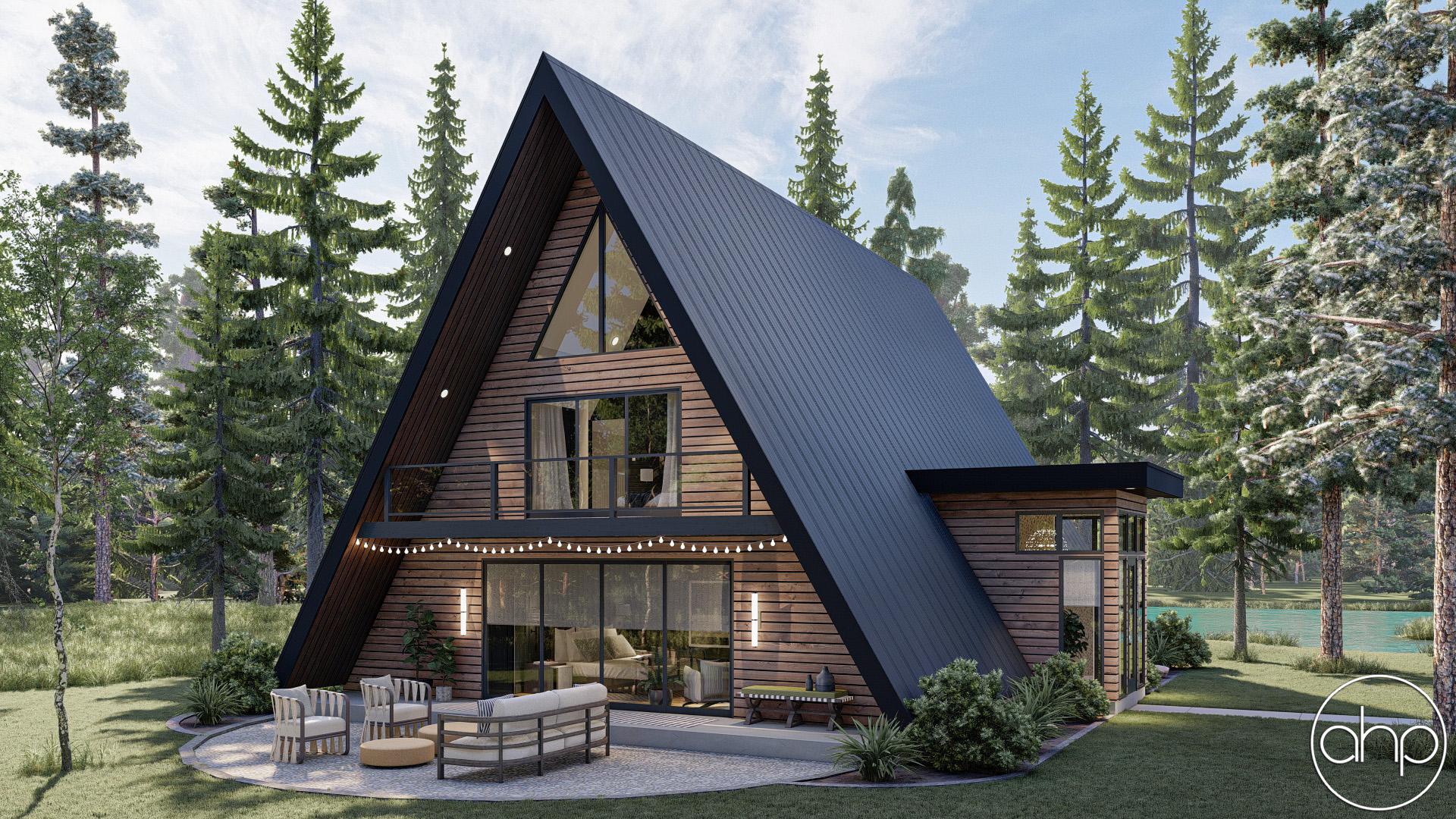

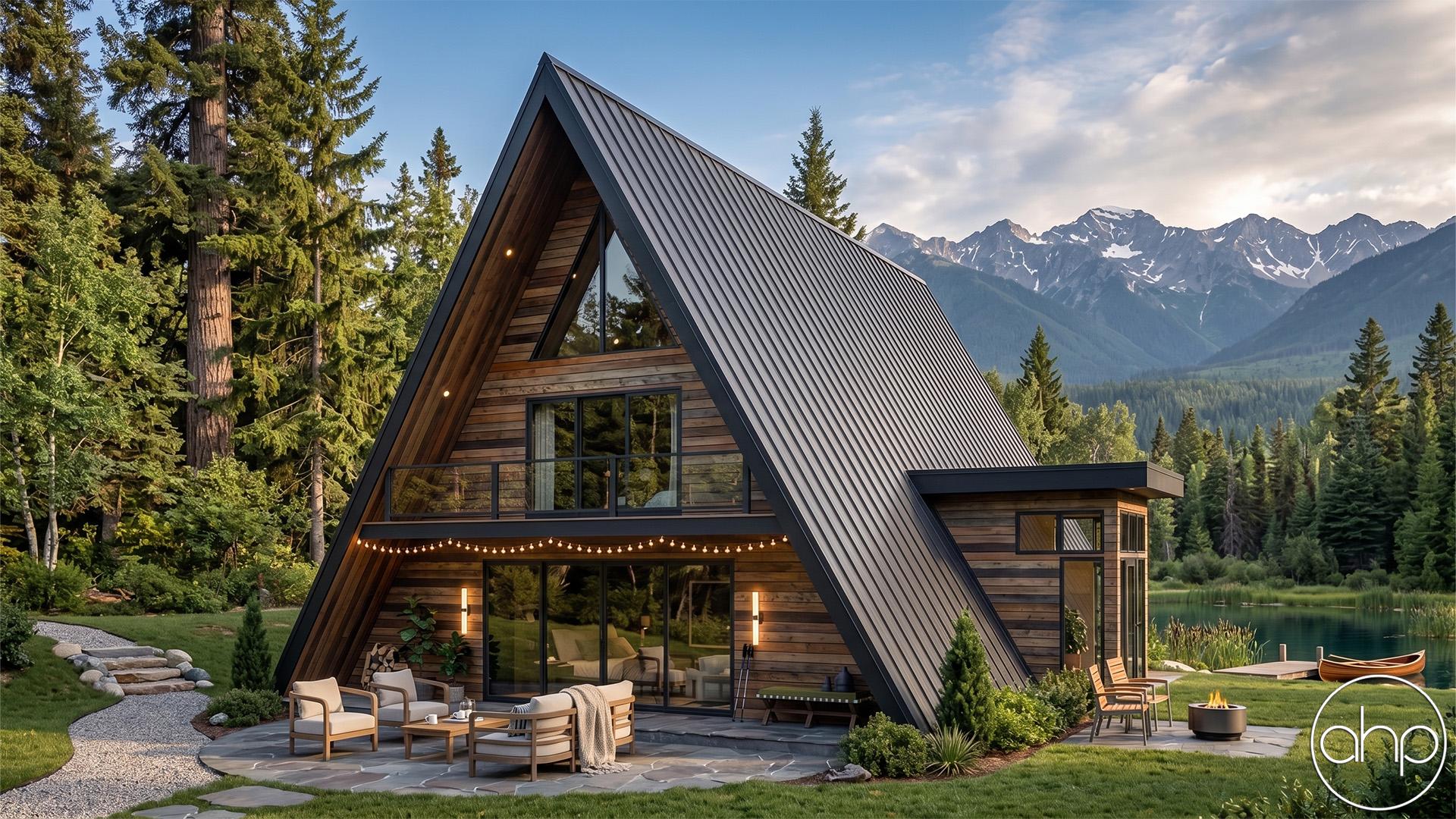

The Spearfish plan is a stunning Modern A-Frame Cabin Plan. The exterior is sure to impress with its cedar siding and large metal roof. One step inside the home and you'll be impressed with the open layout.

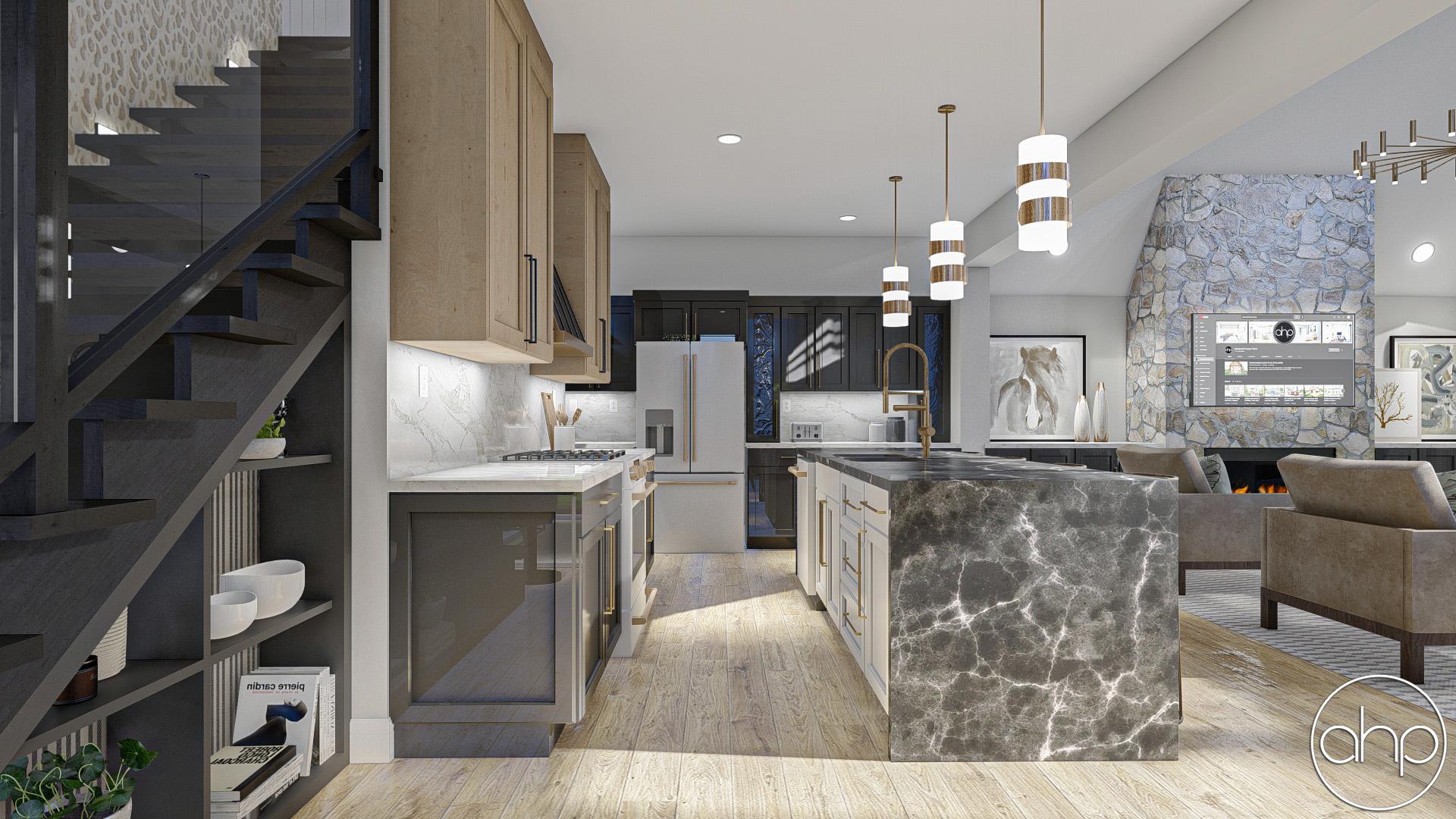

The kitchen includes a pantry, a large island with a snack bar, and ample counter space. The great room lies under a soaring 2 story cathedral ceiling and is warmed by a fireplace that is flanked by built-in bookshelves. A large quad sliding glass door leads from the great room to the rear of the home.

The master suite is conveniently located on the main floor and includes its own large quad sliding glass door to the front of the home. The master bathroom includes his/her vanities.

The second floor adds an additional bedroom and a wonderful loft area. The bedroom feels huge with its tall cathedral ceiling.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 2
Bathrooms 2
Square Footage
Main Level 1498 Sq. Ft.
Second Level 509 Sq. Ft.
Total Finished Area 2007 Sq. Ft.
Exterior Dimensions
Width 42' 0"
Depth 48' 0"
Ridge Height
Calculated from main floor line
34' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Main Wall Height
Second Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at sales@advancedhouseplans.com
