Spanish Style ADU House Plan

San Angelo - 30545

834
Sq Ft
1
Beds
1
Baths
0
Bays
36' 0"
Wide
25' 0"
Deep

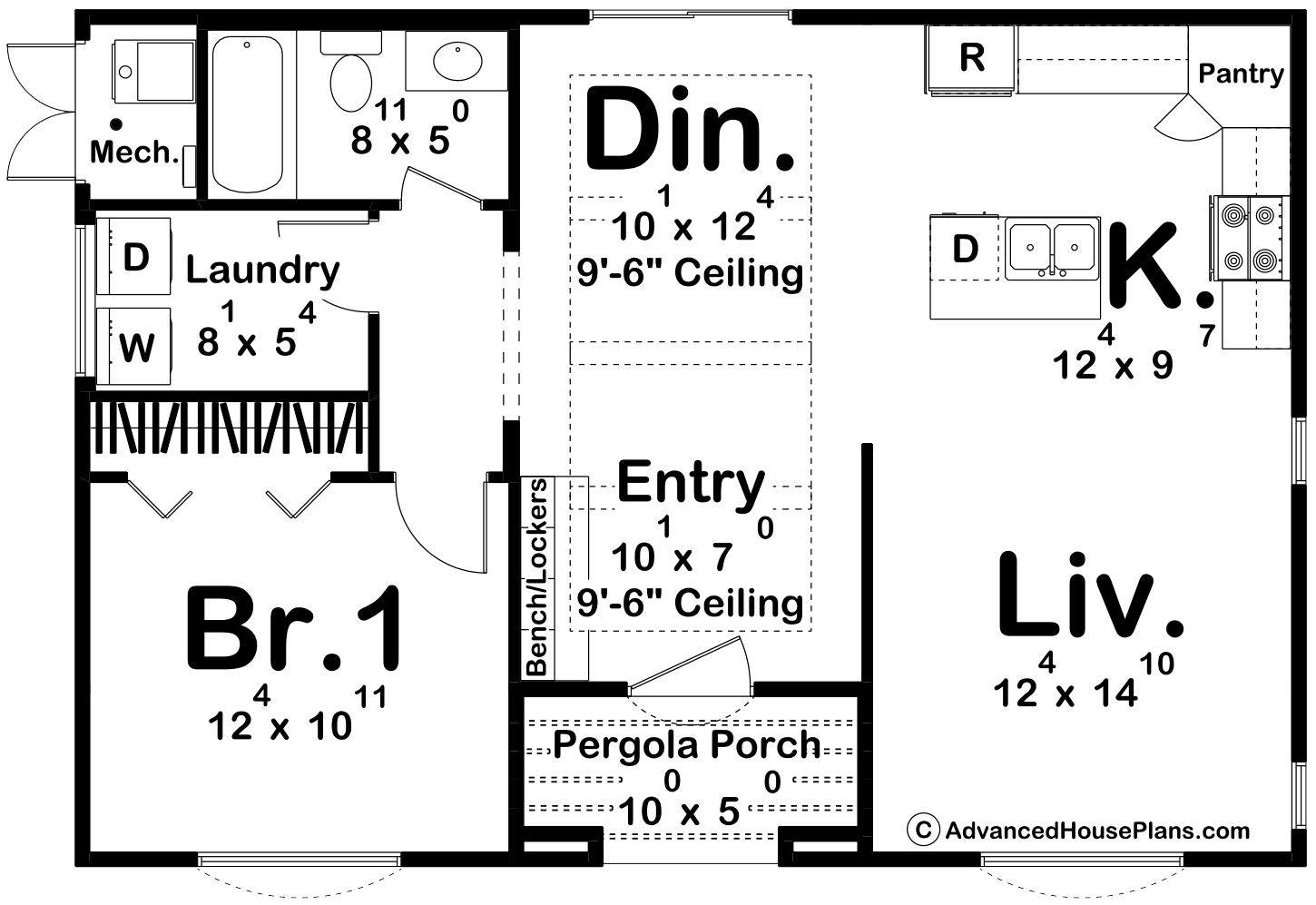

Floor Plan Images

Main Level

San Angelo

Plan Description

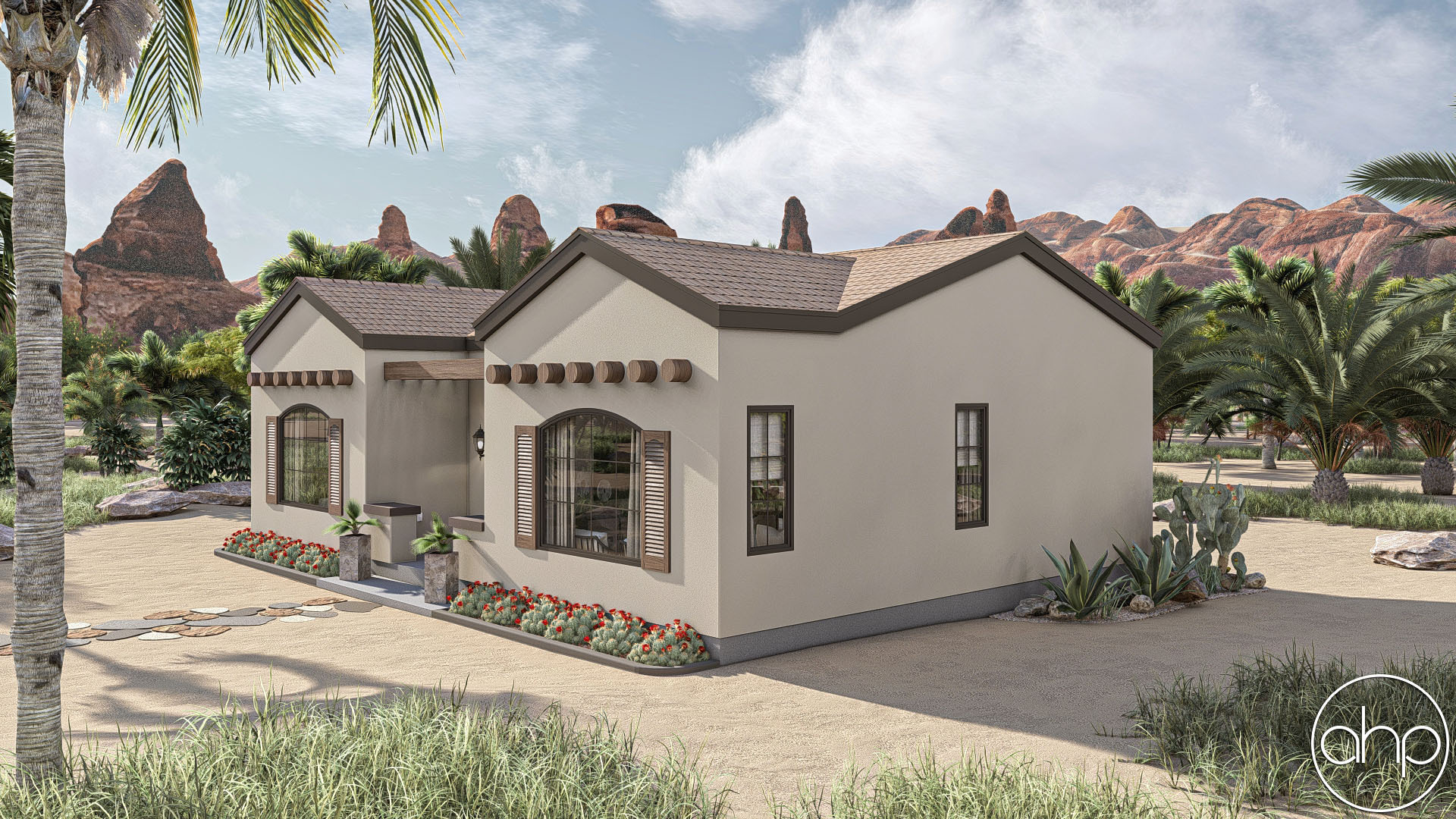

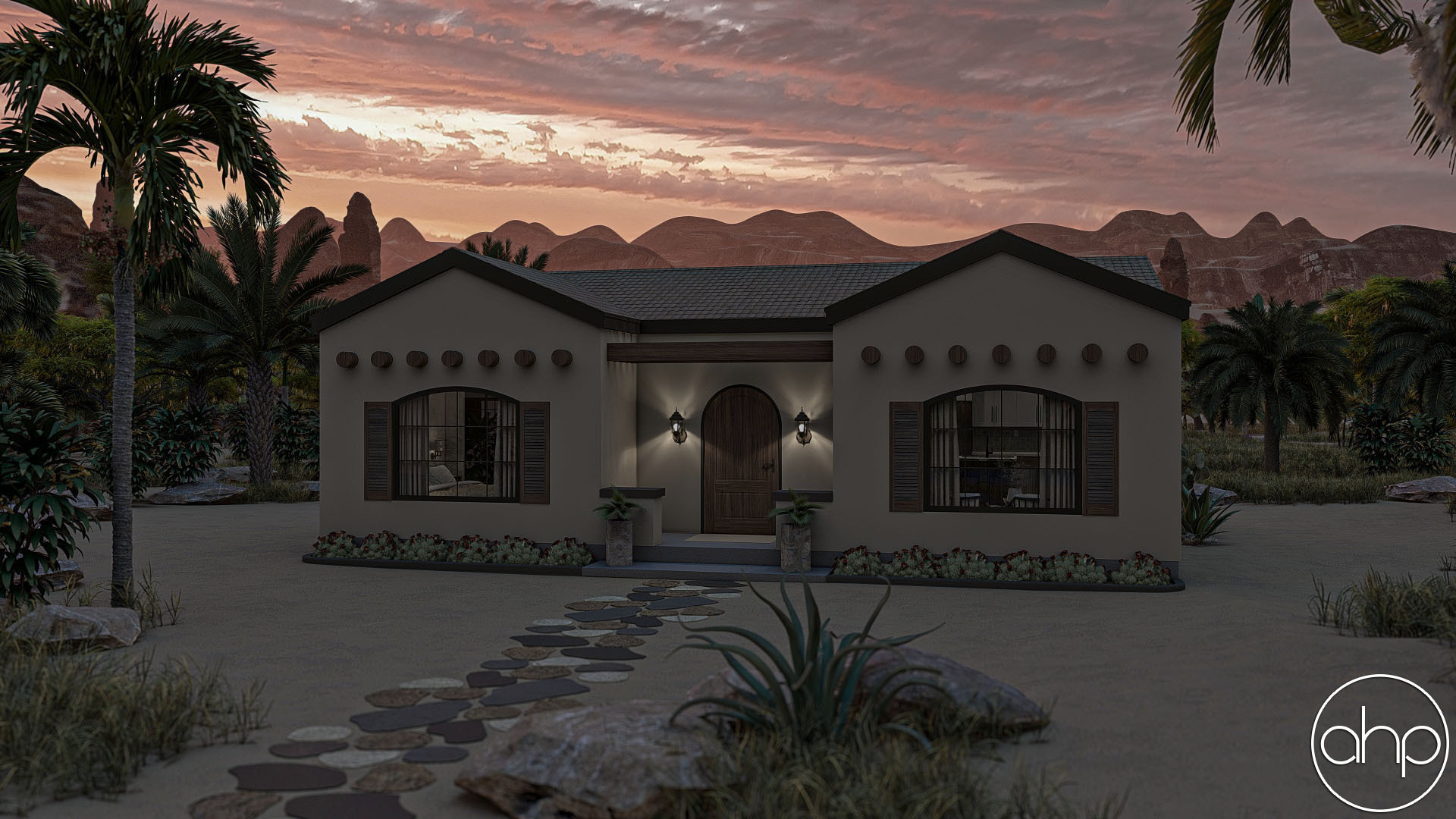

This charming Spanish-style Accessory Dwelling Unit (ADU) exudes timeless elegance and functional design. The exterior is adorned with classic stucco walls, enhanced by rustic wood details that add a touch of warmth and authenticity. The roof features traditional clay tiles, creating a cohesive and inviting aesthetic. A small front porch welcomes you, perfect for enjoying a morning coffee or evening relaxation.

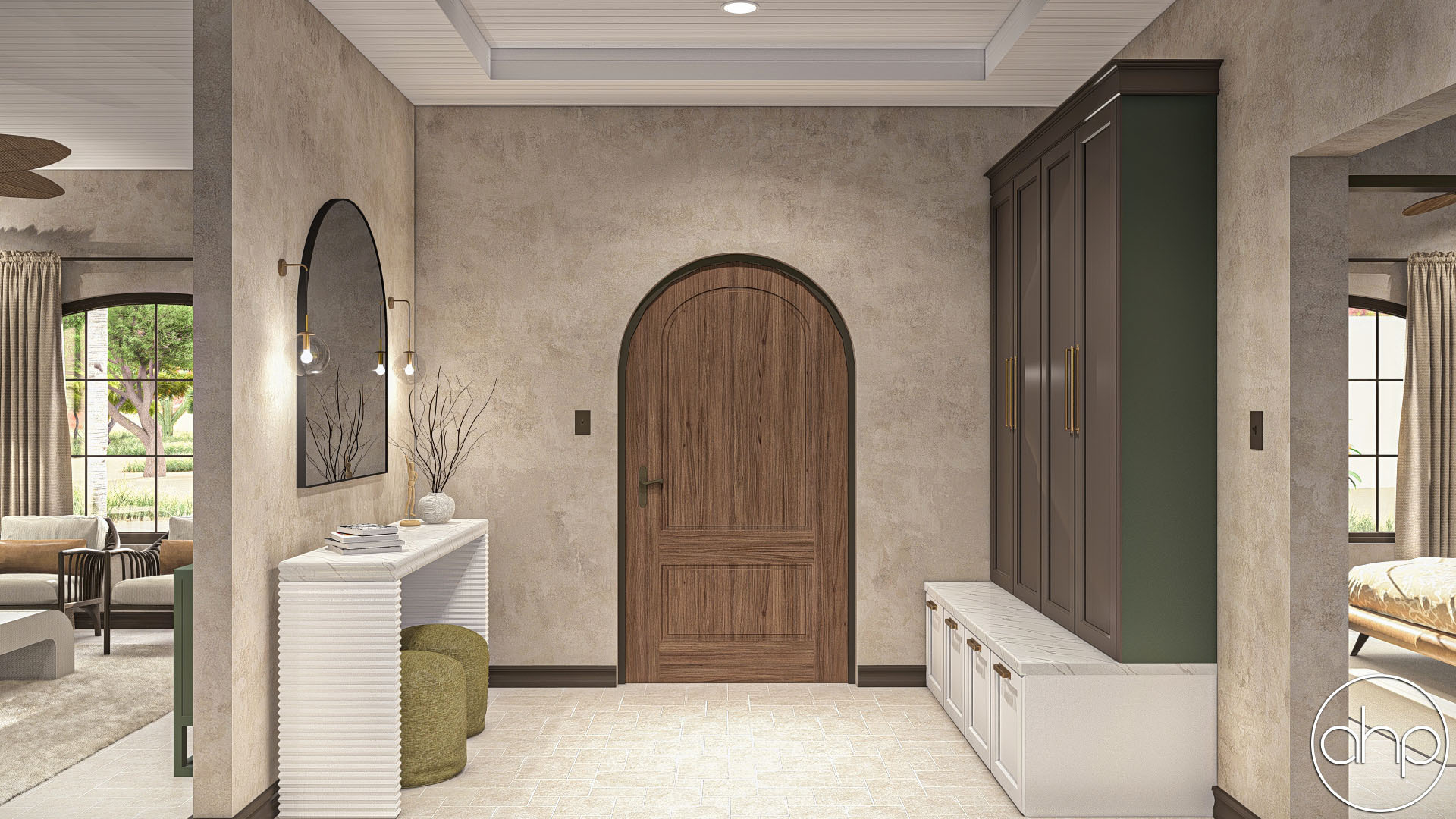

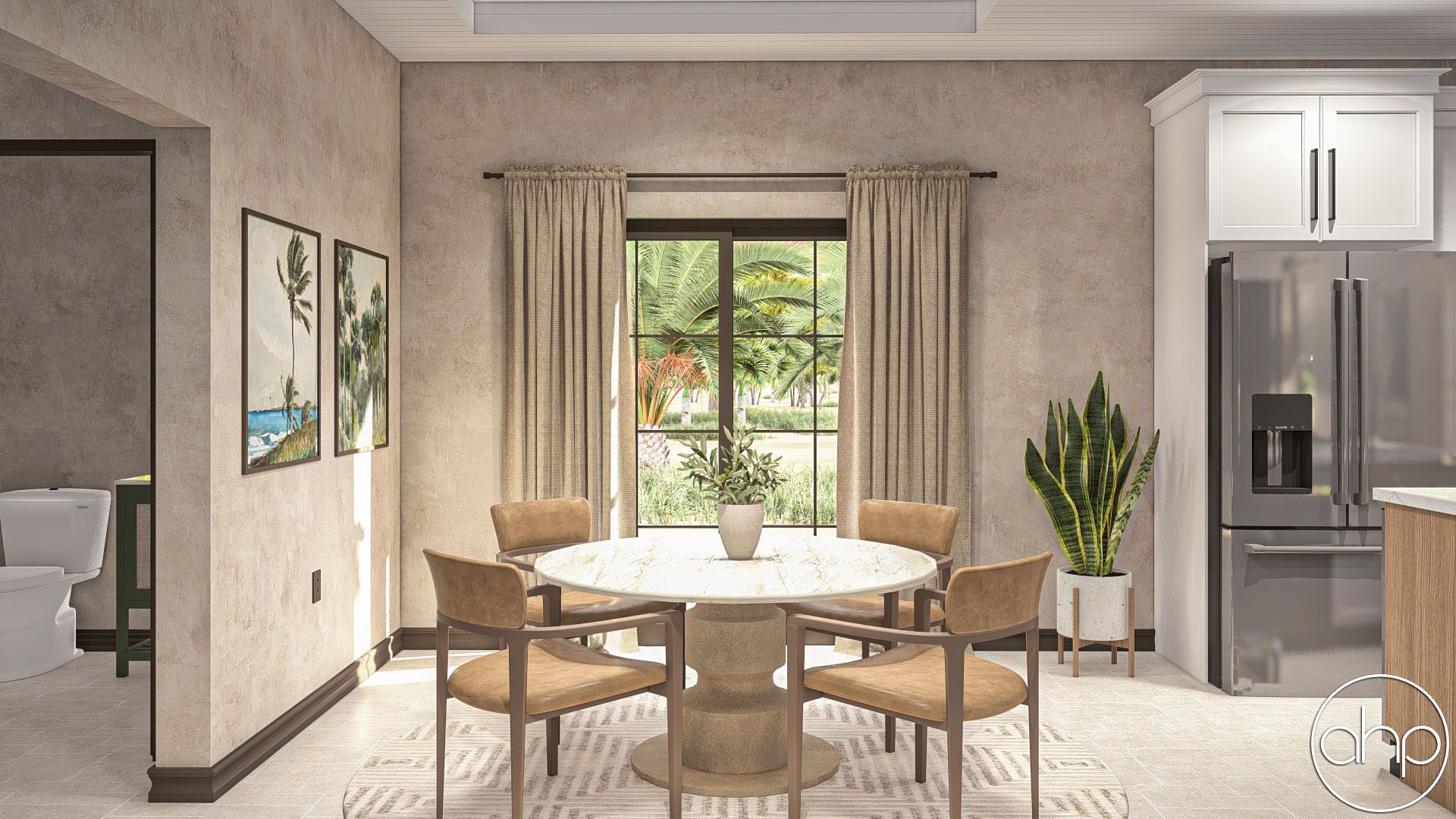

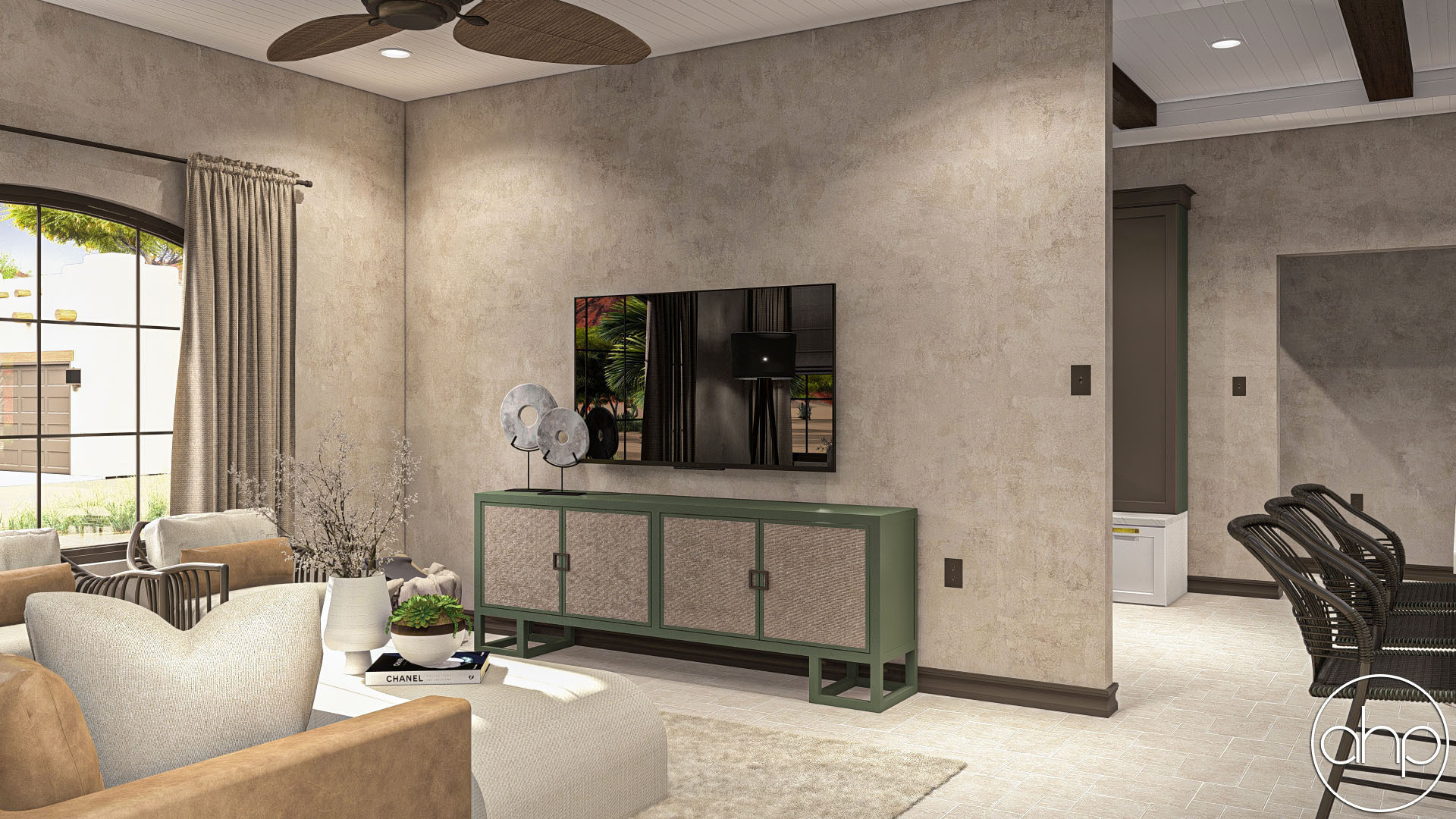

As you step inside, a practical drop zone at the entryway provides a convenient space for coats, shoes, and bags. This area seamlessly leads into a cozy dinette, ideal for intimate meals. The adjacent kitchen is efficiently designed with modern amenities and ample counter space, making meal preparation a breeze. The open-concept living room offers a comfortable area for relaxation and entertainment, bathed in natural light from thoughtfully placed windows.

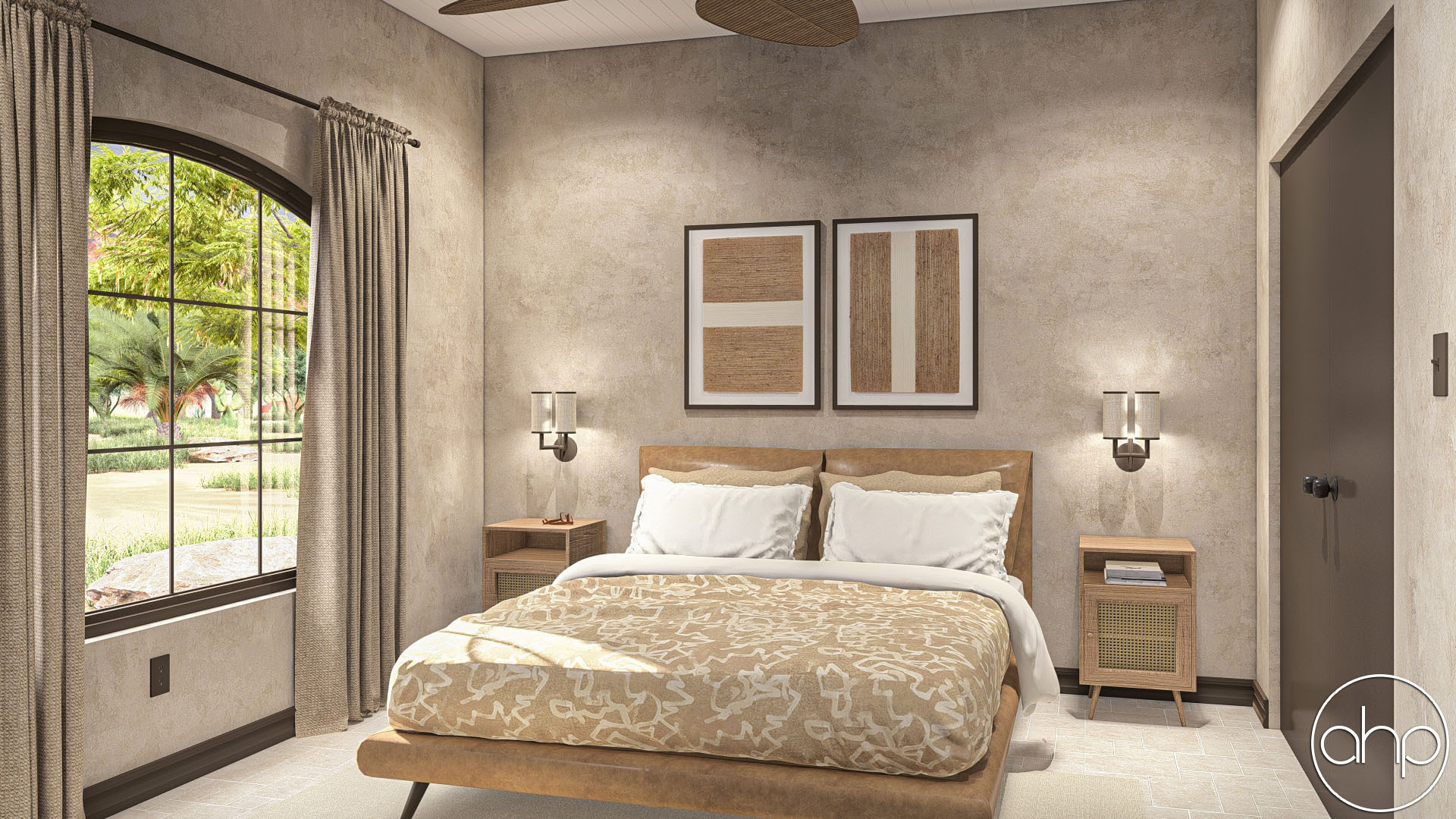

The unit includes one well-appointed bedroom, offering a tranquil retreat for rest and relaxation. The bathroom is elegantly designed, combining functionality with style. Additionally, the full-size laundry room ensures convenience and ease for day-to-day chores.

This versatile space is perfect as a guest suite or an in-law suite, providing comfort, privacy, and a touch of Spanish charm for your visitors or loved ones.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 1
Bathrooms 1
Square Footage
Main Level 834 Sq. Ft.
Covered Area 50 Sq. Ft.
Total Finished Area 834 Sq. Ft.
Exterior Dimensions
Width 36 ' 0"
Depth 25 ' 0"
Ridge Height
Calculated from main floor line
13 ' 3"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Slab
Exterior Wall Construction
2x4
Roof Pitches
Primary 4/12, Secondary 5/12
Main Wall Height
9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
