Modern Barndominium Style House Plan | Patton
Floor Plan Images
Plan Video Tour
Plan Description

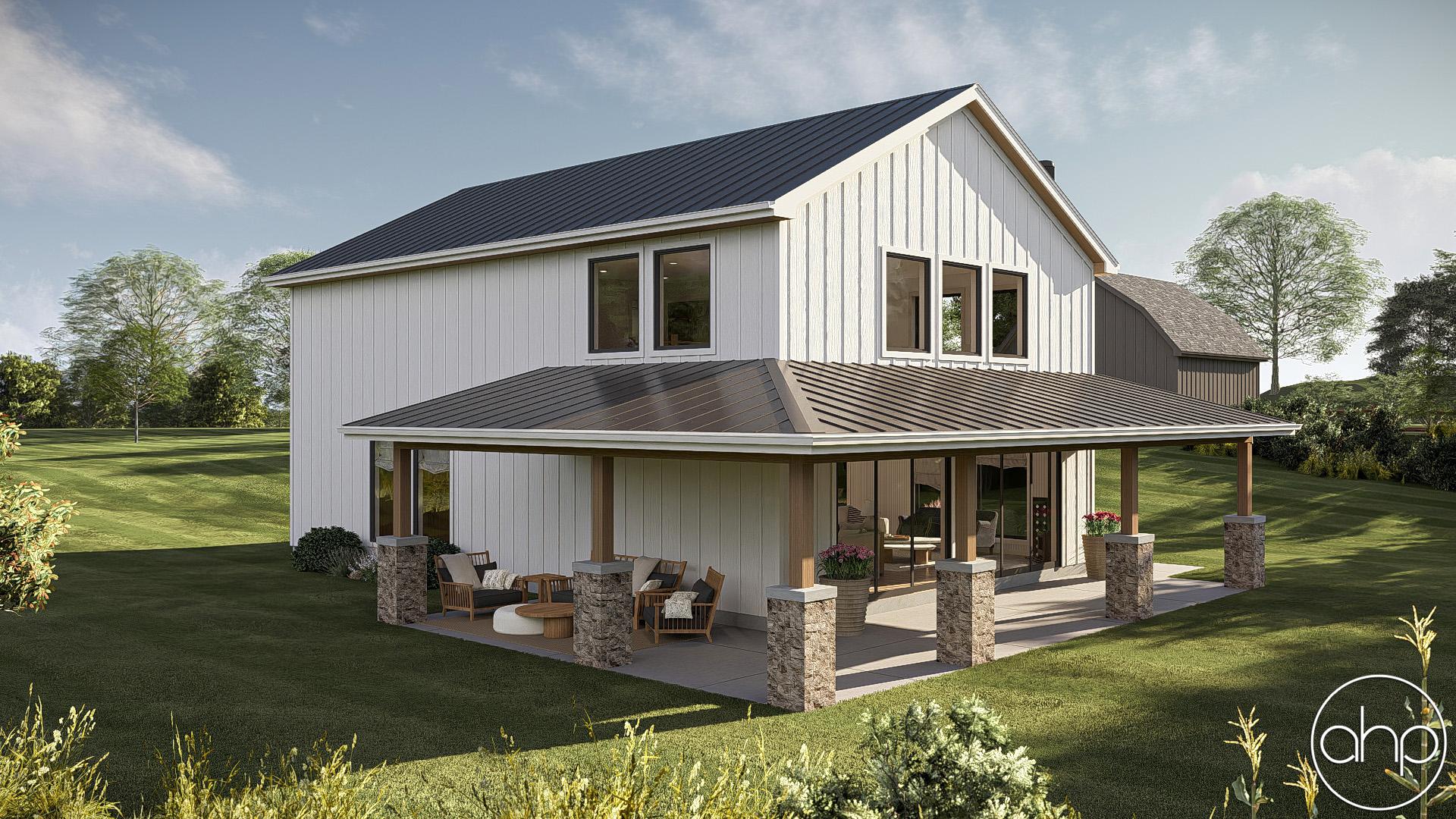

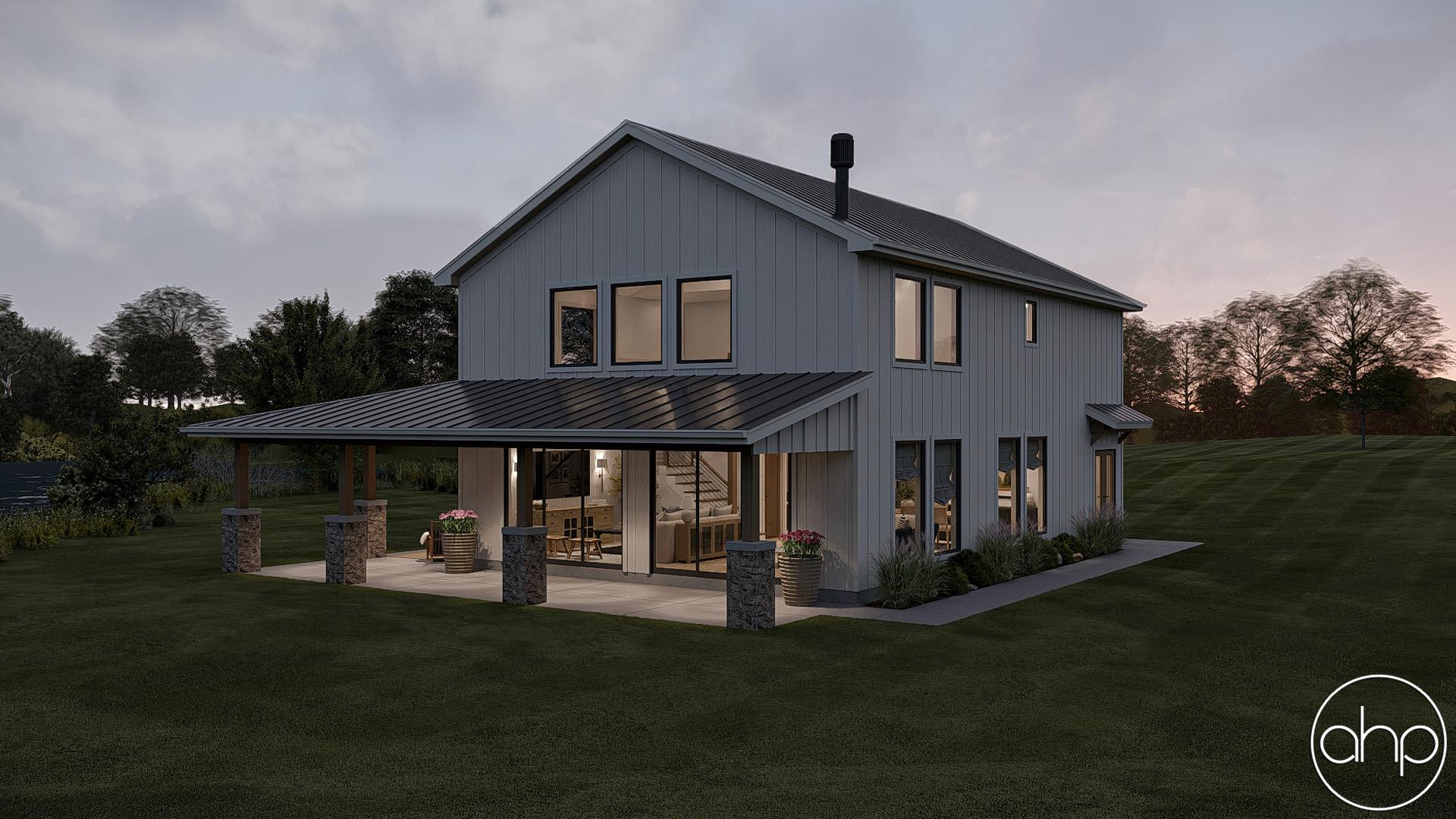

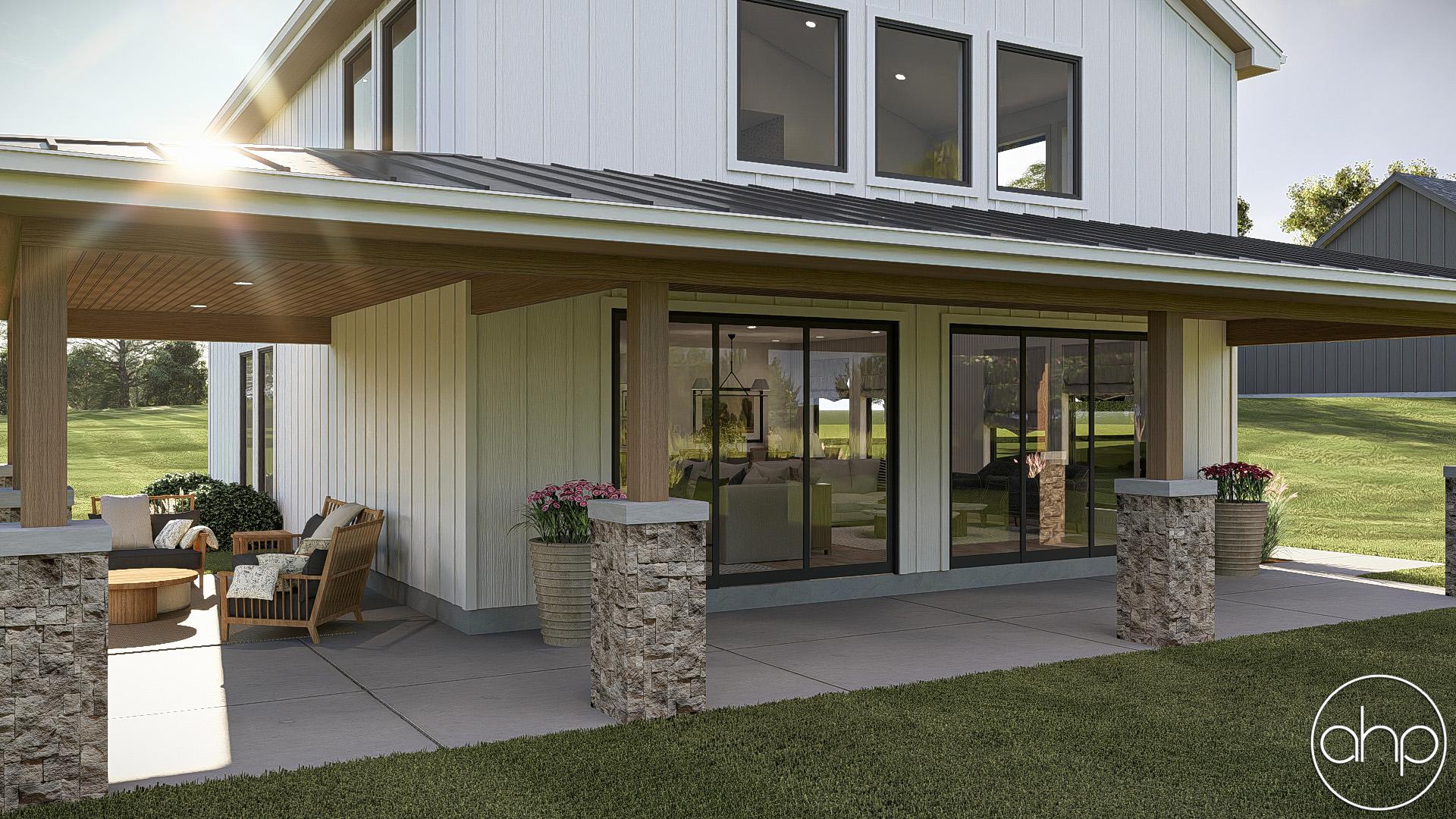

Step into this inviting 2-story barndominium, where wide-open spaces and thoughtful details create a home that feels both expansive and welcoming. From the moment you arrive, the wrap-around covered patio draws you in, offering an ideal spot for morning coffee, evening sunsets, or weekend gatherings with friends and family.

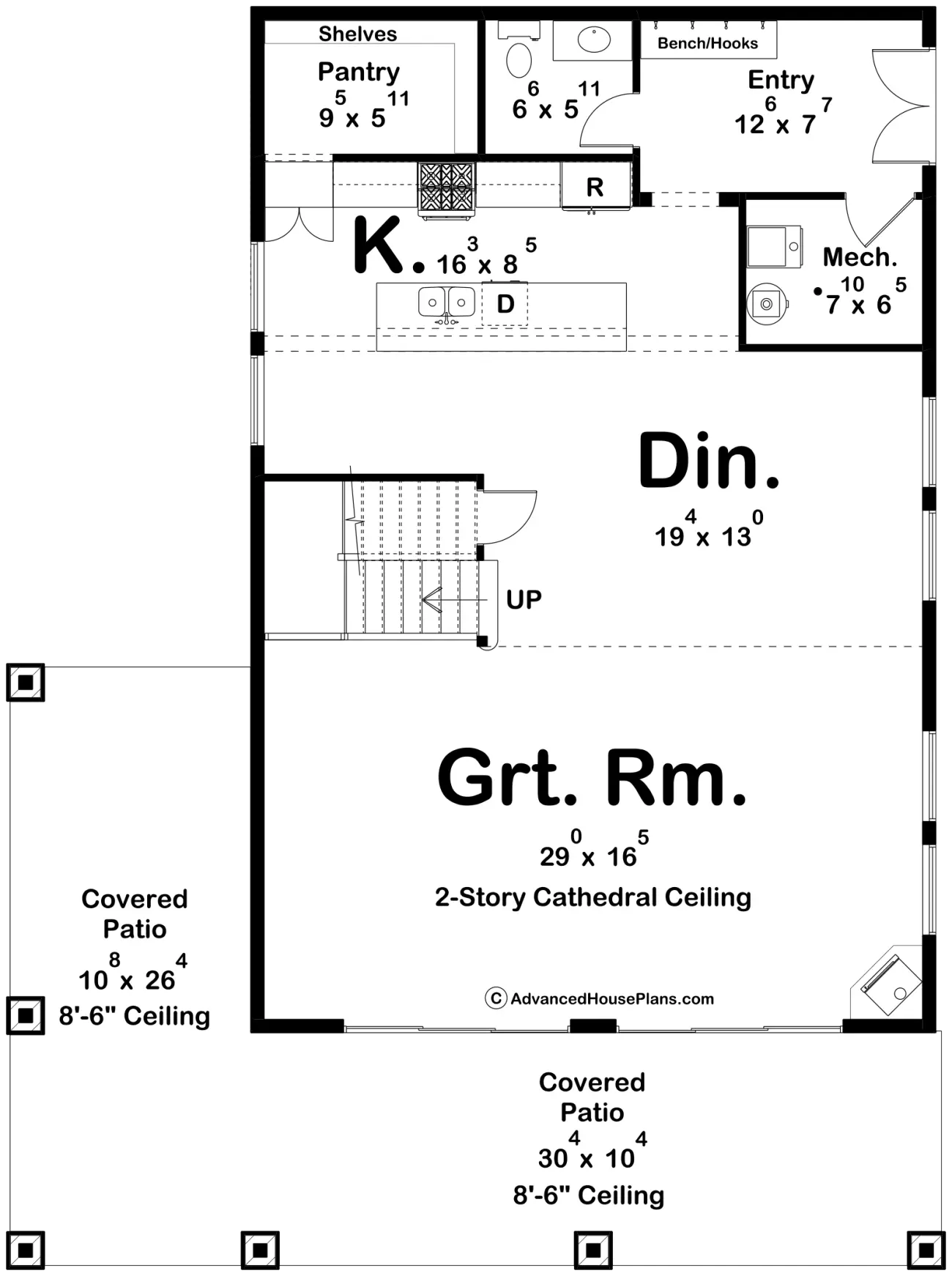

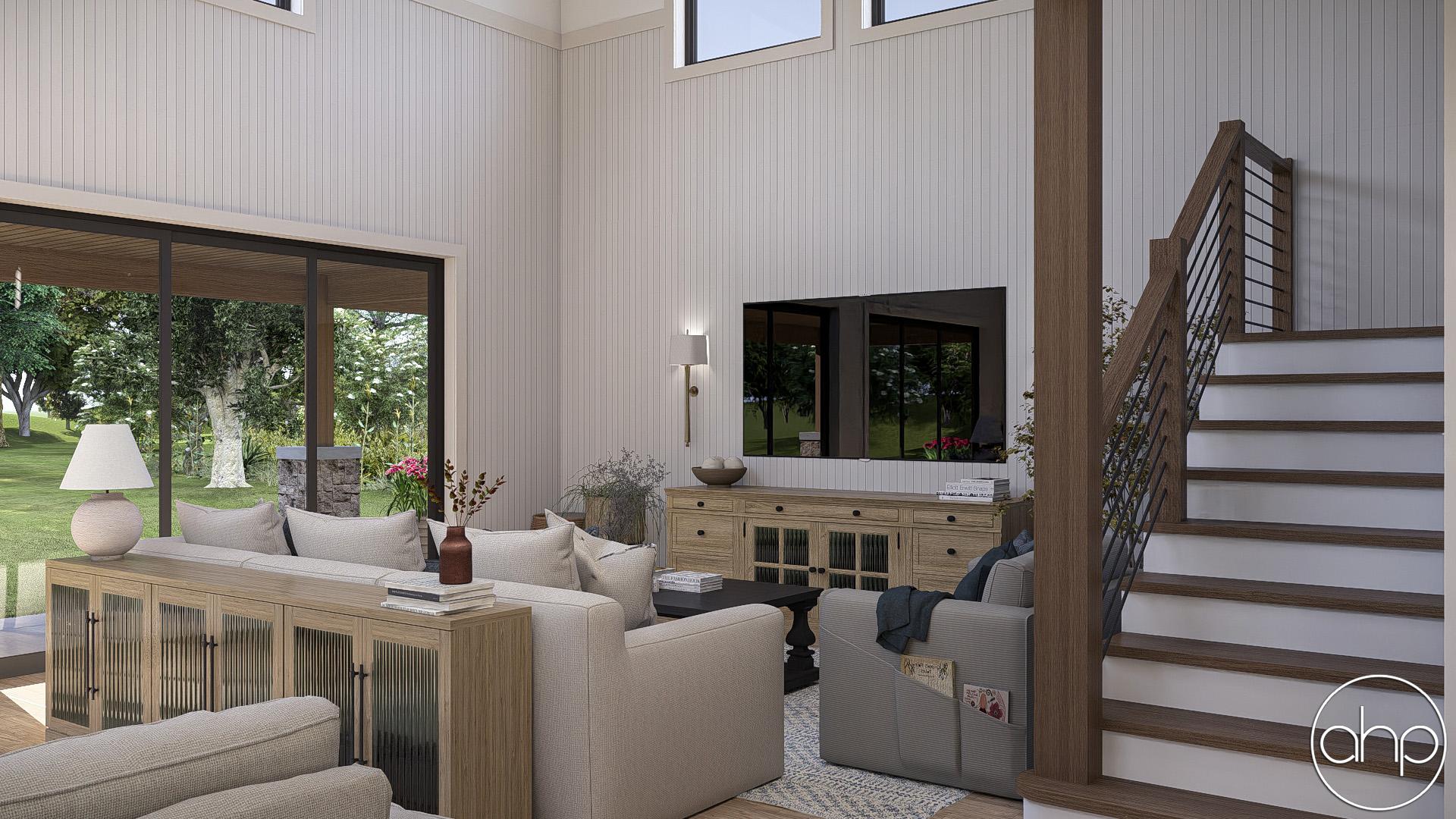

Upon entering, you're immediately welcomed into the heart of the home—the spacious kitchen, which flows seamlessly into a generously sized dining room ideal for hosting family meals or dinner parties. Beyond the dining area, the home opens up dramatically into a grand great room. This expansive space features a soaring cathedral ceiling and is filled with natural light thanks to abundant windows on both the main and upper levels. An open staircase and loft overlook enhance the home's airy, open atmosphere.

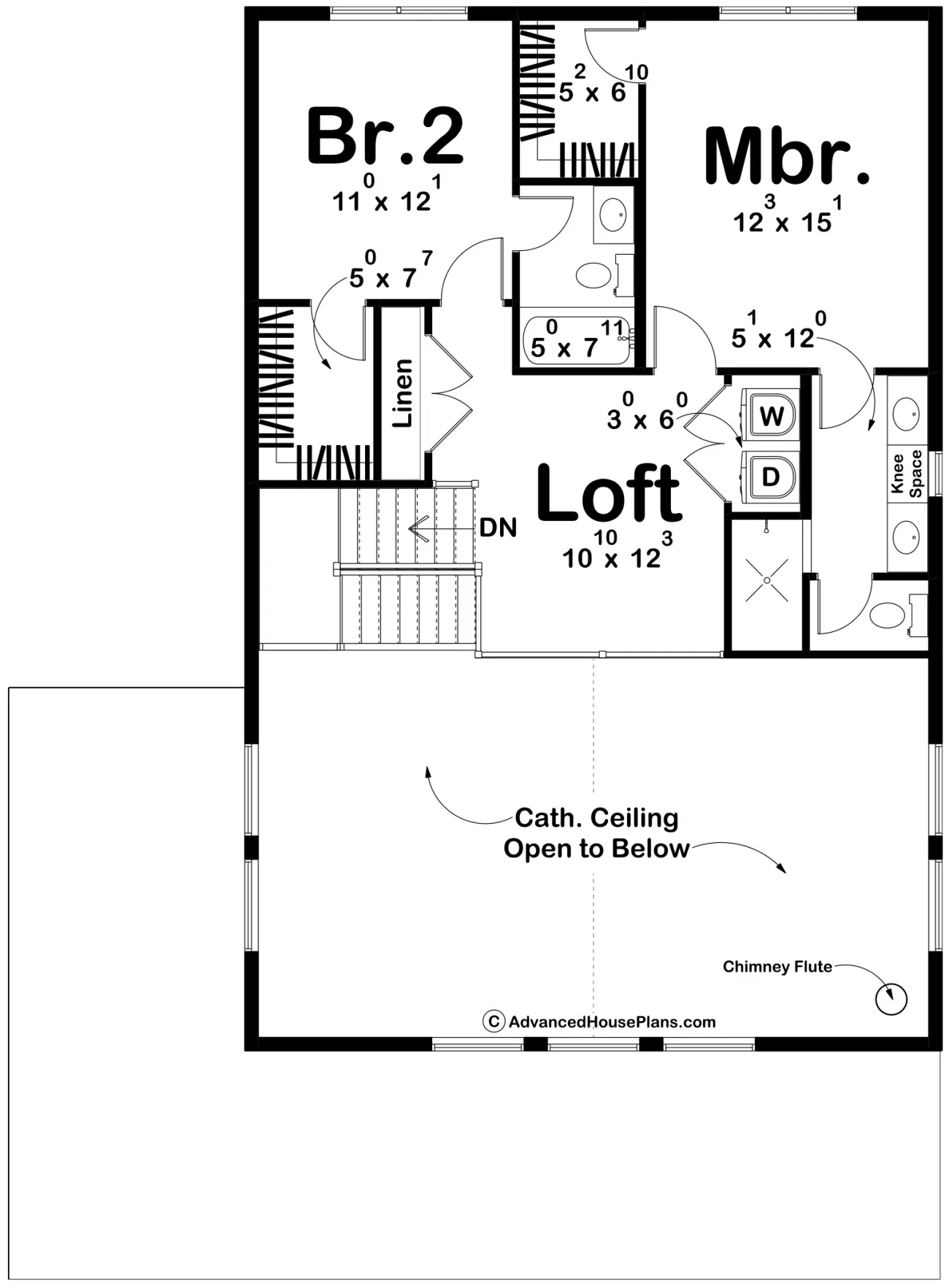

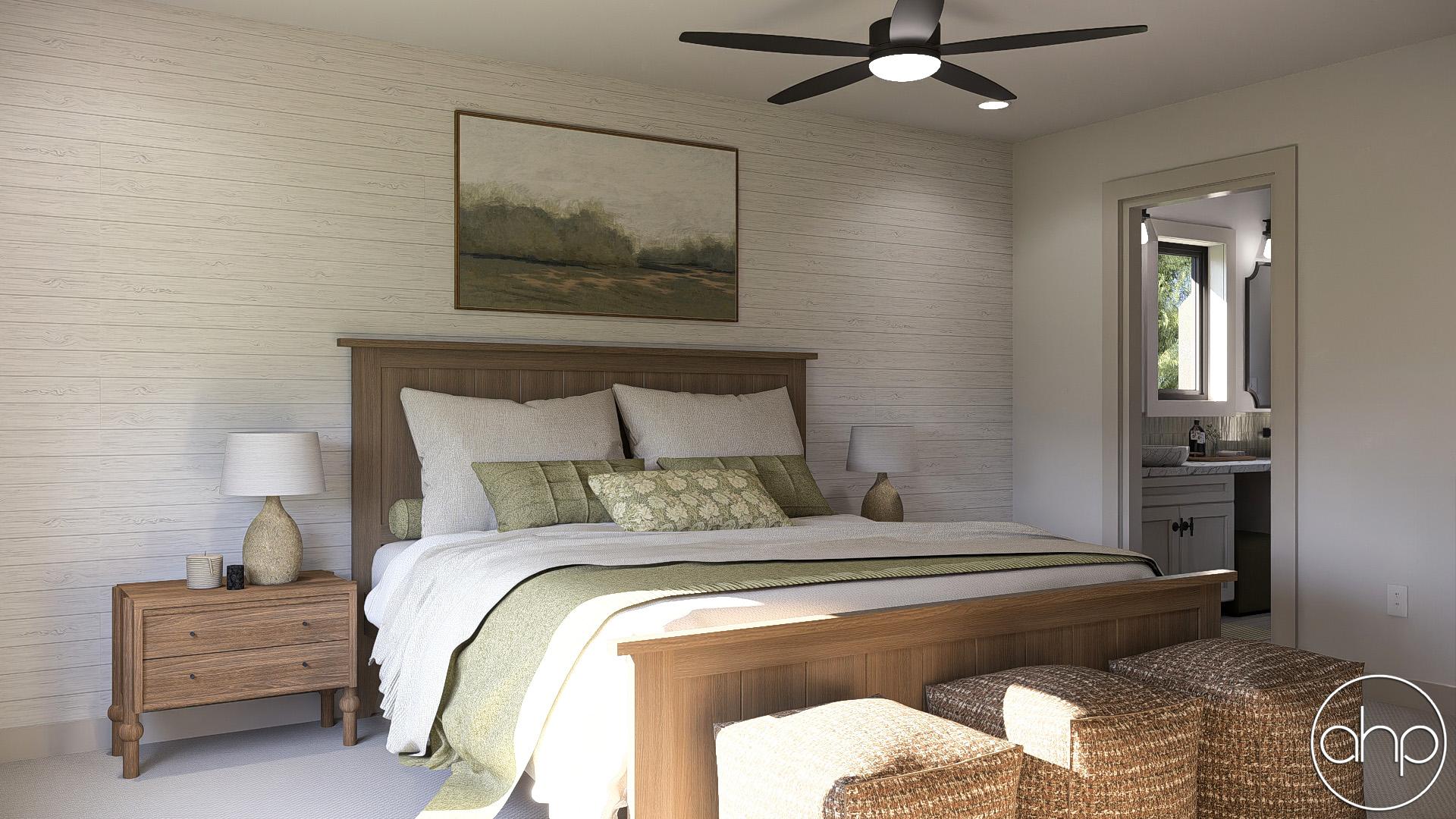

Upstairs, the private living quarters include a master suite and a guest bedroom, each featuring their own ensuite bathrooms and walk-in closets, providing both comfort and convenience.
With its generous layout and thoughtful flow, this home brings a sense of calm, space, and effortless style to everyday living.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 2 |
| Bathrooms | 3 |
| Garage Bays | 0 |
| Square Footage Breakdown | |
| Main Level | 1300 Sq Ft |
| Second Level | 776 Sq Ft |
| Total Finished Area | 2076 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 603 Sq Ft |
| Exterior Dimensions | |
| Width | 41' 0" |
| Depth | 55' 4" |
| Ridge Height | 27' 0" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x6 |
| Roof Construction Method | Trusses |
| Floor Construction Method | Floor Trusses |
| Roof Pitches | Primary 6/12, Secondary 3/12 |
| Main Level Ceiling Height | 9' |
| Second Level Ceiling Height | 8' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
Upgrade Your Plan With Add-ons
Note: Add-ons may result in a longer turn-around time.
Note: The material list is for estimation purposes only.
