29030 | McKinley


2 Story

2580 Sq. Ft.

4 Beds

3 Baths

3 Car
Did you know you can make alterations to this plan?

Floor Plans

McKinley Floor PlanMcKinley Floor Plan

Plan Description

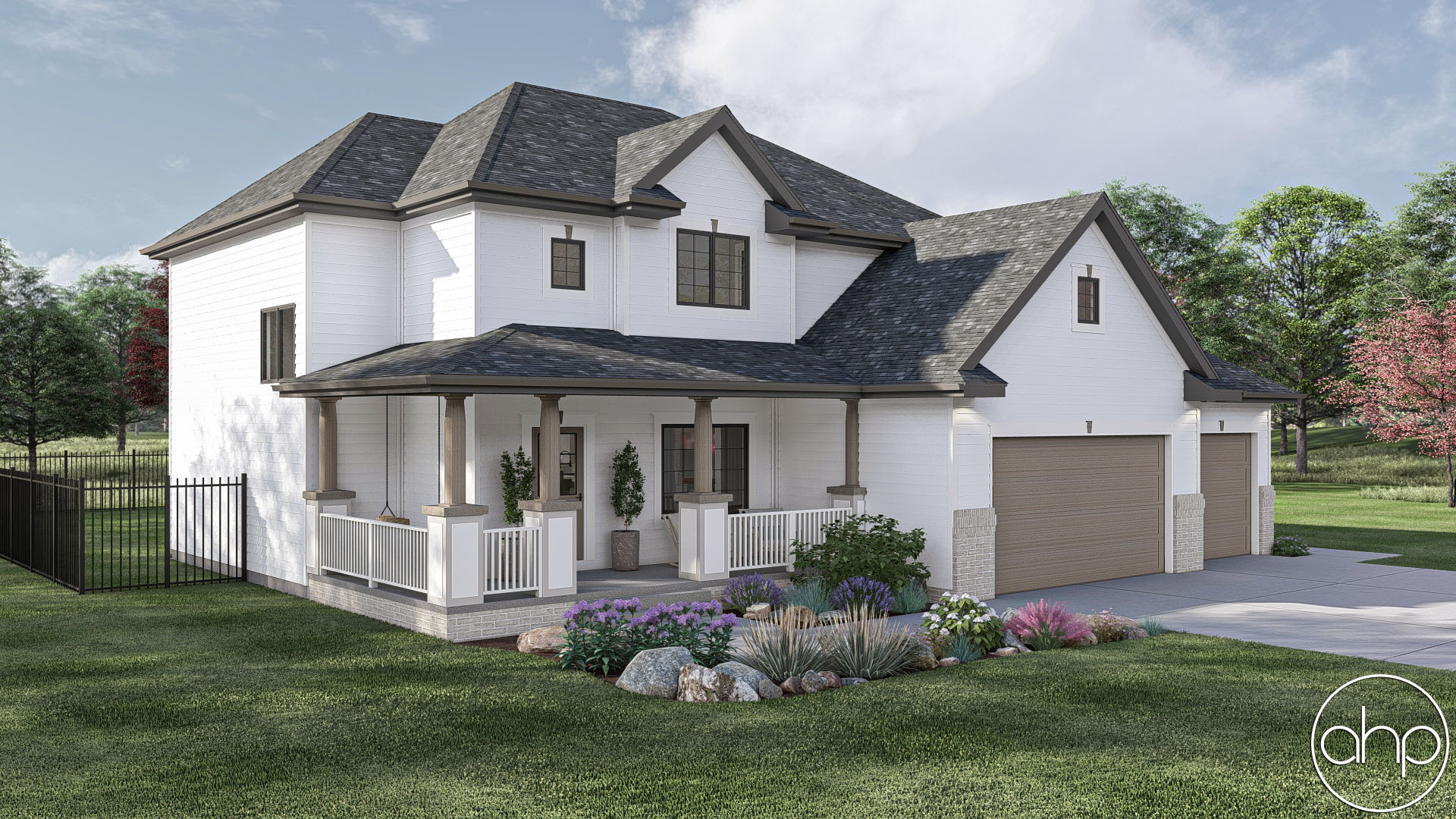

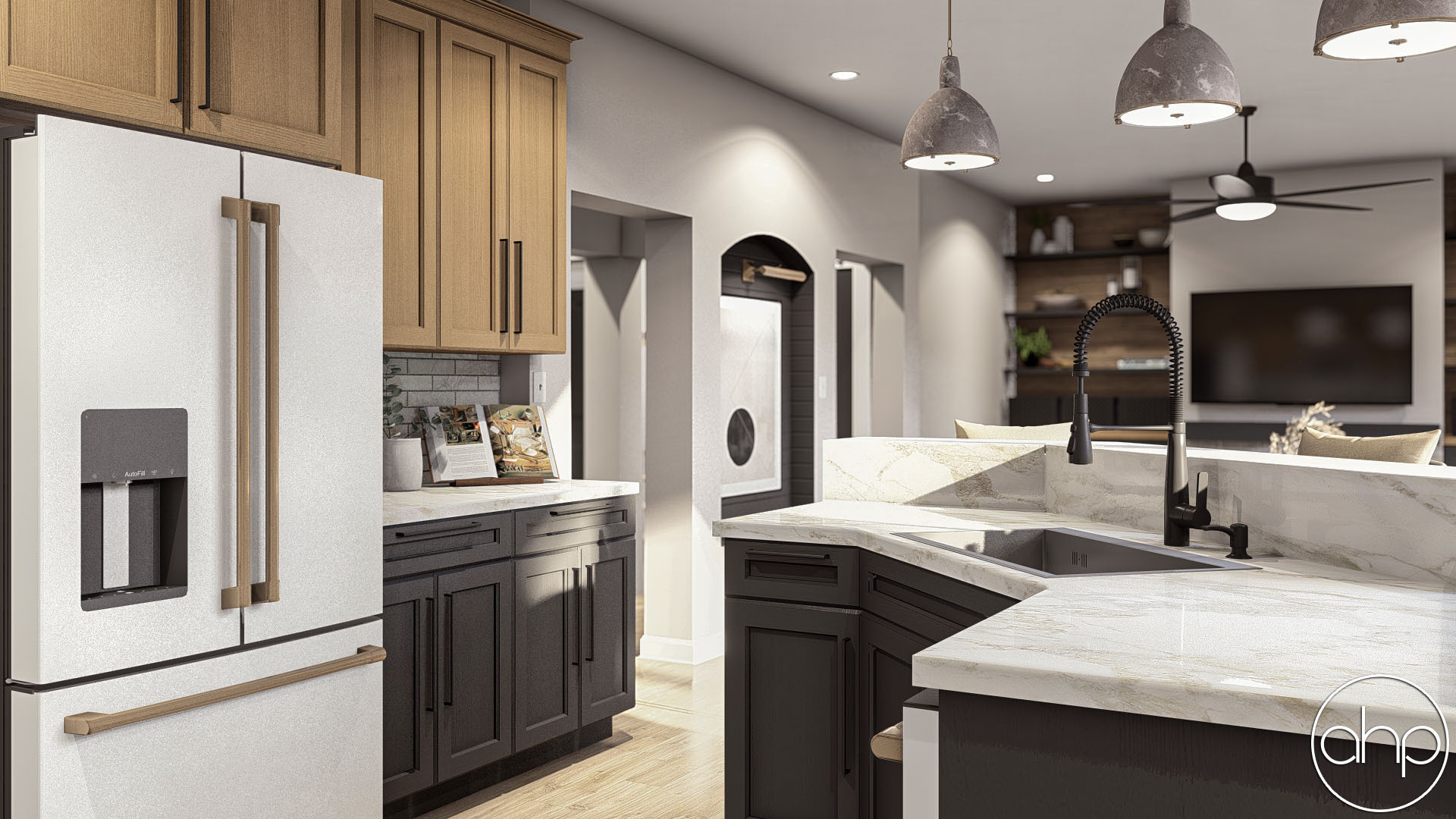

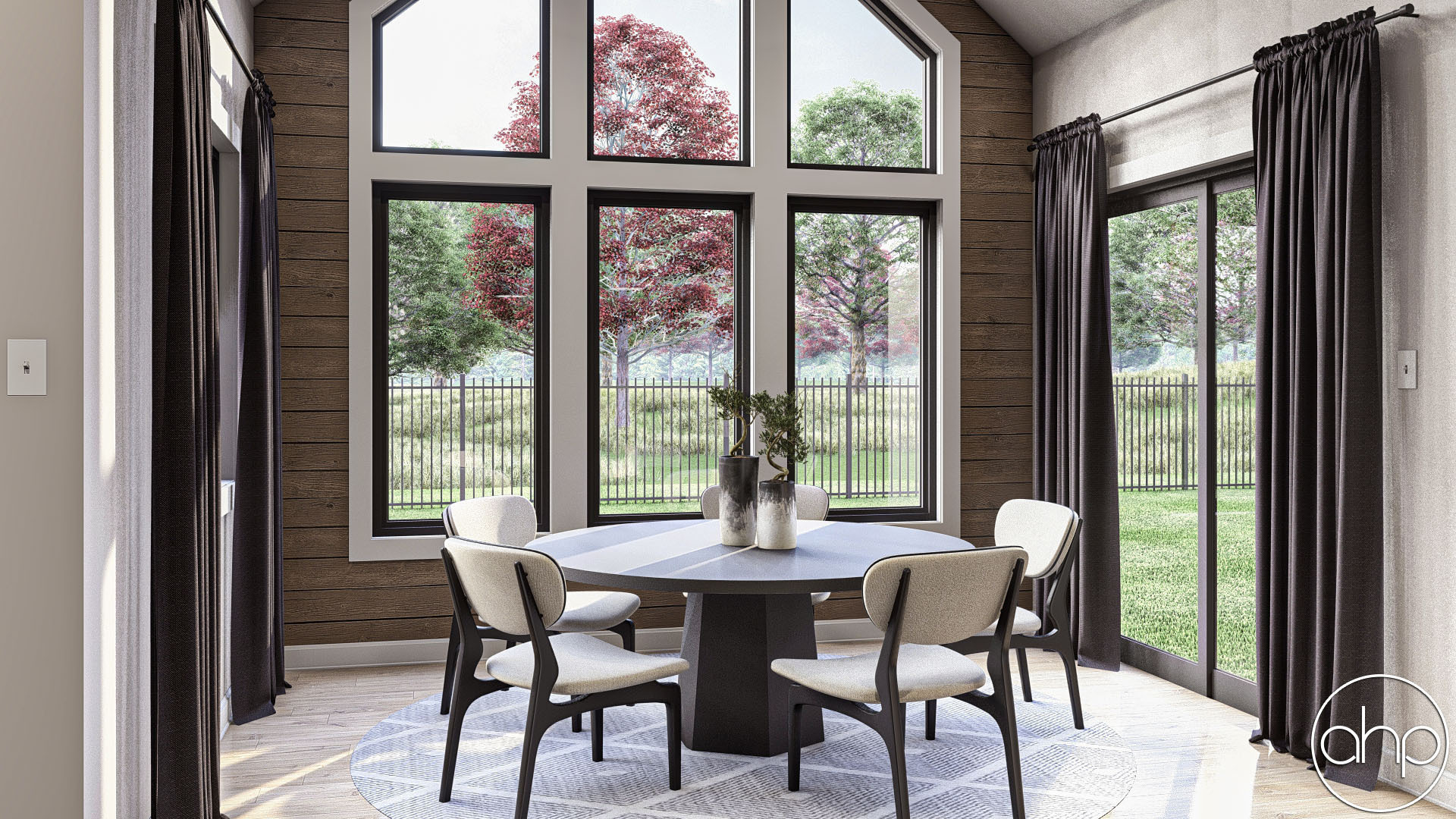

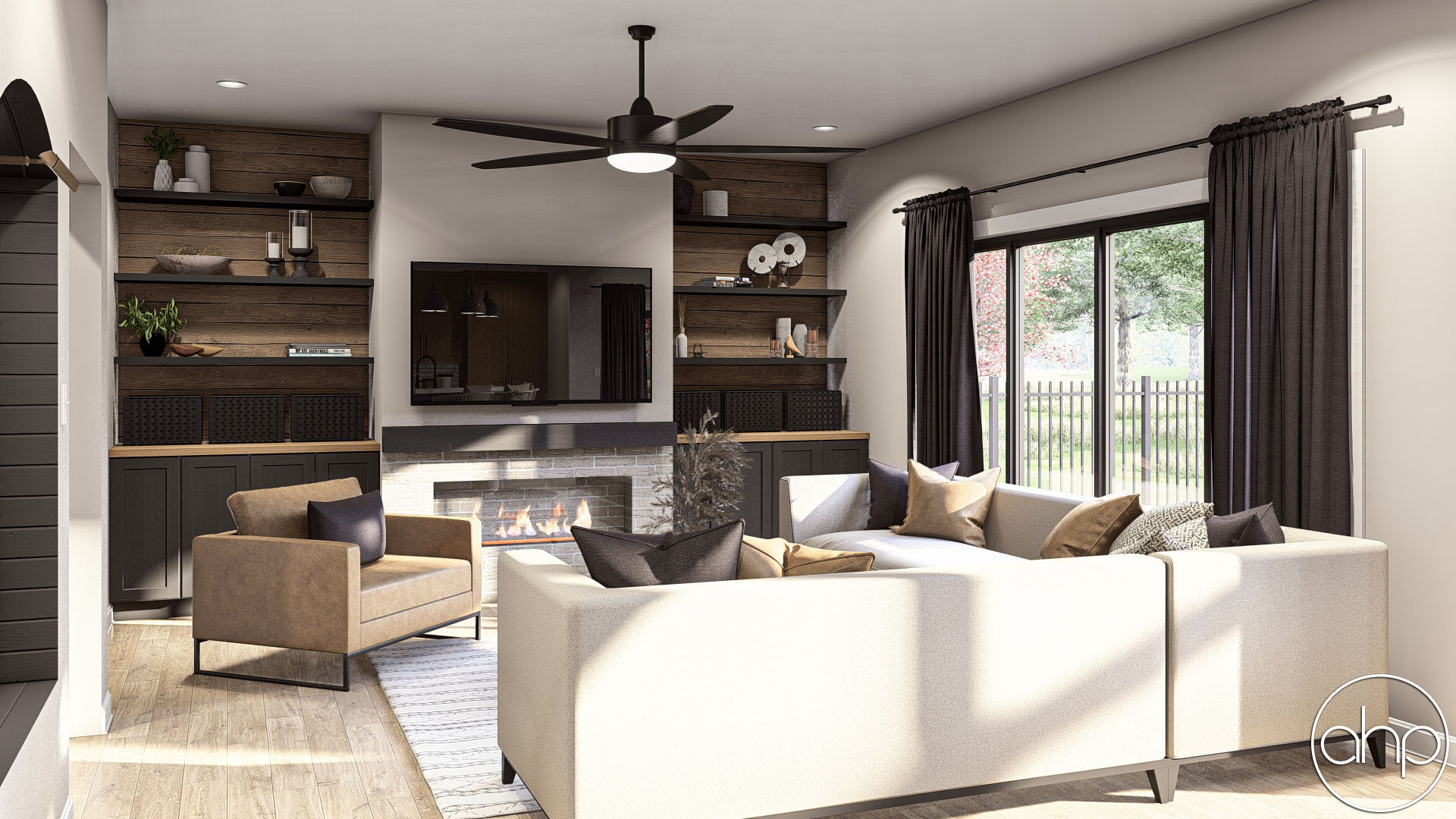

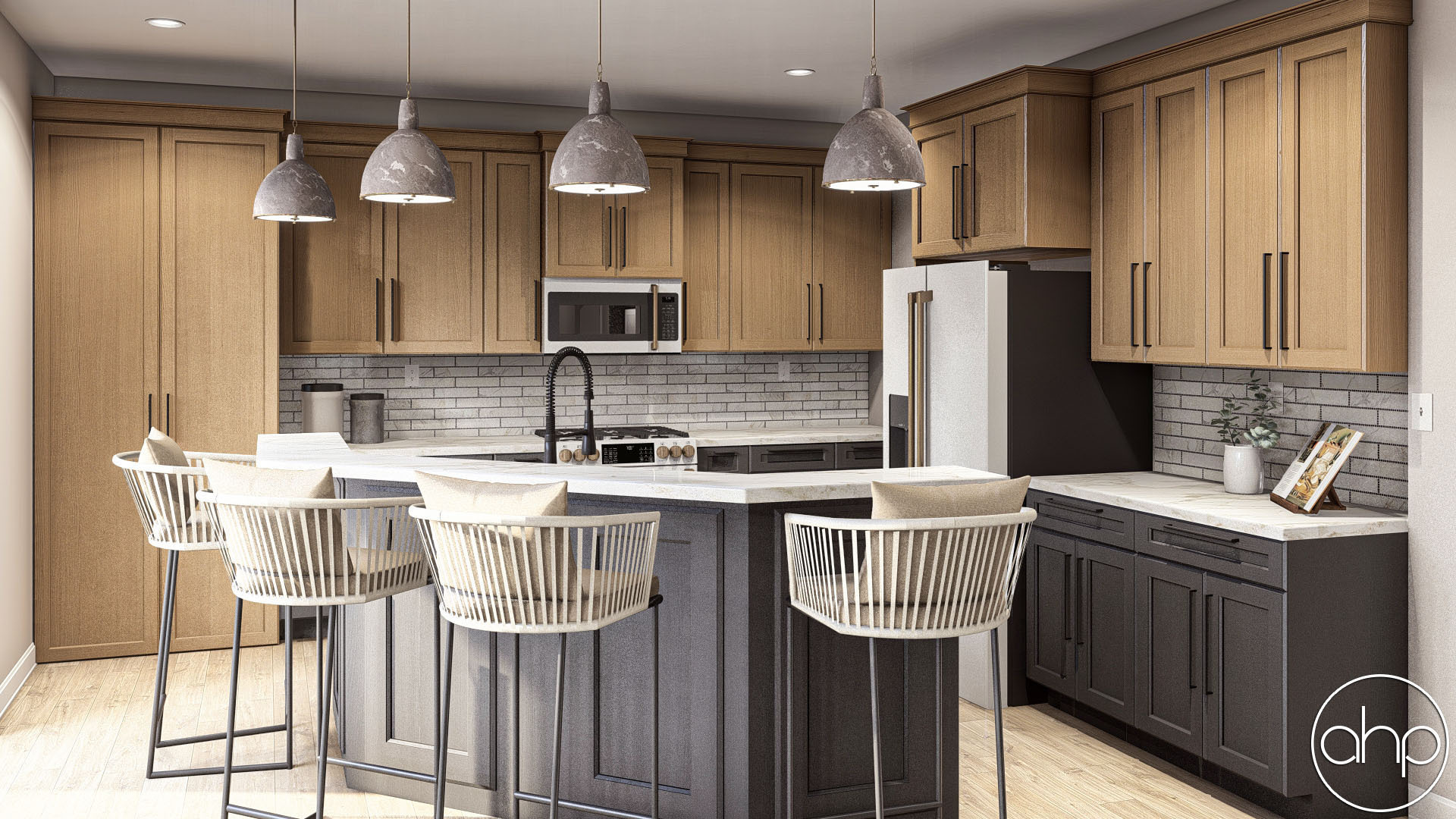

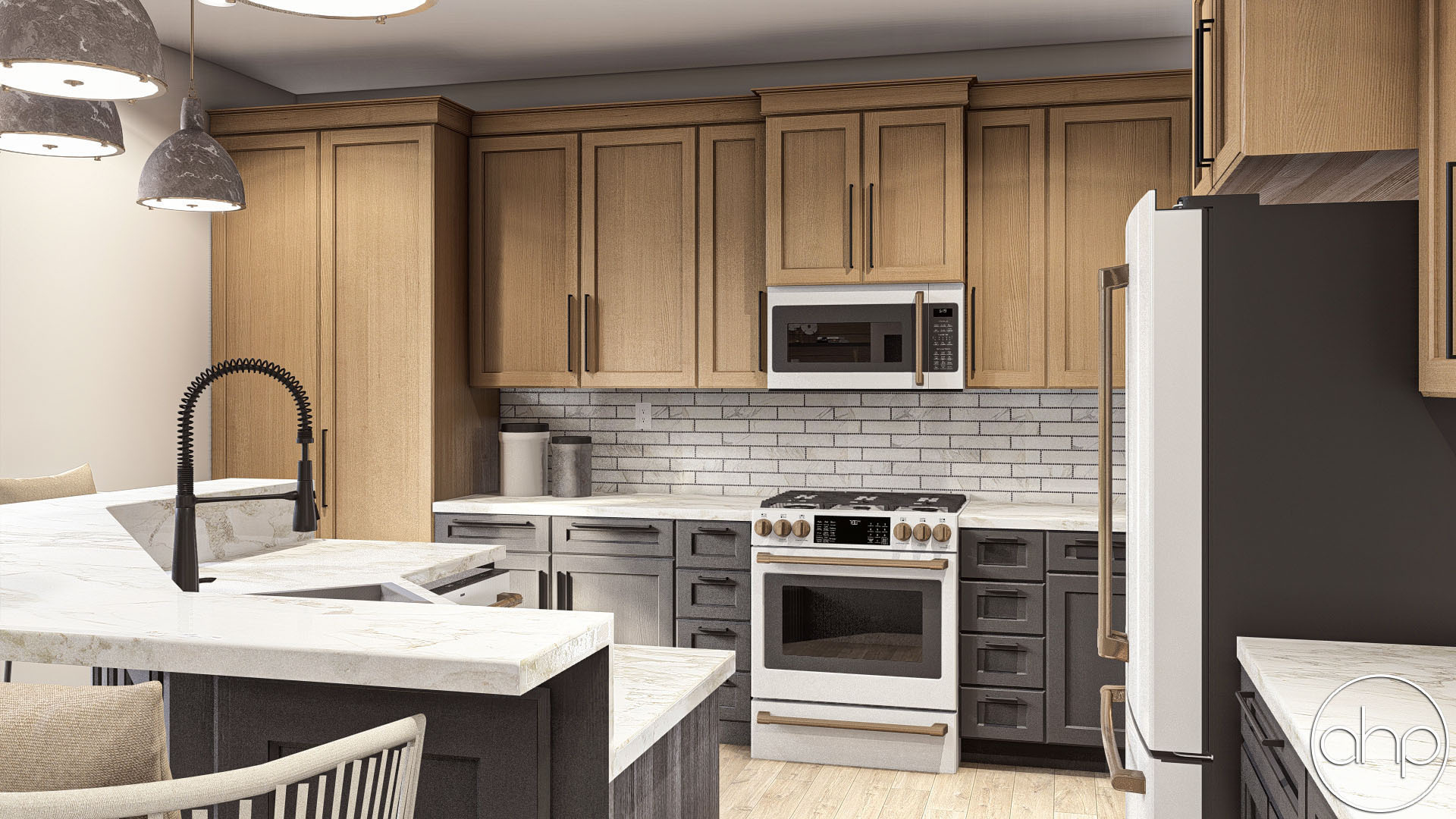

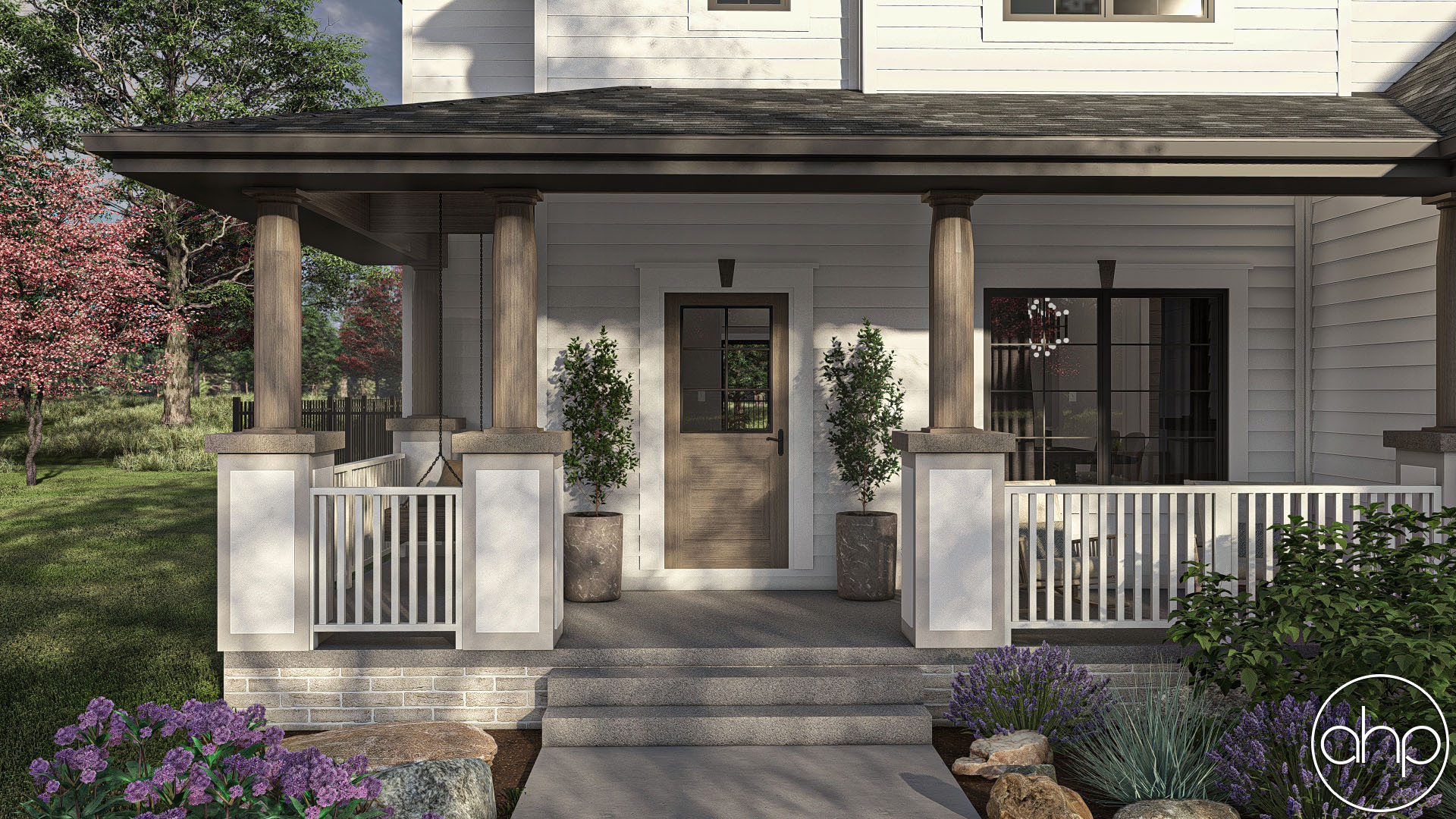

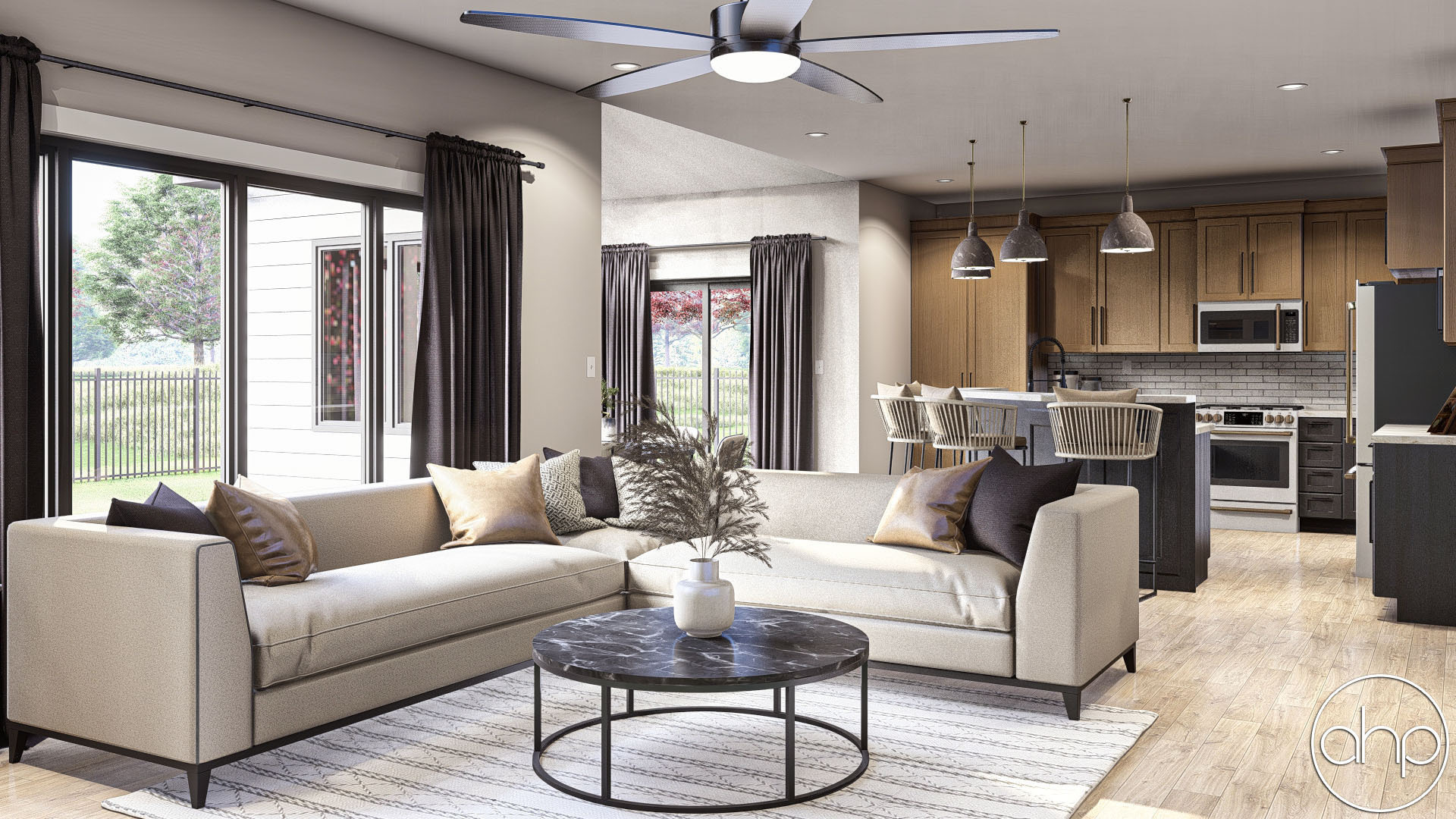

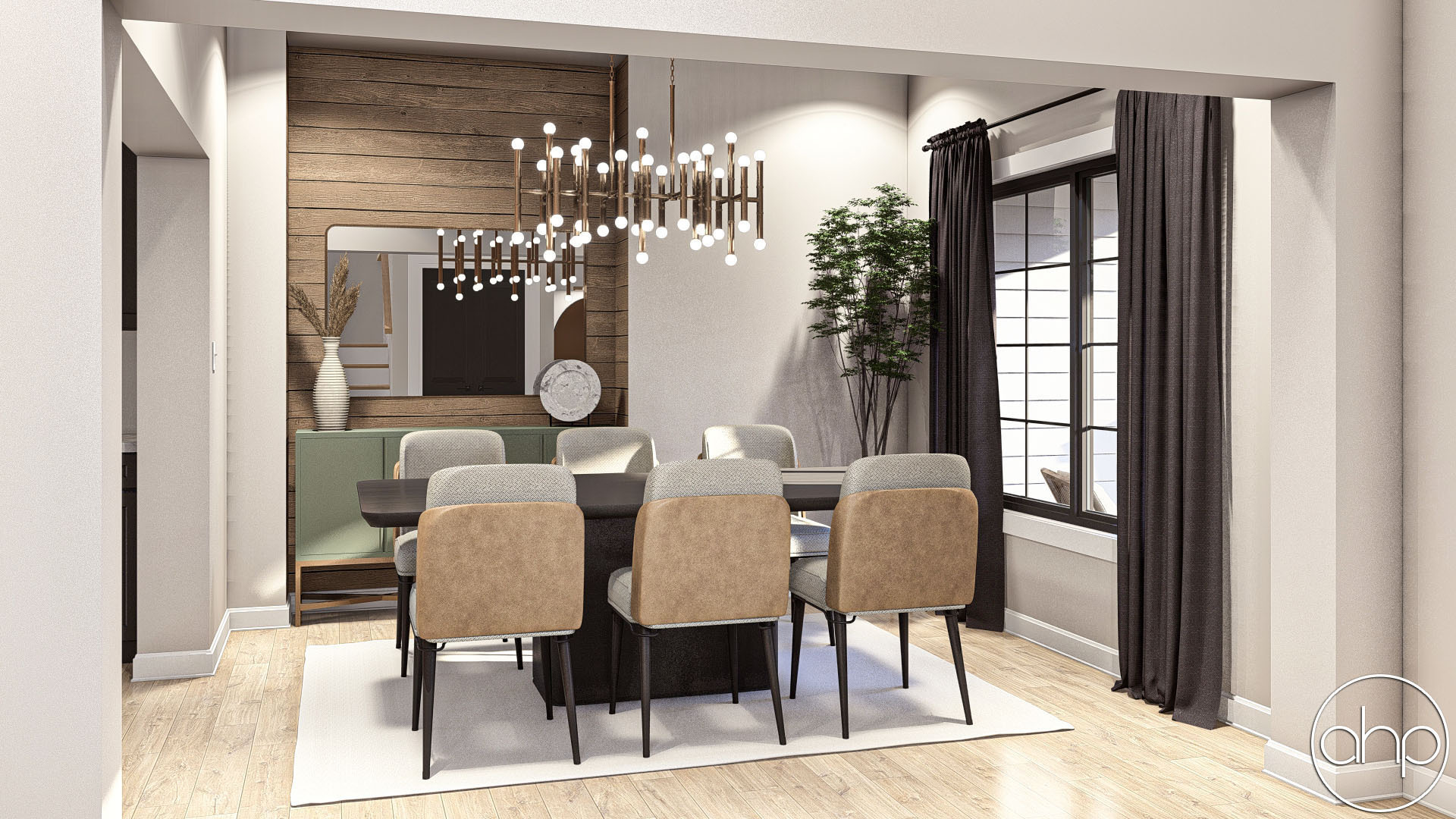

A large front covered porch welcomes you to this beautiful traditional style house. Immediately inside the house you will find a formal dining room with a built in hutch. The amazing great room is warmed by a fireplace that is flanked by built-in bookshelves. The large kitchen comes complete with a large island with a breakfast bar and a huge walk-in pantry. The well lit breakfast nook has a cathedral ceiling and provides great views of the back yard.

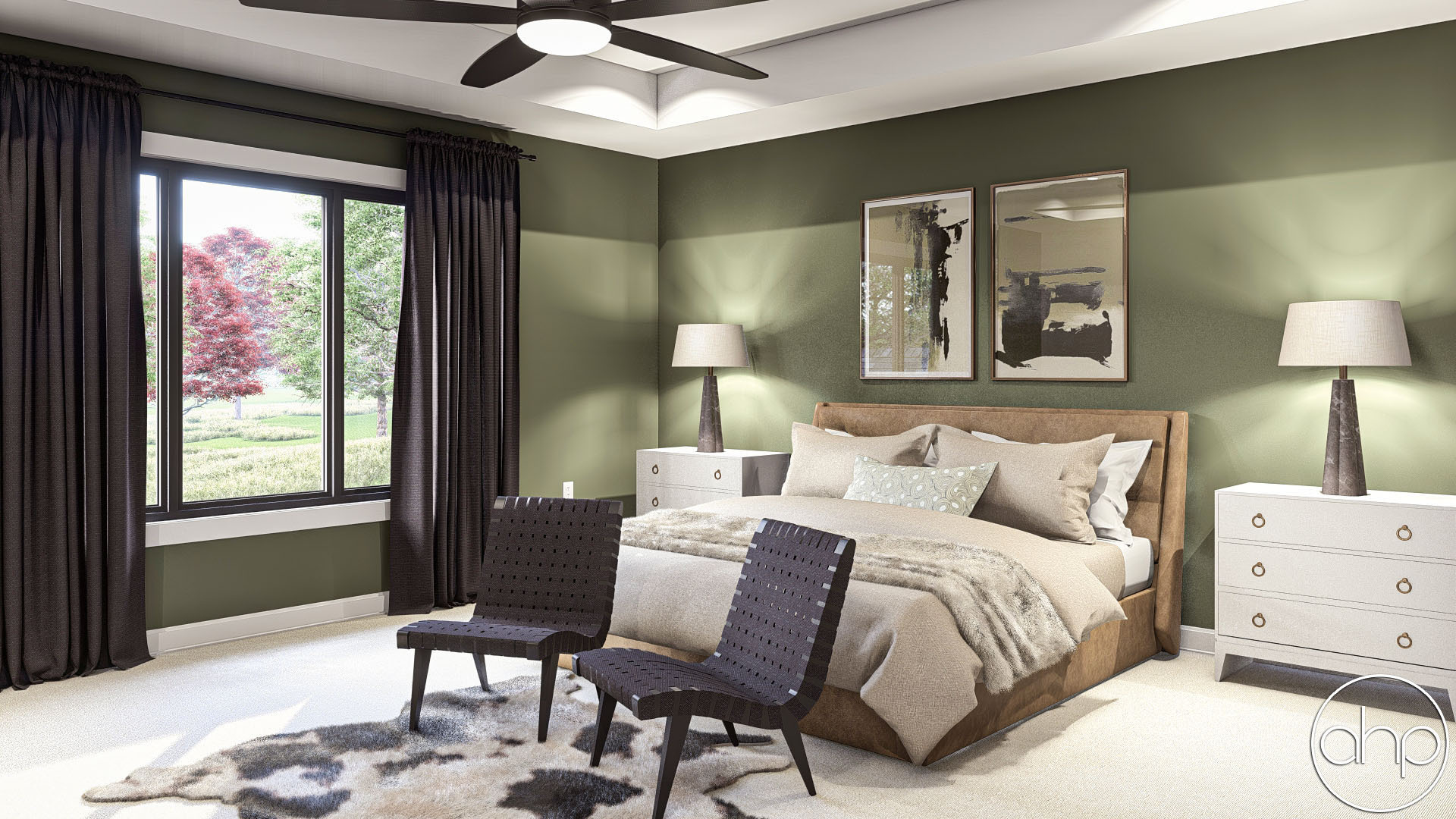

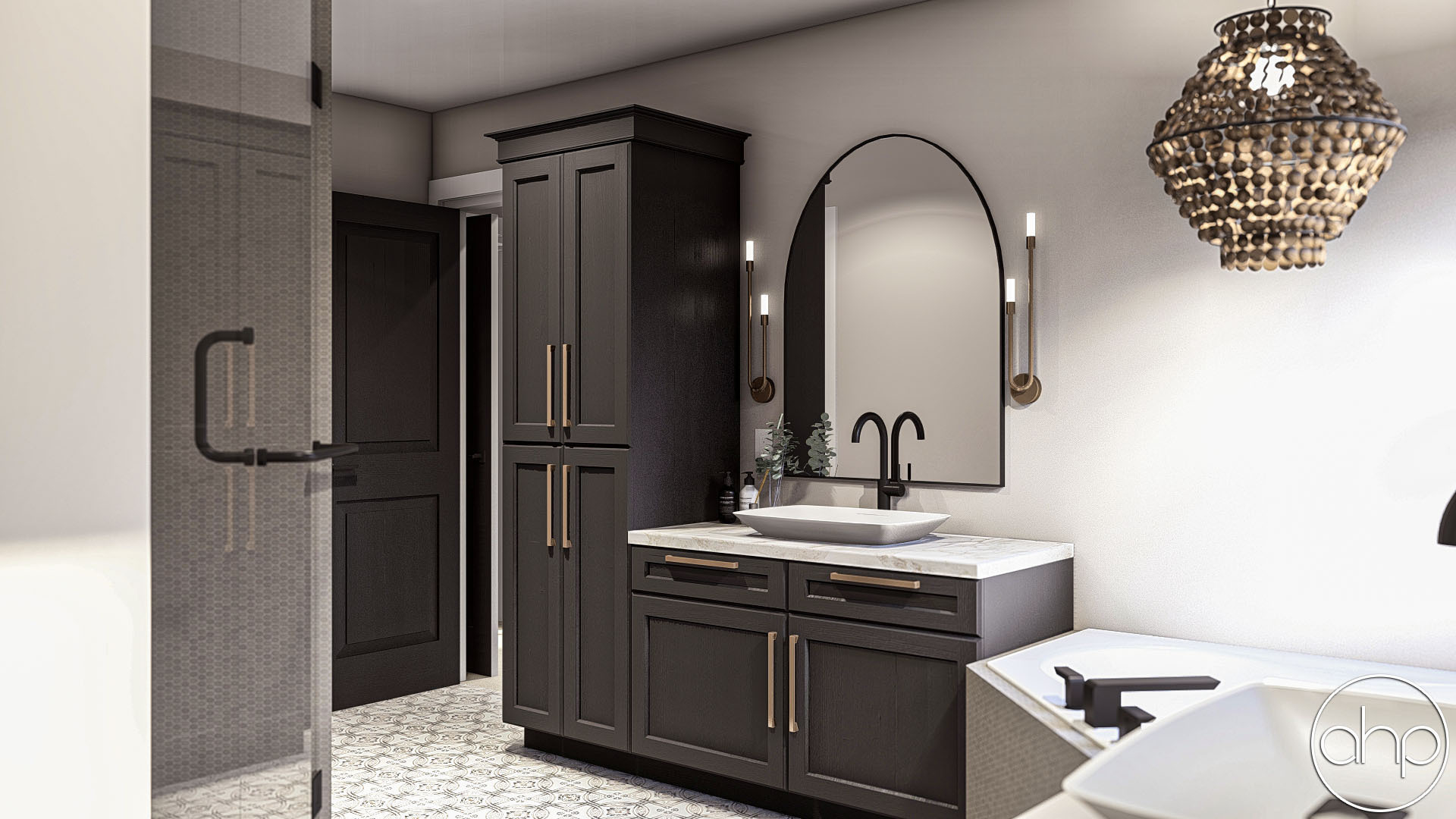

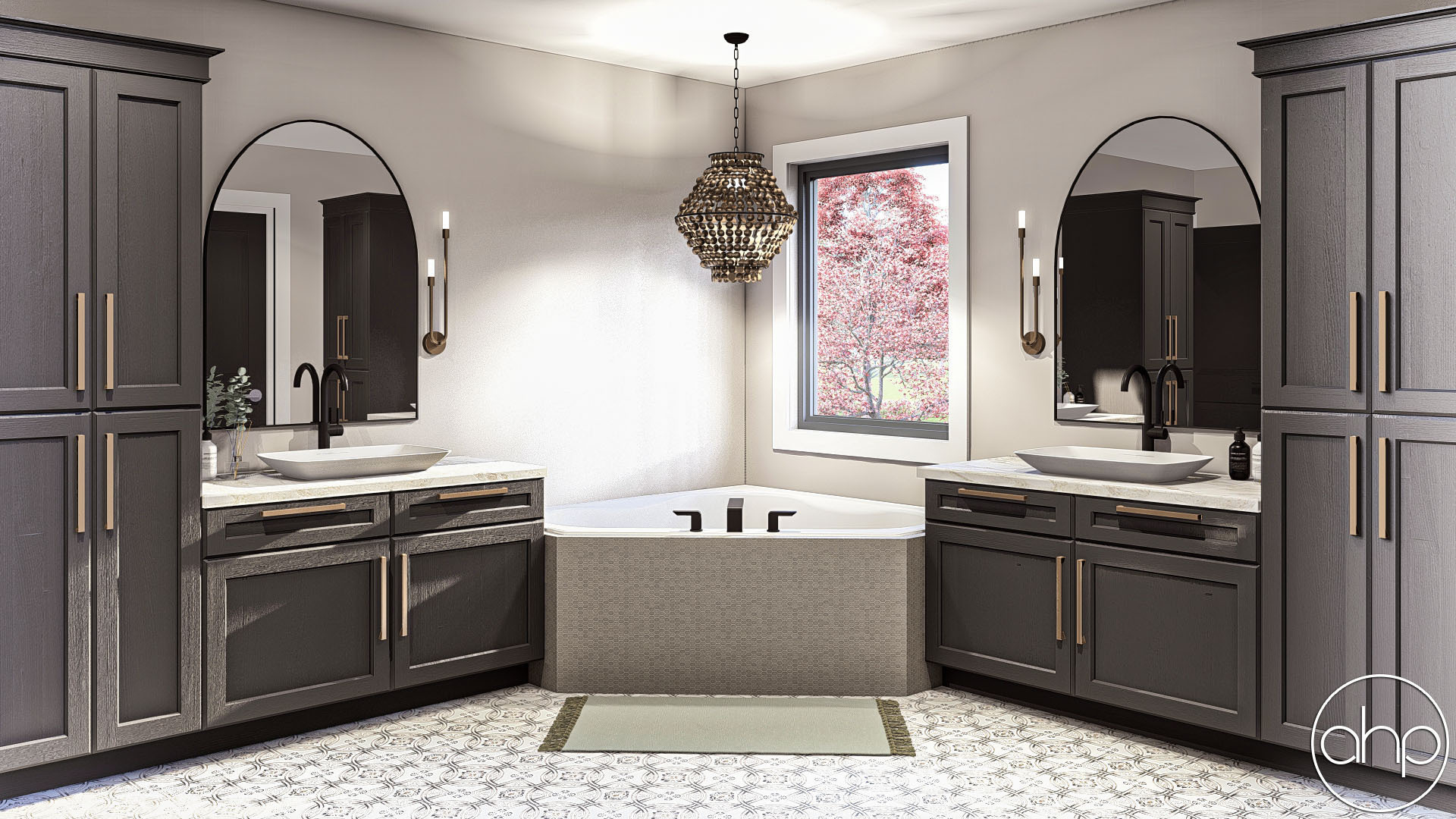

Upstairs you will find all 4 bedrooms. The fantastic master suite includes a bathroom with his/her vanities, a corner soaking tub, an enclosed toilet and a massive walk-in closet. Bedrooms 2 and 3 each have their own walk-in closet and all three bedrooms share a centrally located bathroom in the hallway.

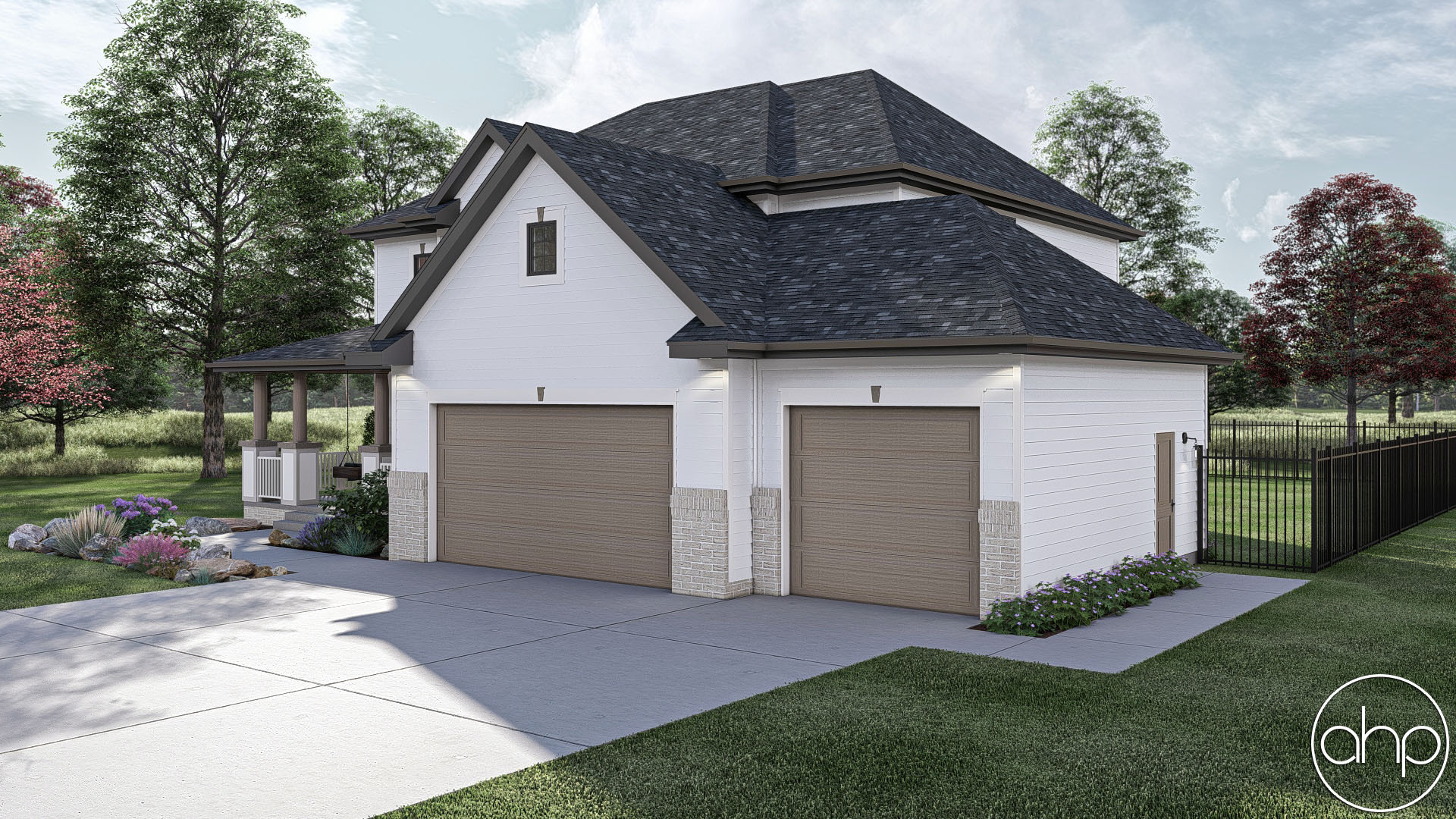

Back on the main floor, the large 3 car garage enters the home through a convenient mud room and also leads to a large laundry room with a soaking sink and a large folding counter.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at Ahp.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Full Specifications

Rooms

Bedrooms 4
Bathrooms 3
Car Bays 3

Area

Main 1255 Sq. Ft.
Second 1325 Sq. Ft.
Total Finished 2580 Sq. Ft.
Garage Area 767 Sq. Ft.

Dimensions

Width 58'
Depth 53'
Ridge Height 28'

Construction

Foundation Type Basement
Exterior Walls 2x4
Roof Pitch 7/12 Primary, 10/12 Secondary
Basement Wall Height 9'
Main Wall Height 9'
Second Wall Height 8'

Plan Features


What is included in a set of plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

29030 | McKinley

$1000
Do you need to get this plan bid out before you buy it? Purchase a bid set for only $250 .
