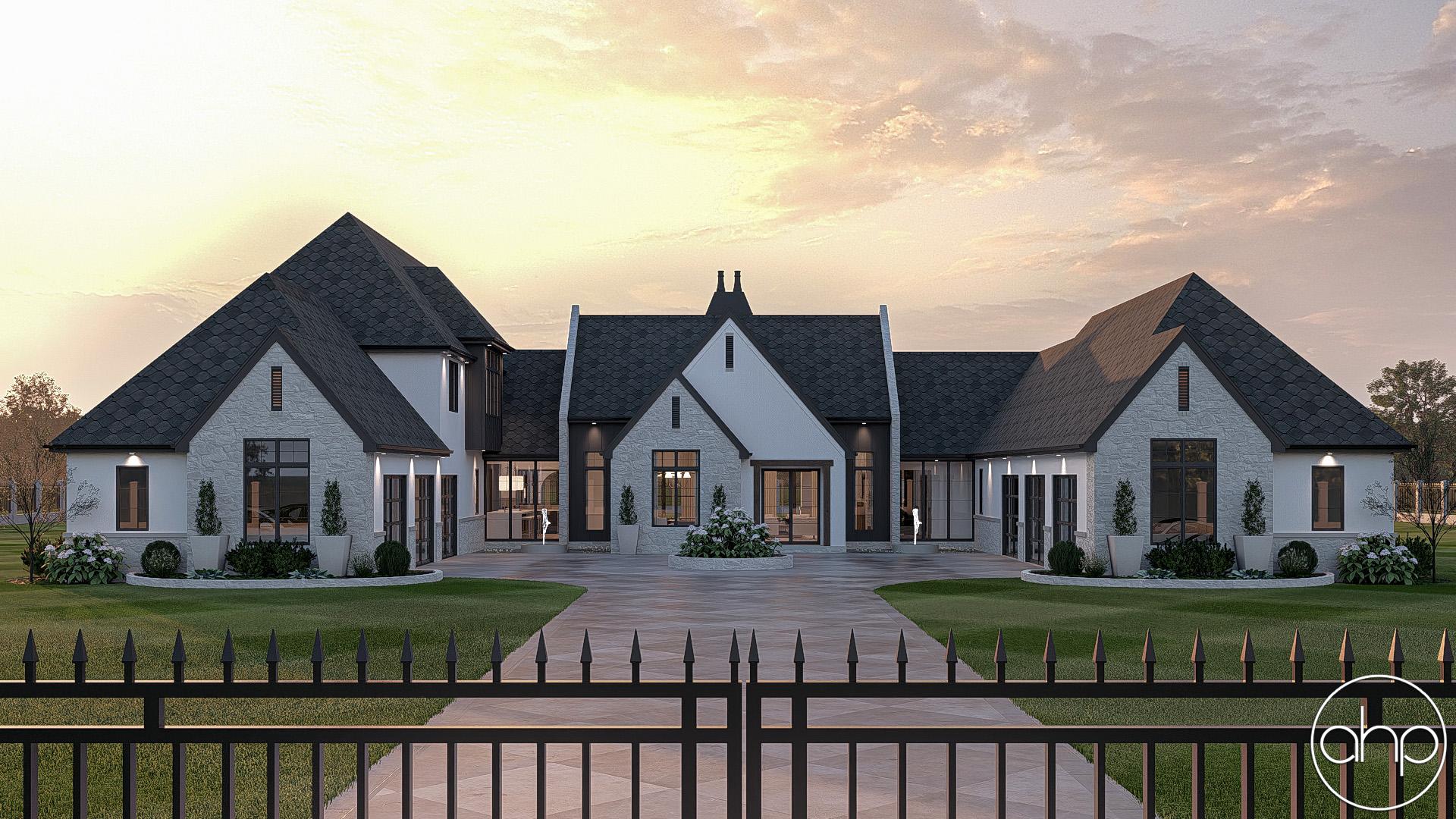

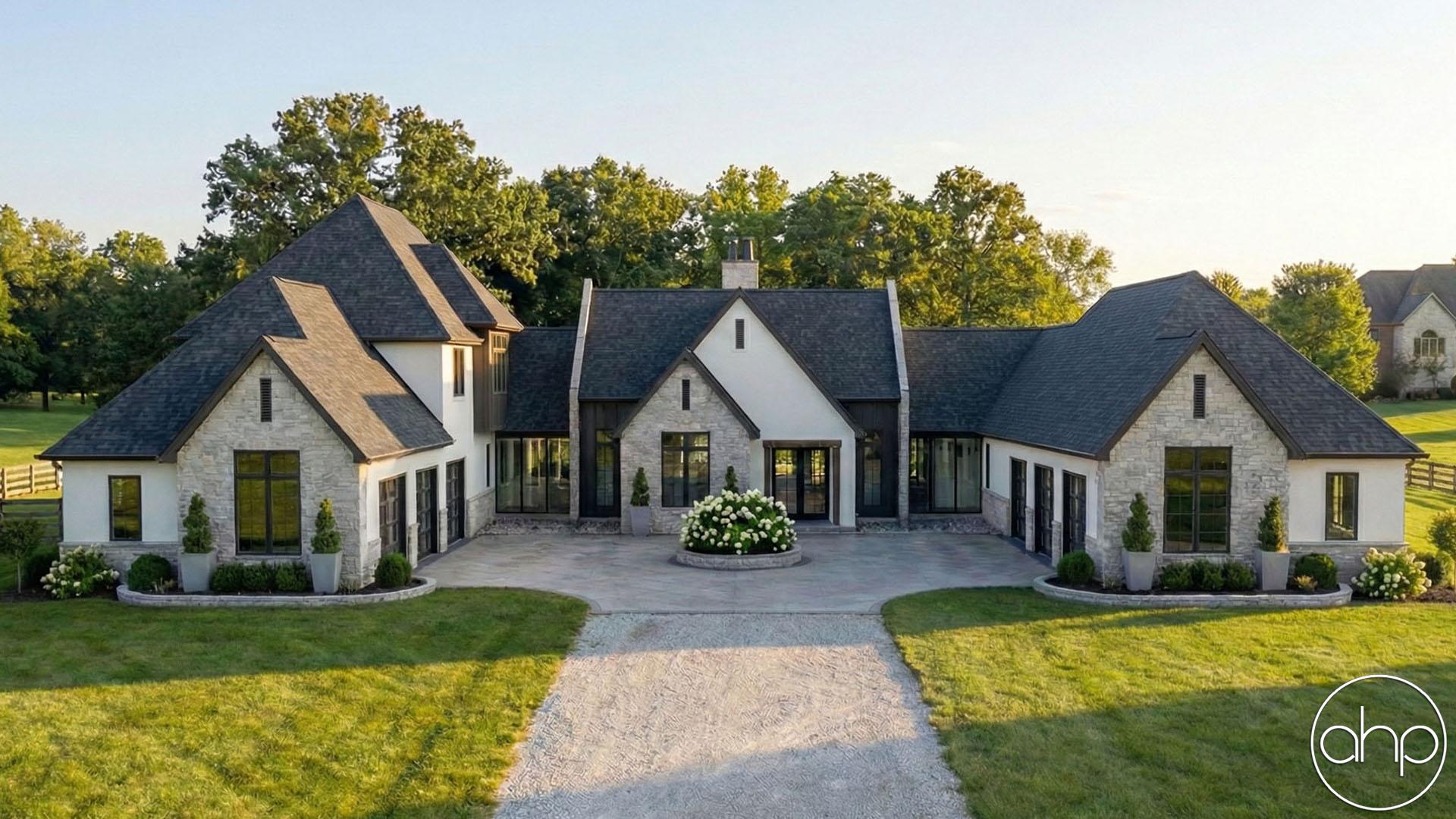

The Fitzpatrick – A Modern Cottage Mansion with Room for Everything

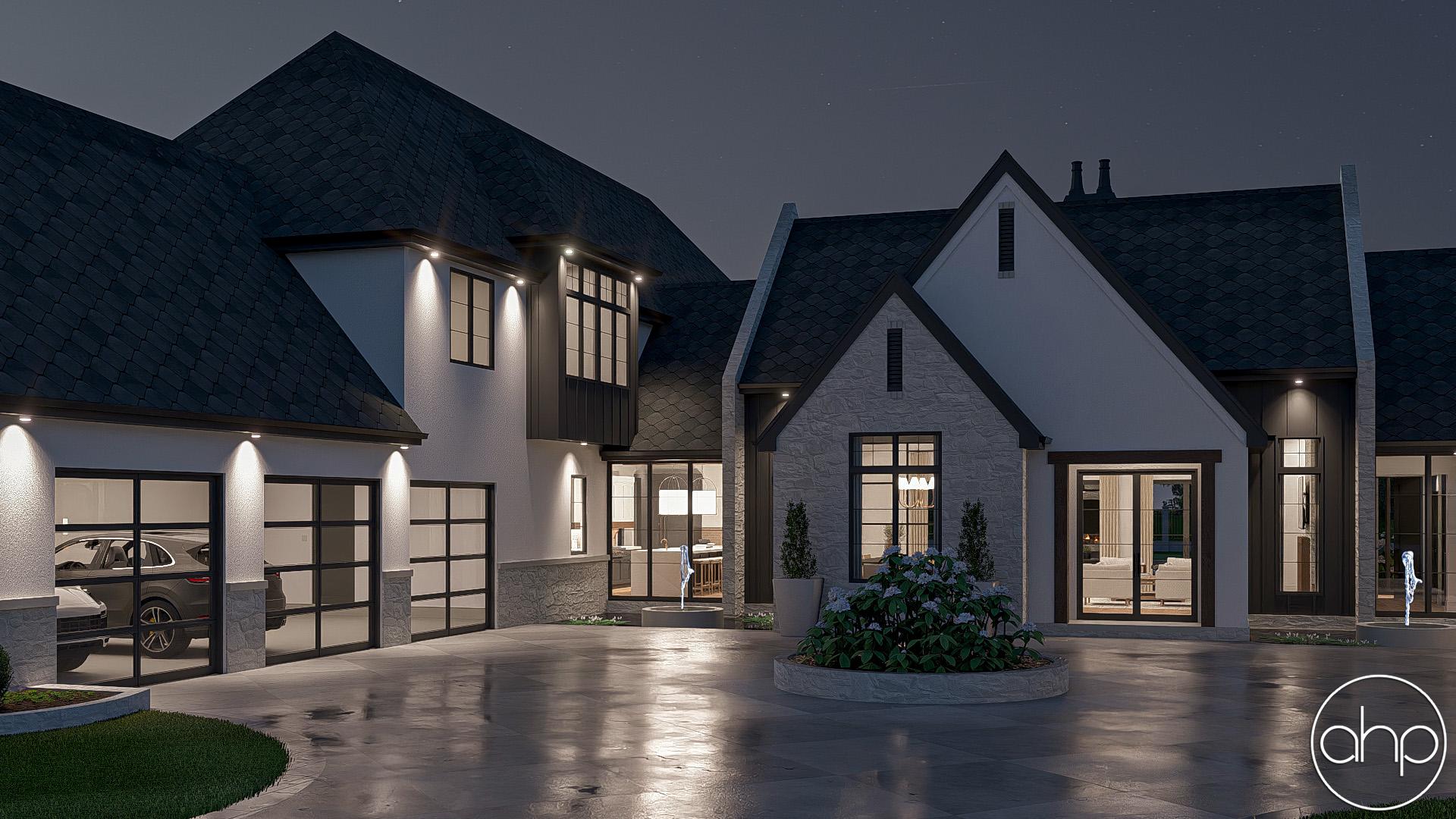

This is a beautifully designed 1.5-story modern cottage house plan offering 5 bedrooms, 4 bathrooms, and a 6-car garage—perfect for those who want space, style, and smart design.

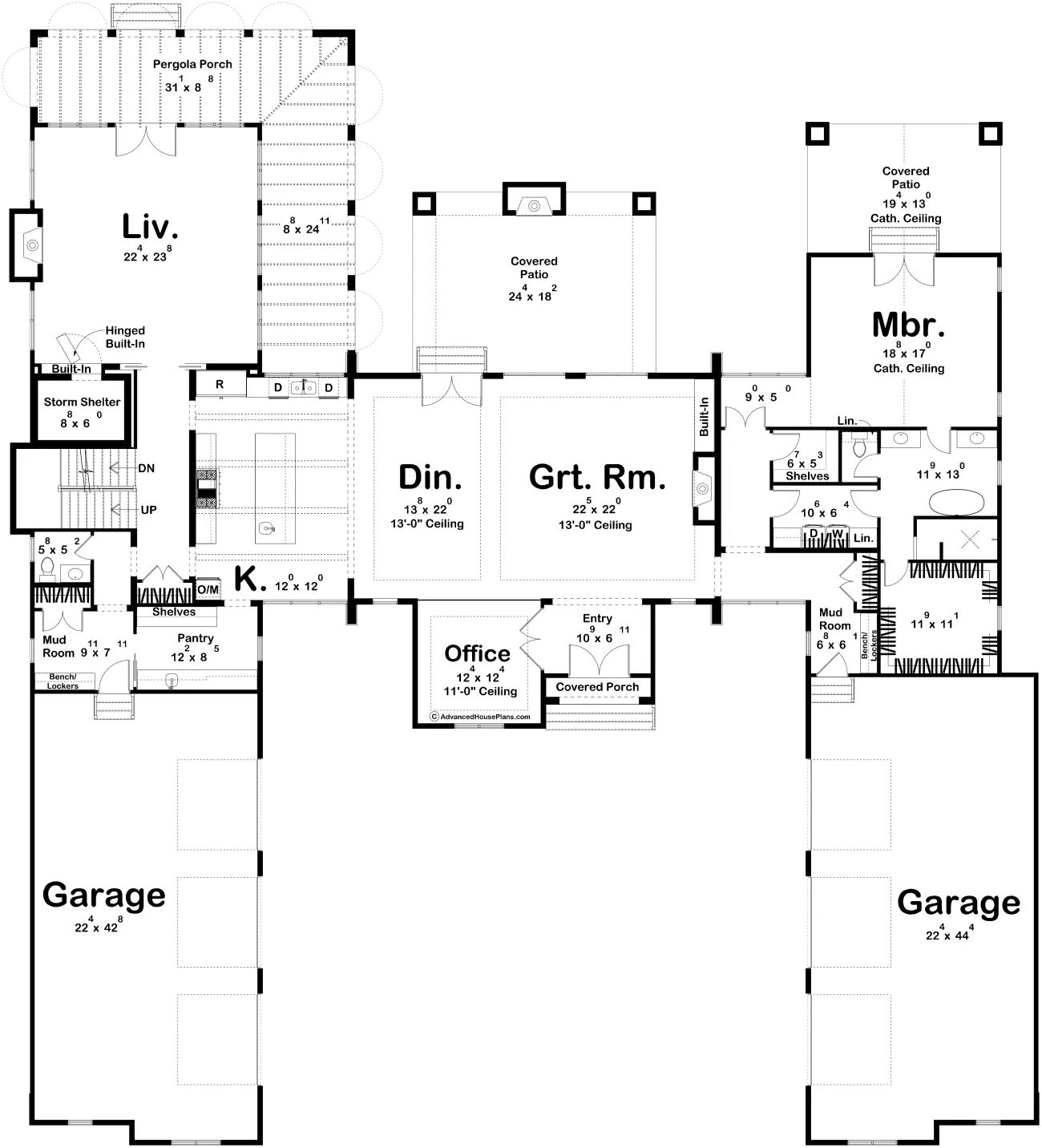

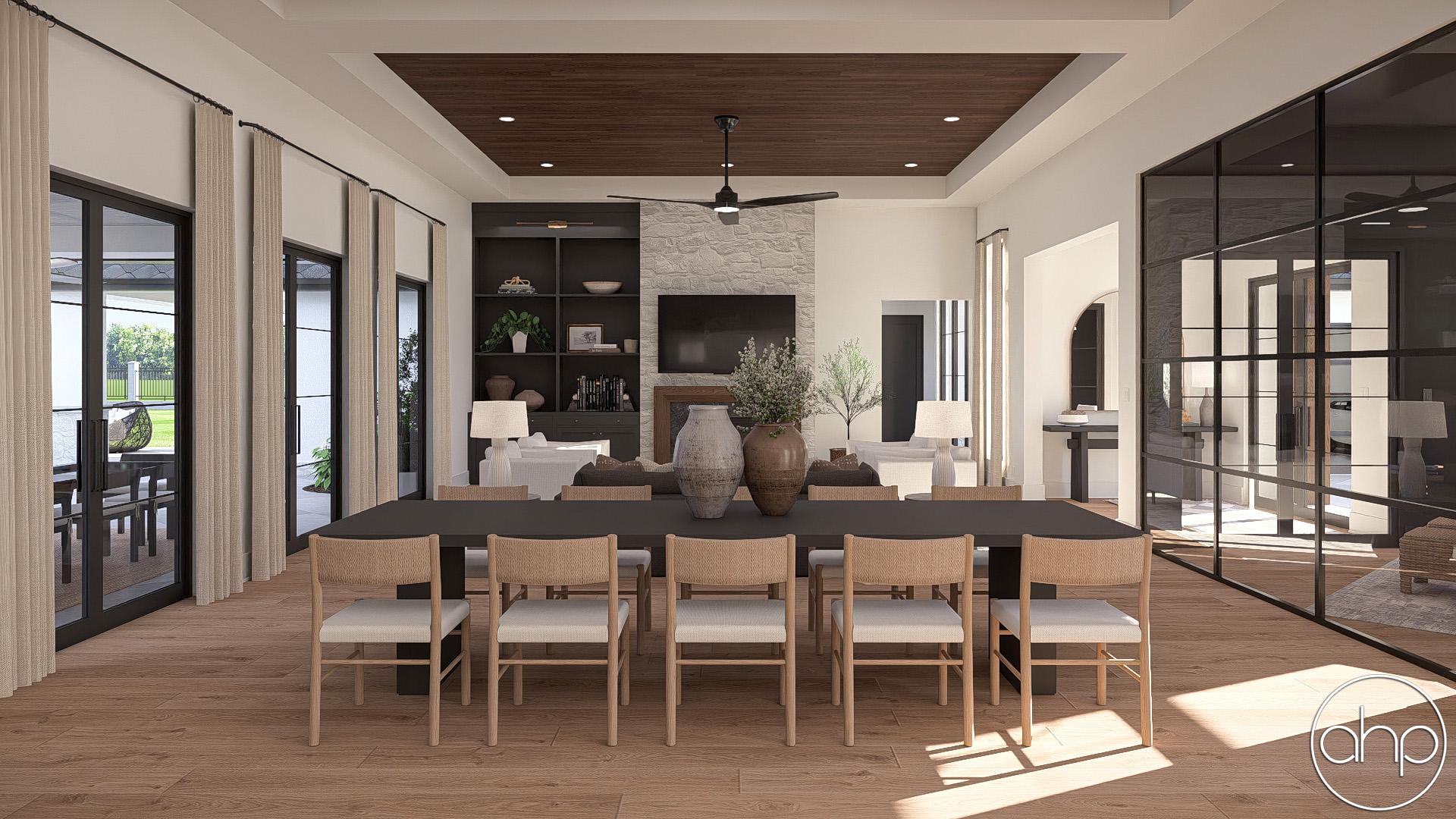

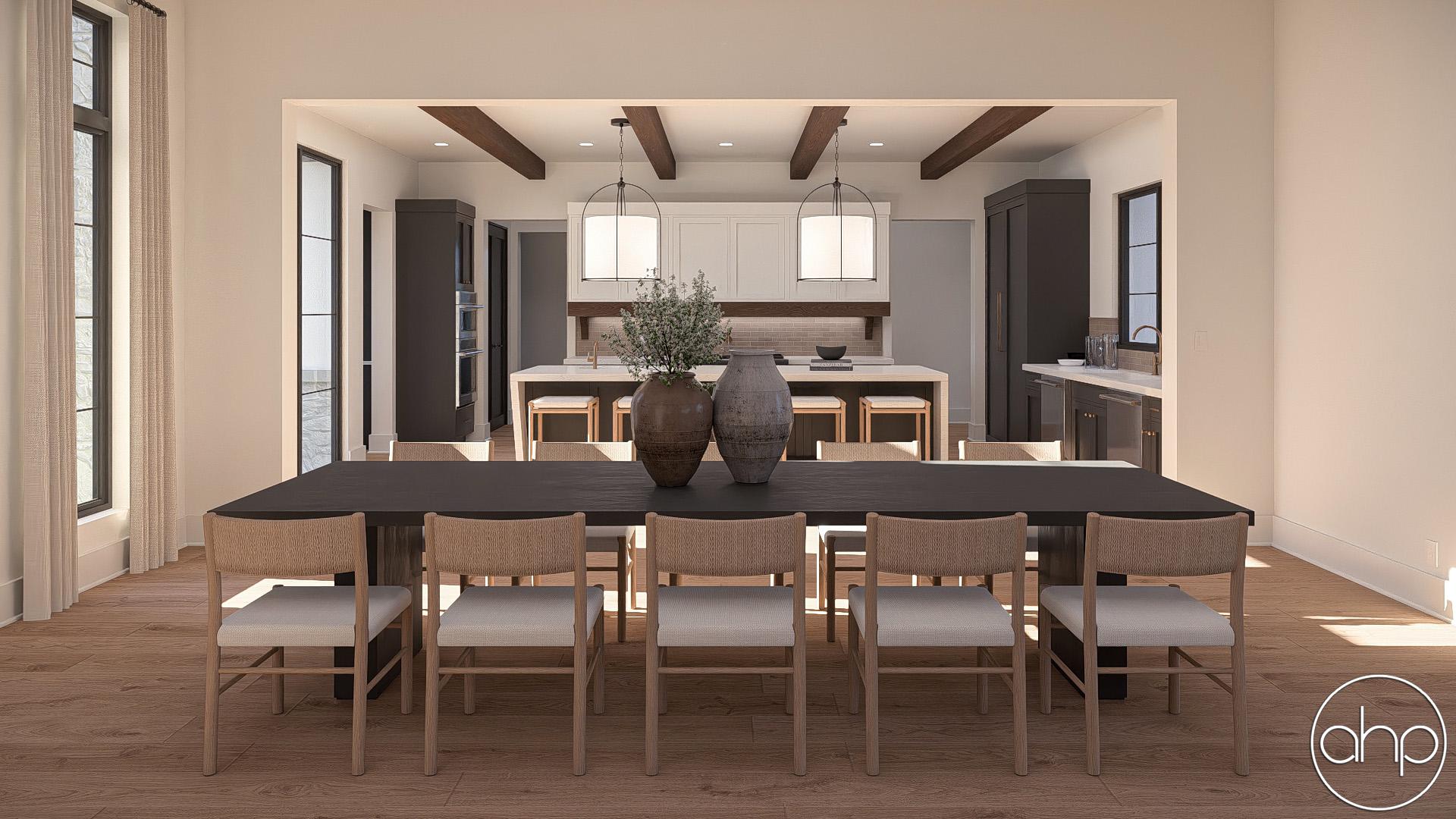

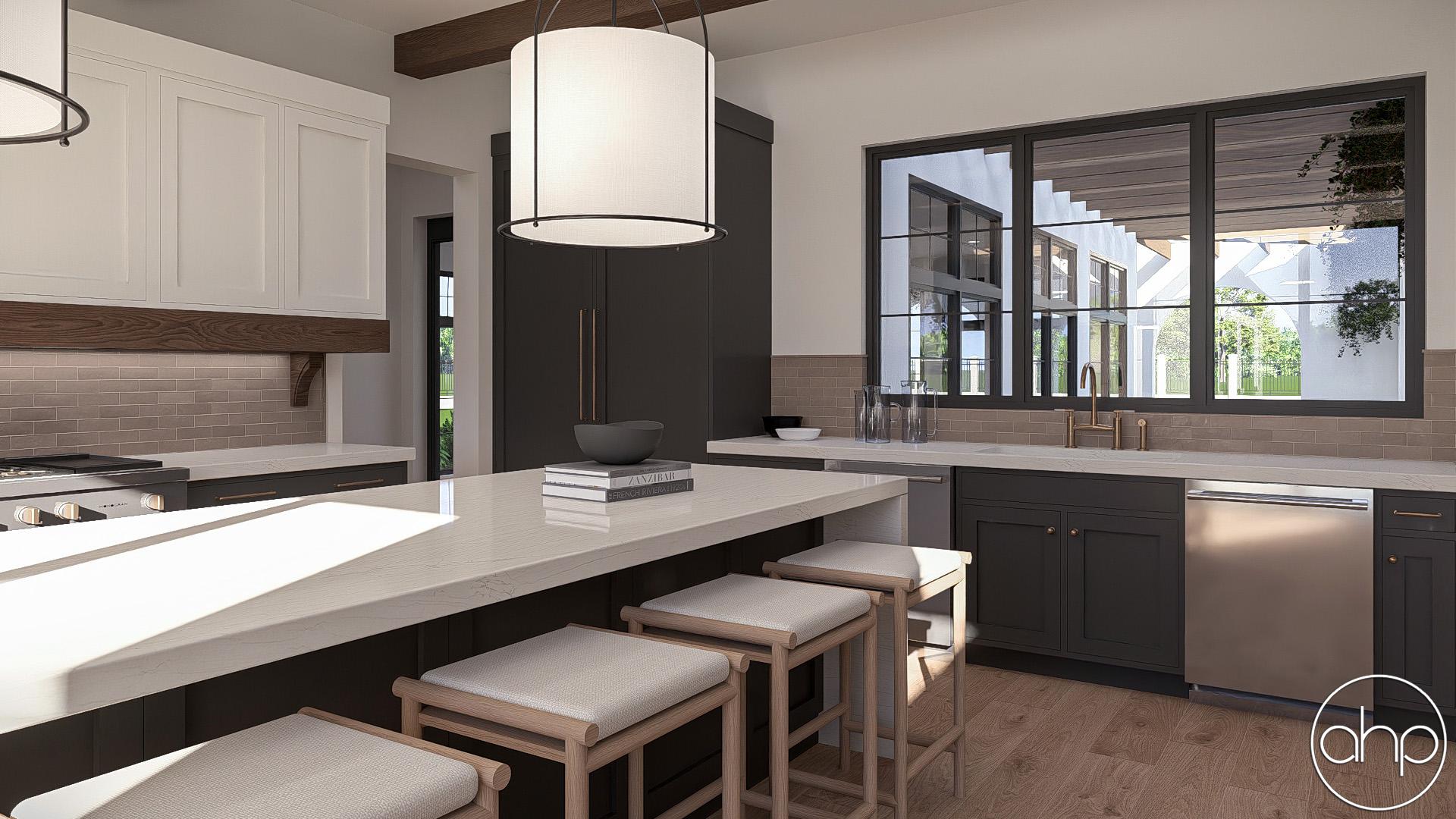

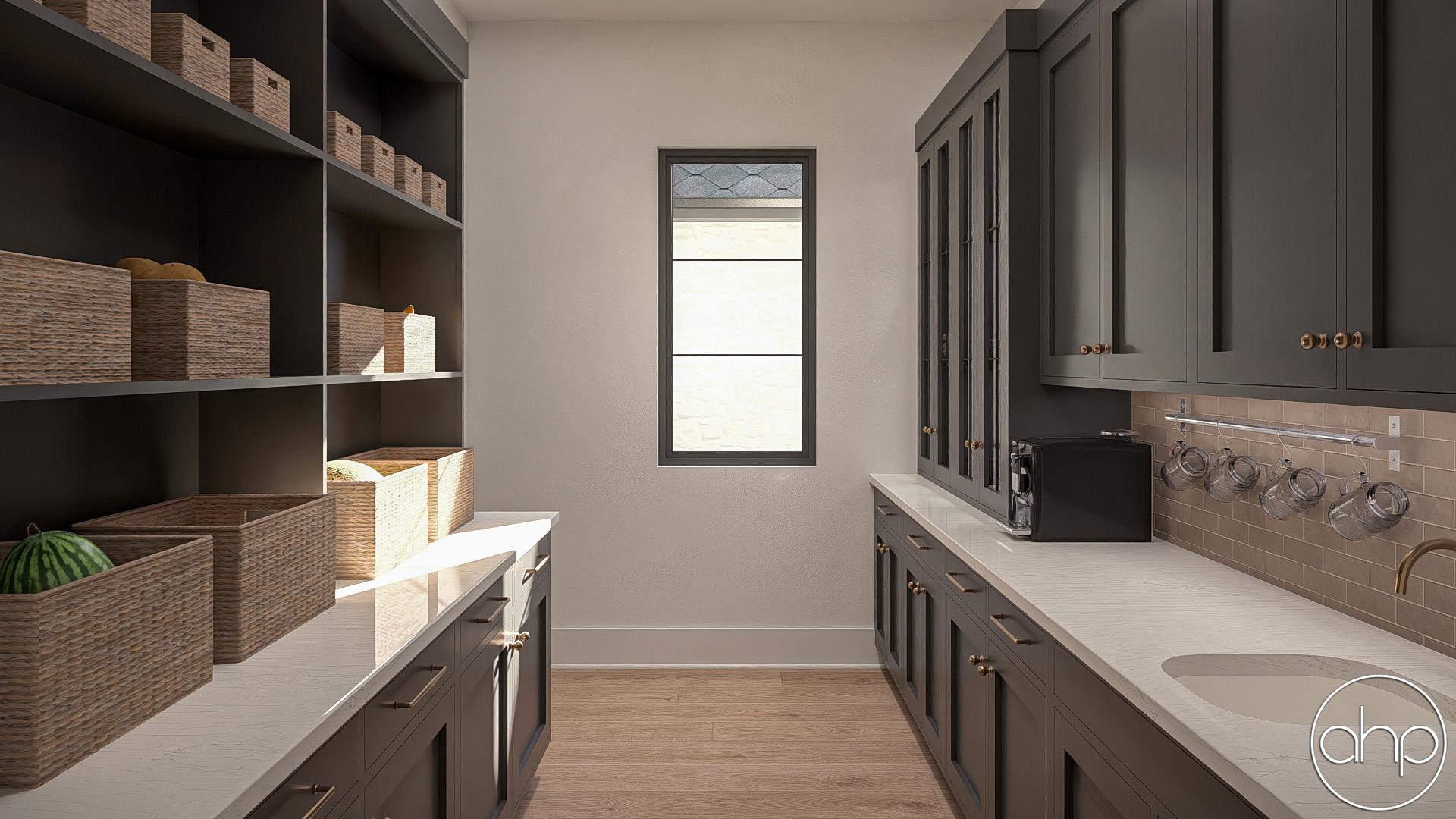

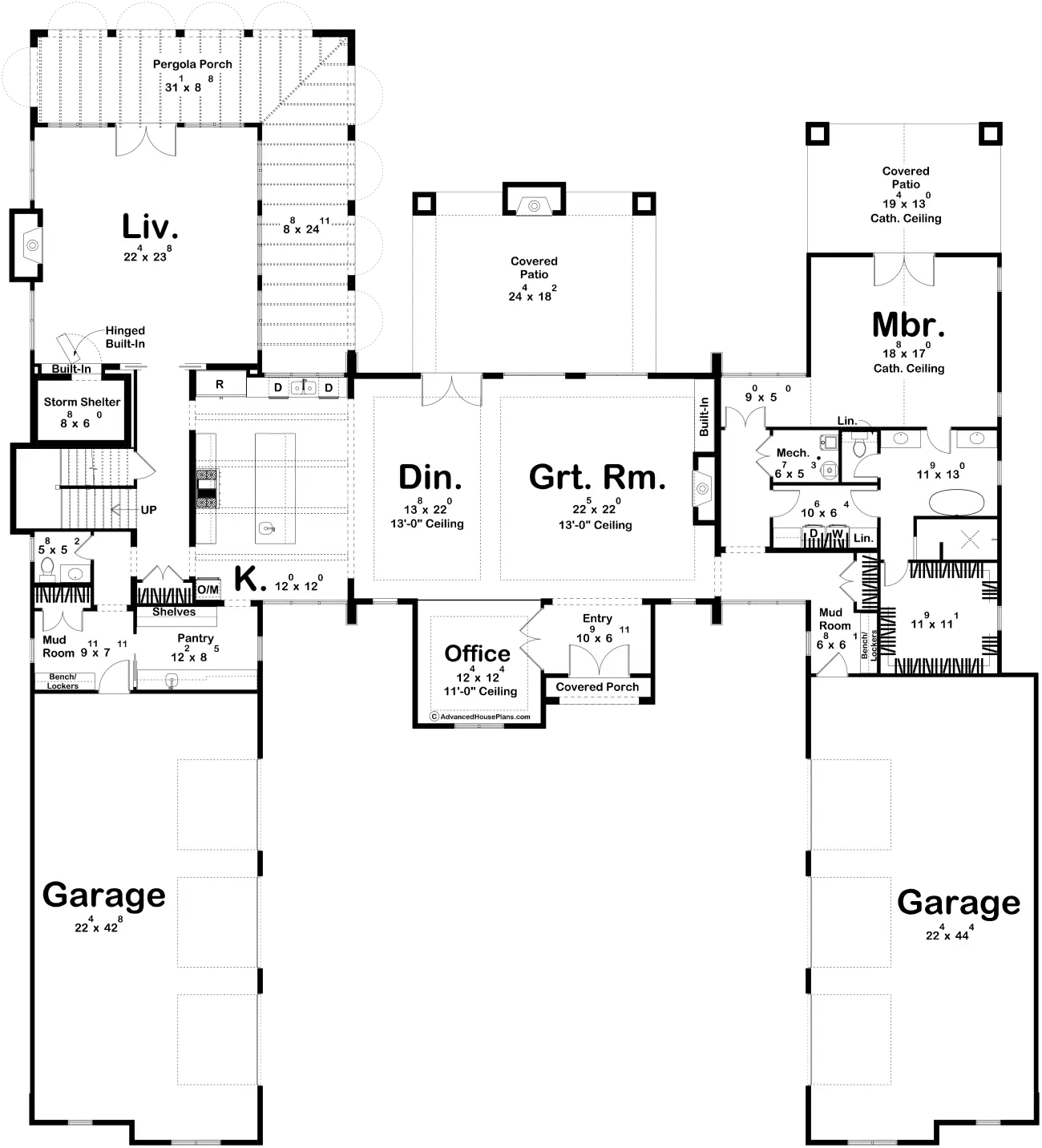

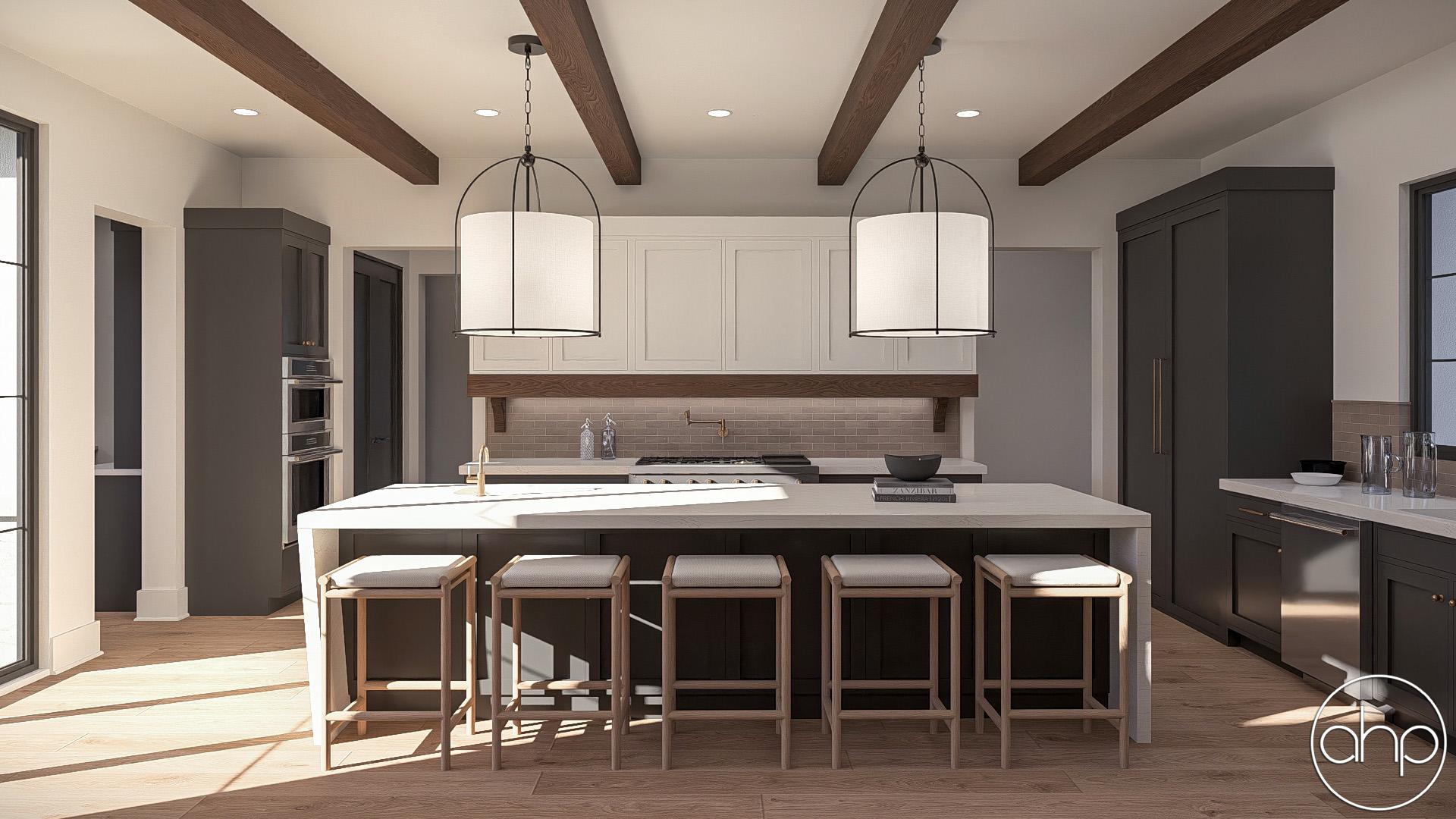

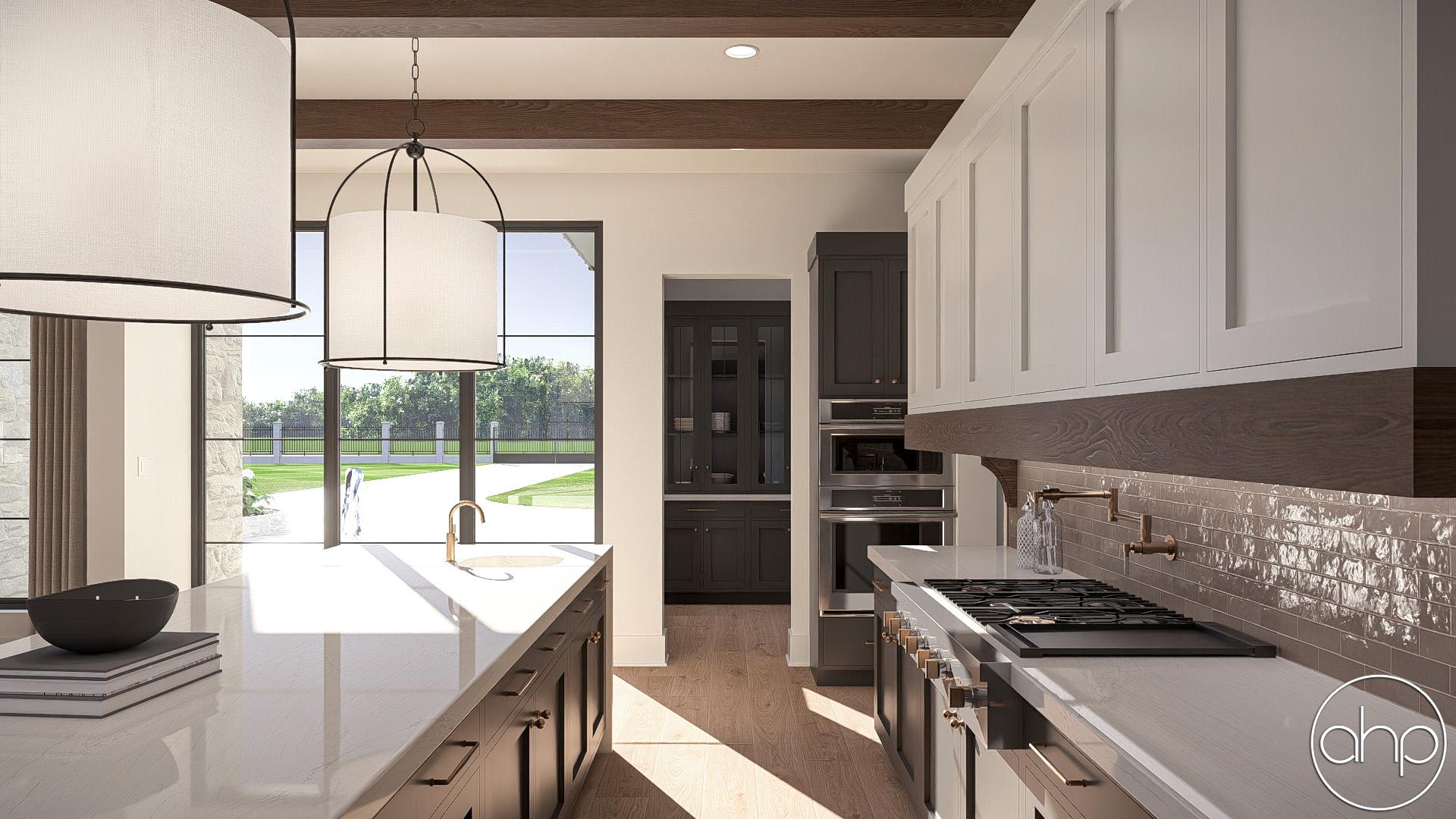

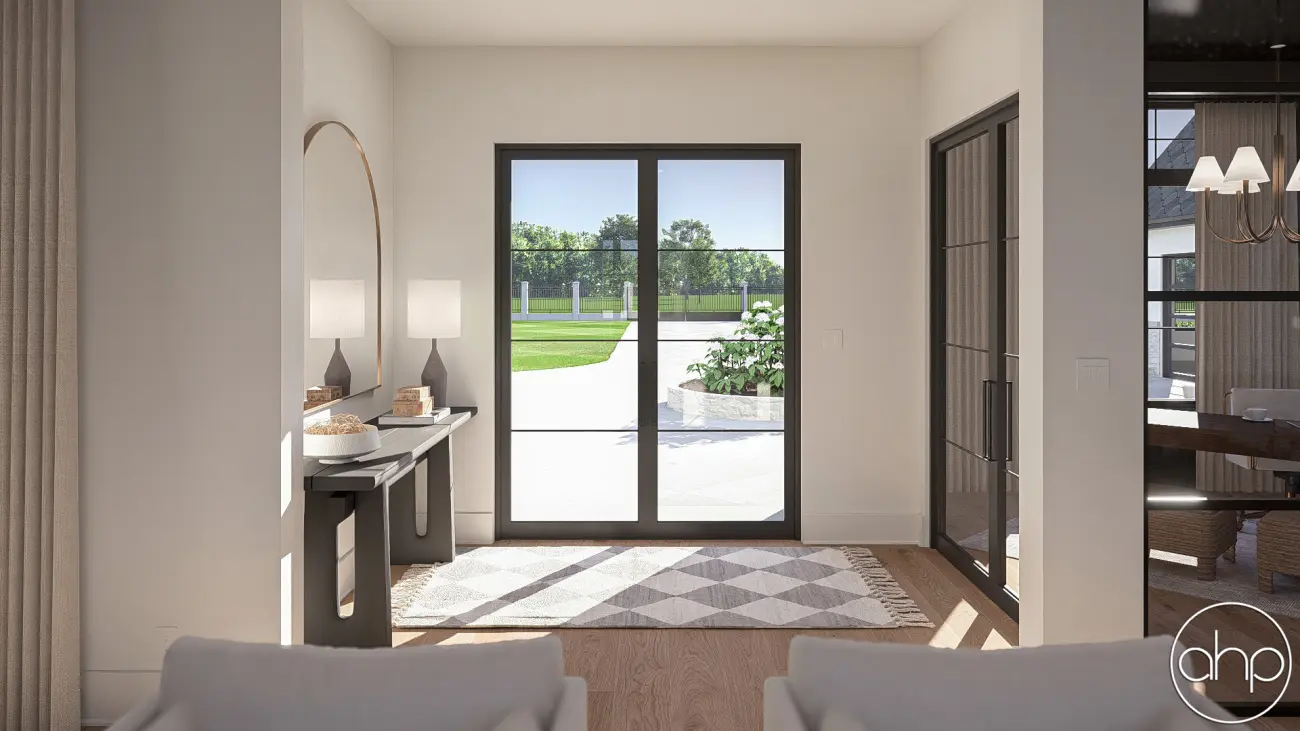

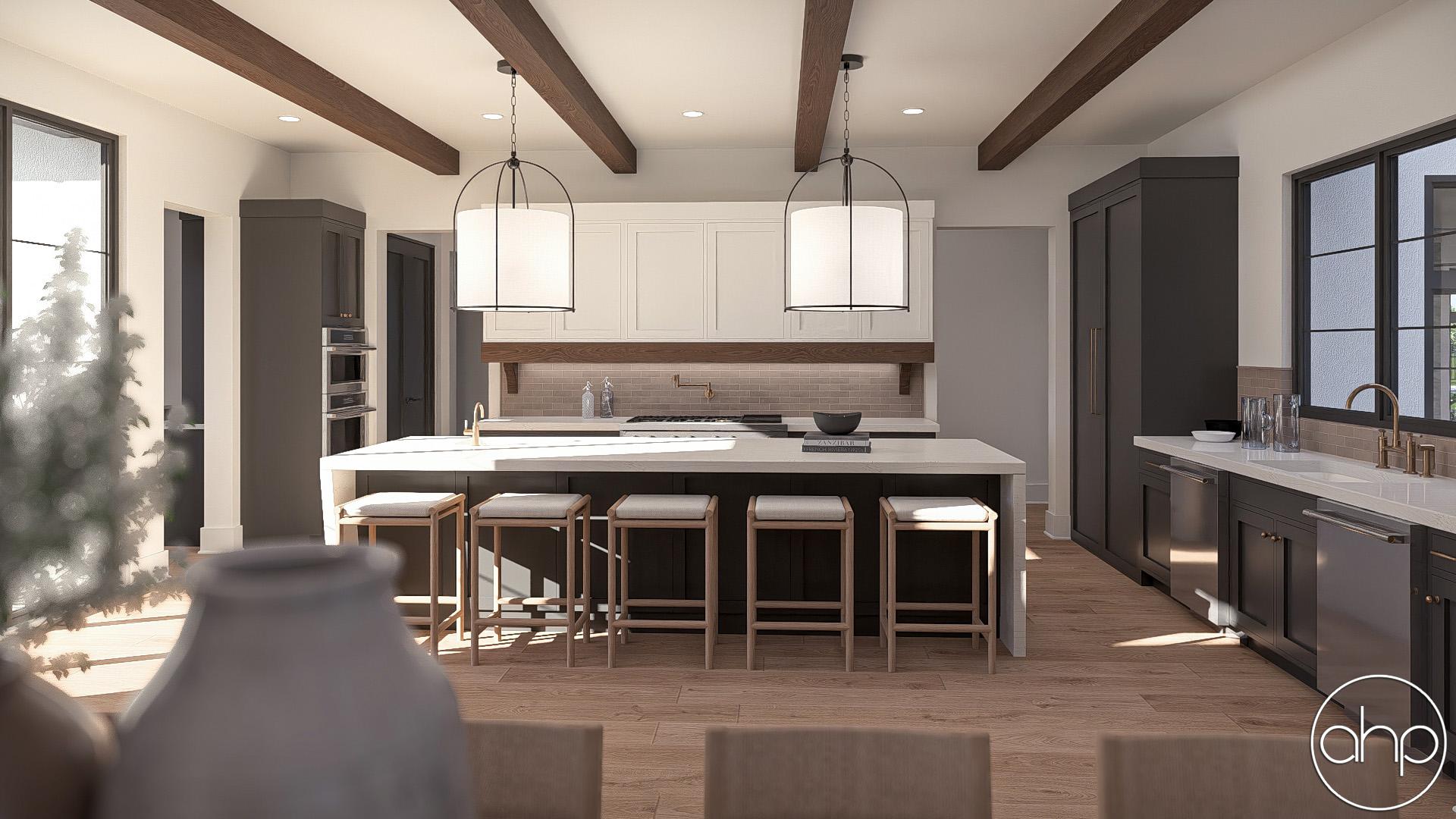

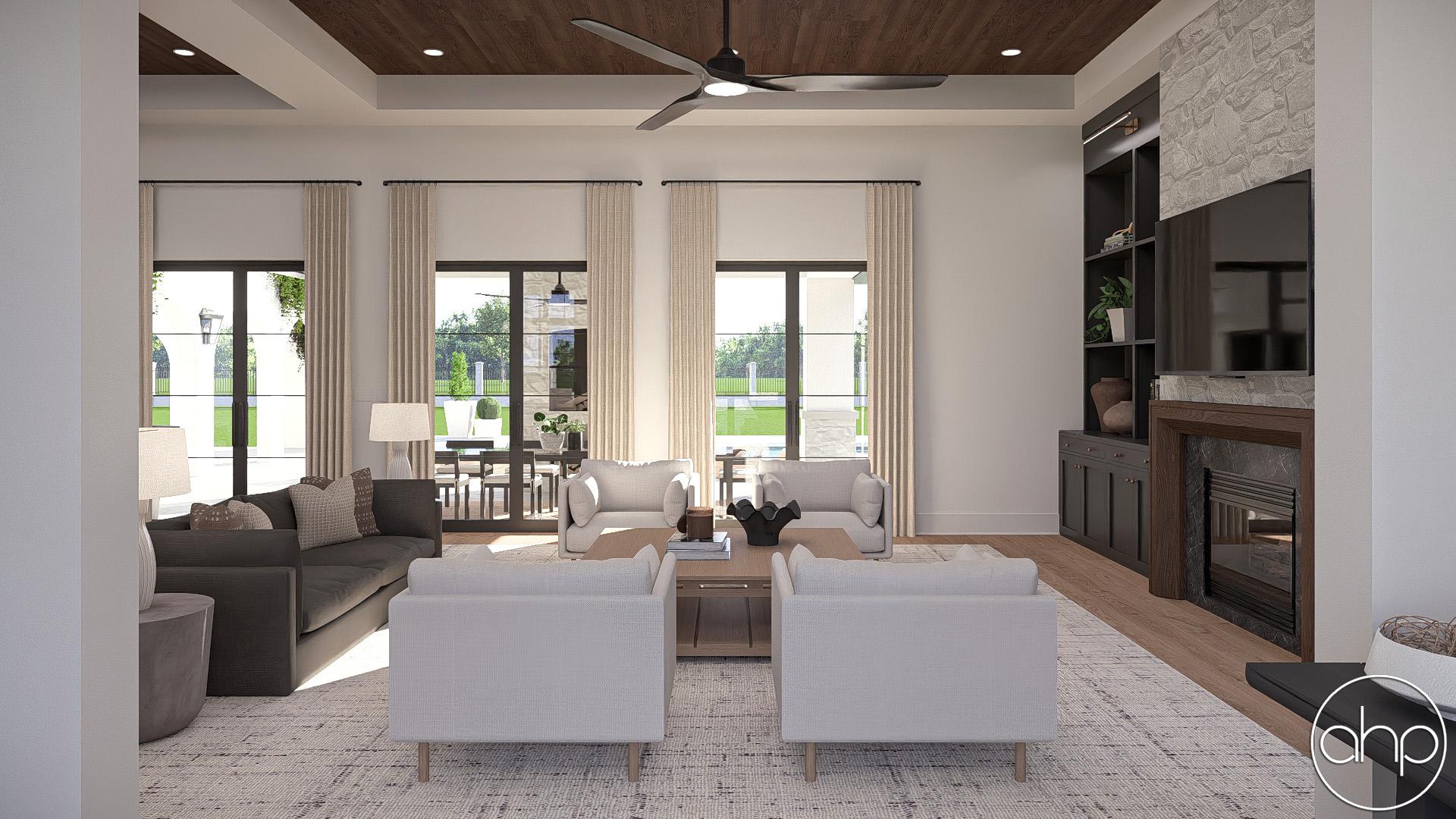

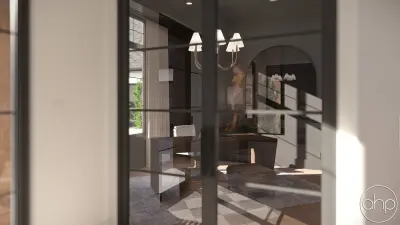

Step through the dedicated entry to find a private office at the front of the home. The main living space flows effortlessly from the great room through the dining area to the open kitchen, with a walk-through pantry that connects directly to the mudroom for added convenience.

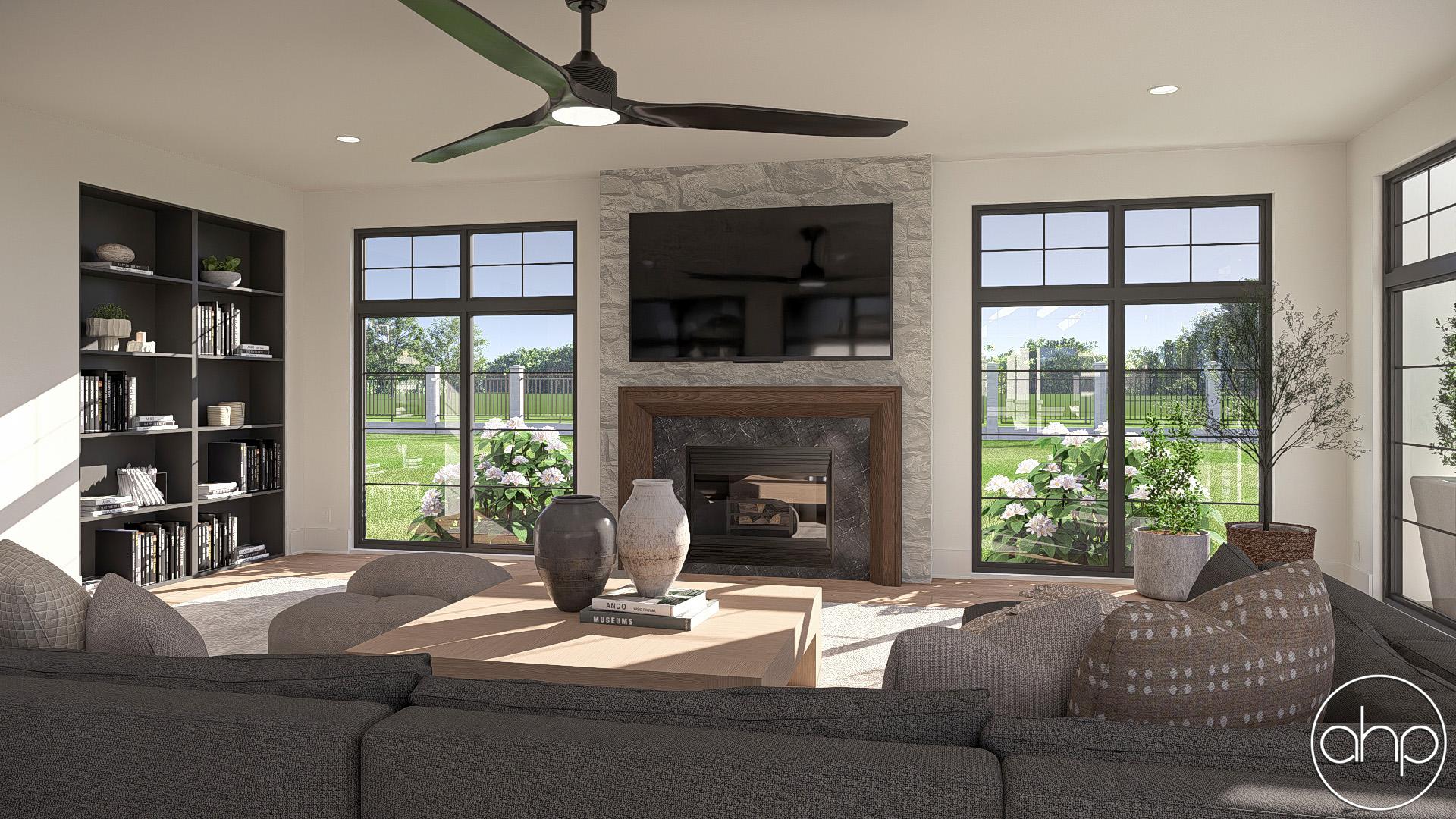

A rear family room provides a cozy retreat—and hides a storm shelter seamlessly tucked behind built-ins.

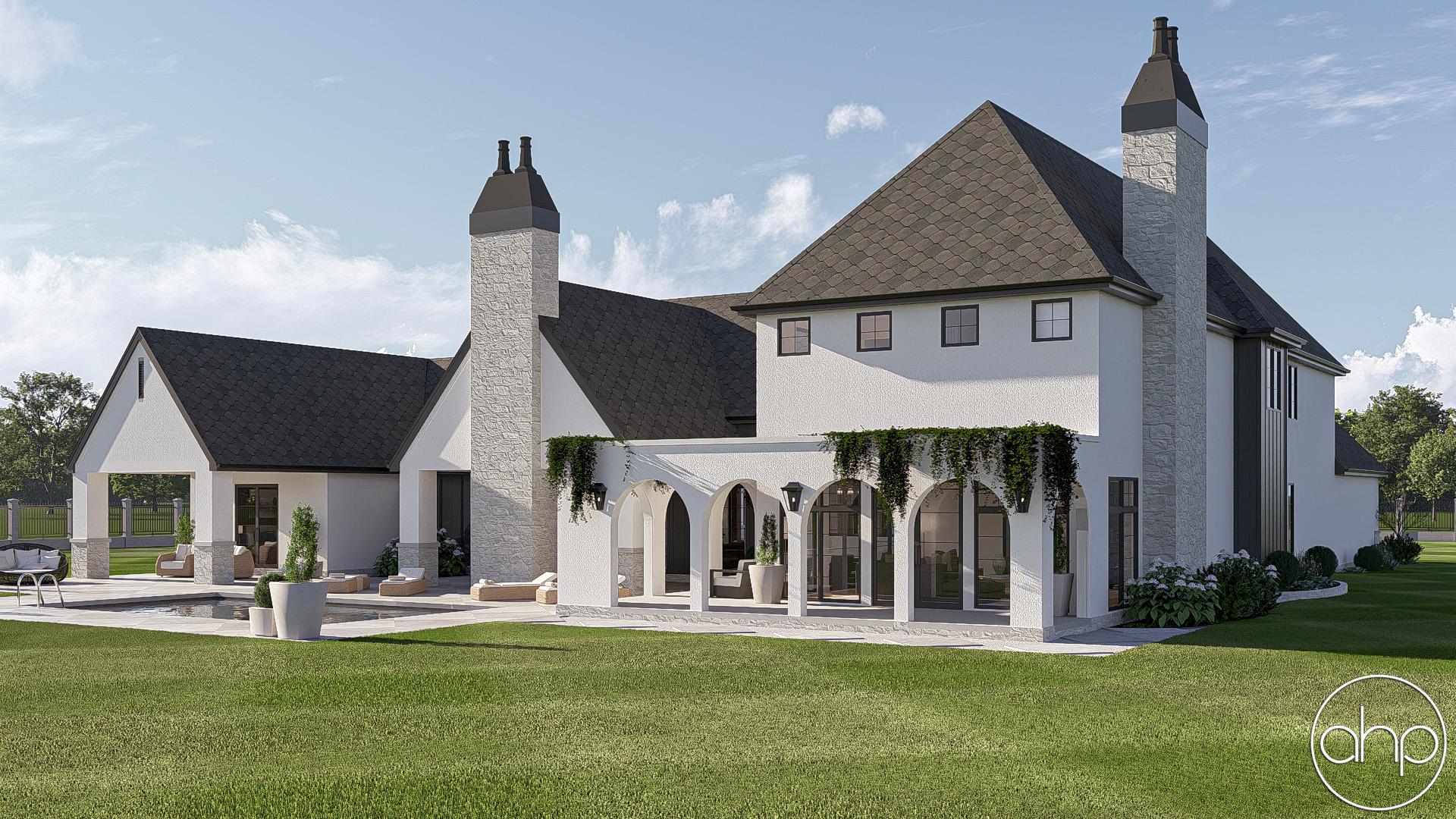

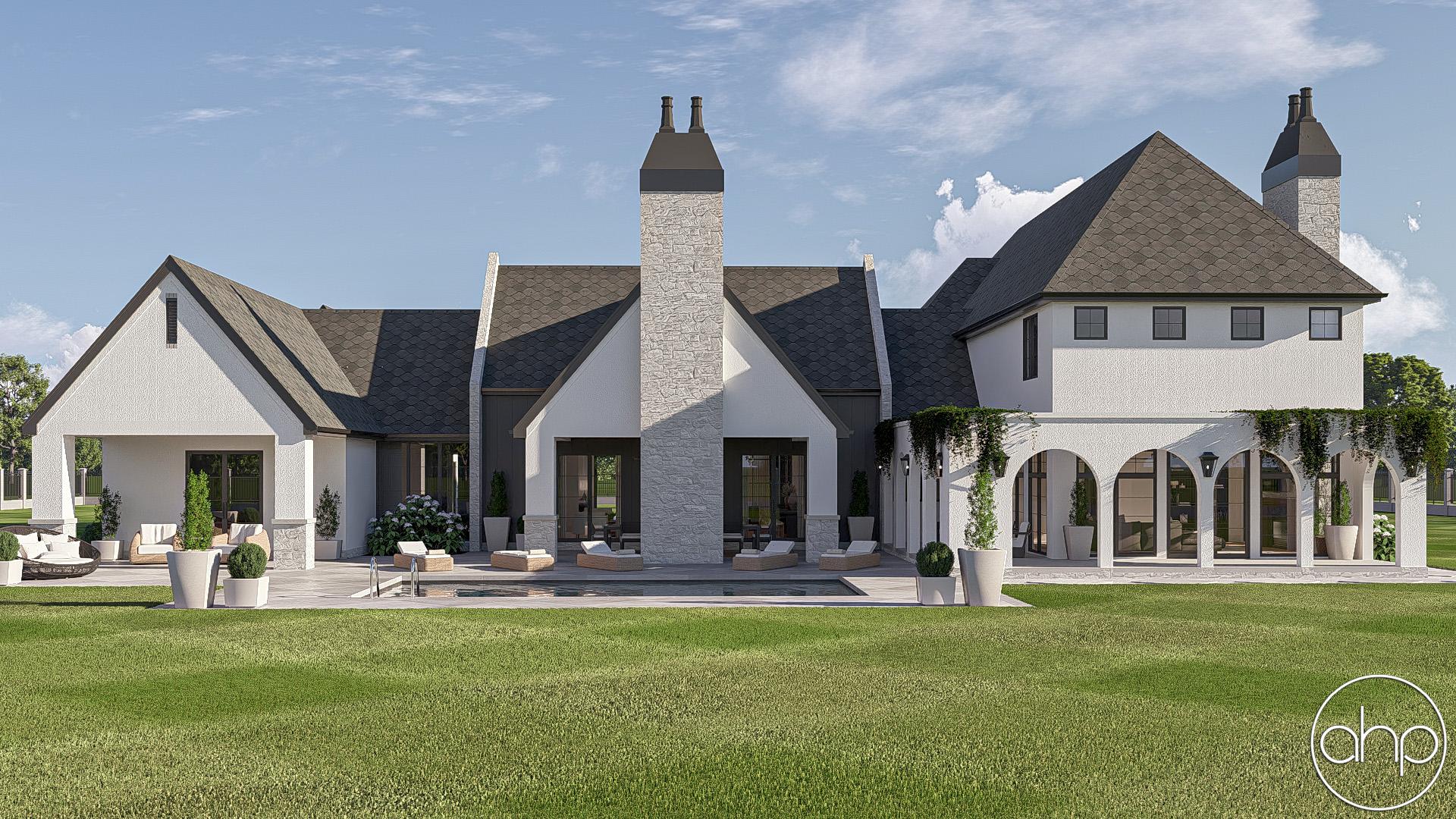

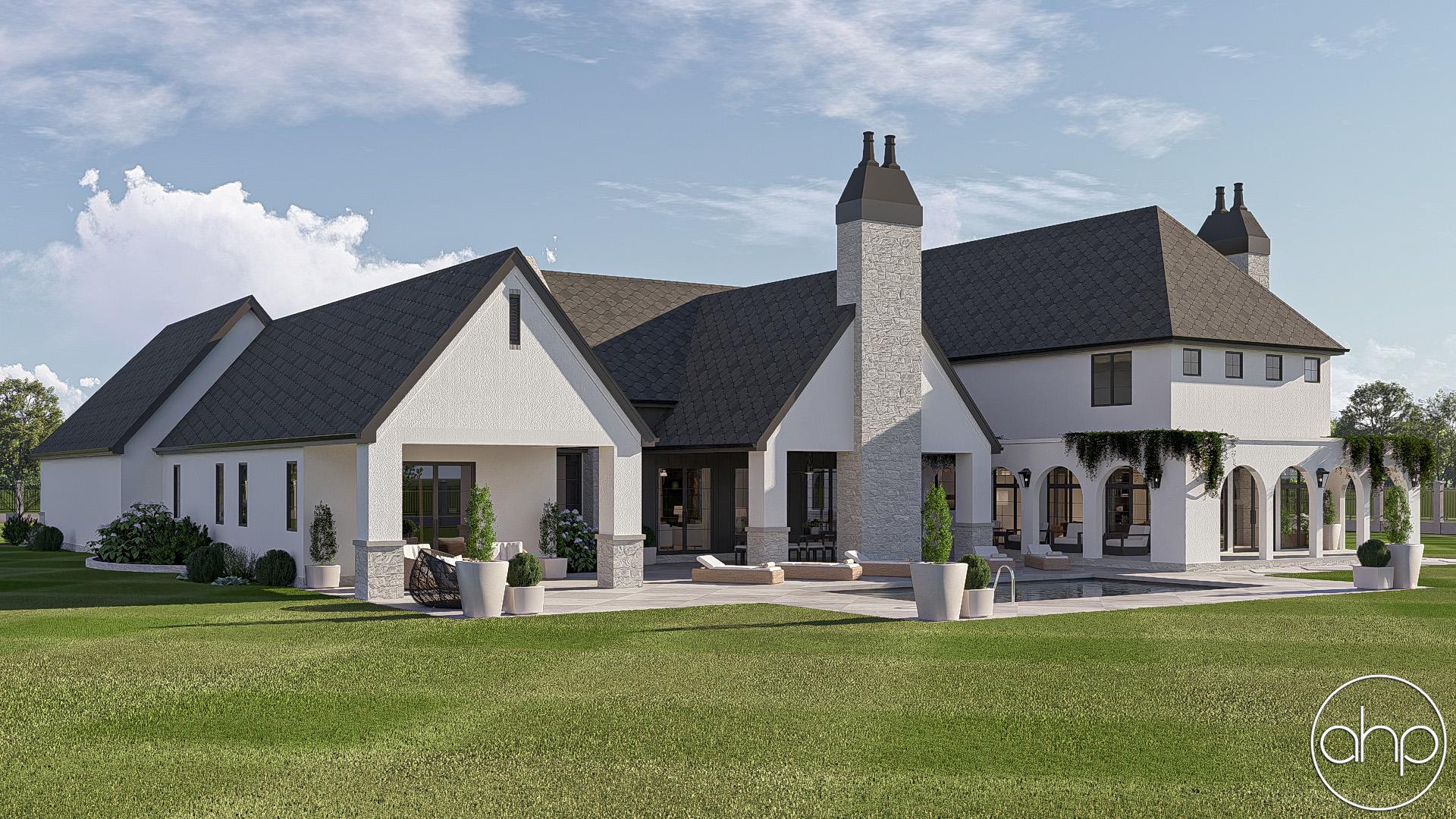

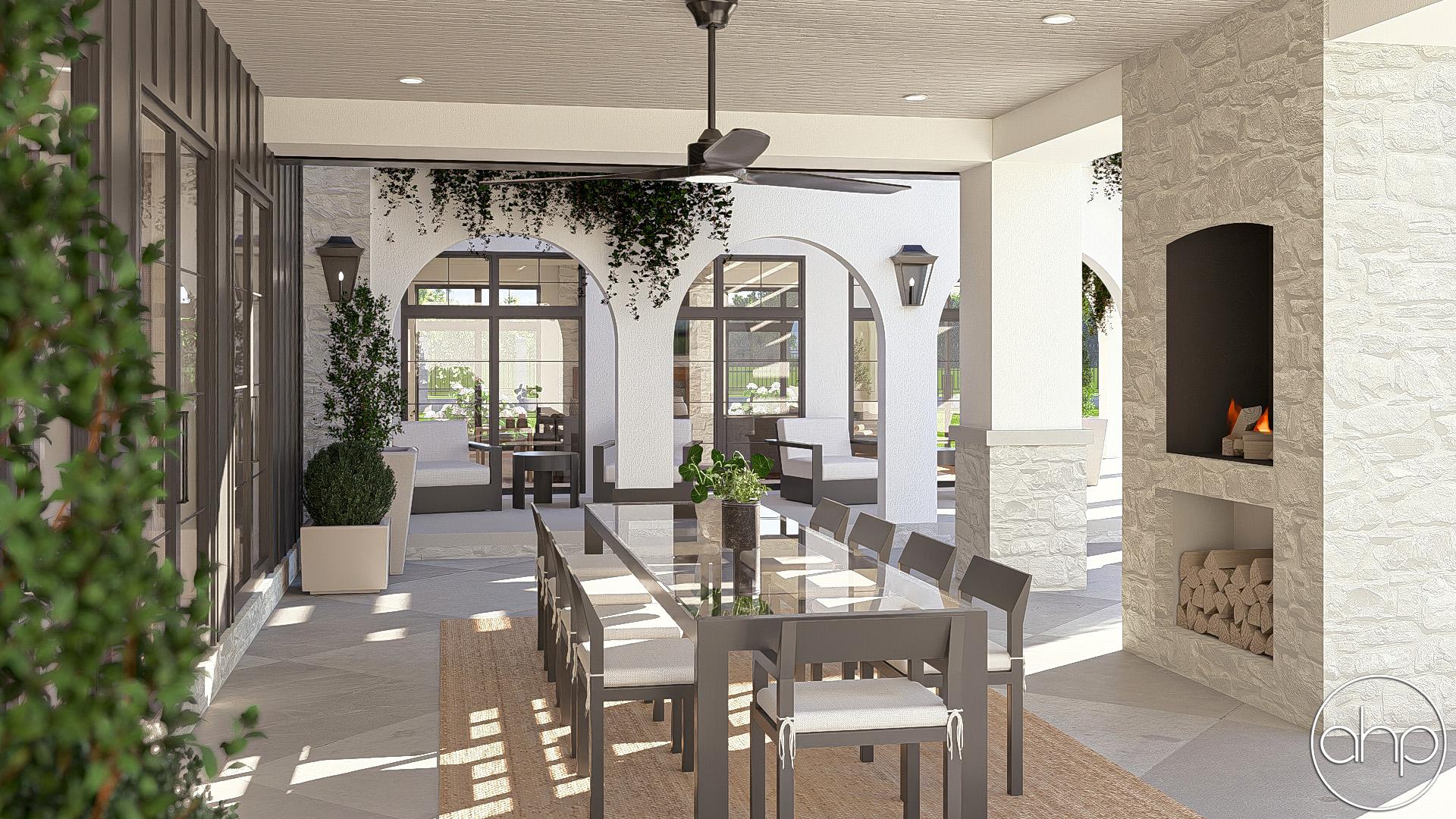

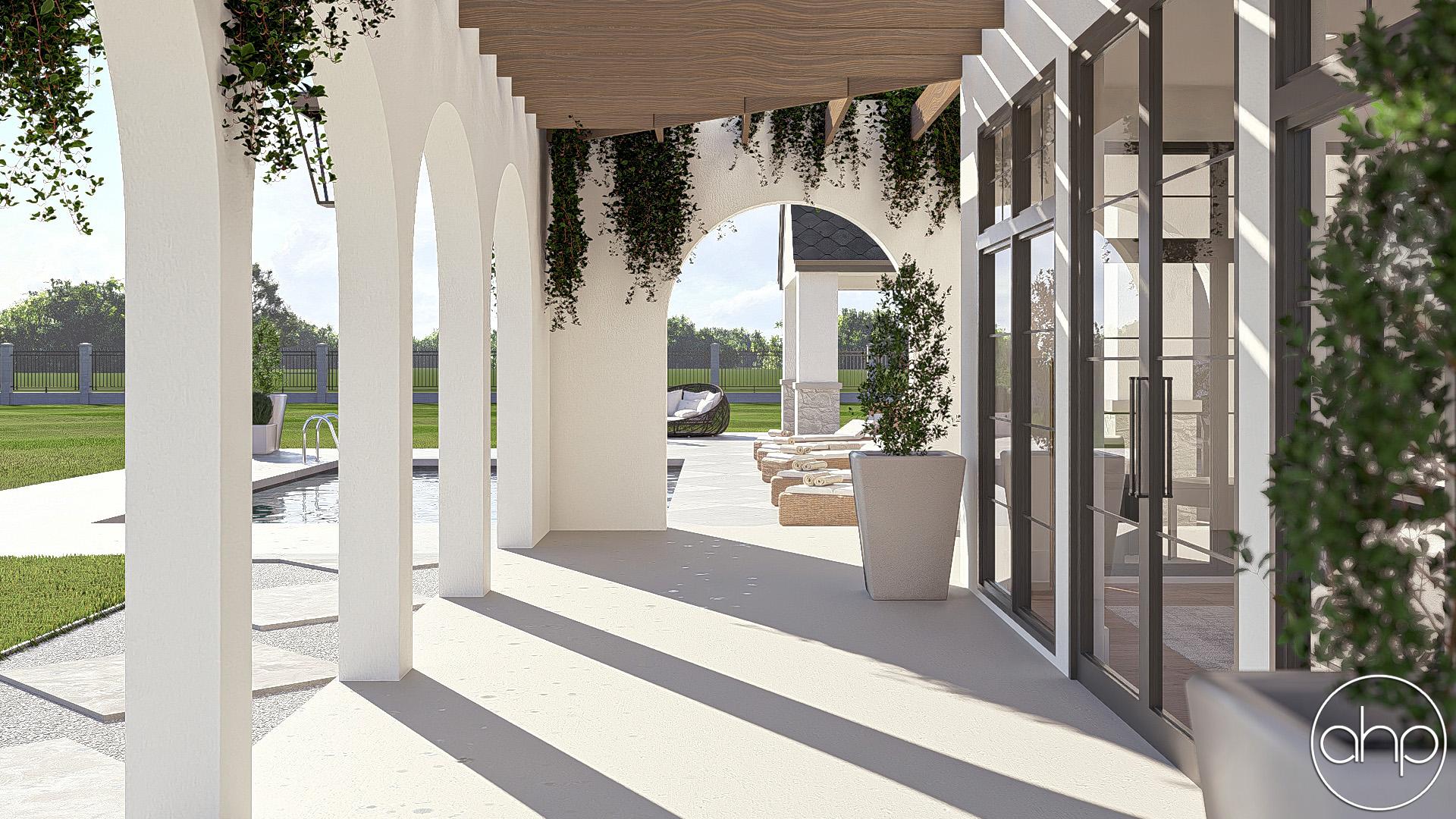

Enjoy the outdoors with not one, but two separate covered patios—one off the great room, and another private one off the master suite. Plus, a pergola off the living room adds even more charm and space for entertaining.

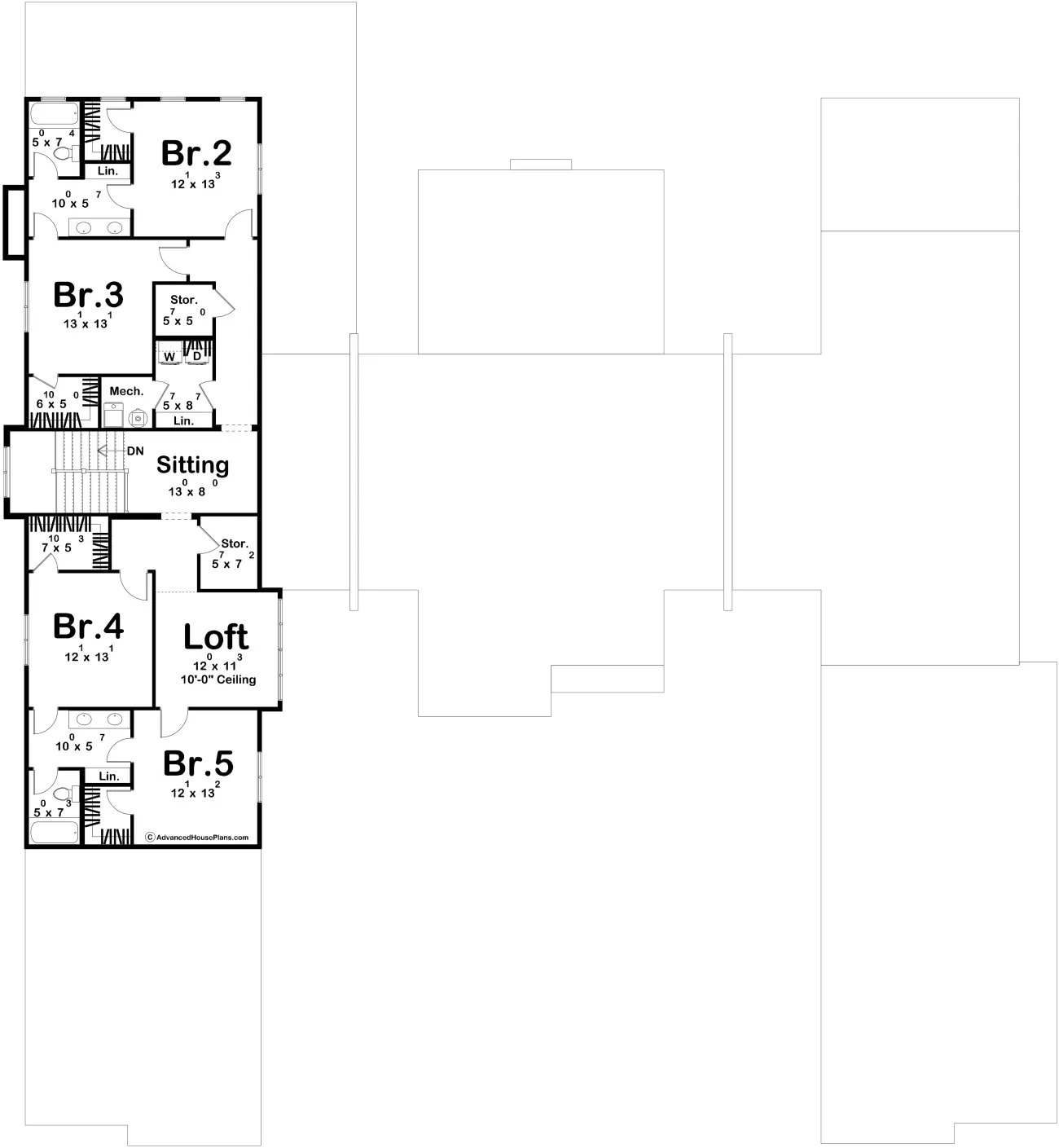

Upstairs, you’ll find the secondary bedrooms, a spacious loft, and a dedicated laundry room. Throughout both levels, the home includes abundant storage closets—perfectly placed to keep daily life organized.
The Fitzpatrick combines modern elegance with thoughtful function—built for families who want it all.
Construction Specifications
| Basic Layout Information | |
| Bedrooms | 5 |
| Bathrooms | 4 |
| Garage Bays | 6 |
| Square Footage Breakdown | |
| Main Level | 3573 Sq Ft |
| Second Level | 1543 Sq Ft |
| Total Finished Area | 5116 Sq Ft |
| Garage | 2070 Sq Ft |
| Covered Areas (patios, porches, decks, etc) | 1253 Sq Ft |
| Exterior Dimensions | |
| Width | 102' 8" |
| Depth | 111' 4" |
| Ridge Height | 34' 3" |
| Default Construction Stats | |
| Default Foundation Type | Slab |
| Default Exterior Wall Construction | 2x4 |
| Roof Construction Method | Trusses |
| Floor Construction Method | Floor Trusses |
| Roof Pitches | Primary 12/12, Secondary 14/12 |
| Main Level Ceiling Height | 10' |
| Second Level Ceiling Height | 8' |
Instant Cost to Build Estimate
Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.
What's Included in a Plan Set?
Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.
Our blueprints include:
Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Roof Plan
Typical Wall Section, Stair Section, Cabinets
If you have any additional questions about what you are getting in a plan set, contact us today.
Upgrade Your Plan With Add-ons
Note: Add-ons may result in a longer turn-around time.
Note: The material list is for estimation purposes only.
