Beach-Lake Style House

Emerald Bay - 30345

Sq Ft
102' 0"
60' 4"

Plan Video

Floor Plan Images

Main Level

Beach-Lake Style House | Emerald Bay

Optional Finished Basement

Emerald Bay

Plan Description

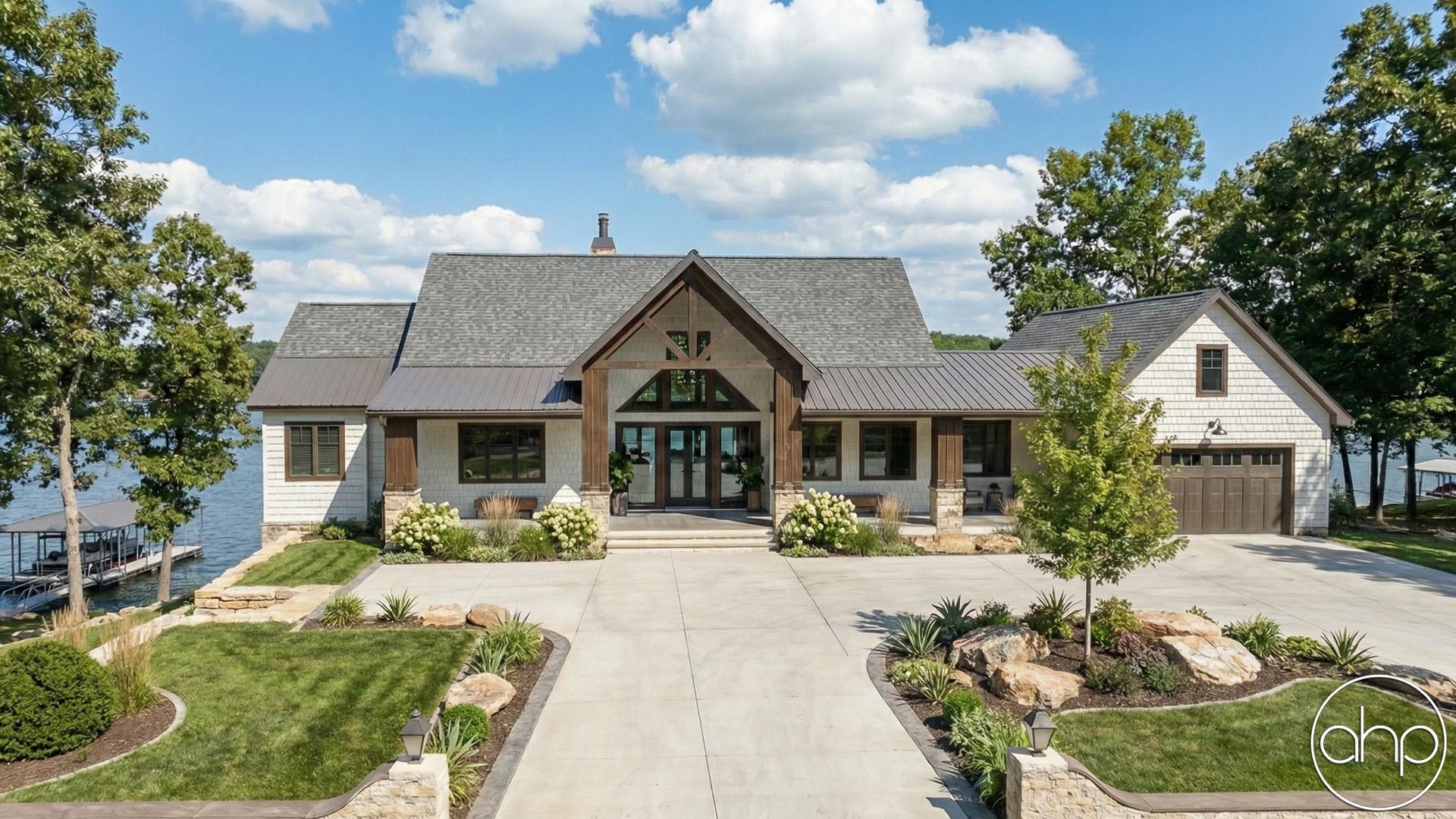

Introducing the perfect blend of coastal charm and modern luxury – the Emerald Bay. Inspired by the soothing ambiance of beachfront living, this house plan exudes coastal elegance with its inviting facade and spacious layout.

Designed for comfort and convenience, this home boasts two generously sized bedrooms, each with its own ensuite bathroom. Additionally, a third bathroom ensures ample accommodation for guests.

Step into the heart of the home, where a cathedral ceiling entry and great room await. Flooded with natural light from large windows that offer breathtaking views of the surrounding landscape, this space is ideal for entertaining or simply unwinding in style.

The master suite is a true retreat, featuring a luxurious bathroom complete with a deep soaking tub, a walk-in shower, and dual vanities. Every detail has been carefully considered to create a spa-like atmosphere where you can relax and rejuvenate.

Whether returning from a day at the beach or a hike along the nearby trails, the large mudroom provides the perfect space to store outdoor gear and keep the rest of the home clean and organized.

Embrace the beauty of the outdoors from the comfort of your home with expansive windows that frame panoramic views of the lake and surrounding landscape. Whether you're enjoying your morning coffee or hosting a gathering with friends, these windows bring the beauty of nature indoors.

Take advantage of the warmer days with outdoor living spaces designed for relaxation and entertainment. From a spacious deck overlooking the lake to a cozy patio for al fresco dining, there's no shortage of places to soak up the sun and savor the tranquility of lakeside living.

In summary, the Emerald Bay offers a harmonious blend of coastal charm, modern luxury, and functional design elements. Whether you're seeking a peaceful retreat or a stylish home for entertaining, this meticulously crafted residence is sure to exceed your expectations.

The optional finished basement adds 1822 sq. ft.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 2
Bathrooms 3
Garage Bays 2
Square Footage
Main Level 2388 Sq. Ft.
Covered Area 1243 Sq. Ft.
Garage 592 Sq. Ft.
Total Finished Area 2388 Sq. Ft.
Exterior Dimensions
Width 102 ' 0"
Depth 60 ' 4"
Ridge Height
Calculated from main floor line
25 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
Primary 10/12, Secondary 8/12, Secondary 3/12, Secondary 6/12
Foundation Wall Height
Main Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
