Want to make changes to this plan?

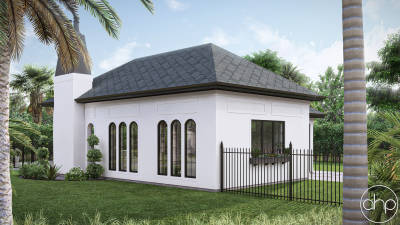

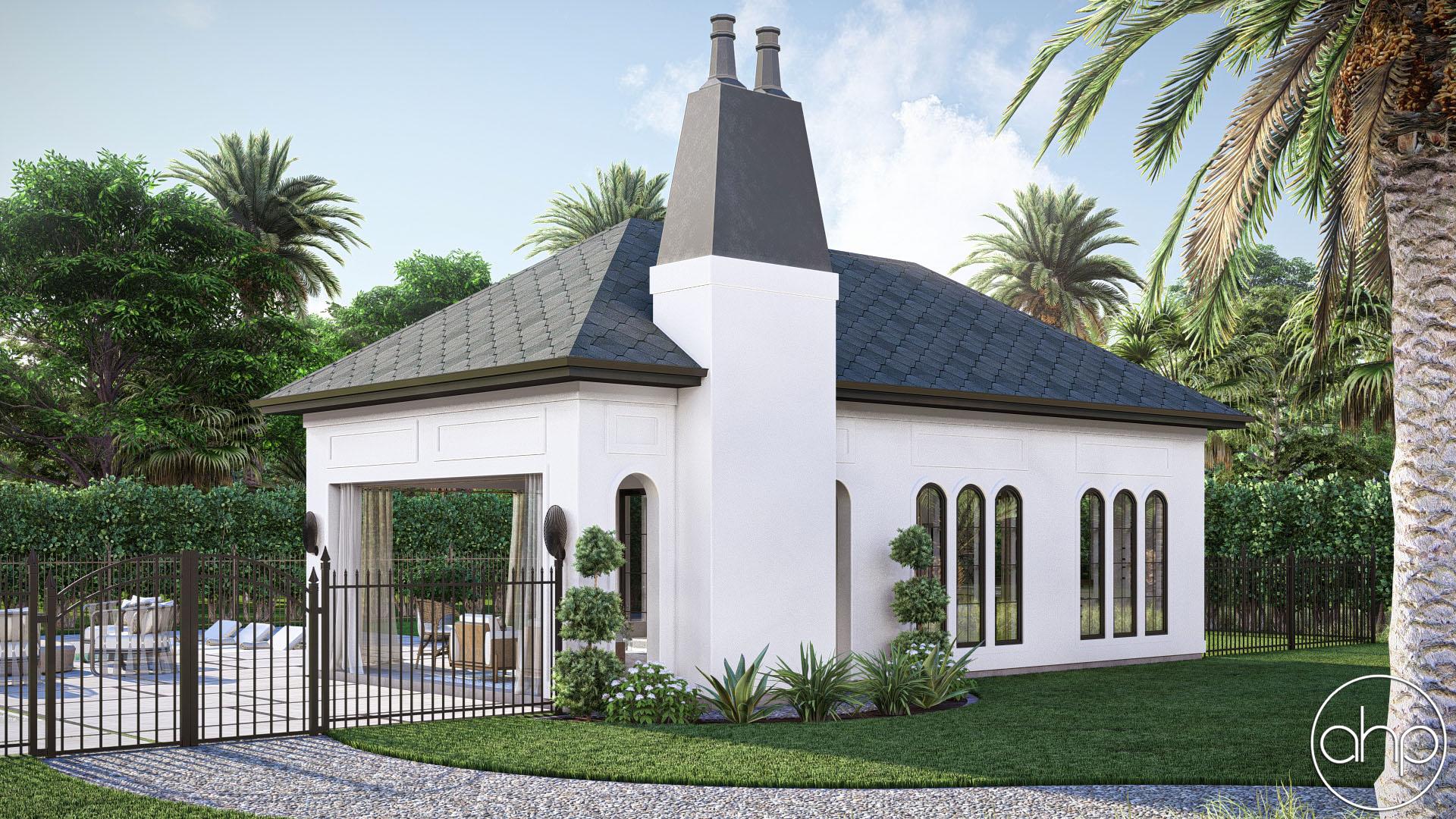

Mediterranean Style Pool House Plan

Dunbar - 30409

Sq Ft
38' 0"
32' 0"

Plan Video

Floor Plan Images

Main Level


Plan Description

Escape to your own private sanctuary with this luxurious Mediterranean pool house plan. Designed to evoke the charm and elegance of coastal living, this retreat offers a seamless blend of indoor and outdoor spaces, perfect for entertaining guests or unwinding in solitude.

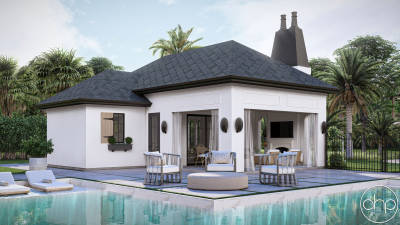

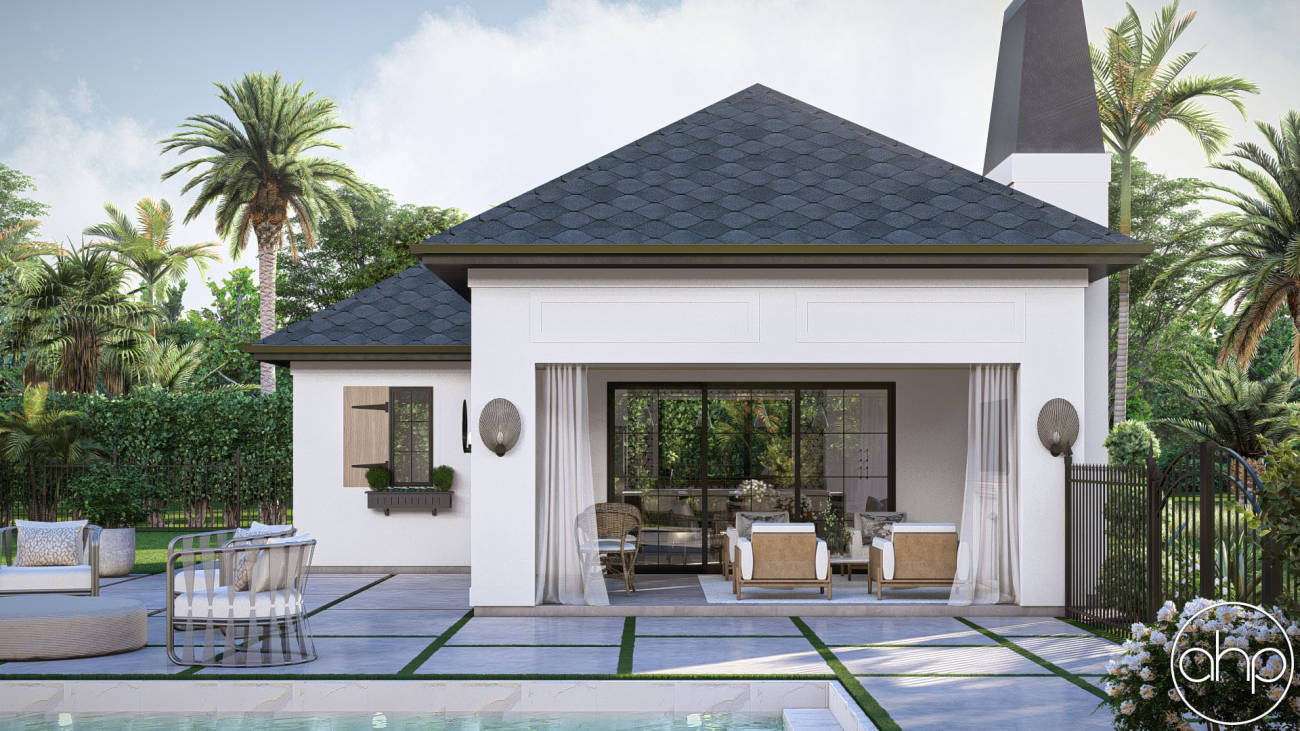

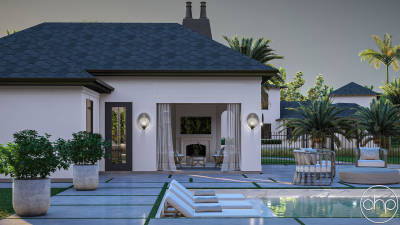

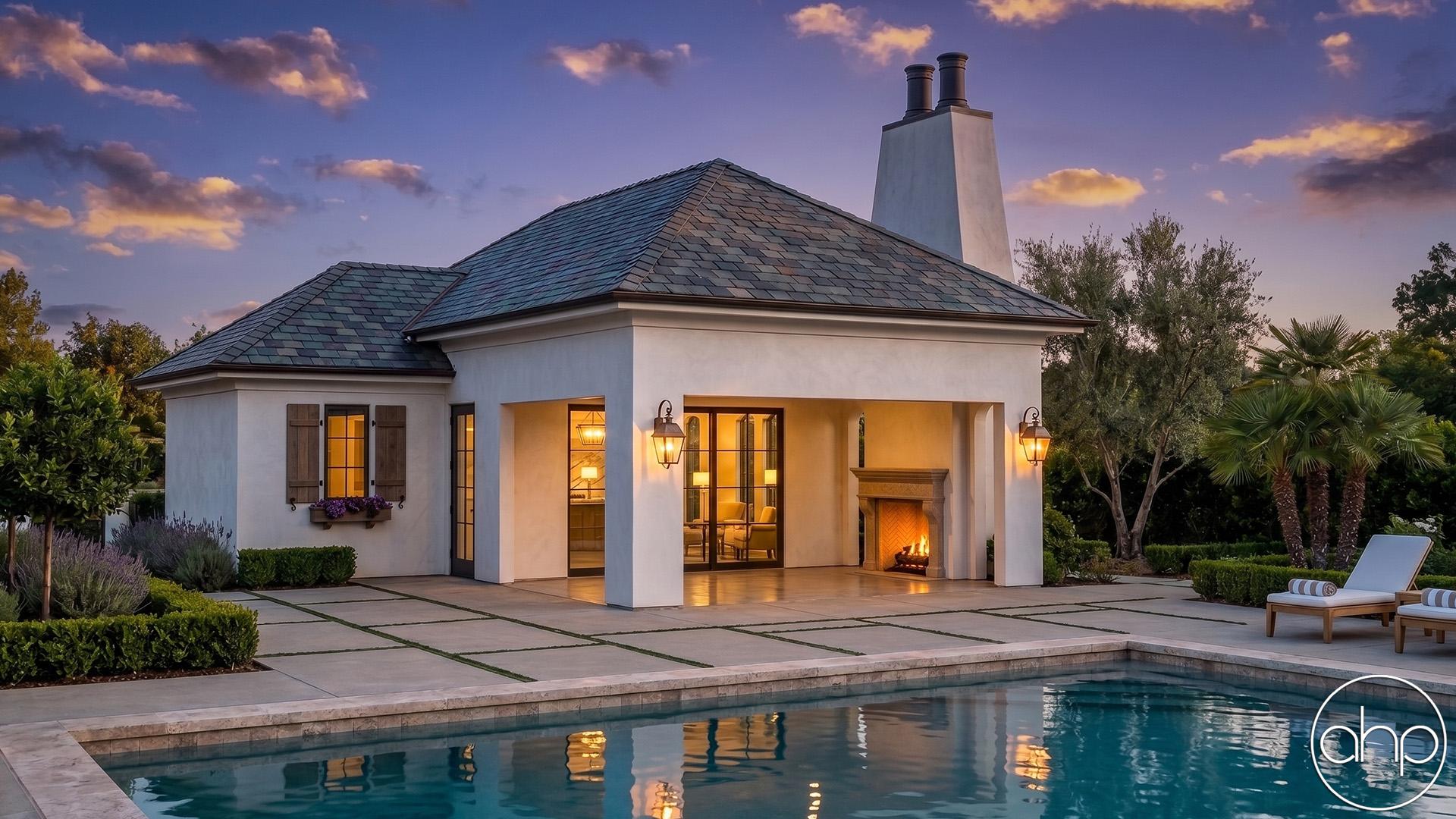

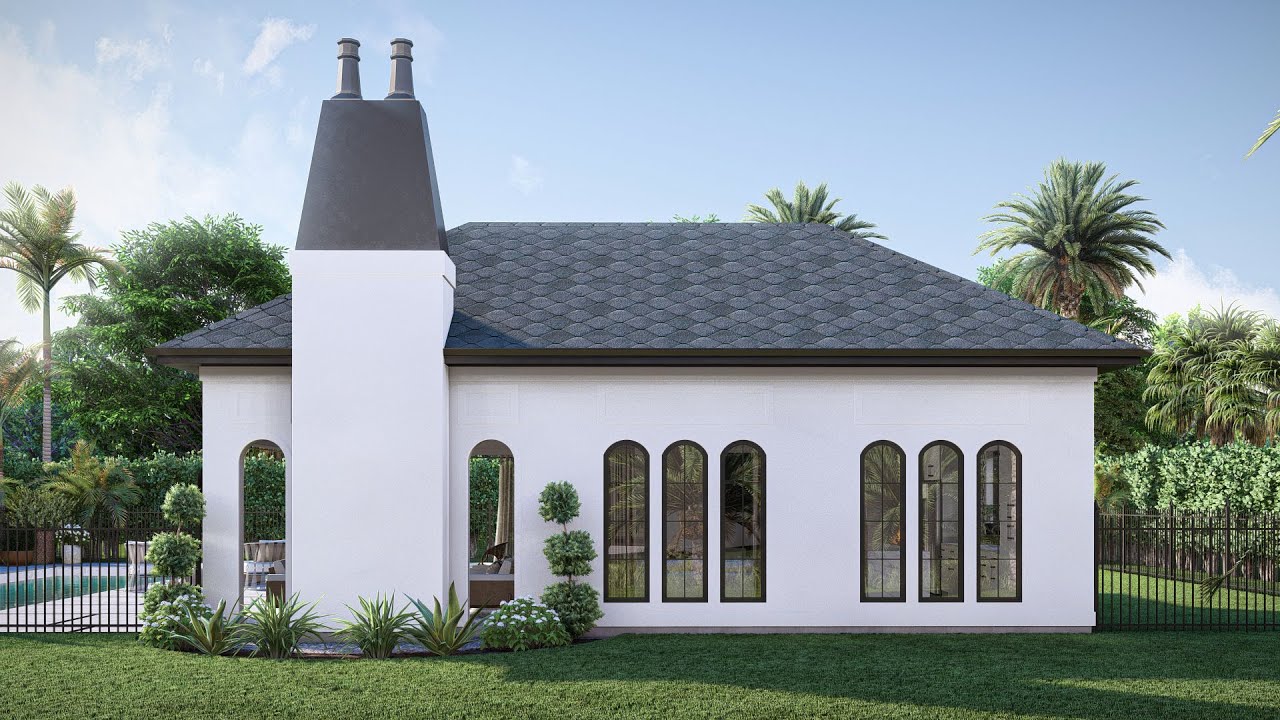

The covered porch extends from the main structure, providing shade and shelter. A striking fireplace serves as the focal point, offering warmth and ambiance on cool evenings.

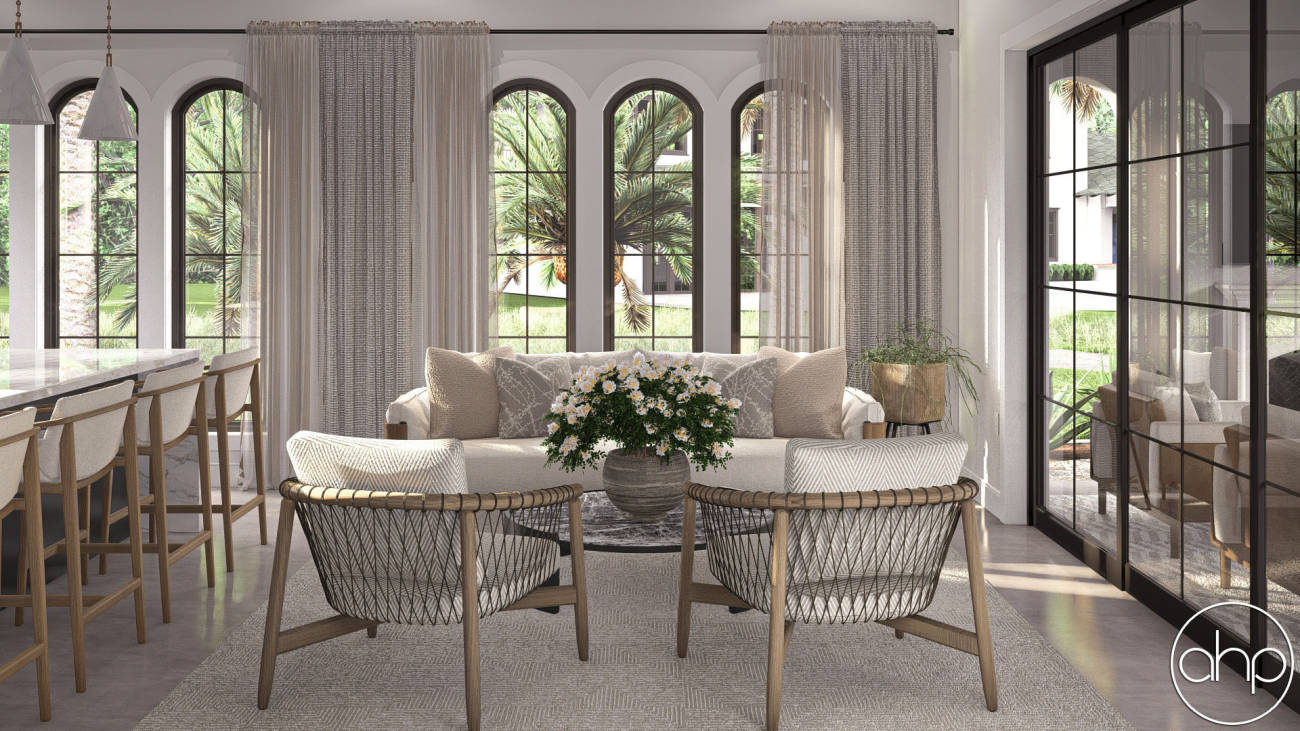

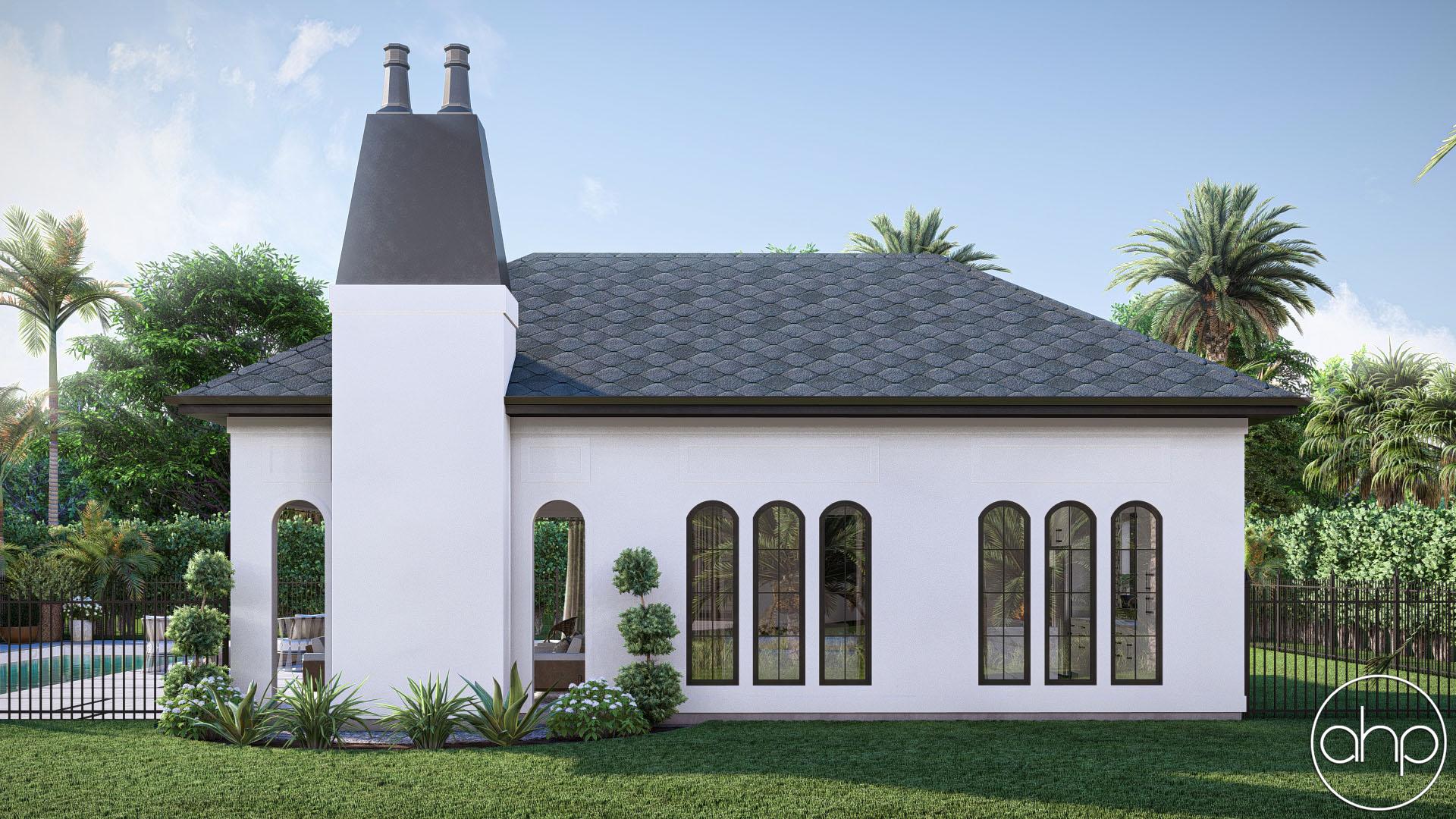

Upon entering, you're welcomed into a spacious and airy living area, illuminated by natural light streaming through the arched windows. The high ceilings and open floor plan create a sense of grandeur and expansiveness.

A well-appointed kitchen awaits along the back wall. Whether preparing drinks or stopping in for a snack, this kitchen offers both style and functionality.

With its timeless charm, luxurious amenities, and seamless indoor-outdoor flow, this Mediterranean pool house plan is sure to exceed your expectations. Whether you're seeking a peaceful retreat or a sophisticated entertaining space, this exquisite sanctuary offers the perfect blend of comfort, style, and serenity.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bathrooms 1
Square Footage
Main Level 547 Sq. Ft.
Covered Area 273 Sq. Ft.
Total Finished Area 547 Sq. Ft.
Exterior Dimensions
Width 38 ' 0"
Depth 32 ' 0"
Ridge Height
Calculated from main floor line
20 ' 0"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
Primary 8/12
Main Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
