Traditional Style House Plan

Butterfield - 30227

Sq Ft
57' 0"
75' 0"

Floor Plan Images

Main Level


Second Level


Optional Finished Basement


Plan Description

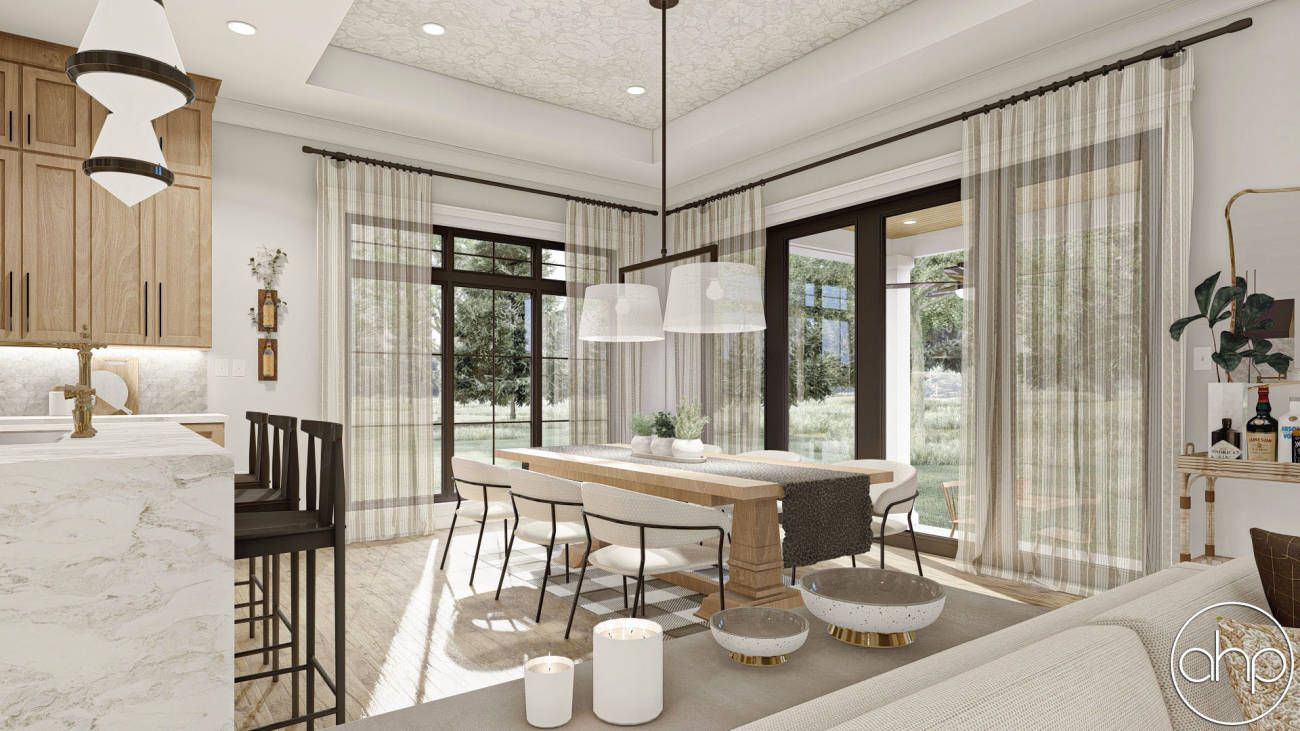

This traditional style house plan boasts 2846 square feet of living space, with 3 bedrooms and 3 bathrooms. The spacious layout includes a formal living room, separate dining room, and a large family room that opens up to the kitchen.

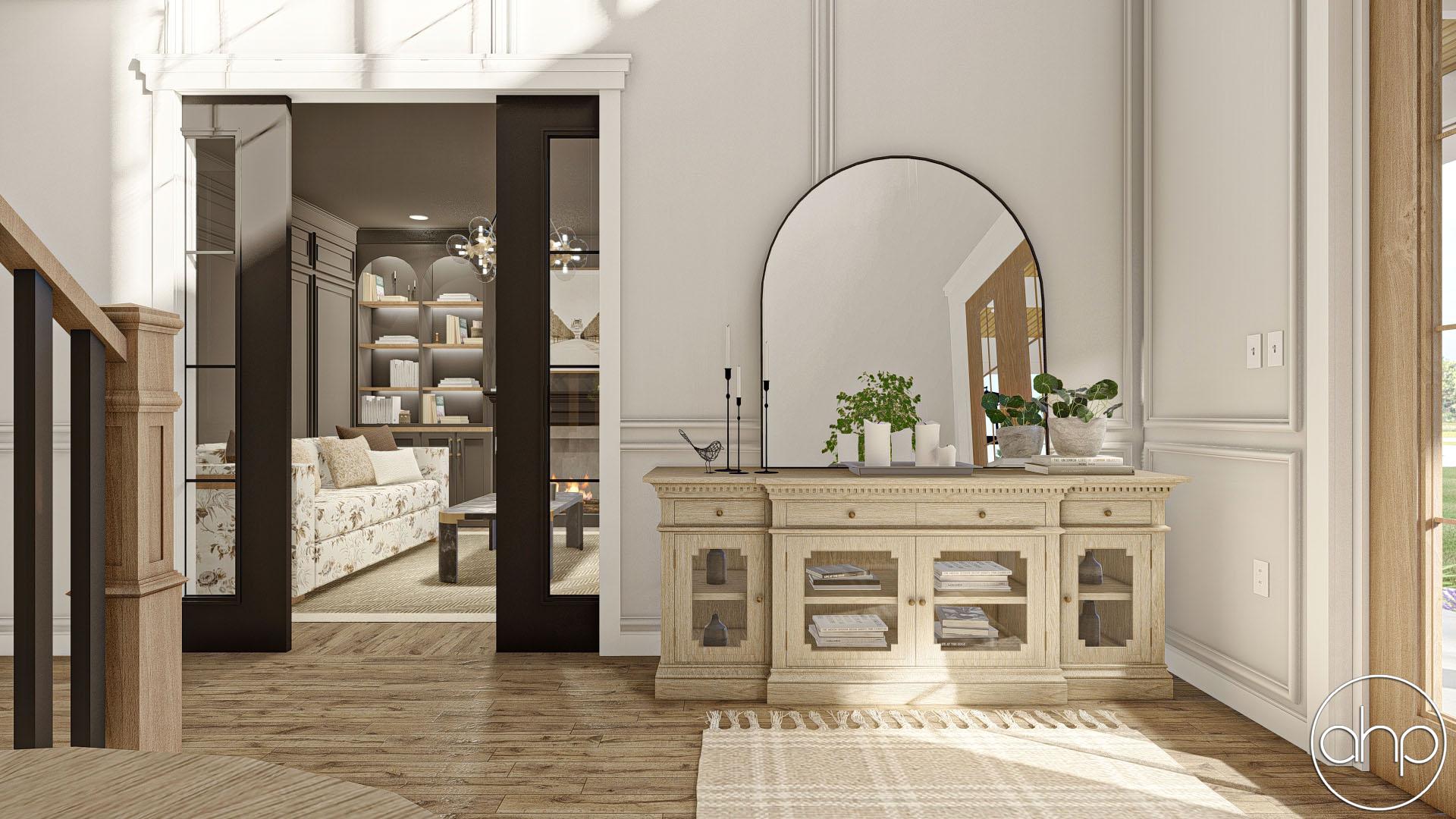

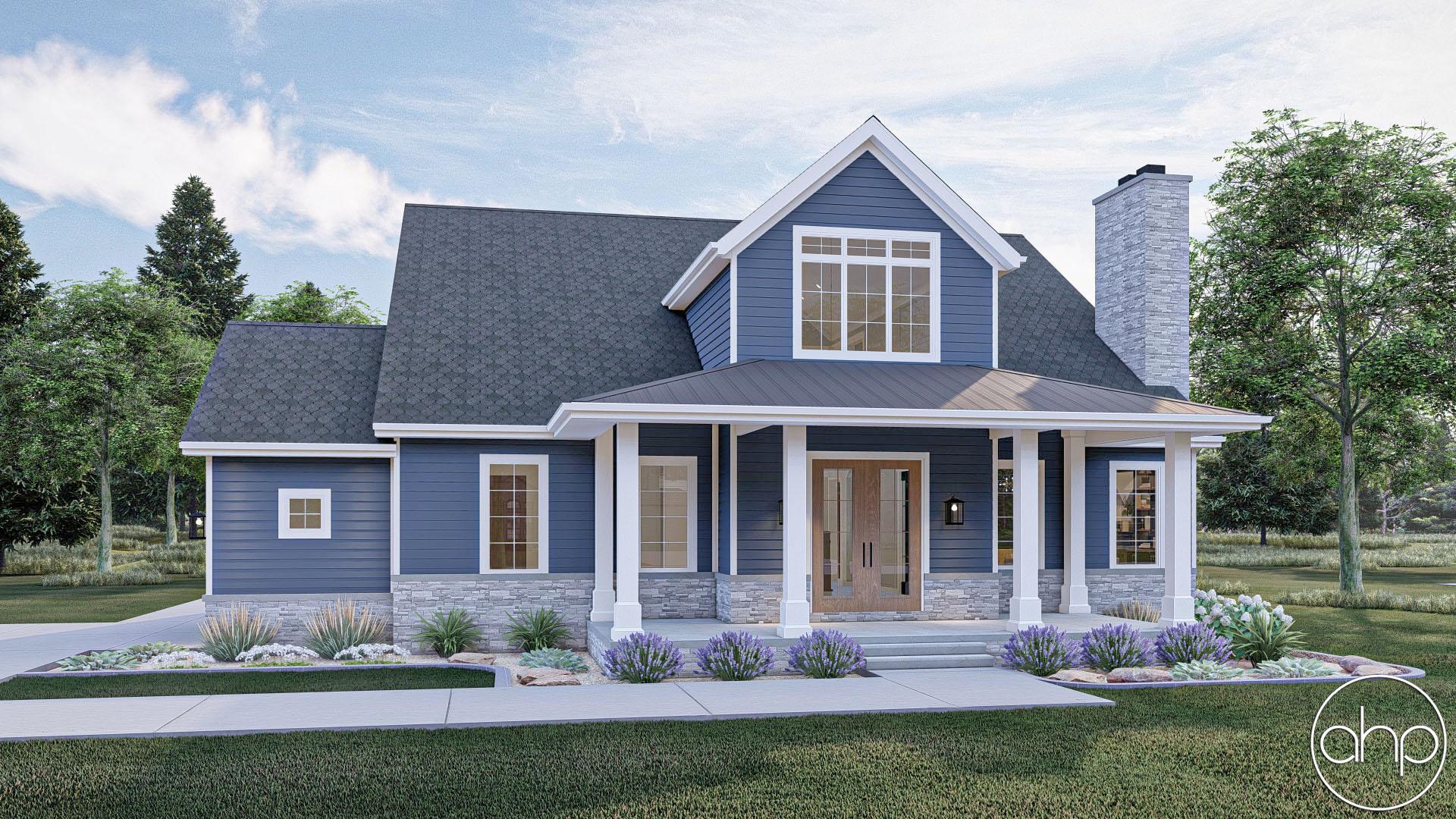

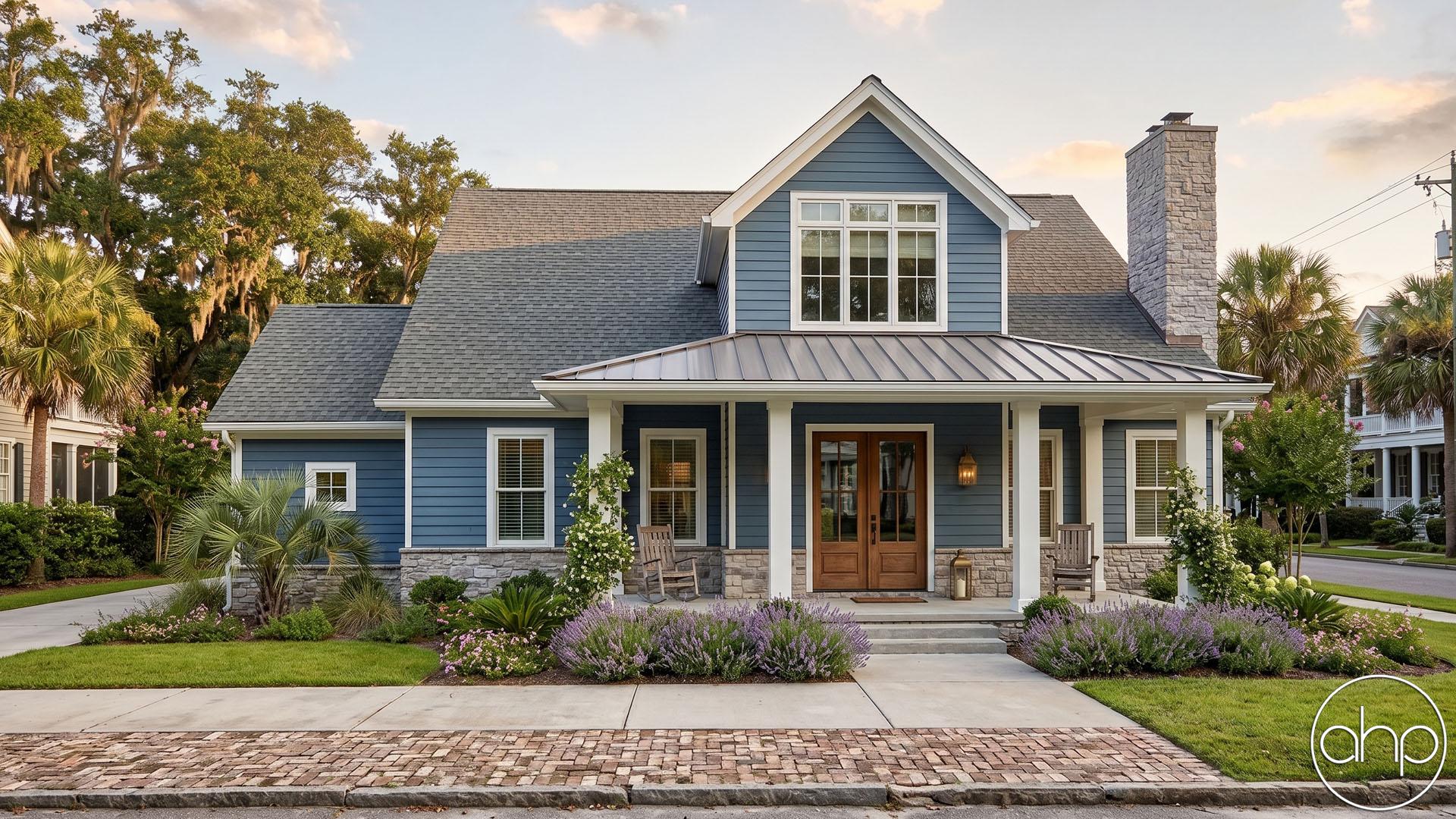

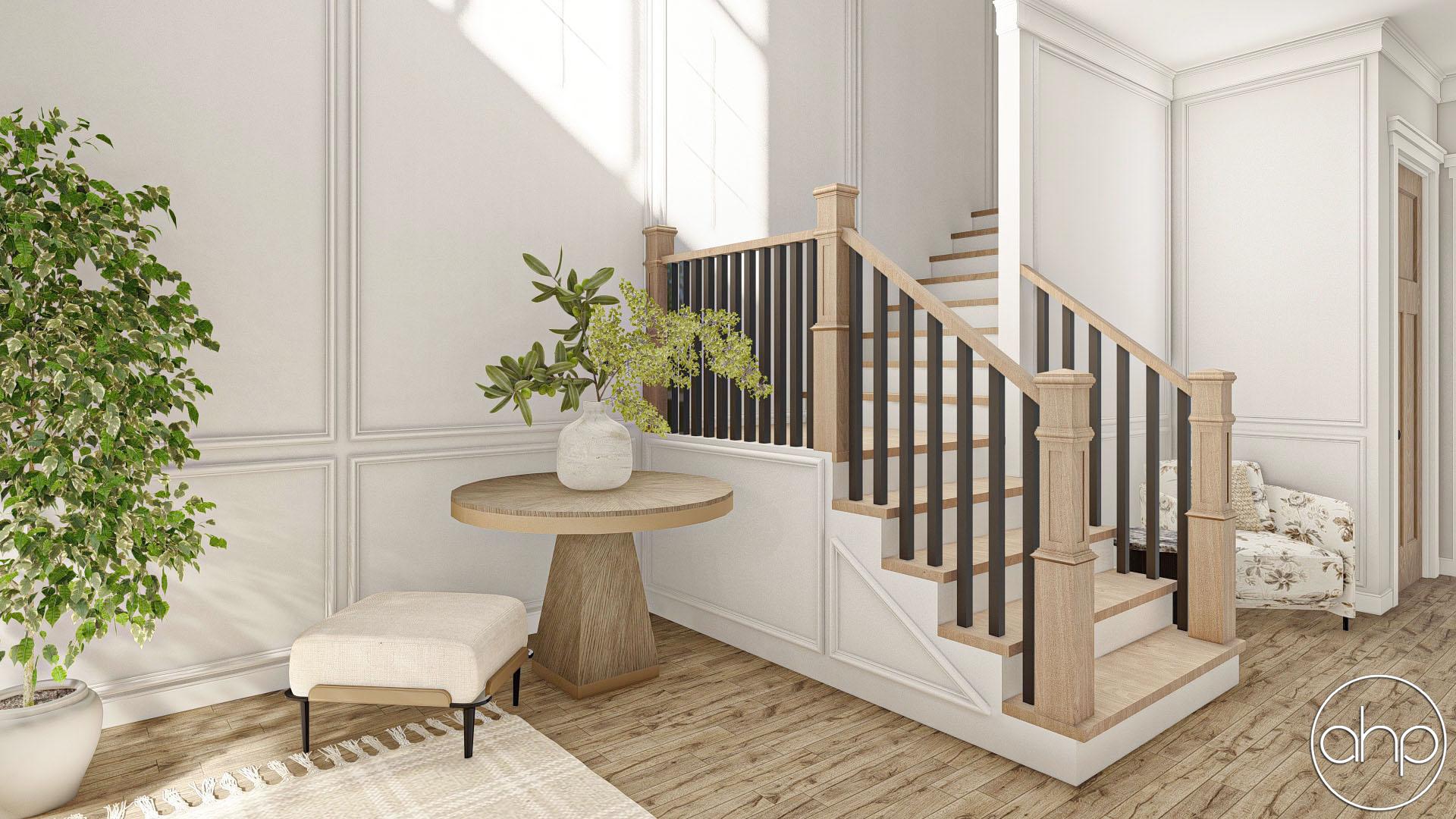

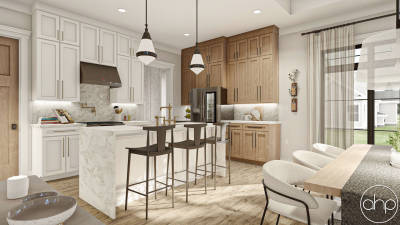

Walking upon the covered porch and double front doors brings you right into a beautiful entryway, leading directly into the open concept great room and kitchen area. Here, there is a walk-in pantry, mudroom, built-in fireplace and shelving, as well as access to a covered patio out back.

Heading back towards the entryway leads to a hallway with the master suite, laundry room, or access to the upstairs or optional finished basement areas. The master provides an 11’ ceiling, a private bathroom with double vanities, a soaking tub, and separate shower area, as well as a spacious walk-in closet. A powder bath can be found just on the opposite wall.

Upstairs, you can find the additional two bedrooms, each with their own walk-in closet, and one additional bathroom. A small loft that overlooks the entry below can also be found here, as well as a secret room hidden behind a murphy door, perfect for a kids cubby or study area.

An optional finished basement can be added to this plan, providing an additional 1409 square feet, family room and rec area, two storage rooms, and an additional bedroom and bathroom. A wet bar can also be found downstairs, perfect for entertaining a Sunday football game or birthday party.


As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Bedrooms 3
Bathrooms 3
Garage Bays 2
Square Footage
Main Level 2018 Sq. Ft.
Second Level 828 Sq. Ft.
Covered Area 515 Sq. Ft.
Garage 573 Sq. Ft.
Total Finished Area 2846 Sq. Ft.
Exterior Dimensions
Width 57 ' 0"
Depth 75 ' 0"
Ridge Height
Calculated from main floor line
27 ' 9"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Exterior Wall Construction
Roof Pitches
Primary 8/12, Secondary 10/12, 4/12
Foundation Wall Height
Main Wall Height
Second Wall Height

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
If you have any additional questions about what you are getting in a plan set, contact us today at [email protected]
