Sedalia | 30572

Modern Cottage Style Lake House Plan | Sedalia

2676
Sq Ft
2
Bedrooms
3
Bathrooms
2
Bays
82' 0"
Width
71' 8"
Depth

Floor Plan Images

Looking for something specific? We'll customize any plan to match your needs. Get your free alteration quote →

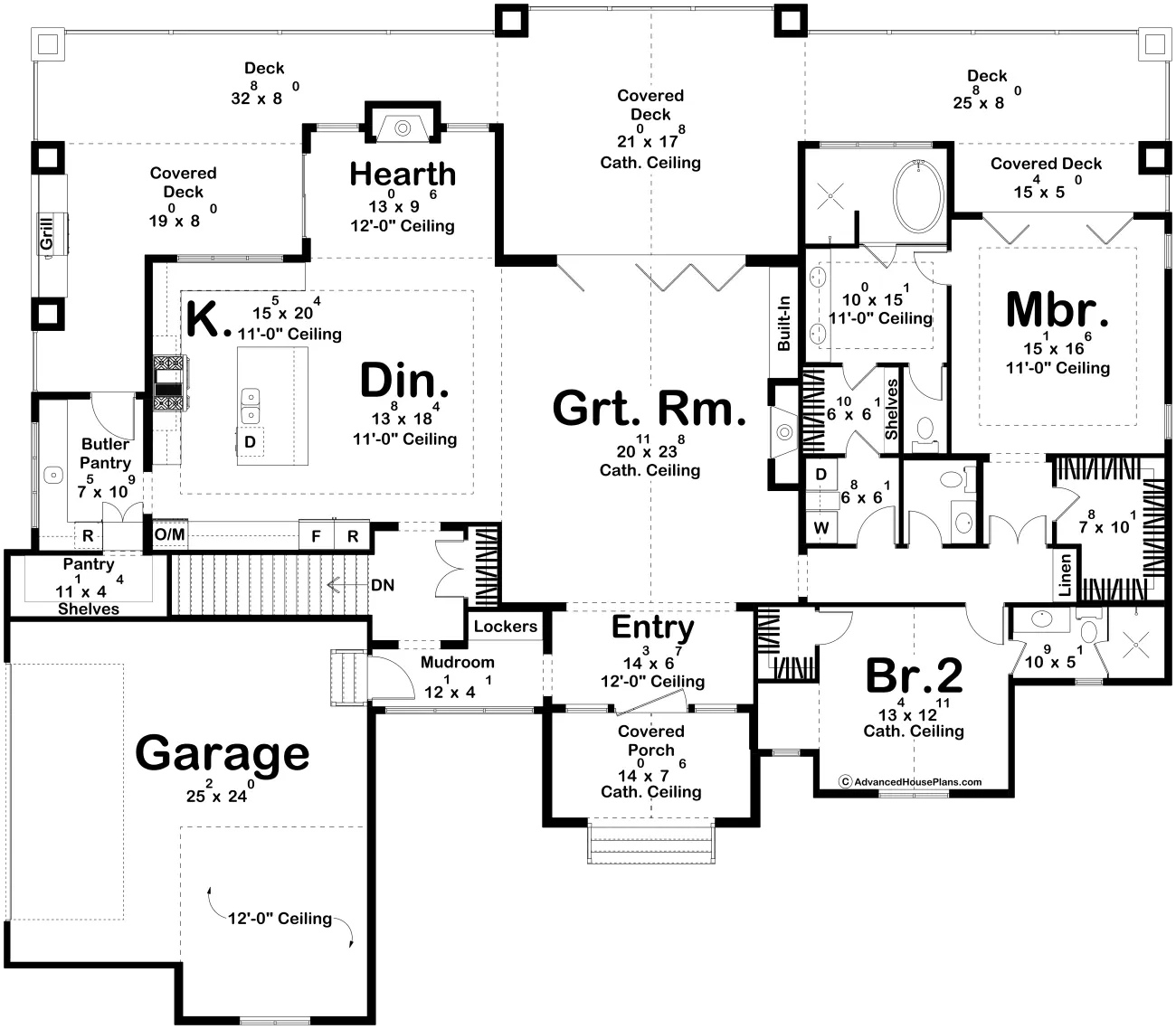

Main Floor Layout
Sedalia Rendering

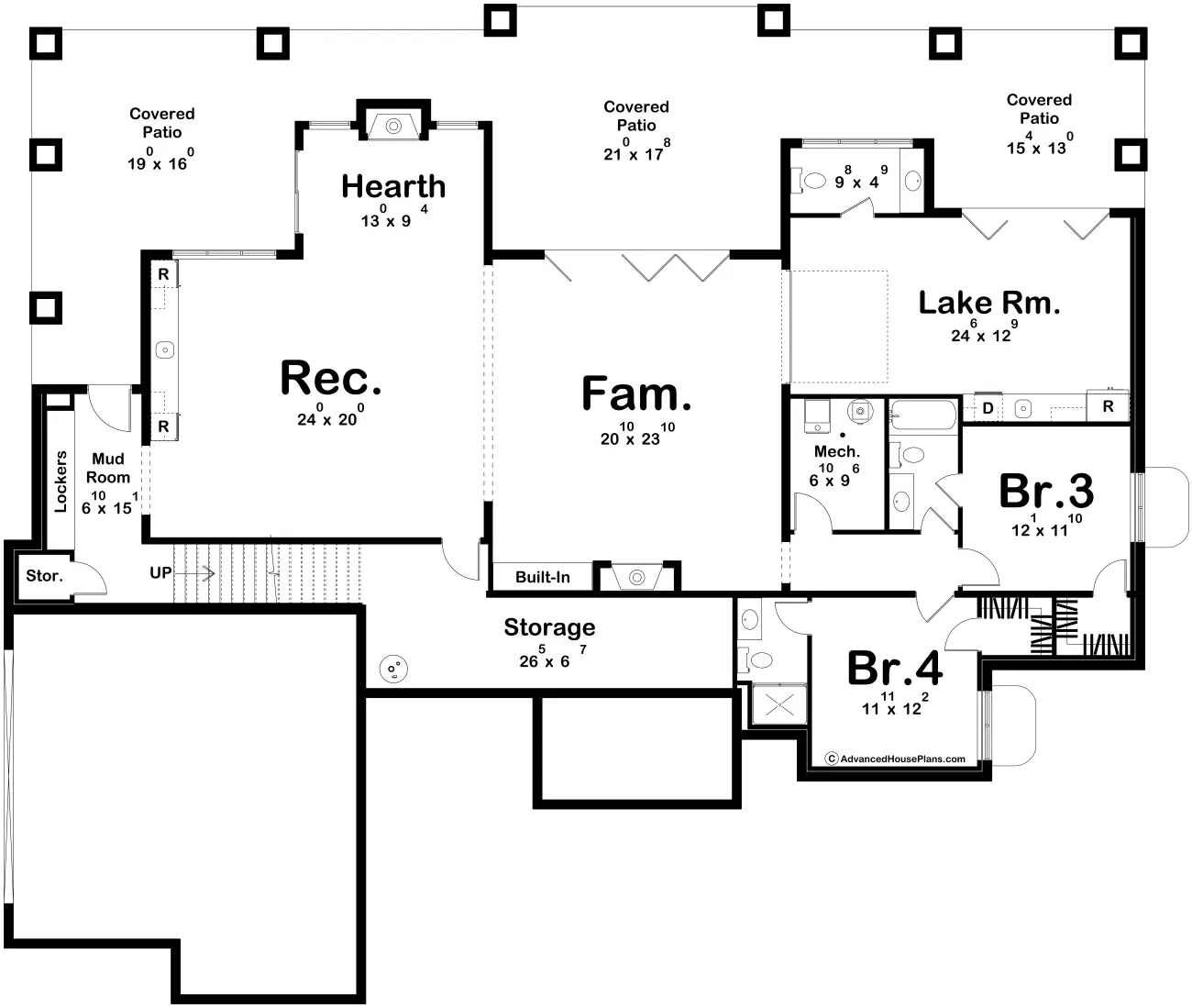

Optional Basement Floor Layout
Sedalia Rendering

Plan Video Tour

Plan Description

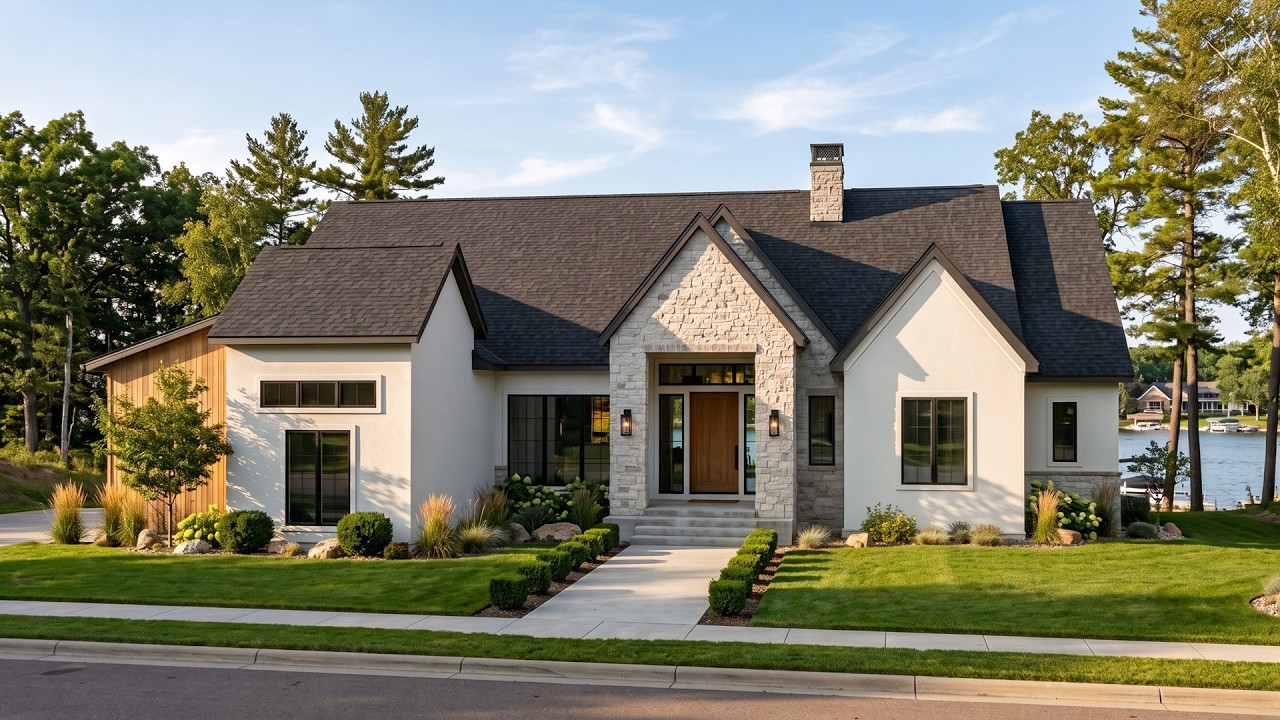

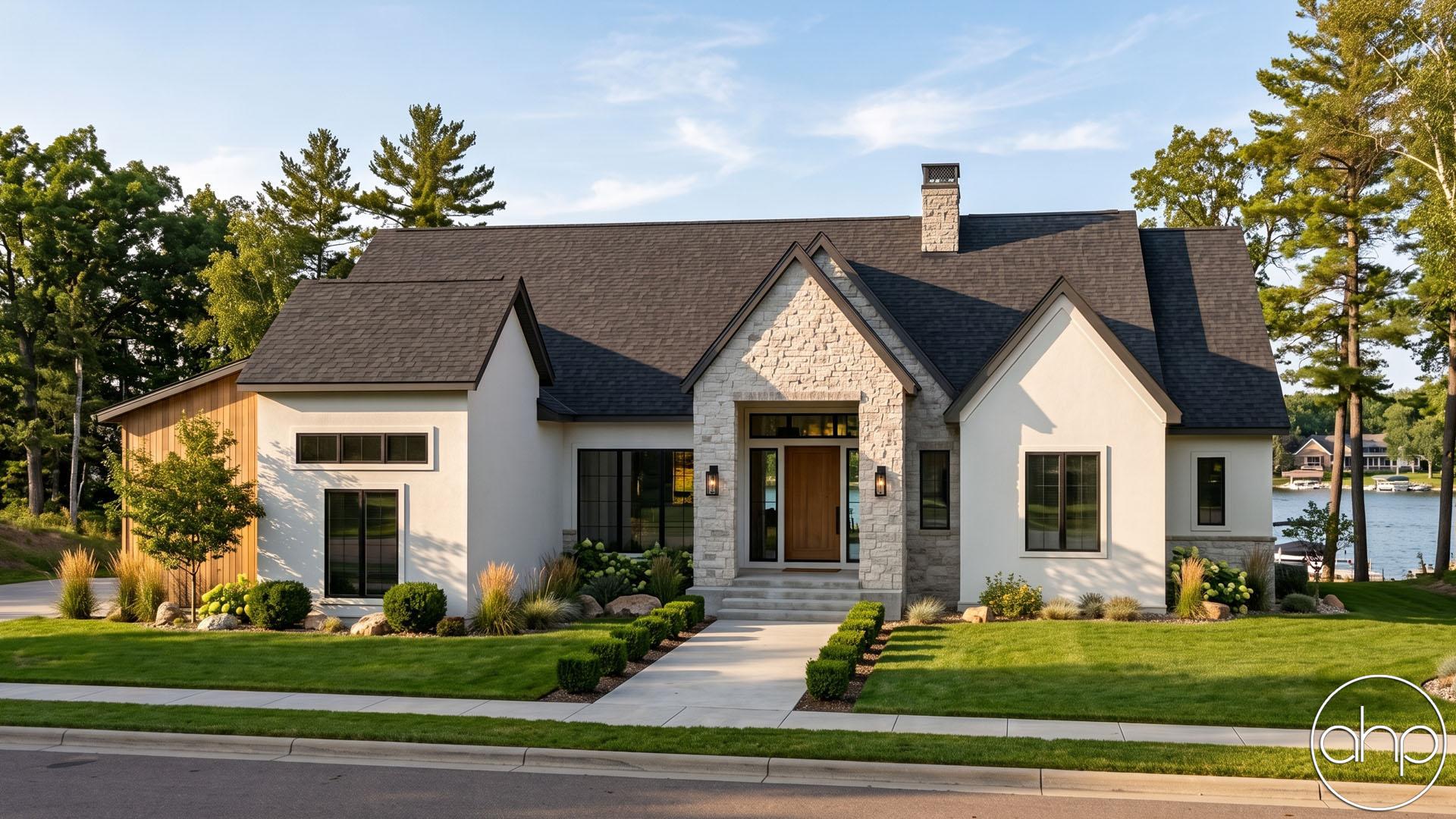

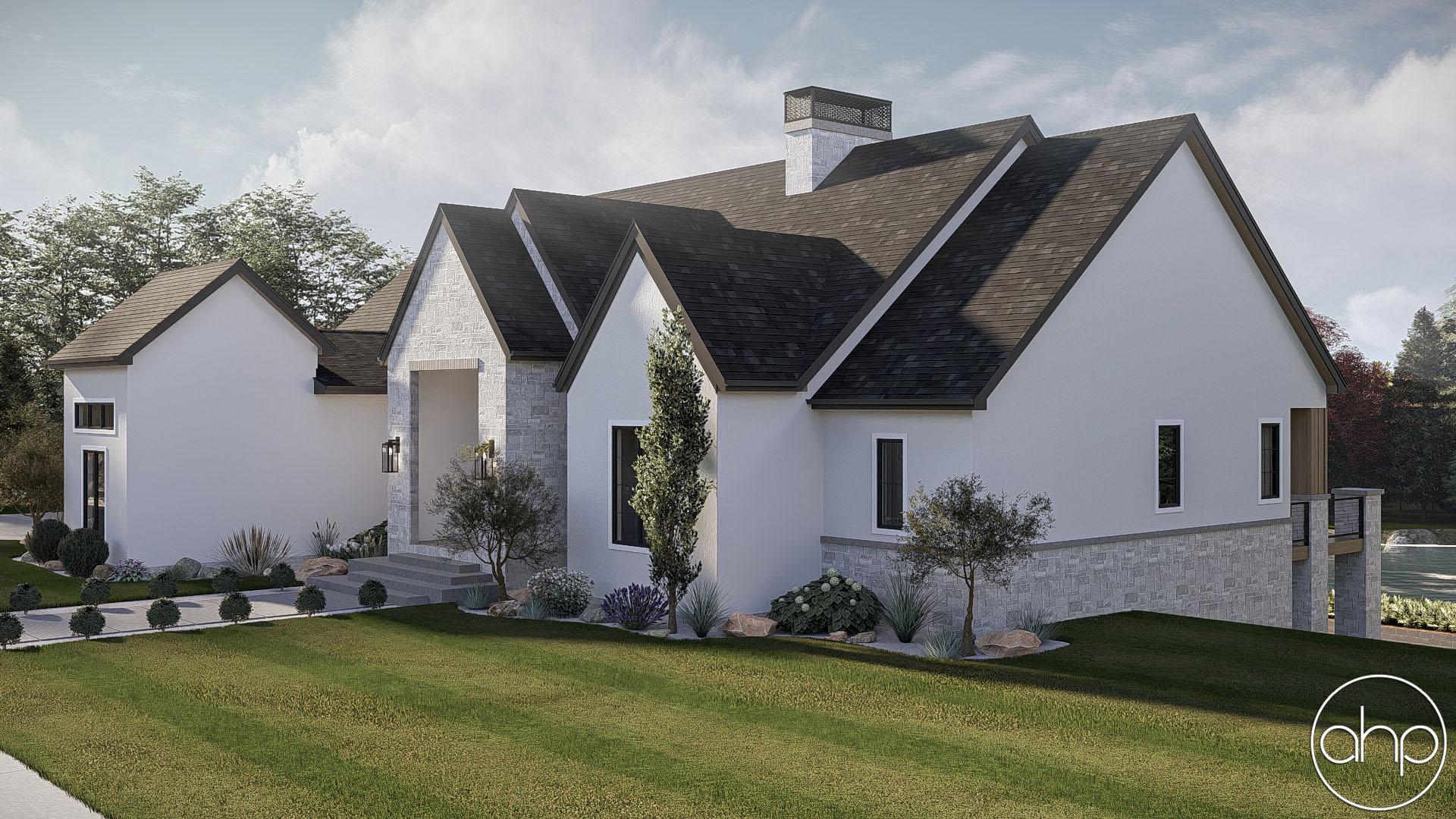

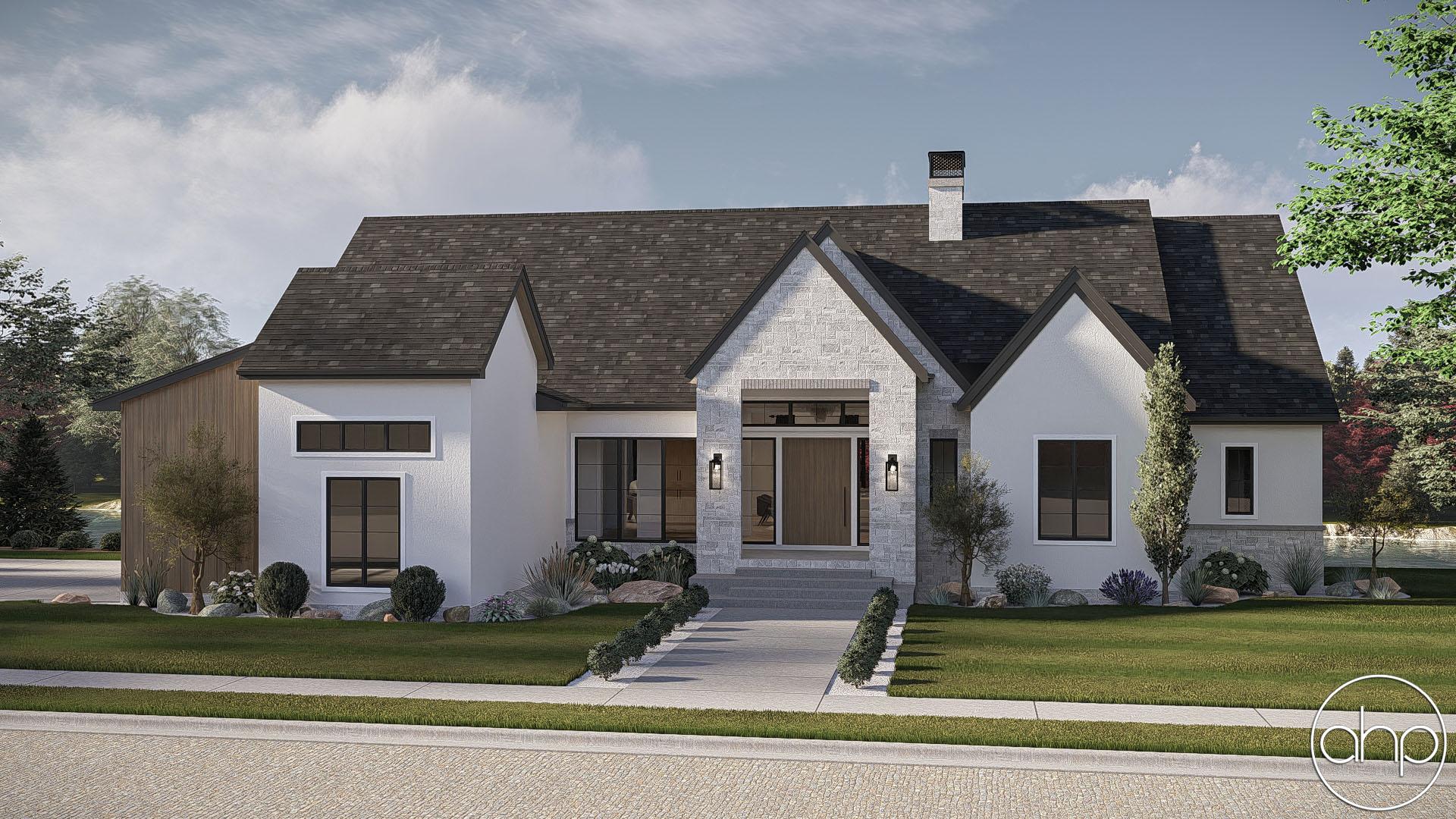

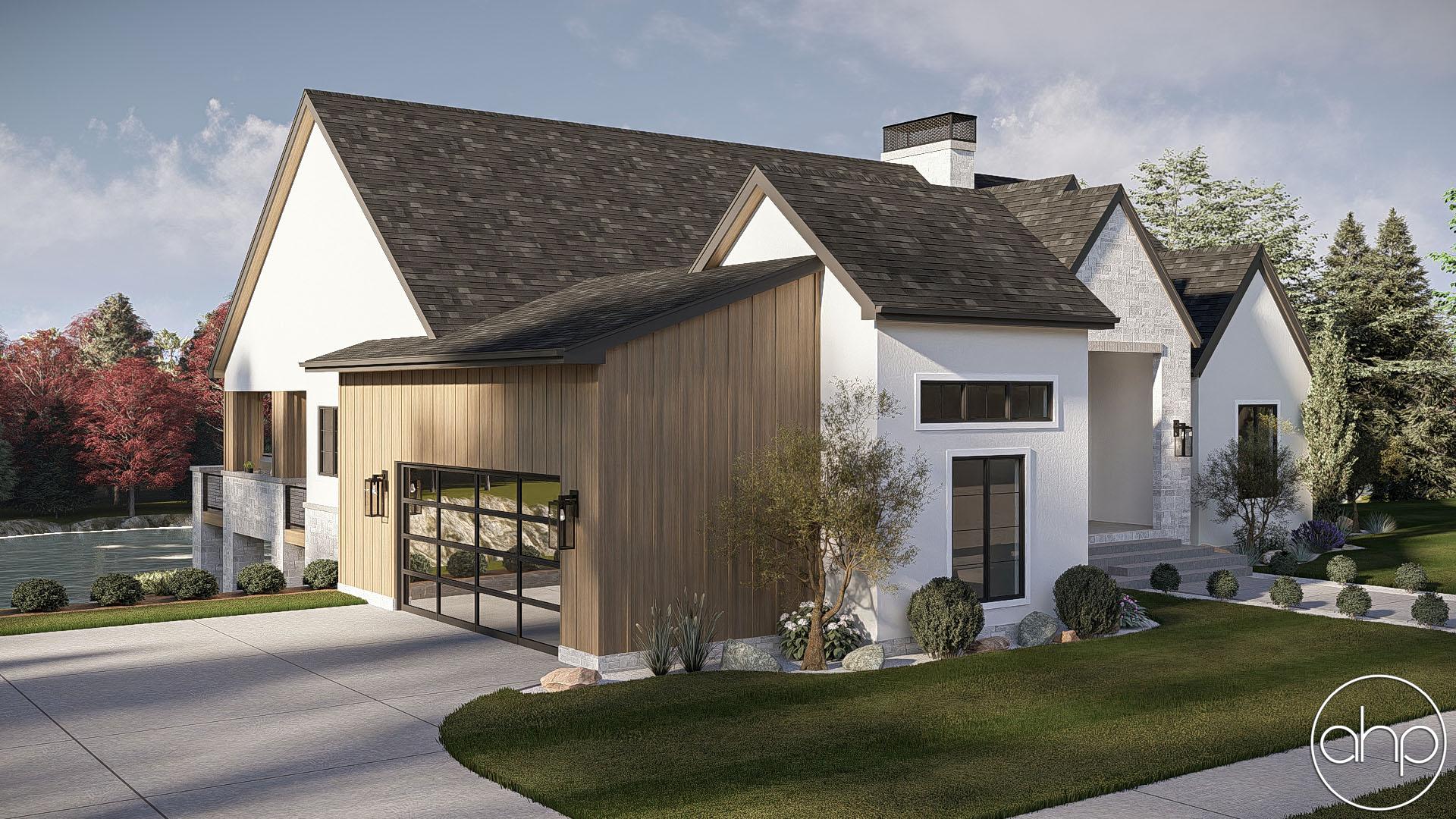

This beautiful one-story modern cottage lake house is designed to blend timeless cottage character with clean, contemporary details and an inviting connection to the outdoors. The exterior combines natural stone, smooth stucco, and warm wood accents, creating a refined yet relaxed lakeside aesthetic. Large expanses of glass throughout the rear of the home take full advantage of the lake views and bring abundant natural light into the living spaces.

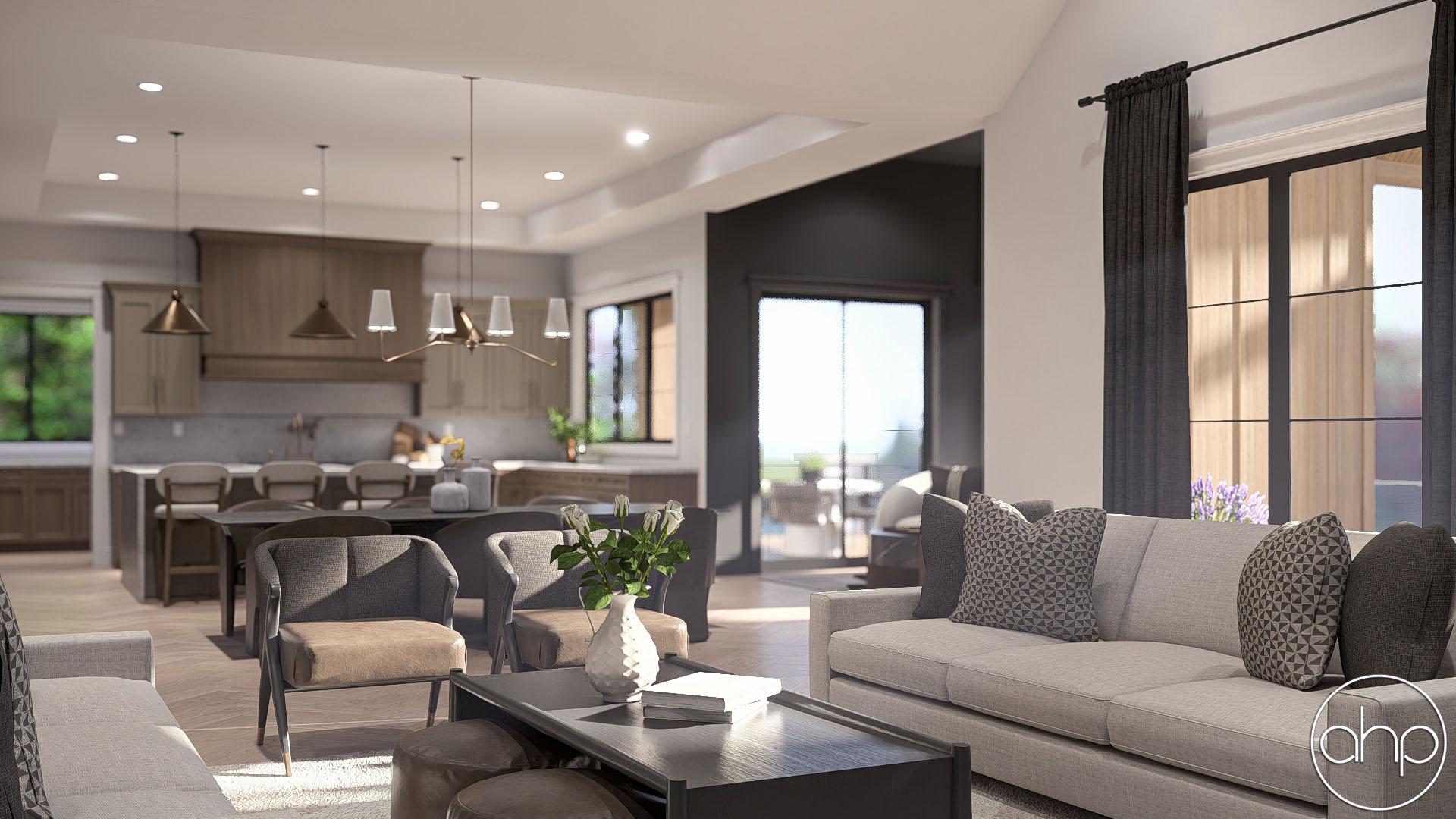

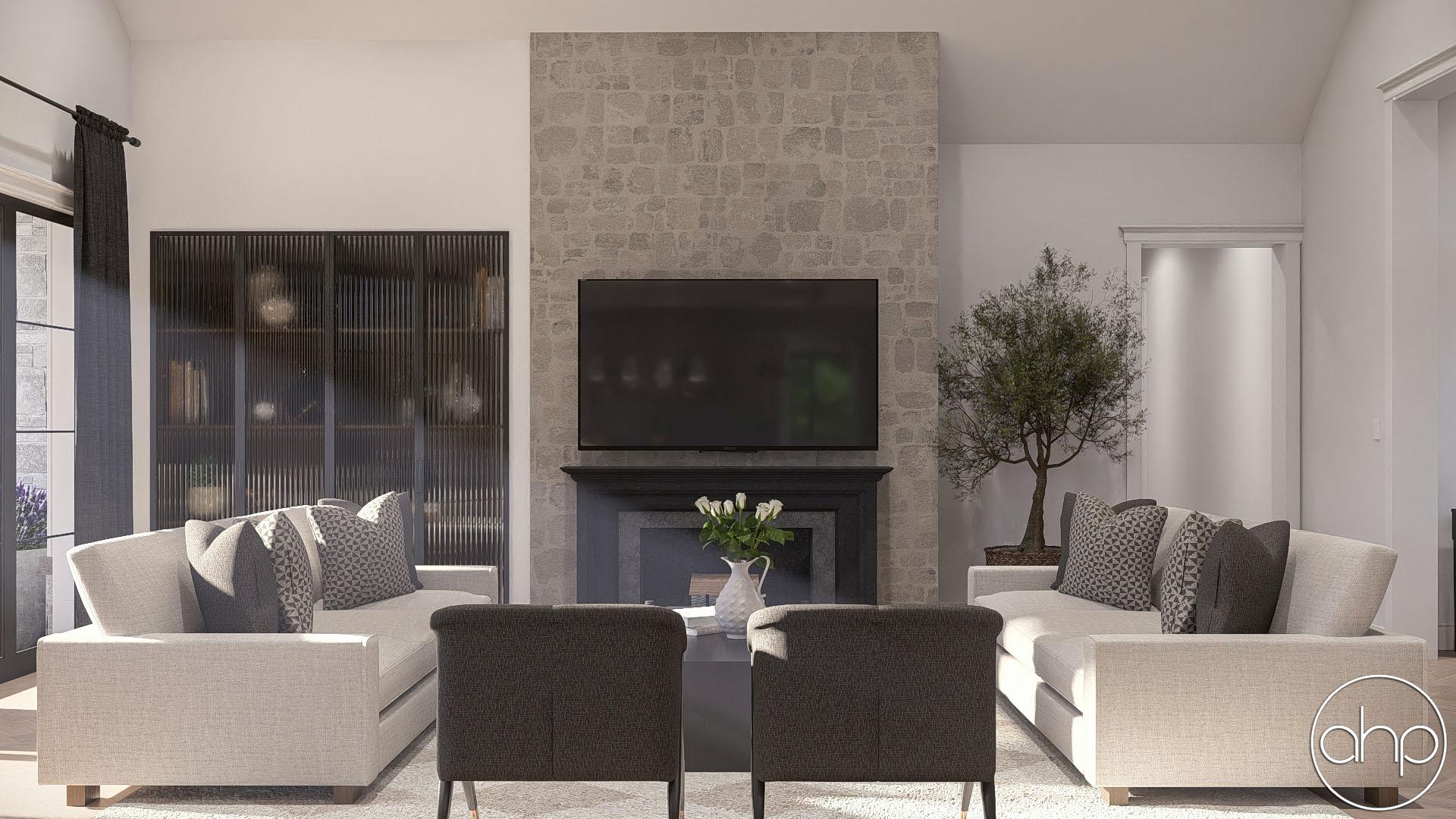

A covered entryway welcomes guests into a spacious foyer that opens naturally into the home's impressive great room. The great room serves as the central gathering space and features a dramatic cathedral ceiling, creating an open and airy atmosphere. A large glass door provides beautiful views of the lake and direct access to the home's oversized rear deck.

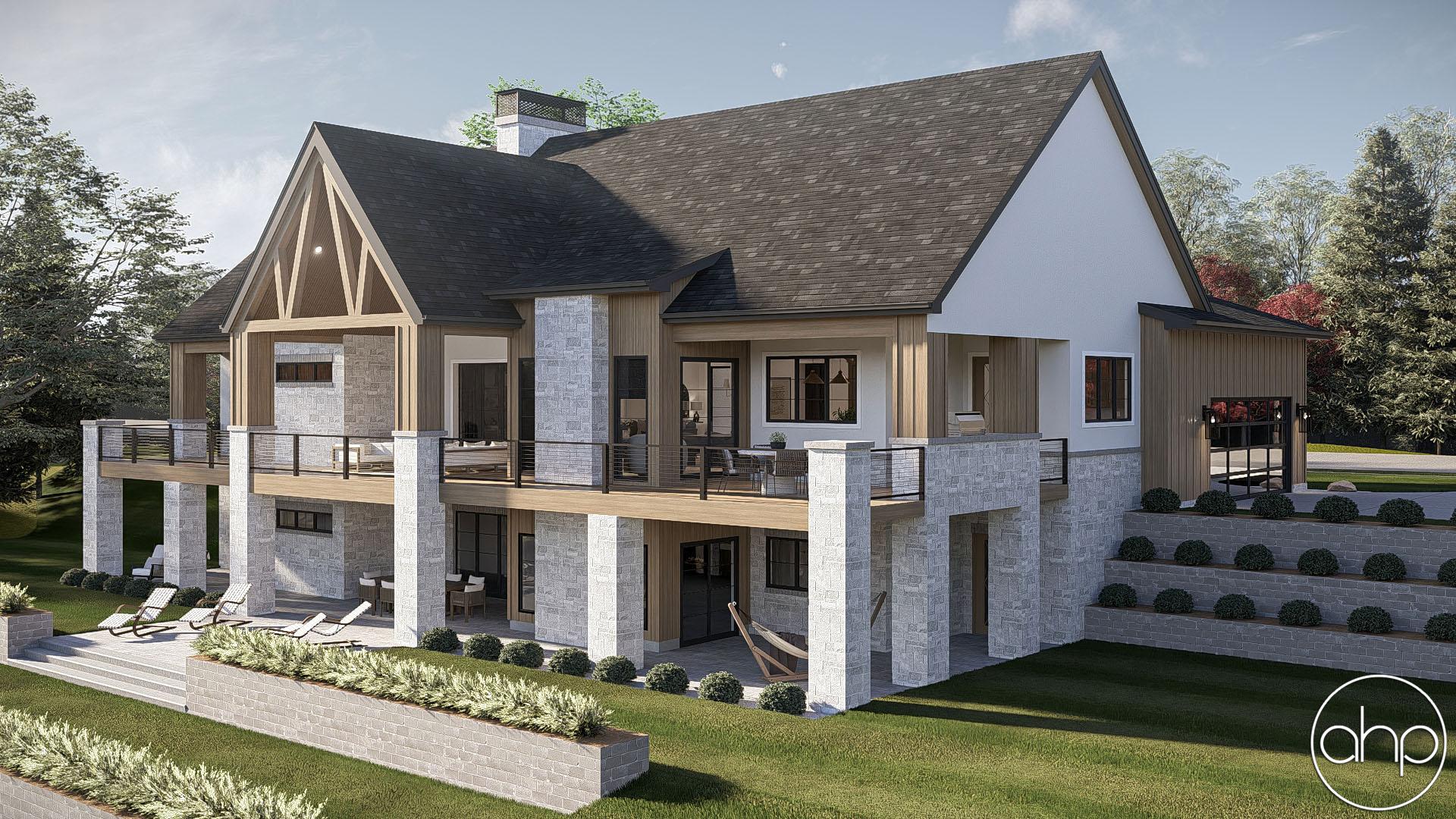

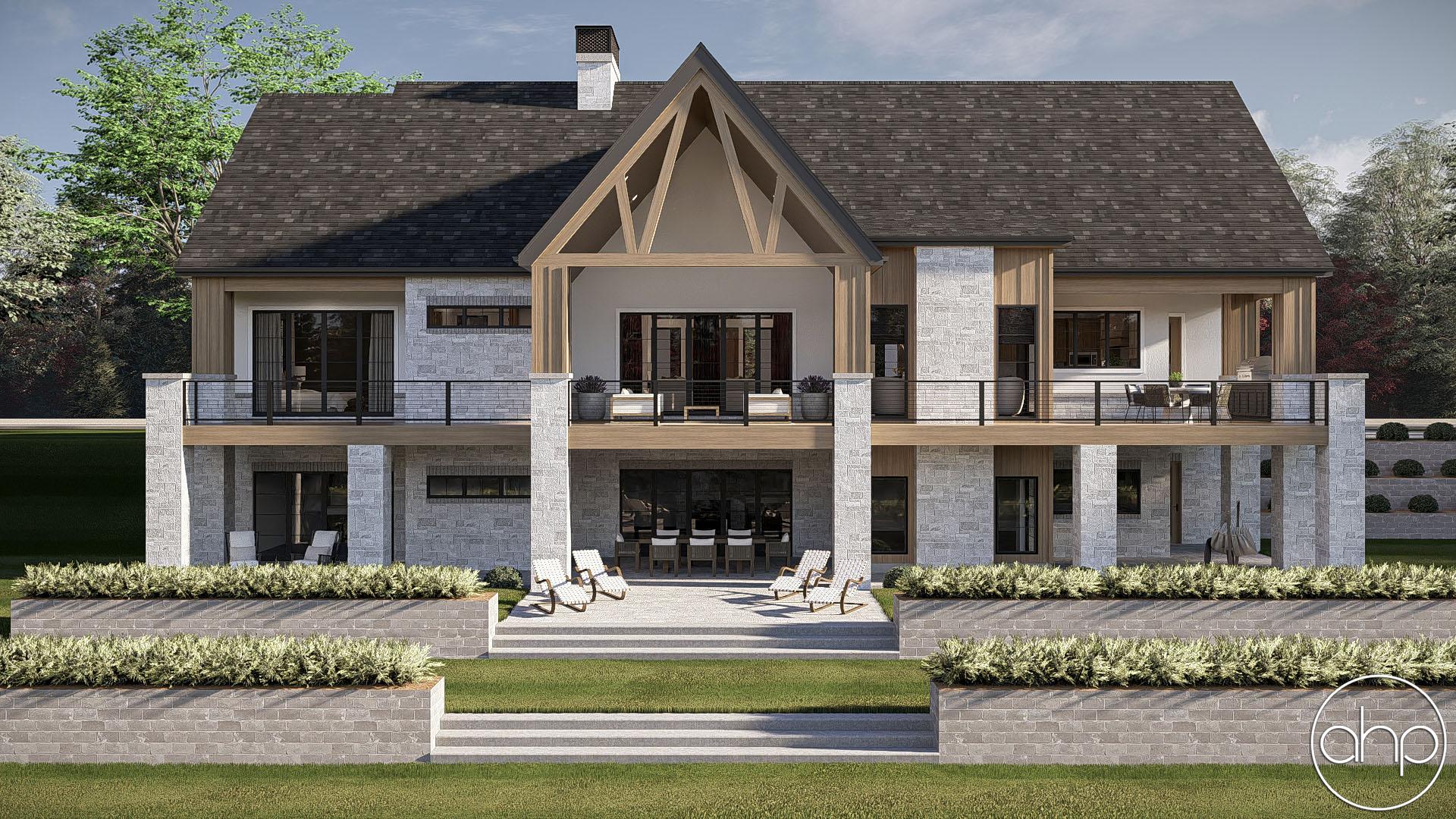

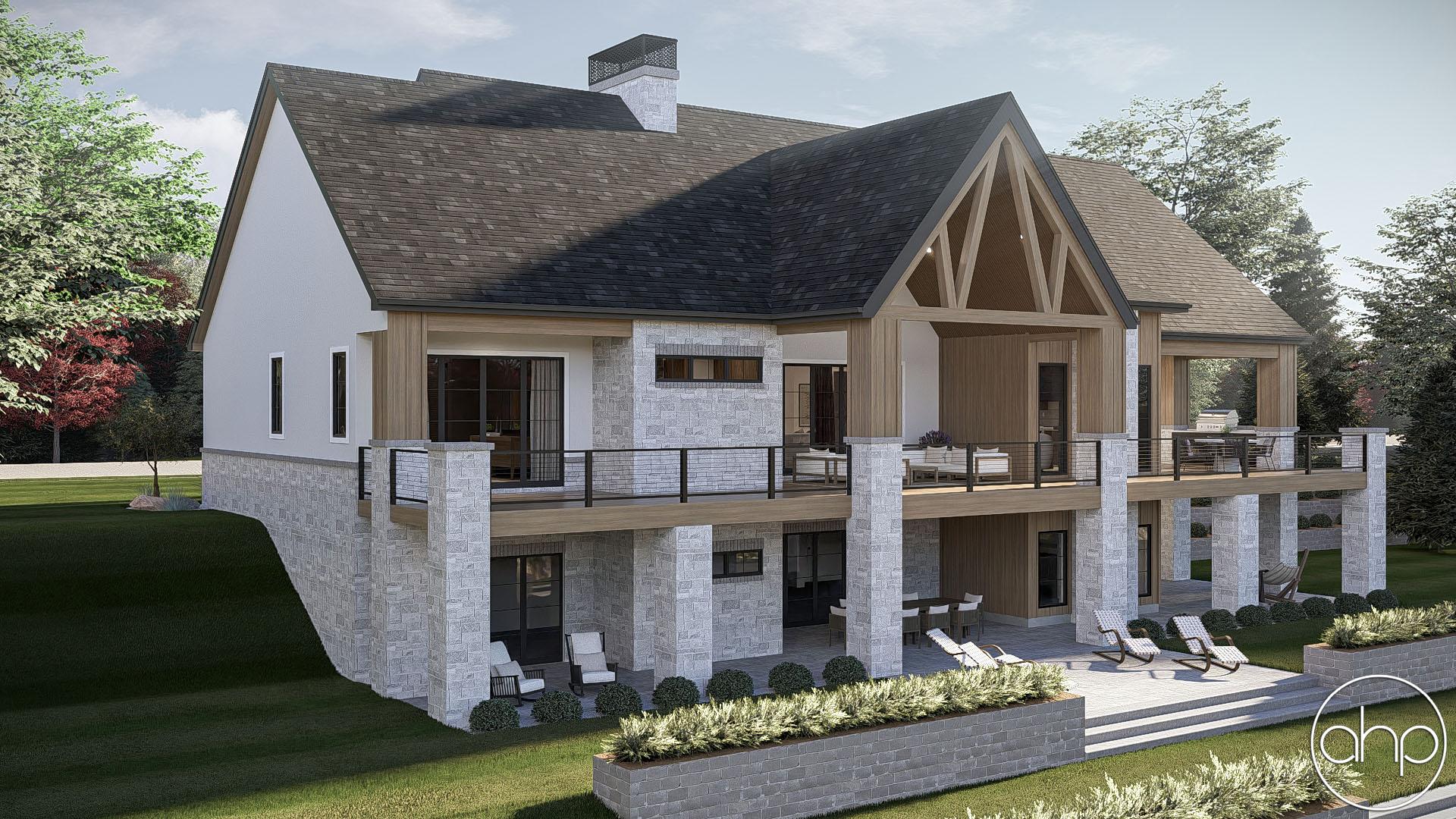

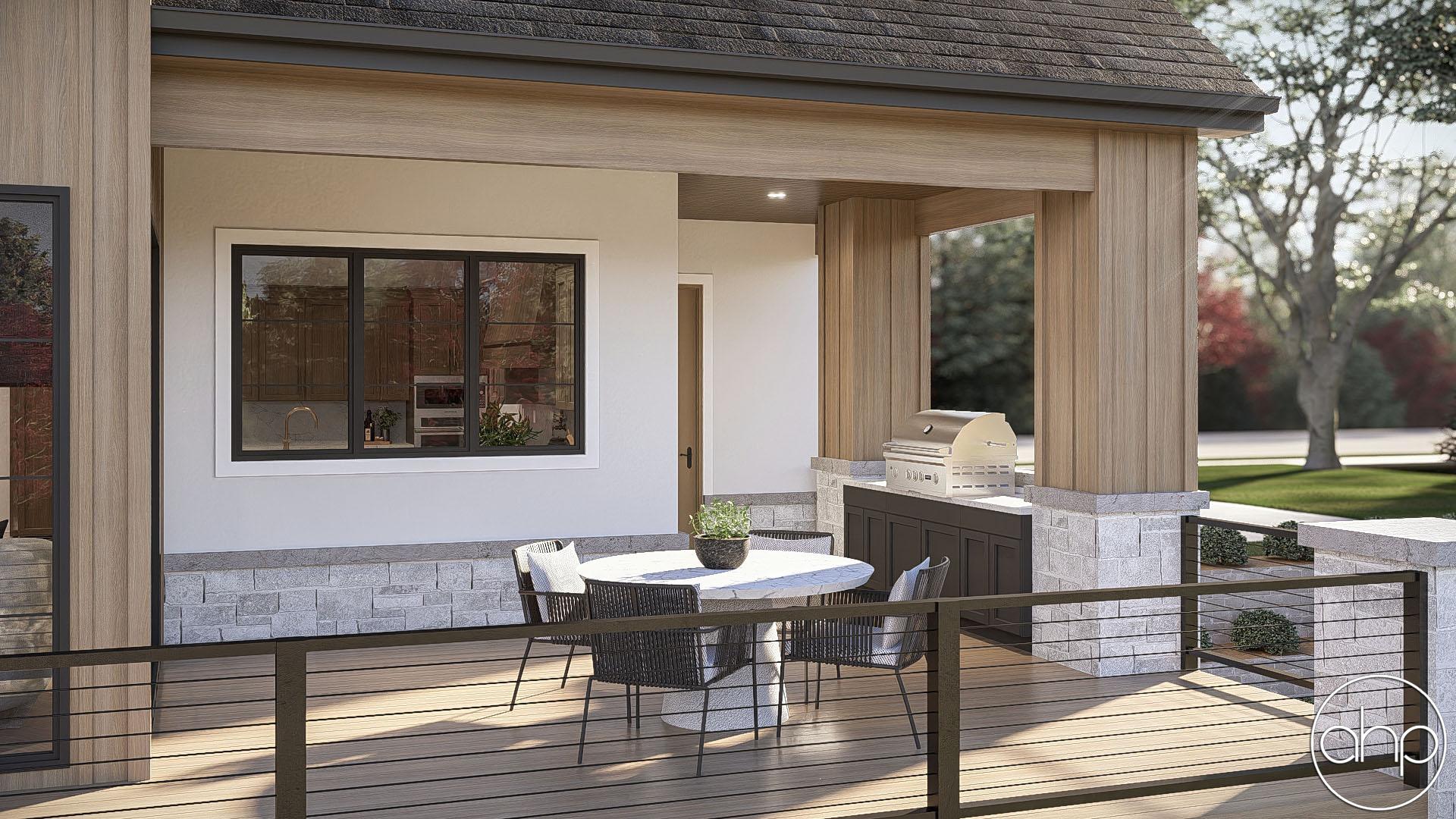

The rear deck spans nearly the entire width of the home, creating an expansive outdoor living area overlooking the lake. It provides plenty of room for outdoor seating, dining, entertaining, and enjoying the surrounding landscape. An outdoor grilling station is conveniently located adjacent to the kitchen and is accessed directly through the butler's pantry, making indoor and outdoor entertaining exceptionally convenient.

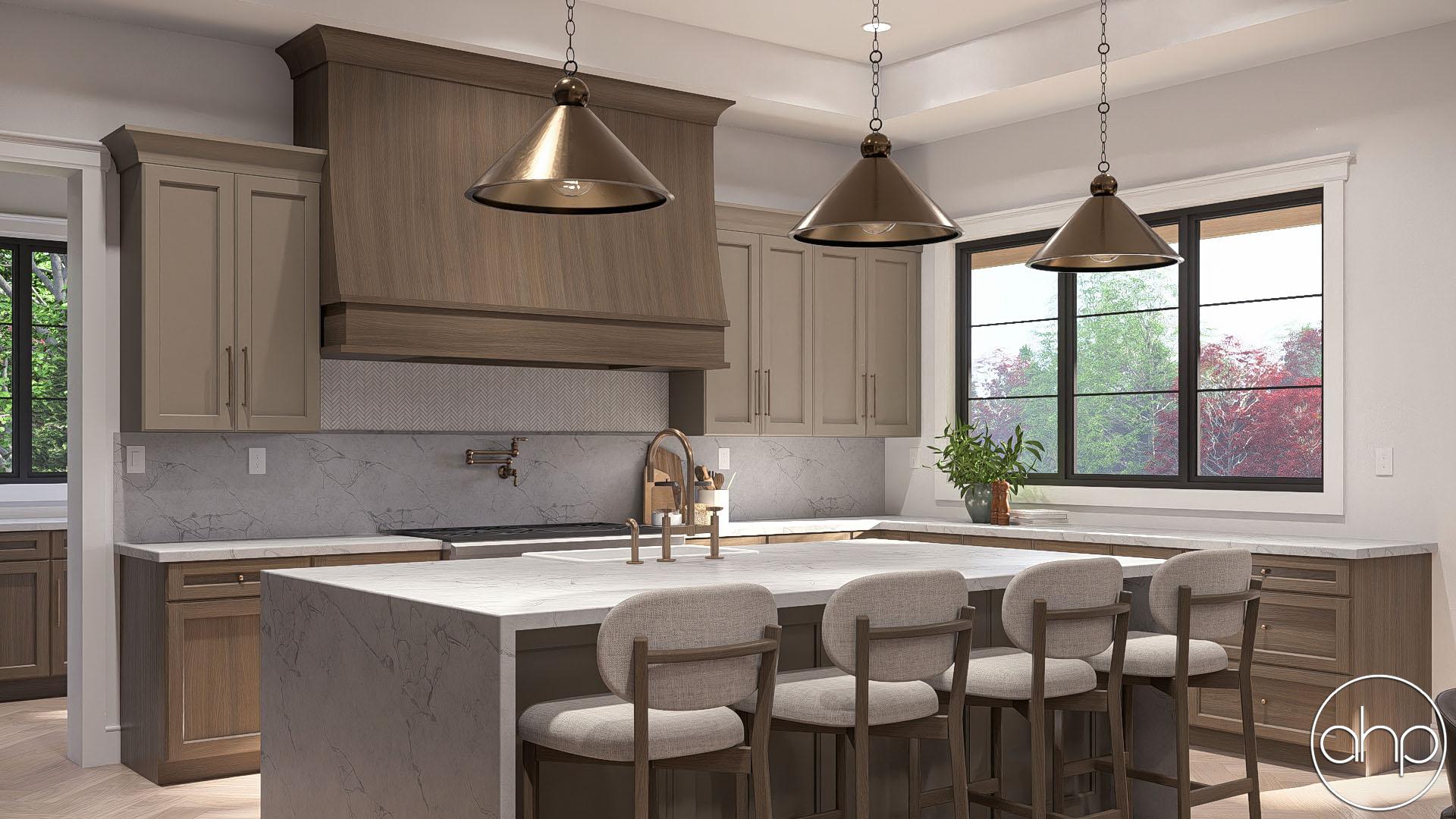

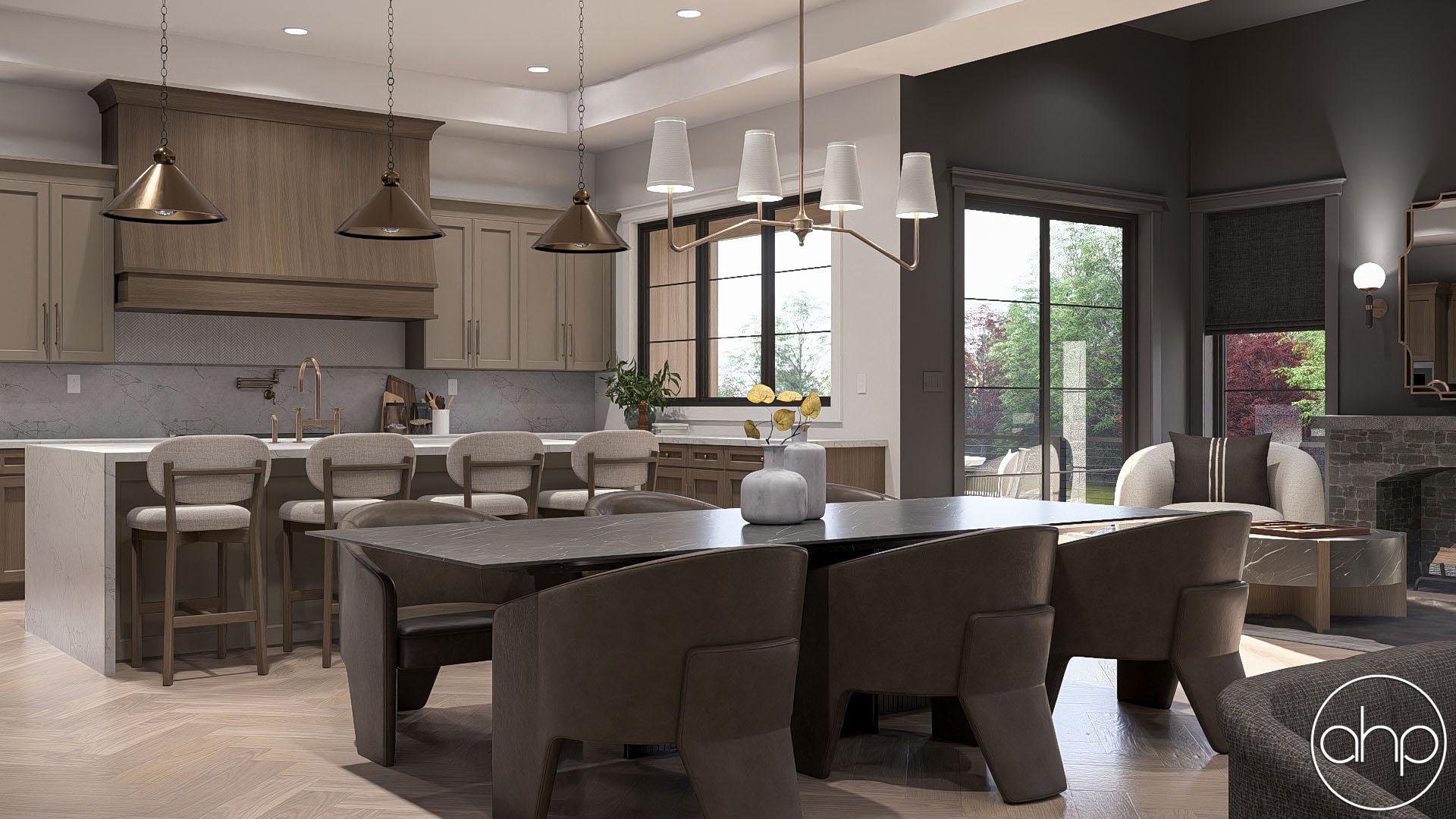

Adjacent to the great room is an open dining room and a well-appointed U-shaped kitchen. The kitchen is designed for both everyday living and entertaining, with generous counter space, ample cabinetry, and direct connections to the dining and living areas. A dedicated butler's pantry provides additional preparation and storage space and connects directly to both the kitchen and rear deck. A separate food pantry offers additional storage for groceries and small appliances.

Just off the dining room is a cozy hearth room designed as a more intimate gathering space. This inviting room features a high ceiling, a prominent fireplace, and large windows that frame beautiful views of the lake. It provides a comfortable retreat for quiet evenings while remaining connected to the main living spaces.

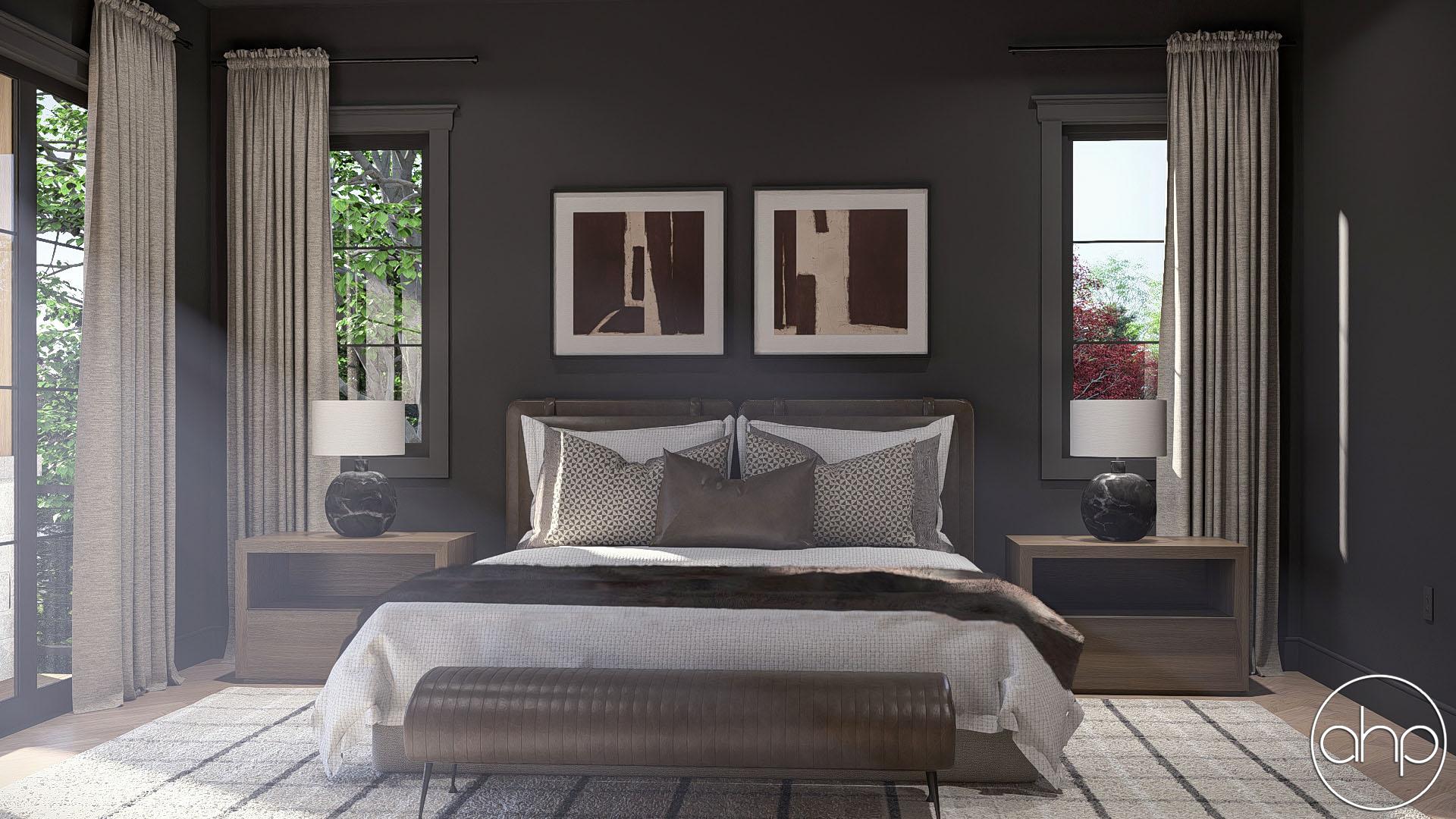

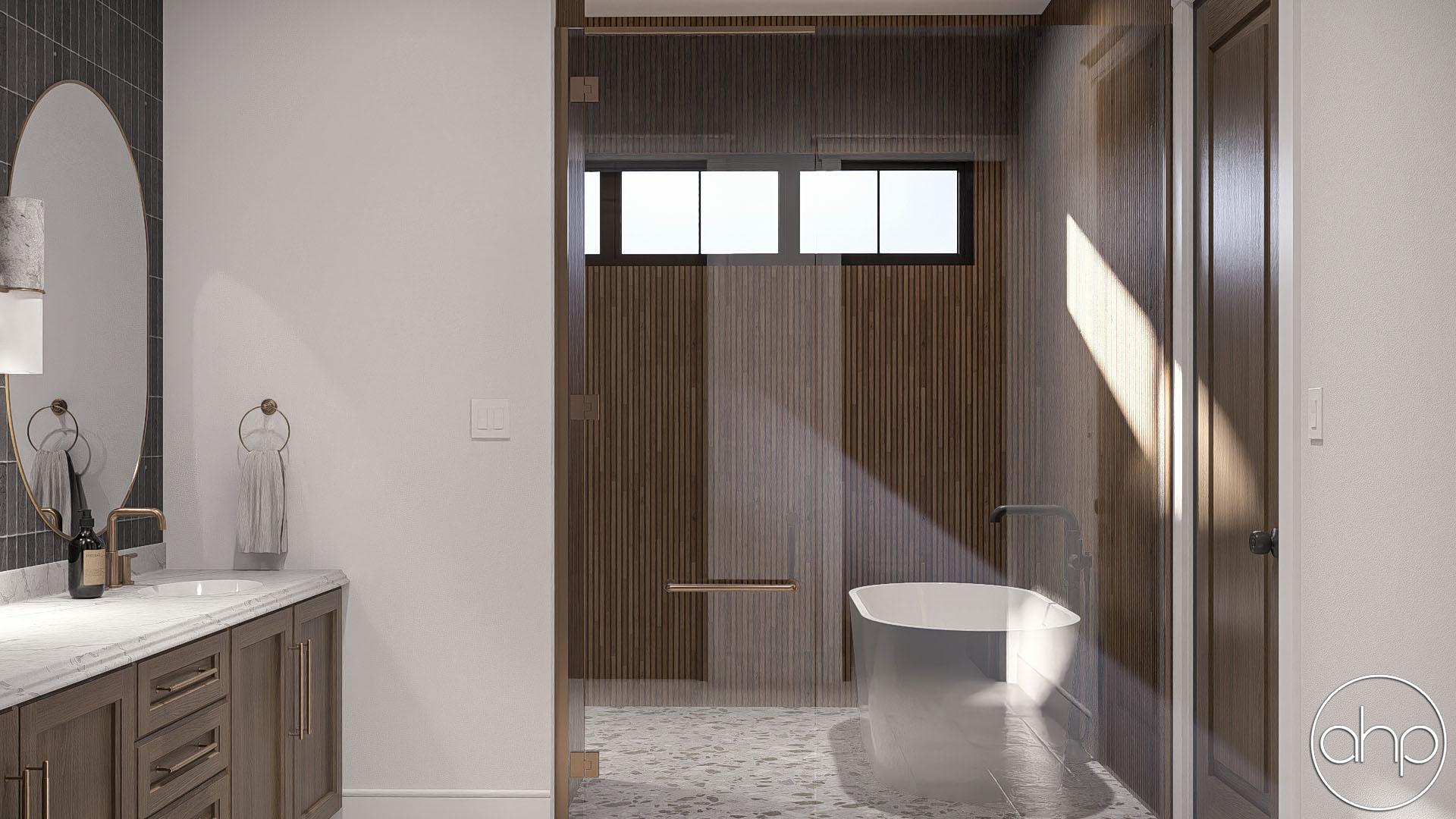

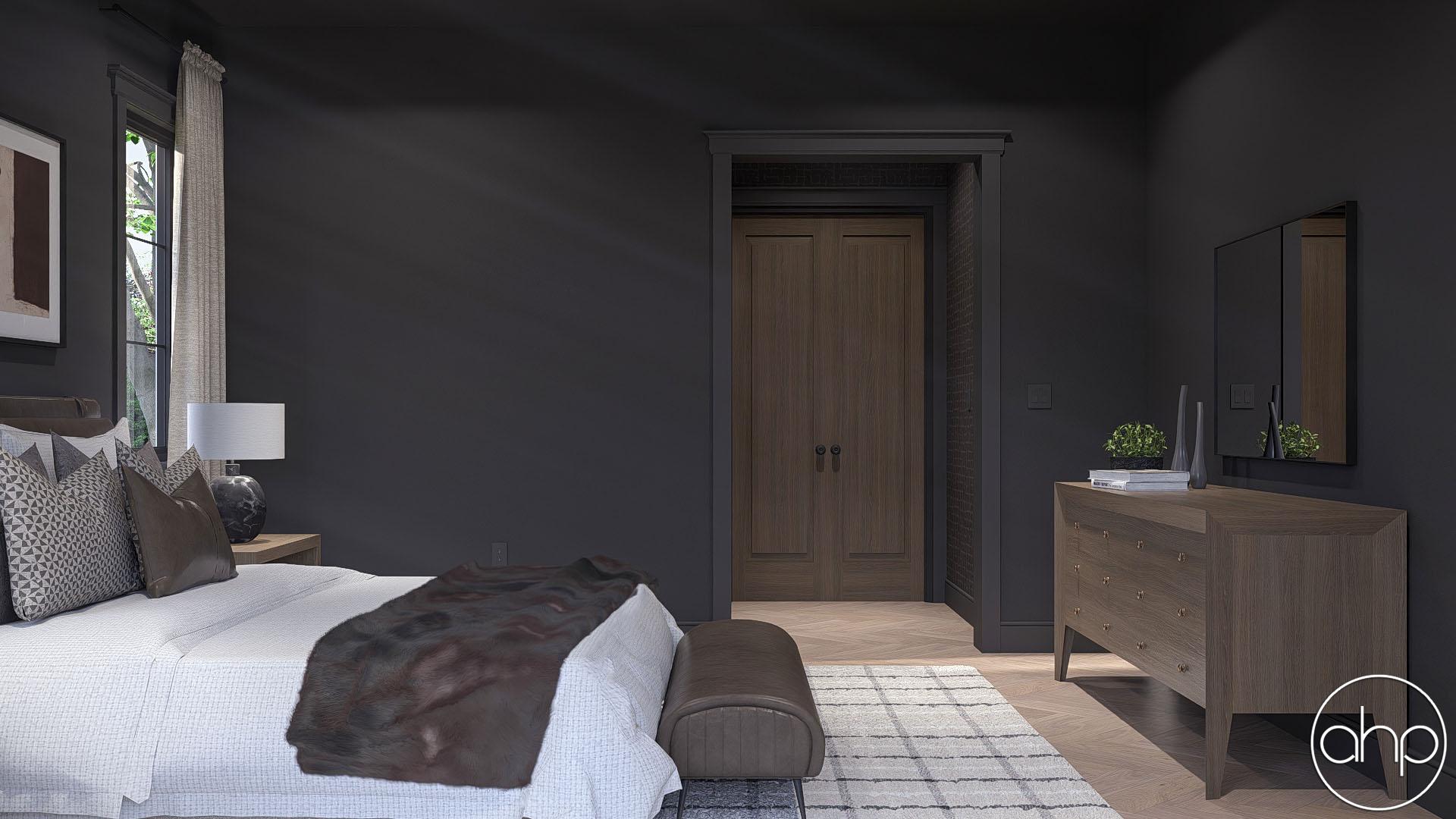

The private owner's suite is located on the opposite side of the home, creating separation from the main entertaining areas and the secondary bedroom. The master bedroom features large rear-facing windows with views toward the lake and a small covered deck accessed directly from the bedroom. The luxurious master bathroom includes a dual vanity, a spacious walk-in shower, and separate his-and-hers walk-in closets, providing both comfort and functionality.

A second bedroom is located nearby and is designed as a private guest suite. It includes its own full bathroom and walk-in closet, making it ideal for visiting family or overnight guests.

Additional functional spaces are thoughtfully incorporated throughout the home. A conveniently located half bathroom serves the main living and entertaining areas, while a dedicated mud room provides a practical transition from the exterior. The mud room includes built-in lockers for coats, shoes, outdoor gear, and everyday storage.

Overall, the plan is designed around the lake, with the major living spaces oriented toward the rear of the home and the expansive deck acting as an extension of the interior. The combination of cathedral and high ceilings, natural materials, abundant glass, multiple outdoor connections, and a carefully separated private bedroom wing creates a sophisticated yet comfortable modern cottage that is equally suited to relaxed family living and entertaining at the lake.

Construction Specifications

Basic Layout Information
Bedrooms 2
Bathrooms 3
Garage Bays 2
Square Footage Breakdown
Main Level 2676 Sq Ft
Total Finished Area 2676 Sq Ft
Garage 685 Sq Ft
Covered Areas (patios, porches, decks, etc) 801 Sq Ft
Optional Basement Area (Not included in total sq ft) 2260 Sq Ft
Exterior Dimensions
Width 82' 0"
Depth 71' 8"
Ridge Height 28' 3"
Default Construction Stats
Default Foundation Type Walkout
Default Exterior Wall Construction 2x4
Roof Construction Method Trusses
Floor Construction Method Floor Trusses
Roof Pitches Primary 10/12, Secondary 14/12, 4/12
Foundation Wall Height 9'
Main Level Ceiling Height 10'

Instant Cost to Build Estimate

Get a comprehensive cost estimate for building this plan. Our detailed quote includes all expenses, giving you a clear budget overview for your project.

Powered By Advanced House Plans ©

What's Included in a Plan Set?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.

Cover Sheet

Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements

Exterior Finishes Sheet

Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.

Foundation Plans Sheet

Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.

Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.

Floor Plans and Electrical

Roof Plan

Roof Plans

Typical Wall Section, Stair Section, Cabinets

Typical Wall Section, Stair Section, Cabinets Sheet

If you have any additional questions about what you are getting in a plan set, contact us today.
