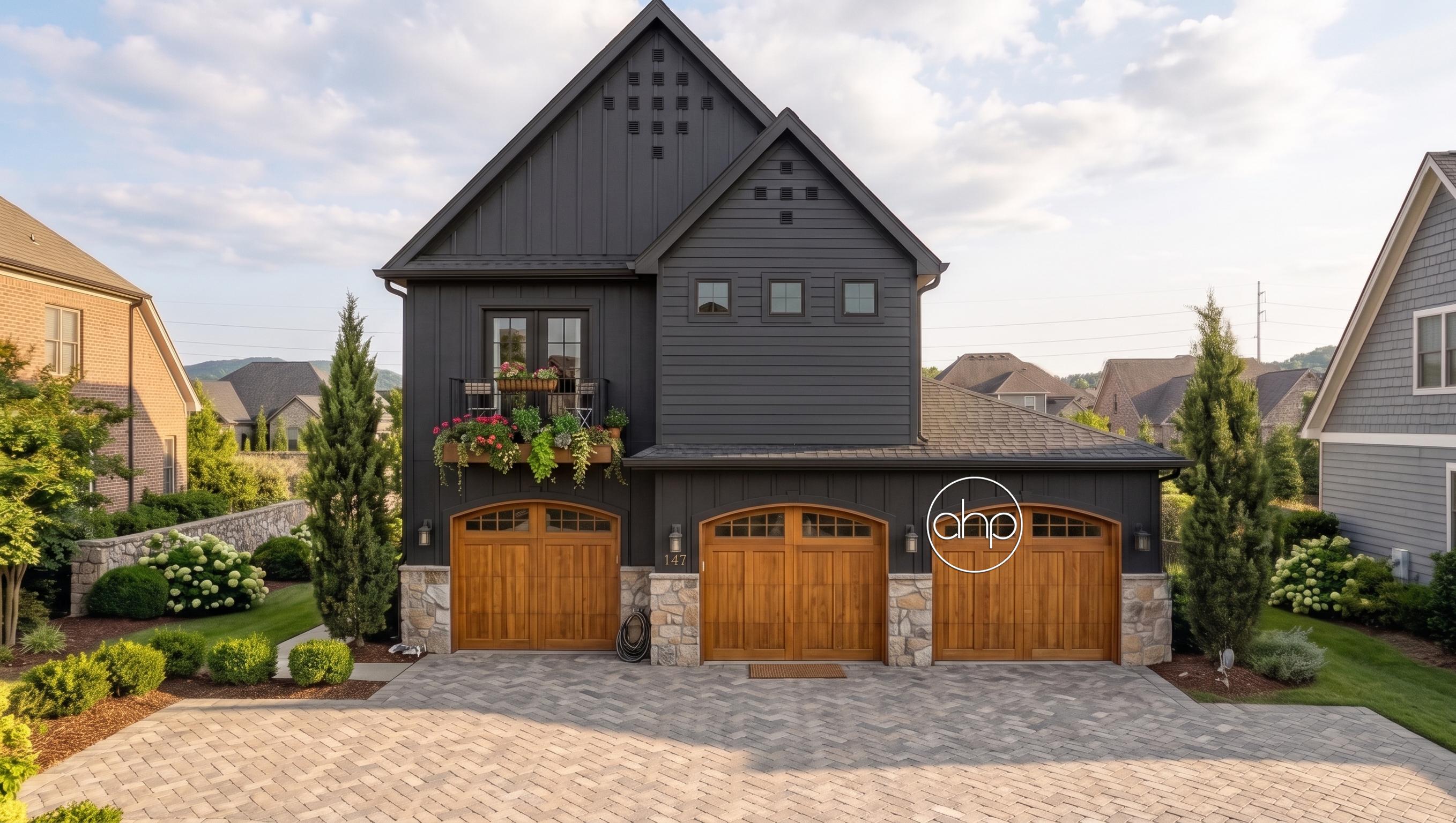

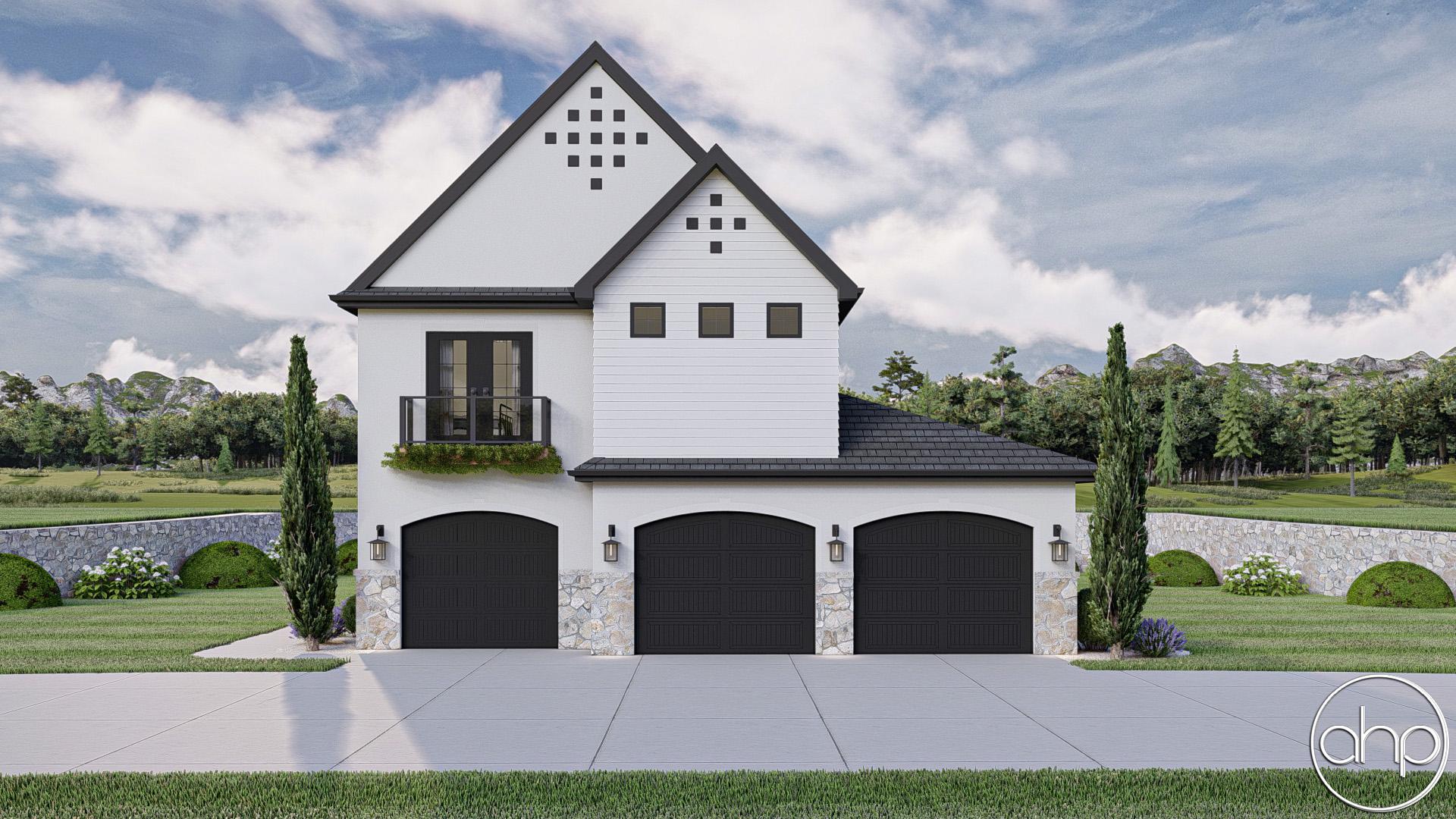

Modern Cottage Style Carriage House Plan

Erskine Hills - 30200

1165
Sq Ft
1
Beds
1
Baths
3
Bays
41' 0"
Wide
46' 0"
Deep

Floor Plan Images

Main Level

Erskine Hills

Second Level

Erskine Hills

Plan Description

This modern cottage style carriage house plan is unique in many ways. With 1165 square feet, 1 bed, and 1 bath, it is the perfect home for a new couple or small family home. AirBnb anyone?

This plan is complete with a spacious two-car garage and additional shop area that provides an extra 296 square feet. Not interested in having a workshop? Turning it into an at-home gym would be a great addition.

Walking inside through the garage or shop areas brings you right into a mudroom, perfect for cleaning up prior to going upstairs, or you can head straight through to a covered patio, complete with a sunken patio with a built-in fire pit and bench.

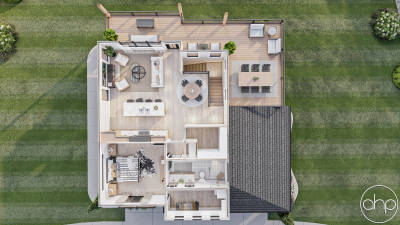

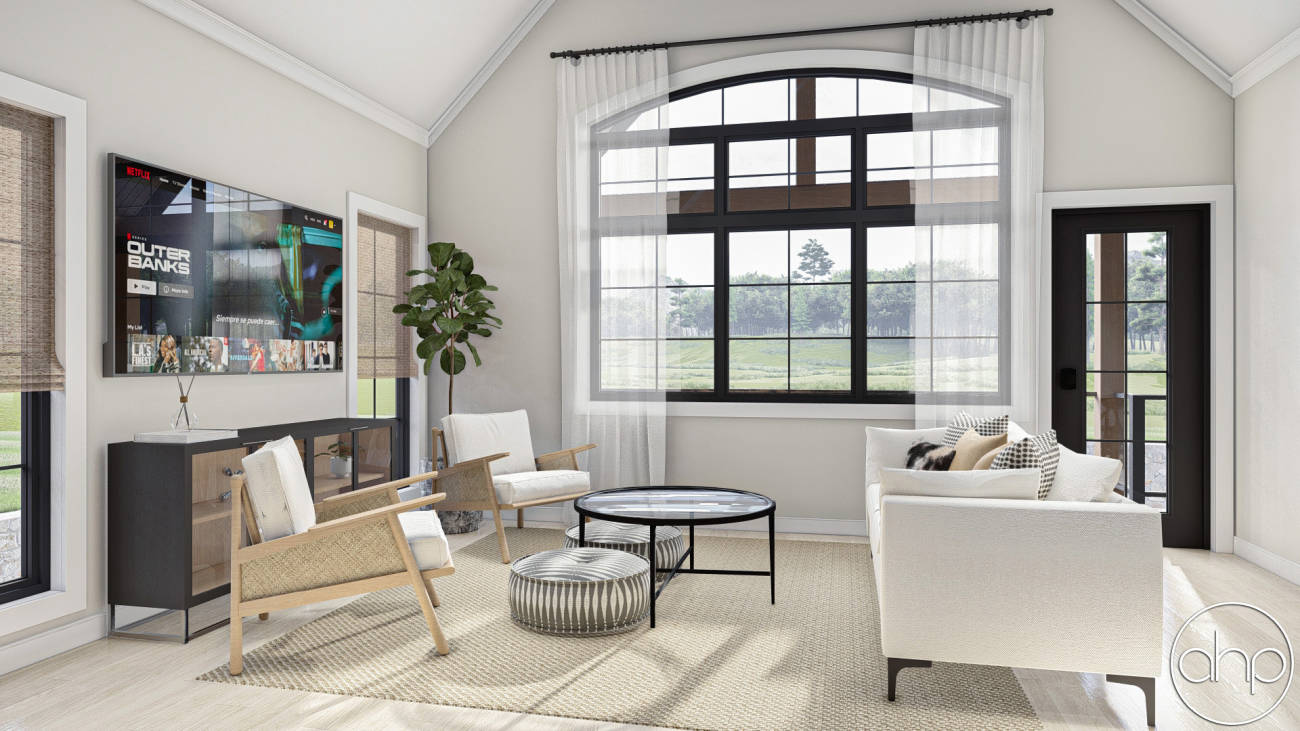

The upstairs is where the additional living quarters lie, including the bedroom. Walking upstairs brings you straight into the dining area, which is open with the living room and kitchen. The living room provides access to the spacious covered deck, and the kitchen is complete with an island and walk-in pantry.

Walking further to the front of the house is where you can find the bedroom, with a balcony and large walk-in closet, as well as the bathroom, with double vanities and a separate shower.



As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at AHP.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Construction Specs

Layout
Bedrooms 1
Bathrooms 1
Garage Bays 3
Square Footage
Main Level 238 Sq. Ft.
Second Level 927 Sq. Ft.
Covered Area 371 Sq. Ft.
Garage 637 Sq. Ft.
Total Finished Area 1165 Sq. Ft.
Exterior Dimensions
Width 41' 0"
Depth 46' 0"
Ridge Height
Calculated from main floor line
34' 9"
Default Construction Stats
Stats are unique to the individual plan.
Foundation Type
Slab
Exterior Wall Construction
2x4
Roof Pitches
Primary 12/12, Secondary 8/12, 4/12
Main Wall Height
10'
Second Wall Height
9'

What is included in a set of house plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

Cover Sheet: Shows the front elevation often times in a 3D color rendering and typical notes and requirements.
AHP Plan Cover Sheet
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
AHP Front and Rear Elevations
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
AHP Example Foundation Plan
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
AHP Example Floor Plan
Roof Plan
AHP Example Roof Plan
Typical Wall Section, Stair Section, Cabinets
AHP Example Sections
