29133 | Acevedo


1.5 Story

3365 Sq. Ft.

3 Beds

4 Baths

3 Car
Did you know you can make alterations to this plan?

Floor Plans

Acevedo Floor PlanAcevedo Floor Plan

Plan Description

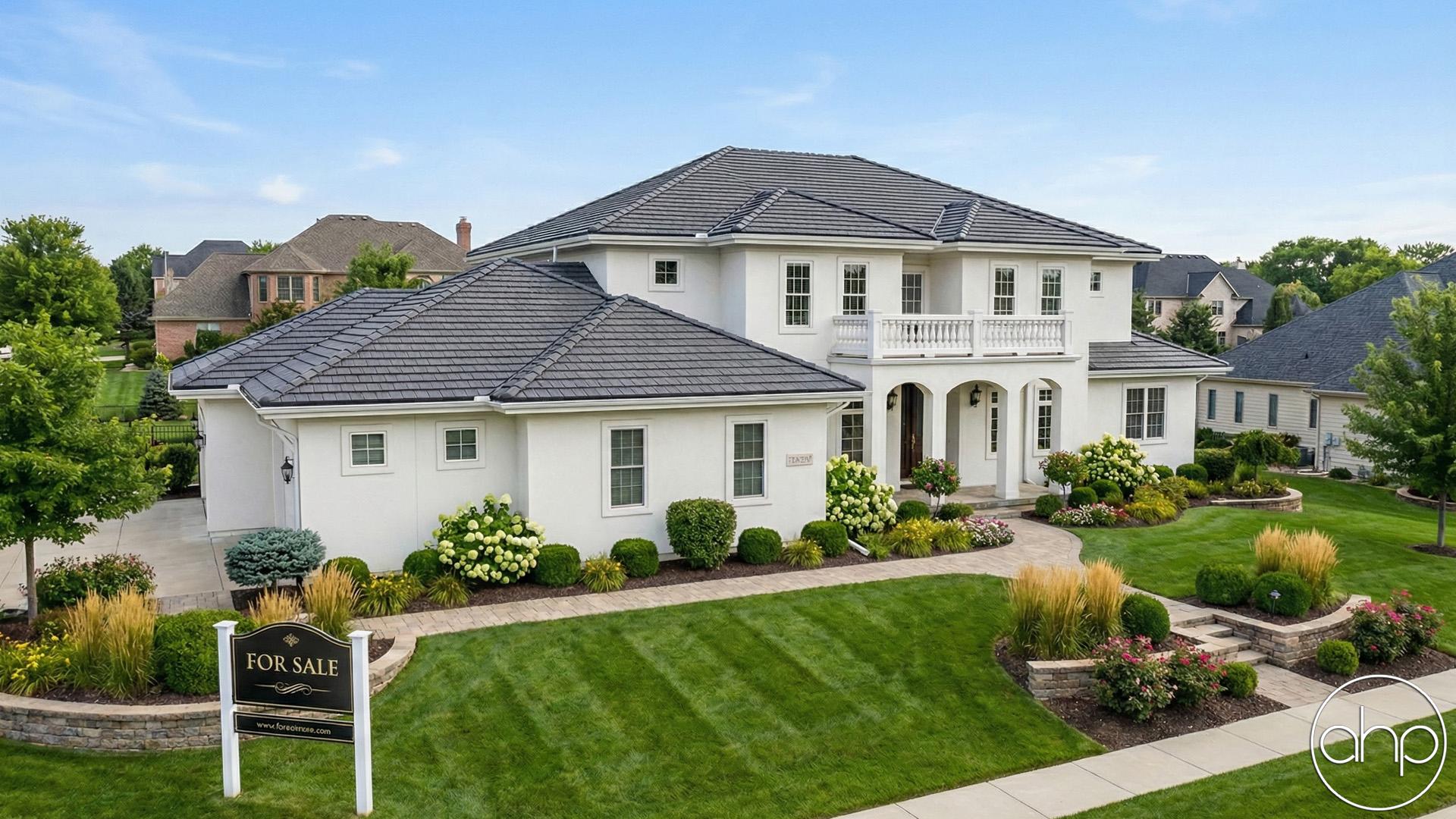

A striking front porch, lined with columns and topped by a balconied deck, serves as a beautiful centerpiece to this marvelous Mediterranean-style, 1-1/2 story house plan.

Just inside, the entry hall is flanked by a library and formal dining room with built-in hutch.  The library features built-in bookcases -- one of which that cleverly swings open to reveal a "secret" space.

Further inside the kitchen, breakfast area and great room interact openly.  The great room features a soaring 2-story-high ceiling and corner fireplace.  Its border is defined by elegant columns and arches.  The breakfast area accesses a covered deck and has open views to an uncovered deck that sprawls across the rear of the home.  The kitchen offers a breakfast island workspace and a sizeable walk-in pantry.  Just beyond the pantry lies a utility area, featuring a laundry room and mud room that accesses the home's 3-car garage.

On the opposite side of the home, a series of decorative arches lead the way to the master suite.  The master bedroom, with a 10-foot-high ceiling, is brightly lit with natural light and accesses the rear deck.  The luxurious bath area features his and her vanities that flank a soaking tub, walk-in shower, compartmented toilet and large walk-in closet with built-in dressing seat.

Upstairs, a central landing opens to an upper-level front deck.  Each of the three secondary bedrooms features walk-in closets and share a centrally located bath.  An alcove just off the landing leads to a generous storage area with three windows.

As always any Advanced House Plans home plan can be customized to fit your needs with our alteration department. Whether you need to add another garage stall, change the front elevation, stretch the home larger or just make the home plan more affordable for your budget we can do that and more for you at Ahp.

Unless you purchase an unlimited use license or a multi-use license you may only build one home from a set of plans. Plans cannot be re-sold.

Full Specifications

Rooms

Bedrooms 3
Bathrooms 4
Car Bays 3

Area

Main 2139 Sq. Ft.
Second 1226 Sq. Ft.
Total Finished 3365 Sq. Ft.
Garage Area 996 Sq. Ft.

Dimensions

Width 59'
Depth 83'
Ridge Height 29'

Construction

Foundation Type Basement
Exterior Walls 2x4
Roof Pitch 6/12
Basement Wall Height 9'
Main Wall Height 9'
Second Wall Height 9'

Plan Features


What is included in a set of plans?

Each set of home plans that we offer will provide you with the necessary information to build the home. There may be some adjustments necessary to the home plans or garage plans in order to comply with your state or county building codes. The following list shows what is included within each set of home plans that we sell. Depending on the home designer there might be more home building information provided.

Our blueprints include:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical stair section
  • Cabinets are shown on all plans.

29133 | Acevedo

$1200
Do you need to get this plan bid out before you buy it? Purchase a bid set for only $250 .
